RAD036GSM 850&DCS1900MHz MOBILE PHONE

English - 3DS12708AAAA 01 C61/62_UM_USA-10-05-06 10/05/06 11:49 Page 1 6. Messages ......................................................................32 6.1 Create an SMS....................................................................................32 6.2 Inbox/Outbox ....................................................................................33 6.3 Archives ..............................................................................................34 6.4 Predefined............................................................................................34 6.5 Delete ..................................................................................................34 6.6 Settings ................................................................................................35 6.7 SMS CB ................................................................................................35 7. Sounds ..........................................................................36 7.1 Mode ....................................................................................................36 7.2 Volume ................................................................................................36 7.3 Ringtone ..............................................................................................36 7.4 Alerts ....................................................................................................37 7.5 Key beep..............................................................................................37 8. Display ..........................................................................38 8.1 Wallpaper ............................................................................................38 8.2 ON/OFF screens ..............................................................................38 8.3 Colors/Reverse display ....................................................................38 8.4 Screensaver ........................................................................................38 8.5 Contrast ..............................................................................................38 9. Settings ........................................................................39 9.1 Clock ....................................................................................................39 9.2 Languages ............................................................................................39 9.3 Security ................................................................................................39 9.4 Auto power ........................................................................................40 9.5 Answer mode ....................................................................................40 9.6 Factory reset ......................................................................................41 9.7 Dictionary............................................................................................41 2 Table of contents ........................Safety and use ......................................................................4General information............................................................81. Your mobile ..................................................................10 1.1 Keys ......................................................................................................11 1.2 Main screen icons ..............................................................................13 2. Getting started ............................................................14 2.1 Set-up ..................................................................................................14 2.2 Switching your telephone ON ......................................................17 2.3 Switching your telephone OFF ......................................................17 3. Calls ..............................................................................18 3.1 Making a call........................................................................................18 3.2 Calling your voicemail ......................................................................19 3.3 Receiving a call ..................................................................................20 3.4 Available options during the call ....................................................21 3.5 Call waiting..........................................................................................22 3.6 Making a second call ........................................................................22 3.7 Conference call ..................................................................................22 4. Menu..............................................................................23 4.1 Accessing the menu ..........................................................................23 4.2 Organising functions ........................................................................23 5. Directory ......................................................................29 5.1 Directory menu ................................................................................29 5.2 Consulting your directory (“View”) ............................................305.2.1 Available options in the contacts list ..............................305.2.2 Making the call ......................................................................305.2.3 Caller group ..........................................................................315.2.4 Searching for a name by its first letter............................31 1 C61/62_UM_USA-10-05-06 10/05/06 11:49 Page 1 Safety and Use ............................We recommend that you read this chapter carefully before using your phone. The manufacturerdisclaims any liability for damage, which may result as a consequence of improper use or usecontrary to the instructions contained in this manual.• TRAFFIC SAFETY: Given that studies, which show that usi…

Text truncated - open the document above for the full version.

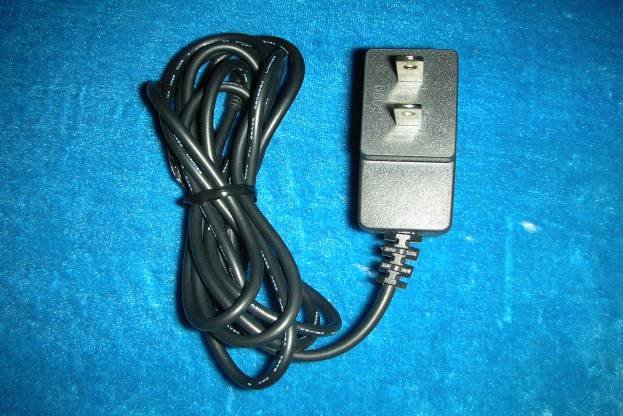

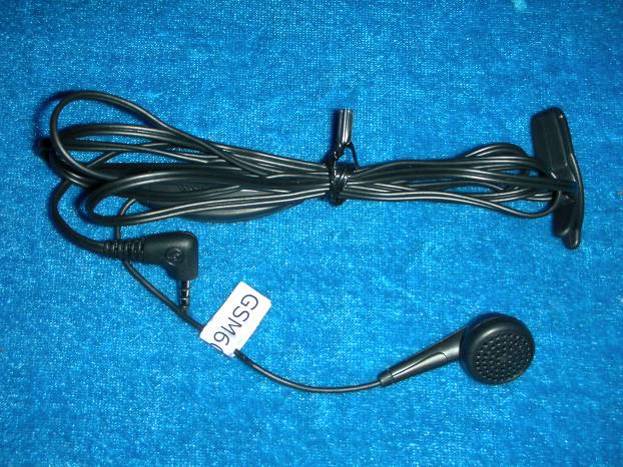

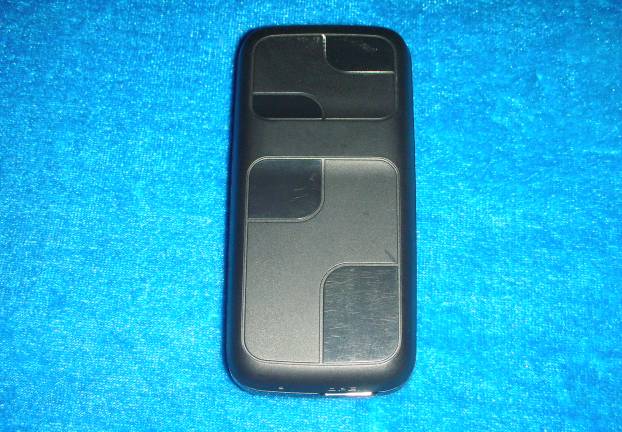

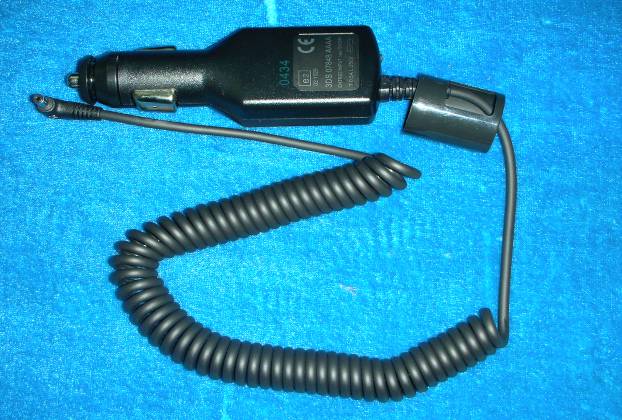

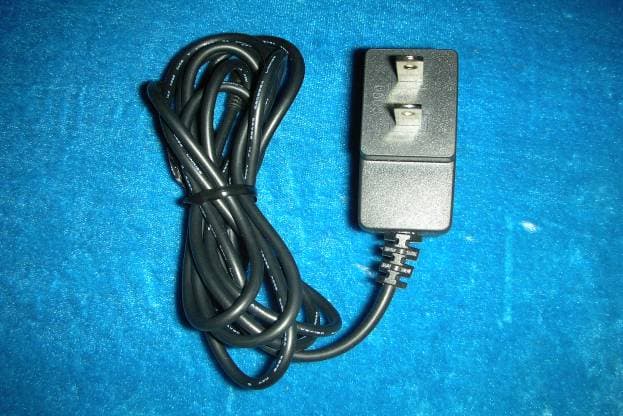

Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 AC to DC charger Manufactures: Astec Model Number: 3DS09371AGAA Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Manufactures: Leader Model Number :3DS09371AGAA Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Manufactures: Astec Model Number :3DS09371AAAA Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Manufactures: Leader Model Number : 3DS09371AAAA Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 DC to DC charger Model Number :3DS07848AAAA Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Earphone

Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Antenna connected point Antenna connected point Antenna connected point Antenna connected point Antenna connected point Antenna connected point Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02 FCC ID: RAD036 Date of Issue: April 18, 2006

Antenna TEST REPORT Radiated radio performances GSM850/PCS terminal Equipment under test: C61B OT-E100a Company: tcl&alcatel Number of pages: 12 Writer Approbation Level 1 Level 2 Name Yan Qi Function RF engineer Date 27/03/06 Signature CONTENTS 1/ Introduction 2/ Reference of the document 3/ Equipment under test configuration 4 / TEST METHOD DESCRIPTION 5/ Test conditions 5.1/ Test configuration 5.2/ TRP measurement principle 5.3/ TIS measurement principle 5.3/ SAR measurement principle 5.5/ Tests apparatus 6/ Radiated radio results 6.1/ GSM850 mode 6.2/ PCS mode Annex 1: Comments on the method described by the GSM specifications Annex 2: Detailed description of the method 1 / INTRODUCTION : This document presents the radiated radio performances of the equipment C61B EU according to test methods described below. It’s antenna is offered by speed. 2 / REFERENCE OF THE DOCUMENT : 3GPP Technical Specification: TS 51.010-1 - Edition 2004-02 - Version 5.7.0 (Annex 1: Reference test methods) 3 / EQUIPMENT UNDER TEST CONFIGURATION Dual Band (GSM850/PCS) phone: C61B 4 / TEST METHOD DESCRIPTION The used method is a generalization of the method described by the GSM850 and PCS specifications but advantageously takes into account the total radiation of the MS (all directions and polarizations – cf Annex 1 for comments). The method is based on regularly spaced measurements along meridians (elevation planes). All the measured values (taking into account co- and cross-polarization) are averaged with a cosine function weighting, in order to provide a single value representing the radiation on the whole space. The cosine weighting is there to give each measured value a weight corresponding to the surface (on the sphere) each measured value represents. The measurements are performed with the same kind of set-up as needed for the azimuth measurements (in the Recs). The difference is that the phone is installed on the set-up horizontally rather than vertically. The orientation of the phone around its main axis (then horizontal) defines the elevation cut tested. For accurate assessment of performances, the qualification test is performed on the traffic channels located at the down, medium and high of the radio band tested (GSM850: 975-38-124 and PCS: 512- 698-885) according: ¾ 2 orthogonal elevation planes (E1: back to front plane of the phone and E2: slice plane of the phone). ¾ 120 measurement samples in Tx mode (step: 3°), 20 samples for sensitivity measurement (step: 18°), on each elevation plane. ¾ Both polarizations of the test antenna. That is to say 480 (or 80) measurement samples for one Tx (or Rx) traffic channel. Summing up the processing, an average value is extracted from the measured data: - For each angular point, by summing of both polarizations. - For each elevation cut, by summing the points with a cosine weighting (taking also into account the number of cuts). - Then summing all the two elevation cuts to provide one single value representing the radiation on the whole space. Data are processed according to the parameter under qualification: Tx level will be treated as power value and sensitivity as inverse ratio of power (cf. annex 2 for detailed description). Note: In the document are also given the averaged radiated values for each elevation plane (determination for total polarization). The measuring method is similar to those used for method with cosine weighting, only the post-processing differs (cf. Annex 2 for detailed description). The test method of SAR refer to Annex 3 please 5/ TESTS CONDITIONS 5.1/ Test configuration The measurements are made in an anechoic shielded chamber. The MS is located on a rotating mast at about 2.5 m above the ground plane, at the same height than the test antenna. The measuring distance is 4.80 m. The MS model C61B is Bar, During the tests, the communication is established with the GSM850/PCS Test Set (R&S CMU200) and the Tx level is put at its maximum (Tx Level = 5 for GSM850 and Tx Level = 0 for PCS). The measurements are performed for each polarization of test antenna and for two elevation planes of the MS. 5.2/ TRP measurement principle For each measurement sample, the radiated power (in dBm) corresponds to the peak value on the power meter, minus the reference attenuation (see Figure 1). Not used Space attenuation at 4,8 m Reference attenuation Test antenna (Dual-Polar.) Terminal back face for 270° position GSM/DCS/PCS MS Test Set (TxLev max) MS under test (E1 elevation plane) Power Meter (Peak mode) A B Rotation axis RF Switch Matrix Tx-PV and Tx-PH Rx-PV or Rx-PH PV PH Figure 1: TRP measurement principle The precision of this TRP measurement method is estimated at ± 0.5dB. 5.3/ TIS measurement principle For each measurement sample, the sensitivity (in dBm) corresponds to the minimum level for the internal RF generator of the MS Test Set (for RBER class2 = 2.44%), minus the reference attenuation (see Figure 2). Not used Space attenuation at 4,8 m Reference attenuation Test antenna (Dual-Polar.) Terminal back face for 270° position GSM/DCS/PCS MS Test Set (RFgen min) MS under test (E1 elevation plane) Power Meter (Not used) A B Rotation axis RF Switch Matrix Tx-PV and Tx-PH Rx-PV or Rx-PH PV PH Figure 2: TIS measurement principle The precision of this TIS measurement method is estimated at ± 1dB. 5.3/ SAR measurement principle see Annex 3 please 5.4/ Test apparatus Category Manufacturer Type Serial Number Tcl&alcatel Anechoic Chamber Siepel 1426B 000009902208 3-axes HDP Positioning robot Berger Lahr Berger Lahr Totem 3-axes GMT positioning robot Siepel Siepel Turntable Dual-Polarization Horn Antenna SE EGC Espace CNP 3DR Horn Antenna Schwarzbeck BBHA 9120-LF 000009902219 Horn Antenna Schwarzbeck BBHA 9120-A BBHA 9120-A/267 Power Meter Rohde & Schwarz NRV 828.2511.02 893284/010 000009902206 Diode Power Sensor Rohde & Schwarz NRV-Z1 828.3018.02 890211/029 Diode Power Sensor Rohde & Schwarz NRV-Z1 828.3018.02 830912/001 Digital Radiocom. Tester Rohde…

Text truncated - open the document above for the full version.

Item Part Part Number Package Manufactur er 3DS Number Sort Part Reference Quantity Samples Status T&A comments Responsibility 1 1 nF UMK105BJ102KV 0402C Taiyoyuden 3DS50094AAAA Capa C253 C351 C649 3 Passive TMC 2 1 nF GRM1555C1H102JA01D 0402C Murata 3DS50178AAAA Capa C363 C366 2 Passive TMC 3 1 uF JMK107BJ105KA 0603C Taiyoyuden 3DS50087AAAA Capa C218 C219 C355 3 Passive TMC 4 1 uF GRM155R60J105K 0402C Murata 3DS50079AAAA Capa C319 C613 C619 C622 4 Passive TMC 5 1 uF GRM21BR71C105KC01 MK212-G Murata 3DS50085AAAA Capa C352 1 Passive TMC 6 1 uF TMK107BJ105KA 0603C Taiyoyuden 3DS50179AAAA Capa C384 C374 2 Passive TMC 7 10 pF UMK105CH100DW 0402C Taiyoyuden 3DS50098AAAA Capa C223 C609 C647 3 Passive TMC 8 10 uF JMK212BJ106MG-T 0805C Taiyoyuden 3DS50089AAAA Capa C214 C215 C353 C698 4 Passive TMC 9 100 nF LMK105BJ104KV 0402C Taiyoyuden 3DS50091AAAA Capa C201 C204 C208 C209 C210 C211 C212 C220 C221 C222 C227 C304 C306 C307 C310 C312 C318 C354 C368 C606 C608 C616 C620 C628 C631 C632 C653 27 Passive TMC 10 0.1uF GRM39X7R104K16PT 0603C Murata 3DS50199AAAA Capa C378 1 Passive TMC 11 100 pF UMK105CH101JW 0402C Taiyoyuden 3DS50099AAAA Capa C225 C607 C610 C617 C629 C630 C633 C656 C386 C387 R309 R312 R316 R326 R330 R349 R340 R337 R334 R324 20 Passive TMC 12 12 pF UMK105CH120JW 0402C Taiyoyuden 3DS50100AAAA Capa C305 C651 C644 3 Passive TMC 13 1.5pF EVK105CH1R5BW 0402C Taiyoyuden 3DS50468AAAA Capa C301 1 Passive T MC 14 22 nF GRM155R71C223KA01D+A0 0402C Murata T1000213AAAZ Capa C650 1 Passive TMC 15 2.2 uF LMK212BJ225MG 0805C Taiyoyuden 3DS50093AAAA Capa C311 C336 2 Passive TMC 16 18 pF UMK105CH180JW-F 0402C Taiyoyuden 1AB110830008 Capa C297 C298 2 Passive TMC 17 22 pF UMK105CH220JW 0402C Taiyoyuden 3DS50102AAAA Capa R323 1 Passive TMC 18 27 pF UMK105CH270JW 0402C Taiyoyuden 3DS50103AAAA Capa C373 C600 2 Passive TMC 19 33 nF LMK105BJ333KV 0402C Taiyoyuden 3DS50092AAAA Capa C205 1 Passive TMC 20 3.9 pF UMK105CG3R9BW-T 0402C Taiyoyuden 3DS50302AAAA Capa C302 1 Passive TMC 21 2.7 pF GRM1555C1H2R7CZ01D+C0 0402C Murata T1000239AAAZ Capa C659 1 Passive TMC 22 4.7 pF EVK105CH4R7JW-F 0402C Taiyoyuden 3DS50078AAAA Capa C224 1 Passive TMC 23 4.7 uF JMK212BJ475MG 0805C Taiyoyuden 3DS50090AAAA Capa C213 C216 C217 C654 4 Passive TMC 24 47 pF UMK105CH470JW 0402C Taiyoyuden 3DS50105AAAA Capa C308 C309 C315 C316 C635 C645 C655 C660 C652 C385 10 Passive TMC 25 470 pF UMK105B471KW 0402C Taiyoyuden 3DS50096AAAA Capa C295 C296 2 Passive TMC 26 470nF GRM155R60J474KE19D 0402C Murata 3DS50080AAAA Capa C634 1 Passive TMC 27 5.6 pF GJM1555C1H5R6CE 0402C Murata 3DS50304AAAA Capa C303 1 Passive TMC 28 680 pF UMK105BJ681KV 0402C Taiyoyuden 3DS50097AAAA Capa C648 1 Passive TMC 29 0 Ohm MCR01MZPJ000 0402R Rohm 3DS50111AAAA Resitance R317 R357 R358 R387 C646 5 Passive TMC 30 1 Kohm MNR04M0ABJ102 MNR04 Rohm 3DS50130AAAA Resitance R295 R296 2 Passive TMC 31 1 Kohm MCR01MZPJ102 0402R Rohm 3DS50114AAAA Resitance R308 R335 R342 R356 R360 R361 R362 R363 R623 R385 R386 11 Passive TMC 32 1 Kohm MNR02M0AJ102 MNR02 Rohm 3DS50311AAAA Resitance R389 1 Passive TMC 33 10 Kohm MCR01MZPJ103 0402R Rohm 3DS50115AAAA Resitance R206 R207 R209 R303 R336 R339 R341 R371 R372 R375 10 Passive TMC 34 10 Kohm MCR01MZPF1002 0402R Rohm 1AB163600016 Resitance R331 R332 2 Passive TMC 35 10 Ohm MCR01MZPJ100 0402R Rohm 3DS50112AAAA Resitance R211 1 Passive TMC 36 100 Kohm MCR01MZPF1003 0402R Rohm 3DS50110AAAA Resitance R204 R215 2 Passive TMC 37 100 Kohm MCR01MZPJ104 0402R Rohm 3DS50116AAAA Resitance R208 R216 R307 R338 4 Passive TMC 38 100 Kohm MNR02M0AJ104 MNR02 Rohm 3DS50129AAAA Resitance R310 1 Passive TMC 39 100 Ohm MCR01MZPJ101 0402R Rohm 3DS50113AAAA Resitance R311 R333 R396 3 Passive TMC 40 100 Ohm MNR02M0AJ101 MNR02 Rohm 3DS50298AAAA Resitance R390 1 Passive TMC Version:1.6Created By:Zhenglijun(Created based v1.5)Created Date:2006-03-07 C61B_BICOLOR_US_BOM_V1.6 (3DS 12579 ACAA) 41 120 Ohm MCR01MZPJ121 0402R Rohm 3DS50117AAAA Resitance R313 R314 R315 R347 R348 R355 6 Passive TMC 42 2.2 Kohm MCR01MZPJ222 0402R Rohm 3DS50119AAAA Resitance R343 1 Passive TMC 43 22 Kohm NCP15XW223J03RC 0402R Murata 3DS50306AAAA Resitance R391 1 Passive TMC 44 220 Ohm MCR01MZPJ221 0402R Rohm 1AB096560007 Resitance R395 1 Passive TMC 45 220 Kohm MCR01MZPJ224 0402R Rohm 3DS50121AAAA Resitance R217 1 Passive TMC 46 220 mOhm RL1220R220F 0805R Cyntec 3DS50132AAAA Resitance R306 1 Passive TMC 47 18 Ohm MCR03EZPJ180 0603R Rohm T1000176 AAAZ Resitance R370 1 Passive TMC 48 330 Ohm MCR01MZPJ331 0402R Rohm 3DS50123AAAA Resitance R344 1 Passive TMC 49 3.3 kOhm MCR10EZHJ332 0805R Rohm 3DS50305AAAA Resitance R304 1 Passive TMC 50 390 Kohm MCR01MZPJ394 0402R Rohm 3DS50124AAAA Resitance R321 1 Passive TMC 51 47 Ohm MCR01MZPJ470 0402R Rohm 3DS50125AAAA Resitance R329 R393 R394 R624 R345 R346 6 Passive TMC 52 470 Ohm MCR01MZPJ471 0402R Rohm 3DS50126AAAA Resitance R251 R305 2 Passive TMC 53 68 Kohm MCR01MZPJ683 0402R Rohm 3DS50181AAAA Resitance R377 1 Passive TMC 54 680 Kohm MCR01MZPJ684 0402R Rohm 3DS50182AAAA Resitance R376 1 Passive TMC 55 82 Ohm MCR18EZHJ820 1206R Rohm 3DS50127AAAA Resitance R301 1 Passive TMC 56 10 nH HK100510NJ-T 0402L Taiyoyuden 3DS50151AAAA Inductance L600 1 Passive TMC 57 15 nH HK100515NJ-T 0402L Taiyoyuden 3DS50152AAAA Inductanc e L601 L619 2 Passive TMC 58 18 nH HK100518N J -T 0402L Taiyoyuden 3DS50156AAAA Inductanc e C657 1 Passive TMC 59 2.7 nH HK10052N7S-T 0402L Taiyoyuden 3DS50155AAAA Inductance L617 L618 2 Passive TMC 60 39 nH HK100539NJ-T 0402L Taiyoyuden 3DS50150AAAA Inductance L305 L306 2 Passive TMC 61 6.8 nH HK10056N8H-T 0402L Taiyoyuden 3DS50154AAAA Inductance L614 L615 2 Passive TMC 62 2SC4672 2SC4672T100P MPT3 Rohm 3DS50157AAAA Transistor Q301 1 Passive TMC 63 2SB1580 2SB1580 MPT3 Rohm T1000175 AAAZ Transistor Q302 1 Passive TMC 64 UMX1NTN UMX1NTN UMT6 Rohm 3DS50159AAAA Transistor Q303 1 Passive TMC 65 DTD123EK DTD123EKT146 SMT3 Rohm 3DS50160AAAA Transistor Q308 1 Passive TMC 66 2SC5868 2sc5868 TSMT3 Rohm 3DS50297AAAA Transistor Q309 1 Passive TMC 67 EMB9 EM…

Text truncated - open the document above for the full version.

Order No: SHGLO060300037GSM Date: May. 08, 2006 Page: 1 of 105 SAR TEST REPORT Eequipment Under Test : GSM 850&PCS1900MHz MOBILE PHONE Model No. : C61Ba Market name: OT-E100a FCC ID : RAD036 Applicant : TCL&Alcatel mobile phones Address of Applicant : 3/F,B2 Block,Digital Technology Yard, Gaoxin Nan Qi Road,Nan Shan District, Shenzhen,Guangdong,P.R.China Date of Receipt : 2006.03.24 Date of Test : 2006.03.28 – 2006.04.06 Date of Issue : 2006.05.08 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS-CSTC Shanghai GSM Lab or testing done by SGS-CSTC Shanghai GSM Lab must approve SGS Shanghai GSM Lab in connection with distribution or use of the product described in this report in writing. Tested by : Date : 2006.05.08 Approved by : Date : 2006.05.08 Order No: SHGLO060300037GSM Date: May. 08, 2006 Page: 2 of 105 Contents 1. General Information.............................................................................5 1.1 Test Laboratory..........................................................................................................5 1.2 Details of Applicant...................................................................................................5 1.3 Description of EUT(s)................................................................................................5 1.4 Test Environment......................................................................................................6 1.5 Operation Configuration...........................................................................................6 1.6 The SAR Measurement System................................................................................6 1.7 SAR System Verification...........................................................................................8 1.8 Tissue Simulant Fluid for the Frequency Band 850MHz and 1900MHZ................9 1.9 Test Standards and Limits......................................................................................10 2. Summary of Results..........................................................................11 3. Instruments List.................................................................................13 4. Measurements....................................................................................14 4.1LeftHandSide-Cheek-GSM850-Low.........................................................................14 GSM850-LeftHandSide-Cheek-Low.......................................................................................14 4.2LeftHandSide-Cheek-GSM850-Middle.....................................................................15 GSM850-LeftHandSide-Cheek-Mid........................................................................................15 4.3LeftHandSide-Cheek-GSM850-High........................................................................17 GSM850-LeftHandSide-Cheek-High......................................................................................17 4.4LeftHandSide-Tilt-GSM850-Low..............................................................................19 GSM850-LeftHandSide-Tilt-Low...........................................................................................19 4.5LeftHandSide-Tilt-GSM850-Middle..........................................................................21 GSM850-LeftHandSide-Tilt-Mid............................................................................................21 4.6LeftHandSide-Tilt-GSM850-High..............................................................................23 GSM850-LeftHandSide-Tilt-High...........................................................................................23 LeftHandSide-Cheek-GSM850-Low (Interpolated SAR, Maximum Value).................25 GSM850-LeftHandSide-Cheek-Low (Conventional)...............................................................25 4.7RightHandSide-Cheek-GSM850-Low......................................................................27 GSM850-RightHandSide-Cheek-Low.....................................................................................27 4.8RightHandSide-Cheek-GSM850-Middle..................................................................29 GSM850-RightHandSide-Cheek-Mid.....................................................................................29 4.9RightHandSide-Cheek-GSM850-High.....................................................................31 Order No: SHGLO060300037GSM Date: May. 08, 2006 Page: 3 of 105 GSM850-RightHandSide-Cheek-High....................................................................................31 4.10RightHandSide-Tilt-GSM850-Low..........................................................................33 GSM850-RightHandSide-Tilt-Low.........................................................................................33 4.11RightHandSide-Tilt-GSM850-Middle......................................................................35 GSM850-RightHandSide-Tilt-Mid..........................................................................................35 4.12 RightHandSide-Tilt-GSM850-High.........................................................................37 GSM850-RightHandSide-Tilt-High.........................................................................................37 RightHandSide-Che…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02-RP FCC ID: RAD036 Date of Issue: April 18, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 48 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For Mobile Model: C61Ba Market name: OT-E100a Trade Name: Alcatel Issued to TCL & Alcatel mobile phones 3/F, B2 Block, Digital Technology Yard, Gaoxin Nan Qi Road, Nan Shan District, Shenzhen, Guangdong, P.R.China Issued by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 1 0#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Lab. Code: 200581-0 Compliance Certification Services (Kunshan) Inc. Report No: KS060405A02-RP FCC ID: RAD036 Date of Issue: April 18, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 5 4. INSTRUMENT CALIBRATION................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ................................................................................... 7 5.1 FACILITIES.............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................. 7 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT....................................................................................................... 9 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 10 7.1 PEAK POWER......................................................................................................................... 10 7.2 ERP & EIRP MEASUREMENT ......…

Text truncated - open the document above for the full version.
