RAD064GSM 850/1900MHz Mobile phone

English - T5002323AAAA 01 B7C_UM_USA_08-08-07 8/08/07 11:21 Page 1 Table of contents ........................Introduction ........................................................................1Safety and use ......................................................................5General information..........................................................101. Your cellphone ............................................................12 1.1 Keys ......................................................................................................13 1.2 Main screen icons ..............................................................................15 2. Getting started ............................................................17 2.1 Set-up....................................................................................................17 2.2 Power on your phone ......................................................................19 2.3 Power off your phone ......................................................................20 3. Calls ..............................................................................21 3.1 Making a call........................................................................................21 3.2 Calling your voicemail ......................................................................21 3.3 Receiving a call ..................................................................................22 3.4 During the call ....................................................................................23 3.5 Conference calls ................................................................................24 3.6 Line switching (ALS)..........................................................................25 4. Menu..............................................................................265. Call register ..................................................................28 5.1 Call memory ......................................................................................28 5.2 My numbers ........................................................................................28 5.3 Billing ....................................................................................................29 5.4 Call settings ........................................................................................29 6. Directory ......................................................................32 6.1 Consulting your directory ..............................................................32 6.2 Creating a file......................................................................................33 6.3 Available options................................................................................34 2 Introduction ................................T&A Mobile Phones would like to thank you for purchasing this cellphone.Power music player/video player• With playlist, lyrics display and equalizer• Full screen video playback• Watch the show on 1.8” TFT screenUnlimited video recording• Shoot video clips as long as you want (1) USB mass storageSimply a USB key.WebcamThe best companion for PC messenger. 1 (1) Depending on battery and free memory. B7C_UM_USA_08-08-07 8/08/07 11:21 Page 1 12. Media album ................................................................53 12.1 My audio ..............................................................................................5312.2 My images ............................................................................................5412.3 My videos ............................................................................................5412.4 My creations........................................................................................5412.5 Unknown files ....................................................................................5412.6 Memory card ......................................................................................5512.7 Managing audio, images, videos and creations ............................5612.8 Formats and compatibility ..............................................................5712.9 Memory status....................................................................................57 13. Camera & Video ..........................................................58 13.1 Access ..................................................................................................5813.2 Camera ................................................................................................5813.3 Video ....................................................................................................60 14. Music ............................................................................63 14.1 Music ....................................................................................................6314.2 Settings ................................................................................................6414.3 Playing with lyrics ..............................................................................64 15. Games ..........................................................................6516. Making the most of your cellphone ..........................66 16.1 PC suite................................................................................................66 17. Latin input mode/character table ..............................6718. Cellphone warranty ....................................................7119. Accessories ..................................................................7320. Troubleshooting ..........................................................74 4 7. Messages ......................................................................35 7.1 Messages:Text/Multimedia message ..............................................35 7.2 Voice message ....................................................................................37 7.3 Photo message................................…

Text truncated - open the document above for the full version.

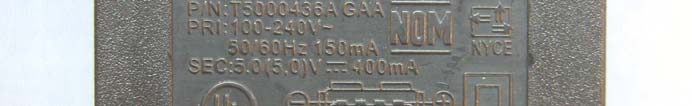

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 49 of 56 ANNEX B PHOTOGRAPHS OF EUT External Photo Mobile Phone Mobile Phone Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 50 of 56 Mobile Phone Charger (AC/DC Adapter) Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 51 of 56 Label of Charger (AC/DC Adapter) USB Cable Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 52 of 56 Headset

Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 53 of 56 Internal Photo Mobile phone Disassembly Mobile phone Disassembly Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 54 of 56 Mobile phone Disassembly Mobile phone Disassembly Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR014 Page 55 of 56 Mobile phone Disassembly Mobile phone Disassembly

No. DAT-P-114/01-01 TEST REPORT No. 2007TAR015 Product OT-C700A Model B7CA Client T&A Mobile Phones Telecommunication Metrology Center of Ministry of Information Industry Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR015 Page 2 of 19 Notice 1. The test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 2. Copies of the test report shall be invalid if there is no “specified stamp for the test report” or the stamp of the test organization on it. 3. The test report shall be invalid if there are no signatures of the testing person, reviewing person and approving person on it. 4. The test report shall be invalid if it is altered. 5. Any demurral about the test shall be put forward to the testing organization within 15 days after the receiving of the test report. 6. This test report standalone dose not constitute or imply by its own an approval of the product by any Certification Authorities or Competent Bodies. 7. This report is only valid if complete, and test report shall not be reproduced except in full, without written approval of the laboratory. 8. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Telecommunication Metrology Center of MII and the Accreditation Bodies, if it applies. Address: No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China (Telecommunication Metrology Center of MII) Post code: 100083 Telephone: +86 10 62302041 Fax: +86 10 62304793 Web site: http://www.emcite.com E-mail: [email protected] Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR015 Page 3 of 19 TABLE OF CONTENT 1. COMPETENCE AND WARRANTIES .....................................................................5 2. Testing Laboratory ................................................................................................5 2.1 Testing Location .................................................................................................5 2.2 Testing Environment...........................................................................................5 2.3 Testing Period .....................................................................................................6 3. Applicant Information ...........................................................................................6 3.1 Client Information................................................................................................6 3.2 Manufacture Information ....................................................................................7 4. Equipment Under Test (EUT) and Ancillary Equipment (AE).............................7 4.1 About EUT ...........................................................................................................7 4.2 Internal Identification of EUT used during the test...........................................7 4.3 Photographs of EUT............................................................................................7 5. SUMMARY OF TEST RESULTS ............................................................................7 6. MAIN TEST INSTRUMENTS ..................................................................................8 ANNEX A MEASUREMENT RESULTS ......................................................................9 ANNEX B PHOTOGRAPH OF EUT..........................................................................12 ANNEX C TEST LAYOUT.........................................................................................19 Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR015 Page 5 of 19 1. COMPETENCE AND WARRANTIES Telecommunication Metrology Center of Ministry of Information Industry(hereinafter TMC) is a test laboratory accredited by DAR (DATech) – Deutschen Akkreditierungs Rat (Deutsche Akkreditierungsstelle Technik), for the tests indicated in the Certificate No. DAT-P-114/01-01. TMC is a test laboratory accredited by CNAL – Accreditation Certificate of China National Accreditation Board for Laboratories, for the tests indicated in the Certificate No. L0442. TMC is FCC listed lab. FCC listed number is 733176. The test site in TMC is registered in Industry Canada. The IC registration number is 6629 . TMC is a testing laboratory competent to carry out the tests described in this report. TMC guarantees the reliability of the data presented in this report, which is the result of measurements and tests performed to the item under test on the date and under the conditions stated on the report and is based on the knowledge and technical facilities available at TMC at the time of execution of the test. TMC is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the item under test and the results of the test. 2. Testing Laboratory 2.1 Testing Location Company Name: Telecommunication Metrology Center of Ministry of Information Industry Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 2.2 Testing Environment Semi-anechoic chamber (23 meters×17meters×10meters) did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 30 °C Relative humidity Min. = 30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 kΩ Ground system resistance < 0.5 Ω Normalised site attenuation (NSA) < ±3.2 dB, 10 m distance, from 30 to 1000 MHz Uniformity of field strength Between 0 and 6 dB, from 26 to 1000 MHz Telecommunication Metrology Center of Ministry of Information Industry No. 2007TAR015 Page 6 of 19 Control room did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 35 °C Relative humidity Min. =30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 kΩ Ground system resistance < 0.5 Ω Conducted…

Text truncated - open the document above for the full version.

Test setup Photograph: Pic1 RSE test Pic2 Part 15B CE test Pic3 Part 15B RE test
