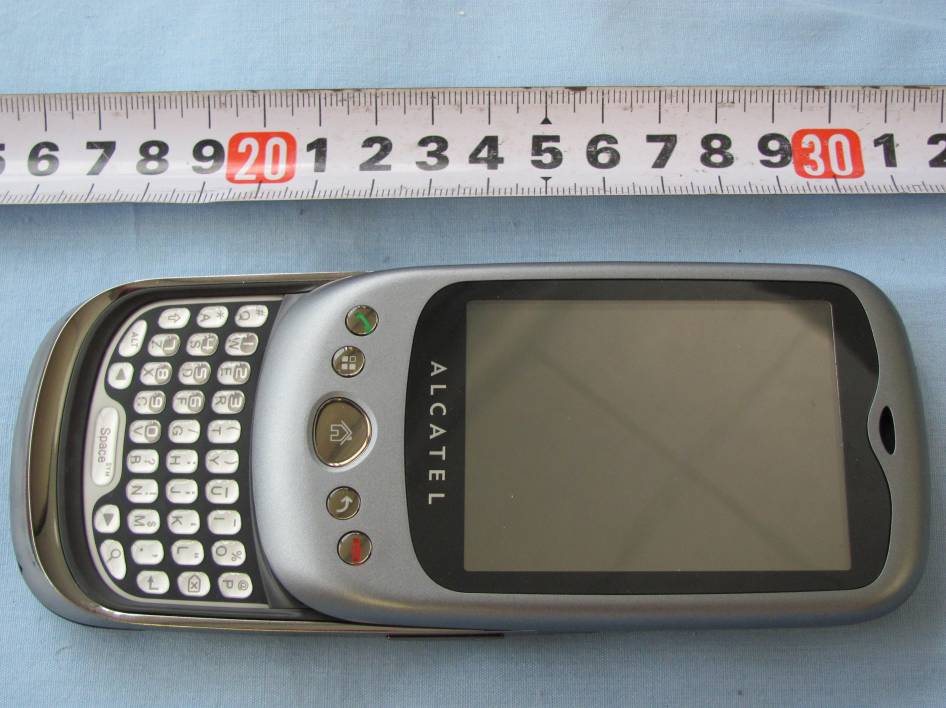

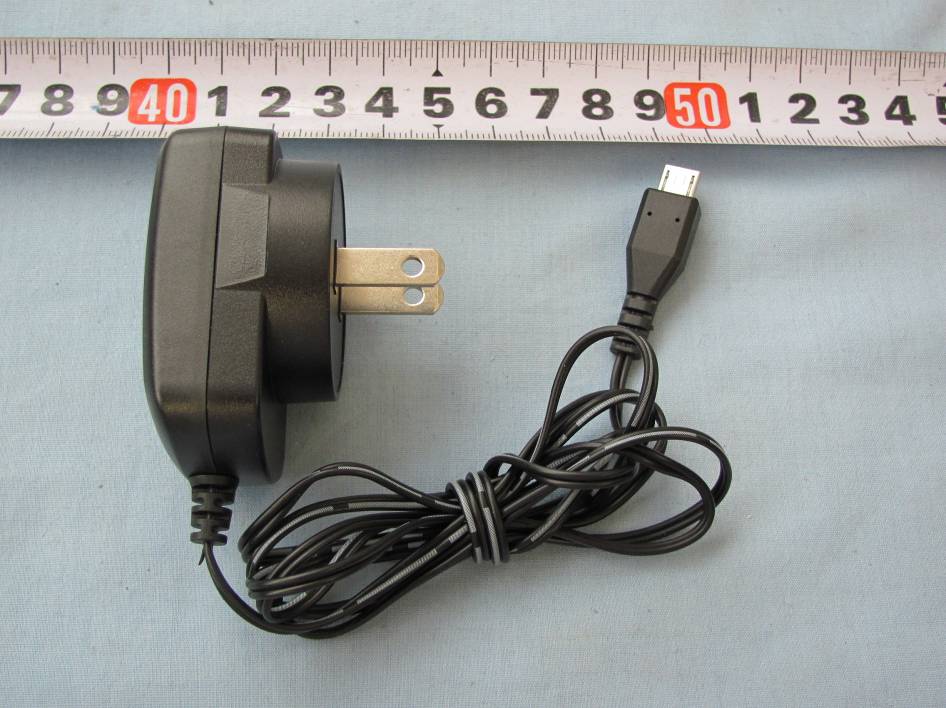

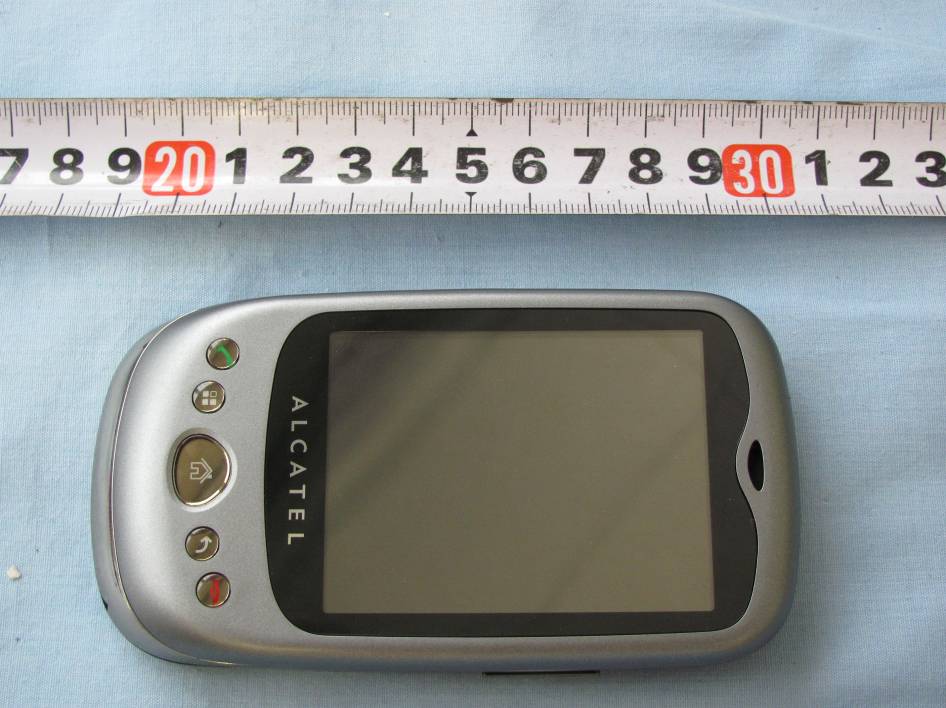

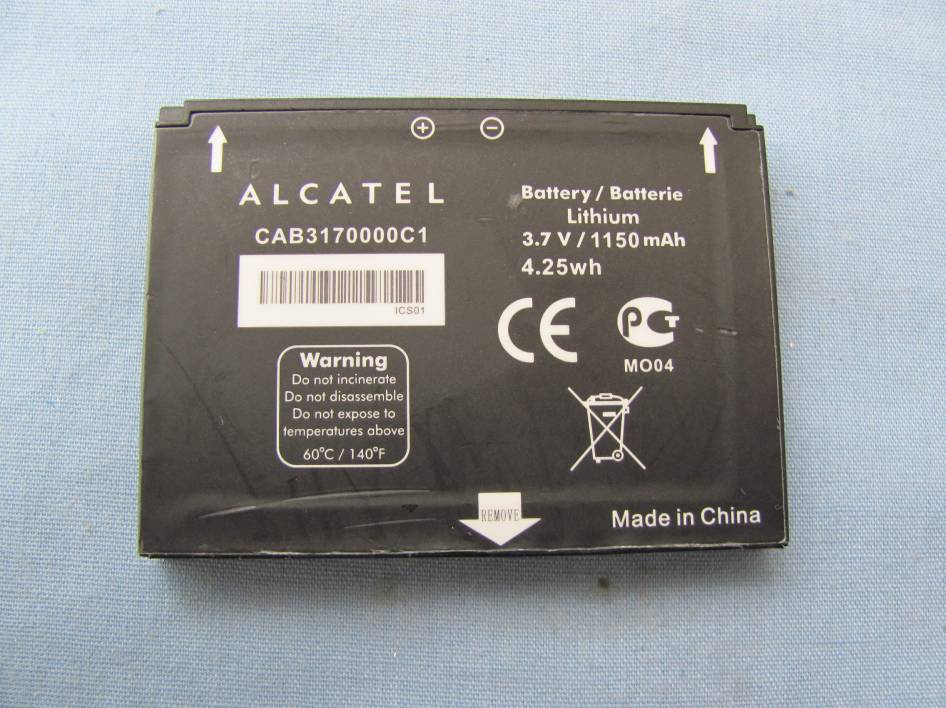

EUT photograph FCC ID: RAD130

EUT Label Location FCC ID: RAD130

EUT Interior photograph FCC ID:RAD130

No.2010SAR00064 Page 1 of 269 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00064 For TCT Mobile Limited GSM/UMTS mobile phones Opal A OT-980A With Hardware Version: PIO2 Software Version: V233 FCCID: RAD130 Issued Date: 2010-08-24 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00064 Page 2 of 269 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................. 3 1.1 TESTING LOCATION .......................................................................................................................... 3 1.2 TESTING ENVIRONMENT ................................................................................................................... 3 1.3 PROJECT DATA ................................................................................................................................ 3 1.4 SIGNATURE ...................................................................................................................................... 3 2 CLIENT INFORMATION .............................................................................................................. 4 2.1 APPLICANT INFORMATION .................................................................................................................. 4 2.2 MANUFACTURER INFORMATION ......................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 5 3.1 ABOUT EUT ..................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................................ 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ................................................................... 5 4 CHARACTERISTICS OF THE TEST .......................................................................................... 5 4.1 APPLICABLE LIMIT REGULATIONS ....................................................................................................... 5 4.2 APPLICABLE MEASUREMENT STANDARDS .......................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST .......................................................................... 6 5.1 SCHEMATIC TEST CONFIGURATION .................................................................................................... 6 5.2 SAR MEASUREMENT SET-UP ............................................................................................................ 6 5.3 DASY4 E-FIELD PROBE SYSTEM ....................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION ........................................................................................................... 8 5.5 OTHER TEST EQUIPMENT ................................................................................................................. 9 5.6 EQUIVALENT TISSUES ..................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS ................................................................................................................ 11 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT ................................................................. 11 7.1 SUMMARY ....................................................................................................................................... 11 7.2 CONDUCTED POWER ....................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................ 13 8.1 DIELECTRIC PERFORMANCE ........................................................................................................... 13 8.2 SYSTEM VALIDATION ....................................................................................................................... 14 8.3 SUMMARY OF MEASUREMENT RESULTS (GSM, GPRS, EGPRS AND WCDMA) ............................... 15 8.4 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH AND WIFI FUNCTION) ....................................... 23 8.5 CONCLUSION ................................................................................................................................. 27 9 MEASUREMENT UNCERTAINTY ............................................................................................ 28 10 MAIN TEST INSTRUMENTS .................................................................................................. 29 ANNEX A MEASUREMENT PROCESS .................................................................................... 30 ANNEX B TEST LAYOUT ......................................................................................................... 31 ANNEX C GRAPH RESULTS .................................................................................................... 41 ANNEX D SYSTEM VALIDATION RESULTS ......................................................................... 237 ANNEX E PROBE CALIBRATION CERTIFICATE .............................................................…

Text truncated - open the document above for the full version.

No.2010SAR00064 Page 61 of 269 850 Right Cheek Middle-Slide up Date/Time: 2010-7-25 13:01:20 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.90 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Middle/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.362 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.21 V/m; Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.450 W/kg SAR(1 g) = 0.341 mW/g; SAR(10 g) = 0.255 mW/g Maximum value of SAR (measured) = 0.358 mW/g Fig. 20 850 MHz CH190 No.2010SAR00064 Page 62 of 269 850 Right Cheek Low-Slide up Date/Time: 2010-7-25 13:15:41 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.88 mho/m; εr = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Low/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.302 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.75 V/m; Power Drift = 0.156 dB Peak SAR (extrapolated) = 0.369 W/kg SAR(1 g) = 0.283 mW/g; SAR(10 g) = 0.212 mW/g Maximum value of SAR (measured) = 0.297 mW/g Fig. 21 850 MHz CH128 No.2010SAR00064 Page 63 of 269 850 Right Tilt High-Slide up Date/Time: 2010-7-25 13:32:06 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.90 mho/m; εr = 41.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt High/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.241 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.23 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 0.280 W/kg SAR(1 g) = 0.227 mW/g; SAR(10 g) = 0.173 mW/g Maximum value of SAR (measured) = 0.235 mW/g Fig.22 850 MHz CH251 No.2010SAR00064 Page 64 of 269 850 Right Tilt Middle-Slide up Date/Time: 2010-7-25 13:49:21 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.90 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Middle/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.195 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.49 V/m; Power Drift = 0.045 dB Peak SAR (extrapolated) = 0.226 W/kg SAR(1 g) = 0.184 mW/g; SAR(10 g) = 0.141 mW/g Maximum value of SAR (measured) = 0.192 mW/g Fig.23 850 MHz CH190 No.2010SAR00064 Page 65 of 269 850 Right Tilt Low- Slide up Date/Time: 2010-7-25 14:05:39 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.88 mho/m; εr = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.88 V/m; Power Drift = 0.079 dB Peak SAR (extrapolated) = 0.196 W/kg SAR(1 g) = 0.160 mW/g; SAR(10 g) = 0.123 mW/g Maximum value of SAR (measured) = 0.167 mW/g Fig. 24 850 MHz CH128 No.2010SAR00064 Page 66 of 269 1900 Left Cheek High-Slide down Date/Time: 2010-7-26 8:09:36 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.43 mho/m; εr = 40.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.363 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.27 V/m; Power Drift = 0.032 dB Peak SAR (extrapolated) = 0.552 W/kg SAR(1 g) = 0.343 mW/g; SAR(10 g) = 0.204 mW/g Maximum value of SAR (measured) = 0.375 mW/g Fig. 25 1900 MHz CH810 No.2010SAR00064 Page 67 of 269 Fig. 25-1 Z-Scan at power reference point (1900 MHz CH810) No.2010SAR00064 Page 68 of 269 1900 Left Cheek Middle-Slide down Date/Time: 2010-7-26 8:23:50 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; εr = 40.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.343 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.53 V/m; Power Drift = 0.020 dB Peak SAR (extrapolated) = 0.533 W/kg SAR(1 g) = 0.332 mW/g; SAR(10 g) = 0.198 mW/g Maximum value of SAR (measured) = 0.355 mW/g Fig. 26 1900 MHz CH661 No.2010SAR00064 Page 69 of 269 1900 Left Cheek Low-Slide down Date/Time: 2010-7-26 8:38:11 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.36 mho/m; εr = 39.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek Low/Area Scan (61x91x1): Measuremen…

Text truncated - open the document above for the full version.

No.2010SAR00064 Page 151 of 269 850 Body Towards Ground High with GPRS- - Slide up Date/Time: 2010-7-22 11:13:11 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground High/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.883 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.8 V/m; Power Drift = -0.156 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.815 mW/g; SAR(10 g) = 0.596 mW/g Maximum value of SAR (measured) = 0.860 mW/g Fig. 106 850 MHz CH251 No.2010SAR00064 Page 152 of 269 850 Body Towards Ground Middle with GPRS- - Slide up Date/Time: 2010-7-22 11:30:32 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Middle/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.861 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.9 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.802 mW/g; SAR(10 g) = 0.591 mW/g Maximum value of SAR (measured) = 0.841 mW/g Fig. 107 850 MHz CH190 No.2010SAR00064 Page 153 of 269 850 Body Towards Ground Low with GPRS- Slide up Date/Time: 2010-7-22 11:47:50 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Low/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.821 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.4 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.778 mW/g; SAR(10 g) = 0.574 mW/g Maximum value of SAR (measured) = 0.817 mW/g Fig. 108 850 MHz CH128 No.2010SAR00064 Page 154 of 269 850 Body Towards Ground High with EGPRS Date/Time: 2010-7-22 12:04:03 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.871 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.1 V/m; Power Drift = -0.097 dB Peak SAR (extrapolated) = 3.11 W/kg SAR(1 g) = 0.846 mW/g; SAR(10 g) = 0.603 mW/g Maximum value of SAR (measured) = 0.875 mW/g Fig. 109 850 MHz CH251 No.2010SAR00064 Page 155 of 269 850 Body Towards Ground High with Headset Date/Time: 2010-7-22 12:21:03 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.693 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.1 V/m; Power Drift = 0.073 dB Peak SAR (extrapolated) = 0.871 W/kg SAR(1 g) = 0.662 mW/g; SAR(10 g) = 0.477 mW/g Maximum value of SAR (measured) = 0.700 mW/g Fig. 110 850 MHz CH251 No.2010SAR00064 Page 156 of 269 1900 Body Towards Phantom High with GPRS- Slide down Date/Time: 2010-7-23 9:00:14 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.55 mho/m; εr = 52.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.287 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.01 V/m; Power Drift = -0.078 dB Peak SAR (extrapolated) = 0.454 W/kg SAR(1 g) = 0.279 mW/g; SAR(10 g) = 0.172 mW/g Maximum value of SAR (measured) = 0.297 mW/g Fig. 111 1900 MHz CH810 No.2010SAR00064 Page 157 of 269 Fig. 111-1 Z-Scan at power reference point (1900 MHz CH810) No.2010SAR00064 Page 158 of 269 1900 Body Towards Phantom Middle with GPRS- Slide down Date/Time: 2010-7-23 9:17:36 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.50 mho/m; εr = 53.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.263 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.84 V/m; Power Drift = 0.159 dB Peak SAR (extrapolated) = 0.457 W/kg SAR(1 g) = 0.236 mW/g; SAR(10 g) = 0.148 mW/g Maximum value of SAR (measured) = 0.249 mW/g Fig. 112 1900 MHz CH661 No.2010SAR00064 Page 159 of 269 1900 Body Towards …

Text truncated - open the document above for the full version.

No.2010SAR00064 Page 231 of 269 WiFi 802.11g 36Mbps Toward Ground Channel 11 – Slide down Date/Time: 2010-7-24 17:14:47 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.99 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Toward Ground High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.048 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.03 V/m; Power Drift = -0.140 dB Peak SAR (extrapolated) = 0.059 W/kg SAR(1 g) = 0.041 mW/g; SAR(10 g) = 0.018 mW/g Maximum value of SAR (measured) = 0.048 mW/g Fig.182 802.11g 36Mbps CH11 No.2010SAR00064 Page 232 of 269 WiFi 802.11g 6Mbps Toward Phantom Channel 6 – Slide up Date/Time: 2010-7-24 17:31:16 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.95 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Toward Phantom Middle/Area Scan (71x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.021 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.62 V/m; Power Drift = 0.168 dB Peak SAR (extrapolated) = 0.019 W/kg SAR(1 g) = 0.00708 mW/g; SAR(10 g) = 0.00228 mW/g Maximum value of SAR (measured) = 0.010 mW/g Fig.183 802.11g 6Mbps CH6 No.2010SAR00064 Page 233 of 269 WiFi 802.11g 6Mbps Toward Ground Channel 6 – Slide up Date/Time: 2010-7-24 17:31:26 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.95 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.055 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.02 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 0.070 W/kg SAR(1 g) = 0.044 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (measured) = 0.054 mW/g Fig.184 802.11g 6Mbps CH6 No.2010SAR00064 Page 234 of 269 WiFi 802.11g 36Mbps Toward Phantom Channel 11 – Slide up Date/Time: 2010-7-24 17:48:23 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.99 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Toward Phantom High/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.006 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.08 V/m; Power Drift = -0.199 dB Peak SAR (extrapolated) = 0.012 W/kg SAR(1 g) = 0.00354 mW/g; SAR(10 g) = 0.000968 mW/g Maximum value of SAR (measured) = 0.006 mW/g Fig.185 802.11g 36Mbps CH11 No.2010SAR00064 Page 235 of 269 WiFi 802.11g 36Mbps Toward Ground Channel 11 – Slide up Date/Time: 2010-7-24 18:05:47 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.99 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Toward Ground High/Area Scan (61x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.067 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.62 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 0.088 W/kg SAR(1 g) = 0.057 mW/g; SAR(10 g) = 0.026 mW/g Maximum value of SAR (measured) = 0.068 mW/g Fig.186 802.11g 36Mbps CH11 No.2010SAR00064 Page 236 of 269 Fig. 186-1 Z-Scan at power reference point (802.11g 36Mbps CH11) No.2010SAR00064 Page 237 of 269 ANNEX D SYSTEM VALIDATION RESULTS 835MHz Date/Time: 2010-7-25 7:15:21 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.90 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.51 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference…
