RAD136GSM/GPRS dual band mobile phone

1 2 IP3076_606_UM_MiniQ_Eng_USA_02_100630.indd 1-2IP3076_606_UM_MiniQ_Eng_USA_02_100630.indd 1-2 2010-6-30 15:12:532010-6-30 15:12:53 1 2 Introduction ................................TCT Mobile Limited would like to thank you for purchasing this cellphone.Widget Bar - Convenient at-a-glance view of Widget applications - Sub-menu shortcuts for quick access Power media applications- Music player & Radio- WebcamThe 0.3 Megapixel camera is a good companion for PC instant messaging.BluetoothWith Bluetooth 2.1 supporting A2DP profiles, enjoy handsfree conversations.My friendsPopular websites (like Bebo, Friendster, hi5, Myspace, etc.) to stay in touch with your friends wherever you are, whenever you want. Table of contentsSafety and use ...................................................................... 6 General information ......................................................... 111 Your mobile .................................................................. 13 1.1 Status bar icons ..................................................................................16 1.2 Personalise mainscreen ....................................................................181.3 Simple menu .......................................................................................18 2 Getting started ............................................................ 19 2.1 Set-up ...................................................................................................192.2 Power on your phone ......................................................................212.3 Power off your phone ......................................................................21 3 Calls .............................................................................. 22 3.1 Making a call........................................................................................223.2 Calling your voicemail ......................................................................223.3 Receiving a call ...................................................................................233.4 During a call ........................................................................................243.5 Conference calls ................................................................................253.6 Line switching .....................................................................................25 4 Messages ....................................................................... 26 4.1 Access ..................................................................................................264.2 Conversational mode and conventional mode ...........................26 4.3 Create message ..................................................................................26 4.4 Alerts ....................................................................................................274.5 Available options ................................................................................27 5 Email ............................................................................. 29 5.1 Access ..................................................................................................295.2 Email account set-up.........................................................................295.3 Creat Email .........................................................................................305.4 Inbox .....................................................................................................305.5 Outbox .................................................................................................30 5.6 Sent .......................................................................................................305.7 Drafts....................................................................................................305.8 Available options ................................................................................30 IP3076_606_UM_MiniQ_Eng_USA_02_100630.indd 1-2IP3076_606_UM_MiniQ_Eng_USA_02_100630.indd 1-2 2010-6-30 15:12:542010-6-30 15:12:54 3 4 6 Instant messaging ........................................................ 32 6.1 Access ..................................................................................................326.2 Open a Palringo account online ....................................................326.3 Sign in/Sign out ...................................................................................326.4 Add service .........................................................................................336.5 Chat ......................................................................................................336.6 Contacts ..............................................................................................336.7 Groups .................................................................................................33 7 Directory ...................................................................... 34 7.1 Consulting your directory ...............................................................347.2 Adding a contact ................................................................................357.3 Available options ................................................................................36 8 Call log .......................................................................... 37 8.1 Access ..................................................................................................378.2 Available options ...............................................................................37 9 Media applications ......................................................... 40 9.1 Music player ........................................................................................409.2 Image Viewer .......................................................................................41 9.3 Video player ...................................................................................…

Text truncated - open the document above for the full version.

No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai P.R.China 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2010/6/2 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD136 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

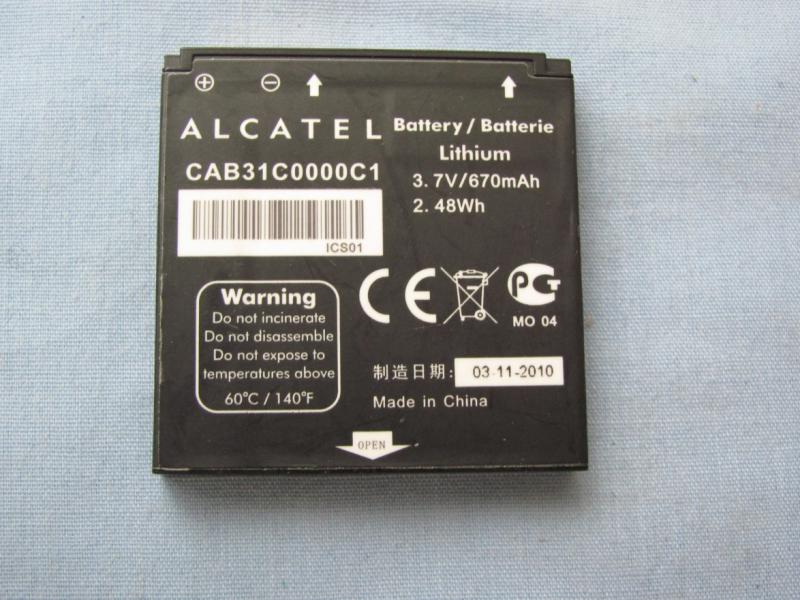

MINI Q A External photo Battery AE1 Battery AE1 Charger AE2 Label of Charger AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 Charger AE5 Label of Charger AE5 Headset AE6 Headset AE7 Headset AE8 USB Cable AE9

MINI Q A EUT Label Location

MINI Q A Internal photo

No.2010SAR00051 Page 1 of 98 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00051 For TCT Mobile Limited GSM/GPRS dual bands mobile phone MINI Q A OT-606A With Hardware Version: PIO Software Version: V122 FCCID: RAD136 Issued Date: 2010-06-25 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00051 Page 2 of 98 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 12 8.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 13 8.4 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH FUNCTION) ............................................................... 15 8.5 CONCLUSION................................................................................................................................................ 16 9 MEASUREMENT UNCERTAINTY ............................................................................................16 10 MAIN TEST INSTRUMENTS ..................................................................................................17 ANNEX A MEASUREMENT PROCESS....................................................................................18 ANNEX B TEST LAYOUT .........................................................................................................19 ANNEX…

Text truncated - open the document above for the full version.

No.2010SAR00051 Page 71 of 98 1900MHz Date/Time: 2010-6-16 13:16:28 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.2 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.1 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 10.0 mW/g; SAR(10 g) = 5.09 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6mW/g Fig.44 validation 1900MHz 250mW No.2010SAR00051 Page 72 of 98 ANNEX E PROBE CALIBRATION CERTIFICATE No.2010SAR00051 Page 73 of 98 No.2010SAR00051 Page 74 of 98 No.2010SAR00051 Page 75 of 98 No.2010SAR00051 Page 76 of 98 No.2010SAR00051 Page 77 of 98 No.2010SAR00051 Page 78 of 98 No.2010SAR00051 Page 79 of 98 No.2010SAR00051 Page 80 of 98 No.2010SAR00051 Page 81 of 98 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00051 Page 82 of 98 No.2010SAR00051 Page 83 of 98 No.2010SAR00051 Page 84 of 98 No.2010SAR00051 Page 85 of 98 No.2010SAR00051 Page 86 of 98 No.2010SAR00051 Page 87 of 98 No.2010SAR00051 Page 88 of 98 No.2010SAR00051 Page 89 of 98 No.2010SAR00051 Page 90 of 98 1900 MHz Dipole Calibration Certificate No.2010SAR00051 Page 91 of 98 No.2010SAR00051 Page 92 of 98 No.2010SAR00051 Page 93 of 98 No.2010SAR00051 Page 94 of 98 No.2010SAR00051 Page 95 of 98 No.2010SAR00051 Page 96 of 98 No.2010SAR00051 Page 97 of 98 No.2010SAR00051 Page 98 of 98

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2010TAR238 Page1 of 71 TEST REPORT No. 2010TAR238 for TCT Mobile Limited GSM/GPRS dual bands mobile phone Model Name: MINI Q A FCC ID : RAD136 with Hardware Version: PIO Software Version: V122 Issued Date: June 17th, 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304633, Email:[email protected], web: www.emcite.com No.2010TAR238 Page2 of 71 CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION ................................................................................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 A.1 OUTPUT POWER .............................................................................................................. 10 A.2 EMISSION LIMT ................................................................................................................. 15 A.3 CONDUCTED EMISSION .................................................................................................. 29 A.4 FREQUENCY STABILITY .................................................................................................. 39 A.5 OCCUPIED BANDWIDTH .................................................................................................. 41 A.6 EMISSION BANDWIDTH ................................................................................................... 49 A.7 BAND EDGE COMPLIANCE .............................................................................................. 57 A.8 CONDUCTED SPURIOUS EMISSION .............................................................................. 61 No.2010TAR238 Page3 of 71 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: June 4, 2010 Testing End Date: June 17, 2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR238 Page4 of 71 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China City: Shanghai Postal Code: / Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China City: Shanghai Postal Code: / Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2010TAR238 Page5 of 71 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS dual bands mobile phone Model Name MINI Q A FCC ID RAD136 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger(AC Adaptor) Output power 29.15 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of …

Text truncated - open the document above for the full version.

No. 2010HAC00007 Page 1 of 57 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2010HAC00007 For TCT Mobile Limited GSM/GPRS dual bands mobile phone MINI Q A OT-606A With Hardware Version: PIO Software Version: V122 FCCID: RAD136 Results Summary: M Category = M3 Issued Date: 2010-06-25 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010HAC00007 Page 2 of 57 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 4 4 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................5 4.1 SUMMARY...................................................................................................................................................... 5 4.2 CONDUCTED POWER...................................................................................................................................... 5 5. REFERENCE DOCUMENTS......................................................................................................5 5.1REFERENCE DOCUMENTS FOR TESTING........................................................................................................... 5 6 OPERATIONAL CONDITIONS DURING TEST ..........................................................................5 6.1 HAC MEASUREMENT SET-UP.................................................................................................................. 5 6.2 PROBE SPECIFICATION.................................................................................................................................... 6 6.3 TEST ARCH PHANTOM & PHONE POSITIONER................................................................................................. 7 6.4 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 8 7 EUT ARRANGEMENT ................................................................................................................8 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE........................................................................ 8 8 SYSTEM VALIDATION................................................................................................................9 8.1 VALIDATION PROCEDURE...............................................................................................................................9 8.2 VALIDATION RESULT.................................................................................................................................... 10 9 PROBE MODULATION FACTOR .............................................................................................10 9.1 MODULATION FACTOR TEST PROCEDURE..................................................................................................... 11 9.2 MODULATION FACTOR.................................................................................................................................. 11 10 RF TEST PROCEDUERES .....................................................................................................12 11 HAC RF TEST DATA SUMMARY............................................................................................13 11.1 MEASUREMENT RESULTS (E-FIELD)........................................................................................................... 13 11.2 MEASUREMENT RESULTS (H-FIELD) .......................................................................................................... 13 11.3 TOTAL M-RATING....................................................................................................................................... 13 12 ANSI C 63.19-2007 LIMITS.....................................................................................................14 13 MEASUREMENT UNCERTAINTY ..........................................................................................14 1…

Text truncated - open the document above for the full version.

MINI Q A FCC test setup photos 1． Radiated Spurious Emission 2． Conducted Emission 3． Part 15C 4. Part 15B

The photos of HAC test For TCT Mobile Limited GSM/GPRS dual bands mobile phone MINI Q A OT-606A With Hardware Version: PIO Software Version: V122 Picture 1: Constituents of the sample Picture 2: EUT Positioning for RF
