RAD142GSM/GPRS/EDGE dualband mobile phone

1234567 891011121314 Your cellphone 1 .................. OT-806A OT-807A Status bar icons1.1 (1) Battery charge level Vibrate alert: your cellphone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Java status (Activated). Headset connected. Keypad & LCD touch locked. Keypad& LCD touch unlocked. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Wi-Fi connected. Wi-Fi disconnected. Voicemail message arrived. Missed calls. Stopwatch is active. Radio is on. WAP alerts (1) . Roaming. Memory card scanning in progress. Memory card scanning completed. SIM card unavailable. Line switching (1) : indicates the selected line. GPRS connection status (Activated). GPRS connecting. EDGE attached. EDGE connecting. Music player active. Message receipt in progress. Sending a SMS. Sending a MMS. Silence mode: your cellphone does not ring, beep or vibrate with the exception of the alarm. SMS unread. (In red) Message list is full: your cellphone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. A2DP connected. Broadcast is on. Status list1.2 Tap the status bar and drag down to open, drag up to close. To open an application, tap it from the list. Desktop1.3 Adding items To add an item from the main menu, you can select one of the following ways: Tap and hold an item from the main menu list.• Tap • from the tool bar and select an item. Touch and hold an empty area from the main screen, select “• Add widgets” from the window that opens, then tap the item you want to add to desktop. Removing items Touch and hold the widget you want to remove from the desktop to enter the edit mode, and then tap to remove it, finally tap “Done” to confirm. Re-organizing items Touch and hold the widget you want to move from the desktop editing screen until a location frame shows up, then drag it to the desired location, finally tap “Done” to confirm. Wallpaper To personalize your wallpaper, you can select one of the following two ways: Touch and hold an empty area from the desktop, select “• Wallpaper”, then tap a folder that displayed to select an image as your wallpaper. Tap • from the tool bar, then tap a folder to select an image as your wallpaper. Toolbar1.4 Tool bar with menu items by default as a shortcut for quick access. Scrolling left and right, you can view more items. Getting started 2 ................. Set-up2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the cellphone cover.• Unclip the cover, then remove the battery.• Power on your cellphone2.2 Hold down the key until the cellphone powers on. Power off your cellphone2.3 Hold down the key from the main screen. Using the touchscreen2.4 TapTo access an application, tap it with your finger. DragPlace your finger on the screen to drag the object to the destination. ScrollSlide the screen to scroll up and down the applications, images, web pages... at your convenience. Making a call 3 ...................... Enter the desired number on the on-screen keypad directly or select a contact from Call log or Directory by tapping or respectively, then tap or press key to place the call. The number you entered can be saved to Directory by selecting . If you make a mistake, you can delete the incorrect digits by tapping . To hang up the call, press the key. Menu arrange 4 ............ The main menu is designed to vary according to your preference. To access this function, select to enter the main menu, then tap . Change the order Access “Menu arrange”, focus on the main menu item you want to move, and then tap “Options\Move”, it will go to the main menu screen and tick “√” will be shown on the main menu you selected, then release it to your favourite destination. Show/Hide Access “Menu arrange”, tap the left check box of the selected menu once to show/hide, then tap “Options\Save” to save the operation. Restore default From main menu, select “Menu arrange”, then tap “Options\Restore default settings” to return to the default menu display. Messages 5 .................. Conversational On (Off) mode5.1 In conversational on mode, you can view chat history in chronological order. In conversational off mode, you may have access to the following folders: Inbox, Outbox, Sent, Broadcast SMS, Voicemail, Drafts, etc. You can switch between these two modes by selecting “Settings\Conversational mode\On (Off)”. Conversational mode is set as the default mode and following instructions are based on this mode. Create message5.2 Select “Messages\Write msg” to create text/multimedia message. An SMS will be converted to MMS automatically when: images, videos, audio, slides or attachments are inserted; Subject, CC/BCC/email address is added; or the message contains more than 8 pages of text. Timer send Schedule a SMS/MMS to be sent out at predefined time (“Option\Timer send”). Email 6 .......................... Your cellphone has an email client with the settings predefined for a few popular email services like – GoogleMail, Yahoo, AOL, etc. Besides this, you can set up other POP3 or IMAP4 email accounts that you may be using. Palringo 7 (1) .................... Palringo Instant messaging (IM) allows you to chat with other people using Palringo account. You can also connect to other popular IM services through Palringo, like Yahoo, AIM, GG, ICQ, GTalk, iChat etc. Please note that the services accessible to you will depend on your client version and…

Text truncated - open the document above for the full version.

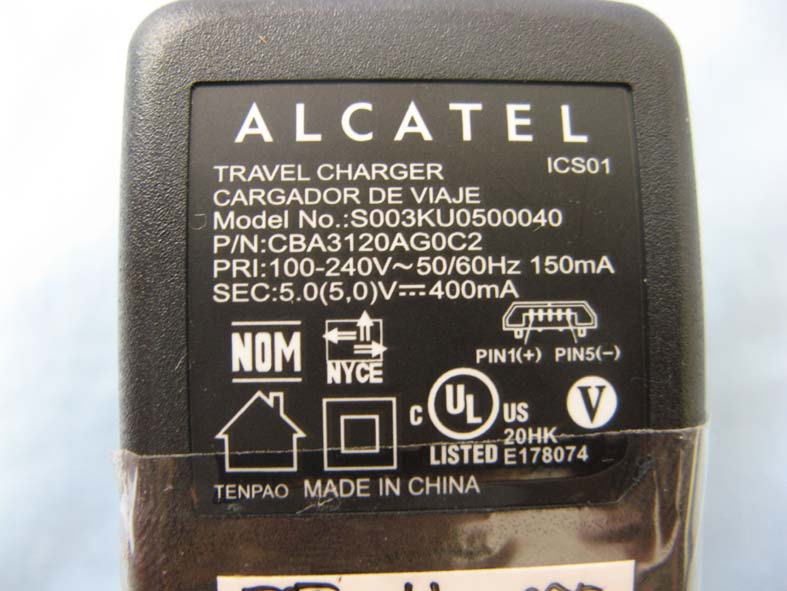

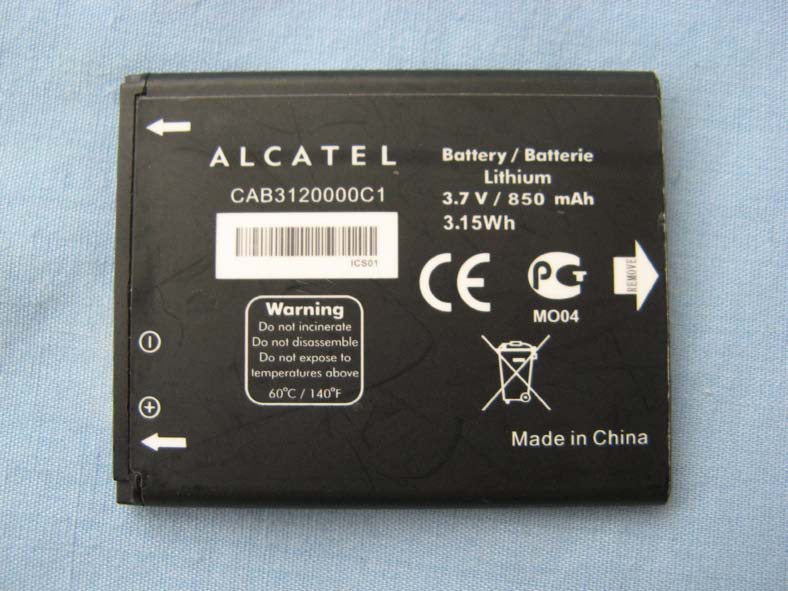

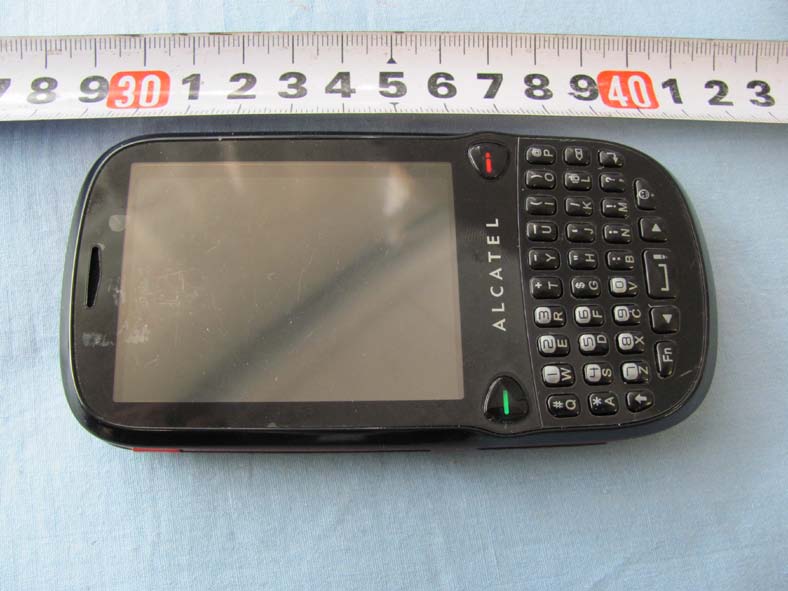

External Photos:

FCC Label Location:

Internal Photos:

No.2010TAR366 Page1 of 78 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2010TAR366 for TCT Mobile Limited GSM/GPRS/EDGE dual band mobile phone Model Name: Agate A Marketing Name: OT-807A With FCC ID: RAD142 Hardware Version: PIO Software Version: sw223 Issued Date: 2010-09-03 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2010TAR366 Page2 of 78 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................... 2 1. TEST LABORATORY .............................................................................................................. 3 1.1. T ESTING LOCATION ............................................................................................................. 3 1.2. T ESTING ENVIRONMENT ...................................................................................................... 3 1.3. P ROJECT DATA ................................................................................................................... 3 1.4. S IGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. A PPLICANT INFORMATION .................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. A BOUT EUT ....................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ..................................................... 5 4. REFERENCE DOCUMENTS .................................................................................................. 6 4.1. D OCUMENTS SUPPLIED BY APPLICANT .................................................................................. 6 4.2. R EFERENCE DOCUMENTS FOR TESTING ............................................................................... 6 5. LABORATORY ENVIRONMENT ............................................................................................ 7 6. SUMMARY OF TEST RESULTS ............................................................................................. 8 6.1. S UMMARY OF TEST RESULTS .............................................................................................. 8 6.2. S TATEMENTS ...................................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 9 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 10 A.1. MEASUREMENT METHOD ...................................................................................................... 10 A.2. PEAK OUTPUT POWER - CONDUCTED .................................................................................... 11 A.3. FREQUENCY BAND EDGES - CONDUCTED .............................................................................. 12 A.4. CONDUCTED EMISSION......................................................................................................... 19 A.5. RADIATED EMISSION ............................................................................................................. 34 A.6. TIME OF OCCUPANCY (DWELL TIME) ...................................................................................... 56 A.7. 20DB BANDWIDTH ................................................................................................................ 66 A.8. CARRIER FREQUENCY SEPARATION ....................................................................................... 71 A.9. NUMBER OF HOPPING CHANNELS ......................................................................................... 73 A.10. AC POWERLINE CONDUCTED EMISSION .............................................................................. 77 No. 2010TAR366 Page3 of 78 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Extreme Temperature: -20/+55°C Relative Humidity: 20-75% 1.3. Project data Project Leader: Zi Xiaogang Testing Start Date: 2010-08-24 Testing End Date: 2010-09-03 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2010TAR366 Page4 of 78 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Build…

Text truncated - open the document above for the full version.

FCCID: RAD142 Test Set up photos: Part22/24 RSE: Part15B CE: Part15C CE: Part15B(USB mode) RE-1 Part15B( Charging mode) RE: Part15C RE:
