RAD150GSM/GPRS dual bands mobile phone

TCT Mobile Limited
GSM/GPRS dual bands mobile phone - FCC ID RAD150 - TCT Mobile Limited
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Oct 29, 2010
Application Purpose
Original Equipment
Date of Application
Oct 25, 2010
Equipment Note
GSM/GPRS dual bands mobile phone
Frequency Range
1850.20000000 - 1909.80000000
Company
TCT Mobile Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1234567 891011121314 1 Your cellphone ............... Voicemail Sym key Vibration alert Del key Memory card Power on/off End call Answer/Send call Navigation key (1) : Main menu,confirm an option Profiles Calendar New Messages FM Radio Shift key Left softkey Space key Fn key Enter key Right softkey Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. 1.1 Keys Navigation key Confirm an option (press the middle of the key) Access to menu (short keypress) Show/hide shortlist menu(long keypress) Answer Send a call Access call memory (short keypress) Access to Fake call (long keypress) Switch on/Switch off the cellphone (long keypress) End call Return to the idle screen Left softkey Right softkey Access your voicemail (long keypress) Input the "#" in Idle In idle screen: Long/short keypress: Lock/Unlock the keypad In edit mode: Short keypress: input space Long keypress: switch language Fn key + Space: switch input mode In idle screen: Press to access shortcuts Fn + P: access to Profiles Fn + Q: access to Clock Fn + S: access to Notes In edit mode: Press once to input top-half character. Press twice to lock top-half inputting mode, then press once to unlock top-half inputting mode. Long keypress: access to Dictionary. In edit mode: Short press: popup symbol page to select special character by navigation key Long press & Fn+SYM: popup smileys page to select special smileys by navigation key Delete one by one (short keypress) Delete one by one quickly (long keypress) Switch the uppercase and minuscule (in edit screen) Return a cursor to the next line. 1.2 Main screen icons (1) Battery charge level Vibrate alert: Your cellphone vibrates, but does not ring or beep with the exception of the alarm. Headset connected. Keypad locked. Call forwarding activated: your calls are forwarded. Alarm clock. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. Stopwatch is active. WAP alerts (1) . Roaming. Memory card scanning in progress. Memory card scanning completed. Line switching (2) : indicates the selected line. GPRS connection status (Blue - Activated). GPRS connecting. Message receipt in progress. Sending a message. Silence mode: your cellphone neither rings, beeps nor vibrates except for the alarms. Message unread. Message list is full: your terminal cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. (1) Depending on your network operator. (2) Contact your network operator to check service availability. Installing or removing the battery 2 Getting started .............. 2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press the bottom and slide it out. Please power off your cellphone before you remove the SIM card. 2.2 Power on your cellphone Hold down the key until the cellphone powers on. 2.3 Power off your cellphone Hold down the key until the cellphone power off. 3 Calls ........................... 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right softkey or key. To hang up the call, press the key. Making an emergency call If your cellphone has network coverage, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Call memory You can access your call memory by pressing the key from the idle screen. Check "Outgoing calls", "Missed calls", "Answered calls". 4 Menu arrange .......... Main Menu is designed to vary according to your preference. Change the order From main menu, press left softkey and select "Move" or long keypress key till tick "√" is shown, then move the cursor to your favorite destination and confirm with key. Show/Hide Access "Menu arrange", press key till tick ("√") show or off, it will show/hide some main menu. 5 Messages ................. 5.1 Messages: Text/Multimedia message 5.1.1 Create message From the main menu select "Messages" to create text/multimedia message. You can type a message and you can also modify a predefined message in Templates or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). While writing a message, select "Options" to access all the messaging options.You can save your messages that you send often to Drafts or Templates (MMS only). (1) The icons and illustrations in this guide are provided for informational purposes only. (1) Depending on your network operator. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (2) Depending on your network operator. May cause additional network charges for data flow to provide this service. Extra fees might also be charged in roaming states. 5.1.2 Inbox All received messages (read and unread) are stored in the same Inbox. Group by sender/Group by receiver (1) Messages can be grouped by sender/receiver ("Options\Group by sender"/"Options\Group by receiver"). And you are enabled to quick search the messages by pressing the key associated with the first letter of sender/receiver’s name. 5.2 SMS Conversation (chat) (2) Access to "Advanced" and select "Switch view mode", keep the conversation going in real time using SMS chat. You may separate chat for every contact with whom you exchange short text messages. 5.3 Email (3) Your cellphone has an email client with the settings predefined for a few popular email services like – GoogleMail, Windows live, Yahoo, AOL, etc. 6 Directory ................. 6.1 Consulting your directory To access the Directory from the main screen, press …

Text truncated - open the document above for the full version.

Attestation Statements

Antenna details for OT - 355A Antenna details for OT 355A An te nn a type : te a type Monopole Average gain:Average gain: GSM900:0.53dBi DCS1800 0 93dBi DCS1800 :- 0 . 93dBi

Cover Letter(s)

No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai P.R.China 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2010-09-23 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

Cover Letter(s)

No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai P.R.China 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2010/9/23 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD150 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

External Photos

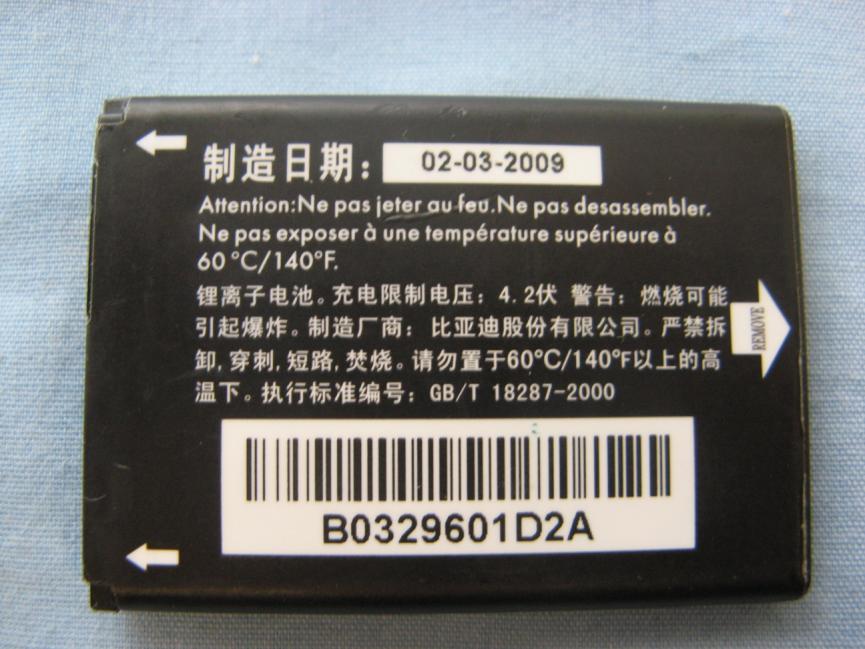

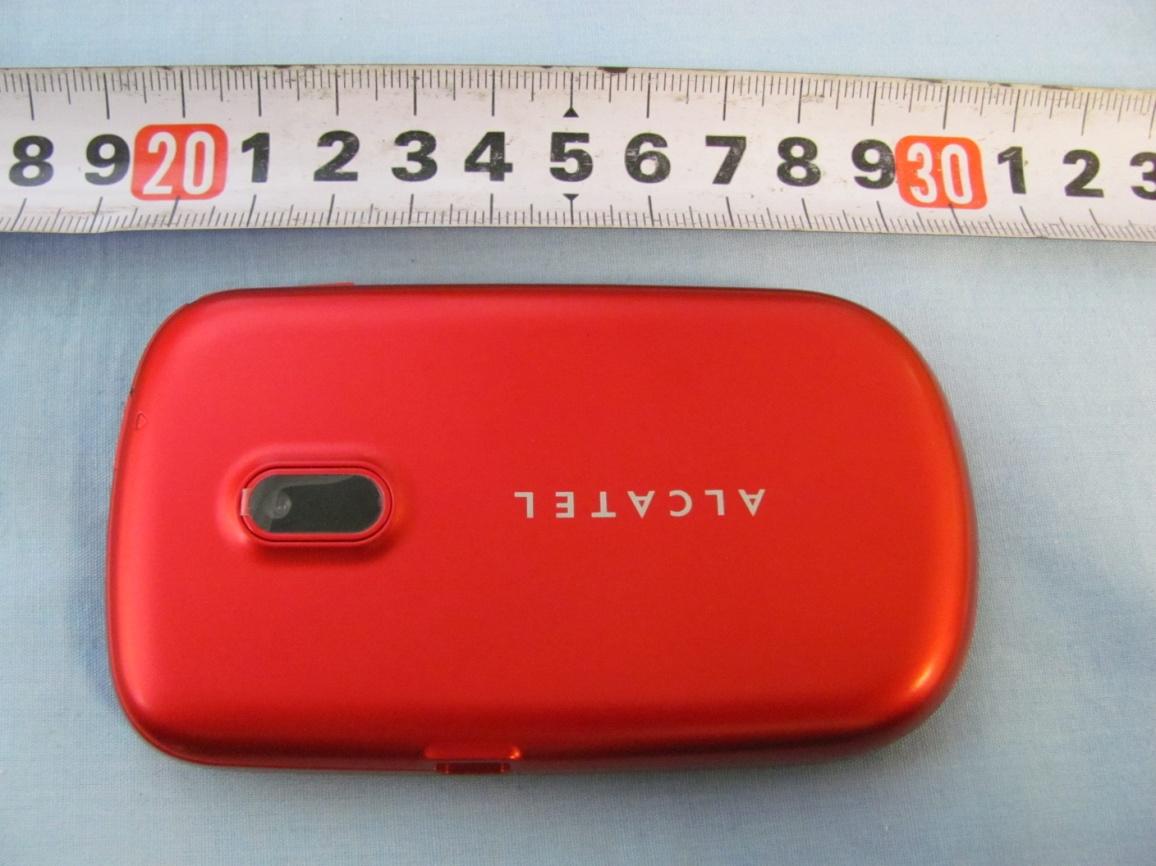

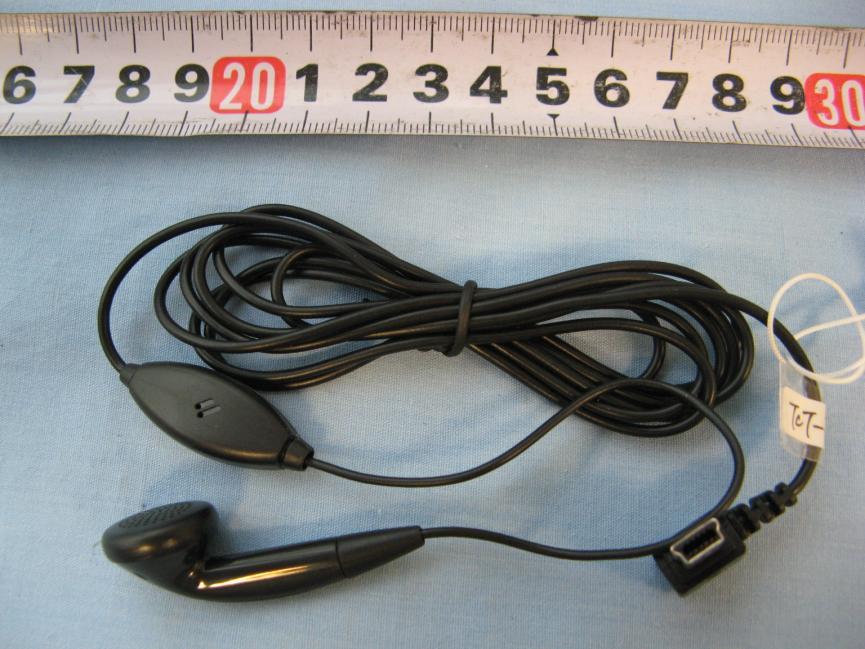

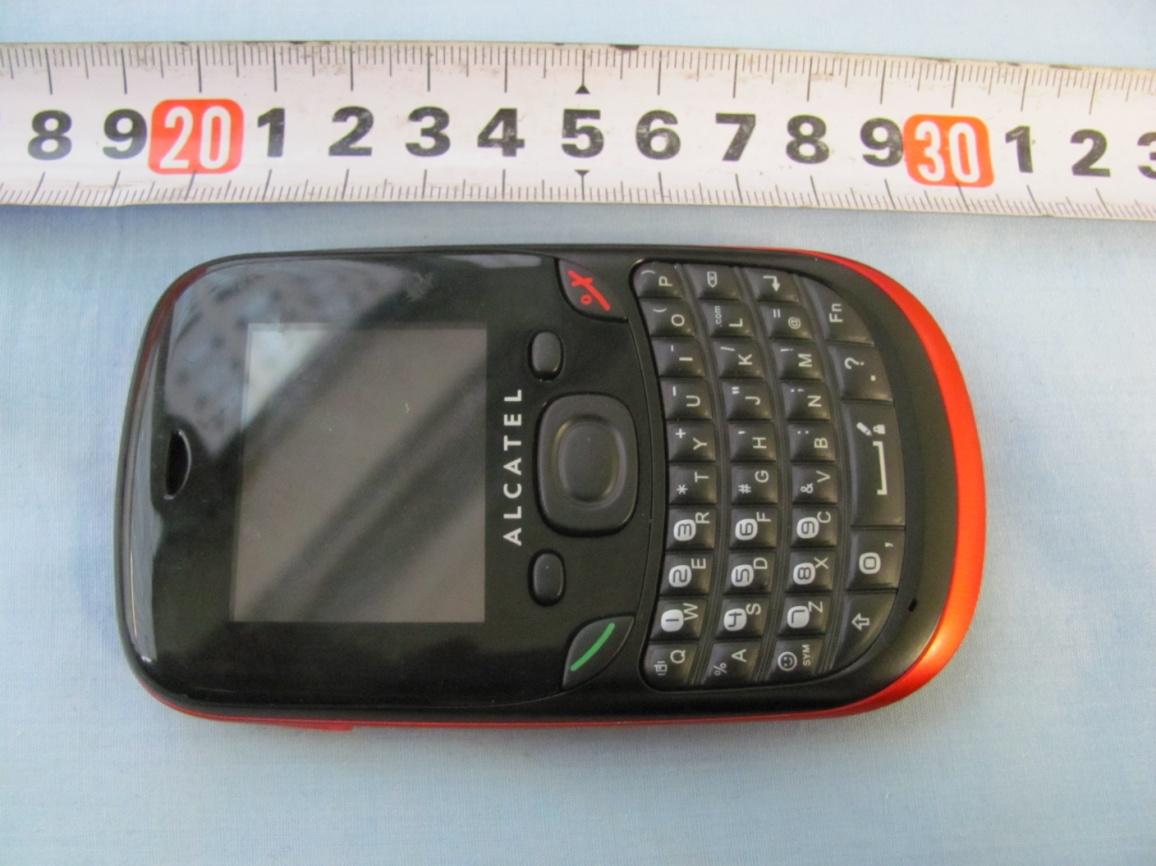

OT-355A External Photos:

Internal Photos

OT-355A Internal Photos:

RF Exposure Info

No.2010SAR00116 Page 1 of 106 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00116 For TCT Mobile Limited GSM/GPRS dual bands mobile phone U10QS Cam US OT-355A With Hardware Version: PIO Software Version: V460 FCCID: RAD150 Issued Date: 2010-10-18 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00116 Page 2 of 106 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 6 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 13 8.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 14 8.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 14 8.5 CONCLUSION................................................................................................................................................ 17 9 MEASUREMENT UNCERTAINTY ............................................................................................17 10 MAIN TEST INSTRUMENTS ..................................................................................................19 ANNEX A MEASUREMENT PROCESS....................................................................................20 ANNEX B TEST LAYOUT ...................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

No.2010SAR00116 Page 80 of 106 ANNEX E PROBE CALIBRATION CERTIFICATE No.2010SAR00116 Page 81 of 106 No.2010SAR00116 Page 82 of 106 No.2010SAR00116 Page 83 of 106 No.2010SAR00116 Page 84 of 106 No.2010SAR00116 Page 85 of 106 No.2010SAR00116 Page 86 of 106 No.2010SAR00116 Page 87 of 106 No.2010SAR00116 Page 88 of 106 No.2010SAR00116 Page 89 of 106 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00116 Page 90 of 106 No.2010SAR00116 Page 91 of 106 No.2010SAR00116 Page 92 of 106 No.2010SAR00116 Page 93 of 106 No.2010SAR00116 Page 94 of 106 No.2010SAR00116 Page 95 of 106 No.2010SAR00116 Page 96 of 106 No.2010SAR00116 Page 97 of 106 No.2010SAR00116 Page 98 of 106 1900 MHz Dipole Calibration Certificate No.2010SAR00116 Page 99 of 106 No.2010SAR00116 Page 100 of 106 No.2010SAR00116 Page 101 of 106 No.2010SAR00116 Page 102 of 106 No.2010SAR00116 Page 103 of 106 No.2010SAR00116 Page 104 of 106 No.2010SAR00116 Page 105 of 106 No.2010SAR00116 Page 106 of 106

RF Exposure Info

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

Test Report

No.2010TAR413 Page1 of 57 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR413 for TCT Mobile Limited GSM/GPRS dual bands mobile phone Mode Name: U10QS Cam US Marketing Name: OT-355A FCC ID: RAD150 with Hardware Version: PIO Software Version: V460 Issued Date: 2010-10-29 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology ShouXiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR413 Page2 of 57 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 1 0 A.1 OUTPUT POWER ........................................................................................................................... 10 A.2 EMISSION LIMT ............................................................................................................................ 15 A.3 CONDUCTED EMISSION .......................................................................................................... 20 A.4 FREQUENCY STABILITY ............................................................................................................ 25 A.5 OCCUPIED BANDWIDTH .......................................................................................................... 27 A.6 EMISSION BANDWIDTH ............................................................................................................. 35 A.7 BAND EDGE COMPLIANCE ........................................................................................................ 43 A.8 CONDUCTED SPURIOUS EMISSION ......................................................................................... 47 No.2010TAR413 Page3 of 57 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: ShouXiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2010-09-27 Testing End Date: 2010-10-29 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR413 Page4 of 57 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2010TAR413 Page5 of 57 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipm…

Text truncated - open the document above for the full version.

Test Setup Photos

Test set up photos: FCC ID: RAD150 CE: RSE:

Contact Information

Applicant

Zhizhou Gong
[email protected]+86(0)2151798260Fax: +86(0)2161460600

Technical Contact

Telecommunications Metrology Center of MIITXue Zhen
+86-62304633-2683

No. 52, Huayuan Bei Road, Haidian District, · Beijing · China

Test Firm

TMC-Telecommunication Metrology Center of M.I.I.TChongwen Song
[email protected]0086-10-62303288Fax: 0086-10-62304793

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz791.00 mW300KGXW0.1 ppm
Confidentiality
Long Term
Grant Notes
Power Output is ERP for Part 22 and EIRP for Part 24. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Part 22 Head: 0.971 W/kg; Body-worn 1.02 W/kg; PCS Band Head: 1.21 W/kg; Body-worn 0.595 W/kg.
