RAD151GSM850/PCS1900 dualband mobile phone

1 You r cell phone .............. 1.1Keys S end Key ( ) - Accesscall log fr om idl e - Acceptan incomingcall - To dial the numberfocusedon the screen End Key ( ) - Power on (long press) - Returnba ck to idl e from any other st ate - Turn off the bac klight and lo ck the scre en (short press in idle screen) - Long press in idl e to access ‘quic k profil e + powe r off’ Navi gation keys (in idle screen): - Up to message - Dow n to Came ra - Left to alarm - Right to Bluetooth menu Central key ( ) - Open Mai n Menu in idle - Confirm/ok/se lect in other state Play/ pause key (side middlekey ) - Play/pausemusic Volume keys (si de key s) - Adjustgeneralvolume (sho rt press) - Go or re turn to pr evious/nextsong (long press) 1.2Main screen icons ( 1) Batterycharge level. Vib rate aler t:yo ur cellphonevibra tes, but does not ring or beep with the exception of the alarm. Blue toot h sta tus(Bl ue -Activate d). Blue toot h sta tus(Connected to an audi o device) . Headsetco nne cted. 8.2Rad io Your cellpho ne is equippedwith FM radio (1) with RDS functionality. You can use the applic ation as a traditional radi o with saved channels or with paral lel vi sual informationrela ted to the radio progra m on the display if you tune to stationsthat offer Vi sual Radio service.You can list en to it whi le runningother applications. 8.3Im age viewer A library li nks to the pic tur es in "My creat ions" and "My images" in cell pho ne to be shownin li st, slide, or thumbnail, set asWallpaper, Screen saver,Power on/off display, andCo ntact ID, orse nt by MMS, Blueto oth. 9 Web ........................ Internetis a mobileinternetpor tal servi ce which allows you to obtain inform ation such as weather conditions, news , spo rt and download new ringtones,wallpapers, music. Home page•Launchthe Web brow ser with the ho mepa ge of the defa ult profil e. Book marks•Ac cess your favoritesit es. Rece nt pages•Pages whic h you re cent ly browsed. Offl ine pages•Pages ava ilable for of fline vi ewing. Go to URL•Enter the URL of Web sit e. Prof ile s•Custo mize your Web acce ss. Keypad locke d. Cal l forwa rdi ng activated:your calls ar e forwarded. Alarm clo ck or appointment(s). L evel of ne twork reception. Vo icemailmes sage arrived. Unansweredcalls. R ad io is on. Web alert s ( 1) . R oaming. M emorycard scanningin progr ess. Memorycard scanningcompleted. Lin e switching ( 2) :indicatesthe sel ec ted li ne. GPRS attached. GPRS conn ecti ng. M usic player active. Mes sage recei pt in progress. Sendinga message. Silence mode:your cellpho ne doe s not ring, beep or vibrate. Mes sage unrea d. Mes sage list is full:your cel lphonecannotacc ept any new messages.You must acc ess the messagelist and dele te at least one messageon your SIM car d. Flight mod e. Bluetoothhea dset connected. 10 Tools ........................ 10.1Ser vices Cont act your networkope rat or to check serviceava ilability. 10.2Alarm Yo ur ce llpho ne has a built-i n alarm cl ock with a snoo ze feature. 10.3Bl uetooth To use your cellphonewi th a Bluetoothdevice,you nee d to proceed in two steps: - Pair and registerthe device to your cell pho ne, - Select it to use hands-freecom munica tio n. 10.4Calendar Once yo u enter this menu from "Tool s", there is a monthly-view cal en dar for yo u to kee p track of impor tant meeti ng s, appo intments, etc. Days with events ent ered will be markedin color. 10.5Calculator Enter a number,select the type of opera ti on to be perf ormed,and enter the secondnumber,the n presskey to displaythe result. To return to the main scre en, clickarea. 10.6Mem o Yo u can crea te aTe xt noteorVoice memoby accessing"Me mo". 10.7World clock The World clock sh ows currentlocal time and the time in differentciti es. Yo u may vie w up to 3 cit ies at one time (Options\Setas my city). Also, you can add amaximu mof 10new citie sto the list (Options\Add). 3 Calling ............................ 3.1Makinga Call D ial the desired numberthen pre ss thekey to place the call. If you make a mi stake, you can dele te the incorrectdigits by pressingthe right softk ey. To hang up the call, press thekey. Makingan emerg ency call I f your cel lpho ne is cove red by the netw ork, dial emergencynumber and press thekey to make an emergencyca ll. This work s even without a SIM car d and withouttyping the PIN code ( 1) . 3.2Calling yo ur voicemail (2) Your voi cema il is providedby your netwo rk to avoid missingca ll s. It w orks like an answe ring machinethat you can consultat an y time. To access your vo icemail,hold downkey. 3.3Receivinga call W hen you receivean incomi ng call, press thekey to talk and then hang up using thekey. 3.4Availablefunctionsduring the call Du ring a call, you ca n use your directory,short messag es, etc. without los ing you r co rrespondent. 11 File manager.......... 11.1Mem ory card Yo u can access all fil es storedin mem ory card he re. 11.2My audio s Choose an audio for the Poweron/ off sc reen, for an incomingcall, a messagealert, po wer on/off ringt one or an alarm and scheduler. 11.3My images Yo u can select an image or a phot o as wallpaper,ON /OFF scr een, or ass ign it to a conta ct in the directory. 11.4My vid eos The "My videos" al bum containsall video clips reco rded by the user, originallyembeddedin the cellphoneand downloadedto the cellphoneor memorycard. 11.5My creations This featurestores all the photoscapturedby yo ur cellphone. 11.6Others Store files of unsupported format. 11.7Mem ory st atu s Indicateshow much space is used and ho w much is currentlyfr ee on your cellp hone and memorycard (if any). 4 Calls ........................ 4 .1Call lo g You can accessyour call memoryby pressingfrom the id le scree n. Choosethe optionof the desire d li st:Outgoingcall(s), M issed call(s), Answeredcall(s). 4.2My nu mbers Typ e in or modifyyour cellphonenumberor the numberto access y ou r voi cemailand confirmby clicki ng . Your cellphonenumberis usu ally written on your SIM card. 4.3Billings You can accessdifferen…

Text truncated - open the document above for the full version.

No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai P.R.China 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2010/9/10 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD151 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

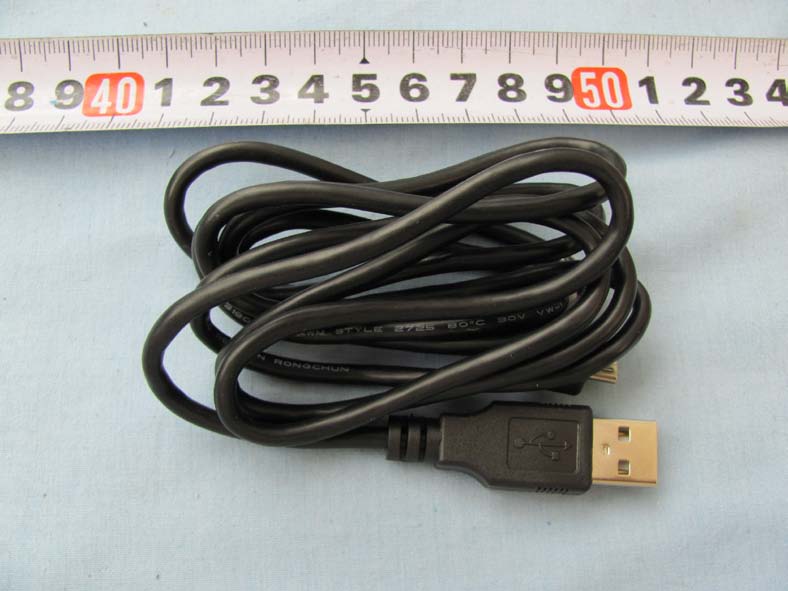

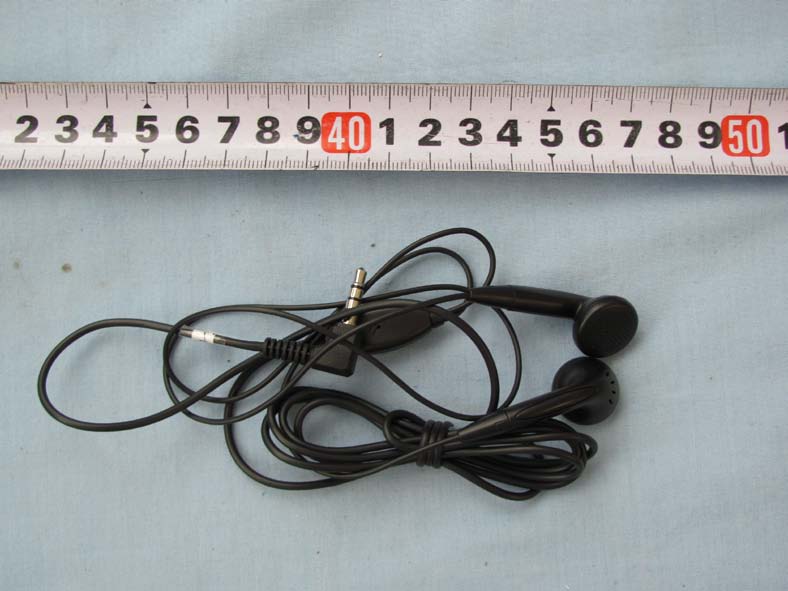

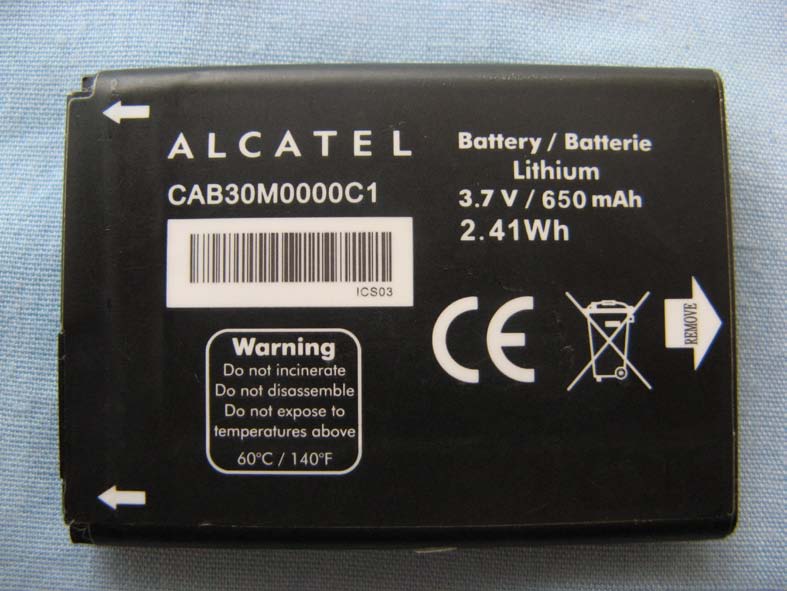

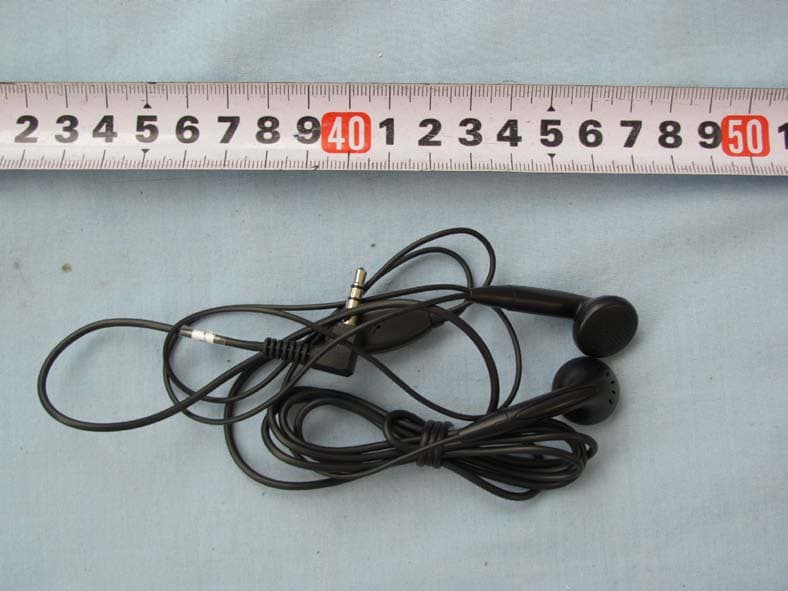

RAD151 External Photos

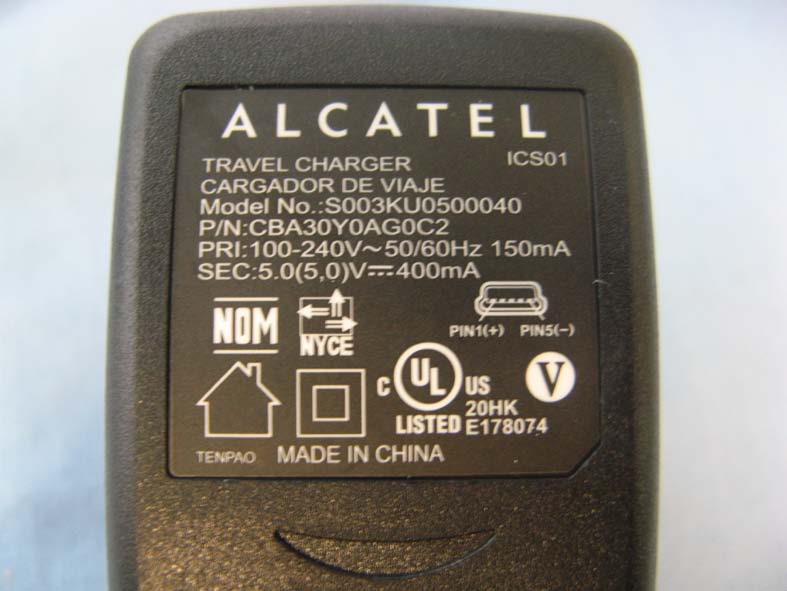

RAD151 Label Location:

RAD151 Internal Photos

No.2010SAR00095 Page 1 of 99 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00095 For TCT Mobile Limited GSM850/PCS1900 dual band mobile phone Mini Lite US OT-706A With Hardware Version: Proto Software Version: V302 FCCID: RAD151 Issued Date: 2010-09-15 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00095 Page 2 of 99 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 13 8.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 14 8.4 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH FUNCTION) ............................................................... 16 8.5 CONCLUSION................................................................................................................................................ 16 9 MEASUREMENT UNCERTAINTY ............................................................................................17 10 MAIN TEST INSTRUMENTS ..................................................................................................18 ANNEX A MEASUREMENT PROCESS....................................................................................19 ANNEX B TEST LAYOUT ......................................................................................................…

Text truncated - open the document above for the full version.

No.2010SAR00095 Page 71 of 99 1900MHz Date/Time: 2010-9-4 7:30:07 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.39 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.3 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.9 V/m; Power Drift = 0.065 dB Peak SAR (extrapolated) = 14.7 W/kg SAR(1 g) = 9.69 mW/g; SAR(10 g) = 4.92 mW/g Maximum value of SAR (measured) = 10.4 mW/g 0 dB = 10.4mW/g Fig.43 validation 1900MHz 250mW No.2010SAR00095 Page 72 of 99 1900MHz Date/Time: 2010-9-4 13:18:06 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.0; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.2 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.1 V/m; Power Drift = -0.093 dB Peak SAR (extrapolated) = 16.0 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.10 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6mW/g Fig.44 validation 1900MHz 250mW No.2010SAR00095 Page 73 of 99 ANNEX E PROBE CALIBRATION CERTIFICATE No.2010SAR00095 Page 74 of 99 No.2010SAR00095 Page 75 of 99 No.2010SAR00095 Page 76 of 99 No.2010SAR00095 Page 77 of 99 No.2010SAR00095 Page 78 of 99 No.2010SAR00095 Page 79 of 99 No.2010SAR00095 Page 80 of 99 No.2010SAR00095 Page 81 of 99 No.2010SAR00095 Page 82 of 99 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00095 Page 83 of 99 No.2010SAR00095 Page 84 of 99 No.2010SAR00095 Page 85 of 99 No.2010SAR00095 Page 86 of 99 No.2010SAR00095 Page 87 of 99 No.2010SAR00095 Page 88 of 99 No.2010SAR00095 Page 89 of 99 No.2010SAR00095 Page 90 of 99 No.2010SAR00095 Page 91 of 99 1900 MHz Dipole Calibration Certificate No.2010SAR00095 Page 92 of 99 No.2010SAR00095 Page 93 of 99 No.2010SAR00095 Page 94 of 99 No.2010SAR00095 Page 95 of 99 No.2010SAR00095 Page 96 of 99 No.2010SAR00095 Page 97 of 99 No.2010SAR00095 Page 98 of 99 No.2010SAR00095 Page 99 of 99

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2010TAR377 Page1 of 63 FCC Part22 24 TEST REPORT No. 2010TAR377 for TCT Mobile Limited GSM850/PCS1900 dualband mobile phone Model Name: Mini Lite US Marketing Name: OT-706A With FCC ID: RAD151 Hardware Version: Proto Software Version: V302 Issued Date: 2010-09-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2010TAR377 Page2 of 63 CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 4. REFERENCE DOCUMENTS FOR TESTING ......................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 7 6. SUMMARY OF TEST RESULTS ............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 8 ANNEX A: MEASUREMENT RESULTS ........................................................................................ 9 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ................................................................ 9 A.2 EMISSION LIMT (§2.1051/§24.238) .............................................................................. 13 A.3 CONDUCTED EMISSION (§15.107§15.207) .................................................................. 26 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ................................................................ 31 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ..................................................................... 33 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) ...................................................... 41 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ................................................. 49 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) .............................. 53 No.2010TAR377 Page3 of 63 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2010-08-24 Testing End Date: 2010-09-10 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR377 Page4 of 63 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China Contact Ying Kong Email [email protected] Telephone: 0086 21 6146 0883 Fax: 0086 21 6146 0602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China Contact Ying Kong Email [email protected] Telephone: 0086 21 6146 0883 Fax: 0086 21 6146 0602 No.2010TAR377 Page5 of 63 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM850/PCS1900 dualband mobile phone Model Name Mini Lite US Marketing Name OT-706A FCC ID RAD151 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 27.93 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N12 012433000000595 Proto V302 *EUT ID: is used to identif…

Text truncated - open the document above for the full version.

RAD151 test set up photos: 1. CE 2. Part15B 3. Part15B_RE_1 4. Part15B_RE_2 5. Part15C_1 6. Part15C_2 7. RSE
