RAD152GSM/GPRS/EDGE dual band mobile phone

1234567 891011121314 1 Your cellphone ............... 1.1 Keys Navigation key Confirm an option (press the middle of the key) Answer Send a call Access call memory (Redial) (short keypress) Switch on/Switch off the cellphone (long keypress) End a call Return to the main screen Left softkey Right softkey Access your voicemail (long keypress) Create message (short keypress) Create email (long keypress) Send a message to the contact (in Directory) Take photos (short keypress) Record videos (long keypress) Side key - Push: Access “Music player”, “Radio”, “World clock”, “Image viewer”, “News”, “Weather forecast”, “My friends”. Confirm an option - Scroll up/down: Volume up/down Previous/next menu Ctrl + B: Activate/Deactivate Bluetooth Ctrl + M: Access Music player Ctrl + P: Access Profiles Ctrl + J: Access Java applications Delete a contact (in Directory/Call memory) Delete a message (in Inbox/Outbox...) Delete a file (in File manager) Delete a note (in Notes) Shift sound play among Headset, Bluetooth and Headset & Bluetooth (long keypress). 1.2 Main screen icons (1) Battery charge level Vibrate alert: your cellphone vibrates, but does not ring or beep with the exception of the alarm Bluetooth status (Blue - Activated). Bluetooth status (Connected to an audio device). Headset connected. Keypad locked. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. Stopwatch is active. WAP alerts (2) . Roaming. Memory card scanning in progress. Memory card scanning completed. SIM card missing. Line switching (1) : indicates the selected line. GPRS connection status (Blue - Activated). EDGE attached. EDGE connecting. Shown only in no ciphering mode while calling, sending/receiving SMS. Music player active. Message receipt in progress. Sending a message. Silence mode: your cellphone does not ring, beep or vibrate with the exception of the alarm. Message unread Message list is full: your cellphone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. A2DP connected. Installing or removing the battery 2 Getting started .............. 2.1 Set-up Removing or installing the back cover 3 Calls ................................. 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right softkey or key. To hang up the call, press the key. Making an emergency call If your cellphone has network coverage, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code. 4 Menu arrange ........... Main Menu is designed to vary according to your preference. Change the order Press left softkey and select "Move" or long keypress Side key/ key till tick "√" is shown, then move the cursor to your favourite destination and confirm with key. Show/Hide Access "Menu arrange", press to show/hide the main menu items. Restore default settings From main menu, select "Menu arrange", press the "Options" softkey, and then select "Restore default settings" to return back to the default menu display. 5 Messages .................. 5.1 Create message From the main menu select "Messages\Write msg" to create text/ multimedia message. An SMS will be converted to MMS automatically when images, videos, audios, slides, attachments inserted, Subject, CC/BCC/email address added, or the message contains more than 8 pages of text. 5.2 Inbox All received messages (read and unread) are stored in the same Inbox. Group by sender/Group by receiver (1) Messages can be grouped by sender/receiver ("Options\Group by sender"/"Options\Group by receiver"). And you are enabled to quick search the messages by pressing the key associated with the first letter of sender/receiver's name. Group unread message Unread messages will always be be positioned above the read messages. Timer send Schedule a SMS/MMS to be sent out at predefined time (Create SMS/ MMSÆAdd numberÆOptions/Timer send). Multi-mark Mark/Unmark file(s) for further operations: Move to archive (2) , Send (3) , Delete. 6 Email ..................... Your cellphone has an email client with the settings pre-defined for a few popular email services like – GoogleMail, Windows live, Yahoo, AOL, etc. Besides this, you can set up other POP3 or IMAP4 email accounts that you may be using. (1) Depending on your network operator. (1) Depending on your network operator. May cause additional network charges for data flow to provide this service. Extra fees might also be charged in roaming states. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (1) This menu is hidden by default, you can make it visible in main menu (see page 6). (2) Depending on your country or your operator. (1) Depending on cellphone and market. (1) In Radio mode, you are required to plug in headset first. Your cellphone will power on automatically before Radio is on. Inserting or removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press the bottom and slide it out. Please power off your phone before you remove the SIM card. 2.2 Power on your cellphone Hold down the key until the cellphone powers on. 2.3 Power off your cellphone Hold down the key from the main screen. 7 Instant messaging (1) .. Palringo Instant messaging (IM) allows you to chat with other people using Palringo account. You can also connect to other popular IM services through Palringo, like Yahoo, AIM, GG, ICQ, Google talk, iChat and etc. Please note that the services may be upgraded upon your client version. 8 Directory .................. 8.1 Consulting your directory To access the Directory from the main screen, press the key or press the key and select the icon fr…

Text truncated - open the document above for the full version.

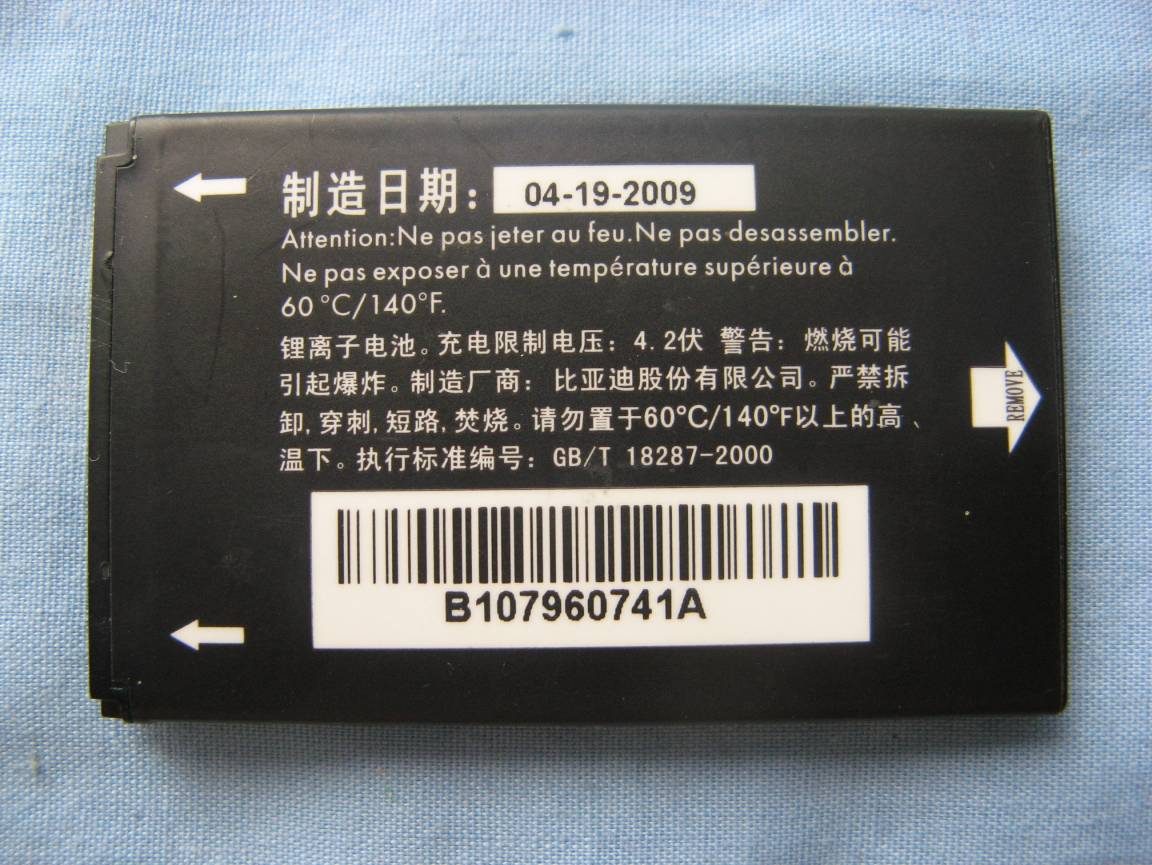

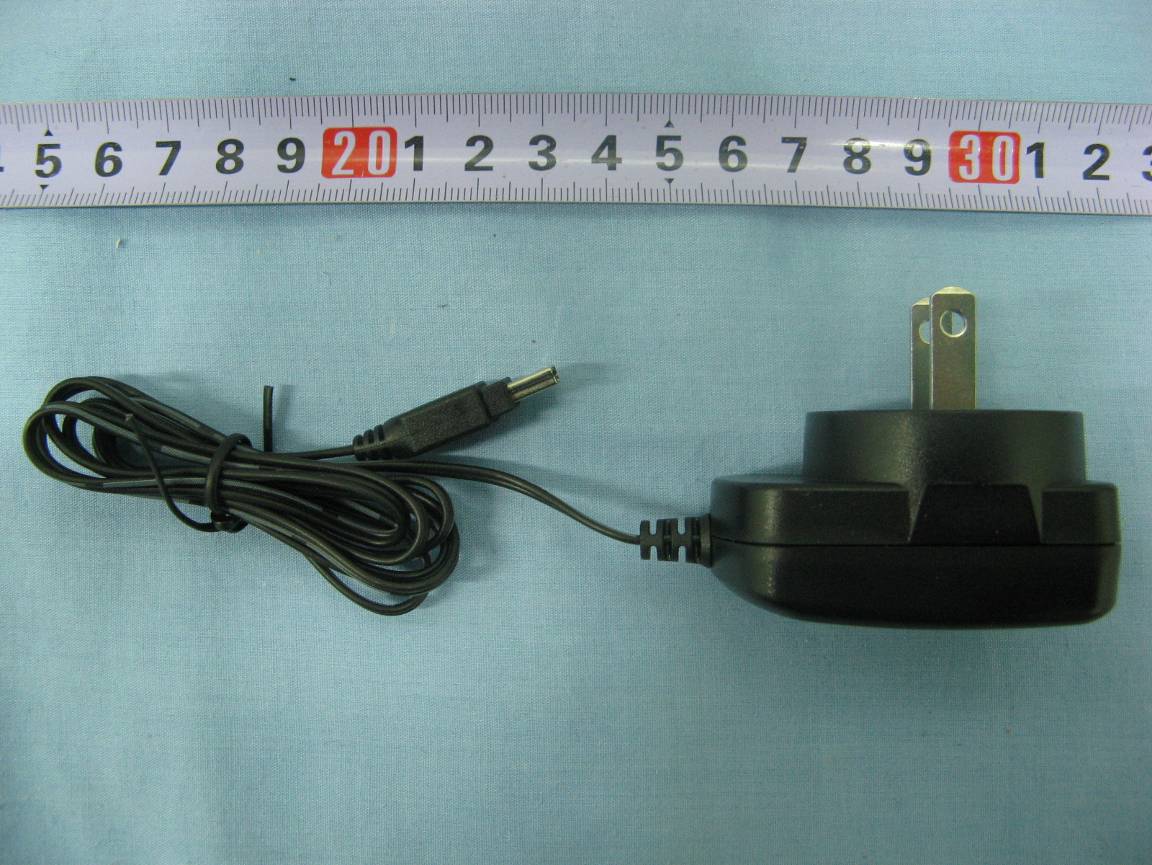

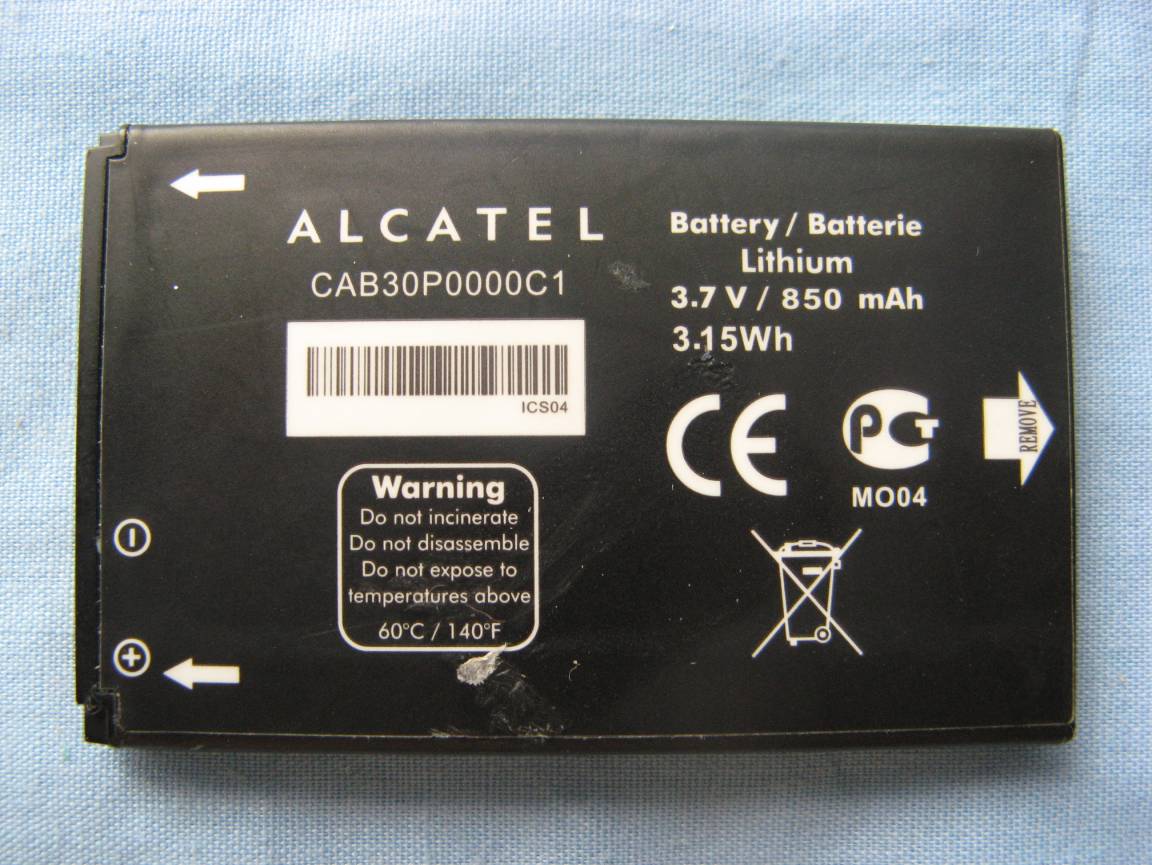

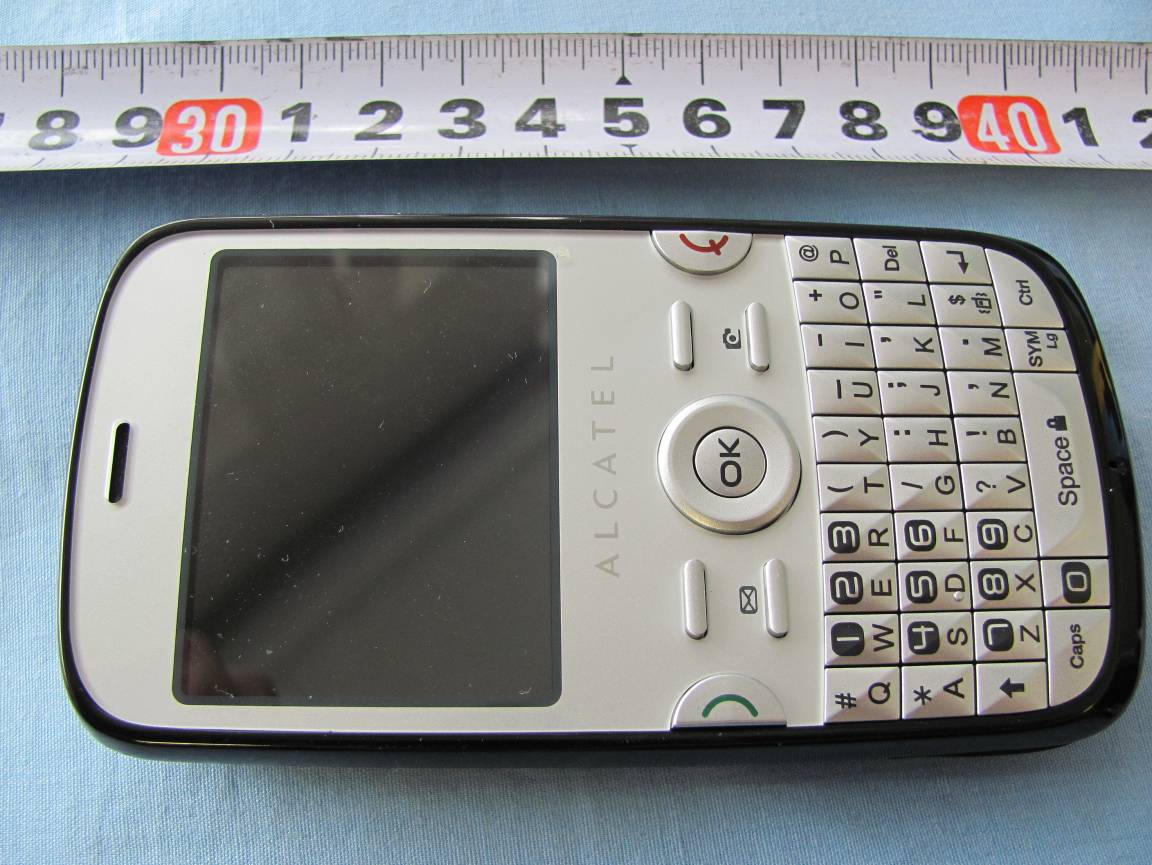

EUT photograph FCCID:RAD152

EUT Label Location FCC ID: RAD152

EUT Interior photograph FCC ID:RAD152

No.2010TAR375 Page1 of 19 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR375 for TCT Mobile Limited GSM/GPRS/EDGE dual band mobile phone Model Name: Jade Lite A Marketing Name: OT-799A FCC ID: RAD152 with Hardware Version: PROTO Software Version: SW221 Issued Date: Sep 9 th , 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No.2010TAR375 Page2 of 19 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 7 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 7 5. LABORATORY ENVIRONMENT .............................................................................................. 8 6. SUMMARY OF TEST RESULTS .............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................. 10 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 11 No.2010TAR375 Page3 of 19 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Sep 6,2010 Testing End Date: Sep 7,2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR375 Page4 of 19 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 4F, South Building, No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai 201203, P.R.China City: Shanghai Postal Code: 201203 Country: P.R.China Telephone: 0086 21 61460883 Fax: 0086 2161460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4F, South Building, No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai 201203, P.R.China City: Shanghai Postal Code: 201203 Country: P.R.China Telephone: 0086 2161460890 Fax: 0086 2161460602 No.2010TAR375 Page5 of 19 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS/EDGE dual band mobile phone Model Name Jade Lite A Marketing Name OT-799A FCC ID RAD152 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger (AC Adaptor) Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N11 012454000010632 PROTO SW221 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery / AE2 Charger / AE3 Charger / AE4 Headset / AE5 Headset / AE1 Model CAB30P0000C1 Manufacturer BYD Capacitance 850mAh Nominal Voltage 3.7V AE2 Model CBA30Y0AG0C1 Manufacturer BYD Length of DC line 120cm AE3 Model CBA30Y0AG0C2 Manufacturer TENPAO Length of DC line 120cm No.2010TAR375 Page6 of 19 ©Copyright. All rights reserved by TMC Beijing. AE4 Model CCA30B4000C0 Manufacturer Juwei Length of DC line 160cm AE5 Model CCA30B4000C2 Manufacturer SHUNDA Length of DC line 160cm *AE ID: is used to identify the test sample in the lab internally. No.2010TAR375 Page7 of 19 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Refere…

Text truncated - open the document above for the full version.

EUT Set-up photos FCC ID:RAD152 CE: Part15B: Part15B RE: Part15C RSE:
