RAD154GSM/GPRS/EDGE 900/1800 dual band mbile phone

1 9 2 10 3 11 4 12 5 13 6 14 7 15 8 16 Your cellphone 1 .............. Status bar icons1.1 (1) Battery charge level Vibrate alert: your cellphone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Java status (Activated). Headset connected. Keypad & LCD touch locked. Keypad& LCD touch unlocked. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Wi-Fi connected. Wi-Fi disconnected. Voicemail message arrived. Missed calls. Stopwatch is active. Radio is on. Email unread. WAP alerts (1) . Roaming. SD card scanning in progress. SD card scanning completed. SIM card unavailable. Line switching (1) : indicates the selected line. GPRS connection status (Activated). GPRS connecting. EDGE connecting. EDGE attached. Music player active. Message receipt in progress. MMS receipt in progress. Sending a SMS. Sending a MMS. Silence mode: your cellphone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. (In red) Message list is full: your cellphone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. A2DP connected. Broadcast is on. Status list1.2 Tap the status bar and drag down to open, drag up to close. To open an application, tap it from the list. Home screen1.3 Adding items To add an item from the main menu, you can select one of the following ways: Tap and hold an item from the main menu list.• Tap • from the tool bar and select “Add widgets/Add shortcuts”. Touch and hold an empty area from the main screen, select “• Add widgets/Add shortcuts” from the window that opens, then tap the item you want to add to the Home screen. Editing/Removing items To edit/ remove an item from the main screen, you can select one of the following ways: Long press the application on the Home screen, touch to edit (only for my favourites), touch to remove, and then confirm by tapping “Done”. Tap from the tool bar and select “Delete shortcuts and widgets”. Wallpaper To personalize your wallpaper, you can select one of the following two ways: Touch and hold an empty area from the Home screen, select • “Wallpaper”, then tap a folder to select an image as your wallpaper. Tap • from the tool bar, select “Wallpaper”, then tap a folder to select an image as your wallpaper. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. Small dots at the bottom of the screen indicate which screen you are viewing. Toolbar1.4 Tool bar with menu items by default as a shortcut for quick access. Getting started 2 ............ Set-up2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the cellphone • cover. Unclip the cover, then remove the battery.• Charging the battery Connect the battery charger to your phone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your cellphone2.2 Hold down the key until the cellphone powers on. Power off your cellphone2.3 Hold down the key from the main screen. Using the touchscreen2.4 Tap To access an application, tap it with your finger. Scroll Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Making a call 3 ................ Enter the desired number on the hardware keypad directly. The number you entered can be saved to Contacts by selecting “Save”. If you make a mistake, you can delete the incorrect digits by pressing or . To hang up the call, press the key. Menu arrange 4 .............. The main menu is designed to vary according to your preference. To access this function, select to enter the main menu, then tap . Change the order Access the main menu, focus on the main menu item you want to move, and then tap “Options\Move”, it will go to the main menu screen and tick “√” will be shown on the main menu you selected, then release it to your favourite destination. Show/Hide Access “Menu arrange”, tap the left check box of the selected menu once to show/hide, then tap “Done” to save the operation. Messaging 5 .............. Conversational On (Off) mode5.1 In conversational on mode, you can view chat history in chronological order. In conversational off mode, you can access the following folders: Inbox, Outbox, Sent, Drafts, etc. You can switch between these two modes by selecting “Options\Settings\Conversational mode\ On (Off)”. Conversational mode is set as the default mode and the following instructions are based on this mode. Write message5.2 Select “Messaging\Write message” to create text/multimedia messages. An SMS will be converted to MMS automatically when: images, videos, audio, slides or attachments are inserted; Subject, CC/ BCC/email address is added; or the message contains more than 8 pages of text. Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. Timer send Schedule a SMS/MMS to be sent out at predefined time (“Option\ Timer send”). Email 6 ...................... Your cellphone has an email client with the settings predefined for a few popular email services like – GoogleMail, Yahoo, AOL, etc. Besides this, you can set up other POP3 o…

Text truncated - open the document above for the full version.

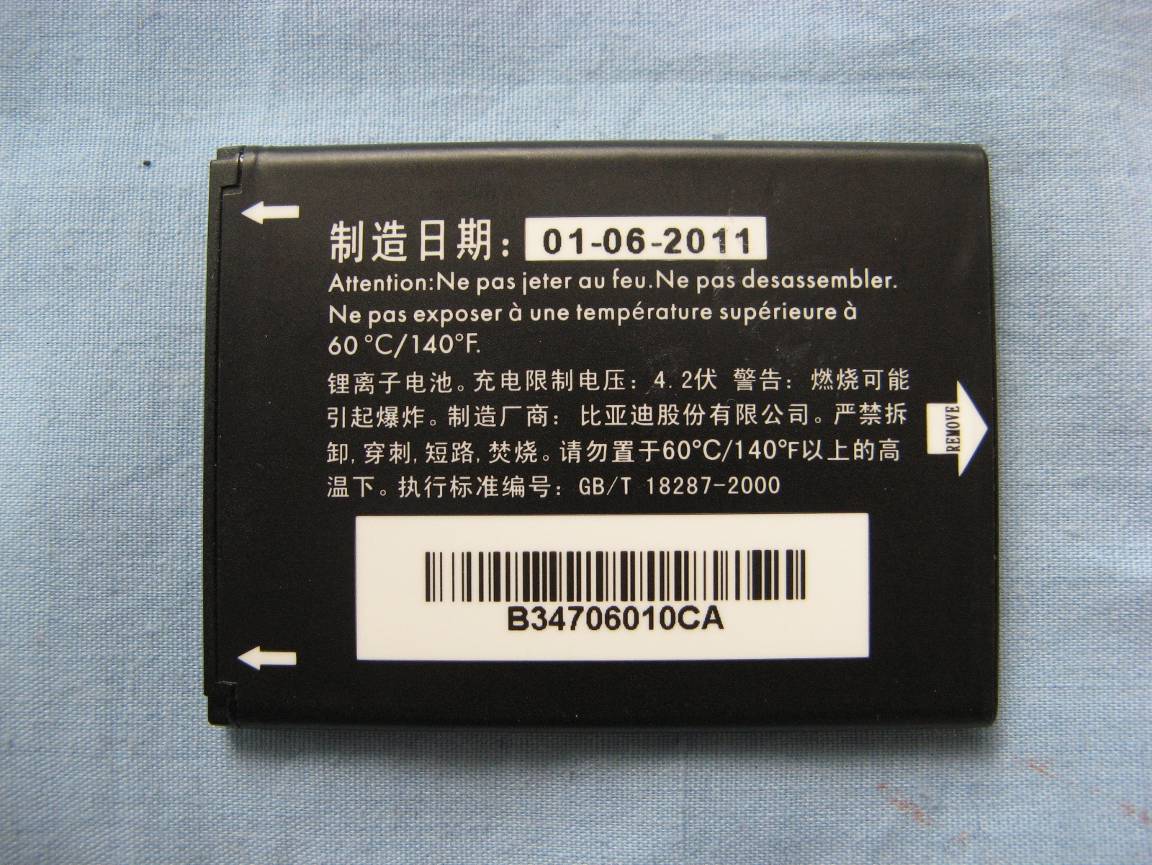

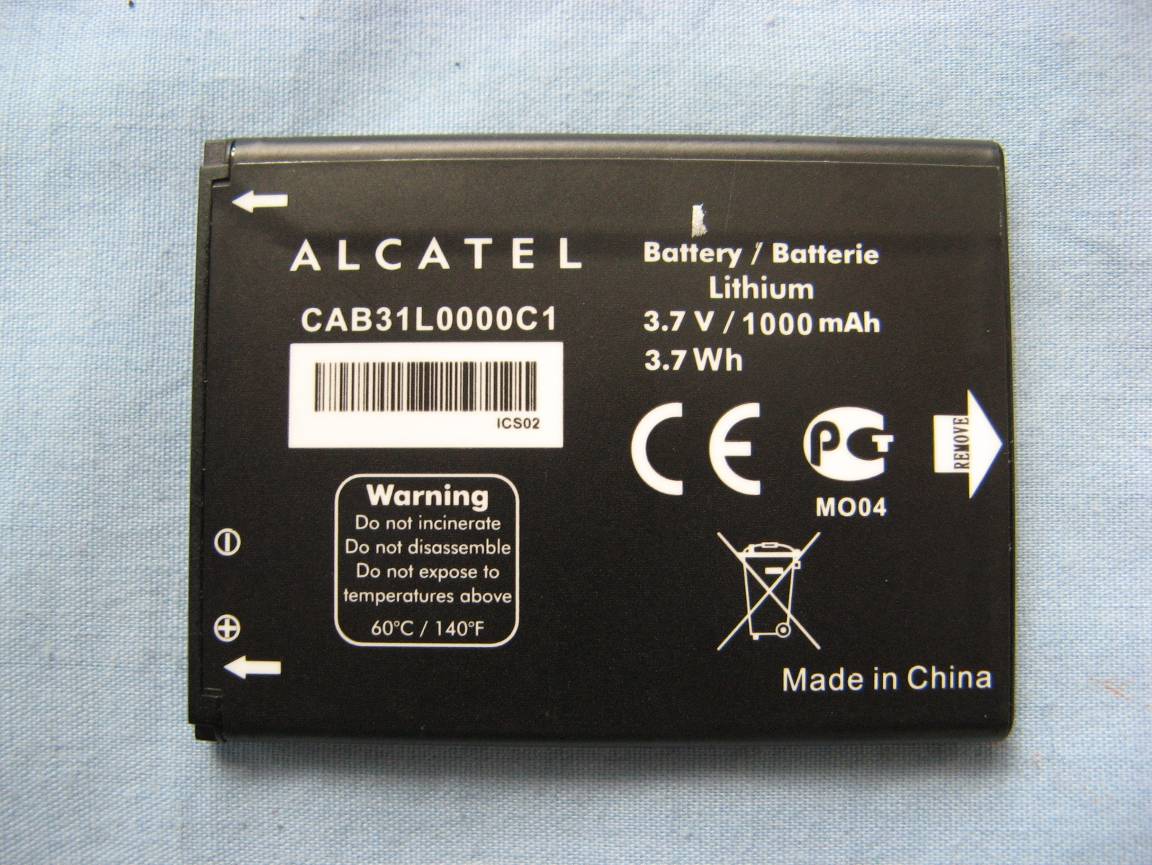

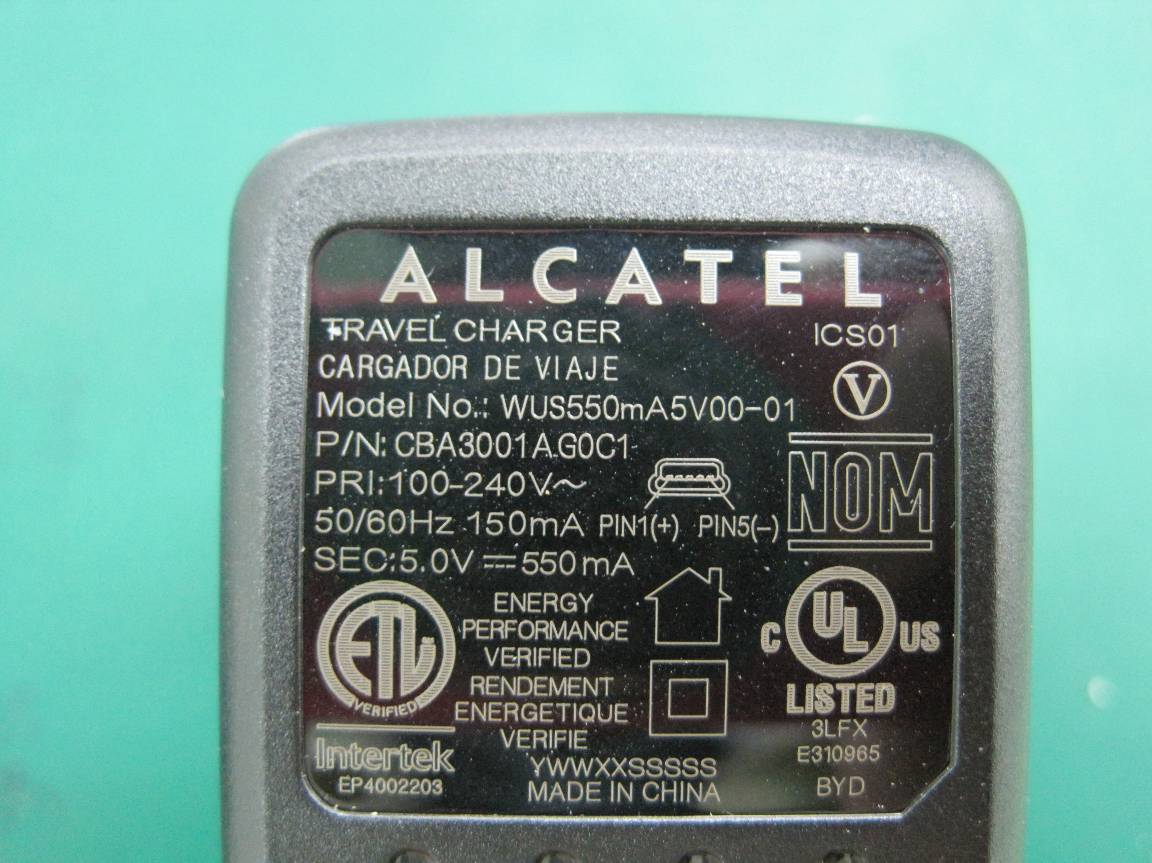

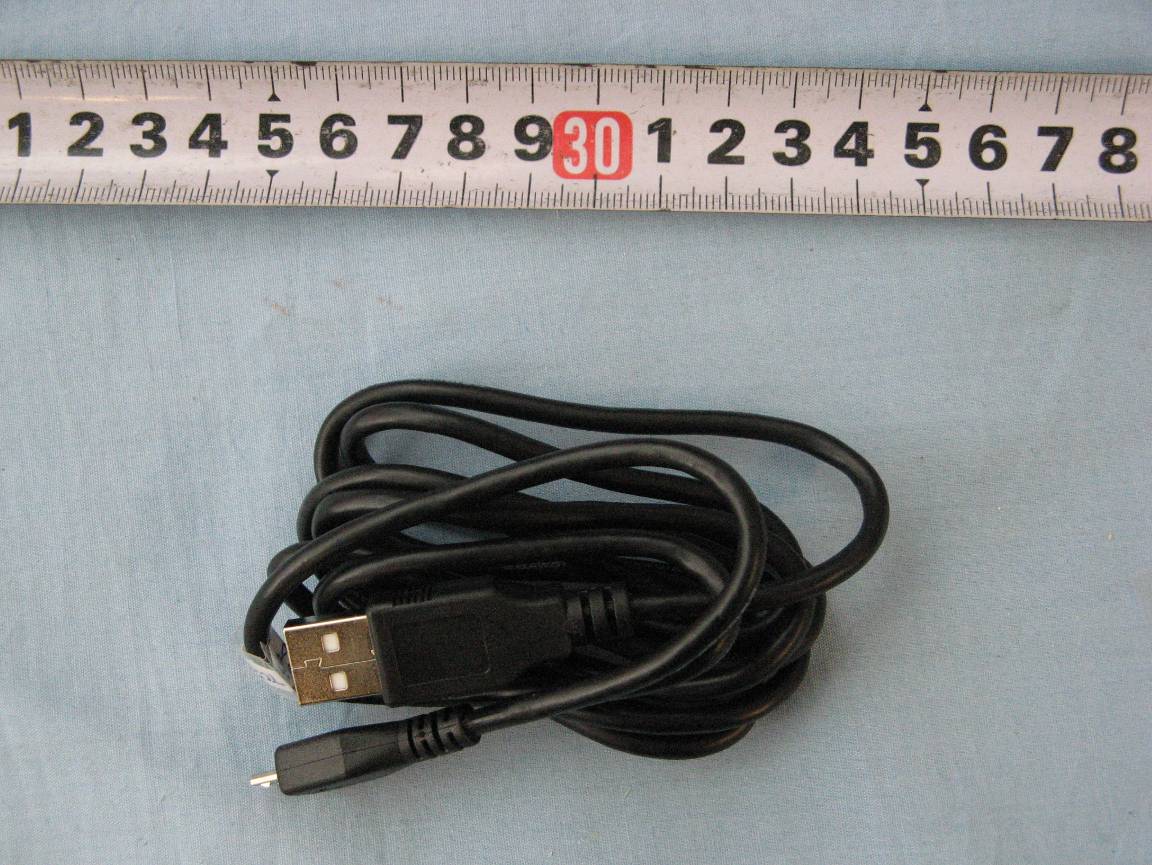

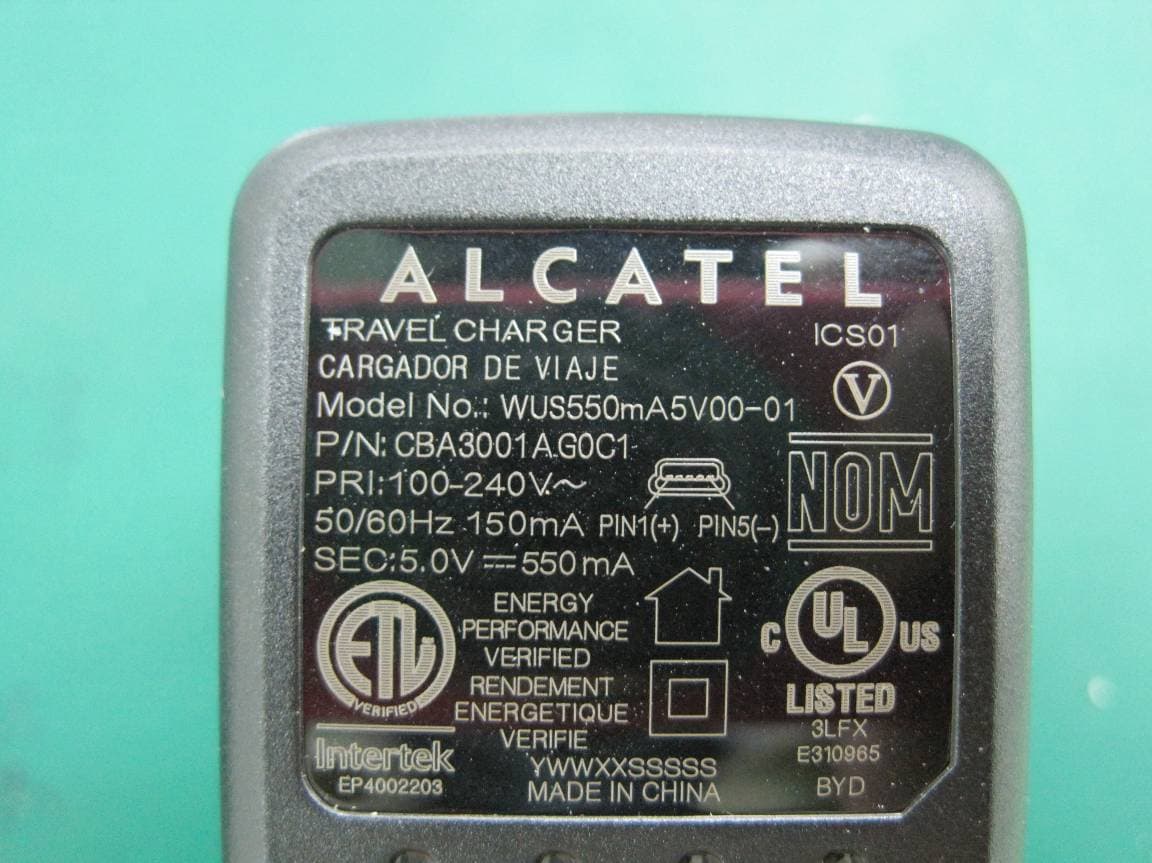

EUT photograph FCCID:RAD154

one touch 803A Label Location:

EUT Interior photograph FCC ID:RAD154

©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2011TAR029 for TCT Mobile Limited GSM/GPRS/EDGE 900/1800 dual band mobile phone Model Name: Onyx A Marketing Name：one touch 803A FCC ID: RAD154 With Hardware Version: PIO Software Version: V415 Issued Date: 2011-01-21 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633 , Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No.2011TAR029 Page 2 of 19 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. A PPLICANT INFORMATION .................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 11 No.2011TAR029 Page 3 of 19 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan 10, 2011 Testing End Date: Jan 12, 2011 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2011TAR029 Page 4 of 19 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086 21 68897541 Fax: 0086 21 50801070 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2011TAR029 Page 5 of 19 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS/EDGE 900/1800 dual band mobile phone Model Name Onyx A Marketing Name one touch 803A FCC ID RAD154 Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N06 012561000000858 PIO V415 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery / AE2 Battery / AE3 Charger / AE4 Charger / AE5 Headset / AE6 Headset / AE7 Data cable / AE8 Data cable / AE1 Model CAB31L0000C1 Manufacturer BYD Capacitance 1000mAh Nominal Voltage 3.7V AE2 Model CAB31L0000C2 Manufacturer BAK Capacitance 1000mAh Nominal Voltage 3.7V AE3 Model CBA3120AG0C2 Manufacturer Tenpao Length of DC line 120cm No.2011TAR029 Page 6 of 19 ©Copyright. All rights reserved by TMC Beijing. AE4 Model CBA3001AG0C1 Manufacturer BYD Length of DC line 120cm AE5 Model CCB3160A10C0 Manufacturer Juwei AE6 Model CCB3160A10C3 Manufacturer Lianchuang AE7 Model CDA3122000C0 Manufacturer Juwei AE8 Model CDA3122000C0 Manufacturer Shenhua *AE ID: is used to identify the test sample in the lab internally. No.2011TAR029 Page 7 of 19 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Referen…

Text truncated - open the document above for the full version.

EUT Set-up photos FCC ID:RAD154 CE: RSE: Part 15B CE: Part 15B RE: Part 15C RE:
