RAD158HSDPA/UMTS dual band / GSM four bands mobile phone

1 English - CJB31P1ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. A S IP3514_990A_990S_QG_Eng_USA_07_110527.indd 1IP3514_990A_990S_QG_Eng_USA_07_110527.indd 12011-5-27 Jerry 16:56:342011-5-27 Jerry 16:56:34 23 Your cellphone 1 ............. Keys and connectors1.1 Menu key Search key Back key Touchscreen Front camera Home key Micro-USB connector Headset connector Volume up Volume down Power key Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your cellphone ................................................................................. 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications .................................................................................... 25 12 Making the most of your cellphone .......................................... 26 IP3514_990A_990S_QG_Eng_USA_07_110527.indd 2-3IP3514_990A_990S_QG_Eng_USA_07_110527.indd 2-32011-5-27 Jerry 16:56:352011-5-27 Jerry 16:56:35 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to customize your Home screen by adding applications or changing wallpaper/theme. On other screens, press to view options list.• Press: Light up the screen Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: End a call Lock the screen Light up the screen Press and hold: When cellphone is off, power on the cellphone. When cellphone is on, enter cellphone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the cellphone or web. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the cellphone • cover. Unclip the cover, then remove the battery.• IP3514_990A_990S_QG_Eng_USA_07_110527.indd 4-5IP3514_990A_990S_QG_Eng_USA_07_110527.indd 4-52011-5-27 Jerry 16:56:352011-5-27 Jerry 16:56:35 67 Installing and removing the MicroSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Standard charger UK charger Connect the battery charger to your cellphone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your cellphone1.2.2 Hold down the Power key until the cellphone powers on. It will take some seconds before the screen lights up. Set up your cellphone for the first time The first time you power on the cellphone, you are required to touch the Android logo to begin and then sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Set up the date and time, then touch • Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\ Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. (1) Application availability depends on country and operator. IP3514_990A_990S_QG_Eng_USA_07_110527.indd 6-7IP3514_990A_990S_QG_Eng_USA_07_110527.indd 6-72011-5-27 Jerry 16:56:362011-5-27 Jerry 16:56:36 89 Power off your cellphone1.2.3 Hold down the Power key from the Home screen until the cellphone options appear, select Power off. Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your home screen for quick access. Press Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and Drag down to • open notification panel. Application tab…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-4-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 5/7/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 158 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

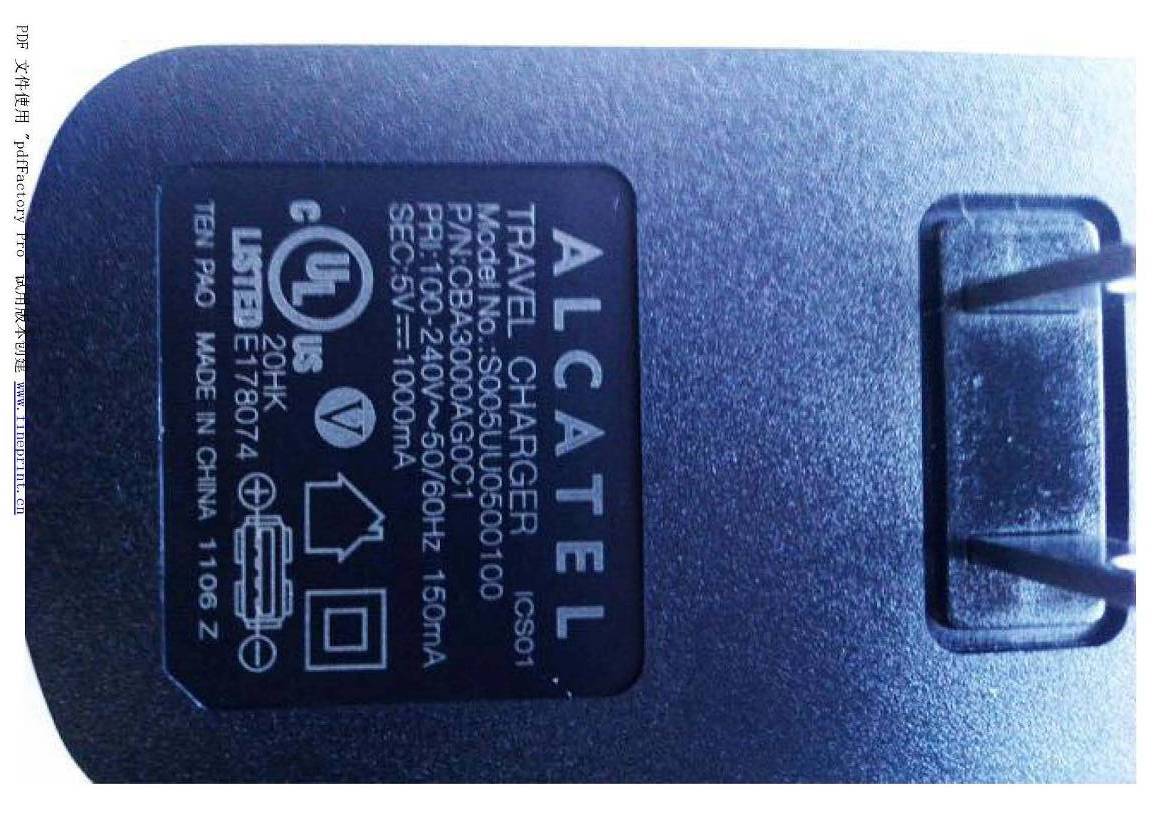

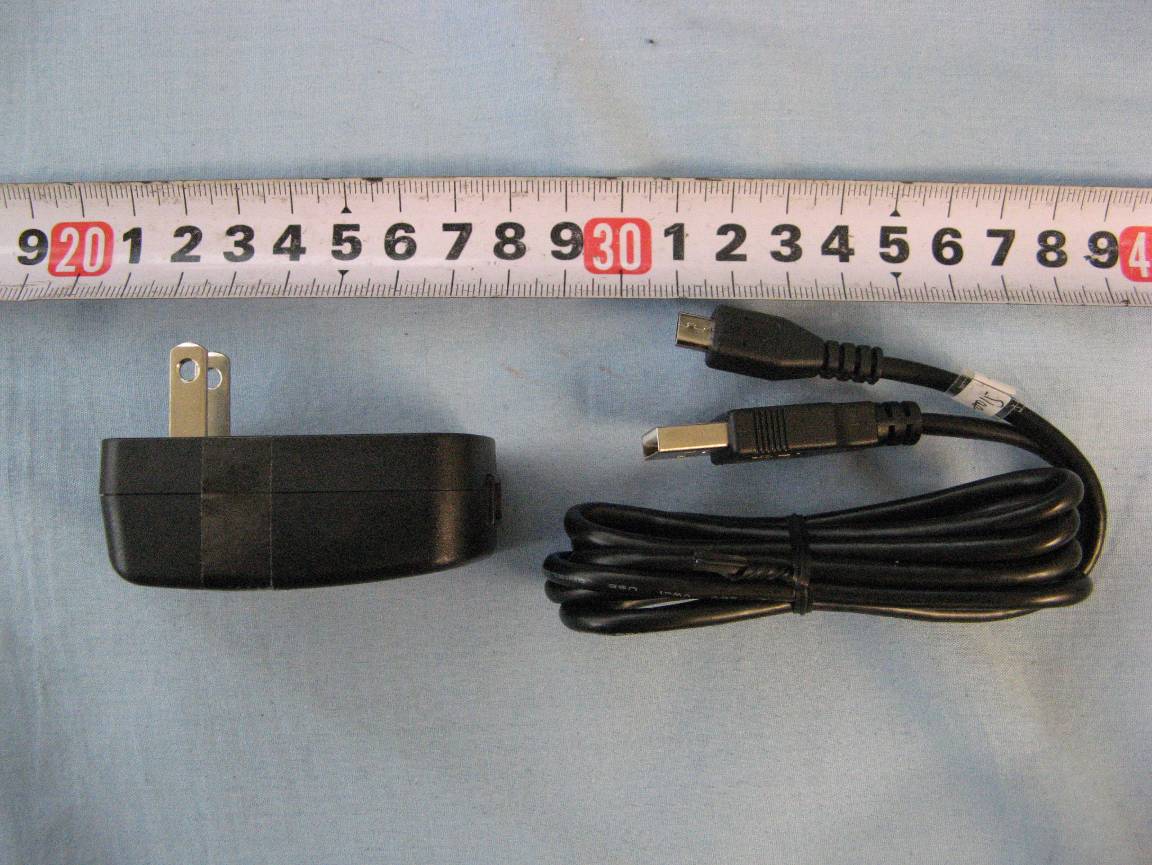

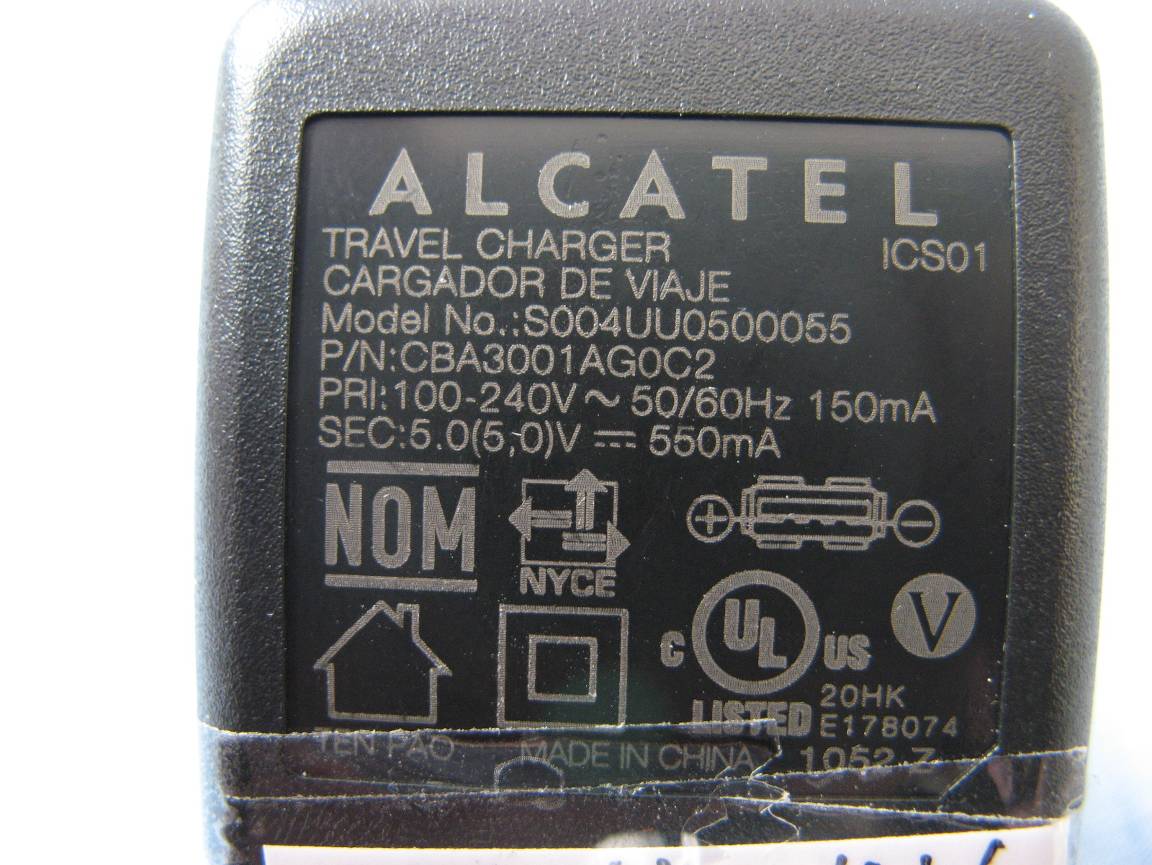

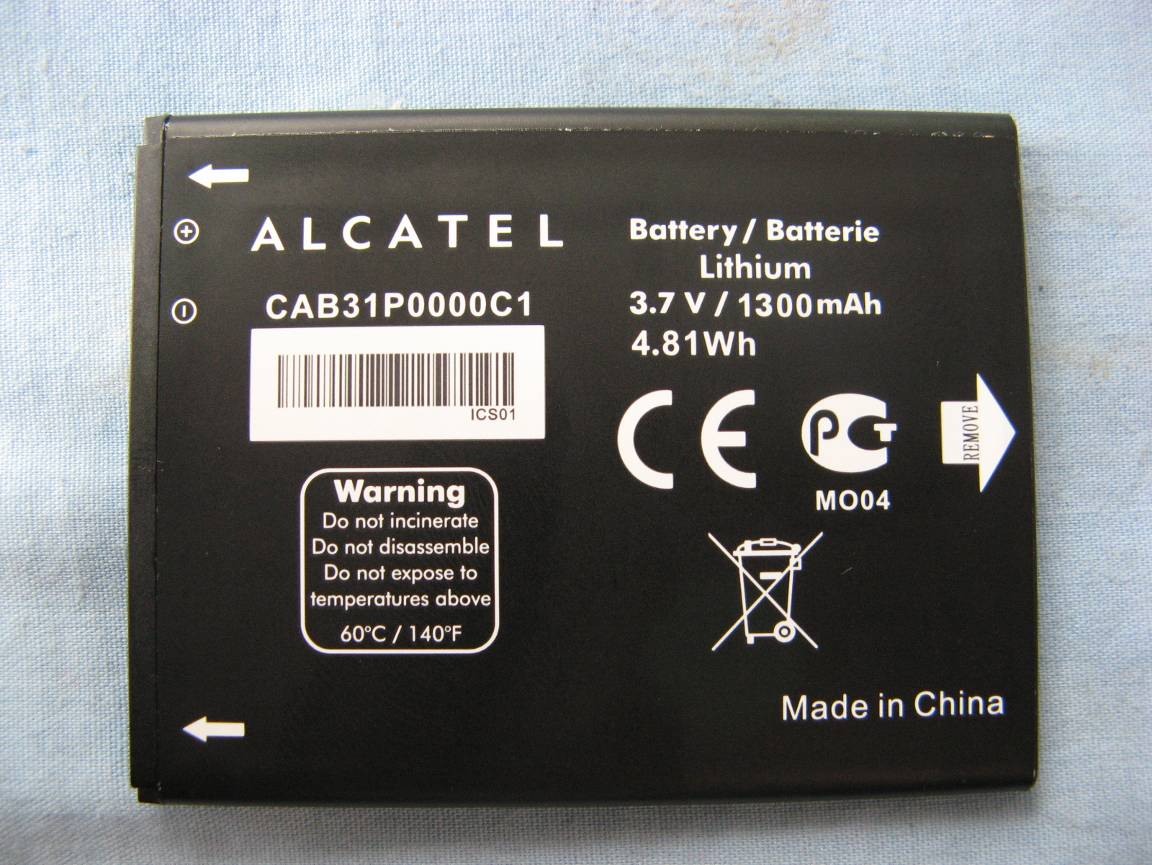

EUT photograph

EUT Label Location

EUT Interior photograph

No.2011SAR00052 Page 1 of 198 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00052 For TCT Mobile Limited HSDPA/UMTS dual band / GSM four bands mobile phone BrandyA one touch 990A With Hardware Version: PIO Software Version: V520 FCCID: RAD158 Issued Date: 2011-05-24 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00052 Page 2 of 198 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 3 1.1 T ESTING L OCATION ................................................................................................................................. 3 1.2 T ESTING E NVIRONMENT .......................................................................................................................... 3 1.3 P ROJECT D AT A ......................................................................................................................................... 3 1.4 S IGNATURE .............................................................................................................................................. 3 2 CLIENT INFORMATION ............................................................................................................... 4 2.1 A PPLICANT I NFORMATION ........................................................................................................................ 4 2.2 M ANUFACTURER I NFORMATION ............................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE)................................. 4 3.1 A BOUT EUT ............................................................................................................................................ 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ...................................................................... 4 3.3 I NTERNAL I DENTIFICATION OF AE USED DURING THE TEST ......................................................................... 5 4 CHARACTERISTICS OF THE TEST ........................................................................................... 5 4.1 A PPLICABLE L IMIT R EGULATIONS ............................................................................................................ 5 4.2 A PPLICABLE M EASUREMENT S TANDARDS ................................................................................................. 5 5 OPERATIONAL CONDITIONS DURING TEST ........................................................................... 6 5.1 S CHEMATIC T EST C ONFIGURATION ........................................................................................................... 6 5.2 SAR M EASUREMENT S ET - UP .................................................................................................................... 6 5.3 D ASY 4 E- FIELD P ROBE S YSTEM ............................................................................................................... 7 5.4 E- FIELD P ROBE C ALIBRATION .................................................................................................................. 8 5.5 O THER T EST E QUIPMENT ......................................................................................................................... 9 5.6 E QUIVALENT T ISSUES .............................................................................................................................. 9 5.7 S YSTEM S PECIFICATIONS .........................................................................................................................10 6 CONDUCTED OUTPUT POWER MEASUREMENT .................................................................. 11 6.1 S UMMARY .............................................................................................................................................. 11 6.2 C ONDUCTED P OWER ............................................................................................................................... 11 7 TEST RESULTS .......................................................................................................................... 13 7.1 D IELECTRIC P ERFORMANCE ....................................................................................................................13 7.2 S YSTEM V ALIDATION ..............................................................................................................................13 7.3 S UMMARY OF M EASUREMENT R ESULTS ...................................................................................................15 7.4 S UMMARY OF M EASUREMENT R ESULTS (B LUETOOTH AND W I F I FUNCTION ) .............................................19 7.5 C ONCLUSION ..........................................................................................................................................21 8 MEASUREMENT UNCERTAINTY ............................................................................................. 22 9 MAIN TEST INSTRUMENTS ...................................................................................................... 23 ANNEX A MEASUREMENT PROCESS ..................................................................................... 24 ANNEX B TEST LAYOUT ........................................................................................................... 25 ANNEX C GRAPH RESULTS ..................................................................................................... 34 ANNEX D SYSTEM…

Text truncated - open the document above for the full version.

No.2011SAR00052 Page 110 of 196 1900 Body Bottom Side Middle with Headset_CCB3160A10C0 Date/Time: 2011-5-13 17:00:15 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.50 mho/m; εr = 53.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.607 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = -0.121 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.587 mW/g; SAR(10 g) = 0.310 mW/g Maximum value of SAR (measured) = 0.675 mW/g Fig. 73 1900 MHz CH661 No.2011SAR00052 Page 111 of 196 1900 Body Bottom Side Middle with Headset_CCB3160A10C2 Date/Time: 2011-5-13 17:16:54 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.50 mho/m; εr = 53.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.662 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.6 V/m; Power Drift = -0.153 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.623 mW/g; SAR(10 g) = 0.328 mW/g Maximum value of SAR (measured) = 0.703 mW/g Fig. 74 1900 MHz CH661 No.2011SAR00052 Page 112 of 196 WCDMA850 Body Towards Phantom High Date/Time: 2011-3-24 17:40:55 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.94 mho/m; εr = 54.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.946 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.2 V/m; Power Drift = -0.121 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.887 mW/g; SAR(10 g) = 0.659 mW/g Maximum value of SAR (measured) = 0.935 mW/g Fig. 75 850 MHz CH4233 No.2011SAR00052 Page 113 of 196 WCDMA 850 Body Towards Phantom Middle Date/Time: 2011-3-24 17:58:55 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 836.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.900 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.4 V/m; Power Drift = 0.049 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.854 mW/g; SAR(10 g) = 0.632 mW/g Maximum value of SAR (measured) = 0.906 mW/g Fig. 76 850 MHz CH4182 No.2011SAR00052 Page 114 of 196 WCDMA 850 Body Towards Phantom Low Date/Time: 2011-3-24 18:15:37 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.94 mho/m; εr = 55.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 826.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.843 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.6 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.799 mW/g; SAR(10 g) = 0.595 mW/g Maximum value of SAR (measured) = 0.837 mW/g Fig. 77 850 MHz CH4132 No.2011SAR00052 Page 115 of 196 WCDMA 850 Body Towards Ground High Date/Time: 2011-3-24 18:32:59 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.94 mho/m; εr = 54.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.14 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.8 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.773 mW/g Maximum value of SAR (measured) = 1.13 mW/g Fig. 78 850 MHz CH4233 No.2011SAR00052 Page 116 of 196 Fig. 78-1 Z-Scan at power reference point (850 MHz CH4233) No.2011SAR00052 Page 117 of 196 WCDMA 850 Body Towards Ground Middle Date/Time: 2011-3-24 18:49:18 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 850 Frequency: 836.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.11 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.0 V/m; Power Drift = 0.062 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.745 mW/g Maximum value of SAR (measured) = 1.09 mW/g Fig. 79 850 MHz CH4182 No.2011SAR00052 Page 118 of 196 WCDMA 850 Body Towards Ground Low Date/Time: 2011-3-24 19:06:41 Electr…

Text truncated - open the document above for the full version.

No.2011SAR00052 Page 146 of 196 ANNEX D SYSTEM VALIDATION RESULTS 835MHz Date/Time: 2011-5-12 7:27:35 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.54 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.1 V/m; Power Drift = -0.088 dB Peak SAR (extrapolated) = 3.36 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.47 mW/g 0 dB = 2.47mW/g Fig.105 validation 835MHz 250mW No.2011SAR00052 Page 147 of 196 835MHz Date/Time: 2011-5-12 14:27:08 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.95 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.54 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.3 V/m; Power Drift = 0.092 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.49 mW/g 0 dB = 2.49mW/g Fig.106 validation 835MHz 250mW No.2011SAR00052 Page 148 of 196 1900MHz Date/Time: 2011-5-13 7:30:27 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.3 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.4 V/m; Power Drift = -0.075 dB Peak SAR (extrapolated) = 14.8 W/kg SAR(1 g) = 9.64 mW/g; SAR(10 g) = 4.98 mW/g Maximum value of SAR (measured) = 10.5 mW/g 0 dB = 10.5mW/g Fig.107 validation 1900MHz 250mW No.2011SAR00052 Page 149 of 196 1900MHz Date/Time: 2011-5-13 14:32:07 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.5 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.5 V/m; Power Drift = -0.053 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.16 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 11.0mW/g Fig.108 validation 1900MHz 250mW No.2011SAR00052 Page 150 of 196 2450MHz Date/Time: 2011-5-14 7:34:28 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.4 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.0 V/m; Power Drift = 0.094 dB Peak SAR (extrapolated) = 18.9 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 14.1 mW/g 0 dB = 14.1mW/g Fig.109 validation 2450MHz 250mW No.2011SAR00052 Page 151 of 196 2450MHz Date/Time: 2011-5-14 13:16:32 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.97 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0oC Liquid Temperature: 22.5 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(6.88, 6.88, 6.88) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.0 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.9 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 22.7 W/kg SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.93 mW/g Maximum value of SAR (measured) = 14.3 mW/g 0 dB = 14.3mW/g Fig.110 validation 2450MHz 250mW No.2011SAR00052 Page 152 of 196 ANNEX E PROBE CALIBRATION CERTIFICATE No.2011SAR00052 Page 153 of 196 No.2011SAR00052 Page 154 of 196 No.2011SAR00052 Page 155 of 196 No.2011SAR00052 Page 156 of 196 No.2011SAR00052 Page 157 of 196 No.2011SAR00052 Page 158 of 196 No.2011SAR00052 Page 159 of 196 No.2011SAR00052 Page 160 of 196 No.2011SAR00052 Page 161 of 196 No.2011SAR00052 Page 162 of 196

No.2011SAR00052 Page 163 of 196 No.2011SAR00052 Page 164 of 196 No.2011SAR00052 Page 165 of 196 No.2011SAR00052 Page 166 of 196 No.2011SAR00052 Page 167 of 196 No.2011SAR00052 Page 168 of 196 No.2011SAR00052 Page 169 of 196 No.2011SAR00052 Page 170 of 196 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2011SAR00052 Page 171 of 196 No.2011SAR00052 Page 172 of 196 No.2011SAR00052 Page 173 of 196 No.2011SAR00052 Page 174 of 196 No.2011SAR00052 Page 175 of 196 No.2011SAR00052 Page 176 of 196 No.2011SAR00052 Page 177 of 196 No.2011SAR00052 Page 178 of 196 No.2011SAR00052 Page 179 of 196 1900 MHz Dipole Calibration Certificate

No.2011SAR00052 Page 180 of 196 No.2011SAR00052 Page 181 of 196 No.2011SAR00052 Page 182 of 196 No.2011SAR00052 Page 183 of 196 No.2011SAR00052 Page 184 of 196 No.2011SAR00052 Page 185 of 196 No.2011SAR00052 Page 186 of 196 No.2011SAR00052 Page 187 of 196 No.2011SAR00052 Page 188 of 196 2450 MHz Dipole Calibration Certificate No.2011SAR00052 Page 189 of 196 No.2011SAR00052 Page 190 of 196 No.2011SAR00052 Page 191 of 196 No.2011SAR00052 Page 192 of 196 No.2011SAR00052 Page 193 of 196 No.2011SAR00052 Page 194 of 196 No.2011SAR00052 Page 195 of 196 No.2011SAR00052 Page 196 of 196

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

TEST REPORT No. 2011TAR162 for TCT Mobile Limited HSDPA/UMTS dual band / GSM four bands mobile phone Model Name: BrandyA Marketing Name：one touch 990A FCC ID: RAD158 with Hardware Version: PIO Software Version: V520 Issued Date: Apr 25, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2011TAR162 Page2 of 82 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ........................................................…

Text truncated - open the document above for the full version.
