RAD159HSDPA/UMTS dual band / GSM four bands mobile phone

1 English - CJB31P1ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. A S IP3514_990A_990S_QG_Eng_USA_07_110527.indd 1IP3514_990A_990S_QG_Eng_USA_07_110527.indd 12011-5-27 Jerry 16:56:342011-5-27 Jerry 16:56:34 23 Your cellphone 1 ............. Keys and connectors1.1 Menu key Search key Back key Touchscreen Front camera Home key Micro-USB connector Headset connector Volume up Volume down Power key Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your cellphone ................................................................................. 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications .................................................................................... 25 12 Making the most of your cellphone .......................................... 26 IP3514_990A_990S_QG_Eng_USA_07_110527.indd 2-3IP3514_990A_990S_QG_Eng_USA_07_110527.indd 2-32011-5-27 Jerry 16:56:352011-5-27 Jerry 16:56:35 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to customize your Home screen by adding applications or changing wallpaper/theme. On other screens, press to view options list.• Press: Light up the screen Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: End a call Lock the screen Light up the screen Press and hold: When cellphone is off, power on the cellphone. When cellphone is on, enter cellphone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the cellphone or web. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the cellphone • cover. Unclip the cover, then remove the battery.• IP3514_990A_990S_QG_Eng_USA_07_110527.indd 4-5IP3514_990A_990S_QG_Eng_USA_07_110527.indd 4-52011-5-27 Jerry 16:56:352011-5-27 Jerry 16:56:35 67 Installing and removing the MicroSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Standard charger UK charger Connect the battery charger to your cellphone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your cellphone1.2.2 Hold down the Power key until the cellphone powers on. It will take some seconds before the screen lights up. Set up your cellphone for the first time The first time you power on the cellphone, you are required to touch the Android logo to begin and then sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Set up the date and time, then touch • Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\ Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. (1) Application availability depends on country and operator. IP3514_990A_990S_QG_Eng_USA_07_110527.indd 6-7IP3514_990A_990S_QG_Eng_USA_07_110527.indd 6-72011-5-27 Jerry 16:56:362011-5-27 Jerry 16:56:36 89 Power off your cellphone1.2.3 Hold down the Power key from the Home screen until the cellphone options appear, select Power off. Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your home screen for quick access. Press Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and Drag down to • open notification panel. Application tab…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-4-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 5/7/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 159 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

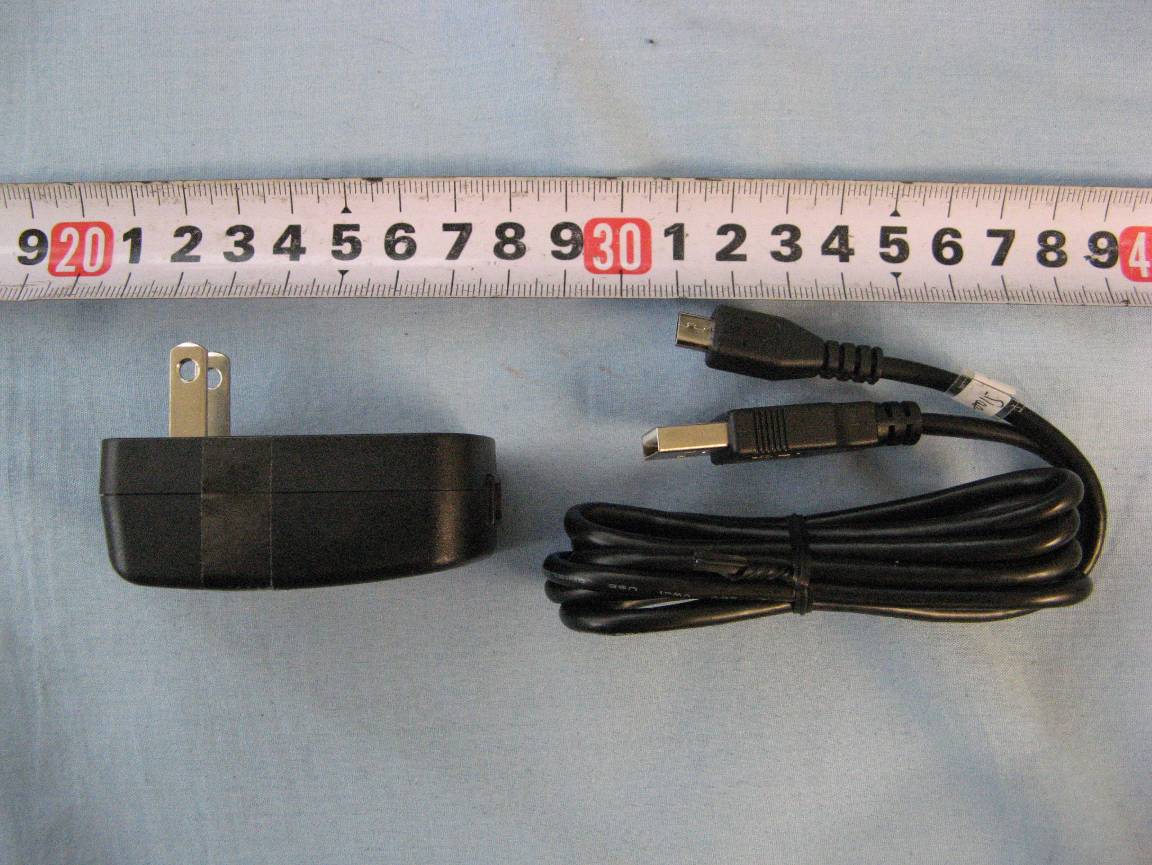

EUT photograph

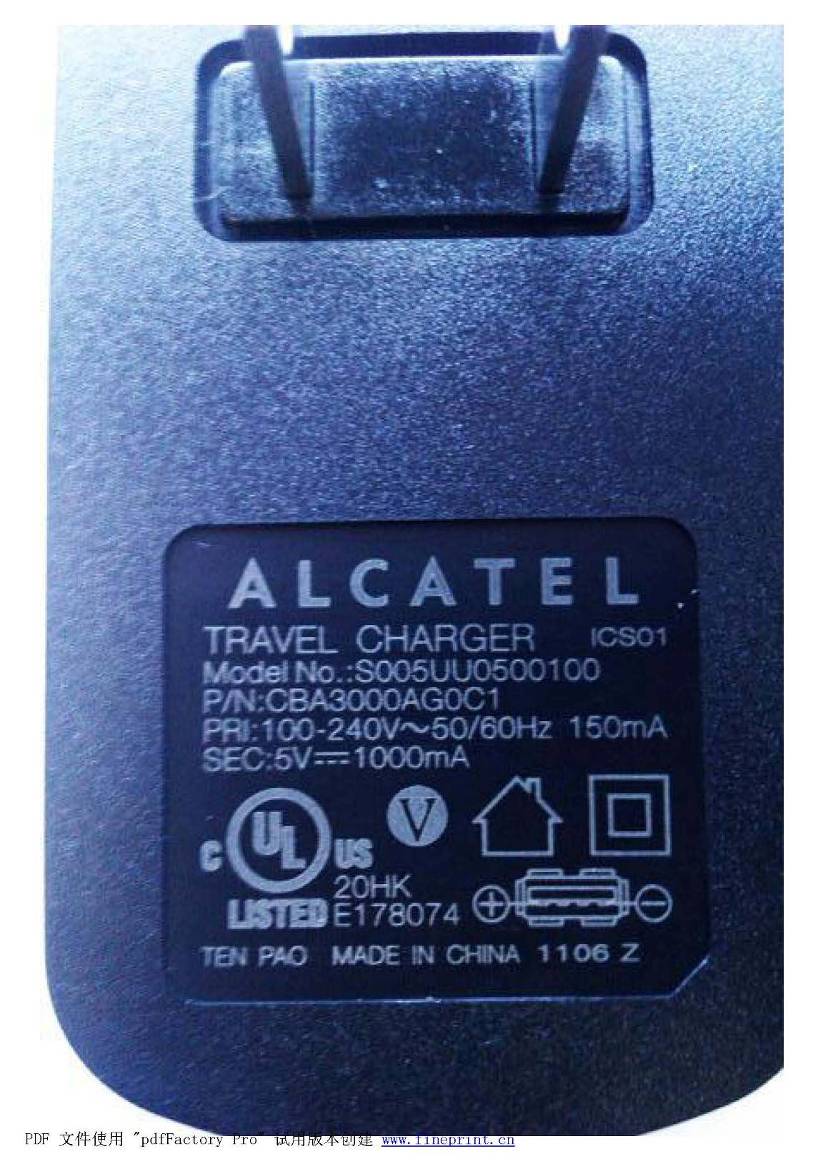

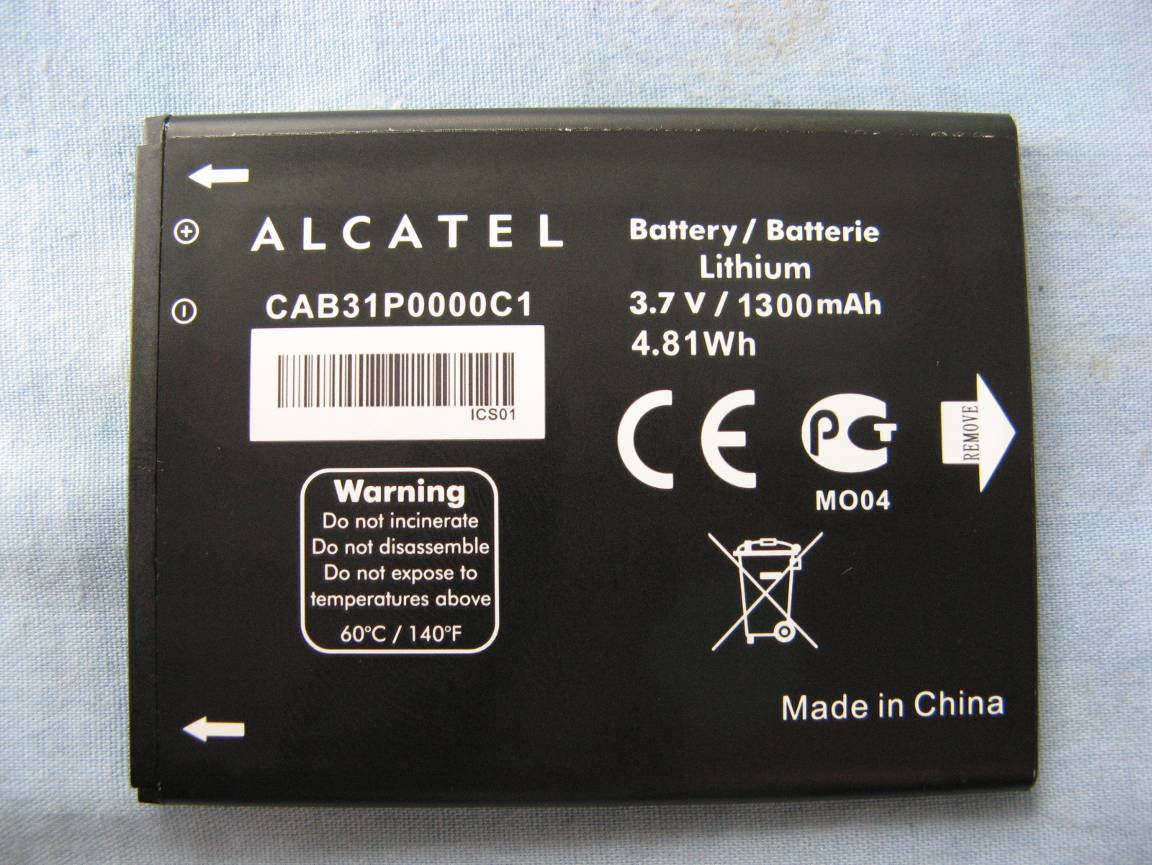

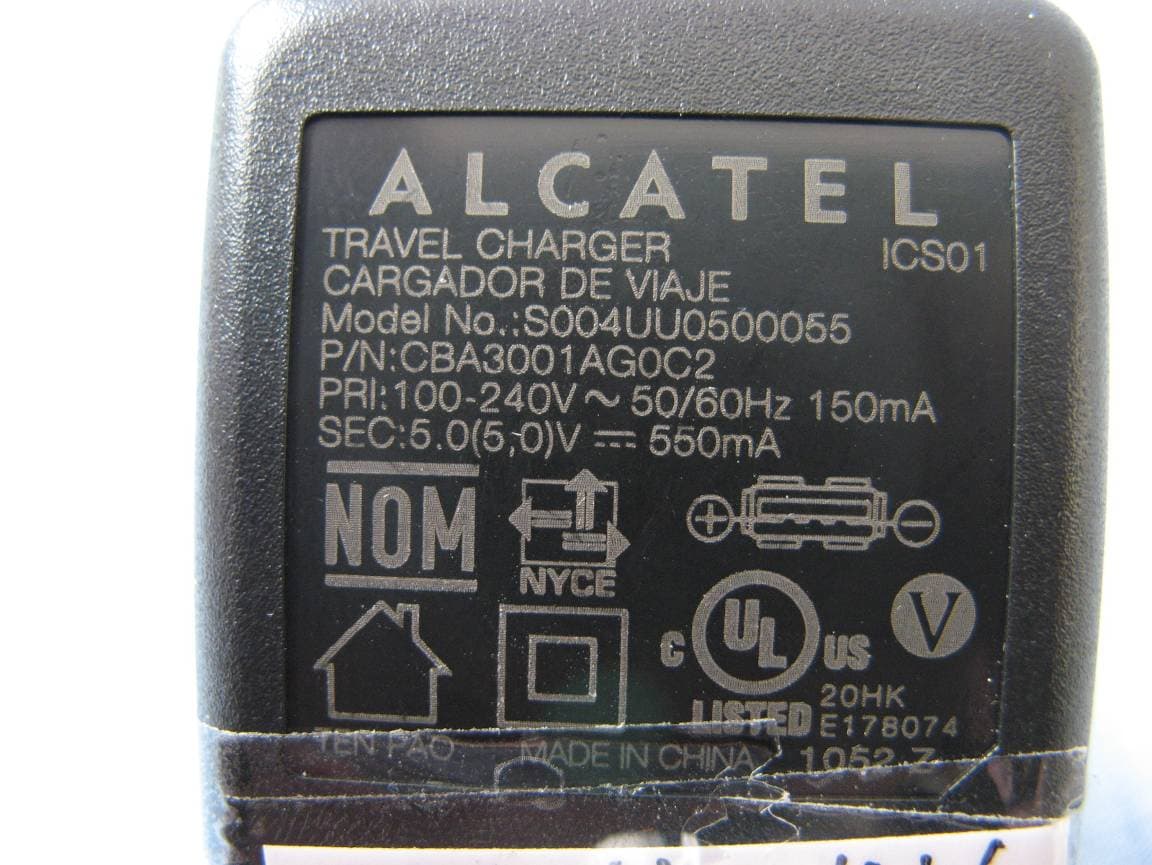

EUT Label Location

EUT Interior photograph

No.2011SAR00051 Page 1 of 186 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00051 For TCT Mobile Limited HSDPA/UMTS dual band / GSM four bands mobile phone BrandyS one touch 990S With Hardware Version: PIO Software Version: V520 FCCID: RAD159 Issued Date: 2011-05-24 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00051 Page 2 of 186 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES..................................................................................................................................... 9 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 6.1 SUMMARY.................................................................................................................................................... 11 6.2 CONDUCTED POWER.................................................................................................................................... 11 7 TEST RESULTS ........................................................................................................................13 7.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 7.2 SYSTEM VALIDATION.................................................................................................................................... 13 7.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 15 7.4 SIMULTANEOUS TX SAR CONSIDERATIONS................................................................................................. 18 7.5 CONCLUSION................................................................................................................................................ 21 8 MEASUREMENT UNCERTAINTY ............................................................................................22 9 MAIN TEST INSTRUMENTS ....................................................................................................23 ANNEX A MEASUREMENT PROCESS....................................................................................24 ANNEX B TEST LAYOUT .........................................................................................................25 ANNEX C GRAPH RESULTS...............................................................…

Text truncated - open the document above for the full version.

No.2011SAR00051 Page 38 of 186 850 Right Cheek High Date/Time: 2011-5-15 9:37:02 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.90 mho/m; εr = 41.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.716 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.46 V/m; Power Drift = -0.126 dB Peak SAR (extrapolated) = 0.825 W/kg SAR(1 g) = 0.668 mW/g; SAR(10 g) = 0.499 mW/g Maximum value of SAR (measured) = 0.692 mW/g Fig. 7 850 MHz CH251 No.2011SAR00051 Page 39 of 186 850 Right Cheek Middle Date/Time: 2011-5-15 9:51:19 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.90 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.777 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.7 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 0.904 W/kg SAR(1 g) = 0.733 mW/g; SAR(10 g) = 0.550 mW/g Maximum value of SAR (measured) = 0.759 mW/g Fig. 8 850 MHz CH190 No.2011SAR00051 Page 40 of 186 850 Right Cheek Low Date/Time: 2011-5-15 10:05:44 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.88 mho/m; εr = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.836 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = -0.039 dB Peak SAR (extrapolated) = 0.984 W/kg SAR(1 g) = 0.793 mW/g; SAR(10 g) = 0.595 mW/g Maximum value of SAR (measured) = 0.837 mW/g Fig. 9 850 MHz CH128 No.2011SAR00051 Page 41 of 186 Fig. 9-1 Z-Scan at power reference point (850 MHz CH128) No.2011SAR00051 Page 42 of 186 850 Right Tilt High Date/Time: 2011-5-15 10:20:01 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.90 mho/m; εr = 41.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.387 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.1 V/m; Power Drift = -0.00162 dB Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.371 mW/g; SAR(10 g) = 0.281 mW/g Maximum value of SAR (measured) = 0.388 mW/g Fig.10 850 MHz CH251 No.2011SAR00051 Page 43 of 186 850 Right Tilt Middle Date/Time: 2011-5-15 10:34:20 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.90 mho/m; εr = 41.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.424 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 0.503 W/kg SAR(1 g) = 0.406 mW/g; SAR(10 g) = 0.308 mW/g Maximum value of SAR (measured) = 0.426 mW/g Fig.11 850 MHz CH190 No.2011SAR00051 Page 44 of 186 850 Right Tilt Low Date/Time: 2011-5-15 10:48:45 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.88 mho/m; εr = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.444 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.5 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 0.530 W/kg SAR(1 g) = 0.425 mW/g; SAR(10 g) = 0.323 mW/g Maximum value of SAR (measured) = 0.445 mW/g Fig. 12 850 MHz CH128 No.2011SAR00051 Page 45 of 186 1900 Left Cheek High Date/Time: 2011-5-16 8:11:24 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.43 mho/m; εr = 40.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.416 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.70 V/m; Power Drift = -0.095 dB Peak SAR (extrapolated) = 0.613 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.224 mW/g Maximum value of SAR (measured) = 0.422 mW/g Fig. 13 1900 MHz CH810 No.2011SAR00051 Page 46 of 186 1900 Left Cheek Middle Date/Time: 2011-5-16 8:25:52 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; εr = 40.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek Middle/Area Scan…

Text truncated - open the document above for the full version.

No.2011SAR00051 Page 75 of 186 850 Body Towards Ground Middle with GPRS Date/Time: 2011-5-15 15:01:54 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.35 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.3 V/m; Power Drift = -0.101 dB Peak SAR (extrapolated) = 1.62 W/kg SAR(1 g) = 1.26 mW/g; SAR(10 g) = 0.911 mW/g Maximum value of SAR (measured) = 1.35 mW/g Fig. 41 850 MHz CH190 No.2011SAR00051 Page 76 of 186 850 Body Towards Ground Low with GPRS Date/Time: 2011-5-15 14:31:04 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.43 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.6 V/m; Power Drift = -0.154 dB Peak SAR (extrapolated) = 1.71 W/kg SAR(1 g) = 1.30 mW/g; SAR(10 g) = 0.946 mW/g Maximum value of SAR (measured) = 1.40 mW/g Fig. 42 850 MHz CH128 No.2011SAR00051 Page 77 of 186 Fig. 42-1 Z-Scan at power reference point (850 MHz CH128) No.2011SAR00051 Page 78 of 186 850 Body Left Side High with GPRS Date/Time: 2011-5-15 15:32:54 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Left Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.946 mW/g Left Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.4 V/m; Power Drift = -0.189 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.832 mW/g; SAR(10 g) = 0.569 mW/g Maximum value of SAR (measured) = 0.867 mW/g Fig. 43 850 MHz CH251 No.2011SAR00051 Page 79 of 186 850 Body Left Side Middle with GPRS Date/Time: 2011-5-15 15:48:22 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Left Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.932 mW/g Left Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.7 V/m; Power Drift = 0.017 dB Peak SAR (extrapolated) = 1.26 W/kg SAR(1 g) = 0.874 mW/g; SAR(10 g) = 0.591 mW/g Maximum value of SAR (measured) = 0.934 mW/g Fig. 44 850 MHz CH190 No.2011SAR00051 Page 80 of 186 850 Body Left Side Low with GPRS Date/Time: 2011-5-15 15:17:31 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Left Side Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.957 mW/g Left Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.9 V/m; Power Drift = -0.048 dB Peak SAR (extrapolated) = 2.46 W/kg SAR(1 g) = 0.874 mW/g; SAR(10 g) = 0.593 mW/g Maximum value of SAR (measured) = 0.955 mW/g Fig. 45 850 MHz CH128 No.2011SAR00051 Page 81 of 186 850 Body Right Side High with GPRS Date/Time: 2011-5-15 16:20:21 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Right Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.952 mW/g Right Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.0 V/m; Power Drift = 0.052 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.865 mW/g; SAR(10 g) = 0.590 mW/g Maximum value of SAR (measured) = 0.933 mW/g Fig. 46 850 MHz CH251 No.2011SAR00051 Page 82 of 186 850 Body Right Side Middle with GPRS Date/Time: 2011-5-15 16:35:45 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Right Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.932 mW/g Right Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.7 V/m; Power Drift = 0.049 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.865 mW/g; SAR(10 g) = 0.596 mW/g Maximum value of SAR (measured) = 0.918 mW/g Fig. 47 850 MHz CH190 No.2011SAR00051 Page 83 of 186 850 Body Right Side Low with GPRS Date/Time: 2011-5-15 16:04:56 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.9…

Text truncated - open the document above for the full version.

No.2011SAR00051 Page 112 of 186 WCDMA 1700 Body Towards Phantom Middle with Headset_CCB3160A10C2 Date/Time: 2011-5-17 16:51:35 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.41 mho/m; εr = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 1700 Frequency: 1732.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.97, 4.97, 4.97) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.46 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.1 V/m; Power Drift = -0.00366 dB Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 1.3 mW/g; SAR(10 g) = 0.721 mW/g Maximum value of SAR (measured) = 1.53 mW/g Fig. 75 1700 MHz CH1412 No.2011SAR00051 Page 113 of 186 WCDMA 1700 Body Towards Phantom Middle with HSDPA Date/Time: 2011-5-17 17:08:41 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.41 mho/m; εr = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 1700 Frequency: 1732.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.97, 4.97, 4.97) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.32 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.1 V/m; Power Drift = -0.141 dB Peak SAR (extrapolated) = 1.55 W/kg SAR(1 g) = 1.25 mW/g; SAR(10 g) = 0.669 mW/g Maximum value of SAR (measured) = 1.31 mW/g Fig. 76 1700 MHz CH1412 No.2011SAR00051 Page 114 of 186 WiFi 802.11b 1Mbps Left Cheek Channel 11 Date/Time: 2011-5-14 9:31:03 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.83 mho/m; εr = 39.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.238 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = -0.104 dB Peak SAR (extrapolated) = 0.514 W/kg SAR(1 g) = 0.249 mW/g; SAR(10 g) = 0.122 mW/g Maximum value of SAR (measured) = 0.272 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = -0.104 dB Peak SAR (extrapolated) = 0.257 W/kg SAR(1 g) = 0.146 mW/g; SAR(10 g) = 0.084 mW/g Maximum value of SAR (measured) = 0.159 mW/g Fig.77 802.11b 1Mbps CH11 No.2011SAR00051 Page 115 of 186 WiFi 802.11b 1Mbps Left Tilt Channel 11 Date/Time: 2011-5-14 9:45:27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.83 mho/m; εr = 39.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.220 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.33 V/m; Power Drift = 0.090 dB Peak SAR (extrapolated) = 0.425 W/kg SAR(1 g) = 0.213 mW/g; SAR(10 g) = 0.105 mW/g Maximum value of SAR (measured) = 0.229 mW/g Fig.78 802.11b 1Mbps CH11 No.2011SAR00051 Page 116 of 186 WiFi 802.11b 1Mbps Right Cheek Channel 11 Date/Time: 2011-5-14 10:00:33 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.83 mho/m; εr = 39.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF…
