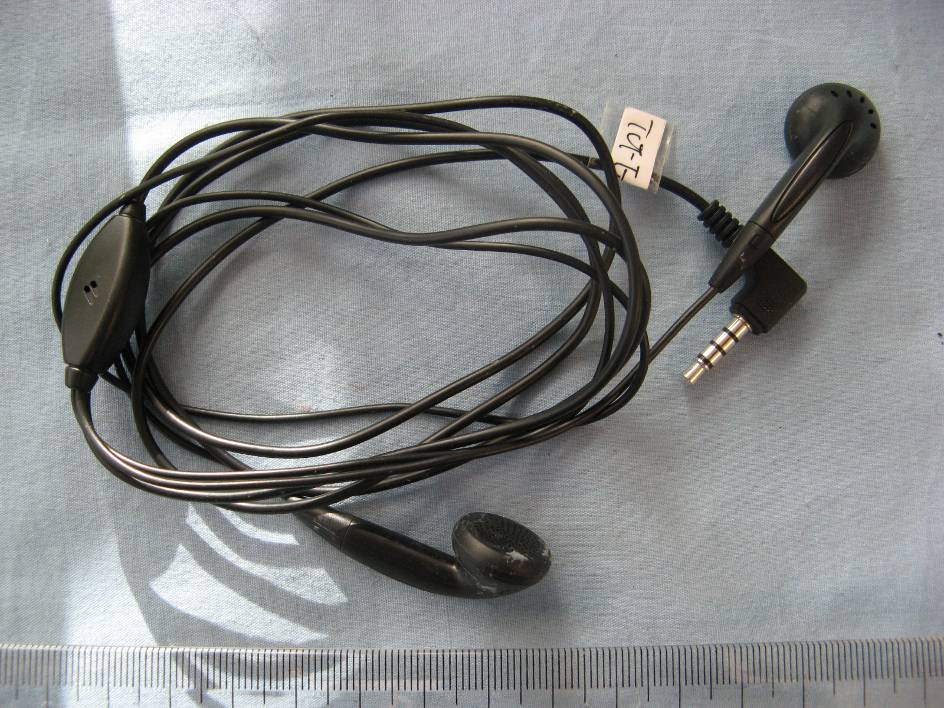

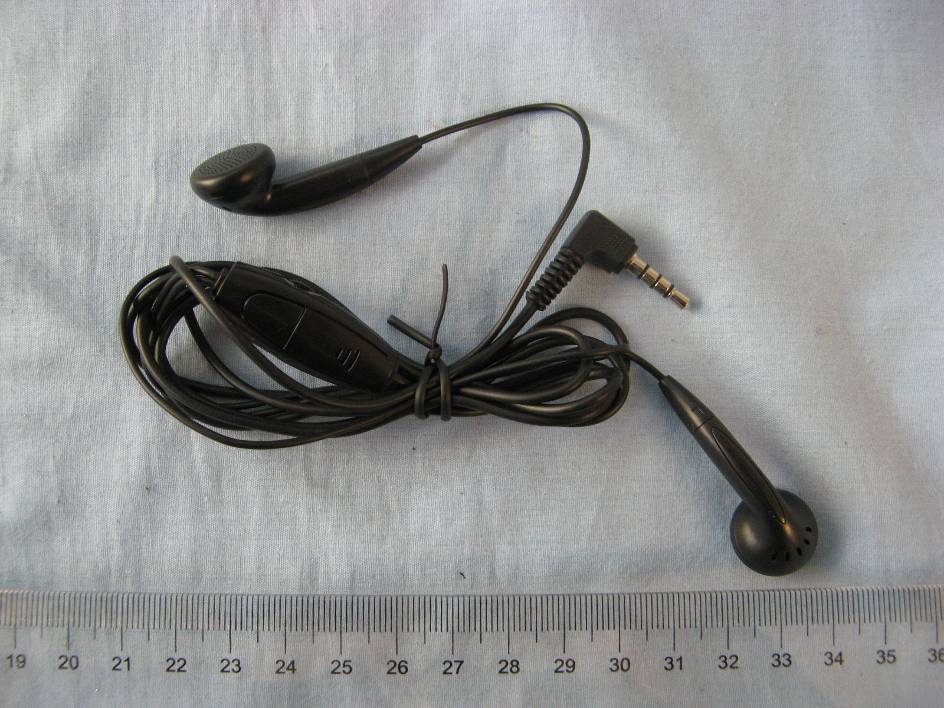

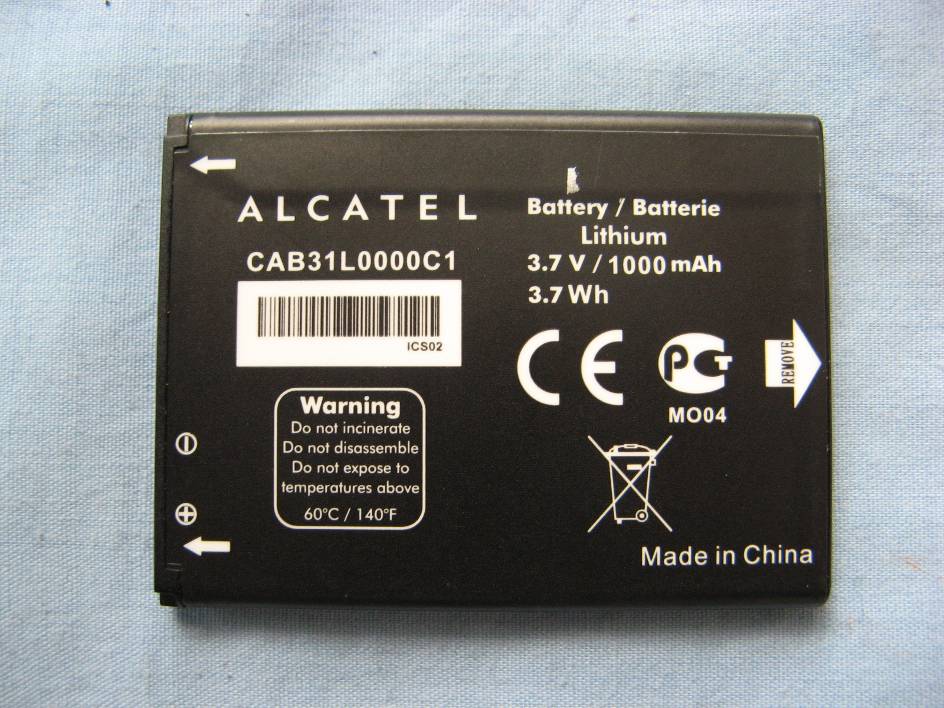

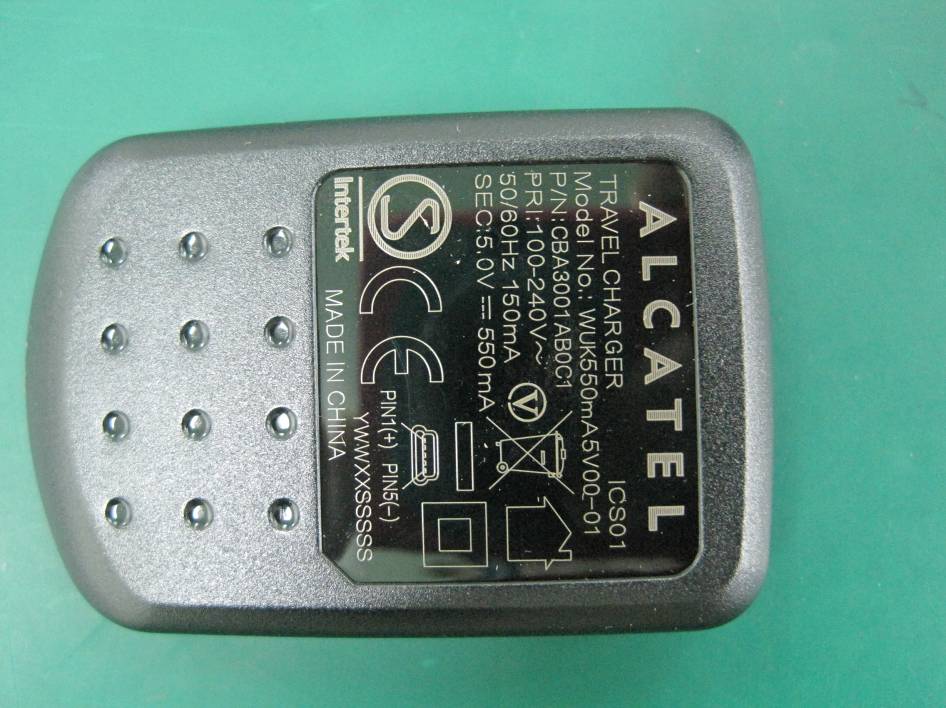

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 Charger AE5 Label of Charger AE5 Charger AE6 Label of Charger AE6 Headset AE7 Headset AE8 Headset AE9 USB Cable AE12

EUT Label Location

EUT Interior photograph Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

No.2011SAR00013 Page 1 of 137 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00013 For TCT Mobile Limited Quadband GSM/GPRS/EDGE mobile phone Baby D Single SIM one touch 890 With Hardware Version: PIO Software Version: V129 FCCID: RAD165 Issued Date: 2011-03-01 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00013 Page 2 of 137 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 11 6 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 6.1 SUMMARY.................................................................................................................................................... 11 6.2 CONDUCTED POWER.................................................................................................................................... 11 7 TEST RESULTS ........................................................................................................................13 7.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 7.2 SYSTEM VALIDATION.................................................................................................................................... 13 7.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 14 7.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 15 7.5 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH AND WIFI FUNCTION) ............................................... 18 7.6 CONCLUSION................................................................................................................................................ 20 8 MEASUREMENT UNCERTAINTY ............................................................................................20 9 MAIN TEST INSTRUMENTS ....................................................................................................21 ANNEX A MEASUREMENT PROCESS....................................................................................22 ANNEX B TEST LAYOUT ...........................................................................…

Text truncated - open the document above for the full version.

No.2011SAR00013 Page 70 of 137 1900 Body Towards Ground Low with GPRS Date/Time: 2011-2-20 14:18:35 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.49 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.419 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 0.633 W/kg SAR(1 g) = 0.379 mW/g; SAR(10 g) = 0.224 mW/g Maximum value of SAR (measured) = 0.411 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 0.420 W/kg SAR(1 g) = 0.277 mW/g; SAR(10 g) = 0.178 mW/g Maximum value of SAR (measured) = 0.296 mW/g Fig. 38 1900 MHz CH512 No.2011SAR00013 Page 71 of 137 1900 Body Towards Phantom High with GPRS Date/Time: 2011-2-20 14:34:07 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.54 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.474 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.97 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 0.713 W/kg SAR(1 g) = 0.427 mW/g; SAR(10 g) = 0.253 mW/g Maximum value of SAR (measured) = 0.438 mW/g Fig. 39 1900 MHz CH810 No.2011SAR00013 Page 72 of 137 1900 Body Towards Phantom Middle with GPRS Date/Time: 2011-2-20 14:49:38 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.428 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.31 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.652 W/kg SAR(1 g) = 0.384 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.394 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.31 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.374 W/kg SAR(1 g) = 0.250 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.248 mW/g Fig. 40 1900 MHz CH661 No.2011SAR00013 Page 73 of 137 1900 Body Towards Phantom Low with GPRS Date/Time: 2011-2-20 15:05:04 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.49 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.407 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.94 V/m; Power Drift = 0.064 dB Peak SAR (extrapolated) = 0.603 W/kg SAR(1 g) = 0.365 mW/g; SAR(10 g) = 0.217 mW/g Maximum value of SAR (measured) = 0.382 mW/g Fig. 41 1900 MHz CH512 No.2011SAR00013 Page 74 of 137 1900 Body Towards Ground High with EGPRS Date/Time: 2011-2-20 15:21:55 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.54 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.458 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.93 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 0.687 W/kg SAR(1 g) = 0.411 mW/g; SAR(10 g) = 0.245 mW/g Maximum value of SAR (measured) = 0.424 mW/g Fig. 42 1900 MHz CH810 No.2011SAR00013 Page 75 of 137 1900 Body Towards Ground High with Headset__CCB3160A10C2 Date/Time: 2011-2-20 15:38:34 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.54 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.303 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.35 V/m; Power Drift = -0.008 dB Peak SAR (extrapolated) = 0.470 W/kg SAR(1 g) = 0.275 mW/g; SAR(10 g) = 0.164 mW/g Maximum value of SAR (measured) = 0.279 mW/g Fig. 43 1900 MHz CH810 No.2011SAR00013 Page 76 of 137 1900 Body Towards Ground High with Headset__CCB3160A10C3 Date/Time: 2011-2-20 15:55:56 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.54 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground High/Area Scan (61x91x1): Measuremen…

Text truncated - open the document above for the full version.

No.2011SAR00013 Page 100 of 137 No.2011SAR00013 Page 101 of 137 No.2011SAR00013 Page 102 of 137 No.2011SAR00013 Page 103 of 137 No.2011SAR00013 Page 104 of 137 No.2011SAR00013 Page 105 of 137 No.2011SAR00013 Page 106 of 137 No.2011SAR00013 Page 107 of 137 No.2011SAR00013 Page 108 of 137 No.2011SAR00013 Page 109 of 137 No.2011SAR00013 Page 110 of 137 No.2011SAR00013 Page 111 of 137 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2011SAR00013 Page 112 of 137 No.2011SAR00013 Page 113 of 137 No.2011SAR00013 Page 114 of 137 No.2011SAR00013 Page 115 of 137 No.2011SAR00013 Page 116 of 137 No.2011SAR00013 Page 117 of 137 No.2011SAR00013 Page 118 of 137 No.2011SAR00013 Page 119 of 137 No.2011SAR00013 Page 120 of 137 1900 MHz Dipole Calibration Certificate No.2011SAR00013 Page 121 of 137 No.2011SAR00013 Page 122 of 137 No.2011SAR00013 Page 123 of 137 No.2011SAR00013 Page 124 of 137 No.2011SAR00013 Page 125 of 137 No.2011SAR00013 Page 126 of 137 No.2011SAR00013 Page 127 of 137 No.2011SAR00013 Page 128 of 137 No.2011SAR00013 Page 129 of 137 2450 MHz Dipole Calibration Certificate No.2011SAR00013 Page 130 of 137 No.2011SAR00013 Page 131 of 137 No.2011SAR00013 Page 132 of 137 No.2011SAR00013 Page 133 of 137 No.2011SAR00013 Page 134 of 137 No.2011SAR00013 Page 135 of 137 No.2011SAR00013 Page 136 of 137 No.2011SAR00013 Page 137 of 137

No.2011WLN0205 Page1 of 69 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2011WLN0205 for TCT Mobile Limited Quadband GSM/GPRS/EDGE mobile phone Type: Baby D Single SIM Marketing Name: one touch 890 With FCC ID: RAD165 Hardware Version: PIO Software Version: V129 Issued Date: 2011-03-16 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011WLN0205 Page2 of 69 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ........................................................................................................ 5 1.1. TESTING LOCATION .............................................................................................................. 5 1.2. TESTING ENVIRONMENT ....................................................................................................... 5 1.3. PROJECT DATA ..................................................................................................................... 5 1.4. SIGNATURE .......................................................................................................................... 5 2. CLIENT INFORMATION .................................................................................................... 6 2.1. APPLICANT INFORMATION ..................................................................................................... 6 2.2. MANUFACTURER INFORMATION ............................................................................................. 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ..................... 7 3.1. ABOUT EUT ......................................................................................................................... 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................................... 7 3.4. GENERAL DESCRIPTION ....................................................................................................... 7 4. REFERENCE DOCUMENTS ............................................................................................ 8 4.1. DOCUMENTS SUPPLIED BY APPLICANT ................................................................................... 8 4.2. REFERENCE DOCUMENTS FOR TESTING ................................................................................ 8 5. LABORATORY ENVIRONMENT ...................................................................................... 9 6. SUMMARY OF TEST RESULTS ..................................................................................... 10 6.1. SUMMARY OF TEST RESULTS .............................................................................................. 10 6.2. STATEMENTS...................................................................................................................... 10 7. TEST EQUIPMENTS UTILIZED...................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 12 A.1. MEASUREMENT METHOD ....................................................................................................... 12 A.2. MAXIMUM PEAK OUTPUT POWER ........................................................................................... 13 A.2.1. MAXIMUM PEAK OUTPUT POWER ........................................................................................ 13 A.3. PEAK POWER SPECTRAL DENSITY ......................................................................................... 14 FIG. 1 POWER SPECTRAL DENSITY (802.11B, CH 1) ................................................................. 14 FIG. 2 POWER SPECTRAL DENSITY (802.11B, CH 6) ................................................................. 15 FIG. 3 POWER SPECTRAL DENSITY (802.11B, CH 11) ............................................................... 15 FIG. 4 POWER SPECTRAL DENSITY (802.11G, CH 1) ................................................................. 16 FIG. 5 POWER SPECTRAL DENSITY (802.11G, CH 6) ................................................................. 16 FIG. 6 POWER SPECTRAL DENSITY (802.11G, CH 11) ............................................................... 17 A.4. OCCUPIED 6DB BANDWIDTH .................................................................................................. 18 FIG. 7 OCCUPIED 6DB BANDWIDTH (802.11B, CH 1) ................................................................. 18 FIG. 8 OCCUPIED 6DB BANDWIDTH (802.11B, CH 6) ................................................................. 19 FIG. 9 OCCUPIED 6DB BANDWIDTH (802.11B, CH 11) ............................................................... 19 FIG. 10 OCCUPIED 6DB BANDWIDTH (802.11G, CH 1) ................................................................. 20 No.2011WLN0205 Page3 of 69 ©Copyright. All rights reserved by TMC Beijing. FIG. 11 OCCUPIED 6DB BANDWIDTH (802.11G, CH 6) ................................................................. 20 FIG. 12 OCCUPIED 6DB BANDWIDTH (802.11G, CH 11) ............................................................... 21 A.5. BAND EDGES COMPLIANCE .................................................................................................... 22 FIG. 13 BAND EDGES (802.11B, CH 1) ..........…
