2 1 345678910 Your cellphone 1 ................ Keys and connectors 1.1 Status icons GPRS connected GPS is on GPRS in use Receiving location data from GPS GPRS is disabled Speakerphone is on EDGE connected Roaming EDGE in use No signal EDGE is disabled No SIM card installed 3G connected Vibrate mode 3G in use Ringer is silenced 3G is disabled Cellphone microphone is mute HSPA (3G+) connected Battery is very low HSPA (3G+) in use Battery is low HSPA(3G+) is disabled Battery is partially drained Connected to a Wi-Fi network Battery is full Bluetooth is on Battery is charging Connected to a Bluetooth device Headset connected Airplane mode Signal strength Alarm is set Bluetooth headset battery level indicator English - CJB31R1ALAAA On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to customize your Home screen by adding applications or changing wallpaper/theme.On other screens, press to view options list. • Press: Light up the screenReturn to the Home screen or back to the central Home screen if it is extended. When screen turns dark, the Home key will blink when there is missed call, incoming message or events reminder alert. Press & hold: Enter the recently used applications list.Go back to the previous menu or screen.Press: End a callLock the screenLight up the screen Press & hold: When cellphone is off, power on the cellphone. When cellphone is on, enter cellphone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode)Open Search bar for searching within an application, the cellphone or web. Notification icons New Gmail message More notifications are hidden New text or multimedia message Call in progress (green) Problem with text or multimedia message delivery Call in progress using Bluetooth headset (blue) New Google Talk message Missed call New voicemail Call on hold Upcoming event Call forwarding is on Data is synchronizing Uploading data Problem with sign-in or synchronization Downloading data microSD card is full Download finished No microSD card installed An open Wi-Fi network is available Connected to VPN Cellphone is connected via USB cable Disconnected from VPN Radio is on Song is playing System update available USB tethering on Portable Wi-Fi hotspot on Both USB tethering and portable hotspot on Getting started 1.2 Set-up 1.2.1 Removing or installing the back coverInserting or removing the SIM cardYou must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card.Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out.Installing and removing the MicroSD cardTo release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Reposition Touch and hold the item to be repositioned to activate the Move mode, drag the item to desired position, then release. Hold the icon on the left or right edge of the screen to drag the item to another Home screen page.RemoveTouch and hold the item to be removed to activate the Move mode, drag the item to the top of the Application tab, which will then turn red, and release.Wallpaper customizationTouch and hold an empty area or press Menu key and touch Wallpaper on the Home screen to customize wallpaper.Theme customizationTouch and hold an empty area or press Menu key and touch Themes on the Home screen to customize themes. Application tab 1.3.6 Touch from Home screen to enter applications list. To return to the Home screen, press Home key. Consult recently-used applicationsTo consult recently-used applications, you can press and hold the Home key from Home screen. Touch an icon in the window to open the related application. Volume adjustment 1.3.7 You can set ringer, media and cellphone ringtone volume to your preference by Volume up/down key, or Settings menu. The MicroSD card may contains some third part applications. Installing or removing the battery Insert and click the battery into place, then close the cellphone cover. • Unclip the cover, then remove the battery. • Charging the battery Connect the battery charger to your cellphone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Applications list 1.4 The Applications list contains all pre-embedded and newly installed applications.To access the Applications list, touch Application tab from Home screen. To return to Home screen, press Home key. Normal mode and sort mode 1.4.1 Applications can be managed in two modes. To switch between two modes, press Menu key from applications list screen, and touch Switch view . Normal mode (default)All applications are listed in alphabetical order.Sort modeAll applications are sorted by several categories. Categories management 1.4.2 (1) There are 8 categories in total: 5 categories is predefined, 3 categories can be added.Press Menu key, and select Edit to enter edit mode. Within edit mode you can now customize categories. Text input 2 ........................ Using Onscreen Keyboard 2.1 Onscreen keyboard will display automatically when a program requires entering text or numbers.Onscreen keyboard settingsPress Menu key from Home screen, select Settings\Language & keyboard\TouchPal Input (or Android keyboard ), a series of settings are available for your selection. You could scroll the keyboard to change keyboard style. Power on your cellphone 1.2.2 Hold down the Power key until the cellphone powers on. It will take some seconds before the screen lights up.Set up your cellphone for the first timeThe …

Text truncated - open the document above for the full version.

Antenna Details for onetouch 908S BT/Wi-Fi antenna:PIFA; Gain：-2.02 dBi GPS antenna: PIFA; Gain: -3.21 dBi RF antenna: Monopole; BAND GSM850GSM900 DCS1800 PCS1900 UMTS1700 UMTS2100 GAIN(dBi) -2.48 -4.48 -3.0 -2.4 -3.0 -3.77

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-4-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 6/13/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD170 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

EUT photograph

EUT Label Location

EUT Interior photograph

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 1 of 217 TESTING No. L2264 OET 65 TEST REPORT Product Name HSDPA/UMTS dual band / GSM four bands mobile phone Model one touch 908S FCC ID RAD170 IC 9238A-0002 Client TCT Mobile Limited. TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 2 of 217 GENERAL SUMMARY Product Name HSDPA/UMTS dual band / GSM four bands mobile phone Model one touch 908S FCC ID RAD170 IC 9238A-0002 Report No. RZA1105-0803SAR01R2 Client TCT Mobile Limited. Manufacturer TCT Mobile Limited. Reference Standard(s) RSS-102 Issue 4 March 2010: Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 941225 D06 Hot Spot SAR v01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: June 22 nd , 2011 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Zhang Xianjin TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 3 of 217 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values and Conducted Power of each tested Mode........................... 8 1.7. Test Date .............................................................................................................................. 9 2. Operational Conditions during Test ............................................................................................ 10 2.1. General Description of Test Procedures............................................................................. 10 2.2. GSM Test Configuration ...................................................................................................... 10 2.3. WCDMA Test Configuration ................................................................................................ 11 2.3.1. Output Power Verification ............................................................................................ 11 2.3.2. Head SAR Measurements ........................................................................................... 11 2.3.3. Body SAR Measurements ........................................................................................... 11 2.4. HSDPA Test Configuration .................................................................................................. 11 2.5. WIFI Test Configuration ...................................................................................................... 14 2.6. Test Positions...................................................................................................................... 15 2.6.1. Against Phantom Head ................................................................................................ 15 2.6.2. Body Worn Configuration............................................................................................. 15 3. SAR Measurements System Configuration ................................................................................ 16 3.1. SAR Measurement Set-up .................................................................................................. 16 3.2. DASY4 E-field Probe System ............................................................................................. 17 3.2.1. EX3DV4 Probe Specification ....................................................................................... 17 3.2.2. E-field Probe Calibration .............................................................................................. 18 3.3. Other Test Equipment .........................................................................................................18 3.3.1. Device Holder for Transmitters .................................................................................... 18 3.3.2. Phantom...................................................................................................................... 19 3.4. Scanning Procedure........................................................................................................... 19 3.5. Data Storage and Evaluation .............................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 181 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 182 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 183 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 184 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 185 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 186 of 217 ANNEX G: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 187 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 188 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 189 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 190 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 191 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 192 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 193 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 194 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 195 of 217 ANNEX H: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 196 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 197 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 198 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 199 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 200 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 201 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 202 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 203 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 204 of 217 ANNEX I: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 205 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 206 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 207 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 208 of 217

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 191 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 192 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 193 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 194 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 195 of 217 ANNEX H: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 196 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 197 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 198 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 199 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 200 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 201 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 202 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 203 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 204 of 217 ANNEX I: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 205 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 206 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 207 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 208 of 217 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 209 of 217 ANNEX J: The EUT Appearances and Test Configuration a: EUT b: Battery Picture 10: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 210 of 217 Picture 11: Left Hand Touch Cheek Position Picture 12: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 211 of 217 Picture 13: Right Hand Touch Cheek Position Picture 14: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 212 of 217 Picture 15: Body, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm Picture 16: Body, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 15mm 15mm 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 213 of 217 Picture 17: Body with earphone, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm Picture 18: Body, the EUT display towards ground, the distance from handset to the bottom of the Phantom is 10mm 15mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 214 of 217 Picture 19: Body, the EUT display towards phantom, the distance from handset to the bottom of the Phantom is 10mm Picture 20: Left edge, the distance from handset to the bottom of the Phantom is 10mm 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 215 of 217 Picture 21: Right edge, the distance from handset to the bottom of the Phantom is 10mm Picture 22: Top edge, the distance from handset to the bottom of the Phantom is 10mm 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 216 of 217 Picture 23: Bottom edge, the distance from handset to the bottom of the Phantom is 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 217 of 217 ANNEX K: Schematic Diagram of Antenna

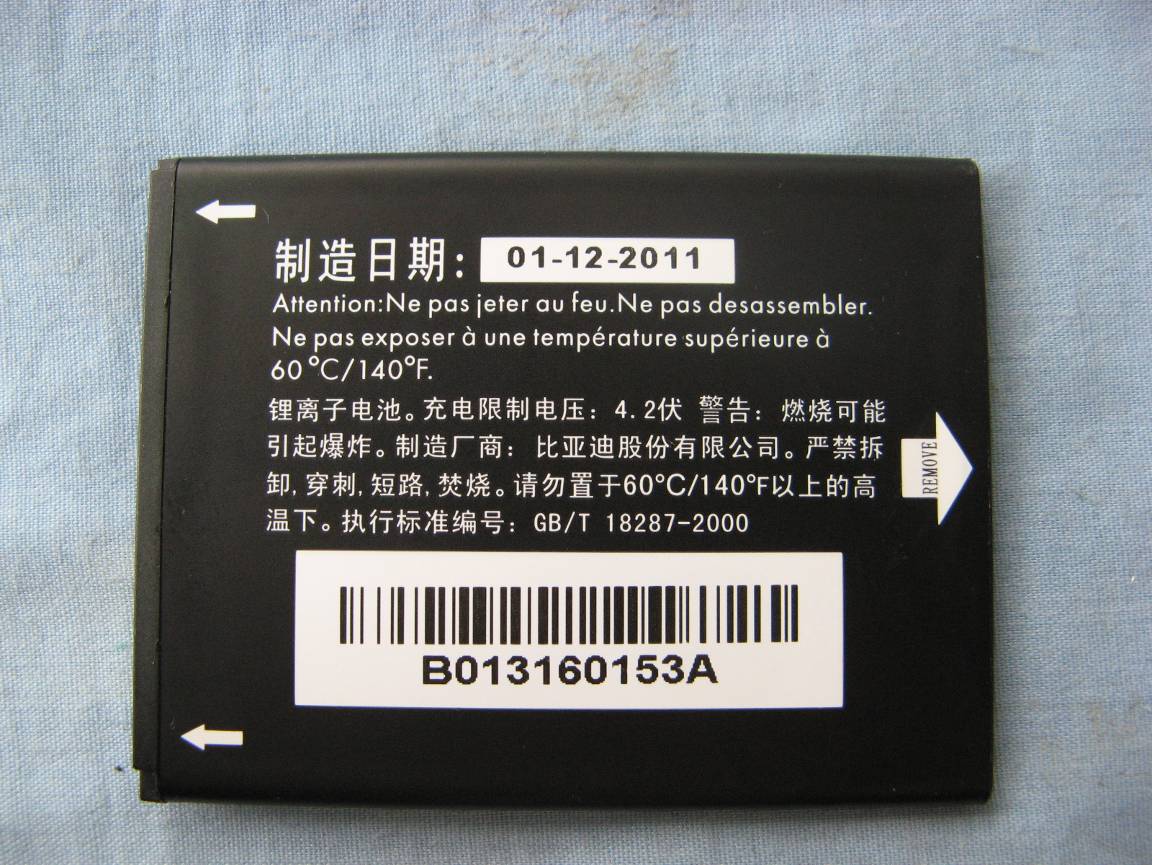

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 209 of 217 ANNEX J: The EUT Appearances and Test Configuration a: EUT b: Battery Picture 10: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 210 of 217 Picture 11: Left Hand Touch Cheek Position Picture 12: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 211 of 217 Picture 13: Right Hand Touch Cheek Position Picture 14: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 212 of 217 Picture 15: Body, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm Picture 16: Body, The EUT display towards phantom, the distance from handset to the bottom of the Phantom is 15mm 15mm 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 213 of 217 Picture 17: Body with earphone, The EUT display towards ground, the distance from handset to the bottom of the Phantom is 15mm Picture 18: Body, the EUT display towards ground, the distance from handset to the bottom of the Phantom is 10mm 15mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 214 of 217 Picture 19: Body, the EUT display towards phantom, the distance from handset to the bottom of the Phantom is 10mm Picture 20: Left edge, the distance from handset to the bottom of the Phantom is 10mm 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 215 of 217 Picture 21: Right edge, the distance from handset to the bottom of the Phantom is 10mm Picture 22: Top edge, the distance from handset to the bottom of the Phantom is 10mm 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 216 of 217 Picture 23: Bottom edge, the distance from handset to the bottom of the Phantom is 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1105-0803SAR01R3 Page 217 of 217 ANNEX K: Schematic Diagram of Antenna

EUT Set-up photos CE: 15BCE RSE: Part 15C RE Part 15B RE
