RAD176GSM Dual band mobile phone

1 9 2 10 3 11 4 12 5 13 6 14 7 15 8 16 1 Your cellphone ......... 1.1 Keys Send Key - Access call log from idle - Accept an incoming call - To dial the number focused on the screen End Key - Power on/off (press and hold) - Return back to idle from any other state - Lock the screen (press in idle screen) Navigation keys (in idle screen): - Up to Camera - Down to Contacts Central key - Open Main Menu in idle - Confirm/ok/select in other state Volume keys (side keys) - Adjust general volume (press) 1.2 Main screen icons (1) Battery charge level Vibrate alert: your cellphone vibrates, but does not ring or beep. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Headset connected. Keypad locked. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. WAP alerts (1) . Roaming. SIM card missing. GPRS connection status (Activated). GPRS connecting. Sending a MMS. MMS receiving. Silence mode: your cellphone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. Flight mode. MicroSD card inserted. 3 Calls .......................... 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing . To hang up the call, press the key. Making an emergency call If your cellphone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Calling your voicemail (1) To access your voicemail, hold down the key. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 3.4 Available functions during the call During a call, you can use your directory, your calendar, text messages, etc. without hanging up or dropping the call. (1) Contact your network operator to check service availability. 4 Contacts ............. 4.1 Consulting your contacts To access the contacts from the main screen, press the key and select the icon from the menu. 4.2 Adding a contact Select the directory in which you wish to add contact, tap , add select "Add contact". 5 Messaging ........... 5.1 Create message From the main menu select "Messaging" to create text/ multimedia message. You can type a message and you can also modify a predefined message in Templates or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). While writing a message, select to access all the messaging options. You can save your messages that you send often to Draft or Templates (MMS only). Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 12 Palringo (1) ......... Palringo Instant messaging (IM) allows you to chat with other people using Palringo account. You can also connect to other popular IM services through Palringo, like Yahoo, AIM, GG, ICQ, Google talk, iChat etc. Please note that the services may be upgraded depending on your client version. 13 Image viewer ..... A library links to the images in “My photos” in cellphone to be shown in list, slide, set as Wallpaper, Power on/off display, and Incoming call image, or sent by MMS, Email, Bluetooth. 14 Music player ...... Access this feature from the main menu by selecting “Music”. You will have full flexibility of managing music both on your cellphone and memory card. 15 Video player ...... “My videos” album contains video clips recorded, received or downloaded. Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. (1) The icons and illustrations in this guide are provided for information purposes only. English - CJB23A1ALAAA 9 Facebook .............. Facebook is a social utility that connects people with friends and others who work, study and live around them. It provides a number of features with which users interact, such as Wall, Pokes, etc. To open an account online, please go to: http://www.facebook.com/. 10 mTweet ............. Twitter is a social networking and microblogging service that has gained notability and popularity worldwide. This feature enables cellphone users to exchange news updates and ideas with a community in the form of messages or posts. Posts are displayed on the author's profile page and delivered to the author's subscribers or followers. To open an account online, please go to: http://twitter.com/. 11 Camera ............. Your cellphone is fitted with a camera for taking photos and shooting videos that you can use in different ways: store them in your “• File manager\My photos”. send them directly by MMS, Email or Bluetooth.• customize your main screen.• select them as incoming call image to a contact in your directory.• 6 Dialer .................. Enter the desired number from keypad directly or select a contact from contacts by tapping , then press key to place the call. The number you entered can be saved to contacts by selecting . If you make a mistake, you can delete the incorrect digits by tapping . To hang up the call, press the key. 7 Email ................... Your cellphone has an email client with the settings predefined for a few popular email services like – GoogleMail, Windows live, Yahoo, AOL, etc (1) . Besides this, you can set up other POP3 or IMAP4 email accounts that you may be using. 8 Opera Mini ......... Not only does Opera Mini give you the full Web experience where you stay in touch with your friends, obtain informatio…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 5/18/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD176 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

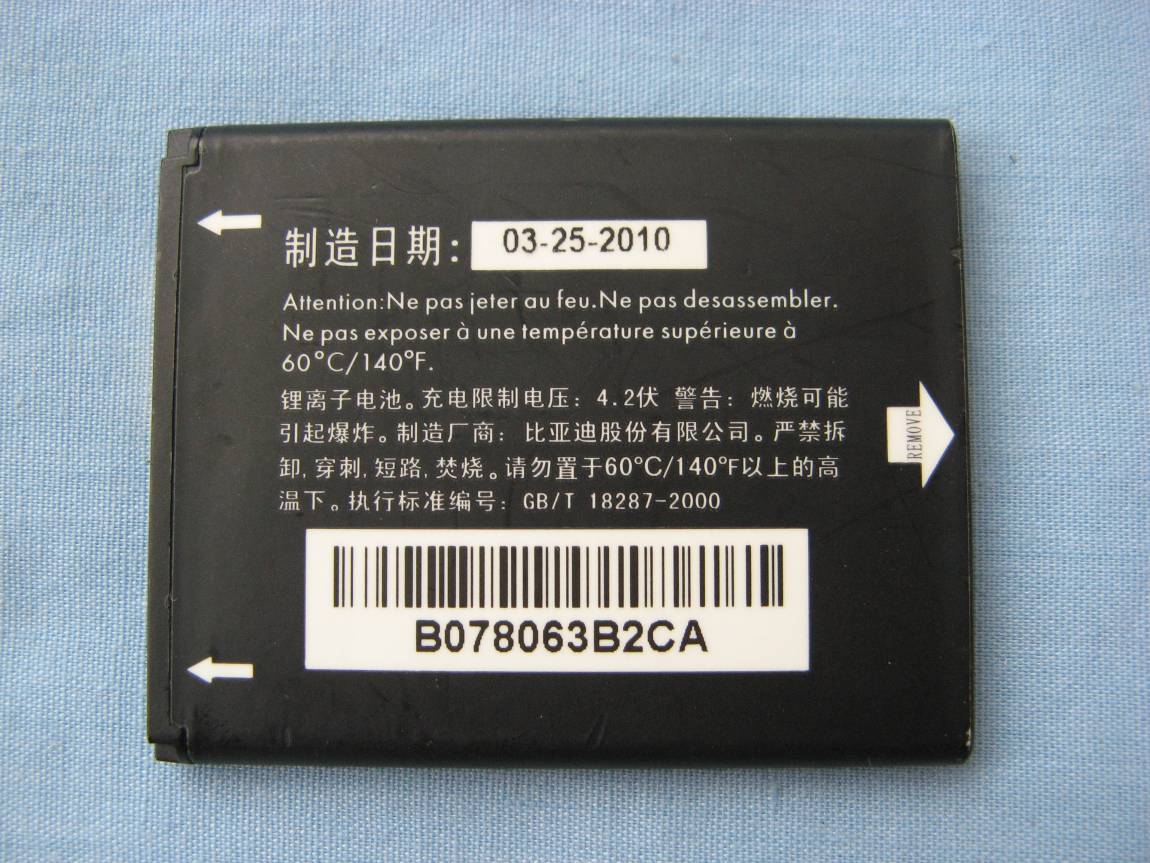

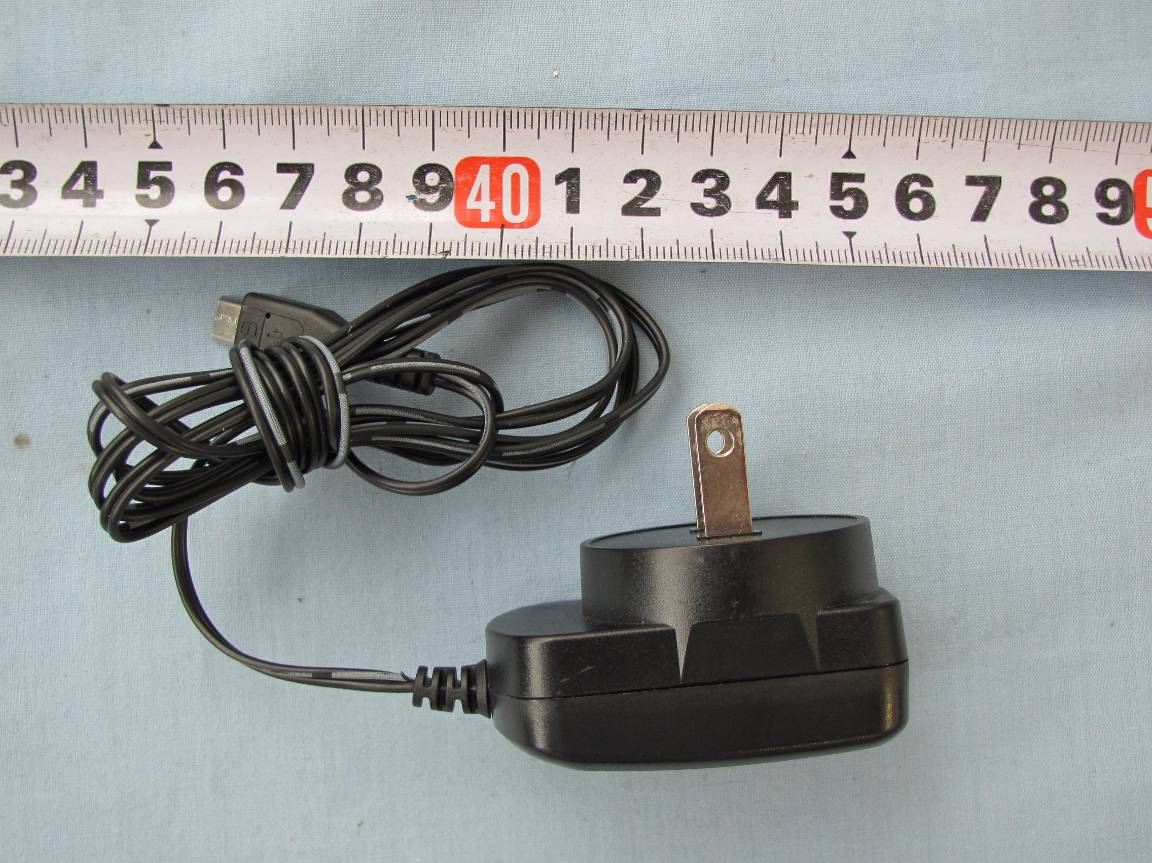

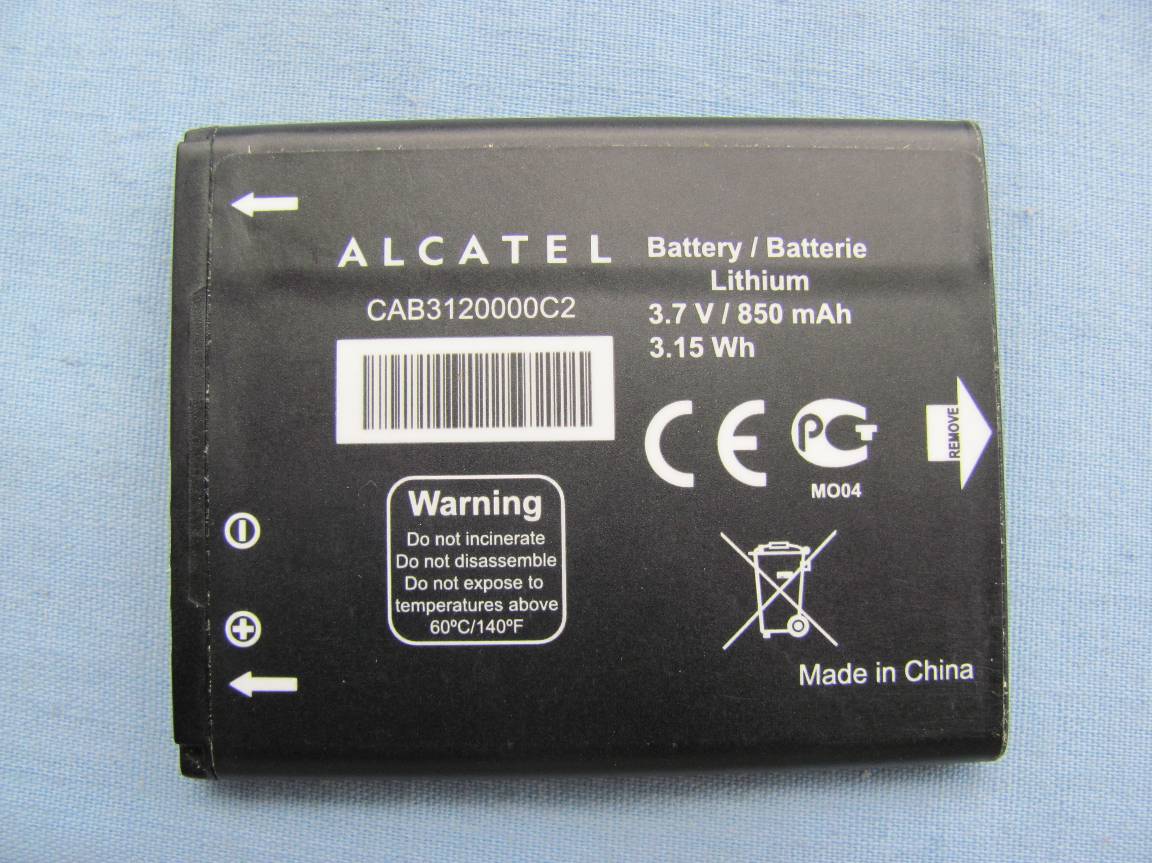

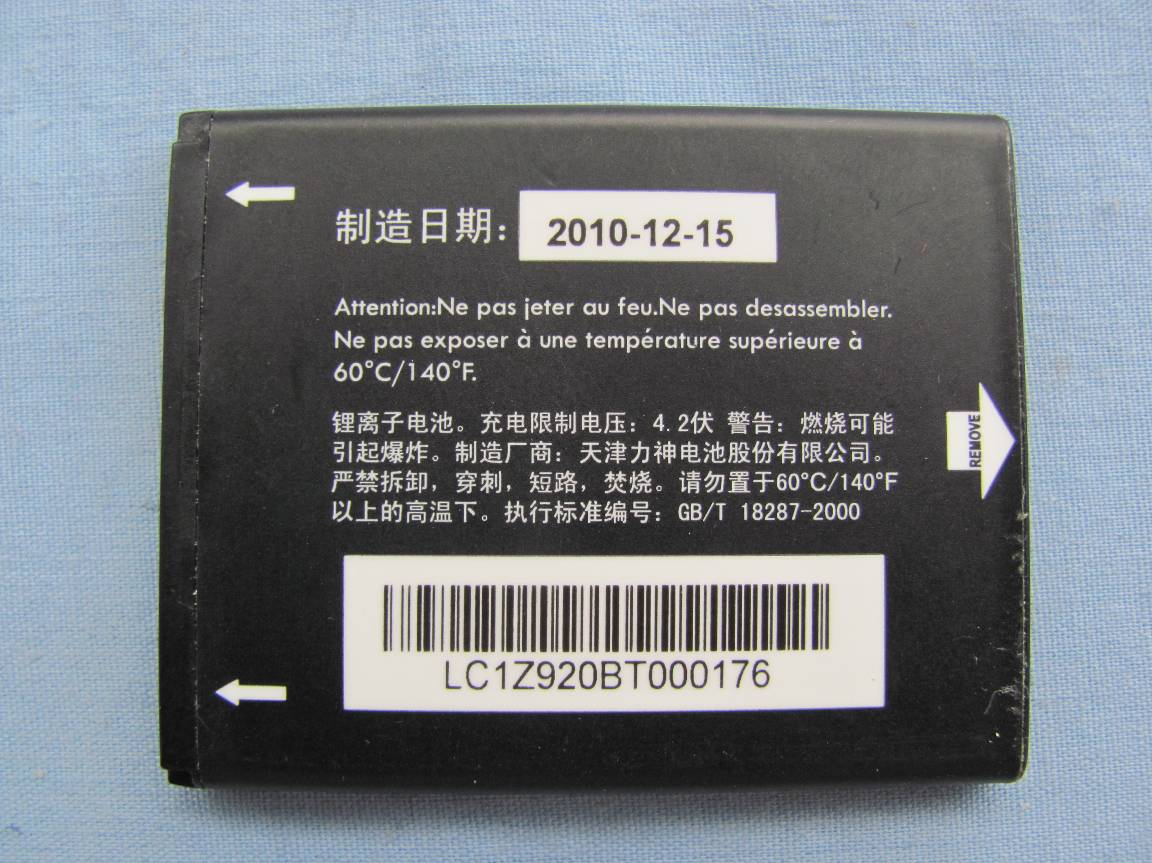

EUT photograph

EUT Label Location

EUT Interior photograph

No.2011TAR234 Page1 of 20 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2011TAR234 for TCT Mobile Limited GSM dual band mobile phone Model Name: Mini Stone US Marketing Name: one touch 602A FCC ID : RAD176 with Hardware Version: PIO Software Version: V140 Issued Date: 2011-05-26 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633 , Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No.2011TAR234 Page2 of 20 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 4. REFERENCE DOCUMENTS .................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 6 5. LABORATORY ENVIRONMENT ............................................................................................ 7 6. SUMMARY OF TEST RESULTS ............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 9 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 10 No.2011TAR234 Page3 of 20 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304633 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: May16,2011 Testing End Date: May16,2011 1.4. Signature Liu Baodian (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2011TAR234 Page4 of 20 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4/F, South Building,No.2966, Jinke Road, Zhangjiang High-Tech Park, Pudong,Shanghai, 201203, P.R.China City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2011TAR234 Page5 of 20 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM dual band mobile phone Model Name Mini Stone US Marketing Name one touch 602A FCC ID RAD176 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT1 012676000002215 PIO V140 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Travel Adapter / AE2 Travel Adapter / AE3 Travel Adapter / AE4 Battery / AE5 Battery / AE6 USB Cable / AE7 USB Cable / AE1 Model CBA3120AG0C2 Manufacturer TenPao Length of DC line 120cm AE2 Model CBA3120AG0C1 Manufacturer BYD Length of DC line 120cm AE3 Model CBA3002AG0C1 Manufacturer BYD Length of DC line 120cm AE4 Model CAB3120000C1 Manufacturer BYD Capacitance 850mAh Nominal Voltage 3.7V No.2011TAR234 Page6 of 20 ©Copyright. All rights reserved by TMC Beijing. AE5 Model CAB3120000C2 Manufacturer Lishen Capacitance 850mAh Nominal Voltage 3.7V AE6 Model CDA3122001C1 Manufacturer Juwei Length of DC line 150cm AE7 Model CDA3122001C2 Manufacturer Shenghua Length of DC line 150cm *AE ID: is used to identify the test sample in the lab internally. 4. Reference Docu…

Text truncated - open the document above for the full version.

EUT Set-up photos FCC ID:RAD176 CE: RSE: Part 15B RE: Part 15B CE Part 15C RE
