RAD180Quadband GSM/GPRS/EDGE mobile phone

21345678910 Your cellphone 1 ................ Keys and connectors1.1 Status icons GPRS connectedSpeakerphone is on GPRS in useRoaming GPRS is disabledNo signal EDGE connectedNo SIM card installed EDGE in useVibrate mode EDGE is disabledRinger is silenced Connected to a Wi-Fi network Cellphone microphone is mute Bluetooth is onBattery is very low Connected to a Bluetooth device Battery is low Airplane mode Battery is partially drained Alarm is setBattery is full Signal strengthBattery is charging GPS is onHeadset connected Receiving location data from GPS English - CJB23D1ALAAA Answer/Send a call• Enter Call Log• Return to ongoing call screen if the user navigates to other • applications during call. On Home screen, press to quick access to • Settings menu or Notification panel; to launch quick search; to customize your Home screen by adding applications or changing wallpaper/theme. On other screens, press to view options list.• Short press: Return to the Home screen or back to the central Home screen if it is extended. Long press: Enter the recently used applications list. Go back to the previous menu or screen. Short press: End a call Lock the screen Light up the screen Long press: When cellphone is off, power on the cellphone. When cellphone is on, enter Phone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the cellphone or web. Notification icons New Gmail message More notifications are hidden New text or multimedia message Call in progress (green) Problem with text or multimedia message delivery Call in progress using Bluetooth headset (blue) New Google Talk message Missed call New voicemailCall on hold Upcoming eventCall forwarding is on Data is synchronizingUploading data Problem with sign-in or synchronization Downloading data microSD card is fullDownload finished No microSD card installed An open Wi-Fi network is available Connected to VPN Cellphone is connected via USB cable Disconnected from VPNRadio is on Song is playing System update available Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the cellphone cover.• Unclip the cover, then remove the battery.• Reposition Touch and hold the item to be repositioned to activate the Move mode, drag the item to desired position, then release. Hold the icon on the left or right edge of the screen to drag the item to another Home screen page. Remove Touch and hold the item to be removed to activate the Move mode, drag the item to the top of the Application tab, which will then turn red, and release. Wallpaper customization Touch and hold an empty area or press Menu key and touch Wallpaper on the Home screen to customize wallpaper. Theme customization Touch and hold an empty area or press Menu key and touch Themes on the Home screen to customize themes. Application tab1.3.6 Touch from Home screen to enter applications list. To return to the Home screen, press Home key. Consult recently-used applications To consult recently-used applications, you can press and hold the Home key from Home screen. Touch an icon in the window to open the related application. Volume adjustment1.3.7 You can set ringer, media and cellphone ringtone volume to your preference by Volume up/down key, or Settings menu. Installing and removing the memory card (MicroSD card) To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Connect the battery charger to your cellphone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Applications list1.4 The Applications list contains all pre-embedded and newly installed applications. To access the Applications list, touch Application tab from Home screen. To return to Home screen, press Home key. Normal mode and sort mode1.4.1 Applications can be managed in two modes. To switch between two modes, press Menu key from applications list screen, and touch Switch mode. Normal mode (default) All applications are listed in alphabetical order. Sort mode All applications are sorted by several categories. Categories management1.4.2 (1) There are 6 categories in total: 4 categories is predefined, 2 categories can be added. Press Menu key, and select Edit to enter edit mode. Within edit mode you can now customize categories. Power on your cellphone1.2.2 Hold down the End key until the cellphone powers on. It will take some seconds before the screen lights up. Set up your cellphone for the first time The first time you power on the cellphone, you are required to touch the Android logo to begin and then sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Set up the date and time, then touch • Next. Touch • Finish setup. This initial set up can…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-4-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 5/7/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD180 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

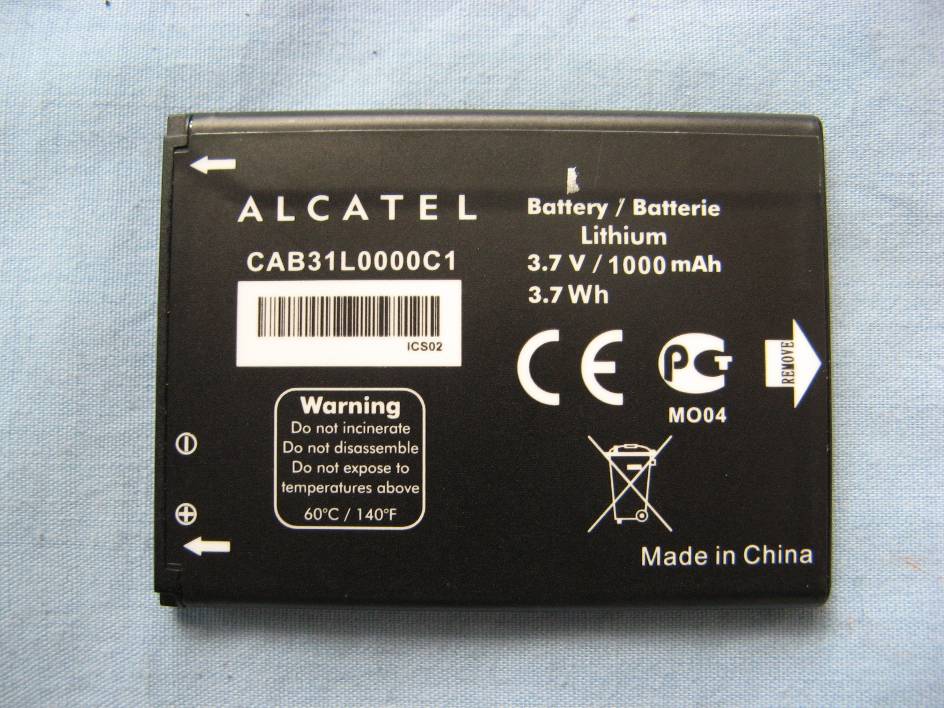

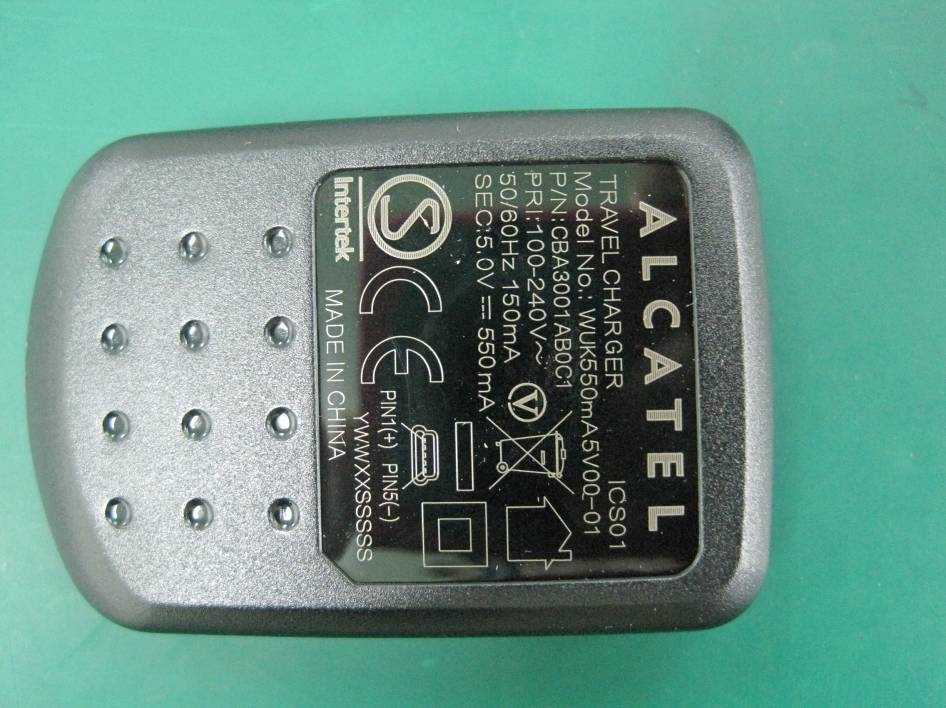

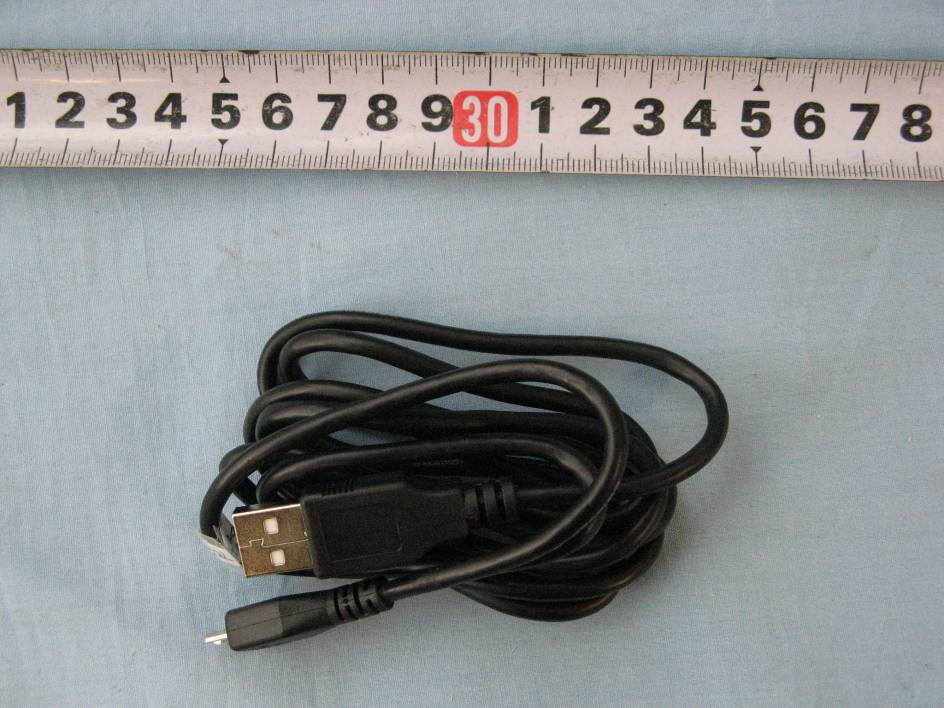

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 Charger AE5 Label of Charger AE5 Charger AE6 Label of Charger AE6 Headset AE7 Headset AE8 USB Cable AE9

EUT Label Location

EUT Interior photograph Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

No.2011SAR00048 Page 1 of 135 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00048 For TCT Mobile Limited Quadband GSM/GPRS/EDGE mobile phone Soul one touch 891 With Hardware Version: PIO Software Version: V12D FCCID: RAD180 Issued Date: 2011-05-25 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00048 Page 2 of 135 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 11 6 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 6.1 SUMMARY.................................................................................................................................................... 11 6.2 CONDUCTED POWER.................................................................................................................................... 11 7 TEST RESULTS ........................................................................................................................13 7.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 7.2 SYSTEM VALIDATION.................................................................................................................................... 13 7.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 14 7.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 15 7.5 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH AND WIFI FUNCTION) ............................................... 18 7.6 CONCLUSION................................................................................................................................................ 20 8 MEASUREMENT UNCERTAINTY ............................................................................................20 9 MAIN TEST INSTRUMENTS ....................................................................................................21 ANNEX A MEASUREMENT PROCESS....................................................................................22 ANNEX B TEST LAYOUT ........................................................................................…

Text truncated - open the document above for the full version.

No.2011SAR00048 Page 34 of 135 850 Left Tilt Middle Date/Time: 2011-5-5 9:08:02 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.898 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.457 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.6 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 0.527 W/kg SAR(1 g) = 0.431 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 0.453 mW/g Fig.5 850 MHz CH190 No.2011SAR00048 Page 35 of 135 850 Left Tilt Low Date/Time: 2011-5-5 9:22:23 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.886 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.414 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = 0.044 dB Peak SAR (extrapolated) = 0.482 W/kg SAR(1 g) = 0.396 mW/g; SAR(10 g) = 0.303 mW/g Maximum value of SAR (measured) = 0.417 mW/g Fig. 6 850 MHz CH128 No.2011SAR00048 Page 36 of 135 850 Right Cheek High Date/Time: 2011-5-5 9:37:12 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.91 mho/m; εr = 40.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.992 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.99 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 1.23 W/kg SAR(1 g) = 0.923 mW/g; SAR(10 g) = 0.666 mW/g Maximum value of SAR (measured) = 0.962 mW/g Fig. 7 850 MHz CH251 No.2011SAR00048 Page 37 of 135 850 Right Cheek Middle Date/Time: 2011-5-5 9:51:30 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.898 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.926 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.32 V/m; Power Drift = -0.160 dB Peak SAR (extrapolated) = 1.14 W/kg SAR(1 g) = 0.856 mW/g; SAR(10 g) = 0.618 mW/g Maximum value of SAR (measured) = 0.890 mW/g Fig. 8 850 MHz CH190 No.2011SAR00048 Page 38 of 135 850 Right Cheek Low Date/Time: 2011-5-5 10:05:52 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.886 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Cheek Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.825 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.94 V/m; Power Drift = -0.048 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.765 mW/g; SAR(10 g) = 0.557 mW/g Maximum value of SAR (measured) = 0.807 mW/g Fig. 9 850 MHz CH128 No.2011SAR00048 Page 39 of 135 850 Right Tilt High Date/Time: 2011-5-5 10:20:27 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.91 mho/m; εr = 40.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.518 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.5 V/m; Power Drift = -0.051 dB Peak SAR (extrapolated) = 0.607 W/kg SAR(1 g) = 0.488 mW/g; SAR(10 g) = 0.366 mW/g Maximum value of SAR (measured) = 0.511 mW/g Fig.10 850 MHz CH251 No.2011SAR00048 Page 40 of 135 850 Right Tilt Middle Date/Time: 2011-5-5 10:34:50 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.898 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Middle/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.479 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 0.567 W/kg SAR(1 g) = 0.457 mW/g; SAR(10 g) = 0.345 mW/g Maximum value of SAR (measured) = 0.477 mW/g Fig.11 850 MHz CH190 No.2011SAR00048 Page 41 of 135 850 Right Tilt Low Date/Time: 2011-5-5 10:49:18 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.886 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.441 mW/g Til…

Text truncated - open the document above for the full version.

No.2011SAR00048 Page 67 of 135 1900 Body Towards Ground Middle with GPRS Date/Time: 2011-5-6 14:03:50 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; εr = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.469 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.7 V/m; Power Drift = 0.159 dB Peak SAR (extrapolated) = 0.745 W/kg SAR(1 g) = 0.443 mW/g; SAR(10 g) = 0.256 mW/g Maximum value of SAR (measured) = 0.475 mW/g Fig. 36 1900 MHz CH661 No.2011SAR00048 Page 68 of 135 1900 Body Towards Ground Low with GPRS Date/Time: 2011-5-6 14:17:29 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; εr = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.534 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.8 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 0.853 W/kg SAR(1 g) = 0.512 mW/g; SAR(10 g) = 0.297 mW/g Maximum value of SAR (measured) = 0.554 mW/g Fig. 37 1900 MHz CH512 No.2011SAR00048 Page 69 of 135 Fig. 37-1 Z-Scan at power reference point (1900 MHz CH512) No.2011SAR00048 Page 70 of 135 1900 Body Towards Phantom High with GPRS Date/Time: 2011-5-6 14:33:02 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.51 mho/m; εr = 52.0; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.421 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.69 V/m; Power Drift = 0.00232 dB Peak SAR (extrapolated) = 0.633 W/kg SAR(1 g) = 0.378 mW/g; SAR(10 g) = 0.219 mW/g Maximum value of SAR (measured) = 0.409 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.69 V/m; Power Drift = 0.00232 dB Peak SAR (extrapolated) = 0.641 W/kg SAR(1 g) = 0.346 mW/g; SAR(10 g) = 0.189 mW/g Maximum value of SAR (measured) = 0.408 mW/g Fig. 38 1900 MHz CH810 No.2011SAR00048 Page 71 of 135 1900 Body Towards Phantom Middle with GPRS Date/Time: 2011-5-6 14:48:31 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; εr = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.434 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.21 V/m; Power Drift = 0.147 dB Peak SAR (extrapolated) = 0.661 W/kg SAR(1 g) = 0.392 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.428 mW/g Fig. 39 1900 MHz CH661 No.2011SAR00048 Page 72 of 135 1900 Body Towards Phantom Low with GPRS Date/Time: 2011-5-6 15:04:00 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; εr = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.487 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.96 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 0.739 W/kg SAR(1 g) = 0.441 mW/g; SAR(10 g) = 0.258 mW/g Maximum value of SAR (measured) = 0.480 mW/g Fig. 40 1900 MHz CH512 No.2011SAR00048 Page 73 of 135 1900 Body Towards Ground Low with EGPRS Date/Time: 2011-5-6 15:20:52 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; εr = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Low EGPRS/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.551 mW/g Toward Ground Low EGPRS/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.5 V/m; Power Drift = 0.149 dB Peak SAR (extrapolated) = 0.836 W/kg SAR(1 g) = 0.508 mW/g; SAR(10 g) = 0.294 mW/g Maximum value of SAR (measured) = 0.549 mW/g Fig. 41 1900 MHz CH512 No.2011SAR00048 Page 74 of 135 1900 Body Towards Ground Low with Headset__CCB3160A10C2 Date/Time: 2011-5-6 15:37:28 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; εr = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.321 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=…

Text truncated - open the document above for the full version.

No.2011SAR00048 Page 100 of 135 No.2011SAR00048 Page 101 of 135 No.2011SAR00048 Page 102 of 135 No.2011SAR00048 Page 103 of 135 No.2011SAR00048 Page 104 of 135 No.2011SAR00048 Page 105 of 135 No.2011SAR00048 Page 106 of 135 No.2011SAR00048 Page 107 of 135 No.2011SAR00048 Page 108 of 135 No.2011SAR00048 Page 109 of 135 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2011SAR00048 Page 110 of 135 No.2011SAR00048 Page 111 of 135 No.2011SAR00048 Page 112 of 135 No.2011SAR00048 Page 113 of 135 No.2011SAR00048 Page 114 of 135 No.2011SAR00048 Page 115 of 135 No.2011SAR00048 Page 116 of 135 No.2011SAR00048 Page 117 of 135 No.2011SAR00048 Page 118 of 135 1900 MHz Dipole Calibration Certificate No.2011SAR00048 Page 119 of 135 No.2011SAR00048 Page 120 of 135 No.2011SAR00048 Page 121 of 135 No.2011SAR00048 Page 122 of 135 No.2011SAR00048 Page 123 of 135 No.2011SAR00048 Page 124 of 135 No.2011SAR00048 Page 125 of 135 No.2011SAR00048 Page 126 of 135 No.2011SAR00048 Page 127 of 135 2450 MHz Dipole Calibration Certificate No.2011SAR00048 Page 128 of 135 No.2011SAR00048 Page 129 of 135 No.2011SAR00048 Page 130 of 135 No.2011SAR00048 Page 131 of 135 No.2011SAR00048 Page 132 of 135

No.2011SAR00048 Page 133 of 135 No.2011SAR00048 Page 134 of 135 No.2011SAR00048 Page 135 of 135

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No. 2011HAC00015 Page 1 of 57 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2011HAC00015 For TCT Mobile Limited Quadband GSM/GPRS/EDGE mobile phone Soul one touch 891 With Hardware Version: PIO Software Version: V12D FCCID: RAD180 Results Summary: M Category = M3 Issued Date: 2011-05-10 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011HAC00015 Page 2 of 57 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ......…

Text truncated - open the document above for the full version.
