RAD183HSDPA/UMTS dual band / GSM quad bands mobile phone

1 English - CJB31S3ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. 909A 909S 910A 23 1 Your cellphone ������������� 1�1 Keys and connectors Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your cellphone ����������������������������������������������������������������3 2 Text input ����������������������������������������������������������������������14 3 Phone call ����������������������������������������������������������������������17 4 Contacts ������������������������������������������������������������������������19 5 Messaging�����������������������������������������������������������������������20 6 Email ������������������������������������������������������������������������������21 7 Getting connected ��������������������������������������������������������22 8 Locate my location using GPS satellites �������������������24 9 Data backup ������������������������������������������������������������������25 10 Factory data reset ��������������������������������������������������������25 11 Applications �������������������������������������������������������������������26 12 Making the most of your cellphone ����������������������������26 Safety and use �������������������������������������������������������������������������28 General information ��������������������������������������������������������������34 Alcatel Mobile Phones Limited Warranty ���������������������������35 Troubleshooting����������������������������������������������������������������������37 Micro-USB connector Touchscreen Home key Menu key Call key Volume up Volume down Search key Back key End key Navigator keys Headset Connector Flash lightCamera * one touch 909A/one touch 909S are 2.0 megapixel color camera one touch 910A is 5.0 megapixel color camera 45 Call key • Go to Call log when in the Home screen; • Pick up an incoming call; • Send an outgoing call; • Swap two calls when one call hold and the other activated; • While in a call, press to put the call on hold, press again to resume the call. Menu key • Open a list of actions which the user can do on the current screen or options menu. Home key • While on any application or screen, press to return to the Home screen; • Press and hold to open the recently-used applications window. • When the screen is locked and the backlight is off, press Home or End key to light the screen. Search key • Search information on the current screen or application. Back key • Press to go back to the previous screen, or to close a dialog box, options menu, the notification panel, or Soft Keyboard. Power / End key • Short press: Ending a call While incoming call, refuse the call Lock the screen • Long press: Select a form Silent mode/Airplane mode/Power off Power on Volume Keys • Under call mode, adjust the headphone volume • In Music/Video/Streaming mode, adjust the media volume • In general mode, adjust the ring tone volume Navigation Key • Press the relevant direction (up, down, right, left) to navigate in various functions 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. 67 Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cellphone cover. • Unclip the cover, then remove the battery. Installing and removing the MicroSD card Insert the MicroSD card with golden contact facing downwards into the slot until it is locked. Gently push the memory card until it is unlocked. To remove the microSD card while the phone is on, you must unmount the storage card from the phone first (refer to “Settings/SD card & phone storage/Unmount SD card”), to prevent corrupting or damaging the storage card. Charging the battery Standard charger UK charger Connect the battery charger to your cellphone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your cellphone Hold down the Power key until the cellphone powers on. It will take some seconds before the screen lights up. Set up your cellphone for the first time The first time you power on the phone, you should set the under options: Language, KeyBoard, Mobile Data connection, Application Sync, Setup your Google Account, Date & time etc. This initial set up can be enabled via touching the Menu key from the Home screen, then Settings� In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your cellphone Hold down the Power key from the Home screen until the cellphone options appear, select Power off. 89 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your home screen for quick access. Press Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and Drag down to open the notification panel. Application tab • Touch to open main menu. • Long press to display thumbnails. Touch to access Messaging • Touch to access the dial screen. • Touch to access Call log if you have missed call(s). Search bar • Tou…

Text truncated - open the document above for the full version.

Antenna Details for Tequila US1/US2/AWS BT/Wi-Fi antenna:PIFA Gain：-2.36 GPS antenna: PIFA Gain:-3.76 RF antenna: Monopole BAND GSM850 GSM900 DCS1800 PCS1900 UMTS2100UMTS1900UMTS1700UMTS850 UMTS900 Gain -3.34 -3.78 -3.60 -2.33 -3.14 -2.33 -3.60 -3.34 -3.78 Max gain -0.81 -0.96 0.82 1.81 0.31 1.81 0.82 -0.81 -0.96

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 8/29/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 183 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

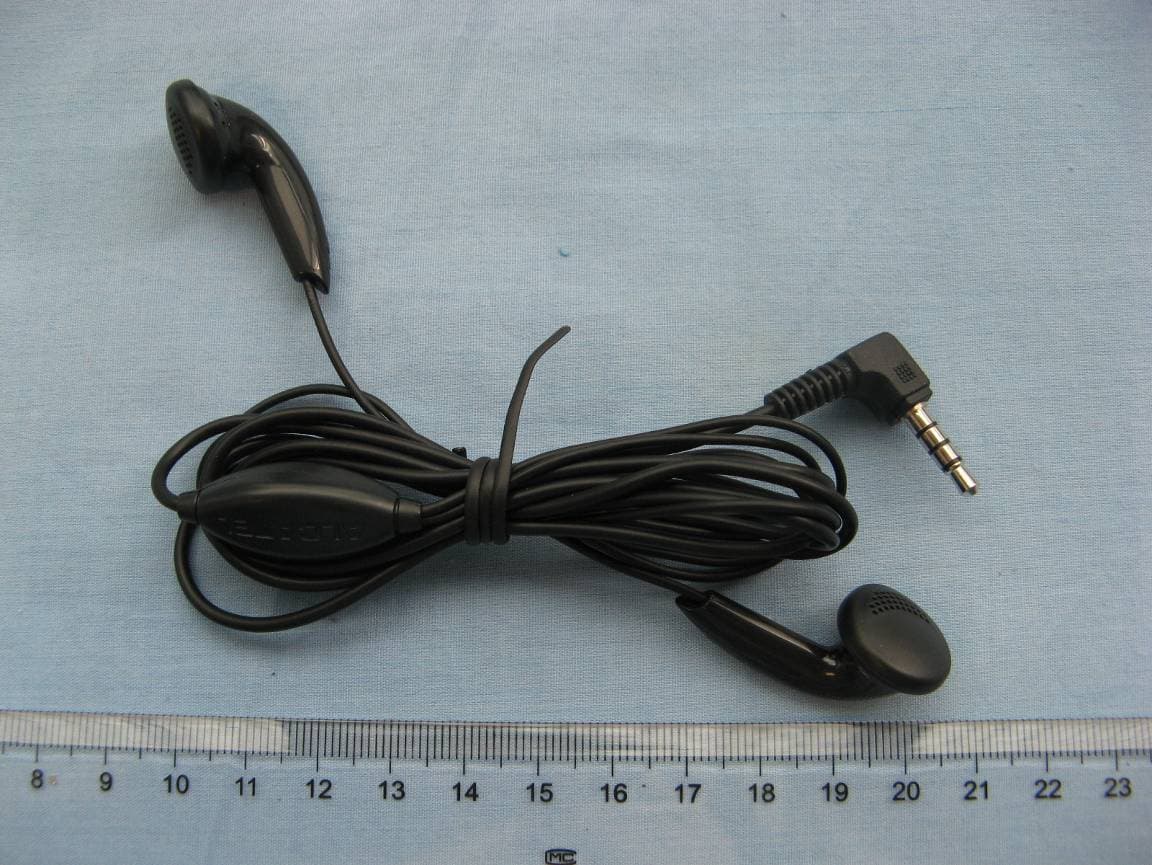

EUT photograph

EUT Label Location

EUT Interior photograph

No.2011SAR00104 Page 1 of 187 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00104 For TCT Mobile Limited HSDPA/UMTS dual band / GSM quad bands mobile phone Tequila AWS one touch 909S With Hardware Version: PIO Software Version: V942 FCCID: RAD183 Issued Date: 2011-09-02 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00104 Page 2 of 187 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................... 3 1.1 T ESTING L OCATION ................................................................................................................................. 3 1.2 T ESTING E NVIRONMENT .......................................................................................................................... 3 1.3 P ROJECT D AT A ......................................................................................................................................... 3 1.4 S IGNATURE .............................................................................................................................................. 3 2 CLIENT INFORMATION ............................................................................................................... 4 2.1 A PPLICANT I NFORMATION ........................................................................................................................ 4 2.2 M ANUFACTURER I NFORMATION ............................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE)................................. 4 3.1 A BOUT EUT ............................................................................................................................................ 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ...................................................................... 4 3.3 I NTERNAL I DENTIFICATION OF AE USED DURING THE TEST ......................................................................... 5 4 CHARACTERISTICS OF THE TEST ........................................................................................... 5 4.1 A PPLICABLE L IMIT R EGULATIONS ............................................................................................................ 5 4.2 A PPLICABLE M EASUREMENT S TANDARDS ................................................................................................. 5 5 OPERATIONAL CONDITIONS DURING TEST ........................................................................... 6 5.1 S CHEMATIC T EST C ONFIGURATION ........................................................................................................... 6 5.2 SAR M EASUREMENT S ET - UP .................................................................................................................... 6 5.3 D ASY 4 E- FIELD P ROBE S YSTEM ............................................................................................................... 7 5.4 E- FIELD P ROBE C ALIBRATION .................................................................................................................. 8 5.5 O THER T EST E QUIPMENT ......................................................................................................................... 9 5.6 E QUIVALENT T ISSUES .............................................................................................................................. 9 5.7 S YSTEM S PECIFICATIONS .........................................................................................................................10 6 CONDUCTED OUTPUT POWER MEASUREMENT .................................................................. 11 6.1 S UMMARY .............................................................................................................................................. 11 6.2 C ONDUCTED P OWER ............................................................................................................................... 11 7 TEST RESULTS .......................................................................................................................... 13 7.1 D IELECTRIC P ERFORMANCE ....................................................................................................................13 7.2 S YSTEM V ALIDATION ..............................................................................................................................13 7.3 S UMMARY OF M EASUREMENT R ESULTS ...................................................................................................15 7.4 S IMULTANEOUS TX SAR C ONSIDERATIONS .............................................................................................18 7.5 C ONCLUSION ..........................................................................................................................................22 8 MEASUREMENT UNCERTAINTY ............................................................................................. 23 9 MAIN TEST INSTRUMENTS ...................................................................................................... 24 ANNEX A MEASUREMENT PROCESS ..................................................................................... 25 ANNEX B TEST LAYOUT ........................................................................................................... 26 ANNEX C GRAPH RESULTS ...................................................................................................…

Text truncated - open the document above for the full version.

No.2011SAR00104 Page 51 of 187 1900 Left Tilt Middle Date/Time: 2011-8-4 9:22:58 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; εr = 40.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.273 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.2 V/m; Power Drift = 0.026 dB Peak SAR (extrapolated) = 0.339 W/kg SAR(1 g) = 0.232 mW/g; SAR(10 g) = 0.147 mW/g Maximum value of SAR (measured) = 0.239 mW/g Fig. 17 1900 MHz CH661 No.2011SAR00104 Page 52 of 187 1900 Left Tilt Low Date/Time: 2011-8-4 9:38:04 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.35 mho/m; εr = 39.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.244 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.047 dB Peak SAR (extrapolated) = 0.305 W/kg SAR(1 g) = 0.209 mW/g; SAR(10 g) = 0.134 mW/g Maximum value of SAR (measured) = 0.216 mW/g Fig. 18 1900 MHz CH512 No.2011SAR00104 Page 53 of 187 1900 Right Cheek High Date/Time: 2011-8-4 9:54:27 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.42 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.524 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.60 V/m; Power Drift = 0.086 dB Peak SAR (extrapolated) = 0.708 W/kg SAR(1 g) = 0.465 mW/g; SAR(10 g) = 0.273 mW/g Maximum value of SAR (measured) = 0.515 mW/g Fig. 19 1900 MHz CH810 No.2011SAR00104 Page 54 of 187 1900 Right Cheek Middle Date/Time: 2011-8-4 10:10:17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; εr = 40.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.648 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.85 V/m; Power Drift = 0.163 dB Peak SAR (extrapolated) = 0.871 W/kg SAR(1 g) = 0.576 mW/g; SAR(10 g) = 0.338 mW/g Maximum value of SAR (measured) = 0.638 mW/g Fig. 20 1900 MHz CH661 No.2011SAR00104 Page 55 of 187 1900 Right Cheek Low Date/Time: 2011-8-4 10:24:37 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.35 mho/m; εr = 39.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.709 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.53 V/m; Power Drift = 0.164 dB Peak SAR (extrapolated) = 0.960 W/kg SAR(1 g) = 0.637 mW/g; SAR(10 g) = 0.377 mW/g Maximum value of SAR (measured) = 0.710 mW/g Fig. 21 1900 MHz CH512 No.2011SAR00104 Page 56 of 187 Fig. 21-1 Z-Scan at power reference point (1900 MHz CH512) No.2011SAR00104 Page 57 of 187 1900 Right Tilt High Date/Time: 2011-8-4 10:39:53 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.42 mho/m; εr = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.171 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.86 V/m; Power Drift = 0.049 dB Peak SAR (extrapolated) = 0.238 W/kg SAR(1 g) = 0.156 mW/g; SAR(10 g) = 0.097 mW/g Maximum value of SAR (measured) = 0.170 mW/g Fig. 22 1900 MHz CH810 No.2011SAR00104 Page 58 of 187 1900 Right Tilt Middle Date/Time: 2011-8-4 10:53:03 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; εr = 40.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.223 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 0.302 W/kg SAR(1 g) = 0.202 mW/g; SAR(10 g) = 0.127 mW/g Maximum value of SAR (measured) = 0.216 mW/g Fig.23 1900 MHz CH661 No.2011SAR00104 Page 59 of 187 1900 Right Tilt Low Date/Time: 2011-8-4 11:12:28 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.35 mho/m; εr = 39.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.03, …

Text truncated - open the document above for the full version.

No.2011SAR00104 Page 96 of 187 1900 Body Bottom Side Middle with EGPRS Date/Time: 2011-8-4 15:41:51 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.777 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.2 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.722 mW/g; SAR(10 g) = 0.400 mW/g Maximum value of SAR (measured) = 0.781 mW/g Fig. 58 1900 MHz CH661 No.2011SAR00104 Page 97 of 187 1900 Body Bottom Side Middle with Headset_CCB3160A11C1 Date/Time: 2011-8-4 16:02:22 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.680 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.1 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.620 mW/g; SAR(10 g) = 0.347 mW/g Maximum value of SAR (measured) = 0.697 mW/g Fig. 59 1900 MHz CH661 No.2011SAR00104 Page 98 of 187 1900 Body Bottom Side Middle with Headset_CCB3160A11C2 Date/Time: 2011-8-4 16:25:07 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.648 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.7 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.979 W/kg SAR(1 g) = 0.589 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 0.659 mW/g Fig. 60 1900 MHz CH661 No.2011SAR00104 Page 99 of 187 WCDMA 1700 Body Towards Phantom High Date/Time: 2011-8-5 13:21:15 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1752.6 MHz; σ = 1.44 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 1700 Frequency: 1752.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.97, 4.97, 4.97) Toward Phantom High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.20 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.8 V/m; Power Drift = 0.048 dB Peak SAR (extrapolated) = 1.67 W/kg SAR(1 g) = 1.07 mW/g; SAR(10 g) = 0.665 mW/g Maximum value of SAR (measured) = 1.15 mW/g Fig. 61 1700 MHz CH1513 No.2011SAR00104 Page 100 of 187 WCDMA 1700 Body Towards Phantom Middle Date/Time: 2011-8-5 13:40:02 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.42 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 1700 Frequency: 1732.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.97, 4.97, 4.97) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.18 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.5 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.647 mW/g Maximum value of SAR (measured) = 1.13 mW/g Fig. 62 1700 MHz CH1412 No.2011SAR00104 Page 101 of 187 WCDMA 1700 Body Towards Phantom Low Date/Time: 2011-8-5 14:00:13 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.40 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 1700 Frequency: 1712.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.97, 4.97, 4.97) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.13 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = 0.062 dB Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.637 mW/g Maximum value of SAR (measured) = 1.14 mW/g Fig. 63 1700 MHz CH1312 No.2011SAR00104 Page 102 of 187 WCDMA 1700 Body Towards Ground High Date/Time: 2011-8-5 14:25:41 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1752.6 MHz; σ = 1.44 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WCDMA 1700 Frequency: 1752.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.97, 4.97, 4.97) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.29 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.0 V/m; Power Drift = -0.118 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 1.19 mW/g; SAR(10 g) = 0.730 mW/g Maximum value of SAR (measured) = 1.26 mW/g Fig. 64 1700 MHz CH1513 No.2011SAR00104 Page 103 of 187 WCDMA 1700 Body Towards Ground Middle Date/Time: 2011-8-5 14:47:33 Electronics: DAE4 Sn771 Medium: Body 1800 MHz Medium parameters used (interpolated): f = 1732.4 …

Text truncated - open the document above for the full version.

No.2011SAR00104 Page 137 of 187 No.2011SAR00104 Page 138 of 187 No.2011SAR00104 Page 139 of 187 No.2011SAR00104 Page 140 of 187 No.2011SAR00104 Page 141 of 187 No.2011SAR00104 Page 142 of 187 No.2011SAR00104 Page 143 of 187 No.2011SAR00104 Page 144 of 187 No.2011SAR00104 Page 145 of 187 No.2011SAR00104 Page 146 of 187 No.2011SAR00104 Page 147 of 187 No.2011SAR00104 Page 148 of 187 No.2011SAR00104 Page 149 of 187 No.2011SAR00104 Page 150 of 187 No.2011SAR00104 Page 151 of 187

No.2011SAR00104 Page 152 of 187 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2011SAR00104 Page 153 of 187 No.2011SAR00104 Page 154 of 187 No.2011SAR00104 Page 155 of 187 No.2011SAR00104 Page 156 of 187 No.2011SAR00104 Page 157 of 187 No.2011SAR00104 Page 158 of 187 No.2011SAR00104 Page 159 of 187 No.2011SAR00104 Page 160 of 187

No.2011SAR00104 Page 161 of 187 1900 MHz Dipole Calibration Certificate No.2011SAR00104 Page 162 of 187 No.2011SAR00104 Page 163 of 187 No.2011SAR00104 Page 164 of 187 No.2011SAR00104 Page 165 of 187 No.2011SAR00104 Page 166 of 187 No.2011SAR00104 Page 167 of 187 No.2011SAR00104 Page 168 of 187 No.2011SAR00104 Page 169 of 187 No.2011SAR00104 Page 170 of 187 1800 MHz Dipole Calibration Certificate

No.2011SAR00104 Page 171 of 187 No.2011SAR00104 Page 172 of 187 No.2011SAR00104 Page 173 of 187 No.2011SAR00104 Page 174 of 187 No.2011SAR00104 Page 175 of 187 No.2011SAR00104 Page 176 of 187 No.2011SAR00104 Page 177 of 187 No.2011SAR00104 Page 178 of 187 No.2011SAR00104 Page 179 of 187 2450 MHz Dipole Calibration Certificate No.2011SAR00104 Page 180 of 187

No.2011SAR00104 Page 181 of 187 No.2011SAR00104 Page 182 of 187 No.2011SAR00104 Page 183 of 187 No.2011SAR00104 Page 184 of 187 No.2011SAR00104 Page 185 of 187 No.2011SAR00104 Page 186 of 187 No.2011SAR00104 Page 187 of 187

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2011WLN0290 Page1 of 67 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No.2011WLN0290 for TCT Mobile Limited HSDPA/UMTS dual band / GSM quad bands mobile phone Type: Tequila US2 Market Name: one touch 909S With FCC ID: RAD183 Hardware Version: PIO Software Version: V942 Issued Date: 2011-09-02 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011WLN0290 Page2 of 67 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LABORATORY ........................................................................................................ 5 1.1. TESTING LOCATION .............................................................................................................. 5 1.2. TESTING ENVIRONMENT ....................................................................................................... 5 1.3. PROJECT DATA ..................................................................................................................... 5 1.4. SIGNATURE .......................................................................................................................... 5 2. CLIENT INFORMATION .................................................................................................... 6 2.1. APPLICANT INFORMATION ..................................................................................................... 6 2.2. MANUFACTURER INFORMATION ............................................................................................. 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) ...................... 7 3.1. ABOUT EUT ......................................................................................................................... 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................................... 7 3.4. GENERAL DESCRIPTION ...........................................................................…
