RAD188GSM/GPRS/EDGE 850/1900 dual band mobile phone

1 9 2 10 3 11 4 12 5 13 6 14 7 15 8 16 Your cellphone 1 .............. Status bar icons1.1 (1) Battery charge level Vibrate alert: your cellphone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Java status (Activated). Headset connected. Keypad & LCD touch locked. Keypad& LCD touch unlocked. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Wi-Fi connected. Wi-Fi disconnected. Voicemail message arrived. Missed calls. Stopwatch is active. Radio is on. Email unread. WAP alerts (1) . Roaming. SD card scanning in progress. SD card scanning completed. SIM card unavailable. Line switching (1) : indicates the selected line. GPRS connection status (Activated). GPRS connecting. EDGE connecting. EDGE attached. Music player active. Message receipt in progress. MMS receipt in progress. Sending a SMS. Sending a MMS. Silence mode: your cellphone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. (In red) Message list is full: your cellphone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. A2DP connected. Broadcast is on. Status list1.2 Tap the status bar and drag down to open, drag up to close. To open an application, tap it from the list. Home screen1.3 Adding items To add an item from the main menu, you can select one of the following ways: Tap and hold an item from the main menu list.• Tap • from the tool bar and select “Add widgets/Add shortcuts”. Touch and hold an empty area from the main screen, select “• Add widgets/Add shortcuts” from the window that opens, then tap the item you want to add to the Home screen. Editing/Removing items To edit/ remove an item from the main screen, you can select one of the following ways: Long press the application on the Home screen, touch to edit (only for my favorites), touch to remove, and then confirm by tapping “Done”. Tap from the tool bar and select “Delete shortcuts and widgets”. Wallpaper To personalize your wallpaper, you can select one of the following two ways: Touch and hold an empty area from the Home screen, select • “Wallpaper”, then tap a folder to select an image as your wallpaper. Tap • from the tool bar, select “Wallpaper”, then tap a folder to select an image as your wallpaper. Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. Small dots at the bottom of the screen indicate which screen you are viewing. Toolbar1.4 Tool bar with menu items by default as a shortcut for quick access. Getting started 2 ............ Set-up2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the cellphone • cover. Unclip the cover, then remove the battery.• Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your cellphone2.2 Hold down the key until the cellphone powers on. Power off your cellphone2.3 Hold down the key from the main screen. Using the touchscreen2.4 Tap To access an application, tap it with your finger. Scroll Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Making a call 3 ................ Enter the desired number on the hardware keypad directly. The number you entered can be saved to Contacts by selecting “Save”. If you make a mistake, you can delete the incorrect digits by pressing or . To hang up the call, press the key. Menu arrange 4 .............. The main menu is designed to vary according to your preference. To access this function, select to enter the main menu, then tap . Change the order Access the main menu, focus on the main menu item you want to move, and then tap “Options\Move”, it will go to the main menu screen and tick “√” will be shown on the main menu you selected, then release it to your favorite destination. Show/Hide Access “Menu arrange”, tap the left check box of the selected menu once to show/hide, then tap “Done” to save the operation. Messaging 5 .............. Conversational On (Off) mode5.1 In conversational on mode, you can view chat history in chronological order. In conversational off mode, you can access the following folders: Inbox, Outbox, Sent, Drafts, etc. You can switch between these two modes by selecting “Options\Settings\Conversational mode\ On (Off)”. Conversational mode is set as the default mode and the following instructions are based on this mode. Write message5.2 Select “Messaging\Write message” to create text/multimedia messages. An SMS will be converted to MMS automatically when: images, videos, audio, slides or attachments are inserted; Subject, CC/ BCC/email address is added; or the message contains more than 8 pages of text. Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. Timer send Schedule a SMS/MMS to be sent out at predefined time (“Option\ Timer send”). Email 6 ...................... Your cellphone has an email client with the settings predefined for a few popular email services like – GoogleMail, Yahoo, AOL, etc. Besides this, you can set up other POP3 or IMAP4 email …

Text truncated - open the document above for the full version.

No.2966, JinKe Road, Zhangjiang High-Tech Park Shanghai P.R.China 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-4-25 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2011-04-23 Federal Communications Commission O ffice of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD188 To Whom It May Concern, P ursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-06-10 To: TMC (Telecommunication Metrology Center of MIIT) From: TCT Mobile Limited For one touch 819A (FCC ID RAD188), manufactured by TCT Mobile Limited, it does not support hot-spot mode. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

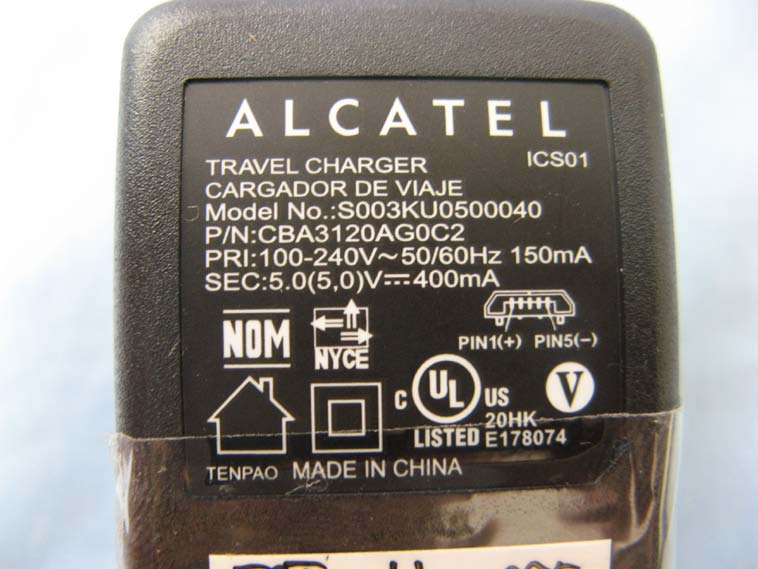

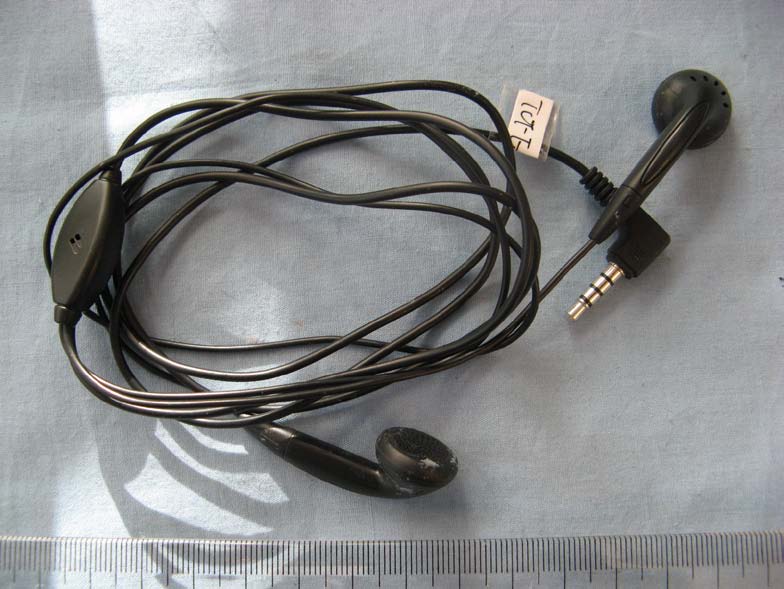

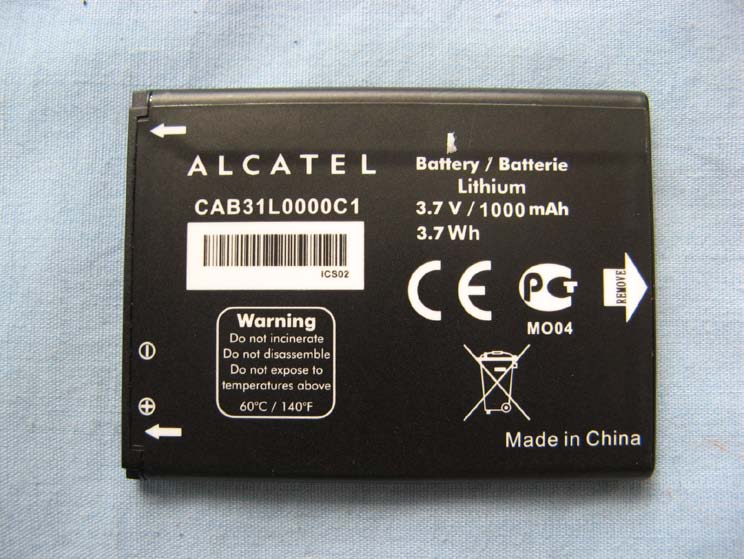

External Photos:

FCC label placement

Internal Photos:

No.2011SAR00059 Page 1 of 135 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00059 For TCT Mobile Limited GSM/GPRS/EDGE 850/1900 dual band mobile phone Onyx lifestyle WIFI A one touch 819A With Hardware Version: PIO Software Version: SW460 FCCID: RAD188 Issued Date: 2011-06-02 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00059 Page 2 of 135 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 11 6 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 6.1 SUMMARY.................................................................................................................................................... 11 6.2 CONDUCTED POWER.................................................................................................................................... 11 7 TEST RESULTS ........................................................................................................................13 7.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 7.2 SYSTEM VALIDATION.................................................................................................................................... 13 7.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 14 7.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 15 7.5 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH AND WIFI FUNCTION) ............................................... 18 7.6 CONCLUSION................................................................................................................................................ 20 8 MEASUREMENT UNCERTAINTY ............................................................................................20 9 MAIN TEST INSTRUMENTS ....................................................................................................21 ANNEX A MEASUREMENT PROCESS....................................................................................22 ANNEX B TEST LAYOUT ...........................................................…

Text truncated - open the document above for the full version.

No.2011SAR00059 Page 81 of 135 WiFi 802.11b 1Mbps Right Tilt Channel 11 Date/Time: 2011-5-26 11:59:02 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.84 mho/m; εr = 39.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.534 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 0.787 W/kg SAR(1 g) = 0.435 mW/g; SAR(10 g) = 0.221 mW/g Maximum value of SAR (measured) = 0.472 mW/g Fig.48 802.11b 1Mbps CH11 No.2011SAR00059 Page 82 of 135 WiFi 802.11b 1Mbps Toward Ground Channel 11 Date/Time: 2011-5-26 08:11:13 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.98 mho/m; εr = 51.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(6.88, 6.88, 6.88) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.096 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.56 V/m; Power Drift = -0.182 dB Peak SAR (extrapolated) = 0.162 W/kg SAR(1 g) = 0.087 mW/g; SAR(10 g) = 0.047 mW/g Maximum value of SAR (measured) = 0.096 mW/g Fig.49 802.11b 1Mbps CH11 No.2011SAR00059 Page 83 of 135 Fig. 49-1 Z-Scan at power reference point (2462 MHz CH11) No.2011SAR00059 Page 84 of 135 WiFi 802.11b 1Mbps Toward Phantom Channel 11 Date/Time: 2011-5-26 08:26:47 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.98 mho/m; εr = 51.9; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(6.88, 6.88, 6.88) Toward Phantom High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.096 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.78 V/m; Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.144 W/kg SAR(1 g) = 0.081 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.087 mW/g Fig.50 802.11b 1Mbps CH11 No.2011SAR00059 Page 85 of 135 ANNEX D SYSTEM VALIDATION RESULTS 835MHz Date/Time: 2011-5-27 7:30:19 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.55 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.8 V/m; Power Drift = 0.098 dB Peak SAR (extrapolated) = 3.40 W/kg SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.50 mW/g Maximum value of SAR (measured) = 2.47 mW/g 0 dB = 2.47mW/g Fig.51 validation 835MHz 250mW No.2011SAR00059 Page 86 of 135 835MHz Date/Time: 2011-5-27 13:18:31 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.96 mho/m; ε r = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.61 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.5 V/m; Power Drift = 0.103 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.49 mW/g 0 dB = 2.49mW/g Fig.52 validation 835MHz 250mW No.2011SAR00059 Page 87 of 135 1900MHz Date/Time: 2011-5-28 13:21:29 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.4 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.7 V/m; Power Drift = -0.065 dB Peak SAR (extrapolated) = 14.5 W/kg SAR(1 g) = 9.78 mW/g; SAR(10 g) = 4.88 mW/g Maximum value of SAR (measured) = 10.3 mW/g 0 dB = 10.3mW/g Fig.53 validation 1900MHz 250mW No.2011SAR00059 Page 88 of 135 1900MHz Date/Time: 2011-5-28 07:28:52 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.3 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.8 V/m; Power Drift = 0.053 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.25 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6mW/g Fig.54 validation 1900MHz 250mW No.2011SAR00059 Page 89 of 135 2450MHz Date/Time: 2011-5-26 10:42:18 Electronics: DAE4 Sn771 Medium: Head 2450 Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Ambient Temperatu…

Text truncated - open the document above for the full version.

No.2011SAR00059 Page 116 of 135 No.2011SAR00059 Page 117 of 135 No.2011SAR00059 Page 118 of 135 1900 MHz Dipole Calibration Certificate No.2011SAR00059 Page 119 of 135 No.2011SAR00059 Page 120 of 135 No.2011SAR00059 Page 121 of 135 No.2011SAR00059 Page 122 of 135 No.2011SAR00059 Page 123 of 135 No.2011SAR00059 Page 124 of 135 No.2011SAR00059 Page 125 of 135 No.2011SAR00059 Page 126 of 135 No.2011SAR00059 Page 127 of 135 2450 MHz Dipole Calibration Certificate No.2011SAR00059 Page 128 of 135 No.2011SAR00059 Page 129 of 135 No.2011SAR00059 Page 130 of 135 No.2011SAR00059 Page 131 of 135 No.2011SAR00059 Page 132 of 135 No.2011SAR00059 Page 133 of 135 No.2011SAR00059 Page 134 of 135 No.2011SAR00059 Page 135 of 135

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No. 2011HAC00018 Page 1 of 57 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2011HAC00018 For TCT Mobile Limited GSM/GPRS/EDGE 850/1900 dual band mobile phone Onyx lifestyle WIFI A one touch 819A With Hardware Version: PIO Software Version: SW460 FCCID: RAD188 Results Summary: M Category = M3 Issued Date: 2011-06-03 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011HAC00018 Page 2 of 57 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 4 4 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................5 4.1 SUMMARY...................................................................................................................................................... 5 4.2 CONDUCTED POWER...................................................................................................................................... 5 5. REFERENCE DOCUMENTS......................................................................................................5 5.1REFERENCE DOCUMENTS FOR TESTING........................................................................................................... 5 6 OPERATIONAL CONDITIONS DURING TEST ..........................................................................5 6.1 HAC MEASUREMENT SET-UP.................................................................................................................. 5 6.2 PROBE SPECIFICATION.................................................................................................................................... 6 6.3 TEST ARCH PHANTOM & PHONE POSITIONER................................................................................................. 7 6.4 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 8 7 EUT ARRANGEMENT ................................................................................................................8 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE........................................................................ 8 8 SYSTEM VALIDATION................................................................................................................9 8.1 VALIDATION PROCEDURE...............................................................................................................................9 8.2 VALIDATION RESULT.................................................................................................................................... 10 9 PROBE MODULATION FACTOR .............................................................................................10 9.1 MODULATION FACTOR TEST PROCEDURE..................................................................................................... 11 9.2 MODULATION FACTOR.................................................................................................................................. 11 10 RF TEST PROCEDUERES .....................................................................................................12 11 HAC RF TEST DATA SUMMARY............................................................................................13 11.1 MEASUREMENT RESULTS (E-FIELD)........................................................................................................... 13 11.2 MEASUREMENT RESULTS (H-FIELD) .......................................................................................................... 13 11.3 TOTAL M-RATING....................................................................................................................................... 13 12 ANSI C 63.19-2007 LIMITS.....................................................................................................14 13 MEASUREMENT UNCERTAINTY ............................................................…

Text truncated - open the document above for the full version.

TEST REPORT No. 2011TAR251 for TCT Mobile Limited GSM/GPRS/EDGE 850/1900 dual band mobile phone Model Name: Onyx lifestyle WIFI A Marketing Name：one touch 819A FCC ID: RAD188 with Hardware Version: PIO Software Version: SW460 Issued Date: May 20, 2011 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2011TAR251 Page2 of 82 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ........................…
