RAD210CDMA2000 dual band mobile phone

12 Table of Contents Safety and use ............................................................................4 General information ...............................................................10 1 Your Cellphone ..................................................................12 1.1 Keys and connectors ................................................................................12 1.2 Getting started ..........................................................................................14 1.3 Home screen ..............................................................................................18 1.4 Applications list..........................................................................................27 2 Text input ...........................................................................29 2.1 Using Hardware Keyboard ......................................................................29 2.2 Using Onscreen Keyboard ......................................................................30 2.3 Text editing .................................................................................................31 3 Phone call, Call log and Contacts ....................................32 3.1 Phone ...........................................................................................................32 3.2 Call log .........................................................................................................37 3.3 Contacts ......................................................................................................37 4 Google Messaging, Gmail/Email, Google Talk ................45 4.1 Google Messaging .....................................................................................45 4.2 Gmail/Email .................................................................................................51 4.3 Google Talk .................................................................................................56 5 Google Calendar & Alarm clock & Calculator ..............59 5.1 Google Calendar .......................................................................................59 5.2 Clock ............................................................................................................61 5.3 Calculator ....................................................................................................63 6 Getting connected ............................................................65 6.1 Connecting to the Internet ....................................................................65 6.2 Browser .......................................................................................................67 6.3 Connecting to Bluetooth devices ........................................................74 6.4 Connecting to a computer via USB ......................................................75 6.5 Sharing your cellphone's mobile data connection .............................77 6.6 Connecting to virtual private networks ..............................................78 7 Android Market ................................................................80 7.1 Locate the item you want to download and install ..........................80 7.2 Download and install ................................................................................81 7.3 Manage your downloads ..........................................................................83 8 Multimedia applications ...................................................85 8.1 Camera/Camcorder ..................................................................................85 8.2 Gallery .........................................................................................................88 8.3 YouTube .......................................................................................................90 8.4 Music ............................................................................................................91 8.5 Sound Recorder ........................................................................................94 8.6 Videos ..........................................................................................................94 9 Google Maps ......................................................................95 9.1 Get My Location .......................................................................................95 9.2 Search for a location ................................................................................96 9.3 Star a location ............................................................................................97 9.4 Get driving, public transport or walking directions ..........................98 9.5 Arrangement of Layers ..........................................................................100 9.6 Join Latitude to see your friends' locations and share yours with them ..............................................................................................................101 10 Others ..............................................................................104 10.1 FileManager ...............................................................................................104 10.2 Notes .........................................................................................................104 10.3 SyncMLClient ...........................................................................................105 10.4 FmRadio .....................................................................................................105 10.5 Traffic Manager.........................................................................................107 10.6 LEDTorch ..................................................................................................107 10.7 Other applications .................................................................................107 11 Settings ............................................................................108…

Text truncated - open the document above for the full version.

4/4/2011 941225 D06 Hot Spot SAR v01 1 Federal Communications Commission Office of Engineering and Technology Laboratory Division SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities This document describes the SAR test requirements for certain wireless devices with the capability to enable wireless router functions for use in portable RF exposure conditions. Wireless router functions are often called hotspot mode by users and test laboratories. The wireless routing capabilities described in this document are implemented using transmitters that are built-in or physically attached to a wireless device, such as battery operated personal wireless routers, wireless handsets or devices of similar capabilities, with a form factor > 9 cm x 5 cm (~3.5” x 2”). This allows a hotspot capable device to provide internet access for multiple compatible devices in its neighborhood by redirecting wireless traffic between a short range transmitter and an available long range transmitter. This wireless mode is distinct from the hotspot functionality provided by access points in business or commercial environments. Devices with hotspot functions transmit simultaneously through multiple transmitters. The wireless traffic is typically routed between a Wi-Fi connection and an available 3G connection. For handsets using technologies such as UMTS or GSM with DTM, hotspot transmissions may continue when voice calls are in progress. Depending on the transmitter and antenna paths used in the different wireless modes for voice and data transmissions, up to 4 transmitters can transmit simultaneously. For example, traffic may be routed between Wi-Fi and LTE/EVDO/WiMax connections while a voice call is routed from a UMTS/1xRTT/GSM connection to a Bluetooth headset. The simultaneous transmission and operating configurations for head, body-worn accessories, and other product specific use conditions can become quite complex. In general, RF exposure for hotspot mode is not limited to body-worn accessory use conditions only. While the exposure evaluation for some handsets with hotspot capabilities may partially overlap with body-worn accessory SAR test requirements, the tests intended for either exposure categories are normally insufficient to cover both. Voice calls from handsets and similar devices are “attended” transmissions initiated or accepted by users. Hotspot mode transmissions are “unattended” and may be transparent because users normally do not know which transmitters and wireless mode are transmitting at any particular time. Data from hotspot clients can be transmitted concurrently through a hotspot enabled device while the user is texting or web-browsing; therefore, hand-held and other near-body exposure conditions also need consideration. Since this type of device related use conditions can have substantial variations, combined considerations are necessary to streamline SAR test requirements. The procedures in this document are required for devices with hotspot mode capabilities to qualify for TCB approval. A PBA is required when different test procedures are used. A test distance greater than 10 mm requires the equipment approval applications to be filed directly with the Commission, as required by the TCB Exclusion List (see KDB 628591). Permissive change filings to enable hotspot 4/4/2011 941225 D06 Hot Spot SAR v01 2 mode for devices already in use, through software/firmware changes and field upgrades, must also be filed at the FCC for approval. General SAR test requirements for hotspot mode A standard composite test separation distance of 10 mm has been established for testing hotspot mode related exposure conditions. This test distance addresses the near-body exposure conditions for standalone wireless routers and handsets that allow hotspot mode to operate in other than head and body-worn accessory use conditions. Because of varying operating configurations and exposure conditions, the 10 mm test distance is not suitable for testing devices that require a host to operate; for example, peripheral transmitter cards and dongles. Since hand and near-body exposures can both be addressed by the 10 mm 1-g SAR, separate 10-g hand SAR evaluation at zero separation is not necessary. For devices with form factors smaller than 9 cm x 5 cm, a test separation distance of 5 mm or less must be used to qualify for TCB approval; otherwise, a KDB inquiry must be submitted to determine the acceptable test requirements. The hotspot mode SAR results are used to determine simultaneous transmission SAR test exclusion and volume scan requirements. For handsets, the simultaneous transmission configurations for head, body- worn accessory, hotspot mode and other use conditions must be addressed separately to qualify for SAR test exclusion. When hotspot mode is tested according to the 5 or 10 mm requirements and simultaneous transmission SAR compliance has been addressed by SAR exclusion and/or volume scan measurements, for the applicable head, body-worn accessory and other use conditions, no additional information regarding RF exposure compliance for hotspot mode use is required in the user manuals. However, the separation distance required for body-worn accessories to comply with RF exposure requirements must be fully disclosed, conspicuously in instruction manuals, to enable users to acquire suitable body-worn accessories. Hotspot mode SAR test requirements for hand-held and other near-body use conditions Standalone personal wireless routers and handsets with hotspot mode capabilities must address hand- held and other near-body exposure conditions to show SAR compliance. The following procedures are applicable when the overall device length and width are ≥ 9 cm x 5 cm respectively. A test separation of 10 mm is required. SAR must be measured for all sides and surfaces with a transmitting antenna located within 25 mm from that surface or edge, for the data modes, wireless technologies and frequency ban…

Text truncated - open the document above for the full version.

Antenna Details for Venus BT/Wi-Fi antenna:PIFA Gain[dBi]：-0.58 GPS antenna: PIFA Gain[dBi]：-0.67 RX diversity antenna: PIFA BAND BC0 BC1 Average Gain[dBi]： -9.06 -5.28 Gain[dBi]： -4.66 -0.64 Primary antenna: IFA BAND BC0 BC1 Average Gain[dBi]： -3.30 -1.98 Gain[dBi]： -1.12 1.05

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 9/23/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD 210 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

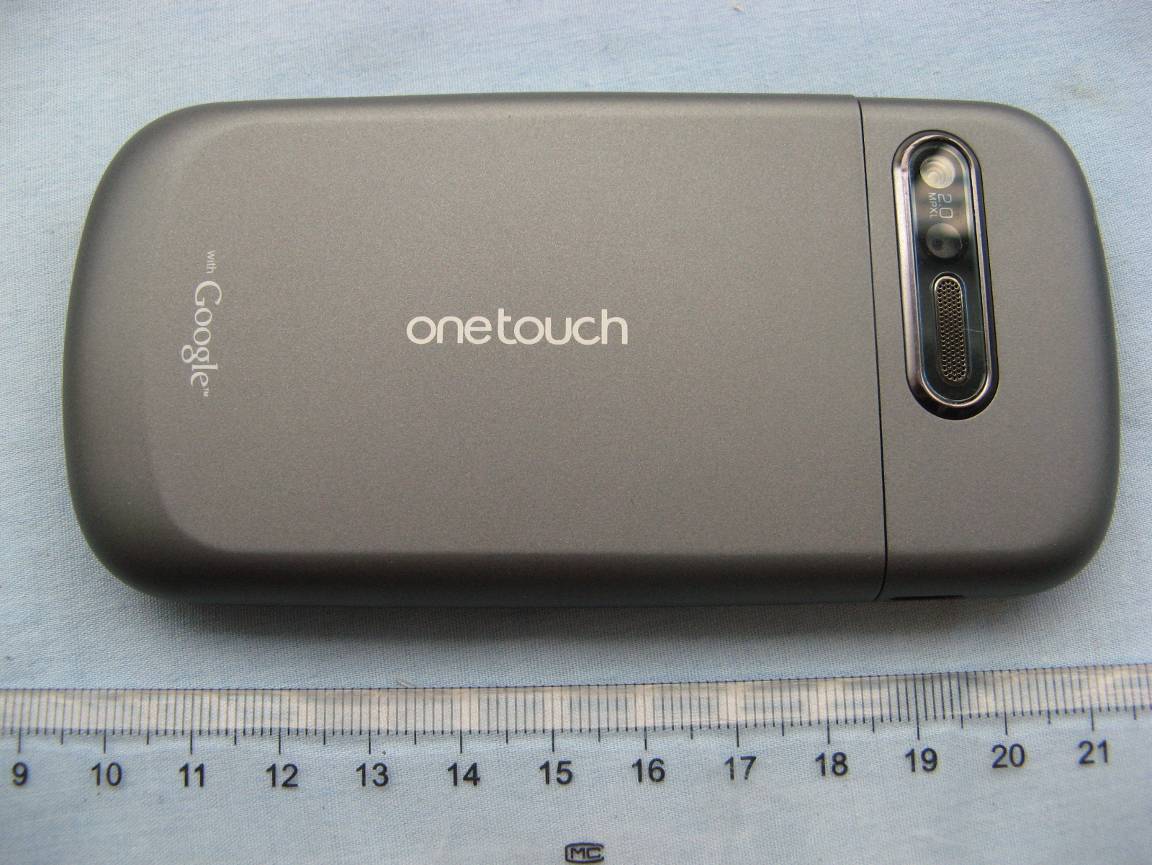

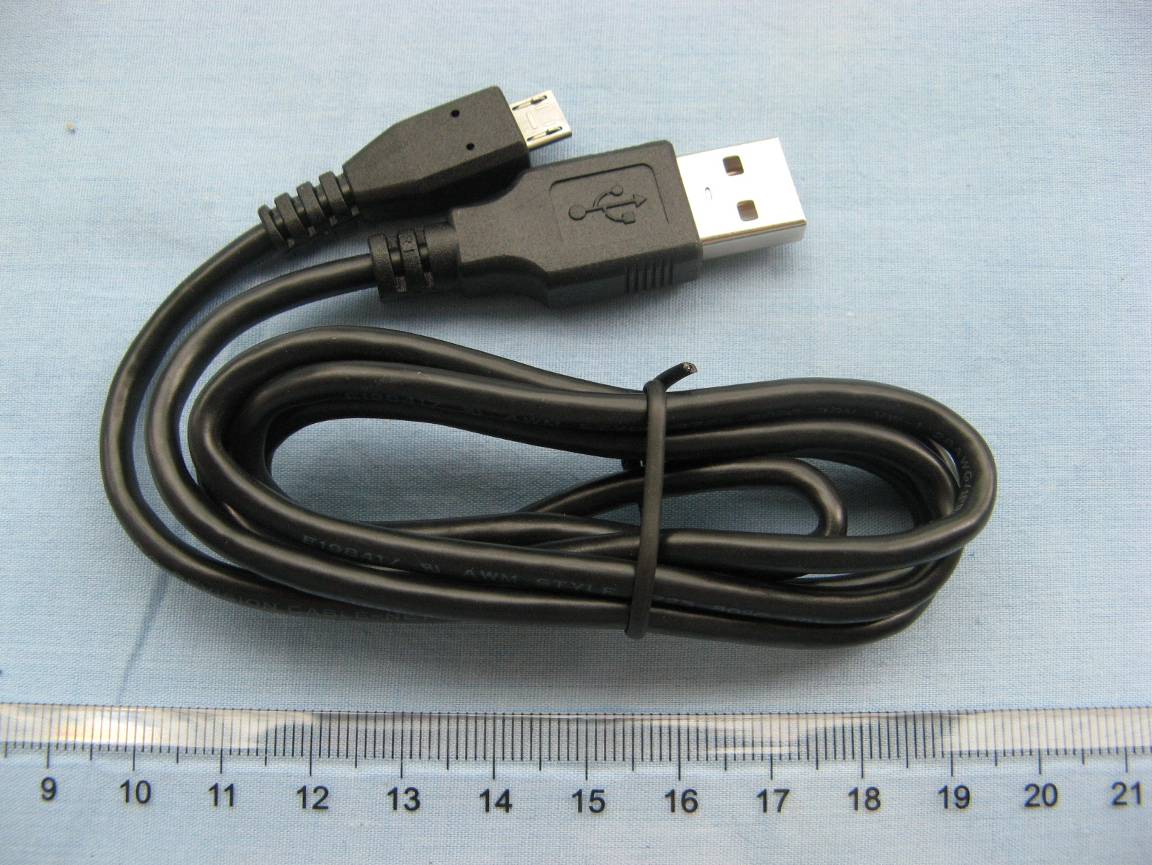

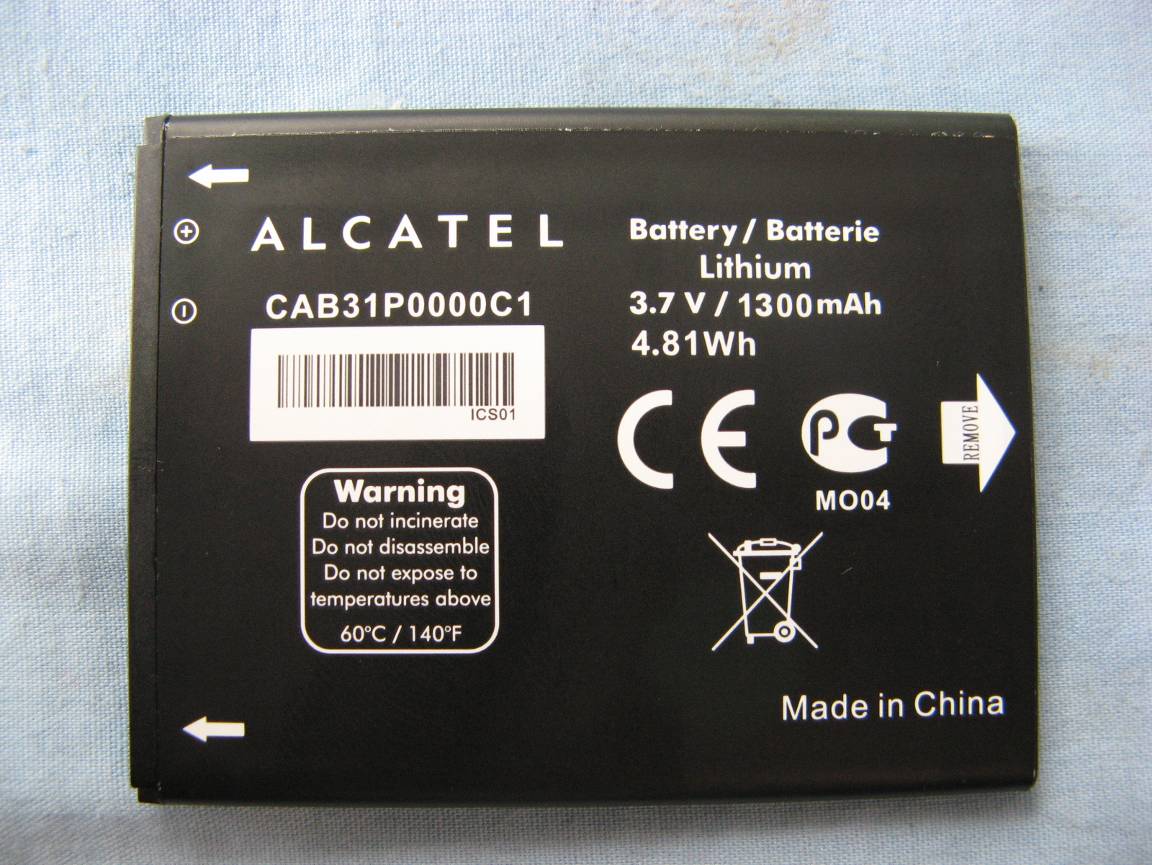

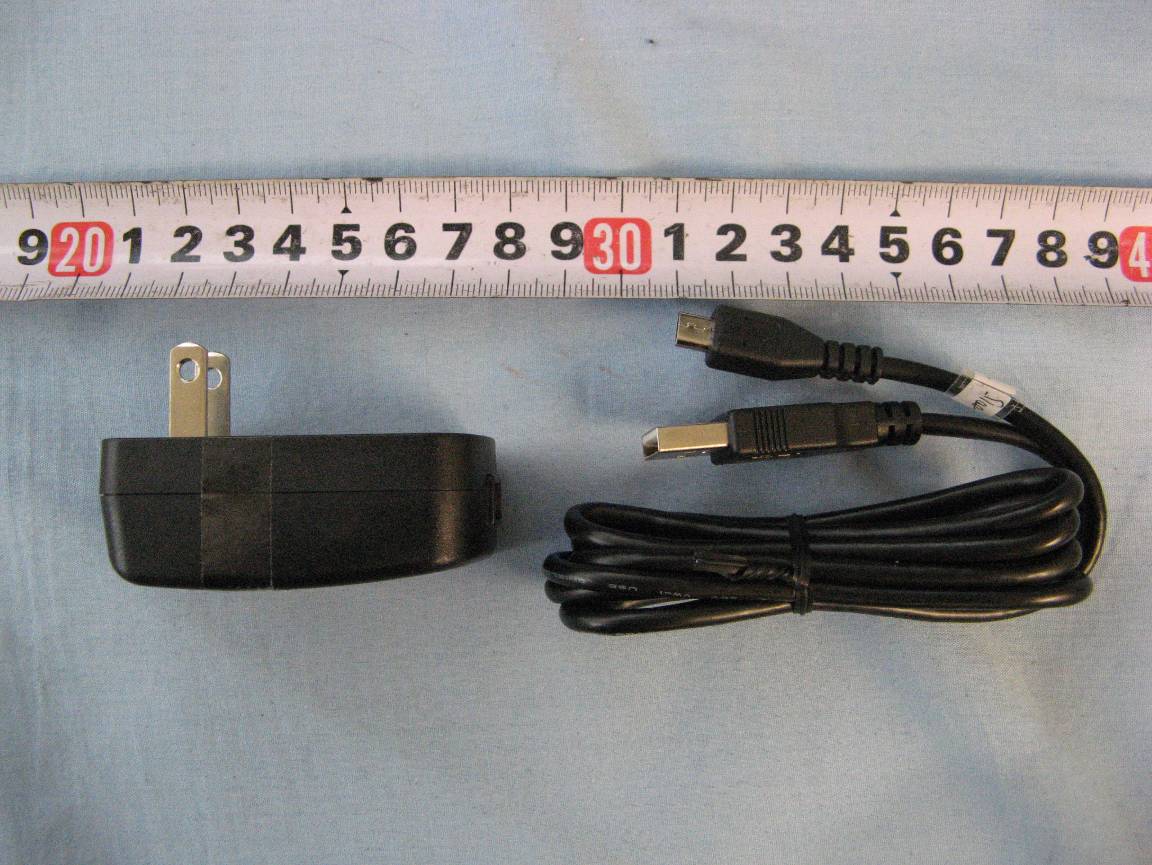

EUT photograph

EUT Interior photograph

No.2011SAR00111 Page 1 of 148 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00111 For TCT Mobile Limited CDMA2000 dual band mobile phone Venus one touch 909B With Hardware Version: PIO Software Version: vF23 FCCID: RAD210 Issued Date: 2011-09-16 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00111 Page 2 of 148 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.5.1 DEVICE HOLDER FOR TRANSMITTERS......................................................................................................... 9 5.5.2 PHANTOM.................................................................................................................................................... 9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 11 6 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 6.1 SUMMARY.................................................................................................................................................... 11 6.2 CONDUCTED POWER.................................................................................................................................... 11 7 TEST RESULTS ........................................................................................................................13 7.1 DIELECTRIC PERFORMANCE......................................................................................................................... 13 7.2 SYSTEM VALIDATION.................................................................................................................................... 13 7.3 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 15 7.4 SIMULTANEOUS TX SAR CONSIDERATIONS................................................................................................. 18 7.5 CONCLUSION................................................................................................................................................ 21 8 MEASUREMENT UNCERTAINTY ............................................................................................21 9 MAIN TEST INSTRUMENTS ....................................................................................................22 ANNEX A MEASUREMENT PROCESS.............…

Text truncated - open the document above for the full version.

No.2011SAR00111 Page 101 of 148 WiFi 802.11b 1Mbps Toward Ground Channel 6 Date/Time: 2011-8-31 14:13:08 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.94 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.158 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.54 V/m; Power Drift = 0.107 dB Peak SAR (extrapolated) = 0.295 W/kg SAR(1 g) = 0.159 mW/g; SAR(10 g) = 0.083 mW/g Maximum value of SAR (measured) = 0.176 mW/g Fig.64 802.11b 1Mbps CH6 No.2011SAR00111 Page 102 of 148 Fig. 64-1 Z-Scan at power reference point (802.11b 1Mbps CH6) No.2011SAR00111 Page 103 of 148 WiFi 802.11b 1Mbps Left Side Channel 6 Date/Time: 2011-8-31 14:34:32 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.94 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Left Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.105 mW/g Left Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.27 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 0.188 W/kg SAR(1 g) = 0.098 mW/g; SAR(10 g) = 0.050 mW/g Maximum value of SAR (measured) = 0.109 mW/g Fig.65 802.11b 1Mbps CH6 No.2011SAR00111 Page 104 of 148 WiFi 802.11b 1Mbps Top Side Channel 6 Date/Time: 2011-8-31 14:50:12 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.94 mho/m; εr = 52.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.19, 7.19, 7.19) Top Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.036 mW/g Top Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.62 V/m; Power Drift = -0.110 dB Peak SAR (extrapolated) = 0.058 W/kg SAR(1 g) = 0.033 mW/g; SAR(10 g) = 0.019 mW/g Maximum value of SAR (measured) = 0.036 mW/g Fig.66 802.11b 1Mbps CH6 No.2011SAR00111 Page 105 of 148 ANNEX D SYSTEM VALIDATION RESULTS 835MHz Date/Time: 2011-8-25 7:08:22 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used: f = 835 MHz; σ = 0.88 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.50 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.5 V/m; Power Drift = 0.101 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 2.29 mW/g; SAR(10 g) = 1.45 mW/g Maximum value of SAR (measured) = 2.42 mW/g 0 dB = 2.42mW/g Fig.67 validation 835MHz 250mW No.2011SAR00111 Page 106 of 148 835MHz Date/Time: 2011-8-25 11:49:11 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used: f = 835 MHz; σ = 0.95 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.63 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.9 V/m; Power Drift = -0.046 dB Peak SAR (extrapolated) = 3.42 W/kg SAR(1 g) = 2.40 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.49 mW/g 0 dB = 2.49mW/g Fig.68 validation 835MHz 250mW No.2011SAR00111 Page 107 of 148 1900MHz Date/Time: 2011-8-26 7:19:43 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.39 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.5 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.6 V/m; Power Drift = 0.118 dB Peak SAR (extrapolated) = 14.6 W/kg SAR(1 g) = 9.74 mW/g; SAR(10 g) = 4.89 mW/g Maximum value of SAR (measured) = 10.5 mW/g 0 dB = 10.5mW/g Fig.69 validation 1900MHz 250mW No.2011SAR00111 Page 108 of 148 1900MHz Date/Time: 2011-8-26 12:04:25 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 54.0; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.7 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.9 V/m; Power Drift = -0.155 dB SAR(1 g) = 10.26 mW/g; SAR(10 g) = 5.18 mW/g Maximum value of SAR (measured) = 10.9 mW/g 0 dB = 10.9mW/g Fig.70 validation 1900MHz 250mW No.2011SAR00111 Page 109 of 148 2450MHz Date/Time: 2011-8-31 7:12:08 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.82 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temp…

Text truncated - open the document above for the full version.

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2011WLN0293 Page1 of 68 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No.2011WLN0293 for TCT Mobile Limited CDMA2000 dual band mobile phone Type: Venus Market Name: one touch 909B With FCC ID: RAD210 Hardware Version: PIO Software Version: vF23 Issued Date: 2011-09-16 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011WLN0293 Page2 of 68 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LABORATORY ........................................................................................................ 5 1.1. TESTING LOCATION .............................................................................................................. 5 1.2. TESTING ENVIRONMENT ....................................................................................................... 5 1.3. PROJECT DATA ..................................................................................................................... 5 1.4. SIGNATURE .......................................................................................................................... 5 2. CLIENT INFORMATION .................................................................................................... 6 2.1. APPLICANT INFORMATION ..................................................................................................... 6 2.2. MANUFACTURER INFORMATION ............................................................................................. 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) ...................... 7 3.1. ABOUT EUT ......................................................................................................................... 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................................... 7 3.4. GENERAL DESCRIPTION ....................................................................................................... 7 4. REFERENCE DOCUMENTS ............................................................................................ 8 4.1. DOCUMENTS SUPPLIED BY APPLICANT ................................................................................... 8 4.2. REFERENCE DOCUMENTS FOR TESTING ................................................................................ 8 5. LABORATORY ENVIRONMENT ...................................................................................... 9 6. SUMMARY OF TEST RESULTS ..................................................................................... 10 6.1. SUMMARY OF TEST RESULTS .............................................................................................. 10 6.2. STATEMENTS...................................................................................................................... 10 7. TEST EQUIPMENTS UTILIZED...................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 12 A.1. MEASUREMENT METHOD ....................................................................................................... 12 A.2. MAXIMUM PEAK OUTPUT POWER ........................................................................................... 13 A.2.1. MAXIMUM PEAK OUTPUT POWER ........................................................................................ 13 A.3. PEAK POWER SPECTRAL DENSITY ......................................................................................... 15 FIG. 1 POWER SPECTRAL DENSITY (802.11B, CH 1) ................................................................. 16 FIG. 2 POWER SPECTRAL DENSITY (802.11B, CH 6) ................................................................. 16 FIG. 3 POWER SPECTRAL DENSITY (802.11B, CH…

Text truncated - open the document above for the full version.
