RAD215HSDPA/UMTS dual band / GSM quad bands mobile phone

1 English - CJB31S3ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. 909A 909S 910A 23 1 Your cellphone ������������� 1�1 Keys and connectors Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your cellphone ����������������������������������������������������������������3 2 Text input ����������������������������������������������������������������������14 3 Phone call ����������������������������������������������������������������������17 4 Contacts ������������������������������������������������������������������������19 5 Messaging�����������������������������������������������������������������������20 6 Email ������������������������������������������������������������������������������21 7 Getting connected ��������������������������������������������������������22 8 Locate my location using GPS satellites �������������������24 9 Data backup ������������������������������������������������������������������25 10 Factory data reset ��������������������������������������������������������25 11 Applications �������������������������������������������������������������������26 12 Making the most of your cellphone ����������������������������26 Safety and use �������������������������������������������������������������������������28 General information ��������������������������������������������������������������34 Alcatel Mobile Phones Limited Warranty ���������������������������35 Troubleshooting����������������������������������������������������������������������37 Micro-USB connector Touchscreen Home key Menu key Call key Volume up Volume down Search key Back key End key Navigator keys Headset Connector Flash lightCamera * one touch 909A/one touch 909S are 2.0 megapixel color camera one touch 910A is 5.0 megapixel color camera 45 Call key • Go to Call log when in the Home screen; • Pick up an incoming call; • Send an outgoing call; • Swap two calls when one call hold and the other activated; • While in a call, press to put the call on hold, press again to resume the call. Menu key • Open a list of actions which the user can do on the current screen or options menu. Home key • While on any application or screen, press to return to the Home screen; • Press and hold to open the recently-used applications window. • When the screen is locked and the backlight is off, press Home or End key to light the screen. Search key • Search information on the current screen or application. Back key • Press to go back to the previous screen, or to close a dialog box, options menu, the notification panel, or Soft Keyboard. Power / End key • Short press: Ending a call While incoming call, refuse the call Lock the screen • Long press: Select a form Silent mode/Airplane mode/Power off Power on Volume Keys • Under call mode, adjust the headphone volume • In Music/Video/Streaming mode, adjust the media volume • In general mode, adjust the ring tone volume Navigation Key • Press the relevant direction (up, down, right, left) to navigate in various functions 1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. 67 Installing or removing the battery Please power off your phone before removing the battery. • Insert and click the battery into place, then close the cellphone cover. • Unclip the cover, then remove the battery. Installing and removing the MicroSD card Insert the MicroSD card with golden contact facing downwards into the slot until it is locked. Gently push the memory card until it is unlocked. To remove the microSD card while the phone is on, you must unmount the storage card from the phone first (refer to “Settings/SD card & phone storage/Unmount SD card”), to prevent corrupting or damaging the storage card. Charging the battery Standard charger UK charger Connect the battery charger to your cellphone and mains socket respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your cellphone Hold down the Power key until the cellphone powers on. It will take some seconds before the screen lights up. Set up your cellphone for the first time The first time you power on the phone, you should set the under options: Language, KeyBoard, Mobile Data connection, Application Sync, Setup your Google Account, Date & time etc. This initial set up can be enabled via touching the Menu key from the Home screen, then Settings� In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your cellphone Hold down the Power key from the Home screen until the cellphone options appear, select Power off. 89 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your home screen for quick access. Press Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and Drag down to open the notification panel. Application tab • Touch to open main menu. • Long press to display thumbnails. Touch to access Messaging • Touch to access the dial screen. • Touch to access Call log if you have missed call(s). Search bar • Tou…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 9/18/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD215 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

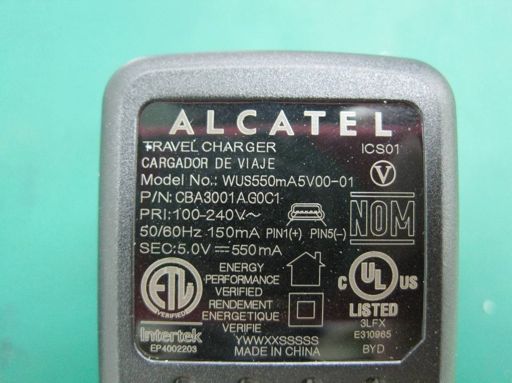

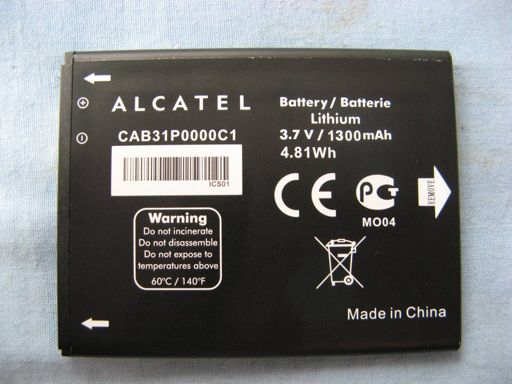

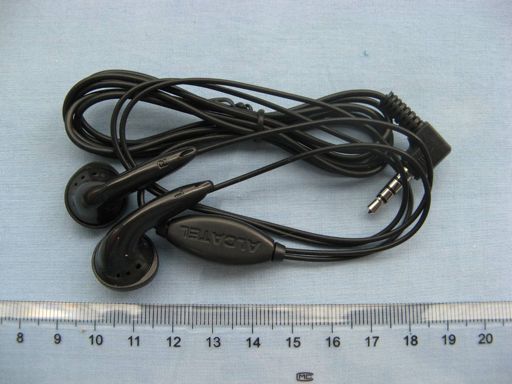

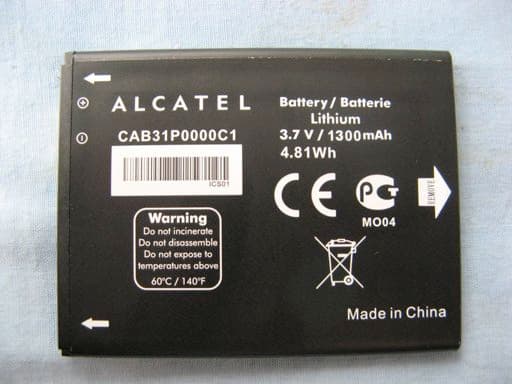

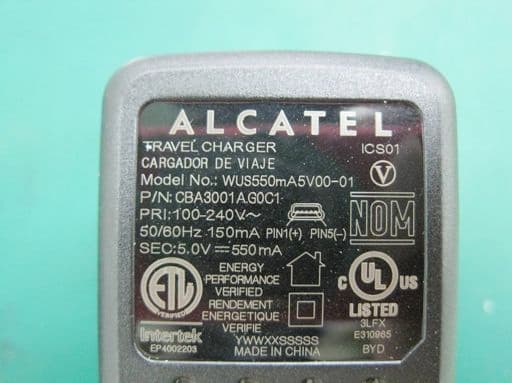

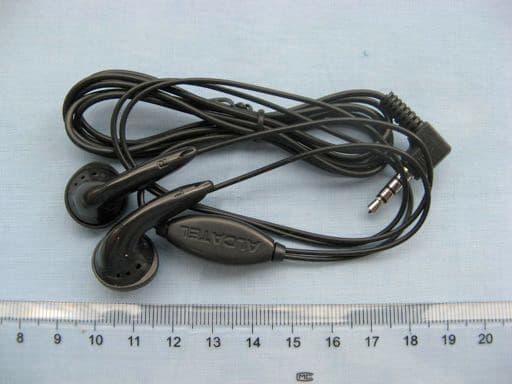

EUT photograph

Label location

EUT Interior photograph

No.2011SAR00107 Page 1 of 200 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00107 For TCT Mobile Limited HSDPA/UMTS dual band / GSM quad bands mobile phone Tequila US1 plus one touch 910A With Hardware Version: PIO Software Version: V944 FCCID: RAD215 Issued Date: 2011-09-06 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00107 Page 2 of 200 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................3 2.1 APPLICANT INFORMATION.............................................................................................................................. 3 2.2 MANUFACTURER INFORMATION..................................................................................................................... 3 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................3 3.1 ABOUT EUT ................................................................................................................................................... 3 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 3 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 3 4 CHARACTERISTICS OF THE TEST ..........................................................................................3 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 3 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 3 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................3 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 3 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 3 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 3 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 3 5.5 OTHER TEST EQUIPMENT...............................................................................................................................3 5.6 EQUIVALENT TISSUES..................................................................................................................................... 3 5.7 SYSTEM SPECIFICATIONS................................................................................................................................3 6 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................3 6.1 SUMMARY...................................................................................................................................................... 3 6.2 CONDUCTED POWER...................................................................................................................................... 3 7 TEST RESULTS ..........................................................................................................................3 7.1 DIELECTRIC PERFORMANCE........................................................................................................................... 3 7.2 SYSTEM VALIDATION...................................................................................................................................... 3 7.3 SUMMARY OF MEASUREMENT RESULTS......................................................................................................... 3 7.4 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH AND WIFI FUNCTION) ................................................. 3 7.5 CONCLUSION.................................................................................................................................................. 3 8 MEASUREMENT UNCERTAINTY ..............................................................................................3 9 MAIN TEST INSTRUMENTS ......................................................................................................3 ANNEX A MEASUREMENT PROCESS......................................................................................3 ANNEX B TEST LAYOUT ...........................................................................................................3 ANNEX C GRAPH RESULTS.................................................................…

Text truncated - open the document above for the full version.

No.2011SAR00107 Page 91 of 200 850 Body Towards Ground Low with GPRS Date/Time: 2011-8-1 17:24:45 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.20 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.2 V/m; Power Drift = -0.192 dB Peak SAR (extrapolated) = 1.50 W/kg SAR(1 g) = 1.15 mW/g; SAR(10 g) = 0.822 mW/g Maximum value of SAR (measured) = 1.19 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.2 V/m; Power Drift = -0.192 dB Peak SAR (extrapolated) = 1.30 W/kg SAR(1 g) = 0.932 mW/g; SAR(10 g) = 0.632 mW/g Maximum value of SAR (measured) = 1.05 mW/g Fig. 54 850 MHz CH128 No.2011SAR00107 Page 92 of 200 Fig. 54-1 Z-Scan at power reference point (850 MHz CH128) No.2011SAR00107 Page 93 of 200 850 Body Left Side Low with GPRS Date/Time: 2011-8-1 17:43:51 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Left Side Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.773 mW/g Left Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.7 V/m; Power Drift = -0.133 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.725 mW/g; SAR(10 g) = 0.501 mW/g Maximum value of SAR (measured) = 0.774 mW/g Fig. 55 850 MHz CH128 No.2011SAR00107 Page 94 of 200 850 Body Right Side High with GPRS Date/Time: 2011-8-1 17:59:45 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.94 mho/m; εr = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Right Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.941 mW/g Right Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.9 V/m; Power Drift = 0.111 dB Peak SAR (extrapolated) = 2.18 W/kg SAR(1 g) = 0.895 mW/g; SAR(10 g) = 0.613 mW/g Maximum value of SAR (measured) = 0.944 mW/g Fig. 56 850 MHz CH251 No.2011SAR00107 Page 95 of 200 850 Body Right Side Middle with GPRS Date/Time: 2011-8-1 18:16:41 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.95 mho/m; εr = 54.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Right Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.910 mW/g Right Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.9 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.833 mW/g; SAR(10 g) = 0.560 mW/g Maximum value of SAR (measured) = 0.907 mW/g Fig. 57 850 MHz CH190 No.2011SAR00107 Page 96 of 200 850 Body Right Side Low with GPRS Date/Time: 2011-8-1 18:37:11 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Right Side Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.929 mW/g Right Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.4 V/m; Power Drift = -0.122 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.839 mW/g; SAR(10 g) = 0.585 mW/g Maximum value of SAR (measured) = 0.900 mW/g Fig. 58 850 MHz CH128 No.2011SAR00107 Page 97 of 200 850 Body Bottom Side Low with GPRS Date/Time: 2011-8-1 18:55:43 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Bottom Side Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.114 mW/g Bottom Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.51 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 0.209 W/kg SAR(1 g) = 0.104 mW/g; SAR(10 g) = 0.064 mW/g Maximum value of SAR (measured) = 0.114 mW/g Fig. 59 850 MHz CH128 No.2011SAR00107 Page 98 of 200 850 Body Towards Ground Low with EGPRS Date/Time: 2011-8-1 19:17:48 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.93 mho/m; εr = 55.8; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.26 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.7 V/m; Power Drift = -0.156 dB Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.808 mW/g Maximum value of SAR (measured) = 1.21 mW/g Toward Gr…

Text truncated - open the document above for the full version.

No.2011SAR00107 Page 161 of 200 No.2011SAR00107 Page 162 of 200 No.2011SAR00107 Page 163 of 200 No.2011SAR00107 Page 164 of 200 No.2011SAR00107 Page 165 of 200 No.2011SAR00107 Page 166 of 200 No.2011SAR00107 Page 167 of 200 No.2011SAR00107 Page 168 of 200 No.2011SAR00107 Page 169 of 200 No.2011SAR00107 Page 170 of 200 No.2011SAR00107 Page 171 of 200 No.2011SAR00107 Page 172 of 200 No.2011SAR00107 Page 173 of 200 No.2011SAR00107 Page 174 of 200 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2011SAR00107 Page 175 of 200 No.2011SAR00107 Page 176 of 200 No.2011SAR00107 Page 177 of 200 No.2011SAR00107 Page 178 of 200 No.2011SAR00107 Page 179 of 200 No.2011SAR00107 Page 180 of 200 No.2011SAR00107 Page 181 of 200 No.2011SAR00107 Page 182 of 200 No.2011SAR00107 Page 183 of 200 1900 MHz Dipole Calibration Certificate No.2011SAR00107 Page 184 of 200 No.2011SAR00107 Page 185 of 200 No.2011SAR00107 Page 186 of 200 No.2011SAR00107 Page 187 of 200 No.2011SAR00107 Page 188 of 200 No.2011SAR00107 Page 189 of 200 No.2011SAR00107 Page 190 of 200 No.2011SAR00107 Page 191 of 200 No.2011SAR00107 Page 192 of 200 2450 MHz Dipole Calibration Certificate No.2011SAR00107 Page 193 of 200 No.2011SAR00107 Page 194 of 200 No.2011SAR00107 Page 195 of 200 No.2011SAR00107 Page 196 of 200 No.2011SAR00107 Page 197 of 200 No.2011SAR00107 Page 198 of 200 No.2011SAR00107 Page 199 of 200 No.2011SAR00107 Page 200 of 200

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2011WLN0307 Page1 of 68 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No.2011WLN0307 for TCT Mobile Limited HSDPA/UMTS dual band / GSM quad bands mobile phone Type: Tequila US1 plus Market Name: one touch 910A With FCC ID: RAD215 Hardware Version: PIO Software Version: V944 Issued Date: 2011-09-09 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011WLN0307 Page2 of 68 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LABORATORY ........................................................................................................ 5 1.1. TESTING LOCATION .............................................................................................................. 5 1.2. TESTING ENVIRONMENT ....................................................................................................... 5 1.3. PROJECT DATA ..................................................................................................................... 5 1.4. SIGNATURE .......................................................................................................................... 5 2. CLIENT INFORMATION .................................................................................................... 6 2.1. APPLICANT INFORMATION ..................................................................................................... 6 2.2. MANUFACTURER INFORMATION ............................................................................................. 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) ...................... 7 3.1. ABOUT EUT ......................................................................................................................... 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................................... 7 3.4. GENERAL DESCRIPTION ....................................................................................................... 7 4. REFERENCE DOCUMENTS ............................................................................................ 8 4.1. DOCUMENTS SUPPLIED BY APPLICANT ................................................................................... 8 4.2. REFERENCE DOCUMENTS FOR TESTING ................................................................................ 8 5. LABORATORY ENVIRONMENT ...................................................................................... 9 6. SUMMARY OF TEST RESULTS ..................................................................................... 10 6.1. SUMMARY OF TEST RESULTS .............................................................................................. 10 6.2. STATEMENTS...................................................................................................................... 10 7. TEST EQUIPMENTS UTILIZED...................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 12 A.1. MEASUREMENT METHOD ....................................................................................................... 12 A.2. MAXIMUM PEAK OUTPUT POWER ........................................................................................... 13 A.2.1. MAXIMUM PEAK OUTPUT POWER ........................................................................................ 13 A.3. PEAK POWER SPECTRAL DENSITY ......................................................................................... 15 FIG. 1 POWER SPECTRAL DENSITY (802.11B, CH 1) ................................................................. 16 FIG. 2 POWER SPECTRAL DENSITY (802.11B, CH 6) ................................................................. 16 FIG. 3 POWER SPECTRAL DENSITY (802.11B, CH 11) ............................................................... 17 FIG. 4 POWER SPECTRAL DENSITY (802.11G, CH 1) ................................................................. 17 FIG. 5 POWER SPECTRAL DENSITY (802.11G, CH 6) ................................................................. 18 FIG. 6 POWER SPECTRAL DENSITY (802.11G, CH 11) ............................................................... 18 FIG. 7 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 1) .................................................... 19 FIG. 8 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 6) .................................................... 19 No.2011WLN0307 Page3 of 68 ©Copyright. All rights reserved by TMC Beijing. FIG. 9 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 11) .................................................. 20 A.4. OCCUPIED 6DB BANDWIDTH .................................................................................................. 21 FIG. 10 OCCUPIED 6DB BANDWIDTH (802.11B, CH 1) ................................................................. 22 FIG. 11 OCCUPIED 6DB BANDWIDTH (802.11B, CH 6) ................................................................. 22 FIG. 12 OCCUPIED 6DB BANDWIDTH (802.11B, CH 11) ............................................................... 23 FIG. 13 OCCUPIED 6DB BANDWIDTH (802.11G,…

Text truncated - open the document above for the full version.

EUT Set-up photos CE: 15BCE RSE: Part 15C RE Part 15B RE
