RAD217GSM dual bands mobile phone

282A For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ,realize software upgrade via PC suite, etc. For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ list, manage software upgrades via PC suite, etc. English - CJB24A1ALAAA 1 282A Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual (English version only). From the website you can also consult the FAQ (English version only). Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. 23 Your cellphone1 ................... q Send key w End key e OK key r Up/Down t Voicemail (press and hold) q t e r w y u a i o y Volume key u FM Radio i To r c h Switch on/off o Lock key Switch locked/unlocked a SOS key Access SOS 45 keys1.1 Key: Navigation (up/down) Confirm an option (OK key) In idle screen: Enter main menu (OK key) Key:Send call Confirm a selection In idle screen: Access call log (press) Key:Switch on/Switch off the cellphone (press and hold) End call Return to idle screen In idle screen: Access contacts (press) In edit mode: Delete character Key: Dial a voicemail number (press and hold) Key: In idle screen: Input 0 (press) input '+'/'P'/'W' (press and hold) In edit mode: Input space (press) Key: In idle screen: Access pre-set number (Son's cellphone number) (press and hold) Input * (press) In edit mode: Change input mode Key: In idle screen: Access pre-set number (Daughter's cellphone number) (press and hold) Input # (press) In edit mode: Change symbol 67 Idle screen icons1.2 Battery charge level. Vibrate alert: your cellphone vibrates, but doesn't ring or beep. Headset connected. Call forwarding activated: your calls are forwarded. Alarm clock programmed. Voicemail message received. FM radio is on. Unanswered calls. Roaming. Level of network reception. Silence mode: your cellphone neither rings, beeps nor vibrates. Message unread. Keypad locked. Ringtone alert. 89 Getting started2 .................. Set up your cellphone2.1 q Remove the back cover w Insert the SIM Card e Install the battery r Attach the back cover 1011 Remove the battery Remove the SIM Card Charging the battery (1) Standard charger (EUP) Universal charger Connect the battery charger to your cellphone and outlet respectively. You can also put your cellphone in cradle for charging. Once the light is blue, the battery starts charging. The charging may take about 20 minutes to start if the • battery is flat. Be careful not to force the plug into the socket.• Make sure the battery is correctly inserted before • connecting the charger. (1) Depending on your country. 1213 The outlet must be near to the cellphone and easily • accessible (avoid electric extension cables). When using your cellphone for the first time, charge • the battery fully (approximately 3 hours). You are advised to fully charge the battery ( ). To reduce power consumption and energy waste, • when the battery is fully charged, disconnect your charger from the plug; reduce the backlight time, etc. The charge is complete when the animation stops. Power on your cellphone2.2 Hold down the key until the cellphone powers on. Power off your cellphone2.3 Hold down the key from the idle screen. Calls3 ..................................... Making a call3.1 Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the key. To hang up the call, press the key. Making an emergency call If your cellphone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 1415 Calling your voicemail 3.2 (1) To access your voicemail, hold down the key. Receiving a call3.3 When you receive an incoming call, press the key to talk and then hang up using the key. To use the hands-free option, please press during the call. (1) Contact your network operator to check service availability. Call log4 ........................... You can access your call memory by pressing from the idle screen, and you will see Outgoing call(s) , Missed call(s) and Answered call(s) . Contacts5 ....................... Consulting your contacts5.1 To access the Contacts from the main screen, press the key and select the icon from the menu. You can quickly find a contact by inputting their initial letter in the search bar. Adding a contact5.2 Select the directory in which you wish to add a contact, press the "Options" softkey, select "Add". 1617 Messaging6 ..................... Create message6.1 From the main menu select "Messaging" to create a text message. While writing a message, select "Options" to access all the messaging options. You can type a message, or you're also able to insert a pre-defined message from "Templates". You can save any messages that you send often to "Drafts". Specific letters (with accents) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. Settings7 .......................... From the main menu, select the menu icon and select the function of your choice in order to customize your cellphone: Sound, Phone settings, Call settings, Security, Restore default set., Network. Sound7.1 With this menu, you can personalize ringtones for different events and environments. Phone settings7.2 You can set Time and date, Display, Speed dial, Languages, Input mode according to your choice. Speed dial settings• Access "Speed dial" from "Settings\Phone settings", Select , or any number key from to to set the speed dial key, add the contact numb…

Text truncated - open the document above for the full version.

Antenna details For one touch 282A GSM antenna: PIFA GSM850 DCS1900 Gain -1.0dBi -1.25dBi The location of the antennas (US) inside mobile phone is shown below: FM Antenna 9.3mm HAC Antenna 58.7mm 40.8mm GSM Antenna

Declaration of USB Port One touch 282A, use a Micro-USB port in handset. This USB port support charging and headset, but don’t support data transmission function. Signature: Print name: 吴云林 Date: 2011-11-25 Company: TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2011-11-11 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 10/27/2011 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD217 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

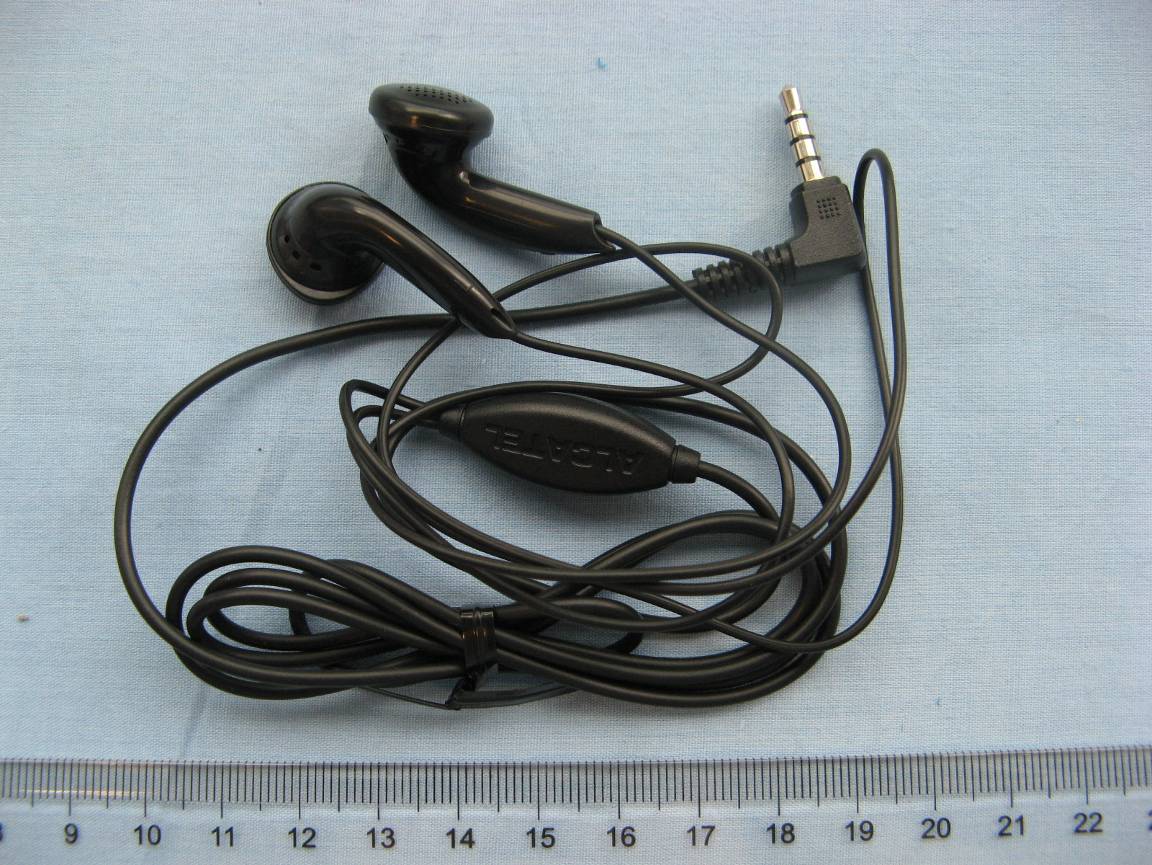

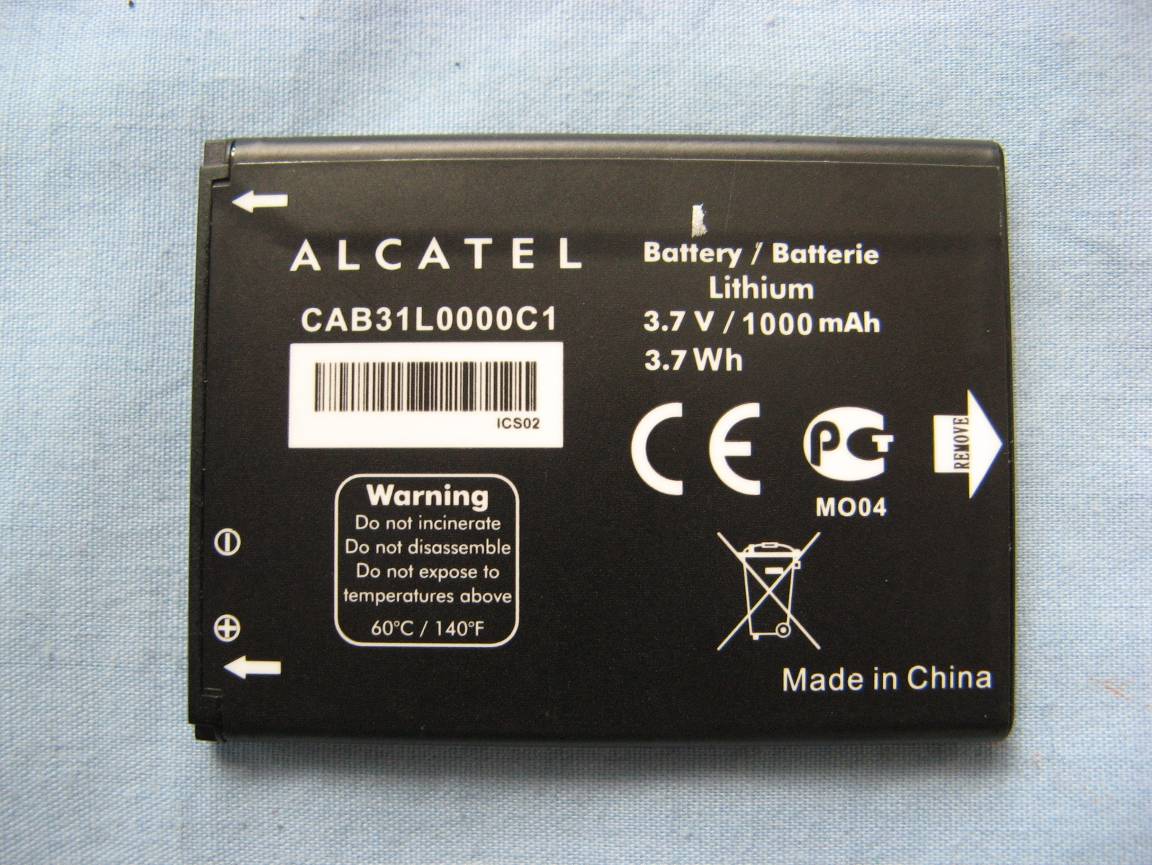

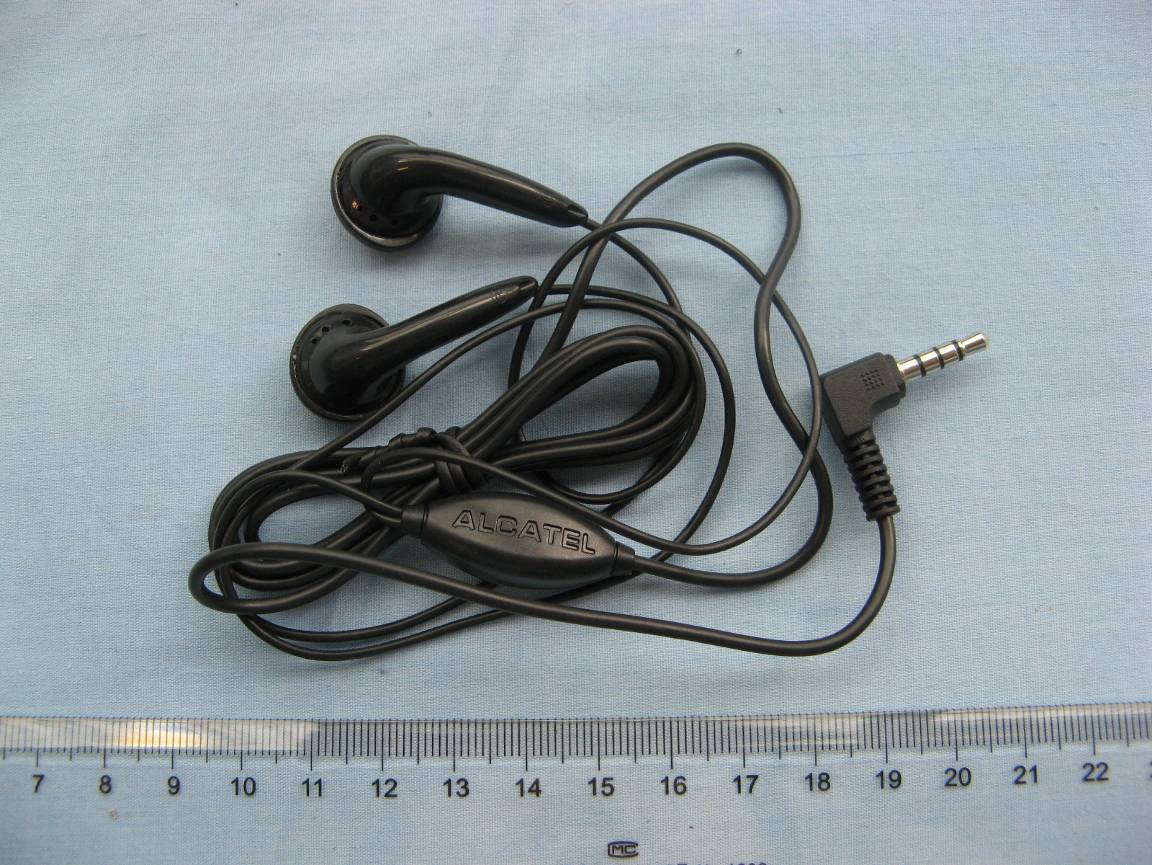

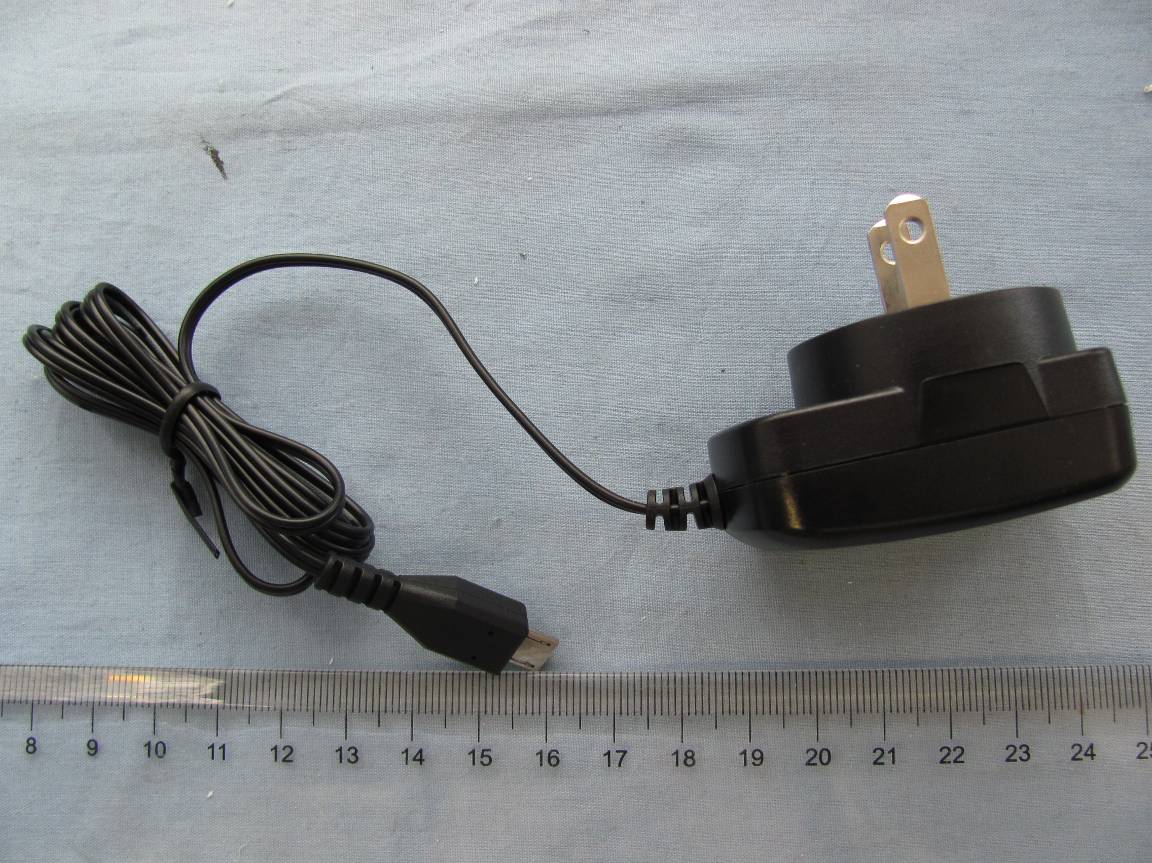

EUT photograph

EUT Label Location EUT Label Location EUT Label Location Label

EUT Interior photograph

No.2011SAR00129 Page 1 of 101 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2011SAR00129 For TCT Mobile Limited GSM dual bands mobile phone Cristalk US one touch 282A With Hardware Version: PIO Software Version: B17 FCCID: RAD217 Issued Date: 2011-11-11 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011SAR00129 Page 2 of 101 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................3 1.2 TESTING ENVIRONMENT.................................................................................................................................3 1.3 PROJECT DATA...............................................................................................................................................3 1.4 SIGNATURE.....................................................................................................................................................3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION..............................................................................................................................4 2.2 MANUFACTURER INFORMATION.....................................................................................................................4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT...................................................................................................................................................4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST..........................................................................4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST.............................................................................4 4 CHARACTERISTICS OF THE TEST..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS..................................................................................................................5 4.2 APPLICABLE MEASUREMENT STANDARDS......................................................................................................5 5 OPERATIONAL CONDITIONS DURING TEST..........................................................................5 5.1 SCHEMATIC TEST CONFIGURATION.................................................................................................................5 5.2 SAR MEASUREMENT SET-UP..........................................................................................................................6 5.3 DASY4 E-FIELD PROBE SYSTEM.....................................................................................................................7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................8 5.6 EQUIVALENT TISSUES.....................................................................................................................................9 5.7 SYSTEM SPECIFICATIONS..............................................................................................................................10 6 CONDUCTED OUTPUT POWER MEASUREMENT.................................................................10 6.1 SUMMARY....................................................................................................................................................10 6.2 CONDUCTED POWER....................................................................................................................................10 7 TEST RESULTS........................................................................................................................11 7.1 DIELECTRIC PERFORMANCE.........................................................................................................................11 7.2 SYSTEM VALIDATION....................................................................................................................................11 7.3 EVALUATION OF MULTI-BATTERIES..............................................................................................................12 7.4 SUMMARY OF MEASUREMENT RESULTS.......................................................................................................13 7.5 CONCLUSION................................................................................................................................................15 8 MEASUREMENT UNCERTAINTY............................................................................................15 9 MAIN TEST INSTRUMENTS ....................................................................................................16 ANNEX A MEASUREMENT PROCESS....................................................................................17 ANNEX B TEST LAYOUT .........................................................................................................18 ANNEX C GRAPH RESULTS....................................................................................................23 AN…

Text truncated - open the document above for the full version.

No.2011SAR00129 Page 82 of 101 No.2011SAR00129 Page 83 of 101 No.2011SAR00129 Page 84 of 101 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2011SAR00129 Page 85 of 101 No.2011SAR00129 Page 86 of 101 No.2011SAR00129 Page 87 of 101 No.2011SAR00129 Page 88 of 101 No.2011SAR00129 Page 89 of 101 No.2011SAR00129 Page 90 of 101 No.2011SAR00129 Page 91 of 101 No.2011SAR00129 Page 92 of 101 No.2011SAR00129 Page 93 of 101 1900 MHz Dipole Calibration Certificate No.2011SAR00129 Page 94 of 101 No.2011SAR00129 Page 95 of 101 No.2011SAR00129 Page 96 of 101 No.2011SAR00129 Page 97 of 101 No.2011SAR00129 Page 98 of 101 No.2011SAR00129 Page 99 of 101 No.2011SAR00129 Page 100 of 101 No.2011SAR00129 Page 101 of 101

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No. 2011HAC00035-1 Page 1 of 37 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2011HAC00035-1 For TCT Mobile Limited GSM dual bands mobile phone Cristalk US one touch 282A With Hardware Version: PIO Software Version: B17 FCCID: RAD217 Results Summary: M Category = M3 Issued Date: 2011-11-10 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011HAC00035-1 Page 2 of 37 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 4 4 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................5 4.1 SUMMARY...................................................................................................................................................... 5 4.2 CONDUCTED POWER...................................................................................................................................... 5 5. REFERENCE DOCUMENTS......................................................................................................5 5.1REFERENCE DOCUMENTS FOR TESTING........................................................................................................... 5 6 OPERATIONAL CONDITIONS DURING TEST ..........................................................................5 6.1 HAC MEASUREMENT SET-UP.................................................................................................................. 5 6.2 PROBE SPECIFICATION.................................................................................................................................... 6 6.3 TEST ARCH PHANTOM & PHONE POSITIONER................................................................................................. 7 6.4 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 8 7 EUT ARRANGEMENT ................................................................................................................8 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE........................................................................ 8 8 SYSTEM VALIDATION................................................................................................................9 8.1 VALIDATION PROCEDURE...............................................................................................................................9 8.2 VALIDATION RESULT.................................................................................................................................... 10 9 PROBE MODULATION FACTOR .............................................................................................10 9.1 MODULATION FACTOR TEST PROCEDURE..................................................................................................... 11 9.2 MODULATION FACTOR.................................................................................................................................. 11 10 RF TEST PROCEDUERES .....................................................................................................12 11 HAC RF TEST DATA SUMMARY............................................................................................13 11.1 MEASUREMENT RESULTS (E-FIELD)........................................................................................................... 13 11.2 MEASUREMENT RESULTS (H-FIELD) .......................................................................................................... 13 11.3 TOTAL M-RATING....................................................................................................................................... 13 12 ANSI C 63.19-2007 LIMITS.....................................................................................................14 13 MEASUREMENT UNCERTAINTY ....................................................................................…

Text truncated - open the document above for the full version.

No. 2011HAC00035-2 Page 1 of 31 ©Copyright. All rights reserved by TMC Beijing. HAC T-Coil TEST REPORT No. 2011HAC00035-2 For TCT Mobile Limited GSM dual bands mobile phone Cristalk US one touch 282A With Hardware Version: PIO Software Version: B17 FCCID: RAD217 Results Summary: T Category = T4 Issued Date: 2011-11-26 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2011HAC00035-2 Page 2 of 31 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 4 4 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................5 4.1 SUMMARY...................................................................................................................................................... 5 4.2 CONDUCTED POWER...................................................................................................................................... 5 5. REFERENCE DOCUMENTS......................................................................................................5 5.1REFERENCE DOCUMENTS FOR TESTING........................................................................................................... 5 6 OPERATIONAL CONDITIONS DURING TEST ..........................................................................5 6.1 HAC MEASUREMENT SET-UP.................................................................................................................. 5 6.2 AM1D PROBE................................................................................................................................................. 7 6.3 AMCC ........................................................................................................................................................... 7 6.4 AMMI............................................................................................................................................................ 8 6.5 TEST ARCH PHANTOM & PHONE POSITIONER................................................................................................. 8 6.6 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 9 6.7 T- COIL MEASUREMENT POINTS AND REFERENCE PLANE................................................................................. 9 7 T-COIL TEST PROCEDUERES ................................................................................................10 8 T-COIL PERFORMANCE REQUIREMENTS ............................................................................ 11 8.1 T- COIL COUPLING FIELD INTENSITY.............................................................................................................. 11 8.2 FREQUENCY RESPONSE................................................................................................................................. 11 9 HAC T-COIL TEST DATA SUMMARY ......................................................................................13 9.1 T- COIL COUPLING FIELD INTENSITY............................................................................................................ 13 9.1.1 AXIAL FIELD INTENSITY............................................................................................................................ 13 9.1.2 RADIAL FIELD INTENSITY.......................................................................................................................... 13 9.2 FREQUENCY RESPONSE AT AXIAL MEASUREMENT POINT............................................................................. 13 9.3 SIGNAL QUALITY......................................................................................................................................... 13 9.4 TOTAL MEASUREMENT CONCLUSION........................................................................................................... 14 10 MEASUREMENT UNCERTAINTY ..…

Text truncated - open the document above for the full version.

Note: The t repro d Test L DAR a FCC 2 IC O.A TMC 3/F S h Te l : +8 est results in duced except Laboratory: accreditation 2.948 Listed: A.T.S listed: N Beijing, Teleco hou Xiang Tec 86(0)10-62304 G Ma this test rep in full without n (DIN EN ISO No.733176 No.6629A-1 ommunication chnology Build 4633-2604, Fa TES No. TCT GSM dua Model arketing F C Hardw Softw Issued port relate onl the written a p O/IEC 17025): n Metrology Ce ding, No.51 Xu ax:+86(0)10-62 ST RE 2011T for T Mobile al bands Name: C Name：o CC ID: R with ware Ver ware Ver d Date: N y to the devi pproval of TMC No. DGA-PL- enter of Minist ueyuan Road, 2304793, Ema EPOR TAR57 Limited mobile p Cristalk U one touc RAD217 h rsion: PI rsion: B1 ov 04, 2 0 ces specified C Beijing. -114/01-02 try of Industry Hai Dian Dis t ail:welcome@ RT 75 phone US ch 282A O 7 011 in this repor and Informati trict, Beijing, P @emcite.com, w rt. This report on Technolog P. R. China,10 web: www.em t shall not be y 00191. cite.com e CO 1. T 1.1. 1.2. 1.3. 1.4. 2. C 2.1. 2.2. 3. E 3.1. 3.2. 3.3. 3.4. 4. R 4.1. 5. L 6. S 7. T ANN A.1 A.2 A.3 A.4 A.5 A.6 A.7 A.8 NTENTS TEST LABO TESTING TESTING PROJECT SIGNATU CLIENT INF APPLICA MANUFA EQUIPMEN ABOUT E INTERNA INTERNA GENERA REFERENC REFEREN LABORATO SUMMARY TEST EQUI NEX A: MEA 1 OUTPUT 2 EMISSIO 3 CONDUC 4 FREQUEN 5 OCCUPIED 6 EMISSION 7 BAND EDG 8 CONDUCT S ORATORY .. G LOCATION G ENVIRON T DATA ....... URE .............. FORMATIO ANT INFORM ACTURER IN NT UNDER T EUT .............. AL IDENTIF AL IDENTIF AL DESCRIP CE DOCUME NCE DOCU ORY ENVIR Y OF TEST R IPMENTS U ASUREMEN POWER ( N LIMT (§ CTED EMISS NCY STABILI D BANDWID N BANDWID GE COMPLIA TED SPURIO ..................... N ................. NMENT ........ ..................... ..................... ON ................ MATION .... NFORMATI TEST (EUT) ..................... FICATION O FICATION O PTION ......... ENTS .......... MENTS FO RONMENT .. RESULTS .... UTILIZED ... T RESULTS (§22.913(A)/§ §2.1051/§22. SION (§15.1 ITY (§2.1 DTH (§2.10 DTH (§22. ANCE (§ OUS EMISSIO ..................... ..................... ..................... ..................... ..................... ..................... ..................... ION ............. ) AND ANCI ..................... OF EUT USE OF AE USED ..................... ..................... OR TESTING ..................... ..................... ..................... S ................... §24.232(B)) .. 917§24.238) 107§15.207) 055/§24.235 049(H)(I)) .... 917( B)/§24.2 22.917(B)/§2 ON (§2.10 ..................... ..................... ..................... ..................... ..................... ..................... ..................... .......…

Text truncated - open the document above for the full version.
