RAD235GSM quad band mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile .............. 1.1 Keys Menu key - Options menu (Select/OK/Done/Save). Home key - Return to the Home screen Wi-Fi key - Quickly access Wi-Fi Back key - Return to previous menu Volume key (side key) - Adjust general volume Power key - Lock the screen (press) - Turn your screen on/off (press) - Power on/off (press and hold) - Mute an incoming call 1.2 Main screen icons (1) In one touch 720: Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep. Bluetooth status (Activated). Headset connected. Screen locked. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. Wap alerts (1) . Roaming. SIM card missing. GPRS connection status (Activated). GPRS connecting. Sending a MMS. MMS receiving. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. When using your telephone for the first time, charge the • battery fully (approximately 3 hours). You are advised to fully charge the battery ( ). To reduce power consumption and energy waste, when • battery is fully charged, disconnect your charger from the plug; switch off Bluetooth when not in use; reduce the backlight time, etc. The charge is complete when the animation stops. 2.2 Power on your phone Hold down the key until the phone powers on. 2.3 Power off your phone Hold down the key until the phone powers off. 2.4 Using the touchscreen Touch To access an application, touch it with your finger. Drag Place your finger on the screen to drag the object to the destination. Scroll Slide the screen to scroll up and down the applications, images, web pages... at your convenience. 720 720D 3 Making a call ............. Touch on the tool bar to place a call. For dual SIM model, you can select either SIM1 or SIM2 when you wish to place a call (1) . If you make a mistake, you can delete the incorrect digits by pressing . To hang up the call, press the key. 4 Contacts .............. 4.1 Consulting your Contacts To access the Contacts, touch from tool bar to enter the main menu, and select "Contacts". For dual SIM model, the complete contacts of both SIM1 and SIM2 are available in this menu (1) . 4.2 Adding a contact You can add a new contact by touching . (1) one touch 720D only. 10 mTweet ............. Twitter is a social networking and microblogging service that has gained notability and popularity worldwide. This feature enables phone users to exchange news updates and ideas with a community in the form of messages or posts. Posts are displayed on the author's profile page and delivered to the author's subscribers or followers. To open an account online, please go to: http://m.twitter.com 11 Camera .............. Your mobile phone is fitted with a camera for taking photos and shooting videos that you can use in different ways: store them in your “• File mgr.\My photos”. send them directly by MMS, Email or Bluetooth.• customize your main screen.• select them as incoming call image to a contact in your directory.• 12 Palringo (1) .......... Palringo Instant messaging (IM) allows you to chat with other people using Palringo account. You can also connect to other popular IM services through Palringo, like Yahoo, AIM, GG, ICQ, Google talk, iChat etc. Please note that the services may be upgraded depending on your client version. Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. (1) The icons and illustrations in this guide are provided for information purposes only. English - CJB24U0ALAAN 6 Apps (1) ................ Apps is an online software store, where you can download and install applications and games to your phone. All downloaded files can be found in "Apps mgr." that can be accessed from main menu. 7 Wi-Fi ................... To access this function, tap to enter the main menu, and select or press directly.. 8 Web .................... Not only does Web give you the full Web experience where you stay in touch with your friends, obtain information, do your online banking etc., but it is also designed to save time by using compressed web pages. 9 Facebook ............. Facebook is a social utility that connects people with friends and others who work, study and live around them. It provides a number of features with which users interact, such as Wall, etc. To open an account online, please go to: http://m.facebook.com 5 Messaging ........... 5.1 Create message From the main menu select "Messaging" to create text/ multimedia message. For dual SIM model, you can type a message and select to send it to a recipient in either the SIM1 or SIM2 directory (1) . You can type a message and you can also modify a predefined message in Templates or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). While writing a message, select to access all the messaging options. You can save your messages that you send often to Draft or Templates (MMS only). Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. Flight mode. microSD card inserted. In one touch 720D: Call forwarding activated: your calls are forwarded. Level of network reception. GPRS connection status (Activated). GPRS connecting. 2 Getting started ......... 2.1 Set-up Removing and installing the back cover Removing and installing the battery (1) Depending on your network operator. 13 Image ................. A library links to the images in “My photos” in phone to be …

Text truncated - open the document above for the full version.

Antenna details For one touch 720D GSM antenna: IFA GSM850 GSM900 DCS1800 PCS1900 -4.2dBi -4.5dBi -3.7dBi -4.2dBi BT/WIFI antenna: PIFA -2.44dBi The location of the antennas (EU/US) inside mobile phone is shown below:

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2/29/2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD235 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

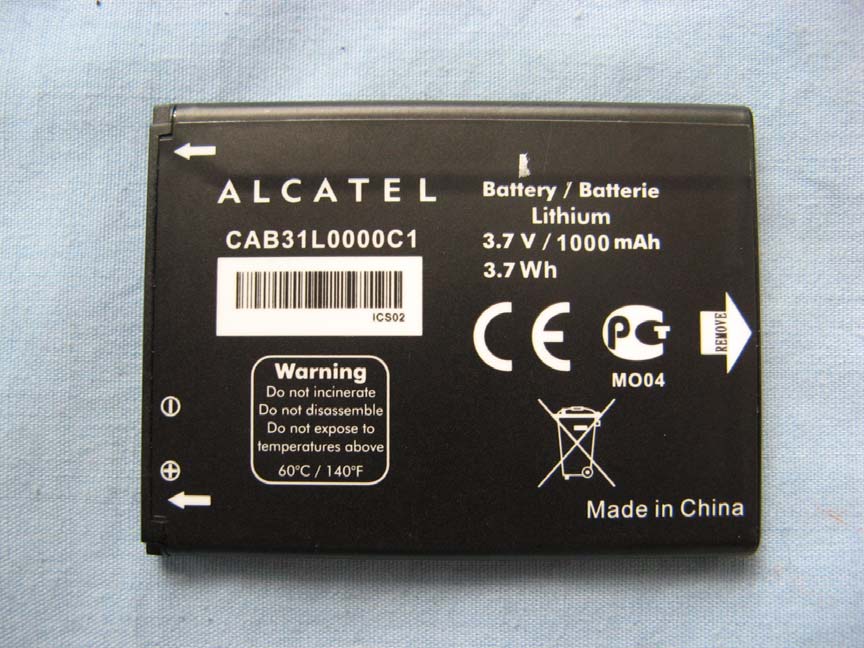

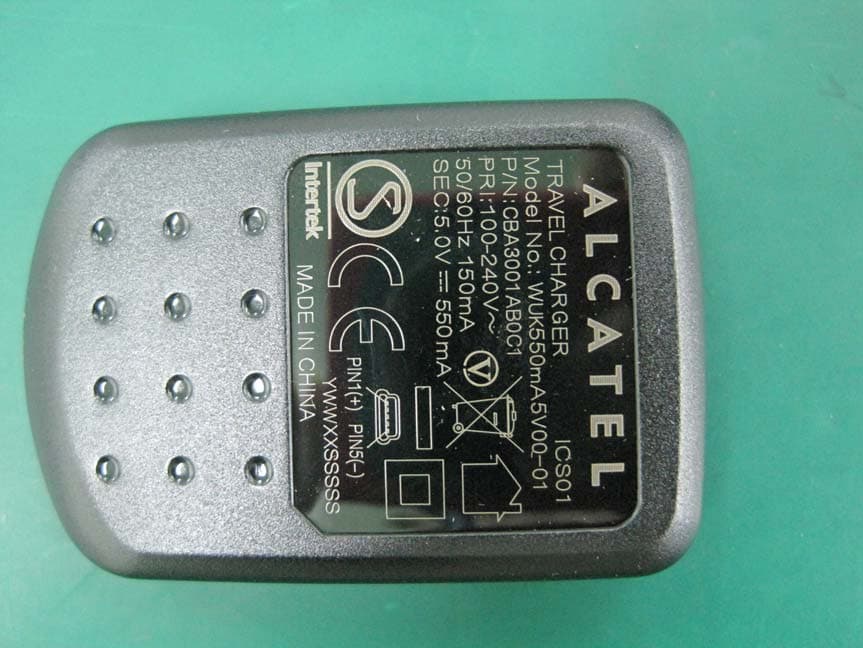

EUT External photograph

Label

EUT Internal photograph

No.2012TAR062 Page1 of 93 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012TAR062 for TCT Mobile Limited GSM quad band mobile phone Model Name: Pond 2SIM Marketing Name：one touch 720D FCC ID: RAD235 With Hardware Version: PIO Software Version: vP21 Issued Date: 2012-03-14 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012TAR062 Page2 of 93 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 7 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 6.1. S UMMARY OF TEST RESULTS ........................................................................................................... 9 6.2. S TATE MEN TS .................................................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1. MEASUREMENT METHOD ................................................................................................................... 11 A.2. PEAK OUTPUT POWER - CONDUCTED ................................................................................................ 13 A.3. FREQUENCY BAND EDGES - CONDUCTED .......................................................................................... 14 A.4. CONDUCTED EMISSION ...................................................................................................................... 21 A.5. RADIATED EMISSION .......................................................................................................................... 45 A.6. TIME OF OCCUPANCY (DWELL TIME) ................................................................................................ 67 A.7. 20DB BANDWIDTH ............................................................................................................................. 77 A.8. CARRIER FREQUENCY SEPARATION ................................................................................................... 83 A.9. NUMBER OF HOPPING CHANNELS ...................................................................................................... 85 A.10. AC POWERLINE CONDUCTED EMISSION ........................................................................................... 89 No.2012TAR062 Page3 of 93 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Extreme Temperature: -2…

Text truncated - open the document above for the full version.

EUT Set-up photos CE: RSE: Part 15B RE: Part 15B CE: Part 15C RE:
