RAD237HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone

1 English - CJB3272ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. 985S 985A IP4116_985A_985S_QG_Eng_USA_04_120427.indd 1IP4116_985A_985S_QG_Eng_USA_04_120427.indd 12012-4-27 Lynn 2:49:412012-4-27 Lynn 2:49:41 23 Your mobile 1 .................. Keys and connectors1.1 Side key micro-USB connector LED light Menu key Search key Back key Touchscreen Front camera Home key Volume up/ down key Power key Headset connector Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your mobile ...................................................................................... 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications .................................................................................... 25 12 Making the most of your phone ................................................ 26 IP4116_985A_985S_QG_Eng_USA_04_120427.indd 2-3IP4116_985A_985S_QG_Eng_USA_04_120427.indd 2-32012-4-27 Lynn 2:49:412012-4-27 Lynn 2:49:41 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to manage applications; to customize your Home screen by adding applications or changing wallpaper. On other screens, press to view options list.• Press: Light up the screen Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: Lock the screen. Light up the screen. Press to hang up a call. Press and hold: When phone is off, power on the phone. When phone is on, enter Phone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the phone or web. (1) Press: Take a picture in Camera mode. Press and hold: Access Camera. (1) (1) Depending on your network operator. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• IP4116_985A_985S_QG_Eng_USA_04_120427.indd 4-5IP4116_985A_985S_QG_Eng_USA_04_120427.indd 4-52012-4-27 Lynn 2:49:412012-4-27 Lynn 2:49:41 67 Installing and removing the microSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Standard charger UK charger Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you are prompted to set up your phone in multiple ways: language, input method, mobile data connection, account setup and synchronization, system update, etc. You are required to sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Mark/Unmark the check box to choose whether you want to back • up data with your Google account, then touch Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key until the phone options appear, select Power off. (1) Application availability depends on country and operator. IP4116_985A_985S_QG_Eng_USA_04_120427.indd 6-7IP4116_985A_985S_QG_Eng_USA_04_120427.indd 6-72012-4-27 Lynn 2:49:412012-4-27 Lynn 2:49:41 89 Home screen1.3 You can bring all the items (applications, shortcuts, folde…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-03-23 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-02-18 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD237 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

Label

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 1 of 222 TESTING No. L2264 OET 65 TEST REPORT Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Medoc_US Marketing Name one touch 985A FCC ID RAD237 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 2 of 222 GENERAL SUMMARY Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Medoc_US Report No. RXA1204-0073SAR01R1 FCC ID RAD237 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D06 Hot Spot SAR v01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 648474 D01 SAR Handsets Multi Xmiter and Ant, v01r05: SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 26 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 3 of 222 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date ............................................................................................................................ 10 2. SAR Measurements System Configuration ................................................................................ 11 2.1. SAR Measurement Set-up .................................................................................................. 11 2.2. DASY4 E-field Probe System ............................................................................................. 12 2.2.1. EX3DV4 Probe Specification ....................................................................................... 12 2.2.2. E-field Probe Calibration .............................................................................................. 13 2.3. Other Test Equipment .........................................................................................................13 2.3.1. Device Holder for Transmitters .................................................................................... 13 2.3.2. Phantom...................................................................................................................... 14 2.4. Scanning Procedure........................................................................................................... 14 2.5. Data Storage and Evaluation .............................................................................................. 16 2.5.1. Data Storage................................................................................................................ 16 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 16 3. Laboratory Environment............................................................................................................. 18 4. Tissue-equivalent Liquid ............................................................................................................ 19 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 19 4.2. Tissue-equivalent Liquid Properties .................................................................................... 21 5. System Check ............................................................................................................................ 22 5.1. Description of System Check .............................................................................................. 22 5.2. System Check Results ........................................................................................................ 23 6. Operational Conditions during Test ............................................................................................ 24 6.1. General Description of Test Procedu…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 141 of 222 WCDMA Band V Left Cheek Middle (Battery 1) Date/Time: 4/22/2012 6:07:19 AM Communication System: WCDMA Band V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.89 mho/m; ε r = 42.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.22, 9.22, 9.22); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.618 mW/g Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.53 V/m; Power Drift = 0.102 dB Peak SAR (extrapolated) = 0.766 W/kg SAR(1 g) = 0.596 mW/g; SAR(10 g) = 0.445 mW/g Maximum value of SAR (measured) = 0.631 mW/g Figure 88 Left Hand Touch Cheek WCDMA Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 142 of 222 WCDMA Band V Left Cheek Low (Battery 1) Date/Time: 4/22/2012 6:20:45 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.879 mho/m; ε r = 42.4; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.22, 9.22, 9.22); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.616 mW/g Cheek Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.64 V/m; Power Drift = 0.060 dB Peak SAR (extrapolated) = 0.760 W/kg SAR(1 g) = 0.590 mW/g; SAR(10 g) = 0.442 mW/g Maximum value of SAR (measured) = 0.624 mW/g Figure 89 Left Hand Touch Cheek WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 143 of 222 WCDMA Band V Left Tilt High (Battery 1) Date/Time: 4/22/2012 7:17:18 AM Communication System: WCDMA Band V; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 0.899 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.22, 9.22, 9.22); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.395 mW/g Tilt High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.4 V/m; Power Drift = -0.022 dB Peak SAR (extrapolated) = 0.468 W/kg SAR(1 g) = 0.380 mW/g; SAR(10 g) = 0.292 mW/g Maximum value of SAR (measured) = 0.397 mW/g Figure 90 Left Hand Tilt 15° WCDMA Band V Channel 4233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 144 of 222 WCDMA Band V Left Tilt Middle (Battery 1) Date/Time: 4/22/2012 7:04:21 AM Communication System: WCDMA Band V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.89 mho/m; ε r = 42.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.22, 9.22, 9.22); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.366 mW/g Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 0.430 W/kg SAR(1 g) = 0.351 mW/g; SAR(10 g) = 0.272 mW/g Maximum value of SAR (measured) = 0.366 mW/g Figure 91 Left Hand Tilt 15° WCDMA Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 145 of 222 WCDMA Band V Left Tilt Low (Battery 1) Date/Time: 4/22/2012 6:36:29 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.879 mho/m; ε r = 42.4; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.22, 9.22, 9.22); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.353 mW/g Tilt Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = 0.064 dB Peak SAR (extrapolated) = 0.416 W/kg SAR(1 g) = 0.340 mW/g; SAR(10 g) = 0.264 mW/g Maximum value of SAR (measured) = 0.355 mW/g Figure 92 Left Hand Tilt 15° WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 146 of 222 WCDMA Band V Right Cheek High (Battery 1) Date/Time: 4/22/2012 4:31:44 AM Communication System: WCDMA Band V; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 0.899 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY4 Configuration: Probe: …

Text truncated - open the document above for the full version.

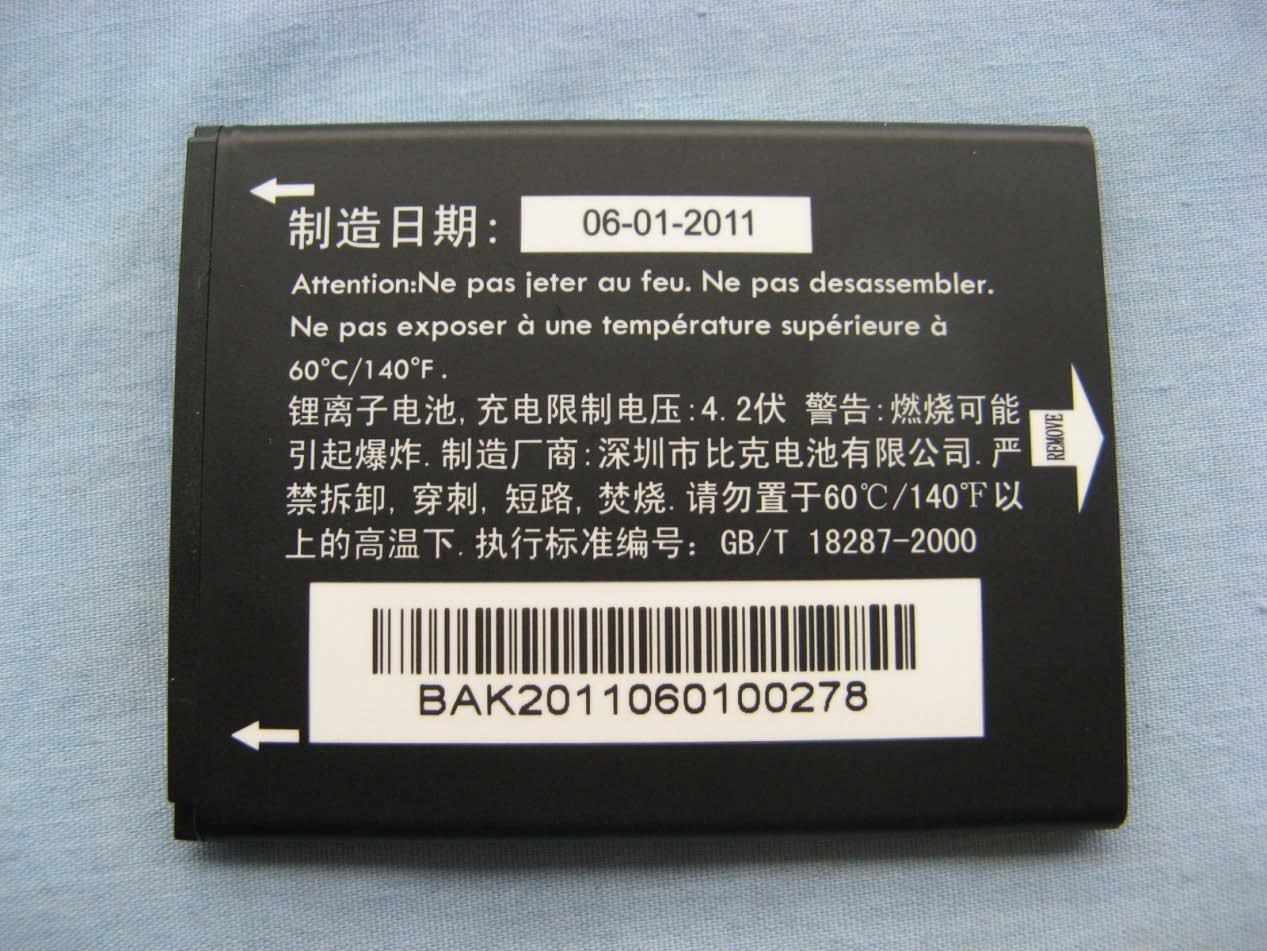

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 212 of 222 ANNEX I: The EUT Appearances and Test Configuration a: EUT b: Battery 1 116mm 62mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 213 of 222 c: Battery 2 d: Back View TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 214 of 222 e: Stereo Headset 1 f: Stereo Headset 2 Picture 8: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 215 of 222 Picture 9: Left Hand Touch Cheek Position (Battery 1) Picture 10: Left Hand Touch Cheek Position (Battery 2) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 216 of 222 Picture 11: Left Hand Tilt 15 Degree Position (Battery 1) Picture 12: Right Hand Touch Cheek Position (Battery 1) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 217 of 222 Picture 13: Right Hand Tilt 15 Degree Position (Battery 1) Picture 14: Back Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 218 of 222 Picture 15: Front Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 16: Left Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 219 of 222 Picture 17: Right Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 18: Top Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 220 of 222 Picture 19: Bottom Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 20: Bottom Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 2) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 221 of 222 Picture 21: Back Side with Stereo Headset 1, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 22: Bottom Edge with Stereo Headset 1, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0073SAR01R1 Page 222 of 222 Picture 23: Back Side with Stereo Headset 2, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 24: Bottom Edge with Stereo Headset 2, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm

No. 2012WLN0318 Page1 of 67 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012WLN0318 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Type: Medoc_US Market Name: one touch 985A With FCC ID: RAD237 Hardware Version: PIO01 Software Version: v517-1-band125 Issued Date: 2012-05-16 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2012WLN0318 Page2 of 67 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................... 2 1. TEST LABORATORY ...................................................................................................... 5 1.1. T ESTING LOCATION ............................................................................................................. 5 1.2. T ESTING ENVIRONMENT ...................................................................................................... 5 1.3. P ROJECT DATA ................................................................................................................... 5 1.4. S IGNATURE ........................................................................................................................ 5 2. CLIENT INFORMATION .................................................................................................. 6 2.1. A PPLICANT INFORMATION .................................................................................................... 6 2.2. M ANUFACTURER INFORMATION ............................................................................................ 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT(AE) ...................... 7 3.1. A BOUT EUT ....................................................................................................................... 7 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 7 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ..................................................... 7 3.4. G ENERAL DESCRIPTION ...................................................................................................... 7 4. REFERENCE DOCUMENTS ........................................................................................... 8 4.1. D OCUMENTS SUPPLIED BY APPLICANT .................................................................................. 8 4.2. R EFERENCE DOCUMENTS FOR TESTING ............................................................................... 8 5. LABORATORY ENVIRONMENT ..................................................................................... 9 6. SUMMARY OF TEST RESULTS .................................................................................... 10 6.1. S UMMARY OF TEST RESULTS ............................................................................................ 10 6.2. S TATEMENTS .................................................................................................................... 10 7. TEST EQUIPMENTS UTILIZED .................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 12 A.1. MEASUREMENT METHOD ...................................................................................................... 12 A.2. MAXIMUM PEAK OUTPUT POWER .......................................................................................... 13 A.2.1. MAXIMUM PEAK OUTPUT POWER ....................................................................................... 13 A.3. PEAK POWER SPECTRAL DENSITY ........................................................................................ 15 F IG. 1 POWER SPECTRAL DENSITY (802.11B, CH 1) .............................................................. 16 F IG. 2 POWER SPECTRAL DENSITY (802.11B, CH 6) .............................................................. 16 F IG. 3 POWER SPECTRAL DENSITY (802.11B, CH 11) ............................................................ 17 F IG. 4 POWER SPECTRAL DENSITY (802.11G, CH 1) .............................................................. 17 F IG. 5 POWER SPECTRAL DENSITY (802.11G, CH 6) .............................................................. 18 F IG. 6 POWER SPECTRAL DENSITY (802.11G, CH 11) ............................................................ 18 F IG. 7 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 1) ................................................. 19 F IG. 8 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 6) ................................................. 19 F IG. 9 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 11) ............................................... 20 A.4. OCCUPIED 6DB BANDWIDTH ................................................................................................. 21 No. 2012WLN0318 Page3 of 67 ©Copyright. All rights reserved by TMC Beijing. FIG. 10 OCCUPIED 6DB BANDWIDTH (802.11B, CH 1) ............................................................. 22 F IG. 11 OCCUPIED 6DB BANDWIDTH (802.11B, CH 6) ............................................................. 22 F IG. 12 OCCUPIED 6DB BANDWIDTH (802.11B, CH 11) ............................................................ 23 F IG. 13 OCCUPIED 6DB BANDWIDTH (802.11G, CH 1) ............................…

Text truncated - open the document above for the full version.
