RAD239HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone

1 English - CJB3272ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. 985S 985A IP4116_985A_985S_QG_Eng_USA_05_120507.indd 1IP4116_985A_985S_QG_Eng_USA_05_120507.indd 12012-5-7 Lynn 10:30:282012-5-7 Lynn 10:30:28 23 Your mobile 1 .................. Keys and connectors1.1 Side key micro-USB connector LED light Menu key Search key Back key Touchscreen Front camera Home key Volume up/ down key Power key Headset connector Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your mobile ...................................................................................... 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications .................................................................................... 25 12 Making the most of your phone ................................................ 26 IP4116_985A_985S_QG_Eng_USA_05_120507.indd 2-3IP4116_985A_985S_QG_Eng_USA_05_120507.indd 2-32012-5-7 Lynn 10:30:282012-5-7 Lynn 10:30:28 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to manage applications; to customize your Home screen by adding applications or changing wallpaper. On other screens, press to view options list.• Press: Light up the screen Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: Lock the screen. Light up the screen. Press to hang up a call. Press and hold: When phone is off, power on the phone. When phone is on, enter Phone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the phone or web. (1) Press: Take a picture in Camera mode. Press and hold: Access Camera. (1) (1) Depending on your network operator. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• IP4116_985A_985S_QG_Eng_USA_05_120507.indd 4-5IP4116_985A_985S_QG_Eng_USA_05_120507.indd 4-52012-5-7 Lynn 10:30:282012-5-7 Lynn 10:30:28 67 Installing and removing the microSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Standard charger UK charger Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you are prompted to set up your phone in multiple ways: language, input method, mobile data connection, account setup and synchronization, system update, etc. You are required to sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Mark/Unmark the check box to choose whether you want to back • up data with your Google account, then touch Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key until the phone options appear, select Power off. (1) Application availability depends on country and operator. IP4116_985A_985S_QG_Eng_USA_05_120507.indd 6-7IP4116_985A_985S_QG_Eng_USA_05_120507.indd 6-72012-5-7 Lynn 10:30:292012-5-7 Lynn 10:30:29 89 Home screen1.3 You can bring all the items (applications, shortcuts, folde…

Text truncated - open the document above for the full version.

Antenna gain 平均增益 最大增益 GSM850: -6.7dBi -3.9dBi GSM900: -3.7dBi -0.8dBi DCS: -5.1 dBi -1.0dBi PCS: -3.6 dBi -0.3dBi Wcdma B8 -3.7dBi -0.8dBi Wcdma B1 -3.6dBi 0.1 dBi GPS -4.8 dBi -0.3dBi Wlan -5.0dBi -0.3dBi BT -5.0dBi -0.3dBi

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-03-23 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2011-12-08 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD239 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

Label

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 1 of 245 TESTING No. L2264 OET 65 TEST REPORT Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Medoc_AWS Marketing Name one touch 985S FCC ID RAD239 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 2 of 245 GENERAL SUMMARY Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Medoc_AWS Report No. RXA1204-0074SAR01R2 FCC ID RAD239 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D06 Hot Spot SAR v01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 648474 D01 SAR Handsets Multi Xmiter and Ant, v01r05: SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 28 h , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 3 of 245 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date ............................................................................................................................ 10 2. SAR Measurements System Configuration ................................................................................ 11 2.1. SAR Measurement Set-up .................................................................................................. 11 2.2. DASY4/ DASY5 E-field Probe System................................................................................ 12 2.2.1. EX3DV4 Probe Specification ....................................................................................... 12 2.2.2. ES3DV3 Probe Specification ....................................................................................... 13 2.2.3. E-field Probe Calibration .............................................................................................. 14 2.3. Other Test Equipment .........................................................................................................14 2.3.1. Device Holder for Transmitters .................................................................................... 14 2.3.2. Phantom...................................................................................................................... 15 2.4. Scanning Procedure........................................................................................................... 15 2.5. Data Storage and Evaluation .............................................................................................. 17 2.5.1. Data Storage................................................................................................................ 17 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 17 3. Laboratory Environment............................................................................................................. 19 4. Tissue-equivalent Liquid ............................................................................................................ 20 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 20 4.2. Tissue-equivalent Liquid Properties .................................................................................... 22 5. System Check ............................................................................................................................ 23 5.1. Description of System Check .............................................................................................. 23 5.2. System Check Results ........................................................................................................ 25 6. Operational Conditions during Test .................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 191 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 192 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 193 of 245 ANNEX F: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 194 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 195 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 196 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 197 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 198 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 199 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 200 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 201 of 245 ANNEX G: D1750V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 202 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 203 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 204 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 205 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 206 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 207 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 208 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 209 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 210 of 245 ANNEX H: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 211 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 212 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 213 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 214 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 215 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 216 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 217 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 218 of 245 ANNEX I: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 219 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 220 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 221 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 222 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 223 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 224 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 225 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 226 of 245 ANNEX J: DAE4 Calibration Certificate (SN: 1291) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 227 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 228 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 229 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 230 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 231 of 245 ANNEX K: DAE4 Calibration Certificate(SN:1317) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 232 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 233 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 234 of 245 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 235 of 245

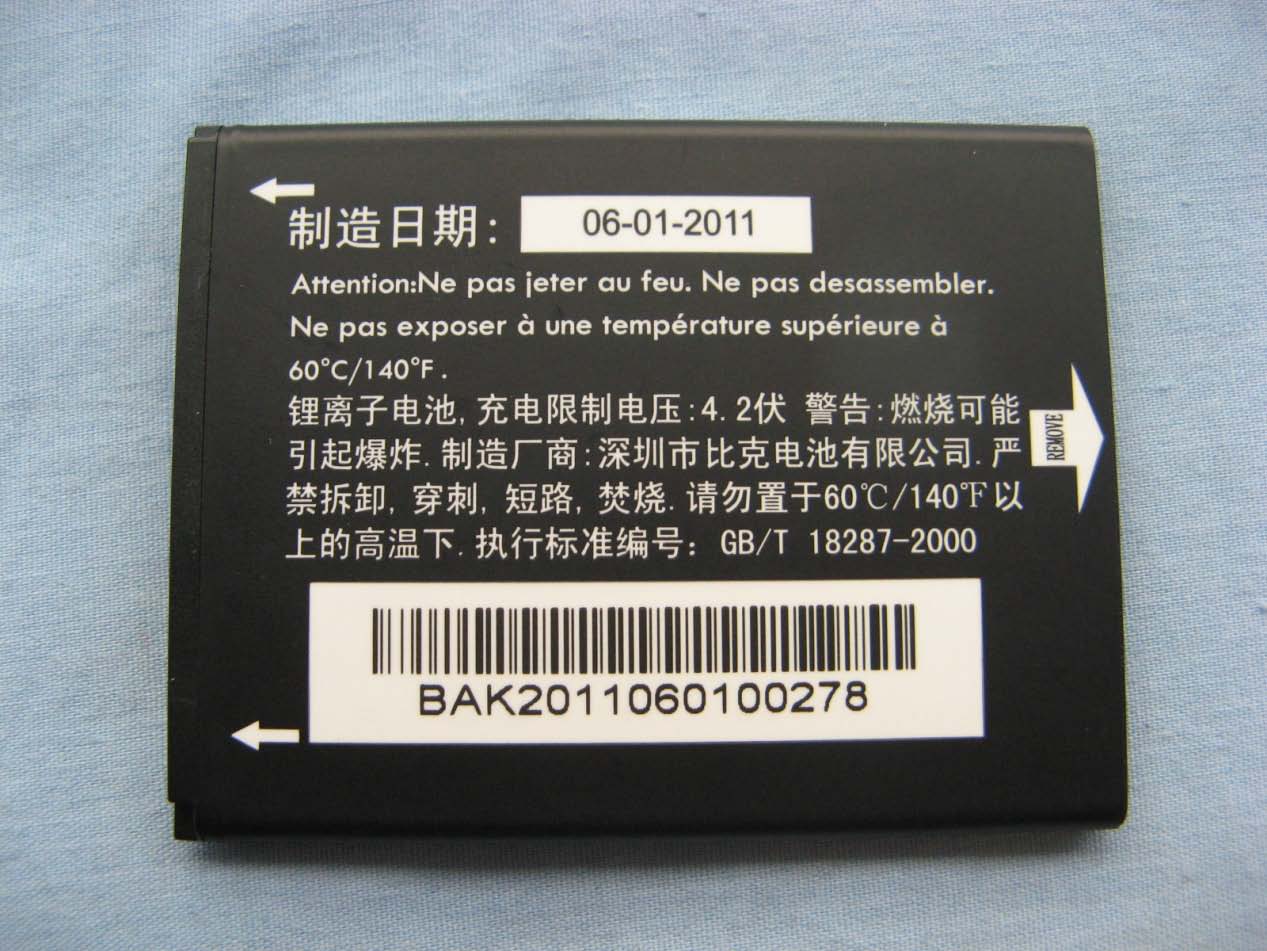

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 236 of 245 ANNEX L: The EUT Appearances and Test Configuration a: EUT b: Battery 1 116mm 62mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 237 of 245 c: Battery 2 d: Back View TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 238 of 245 e: Stereo Headset 1 f: Stereo Headset 2 Picture 10: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 239 of 245 Picture 11: Left Hand Touch Cheek Position (Battery 1) Picture 12: Left Hand Touch Cheek Position (Battery 2) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 240 of 245 Picture 13: Left Hand Tilt 15 Degree Position (Battery 1) Picture 14: Right Hand Touch Cheek Position (Battery 1) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 241 of 245 Picture 15: Right Hand Tilt 15 Degree Position (Battery 1) Picture 16: Back Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 242 of 245 Picture 17: Back Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 2) Picture 18: Front Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 243 of 245 Picture 19: Left Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 20: Right Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 244 of 245 Picture 21: Top Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 22: Bottom Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0074SAR01R2 Page 245 of 245 Picture 23: Back Side with Stereo Headset 1, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 24: Back Side with Stereo Headset 2, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm

No.2012TAR087 Page1 of 80 TEST REPORT No. 2012TAR087 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name: Medoc_AWS Marketing Name：one touch 985S FCC ID: RAD239 with Hardware Version: PIO01 Software Version: v517-1-band145 Issued Date: Mar 20, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR087 Page2 of 80 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(C)) ................................................................................11 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 17 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 23 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ......................................................................... 28 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................................................. 30 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................................................. 42 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ............................................................. 54 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ........................................... 60 No.2012TAR087 Page3 of 80 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Feb 02, 2012 Testing End Date: Mar 20, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR087 Page4 of 80 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR087 Page5 of 80 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name Medoc_AWS Marketing Name one touch 985S FCC ID RAD239 Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band IV; WCDMA Band V Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 30.34 dBm maximum ERP measured for GSM850 Extreme vo…

Text truncated - open the document above for the full version.

No.2012TAR088 Page1 of 61 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2012TAR088 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name: Medoc_AWS Marketing Name：one touch 985S FCC ID: RAD239 with Hardware Version: PIO01 Software Version: v517-1-band145 Issued Date: Mar 20, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012TAR088 Page2 of 61 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING …

Text truncated - open the document above for the full version.
