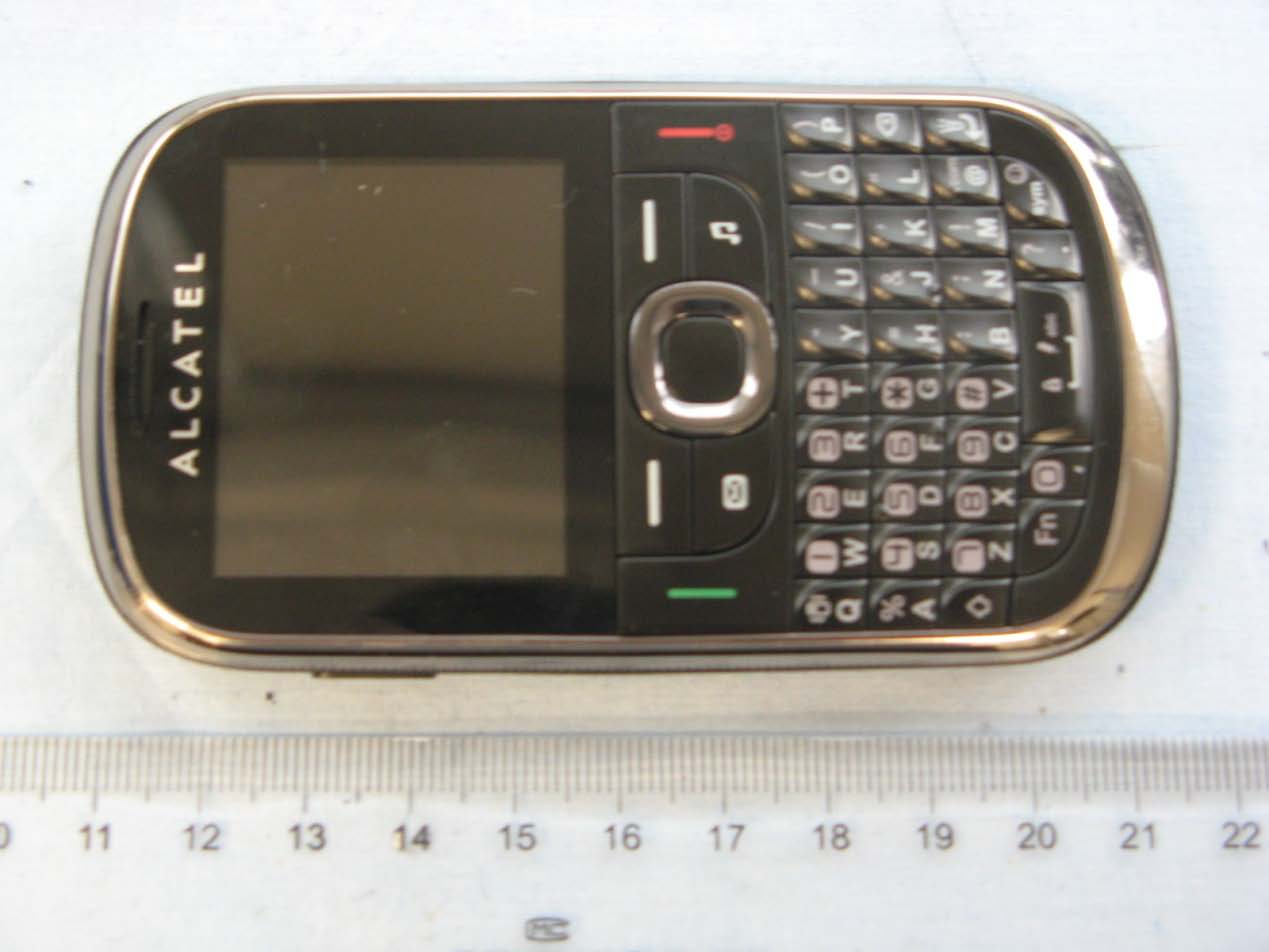

RAD245UMTS TriBand/GSM Quadband mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile ................... 1.1 Keys and connectors Press to go left/right/up/down or adjust the volume• Press to confirm an option • Answer/Send a call• Enter Call log• Press: End a call • Return to the Home screen Press and hold: Power on/off• Press to enter • Music Press to enter • Email Vibrate alert • Press and hold: Access your voicemail• Switch between ABC/abc/Abc• Press once: Input a top-half character• Press twice: Lock the keyboard in top-half key input • mode Press and hold: Input top-half characters only until key • is released Fn+ B: Access Bluetooth Fn+ M: Access Music Fn + P: Access Profiles Fn + J: Access Java applications Press: Enter a space (on edit mode)• Confirm an option (on edit mode) Unlock the keypad (on Home screen) Press and hold: Access language list (on edit mode)• Lock the keypad (on Home screen) Hold down Fn key, then press Space key to select input • method Enter symbol table• Hold down Fn key, then press SYM key to enter • emotion table Press: Confirm an option• Enter the next line (on edit mode) Press and hold: Turn on/off torch (on Home screen)• Press to enter • Camera (1) 1.2 Status bar icons (2) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Java status (Activated). Headset connected. Call forwarding activated: your calls are forwarded. Alarm or appointments programmed. Level of network reception. Missed calls. Call in progress. Stopwatch is active. Radio is on. Email unread. WAP messages (1) . Roaming. SD card scanning completed. SIM card unavailable. Line switching (1) : indicates the selected line. 2G/3G connected. GPRS connection status (Activated). GPRS connecting. EDGE connecting. EDGE attached. (1) Depending on your network operator. Music active. Sending an SMS. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. MMS busy. Flight mode. 1.3 Home screen You can customize your Home screen by selecting "Personalize" through Right softkey. 1.3.1 Widget bar Widgets are convenient shortcuts for quick access from the Home screen. 1.3.2 Change wallpaper You can select a folder to choose one image as favorite wallpaper by selecting "Change wallpaper". Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 2.2 Power on your phone Hold down the key until the telephone powers on. 2.3 Power off your phone Hold down the key from the Home screen. 3 Making a call ................ Dial the desired number then press the key to place the call. The number you entered can be saved to Contacts by selecting "Save". If you make a mistake, you may press Right softkey to delete the incorrect digits one by one, or you may press and hold Right softkey to delete all. To hang up the call, press the key. Muting the ringtone To mute ringtone of current incoming call, press Right softkey once. Rejecting a call Press the key once, or reject it by SMS (Options\Reject call with SMS). 4 Menu arrange .............. It is designed to vary according to your preference. Change the order Access the main menu, focus on the main menu item you want to move, select "Options\Move", and tick "√" will be shown on the item you selected, then release it to your favorite destination. Show/Hide Access the main menu, select "Options\Add and remove menu", and select the left check box of the selected menu once to show/ hide, and then select "Done" to save the operation. 5 Messaging ............. 5.1 Access You may access this menu using the following options: Access from the main menu by selecting "• Messaging". Select • from widget bar, and then enter the sub-menu you require. (1) Depending on your network operator. (2) The icons and illustrations in this guide are provided for informational purposes only. (1) Contact your network operator to check service availability. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (2) Depending on your network operator and market. (3) Depending on your network operator. May cause additional network charges for data flow to provide this service. Extra fees might also be charged in roaming states. (1) Depending on your country or your operator. 2 Getting started .............. 2.1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press the bottom and slide it out. Installing or removing the battery Insert and click the battery into place, then close the telephone cover. Unclip the cover, then remove the battery. 5.2 Conversational On (Off) mode In conversational on mode, you can view chat history in chronological order. In conversational off mode, you may have access to the following folders: Inbox, Outbox, Sent, Drafts, Voicemail, Broadcast SMS, Empty folder, Templates, Settings, etc. Conversational view mode is set as default. You may switch to conventional mode by selecting "Options\Switch view mode". 5.3 Write message You can select "Messaging\Write message" from the main menu or access from widget to write text/multimedia message. One or more recipients can be added from contact list and you can remove a recipient by pressing . Press "Contacts" through key to multi- select recipients from Contacts. An SMS will be converted to MMS automatically when images, videos, audio, slides or attachments are inserted, Subject, CC/BCC/email address is added; o…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-03-07 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD245 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

! ! Label

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 1 of 183 TESTING No. L2264 OET 65 TEST REPORT Product Name UMTS TriBand / GSM Quadband mobile phone Model Highway US Marketing Name one touch 870A FCC ID RAD245 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 2 of 183 GENERAL SUMMARY Product Name UMTS TriBand / GSM Quadband mobile phone Model Highway US Report No. RXA1204-0049SAR FCC ID RAD245 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 648474 D01 SAR Handsets Multi Xmiter and Ant, v01r05: SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 17 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 3 of 183 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY4 E-field Probe System ............................................................................................. 11 2.2.1. EX3DV4 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .........................................................................................................12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom...................................................................................................................... 13 2.4. Scanning Procedure........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 19 5. System Check ............................................................................................................................ 20 5.1. Description of System Check .............................................................................................. 20 5.2. System Check Results ........................................................................................................ 21 6. Operational Conditions during Test ............................................................................................ 22 6.1. General Description of Test Procedures............................................................................. 22 6.2. Test Positions.............................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 110 of 183 WCDMA Band II Right Tilt Middle (Battery 1) Date/Time: 4/16/2012 11:55:56 PM Communication System: WCDMA Band II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.9, 7.9, 7.9); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.484 mW/g Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.7 V/m; Power Drift = 0.031 dB Peak SAR (extrapolated) = 0.696 W/kg SAR(1 g) = 0.429 mW/g; SAR(10 g) = 0.249 mW/g Maximum value of SAR (measured) = 0.456 mW/g Figure 66 Right Hand Tilt 15° WCDMA Band II Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 111 of 183 WCDMA Band II Right Tilt Low (Battery 1) Date/Time: 4/17/2012 12:09:40 AM Communication System: WCDMA Band II; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.36 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.9, 7.9, 7.9); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt Low/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.515 mW/g Tilt Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.3 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 0.724 W/kg SAR(1 g) = 0.451 mW/g; SAR(10 g) = 0.265 mW/g Maximum value of SAR (measured) = 0.483 mW/g Figure 67 Right Hand Tilt 15° WCDMA Band II Channel 9262 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 112 of 183 WCDMA Band II Right Cheek High (Battery 2) Date/Time: 4/17/2012 10:56:05 AM Communication System: WCDMA Band II; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1908 MHz; σ = 1.4 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.9, 7.9, 7.9); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek High 2/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.18 mW/g Cheek High 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = 0.014 dB Peak SAR (extrapolated) = 1.71 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.664 mW/g Maximum value of SAR (measured) = 1.19 mW/g Figure 68 Right Hand Touch Cheek WCDMA Band II Channel 9538 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 113 of 183 WCDMA Band II Towards Ground High (Battery 1) Date/Time: 4/17/2012 8:45:38 AM Communication System: WCDMA Band II; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1908 MHz; σ = 1.56 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground High/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.640 mW/g Towards Ground High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.054 dB Peak SAR (extrapolated) = 0.939 W/kg SAR(1 g) = 0.579 mW/g; SAR(10 g) = 0.348 mW/g Maximum value of SAR (measured) = 0.629 mW/g TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 114 of 183 Figure 69 Body, Towards Ground, WCDMA Band II Channel 9538 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 115 of 183 WCDMA Band II Towards Ground Middle (Battery 1) Date/Time: 4/17/2012 8:05:50 AM Communication System: WCDMA Band II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 52.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(7.51, 7.51, 7.51); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM000 T01; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Towards Ground Middle/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.575 mW/g Towards Ground Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = 0.029 dB Peak SAR (extrapolated) = 0.845 W/kg SAR(1 g) = 0.523 mW/g; SAR(10 g) = 0.313 mW/g Maximum value of SAR (measured) = 0.567 mW/g Figure 70 Body, Towards Ground, WCDMA Band II Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 116 of 183 WCDMA Band II Towards Ground Low (Battery 1) Date/Time: 4/17/2012 8:18:33 AM Communication System: WCDMA Band II; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1852.4 …

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 151 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 152 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 153 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 154 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 155 of 183 ANNEX E: D835V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 156 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 157 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 158 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 159 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 160 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 161 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 162 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 163 of 183 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 164 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 165 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 166 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 167 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 168 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 169 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 170 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 171 of 183 ANNEX G: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 172 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 173 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 174 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 175 of 183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 176 of 183 ANNEX H: The EUT Appearances and Test Configuration a: EUT b: Battery 1 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 177 of 183 c: Battery 2 d: Back View TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 178 of 183 e: Stereo Headset 1 f: Stereo Headset 2 Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 179 of 183 Picture 7: Left Hand Touch Cheek Position (Battery 1) Picture 8: Left Hand Tilt 15 Degree Position (Battery 1) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 180 of 183 Picture 9: Right Hand Touch Cheek Position (Battery 1) Picture 10: Right Hand Touch Cheek Position (Battery 2) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 181 of 183 Picture 11: Right Hand Tilt 15 Degree Position (Battery 1) Picture 12: Body, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm (Battery 1) 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 182 of 183 Picture 13: Body, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm (Battery 2) Picture 14: Body, The EUT display towards phantom, the distance from EUT to the bottom of the Phantom is 15mm (Battery 1) 15mm 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0049SAR Page 183 of 183 Picture 15: Body with Stereo Headset 1, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm (Battery 1) Picture 16: Body with Stereo Headset 2, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm (Battery 1) 15mm 15mm

No.2012TAR034 Page1 of 80 TEST REPORT No. 2012TAR034 for TCT Mobile Limited UMTS TriBand/GSM Quadband mobile phone Model Name: Highway US Marketing Name：one touch 870A FCC ID: RAD245 with Hardware Version: PIO2 Software Version: SW61E Issued Date: Feb 17, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR034 Page2 of 80 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(C)) ................................................................................ 11 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 17 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 23 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ......................................................................... 28 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................. 错误！未定义书签。 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................. 错误！未定义书签。 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ............................. 错误！未定义书签。 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ........... 错误！未定义书签。 No.2012TAR034 Page3 of 80 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan 13, 2012 Testing End Date: Feb 17, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR034 Page4 of 80 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR034 Page5 of 80 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description UMTS TriBand/GSM Quadband mobile phone Model Name Highway US Marketing Name one touch 870A FCC ID RAD245 Frequency GSM 850MHz; PCS 1900MHz；WCDMA Band II; WCDMA Band V Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 31.90 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components list, please refer to documents of …

Text truncated - open the document above for the full version.

No.2012TAR035 Page1 of 58 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2012TAR035 for TCT Mobile Limited UMTS TriBand/GSM Quadband mobile phone Model Name: Highway US Marketing Name：one touch 870A FCC ID: RAD245 with Hardware Version: PIO2 Software Version: SW61E Issued Date: Feb 17, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, X…

Text truncated - open the document above for the full version.
