RAD247UMTS Dual band / GSM Quadbands mobile phone

http://www.tracfone.com/ English - CJB32C1ALAAA 12 Your mobile1 ................... Table of Contents 1 Your mobile .......................................................... 2 2 Getting started ..................................................... 8 3 Calls ..................................................................... 12 4 Recent calls ......................................................... 14 5 Contacts .............................................................. 14 6 Messages ............................................................. 15 7 Prepaid ................................................................ 17 8 Alarm .................................................................. 18 9 Settings ............................................................... 19 10 Tools .................................................................... 22 11 Latin input mode ............................................... 24 12 Safety and use .................................................... 25 13 General information .......................................... 33 14 Troubleshooting ................................................. 34 q Left softkey w Right softkey e Send key r End key t OK key y Up/Down u Voicemail (press and hold) u LED light q t y u e r w u 34 Keys1.1 Key:Left softkey Right softkey Key: Navigation (up/down) Confirm an option (OK key) In idle screen: Access Messages (Up key) Access Prepaid (OK key) Enter main menu (Down key) Key: Send call In idle screen: Access recent calls (press) Key: Switch on/Switch off the telephone (press and hold) End call Return to idle screen Key: Dial a voicemail number (press and hold) f a o s d o Volume key a Lock key Switch locked/unlocked (press and hold) s To r c h Switch on/off d FM Radio f Back key: Access your phone number 56 Idle screen icons1.2 Battery charge level. Vibrate alert: your phone vibrates, but doesn't ring or beep. Headset connected. Call forwarding activated: your calls are forwarded. Alarm clock programmed. New Voicemail. FM radio is on. Missed calls. Roaming. Signal strength indicator. Key: In idle screen: Input 0 (press) Input '+'/'P'/'W' (press and hold) In edit mode: Input space (press) Key: In idle screen: Access pre-set number (press and hold) Input * (press) In edit mode: Change input mode Key: In idle screen: Access pre-set number (press and hold) Input # (press) In edit mode: Change symbol 78 Getting started2 ............. Set-up2.1 Removing or installing the back cover Inserting or removing the SIM card Light only: your phone neither rings, beeps nor vibrates. Unread message. Keypad locked. Ringtone alert. 910 You can also put your phone in cradle (Optional part) for charging. When you see the white LED light turn on, on the top left corner of the phone, that is the indication the phone is charging. If your battery has no charge left, using an outlet • instead of the cradle to charge, will require 20 minutes before your phone will have enough charge to power on. Before using your phone for the first time, make • sure it is fully charged, this will take approximately 3 hours. Ensure your battery is inserted correctly before • connecting the phone to either charger or cradle. The outlet must be near to the phone and easily • accessible (avoid electric extension cables). Installing or removing the battery Charging the battery Connect the battery charger to your phone and outlet respectively. The LED light will be lit up during battery charging. 1112 Calls3 ................................ Making a call3.1 Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the Right softkey. To hang up the call, press the key. Making an emergency call Dial emergency and press the key to place your call. This works even without a SIM card and without typing the PIN code. If your phone is within network coverage when you place a call to 911 (example of emergency number), your phone will send your current location information to the 911 operator; which will assist those trying to help you, get to you faster. To reduce power consumption and energy waste, • always disconnect your phone from its charge. The charge is complete when the animation stops. Power on your phone2.2 Hold down the key until the phone powers on. Power off your phone2.3 Hold down the key from the idle screen. 1314 Recent calls4 .............. You can access your call memory by pressing from the idle screen, and you will see Outgoing call(s) , Missed call(s) and Answered call(s) . Contacts5 .................. Consulting your contacts5.1 To access your Contacts from the main menu, press the Menu softkey and select the icon from the menu. Trick: You can quickly find a contact by inputting their initial letter in the search bar. Calling your voicemail 3.2 (1) To access your voicemail, hold down the key. Receiving a call3.3 When you receive an incoming call, press the key to answer and to end the call press the key. (1) Contact your network operator to check service availability. 1516 Specific letters (with accents) will increase the size of the message, this may cause multiple messages to be sent to your recipient. Emergency alerts6.2 Commercial Mobile Alert System (CMAS) service allows you to receive automatic alerts in times of crisis. (e.g., earthquake, hurricanes, etc.) To adjust settings of CMAS alert messages, press Messages\Emergency alerts\Options\ Settings from the main menu. Adding a contact5.2 You can create a new contact by tapping Options\ Add. Messages6 .................. Create message6.1 From the main menu select Messages to create a text message. While writing a message, select Options to access all the message options. You can type a message, or you're also able to insert a pre-defined message from Templates. You can save any messages that you send often to Drafts. 1718 Alarm8 ..................... Your mobile phone has a built-in alarm clock with a snooze fea…

Text truncated - open the document above for the full version.

RF antenna: Monopole BAND GSM850 DCS1900 Gain -0.82dBi 0.97dBi BAND UMTS2 UMTS5 Gain 1.2 dBi -0.3 dBi 23.7 38.65 15.2 23.2 60.2 22.8 FM antenna GPS antenna Hac antenna main antenna

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Federal Communications Commission Authorization and Evaluation Division FCC ID: RAD247 We declare that This device does not support USB data transferring function, only USB charging by USB port. Sincerely, Gong Zhizhou TCT Mobile Limited Date: 2012-07-07

5F, E building, No. 232, Liang Jing Road Z hangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: + 86(0)21 61460602 Date 2012-4-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2011-12-08 Federal Communications Commission O ffice of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD247 To Whom It May Concern, P ursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

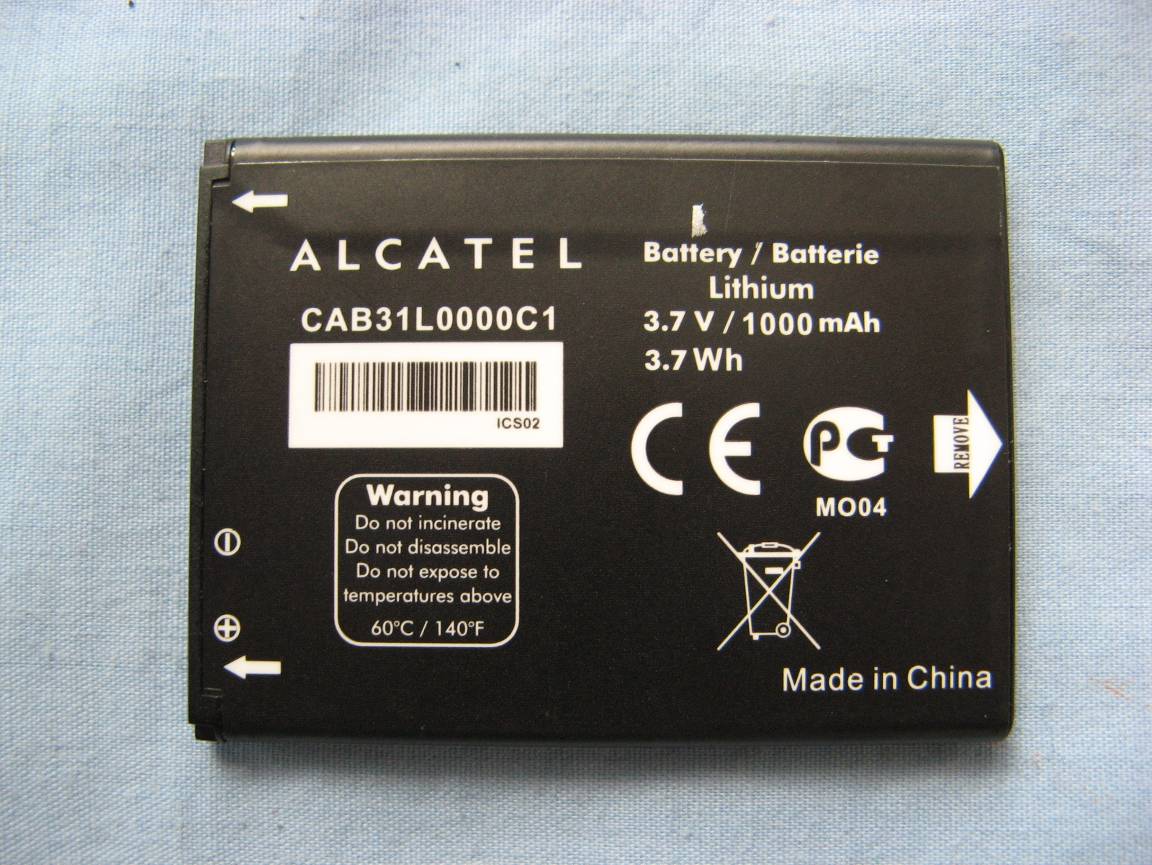

EUT photograph

EUT Label Location Label

EUT Interior photograph

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 1 of 184 TESTING No. L2264 OET 65 TEST REPORT Product Name UMTS Dualband / GSM Quadband mobile phone Model Crystalk 3G Marketing Name A382G FCC ID RAD247 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 2 of 184 GENERAL SUMMARY Product Name UMTS Dualband / GSM Quadband mobile phone Model Crystalk 3G Report No. RXA1206-0445SAR FCC ID RAD247 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: July 6 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 3 of 184 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY5 E-field Probe System ............................................................................................. 11 2.2.1. EX3DV4 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .........................................................................................................12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom...................................................................................................................... 13 2.4. Scanning Procedure........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 19 5. System Check ............................................................................................................................ 20 5.1. Description of System Check .............................................................................................. 20 5.2. System Check Results ........................................................................................................ 21 6. Operational Conditions during Test ............................................................................................ 22 6.1. General Description of Test Procedures............................................................................. 22 6.2. Test Positions...................................................................................................................... 22 6.2.1. Against Phantom Head ............................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 121 of 184 Figure 76 Left Hand Touch Cheek WCDMA Band V Channel 4233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 122 of 184 WCDMA Band V Left Cheek Middle Date/Time: 5/9/2012 11:59:51 AM Communication System: WCDMA ; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.9 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Probe: EX3DV4 - SN3753; ConvF(9.02, 9.02, 9.02); Calibrated: 1/4/2012 Electronics: DAE4 Sn871; Calibrated: 11/22/2011 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 59 Left/Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.855 mW/g Left/Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.808 mW/g; SAR(10 g) = 0.592 mW/g Maximum value of SAR (measured) = 0.855 mW/g Figure 77 Left Hand Touch Cheek WCDMA Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 123 of 184 WCDMA Band V Left Cheek Low Date/Time: 5/9/2012 12:37:50 PM Communication System: WCDMA ; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.888 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Probe: EX3DV4 - SN3753; ConvF(9.02, 9.02, 9.02); Calibrated: 1/4/2012 Electronics: DAE4 Sn871; Calibrated: 11/22/2011 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 59 Left/Cheek Low/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.751 mW/g Left/Cheek Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.2 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 0.903 W/kg SAR(1 g) = 0.718 mW/g; SAR(10 g) = 0.530 mW/g Maximum value of SAR (measured) = 0.761 mW/g Figure 78 Left Hand Touch Cheek WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 124 of 184 WCDMA Band V Left Tilt High Date/Time: 5/9/2012 1:13:18 PM Communication System: WCDMA ; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 0.911 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Probe: EX3DV4 - SN3753; ConvF(9.02, 9.02, 9.02); Calibrated: 1/4/2012 Electronics: DAE4 Sn871; Calibrated: 11/22/2011 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 59 Left/Tilt High/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.566 mW/g Left/Tilt High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = -0.012 dB Peak SAR (extrapolated) = 0.688 W/kg SAR(1 g) = 0.535 mW/g; SAR(10 g) = 0.396 mW/g Maximum value of SAR (measured) = 0.562 mW/g Figure 79 Left Hand Tilt 15° WCDMA Band V Channel 4233 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 125 of 184 WCDMA Band V Left Tilt Middle Date/Time: 5/9/2012 1:29:47 PM Communication System: WCDMA ; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 837 MHz; σ = 0.9 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Probe: EX3DV4 - SN3753; ConvF(9.02, 9.02, 9.02); Calibrated: 1/4/2012 Electronics: DAE4 Sn871; Calibrated: 11/22/2011 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 59 Left/Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.489 mW/g Left/Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.6 V/m; Power Drift = 0.015 dB Peak SAR (extrapolated) = 0.588 W/kg SAR(1 g) = 0.461 mW/g; SAR(10 g) = 0.343 mW/g Maximum value of SAR (measured) = 0.486 mW/g Figure 80 Left Hand Tilt 15° WCDMA Band V Channel 4183 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 126 of 184 WCDMA Band V Left Tilt Low Date/Time: 5/9/2012 12:54:44 PM Communication System: WCDMA ; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.888 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Probe: EX3DV4 - SN3753; ConvF(9.02, 9.02, 9.02); Calibrated: 1/4/2012 Electronics: DAE4 Sn871; Calibrated: 11/22/2011 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 59 Left/Tilt Low/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.433 mW/g Left/Tilt Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.9 V/m; Power Drift = 0.004 dB Peak SAR (extrapolated) = 0.521 W/kg SAR(1 g) = 0.411 mW/g; SAR(10 g) = 0.306 mW/g Maximum value of SAR (measured) = 0.434 mW/g Figure 81 Left Hand Tilt 15° WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1206-0445SAR Page 127 of 184 WCDMA Band V Right Cheek High Date/Time: 5/9/2012 2:06:57 PM Communication System: WCDMA ; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 847 MHz; σ = 0.911 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Probe: EX3DV4 - SN3753; ConvF(9…

Text truncated - open the document above for the full version.

No.2012TAR213 Page1 of 58 TEST REPORT No. 2012TAR213 for TCT Mobile Limited UMTS Dualband / GSM Quadband mobile phone Model Name: Crystalk 3G Marketing Name：A382G FCC ID: RAD247 with Hardware Version: PIO04 Software Version: SW71C Issued Date: Jun 28, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR213 Page2 of 58 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMT ............................................................................................................................ 17 A.3 CONDUCTED EMISSION ............................................................................................................. 23 A.4 FREQUENCY STABILITY ............................................................................................................ 26 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 28 A.6 EMISSION BANDWIDTH ................................................................................................................ 32 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 36 A.8 CONDUCTED SPURIOUS EMISSION ............................................................................................ 38 No.2012TAR213 Page3 of 58 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Apr 12, 2012 Testing End Date: May 04, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR213 Page4 of 58 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR213 Page5 of 58 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description UMTS Dualband / GSM Quadband mobile phone Model Name Crystalk 3G Marketing Name A382G FCC ID RAD247 Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band II; WCDMA Band V Antenna Internal P…

Text truncated - open the document above for the full version.

No.2012TAR214 Page1 of 56 TEST REPORT No. 2012TAR214 for TCT Mobile Limited UMTS Dualband / GSM Quadband mobile phone Model Name: Crystalk 3G Marketing Name：A382G FCC ID: RAD247 with Hardware Version: PIO04 Software Version: SW71C Issued Date: Jun 28, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR214 Page2 of 56 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT P…

Text truncated - open the document above for the full version.
