RAD254HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone

1 English - CJB32A1ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. 991A 991S IP4183_991A_991S_QG_Eng_USA_05_120509.indd 1IP4183_991A_991S_QG_Eng_USA_05_120509.indd 12012-5-9 16:59:542012-5-9 16:59:54 23 Your mobile 1 .................. Keys and connectors1.1 Volume up/down key micro-USB connector Power key Headset connector LED light Menu key Search key Back key Touchscreen Front camera Home key Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your mobile ...................................................................................... 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications .................................................................................... 25 12 Making the most of your phone ................................................ 26 IP4183_991A_991S_QG_Eng_USA_05_120509.indd 2-3IP4183_991A_991S_QG_Eng_USA_05_120509.indd 2-32012-5-9 16:59:542012-5-9 16:59:54 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to manage applications; to customize your Home screen by adding applications or changing wallpaper. On other screens, press to view options list.• Press: Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: Lock the screen. Light up the screen. Press to hang up a call. Press and hold: When phone is off, power on the phone. When phone is on, enter Phone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the phone or web. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• IP4183_991A_991S_QG_Eng_USA_05_120509.indd 4-5IP4183_991A_991S_QG_Eng_USA_05_120509.indd 4-52012-5-9 16:59:542012-5-9 16:59:54 67 Installing and removing the microSD card Place the microSD card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. To avoid data loss and microSD card damage, before removing the microSD card, please ensure that the microSD card is unmounted (Settings\SD card & Phone storage\ Unmount SD card). Charging the battery Standard charger UK charger Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you are prompted to set up your phone in multiple ways: language, input method, mobile data connection, account setup and synchronization, system update, etc. You are required to sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you would like to • take advantage of Goggle's location service, then touch Next. Mark/Unmark the check box to choose whether you want to back • up data with your Google account, then touch Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key until the phone options appear, select Power off. (1) Application availability depends on country and operator. IP4183_991A_991S_QG_Eng_USA_05_120509.indd 6-7IP4183_991A_991S_QG_Eng_USA_05_120509.indd 6-72012-5-9 16:59:552012-5-9 16:59:55 89 Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your home screen fo…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road Z hangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: + 86(0)21 61460602 Date 2012-4-27 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

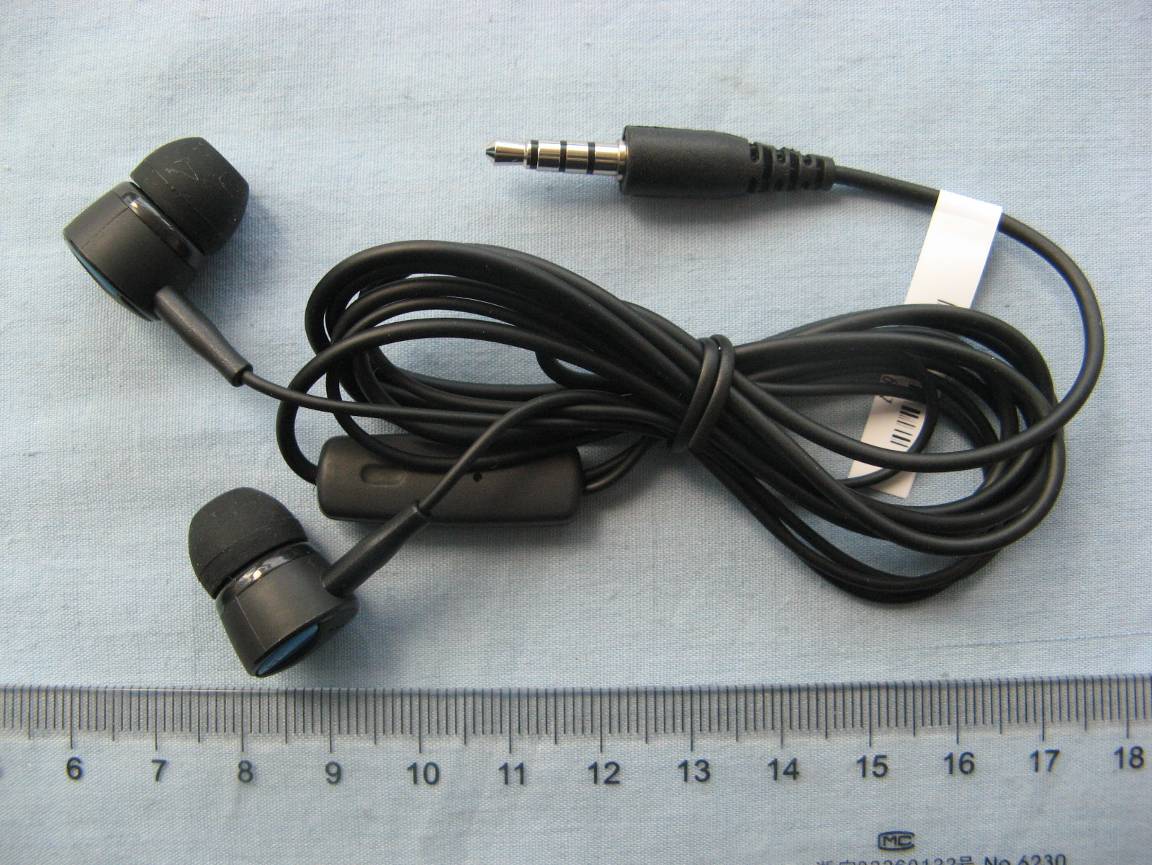

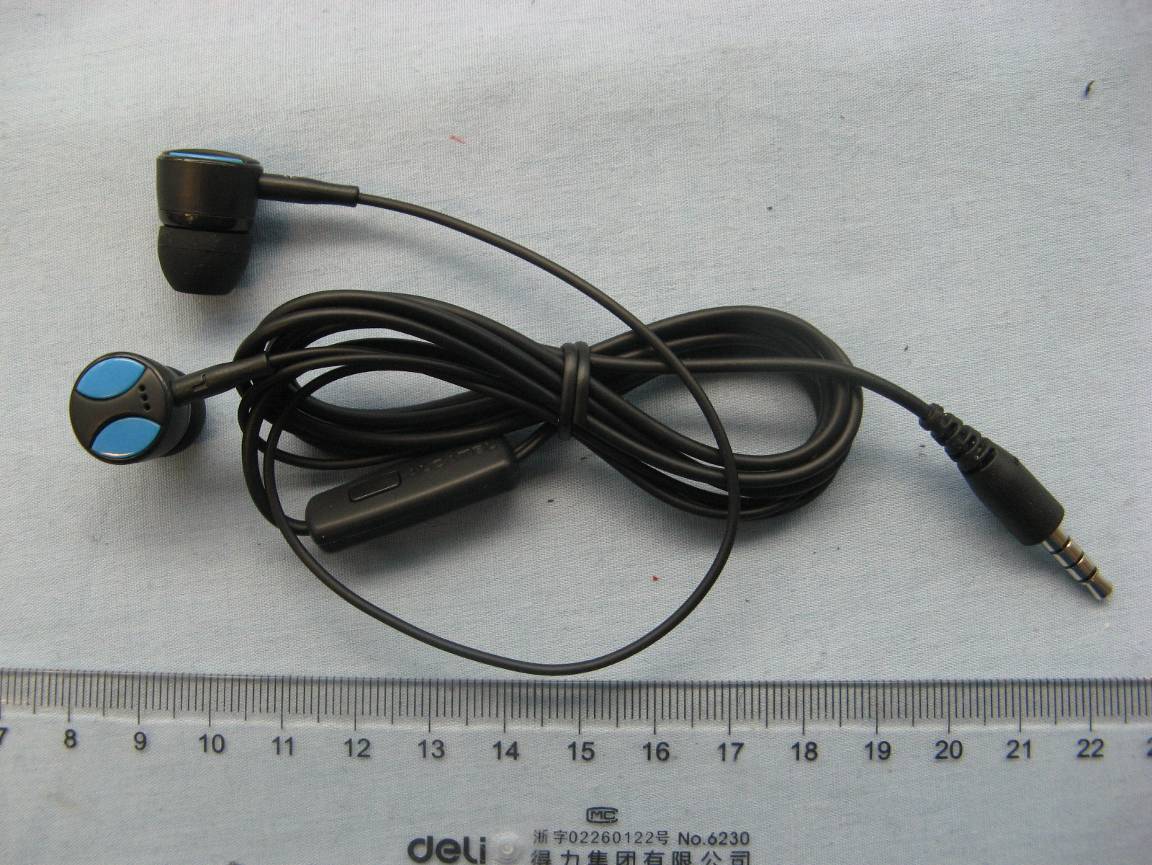

EUT photograph

EUT Label Location

EUT Interior photograph

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 1 of 220 TESTING No. L2264 OET 65 TEST REPORT Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Mojitolite A Marketing Name ONE TOUCH 991A FCC ID RAD254 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 2 of 220 GENERAL SUMMARY Product Name HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Mojitolite A Report No. RXA1204-0067SAR01R1 FCC ID RAD254 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D06 Hot Spot SAR v01 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities KDB 648474 D01 SAR Handsets Multi Xmiter and Ant, v01r05: SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 28 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 3 of 220 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY4 E-field Probe System ............................................................................................. 11 2.2.1. EX3DV4 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .........................................................................................................12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom...................................................................................................................... 13 2.4. Scanning Procedure........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 20 5. System Check ............................................................................................................................ 21 5.1. Description of System Check .............................................................................................. 21 5.2. System Check Results ........................................................................................................ 22 6. Operational Conditions during Test ............................................................................................ 23 6.1. General Description of Tes…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 151 of 220 Figure 97 Body, Back Side, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 152 of 220 WCDMA Band V Front Side Low (Battery 1) Date/Time: 4/25/2012 10:51:42 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.974 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.38, 9.38, 9.38); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Front Side Low/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.322 mW/g Front Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.8 V/m; Power Drift = 0.017 dB Peak SAR (extrapolated) = 0.387 W/kg SAR(1 g) = 0.309 mW/g; SAR(10 g) = 0.238 mW/g Maximum value of SAR (measured) = 0.323 mW/g Figure 98 Body, Front Side, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 153 of 220 WCDMA Band V Left Edge Low (Battery 1) Date/Time: 4/25/2012 11:07:38 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.974 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.38, 9.38, 9.38); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Left Edge Low/Area Scan (31x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.242 mW/g Left Edge Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.9 V/m; Power Drift = 0.014 dB Peak SAR (extrapolated) = 0.326 W/kg SAR(1 g) = 0.229 mW/g; SAR(10 g) = 0.158 mW/g Maximum value of SAR (measured) = 0.245 mW/g Figure 99 Body, Left Edge, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 154 of 220 WCDMA Band V Right Edge Low (Battery 1) Date/Time: 4/25/2012 11:23:26 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.974 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.38, 9.38, 9.38); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Right Edge Low/Area Scan (31x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.258 mW/g Right Edge Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.2 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 0.342 W/kg SAR(1 g) = 0.244 mW/g; SAR(10 g) = 0.170 mW/g Maximum value of SAR (measured) = 0.260 mW/g Figure 100 Body, Right Edge, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 155 of 220 WCDMA Band V Bottom Edge Low (Battery 1) Date/Time: 4/25/2012 11:39:33 AM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.974 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.38, 9.38, 9.38); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Bottom Edge Low/Area Scan (31x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.043 mW/g Bottom Edge Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.16 V/m; Power Drift = 0.062 dB Peak SAR (extrapolated) = 0.057 W/kg SAR(1 g) = 0.036 mW/g; SAR(10 g) = 0.022 mW/g Maximum value of SAR (measured) = 0.039 mW/g Figure 101 Body, Bottom Edge, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 156 of 220 WCDMA Band V with Stereo Headset 1 Back Side Low (Battery 1) Date/Time: 4/25/2012 12:52:25 PM Communication System: WCDMA Band V; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.974 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY4 Configuration: Probe: EX3DV4 - SN3816; ConvF(9.38, 9.38, 9.38); Calibrated: 10/3/2011 Electronics: DAE4 Sn1317; Calibrated: 1/23/2012 Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1246 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Back Side Low/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.531 mW/g Back Side Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.1 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.644 W/kg SAR(1 g) = 0.509 mW/g; SAR(10 g) = 0.388 mW/g Maximum value of SAR (measured) = 0.532 mW/g Figure 102 Body with Stereo Headset 1, Back Side, WCDMA Band V Channel 4132 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 157 of 220 WCDMA Band V with Stereo Headset 2 Back Side Low (Battery 1) Date/Tim…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 186 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 187 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 188 of 220 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 189 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 190 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 191 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 192 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 193 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 194 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 195 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 196 of 220 ANNEX G: D2450V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 197 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 198 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 199 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 200 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 201 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 202 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 203 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 204 of 220 ANNEX H: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 205 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 206 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 207 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 208 of 220 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 209 of 220 ANNEX I: The EUT Appearances and Test Configuration a: EUT b: Battery 1 122mm 68mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 210 of 220 c: Battery 2 d: Back View TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 211 of 220 e: Stereo Headset 1 f: Stereo Headset 2 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 212 of 220 g: Stereo Headset 3 Picture 8: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 213 of 220 Picture 9: Left Hand Touch Cheek Position (Battery 1) Picture 10: Left Hand Touch Cheek Position (Battery 2) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 214 of 220 Picture 11: Left Hand Tilt 15 Degree Position (Battery 1) Picture 12: Right Hand Touch Cheek Position (Battery 1) TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 215 of 220 Picture 13: Right Hand Tilt 15 Degree Position (Battery 1) Picture 14: Back Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 216 of 220 Picture 15: Front Side, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 16: Left Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 217 of 220 Picture 17: Right Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 18: Top Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 218 of 220 Picture 19: Bottom Edge, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) Picture 20: Back Side with Stereo Headset 1, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 219 of 220 Picture 21: Back Side with Stereo Headset 1, the distance from handset to the bottom of the Phantom is 10mm (Battery 2) Picture 22: Back Side with Stereo Headset 2, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0067SAR01R1 Page 220 of 220 Picture 23: Back Side with Stereo Headset 3, the distance from handset to the bottom of the Phantom is 10mm (Battery 1) 10mm

No. 2012TAR129 Page1 of 86 TEST REPORT No. 2012TAR129 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name: Mojitolite A Marketing Name：ONE TOUCH 991A FCC ID: RAD254 with Hardware Version: PIO02 Software Version: vF1I_US Issued Date: May 28, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2012TAR129 Page2 of 86 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(C)) ................................................................................ 11 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 17 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 23 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ......................................................................... 34 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................................................. 36 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................................................. 48 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ............................................................. 60 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ........................................... 66 No. 2012TAR129 Page3 of 86 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Feb 27, 2012 Testing End Date: May 28, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2012TAR129 Page4 of 86 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. 2012TAR129 Page5 of 86 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name Mojitolite A Marketing Name ONE TOUCH 991A FCC ID RAD254 Frequency GSM 850MHz; PCS 1900MHz; WCDMA Band II; WCDMA Band V Antenna Intern…

Text truncated - open the document above for the full version.
