RAD262GSM dual band mobile phone

1234567 131489101112 1 Your mobile .............. 1.1 Keys Navigation key Confirm an option (press the middle of the key) Send call Access call log (idle screen) Power on/off the handset (press and hold) End call Return to idle screen Left softkey Right softkey Dial the voicemail number (press and hold) From Idle screen - Press: input "0" - Press and hold: input the symbol “+/P/W” In Edit mode: - Press: input a space (words mode) input "0" (number mode) From Idle screen - Press: input "*" - Press and hold: Lock keypad In Edit mode: - Press: change input methods From Idle screen - Press: input "#" - Press and hold: activate/deactivate the vibrator In Edit mode: - Press: access the Symbols table From Idle screen - Press: dial ‘5’ - Press and hold: switch on/off the torch 1.2 Idle screen icons Battery charge level. Vibrate alert: your phone vibrates, but neither rings nor beeps. Headset connected. Call forwarding activated: your calls are forwarded. Alarm clock programmed. Voicemail message arrived. Unanswered calls. Roaming. Level of network reception. Silence mode: your phone neither rings, beeps nor vibrates. Message unread. Keypad locked. Ringtone alert. Vibrate and ringtone alert. microSD card available. Music playing in background. 3 Calls .......................... 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right softkey. To hang up the call, press the key. Making an emergency call If your phone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Calling your voicemail (1) To access your voicemail, hold down the key. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 3.4 Available functions during the call During a call, you can use your contacts, text messages, etc. without hanging up or dropping the call. (1) Contact your network operator to check service availability. 296A Inserting the memory card: To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. 9 Settings ............... From the main menu, select the menu icon and select the function of your choice in order to customize your telephone: Profiles, Phone settings, Call settings, Call control, Network, Security, Restore default set. Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. English - CJB24VBALAAA 6 Call log ................ You can access your call memory by pressing from the idle screen, or press the key and select the icon from the menu. 7 FM Radio .............. Your phone is equipped with a radio (1) with RDS functionality. You can use the application as a traditional radio with saved channels or with parallel visual information related to the radio program on the display if you tune to stations that offer Visual Radio service. You can listen to it while running other applications. 8 File manager ........ You will have access to all audio and visual files stored in phone or memory card in File manager. 4 Contacts ............. 4.1 Consulting your contacts To access the contacts from the idle screen, press the key and select the icon from the menu. 4.2 Adding a contact Select the contacts in which you wish to create a file, press the “Options” softkey, select “Add contact” then . 5 Messaging ........... 5.1 Create SMS From the main menu select “Messaging” to create text message. You can type a message, and you're also able to insert a pre-defined message from “Templates”. While writing a message, select “Options” to access all the messaging options. You can save your messages that you often send to “Drafts” . Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 2 Getting started ......... 2.1 Set-up Removing and installing the back cover Removing and installing the battery Inserting and removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, push it and slide it out. 10 Games & Tools................... 10.1 Voice memo New record In this menu, you can record new voice memo, and press or to save it. Memo list It contains all the voice memos you recorded before. Pressing "Options" softkey, you can Play/rename/delete it and also set it as a alarm melody and ringtone. Settings You can manage the voice memo in settings of audio quality. 10.2 Games Your ALCATEL ONE TOUCH phone includes a game. Select “Game settings”, it allows you to manage settings, in which you may set background audio and vibrate alert. 10.3 Alarm Your mobile phone has a built-in alarm clock with snooze feature. 10.4 Organizer Once you enter this menu, there is a monthly-view calendar for you to keep track of important appointments, etc. Days with events entered will be marked. 10.5 Calculator Hold down the key to get the decimal point. Confirm with the key or the left softkey. 10.6 Torch To light in darkness,you may activate “Torch” by below operations: In idle screen, press and hold key to activate the Torch light; press key or press and hold key to deactivate it. 11 Music Player ...... Please put your music file into SD card: My Music. You can get to know how to play music by the tips in Help. 12 Services ............…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/3/2012 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: RAD262 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature [Zhizhou Gong] [Approval Team Leader] [TCT Mobile Limited]

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 4/27/2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD262 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

Declaration of USB Port One touch 296A, use a Micro-USB port in handset. This USB port support charging and headset, but don’t support data transmission function. Signature: Print name: 张红梅 Date: 2012-5-8 Company: TCT Mobile Limited

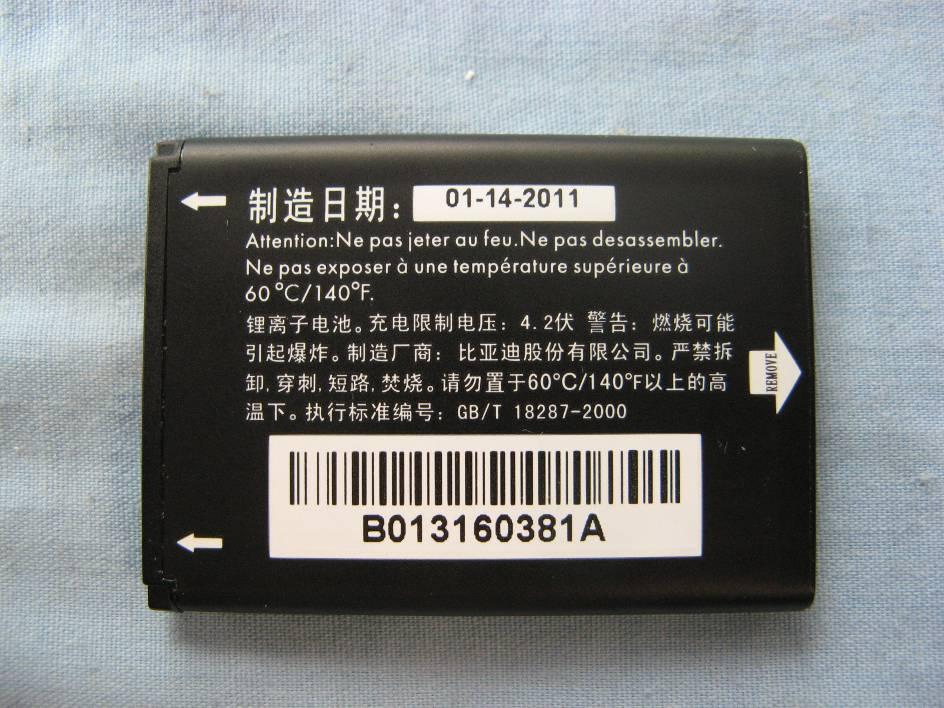

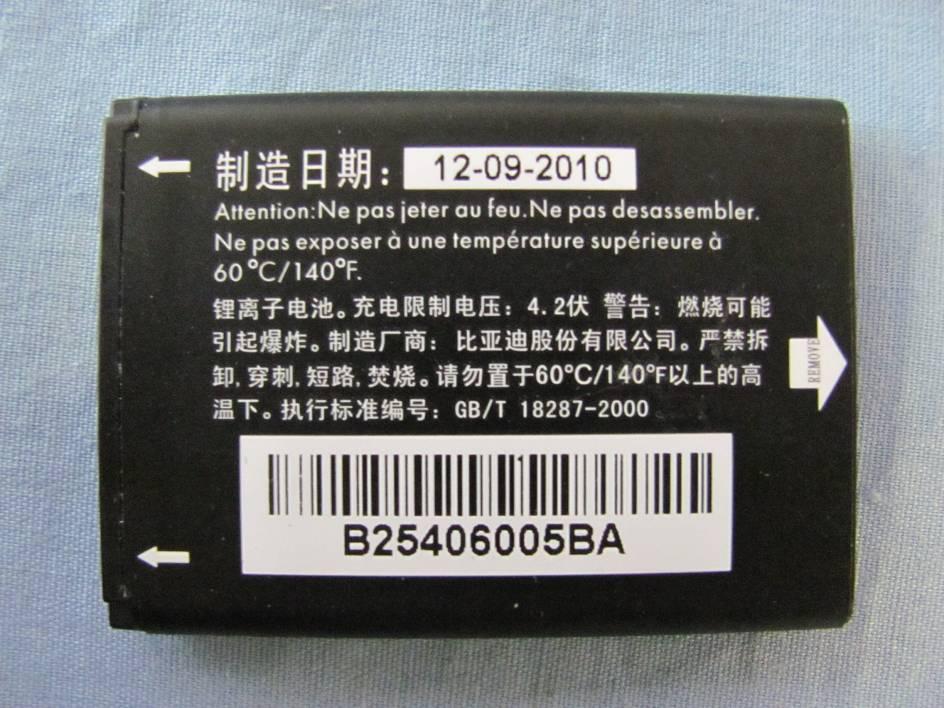

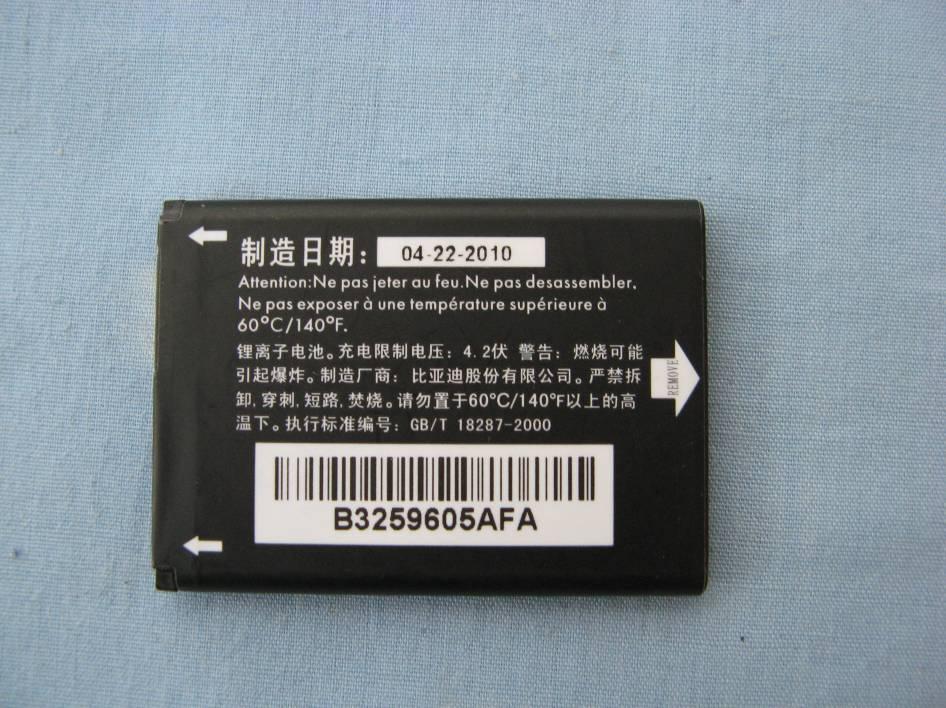

external photo Battery AE1 Battery AE1 Battery AE2 Battery AE2 Battery AE3 Battery AE3 Battery AE4 Battery AE4 Charger AE5 Label of Charger AE5 Charger AE6 Label of Charger AE6 Headset AE7 Headset AE8 Data cable AE9 Data cable AE10

RAD262, label placement

RAD262, label placement

RAD262 internal photos Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 121 of 127 ANNEX H: The EUT Appearances and Test Configuration a: EUT b: Battery 1 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 122 of 127 c: Battery 2 d: Battery 3 e: Battery 4 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 123 of 127 f: Battery 5 g: Stereo Headset 1 h: Stereo Headset 2 Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 124 of 127 Picture 7: Left Hand Touch Cheek Position Picture 8: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 125 of 127 Picture 9: Right Hand Touch Cheek Position Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 126 of 127 Picture 11: Body, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm Picture 12: Body, The EUT display towards phantom, the distance from EUT to the bottom of the Phantom is 15mm 15mm 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 127 of 127 Picture 13: Body with Stereo Headset 1, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm Picture 14: Body with Stereo Headset 2, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm 15mm 15mm

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 1 of 127 TESTING No. L2264 OET 65 TEST REPORT Product Name GSM dual band mobile phone Model Emma music US Marketing Name o ne touch 296A FCC ID RAD 262 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 2 of 127 GENERAL SUMMARY Product Name GSM dual band mobile phone Model Emma music US Report No. RXA1204-0081SAR FCC ID RAD 262 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: April 27 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1204-0081SAR Page 3 of 127 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY5 E-field Probe System ............................................................................................. 11 2.2.1. EX3DV4 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .........................................................................................................12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom...................................................................................................................... 13 2.4. Scanning Procedure........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 19 5. Sy stem Check ............................................................................................................................ 20 5.1. Description of System Check .............................................................................................. 20 5.2. System Check Results ........................................................................................................ 21 6. Operational Conditions during Test ............................................................................................ 22 6.1. General Description of Test Procedures............................................................................. 22 6.2. Test Positions...................................................................................................................... 22 6.2.1. Against Phantom Head ................................................................................................ 22 6.2.2. Body Worn Configuration........................................…

Text truncated - open the document above for the full version.

No.2012TAR229 Page1 of 61 TEST REPORT No. 2012TAR229 for TCT Mobile Limited GSM dual band mobile phone Model Name: Emma music US Marketing Name：one touch 296A FCC ID: RAD262 with Hardware Version: Proto Software Version: v714 Issued Date: May 2, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR229 Page2 of 61 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 7 4. REFERENCE DOCUMENTS ............................................................................................................. 8 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 8 5. LABORATORY ENVIRONMENT ..................................................................................................... 9 6. SUMMARY OF TEST RESULTS ..................................................................................................... 10 7. TEST EQUIPMENTS UTILIZED ..................................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 12 A.1 OUTPUT POWER ........................................................................................................................... 12 A.2 EMISSION LIMT ............................................................................................................................ 18 A.3 CONDUCTED EMISSION ............................................................................................................. 24 A.4 FREQUENCY STABILITY ............................................................................................................ 29 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 31 A.6 EMISSION BANDWIDTH................................................................................................................ 35 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 39 A.8 CONDUCTED SPURIOUS EMISSION ........................................................................................... 41 No.2012TAR229 Page3 of 61 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Apr 12, 2012 Testing End Date: May 2, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR229 Page4 of 61 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR229 Page5 of 61 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM dual band mobile phone Model Name Emma music US Marketing Name one touch 296A FCC ID RAD262 Frequency GSM 850MHz; PCS 1900MHz; Antenna Internal Power supply Battery or Charger (AC Adaptor)…

Text truncated - open the document above for the full version.

RAD262 FCC test setup photo 1． Radiated Spurious Emission 2． Conducted Emission
