RAD268GSM/GPRS quad bands mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile .............. 1.1 Keys 1 Navigation key Confirm an option (press the middle of the key) Activate music player (press and hold the middle of key) Scroll widget bar (press the right or left of the key) 2 Answer Send a call In idle screen: Access call log (Redial) Activate fake call (press and hold ) During MP3 Playing: Switch between Headset and speaker (press and hold) 3 Switch on/Switch off the telephone (press and hold) End call Return to idle screen 4 Left softkey: Menu (press in idle screen) Lock the screen (press and hold in idle screen when slider is closed) 5 Right softkey: Contacts (press in idle screen) 6 Access your voicemail (press and hold in idle screen) 7 In edit mode: Press: input space Press and hold: switch language 8 In idle screen: Press to access shortcuts Fn + P: Access to Profiles Fn + Q: Access to Time and date Fn + S: Access to Notes In edit mode: Press once to input top-half character Press twice to lock top-half character inputting mode, then press once to unlock top-half character inputting mode 9 In edit mode: Popup symbol page to select special character by navigation key 10 Delete one by one Delete quickly (press and hold) 11 Move cursor to the next line 12 Switch the uppercase and lowercase (in edit screen) 2 Getting started ......... 2.1 Set-up Removing and installing the back cover Removing and installing the battery Inserting and removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. Charging the battery (1) Standard charger (EUP) Universal charger Connect the battery charger to your phone and outlet respectively. The charging may take about 20 minutes to start if the • battery is flat. Be careful not to force the plug into the socket.• Make sure the battery is correctly inserted before • connecting the charger. The outlet must be near to the phone and easily accessible • (avoid electric extension cables). When using your telephone for the first time, charge the • battery fully (approximately 3 hours). You are advised to fully charge the battery ( ). To reduce power consumption and energy waste, when • battery is fully charged, disconnect your charger from the plug; switch off Bluetooth when not in use; reduce the backlight time, etc. The charge is complete when the animation stops. 6 ONE TOUCH Mail .. The ONE TOUCH Mail is a unique messaging service that will enable you to send and receive email messages directly from your mobile device. 7 Web ..................... Not only does Opera Mini give you the full Web experience where you stay in touch with your friends, obtain information, do your online banking etc., but it is also designed to save time by using compressed web pages. 8 Facebook ............. Facebook is a social utility that connects people with friends and others who work, study and live around them. It provides a number of features with which users interact, such as Wall, Pokes, etc. To open an account online, please go to: http://m.facebook.com Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. (1) The icons and illustrations in this guide are provided for information purposes only. (2) Depending on your network operator. 4 Contacts ............... 4.1 Consulting your contacts To access the contacts from the main screen, press the key and select the icon from the menu. 4.2 Adding a contact Select the directory in which you wish to add contact, press the "Options" softkey, select "Add contact". 5 Messaging ............. 5.1 Create message From the main menu select "Messaging" to create text/ multimedia message. You can type a message and you can also modify a predefined message in Templates or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). While writing a message, select "Options" to access all the messaging options. You can save your messages that you send often to Draft or Templates (MMS only). Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 3 Calls .......................... 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right softkey. To hang up the call, press the key. Making an emergency call If your phone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Calling your voicemail (1) To access your voicemail, hold down the key. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 3.4 Available functions during the call During a call, you can use your directory, your calendar, text messages, etc. without hanging up or dropping the call. (1) Contact your network operator to check service availability. 1.2 Main screen icons (1) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Headset connected. Keypad locked. Alarm or appointments programmed. Missed calls. Radio is on. WAP alerts (2) . Roaming. SIM card missing. 9 mTweet ................ Twitter is a social networking and microblogging service that has gained notability and popularity worldwide. This feature enables phone users to exchange news updates and ideas with a community in t…

Text truncated - open the document above for the full version.

RF antenna: M onopole Gain RF Antenna Antenna Details for Text Edition 262 by SFR GSM850 GSM900 DCS1800 PCS1900 BT Antenna 58.4mm BT antenna: PIFA Gain 2450 -5.25dBi -5.19dBi -4.46dBi -3.61dBi -3.06dBi

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-3-7 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 3/7/2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD268 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

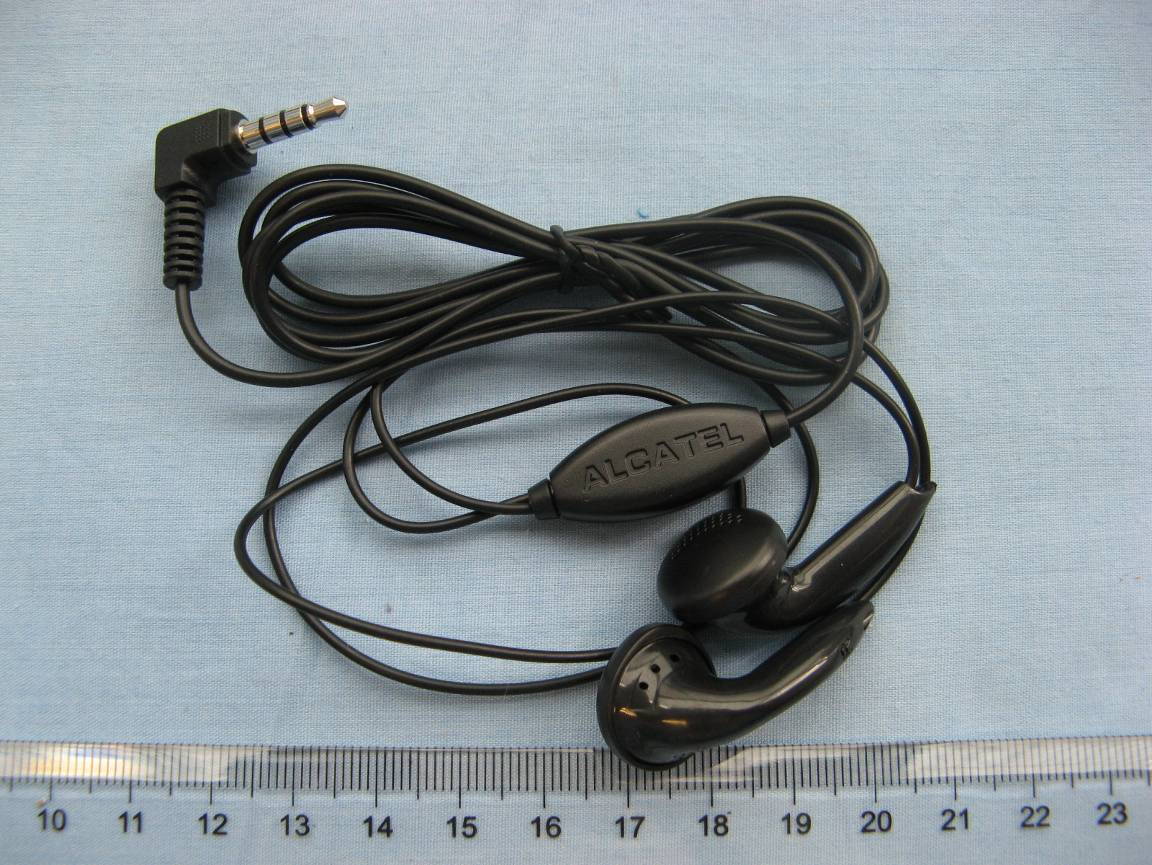

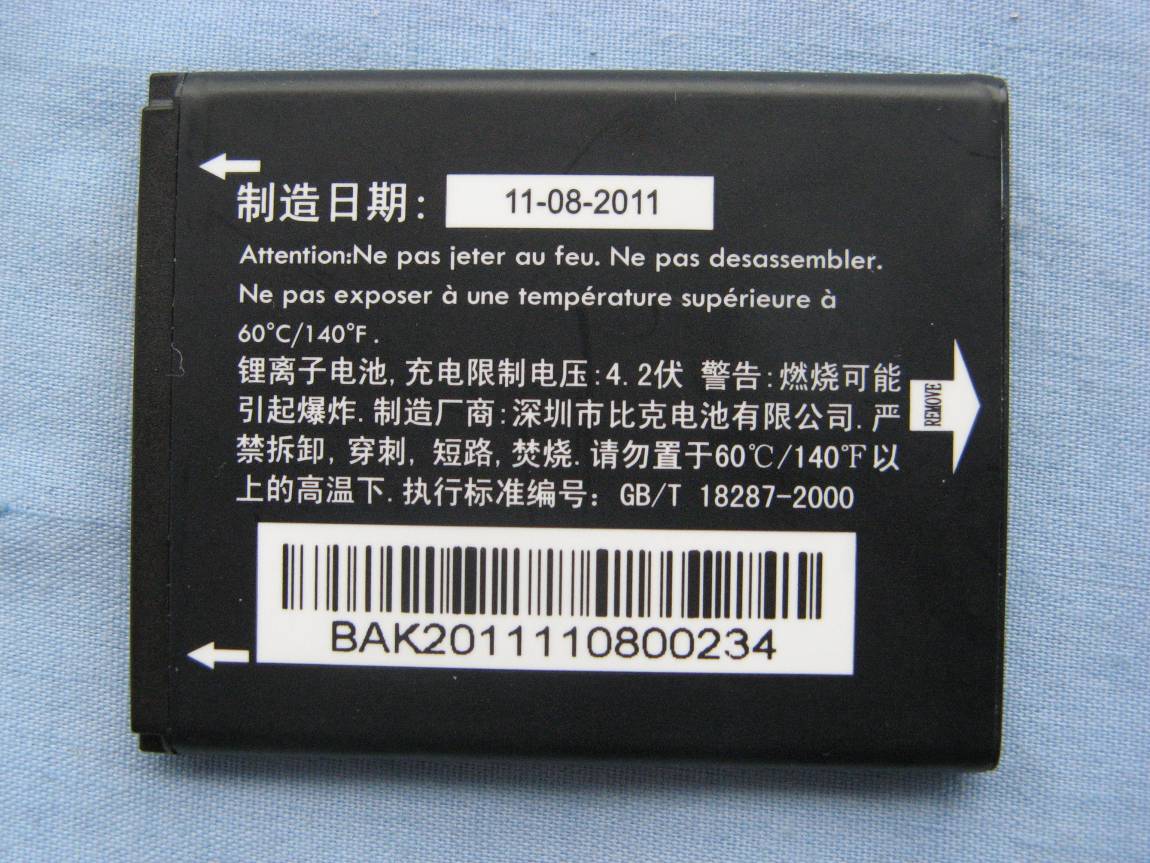

EUT photograph

EUT Label Location

EUT Interior photograph

No.2012SAR00042 Page 1 of 122 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00042 For TCT Mobile Limited GSM/GPRS quad bands mobile phone Tytip SFR Text Edition 262 by SFR With Hardware Version: PIO Software Version: VM23 FCCID: RAD 268 Issued Date: 2012-03-29 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00042 Page 2 of 122 Revision Version Report Number RevisionDate Memo 2012SAR00042 00 2012-03-29 Initial creation of test report No. 2012SAR00042 Page 3 of 122 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA............................................................................................................................................... 5 1.4 SIGNATURE..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION.............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 8 5 TEST METHODOLOGY ..............................................................................................................9 5.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR).................................................................................... 10 6.1 INTRODUCTION............................................................................................................................................. 10 6.2 SAR DEFINITION.......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................. 11 7.1 MEASUREMENT SET-UP................................................................................................................................11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM.................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM........................ 17 8.1 GENERAL CONSIDERATIONS.......................................................................................................................... 17 8.2 BODY-WORN DEVICE.................................................................................................................................... 18 8.3 DESKTOP DEVICE.......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS.................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS ............................................................................................... 25 9.1 EQUIVALENT TISSUES.…

Text truncated - open the document above for the full version.

No. 2012HAC00017-1 Page 1 of 74 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2012HAC00017-1 For TCT Mobile Limited GSM/GPRS quad bands mobile phone Model name: Tytip SFR Marketing name: Text Edition 262 by SFR With Hardware Version: PIO Software Version: VM23 FCCID: RAD268 Results Summary: M Category = M3 Issued Date: 2012-03-29 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012HAC00017-1 Page 2 of 74 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 3.4 AIR INTERFACES / BANDS INDICATING OPERATING MODES............................................................................ 5 4 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................5 4.1 SUMMARY...................................................................................................................................................... 5 4.2 CONDUCTED POWER...................................................................................................................................... 5 5. REFERENCE DOCUMENTS......................................................................................................6 5.1REFERENCE DOCUMENTS FOR TESTING........................................................................................................... 6 6 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 6.1 HAC MEASUREMENT SET-UP.................................................................................................................. 6 6.2 PROBE SPECIFICATION.................................................................................................................................... 7 6.3 TEST ARCH PHANTOM & PHONE POSITIONER................................................................................................. 8 6.4 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 8 7 EUT ARRANGEMENT ................................................................................................................9 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE........................................................................ 9 8 SYSTEM VALIDATION..............................................................................................................10 8.1 VALIDATION PROCEDURE............................................................................................................................. 10 8.2 VALIDATION RESULT.................................................................................................................................... 10 9 PROBE MODULATION FACTOR ............................................................................................. 11 9.1 MODULATION FACTOR TEST PROCEDURE..................................................................................................... 11 9.2 MODULATION FACTOR.................................................................................................................................. 12 10 RF TEST PROCEDUERES .....................................................................................................12 11 HAC RF TEST DATA SUMMARY............................................................................................13 11.1 MEASUREMENT RESULTS (E-FIELD) - OPEN............................................................................................... 13 11.2 MEASUREMENT RESULTS (H-FIELD) - OPEN............................................................................................... 13 11.3 TOTAL M-RATING - OPEN............................................................................................................................ 13 11.4 MEASUREMENT RESULTS (E-FIELD) - CLOSE.........................................…

Text truncated - open the document above for the full version.

No. 2012HAC00017-2 Page 1 of 30 ©Copyright. All rights reserved by TMC Beijing. HAC T-Coil TEST REPORT No. 2012HAC00017-2 For TCT Mobile Limited GSM/GPRS quad bands mobile phone Model name: Tytip SFR Marketing name: Text Edition 262 by SFR With Hardware Version: PIO Software Version: VM23 FCCID: RAD268 Results Summary: T Category = T3 Issued Date: 2012-03-29 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012HAC00017-2 Page 2 of 30 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................4 3.1 ABOUT EUT ................................................................................................................................................... 4 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 4 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 4 4 CONDUCTED OUTPUT POWER MEASUREMENT...................................................................5 4.1 SUMMARY...................................................................................................................................................... 5 4.2 CONDUCTED POWER...................................................................................................................................... 5 5. REFERENCE DOCUMENTS......................................................................................................5 5.1REFERENCE DOCUMENTS FOR TESTING........................................................................................................... 5 6 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 6.1 HAC MEASUREMENT SET-UP.................................................................................................................. 6 6.2 AM1D PROBE................................................................................................................................................. 7 6.3 AMCC ........................................................................................................................................................... 8 6.4 AMMI............................................................................................................................................................ 8 6.5 TEST ARCH PHANTOM & PHONE POSITIONER................................................................................................. 8 6.6 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 9 6.7 T- COIL MEASUREMENT POINTS AND REFERENCE PLANE................................................................................. 9 7 T-COIL TEST PROCEDUERES ................................................................................................10 8 T-COIL PERFORMANCE REQUIREMENTS ............................................................................ 11 8.1 T- COIL COUPLING FIELD INTENSITY.............................................................................................................. 11 8.2 FREQUENCY RESPONSE................................................................................................................................. 11 9 HAC T-COIL TEST DATA SUMMARY ......................................................................................13 9.1 T- COIL COUPLING FIELD INTENSITY............................................................................................................ 13 9.1.1 AXIAL FIELD INTENSITY............................................................................................................................ 13 9.1.2 RADIAL FIELD INTENSITY.......................................................................................................................... 13 9.2 FREQUENCY RESPONSE AT AXIAL MEASUREMENT POINT............................................................................. 13 9.3 SIGNAL QUALITY......................................................................................................................................... 13 9.4 TOTAL MEASUREMENT CONCLUSION...................................................................................................…

Text truncated - open the document above for the full version.

No.2012TAR186 Page1 of 72 TEST REPORT No. 2012TAR186 for TCT Mobile Limited GSM/GPRS quad bands mobile phone Model Name: Tytip SFR Marketing Name: Text Edition 262 by SFR FCC ID: RAD268 with Hardware Version: PIO Software Version: VM23 Issued Date: Mar 28, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR186 Page2 of 72 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ................................................................................ 11 A.2 EMISSION LIMT (§2.1051/§22.917§24.238) ............................................................................. 17 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 23 A.4 FREQUENCY STABILITY (§2.1055/§24.2…

Text truncated - open the document above for the full version.
