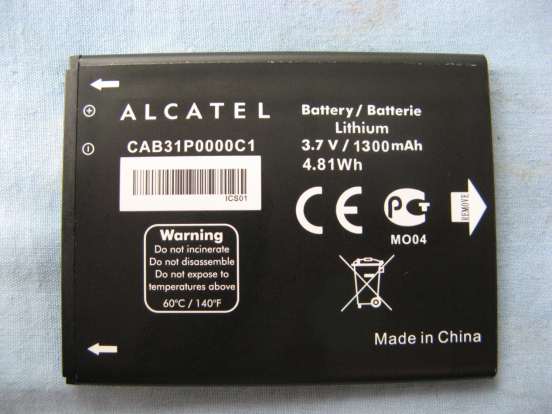

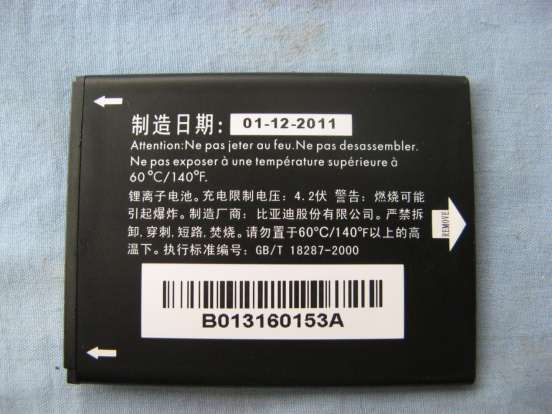

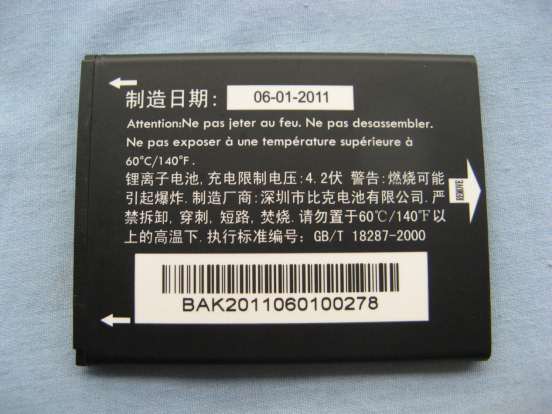

RAD273HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone

1 English - CJB32B3ALAAA Quick Start Guide 903A For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. IP4349_903A_QG_Eng_USA_04_120822.indd 1IP4349_903A_QG_Eng_USA_04_120822.indd 12012-8-22 17:15:322012-8-22 17:15:32 23 Your mobile 1 .................. Keys and connectors1.1 Menu key Search key LED light Back key Home key Volume up/down key Power key Headset connector Camera key micro-USB connector Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your mobile ...................................................................................... 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications & Internal storage ................................................. 25 12 Making the most of your phone ................................................ 26 IP4349_903A_QG_Eng_USA_04_120822.indd 2-3IP4349_903A_QG_Eng_USA_04_120822.indd 2-32012-8-22 17:15:322012-8-22 17:15:32 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to manage applications; to customize your Home screen by adding applications or changing wallpaper. On other screens, press to view options list.• Press: Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: Lock the screen. Light up the screen. Press to hang up a call. Press and hold: When phone is off, power on the phone. When phone is on, enter Phone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the phone or web. (1) Press: Take a picture in Camera mode. Press and hold: Access Camera. (1) (1) Depending on your network operator. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• IP4349_903A_QG_Eng_USA_04_120822.indd 4-5IP4349_903A_QG_Eng_USA_04_120822.indd 4-52012-8-22 17:15:322012-8-22 17:15:32 67 Installing and removing the microSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\SD card & Phone storage\Unmount SD card). Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background- running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you are prompted to set up your phone in multiple ways: language, input method, mobile data connection, account setup and synchronization, system update, etc. You are required to sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Mark/Unmark the check box to choose whether you want to back • up data with your Google account, then touch Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key until the phone options appear, select Power off. (1) Application availability depends on country and operator. IP4349_903A_QG_Eng_USA_04_120822.indd 6-7IP4349_903A_QG_Eng_USA_04_120822.indd 6-72012-8-22 17:15:322012-8-22 17:15:32 89 Home screen1.3 You can bring all the items (applications, shortcuts, folder…

Text truncated - open the document above for the full version.

EU： 平均增益 最大增益 GSM850: -3.58dBi -0.72dBi GSM900: -4.02dBi -1.44dBi DCS: -4.76 dBi 0.64dBi PCS: -4.83 dBi 0.81dBi Wcdma B8 -4.02dBi -1.44dBi Wcdma B1 -4.01dBi -0.69 dBi US： 平均增益 最大增益 GSM850: -3.04dBi 0.09dBi GSM900: -4.81dBi -1.89dBi DCS: -4.93dBi 0.61dBi PCS: -5.20 dBi 0.06dBi Wcdma B1 -4.99dBi -1.98dBi Wcdma B2 -5.20 dBi 0.06dBi Wcdma B5 -3.04dBi 0.09dBi GPS/BT/WIFI： 平均增益 最大增益 GPS : -5.34 dBi -1.28dBi Wlan: -5.20dBi -0.05dBi BT: -5.20dBi -0.05dBi

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-07-25 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-07-31 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD273 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

RAD273 FCC ID label location

No.2012SAR00086 Page 1 of 190 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00086 For TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model name: Sherry_US Marketing name: ONE TOUCH 903A With Hardware Version: PIO01 Software Version: v917-4-US FCCID: RAD273 Issued Date: 2012-08-13 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00086 Page 2 of 190 Revision Version Report Number Revision Date Memo 2012SAR00086 00 2012-08-13 Initial creation of test report No. 2012SAR00086 Page 3 of 190 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 8 5 TEST METHODOLOGY .............................................................................................................. 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................. 11 7.1 MEASUREMENT SET-UP ................................................................................................................................ 11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM ................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION ...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT ............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT ....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER ............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM .................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM ........................ 17 8.1 GENERAL CONSIDERATIONS .......................................................................................................................... 17 8.2 BODY-WORN DEVICE .................................................................................................................................... 18 8.3 DESKTOP DEVICE .......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS .................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS .................................................…

Text truncated - open the document above for the full version.

No. 2012SAR00086 Page 48 of 190 850 Right Cheek Middle Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.888 mho/m; εr = 40.925; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.734 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.141 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.825 mW/g SAR(1 g) = 0.691 mW/g; SAR(10 g) = 0.534 mW/g Maximum value of SAR (measured) = 0.722 mW/g Fig. 8 850 MHz CH190 No. 2012SAR00086 Page 49 of 190 850 Right Cheek Low Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.877 mho/m; εr = 41.065; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.794 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.227 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.898 mW/g SAR(1 g) = 0.754 mW/g; SAR(10 g) = 0.584 mW/g Maximum value of SAR (measured) = 0.789 mW/g Fig. 9 850 MHz CH128 No. 2012SAR00086 Page 50 of 190 850 Right Tilt High Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.90 mho/m; εr = 40.768; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.419 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.340 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.487 mW/g SAR(1 g) = 0.390 mW/g; SAR(10 g) = 0.295 mW/g Maximum value of SAR (measured) = 0.409 mW/g Fig.10 850 MHz CH251 No. 2012SAR00086 Page 51 of 190 850 Right Tilt Middle Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.888 mho/m; εr = 40.925; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.447 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.954 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.525 mW/g SAR(1 g) = 0.422 mW/g; SAR(10 g) = 0.319 mW/g Maximum value of SAR (measured) = 0.444 mW/g Fig.11 850 MHz CH190 No. 2012SAR00086 Page 52 of 190 850 Right Tilt Low Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 825 MHz; σ = 0.877 mho/m; εr = 41.065; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.491 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.806 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.576 mW/g SAR(1 g) = 0.460 mW/g; SAR(10 g) = 0.349 mW/g Maximum value of SAR (measured) = 0.484 mW/g Fig. 12 850 MHz CH128 No. 2012SAR00086 Page 53 of 190 850 Body Towards Phantom Low Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.977 mho/m; εr = 54.684; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.717 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.045 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.907 mW/g SAR(1 g) = 0.676 mW/g; SAR(10 g) = 0.502 mW/g Maximum value of SAR (measured) = 0.718 mW/g Fig. 13 850 MHz CH128 No. 2012SAR00086 Page 54 of 190 850 Body Towards Ground High Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 1.003 mho/m; εr = 54.441; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.888 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.033 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 1.231 mW/g SAR(1 g) = 0.817 mW/g; SAR(10 g) = 0.569 mW/g Maximum value of SAR (measured) = 0.856 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.033 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 1.058 mW/g SAR(1 g) = 0.714 mW/g; SAR(10 g) = 0.466 mW/g Maximum value of SAR (measured) = 0.786 mW/g Fig. 14 850 MHz CH251 No. 2012SAR00086 Page 55 of 190 850 Body Towards Ground Middle Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.99 mho/m; εr = 54.557; ρ = 1000 kg/m 3 Ambient Tempera…

Text truncated - open the document above for the full version.

No. 2012SAR00086 Page 95 of 190 WCDMA 850 Right Cheek High Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.899 mho/m; εr = 40.758; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.856 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.207 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.984 mW/g SAR(1 g) = 0.813 mW/g; SAR(10 g) = 0.626 mW/g Maximum value of SAR (measured) = 0.854 mW/g Fig. 51 WCDMA 850 CH4233 No. 2012SAR00086 Page 96 of 190 WCDMA 850 Right Cheek Middle Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.888 mho/m; εr = 40.925; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.749 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.500 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.858 mW/g SAR(1 g) = 0.714 mW/g; SAR(10 g) = 0.552 mW/g Maximum value of SAR (measured) = 0.750 mW/g Fig. 52 WCDMA 850 CH4182 No. 2012SAR00086 Page 97 of 190 WCDMA 850 Right Cheek Low Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.879 mho/m; εr = 41.055; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.710 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.399 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.812 mW/g SAR(1 g) = 0.677 mW/g; SAR(10 g) = 0.524 mW/g Maximum value of SAR (measured) = 0.710 mW/g Fig. 53 WCDMA 850 CH4132 No. 2012SAR00086 Page 98 of 190 WCDMA 850 Right Tilt High Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.899 mho/m; εr = 40.758; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.473 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.244 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.557 mW/g SAR(1 g) = 0.447 mW/g; SAR(10 g) = 0.338 mW/g Maximum value of SAR (measured) = 0.470 mW/g Fig. 54 WCDMA 850 CH4233 No. 2012SAR00086 Page 99 of 190 WCDMA 850 Right Tilt Middle Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.888 mho/m; εr = 40.925; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.438 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.884 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.509 mW/g SAR(1 g) = 0.410 mW/g; SAR(10 g) = 0.311 mW/g Maximum value of SAR (measured) = 0.432 mW/g Fig. 55 WCDMA 850 CH4182 No. 2012SAR00086 Page 100 of 190 WCDMA 850 Right Tilt Low Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.879 mho/m; εr = 41.055; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.408 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.489 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.474 mW/g SAR(1 g) = 0.384 mW/g; SAR(10 g) = 0.292 mW/g Maximum value of SAR (measured) = 0.404 mW/g Fig. 56 WCDMA 850 CH4132 No. 2012SAR00086 Page 101 of 190 WCDMA 850 Body Towards Phantom Middle Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.99 mho/m; εr = 54.558; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.785 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.238 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.944 mW/g SAR(1 g) = 0.736 mW/g; SAR(10 g) = 0.544 mW/g Maximum value of SAR (measured) = 0.772 mW/g Fig. 57 WCDMA 850 CH4182 No. 2012SAR00086 Page 102 of 190 WCDMA 850 Body Towards Ground High Date: 2012-8- 1 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 1.00 mho/m; εr = 54.465; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground High/Area S…

Text truncated - open the document above for the full version.

No. 2012SAR00086 Page 142 of 190 Wifi Right Cheek Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.806 mho/m; εr = 38.844; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Cheek Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0653 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.379 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.134 mW/g SAR(1 g) = 0.060 mW/g; SAR(10 g) = 0.029 mW/g Maximum value of SAR (measured) = 0.0658 mW/g Fig. 95 2450 MHz CH1 No. 2012SAR00086 Page 143 of 190 Fig. 95-1 Z-Scan at power reference point (2450 MHz CH1) No. 2012SAR00086 Page 144 of 190 Wifi Right Tilt Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.806 mho/m; εr = 38.844; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0446 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.423 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.072 mW/g SAR(1 g) = 0.036 mW/g; SAR(10 g) = 0.016 mW/g Maximum value of SAR (measured) = 0.0420 mW/g Fig. 96 2450 MHz CH1 No. 2012SAR00086 Page 145 of 190 Wifi Body Toward Phantom Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2412 MHz; σ = 1.912 mho/m; εr = 52.283; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0351 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.061 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.059 mW/g SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.016 mW/g Maximum value of SAR (measured) = 0.0296 mW/g Fig. 97 2450 MHz CH1 No. 2012SAR00086 Page 146 of 190 Wifi Body Toward Ground Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2412 MHz; σ = 1.912 mho/m; εr = 52.283; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.248 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.188 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.470 mW/g SAR(1 g) = 0.241 mW/g; SAR(10 g) = 0.115 mW/g Maximum value of SAR (measured) = 0.289 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.188 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.386 mW/g SAR(1 g) = 0.186 mW/g; SAR(10 g) = 0.103 mW/g Maximum value of SAR (measured) = 0.215 mW/g Fig. 98 2450 MHz CH1 No. 2012SAR00086 Page 147 of 190 Fig. 98-1 Z-Scan at power r…
