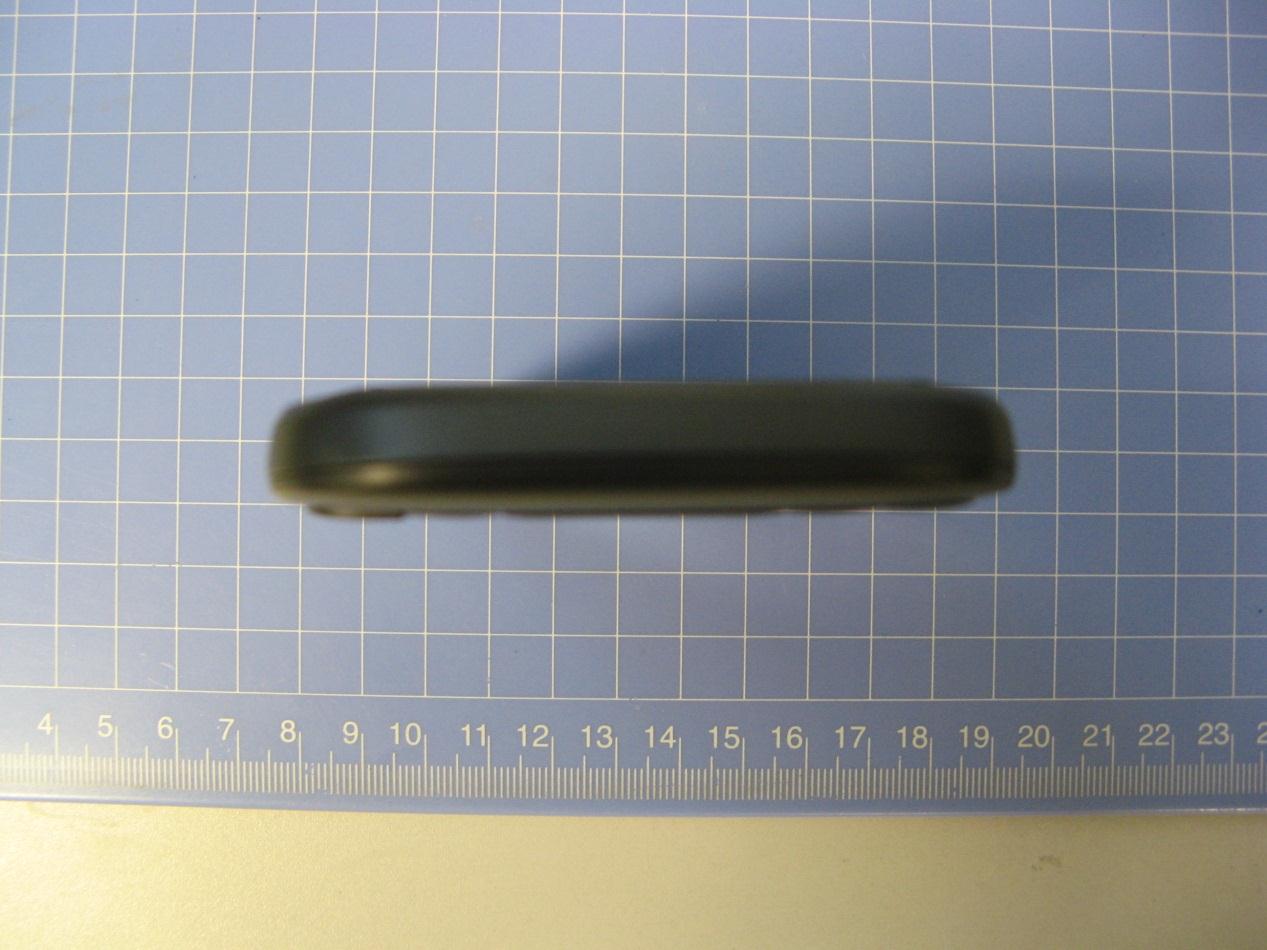

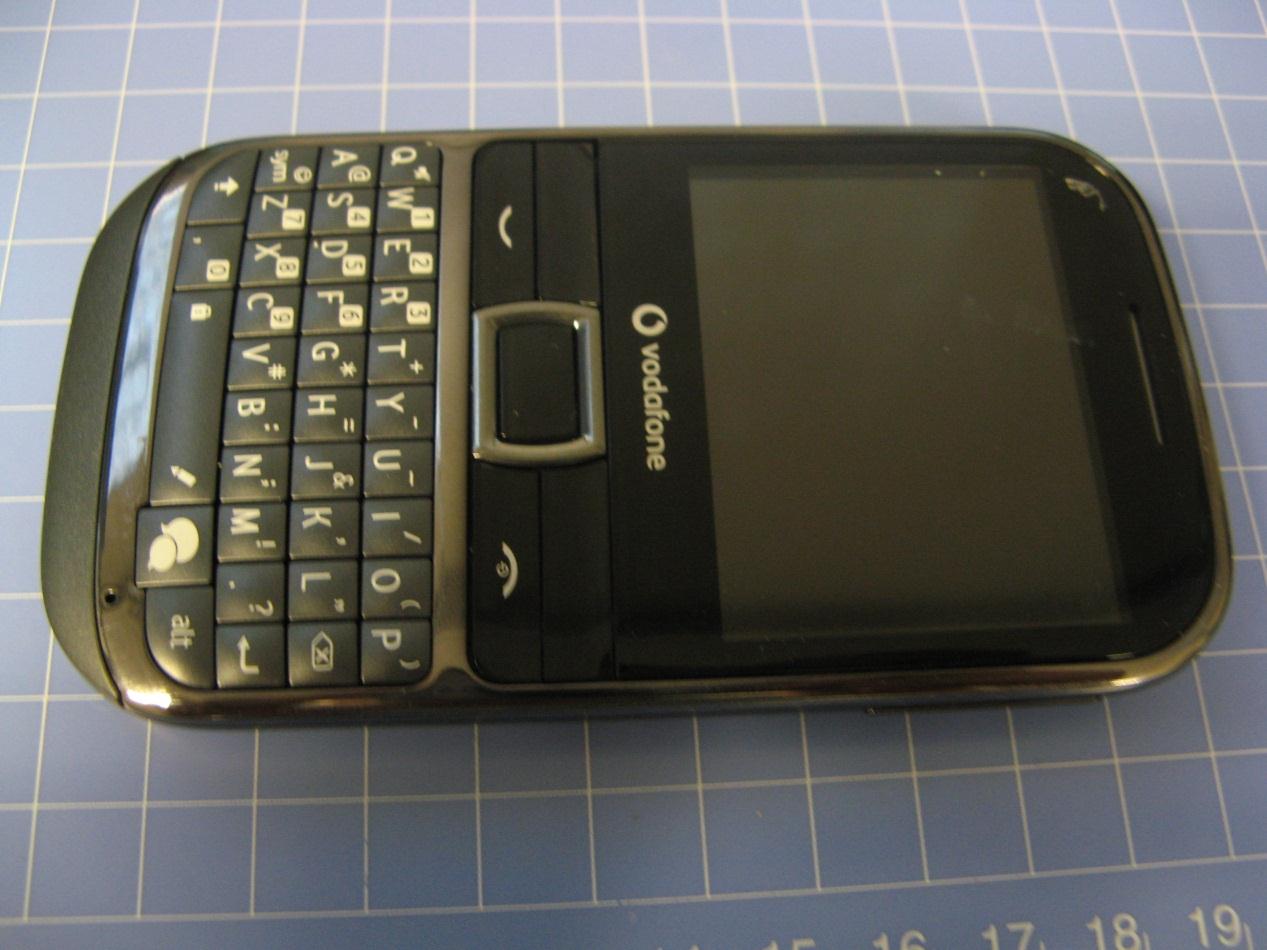

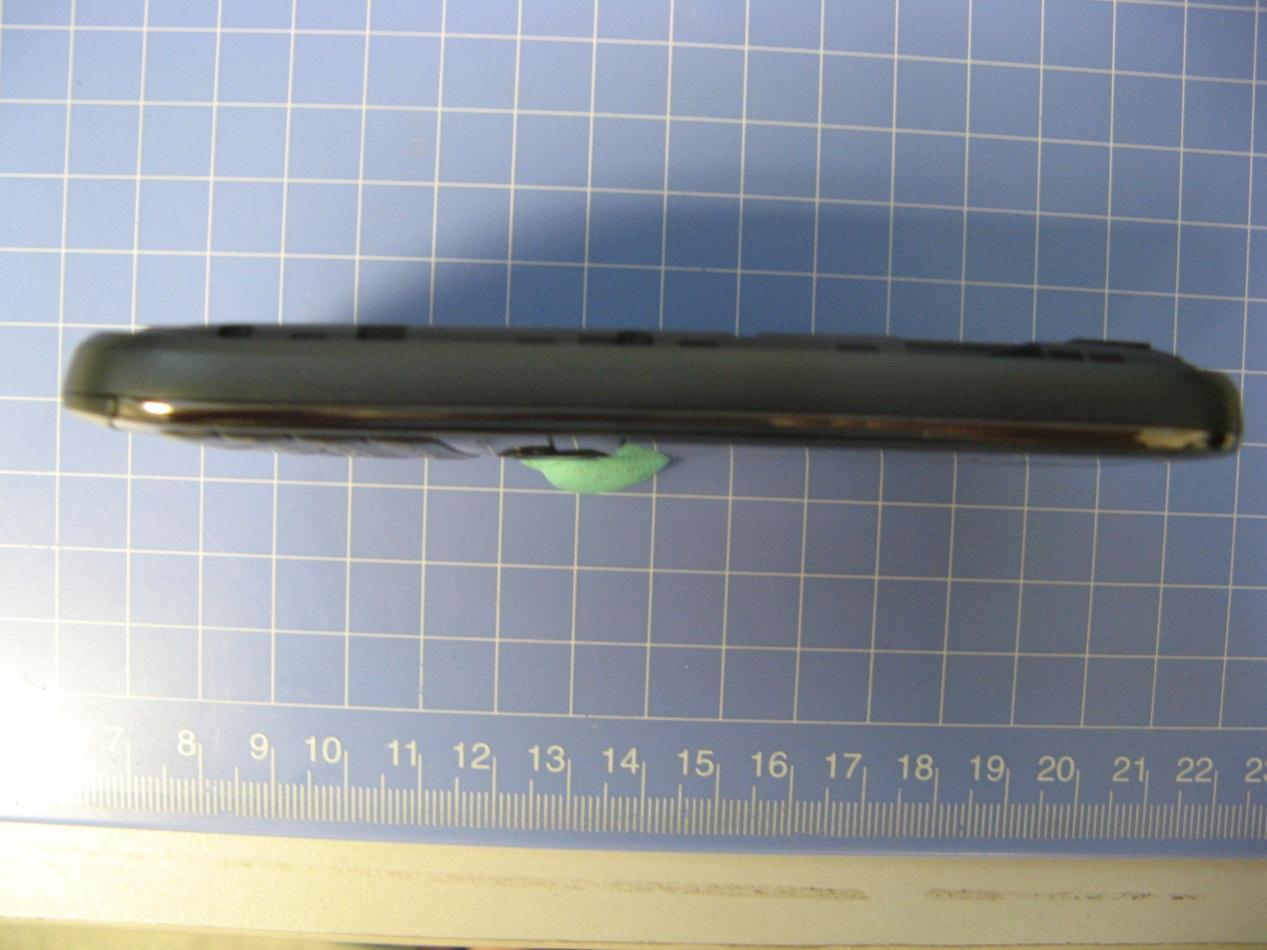

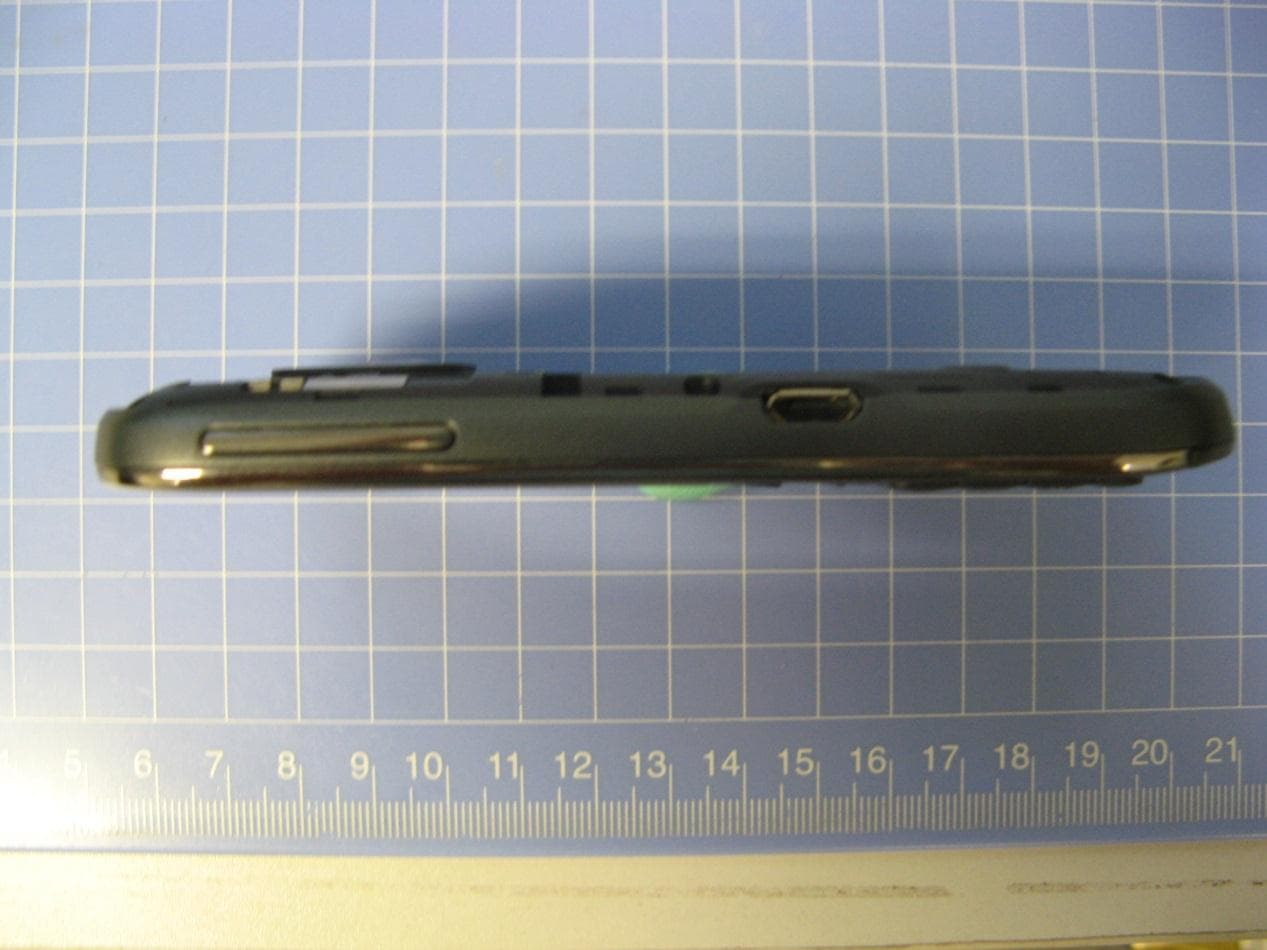

RAD281GSM Quad Band and UMTS Dual Band Mobile Phone

2 Quick start guide Vodafone Chat English - CJB32F1VDAAA © Vodafone Group 2012. Vodafone and the Vodafone logos are trade marks of Vodafone Group. Any product or company names mentioned herein may be the trade marks of their respective owners. IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd 2-3IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd 2-32012-8-8 11:02:342012-8-8 11:02:34 12 Your mobile1 Keys and connectors1.1 Space keyIM key Notification light Status bar Home screen Widget bar Send key Sym key Shift key Voicemail key Silence key Left softkey Alt key Microphone Enter key Delete key End key Right softkey Navigation key/ OK key Earpiece For more information about how to use the phone, please go to www.vodafone.com/vodafonechat to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. Flick to go left/right/up/down• Press to confirm an option (press the middle of • the key) Answer/Send a call• Enter Call log• Press: End a call• Return to the Home screen Press and hold: Power on/off• Press and hold: Access your voicemail• Press once: Input a capital letter• Press twice: Lock the keyboard in capital letter • input mode Press once: Input a top-half key character• Press twice: Lock the keyboard in top-half key • input mode Alt + B: Access Bluetooth Alt + J: Access Apps Alt + M: Access Music Alt + P: Access Device sound profiles Headset connector micro-USB connector Volume key Camera Flash Loudspeaker IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd Sec1:1-Sec1:2IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd Sec1:1-Sec1:22012-8-8 11:02:372012-8-8 11:02:37 34 Press: Enter a space (in Edit mode)• Press OK key, then Space key to unlock the keypad (on the Lock screen) Press and hold: Access text input language list (in • Edit mode) Lock the keypad (on the Home screen) Hold down • Space key, then press Alt key to select input method Enter symbol table• Hold down • Alt key, then press Sym key to enter emoticon table Confirm an option• Enter the next line• Press and hold: Switch between General and Silent • profile Volume up/down• Scroll up/down• Press to delete a word or character• Press to access applications: Google Talk, MSN, • Facebook, Facebook Chat, Twitter Home screen1.2 The Home screen is divided into several parts, as shown below: Status bar Widget bar Select to enter main menu screen Status bar 1.2.1 (1) From the status bar, you can view both phone status and notifications. Battery charge level. Bluetooth activated and visible. Bluetooth activated but invisible. Bluetooth connecting. Java application activated. Headset connected. Keypad locked. Mute is on during a call. Silent profile is activated. Alarm or appointment programmed. Level of network reception. Missed calls. Call in progress. Stopwatch activated. Email unread. Radio is on. WAP message. (2) Roaming. SD card inserted. SIM card unavailable. GPRS in use. 2G network available. 3G network available. (1) The icons and illustrations in this guide are provided for informational purposes only. (2) Depending on your network operator. IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd Sec1:3-Sec1:4IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd Sec1:3-Sec1:42012-8-8 11:02:382012-8-8 11:02:38 56 Wi-Fi disconnected. Wi-Fi connected. Line switching (1) : indicates the selected line. Vibrate and ring mode: your phone vibrates and rings. Music active. GPRS connected. Edge in use. Edge connected. Music player active. Vibrate mode. SMS unread. MMS unread. Sending MMS. Flight mode. Widget bar1.2.2 Widgets are convenient shortcuts for quick access from the Home screen. Lock/Unlock screen1.2.3 To protect your phone and privacy, you can lock the screen by pressing and holding the Space key. To unlock the screen, press , then the Space key. Main menu 1.2.4 To access the main menu screen, select "Menu" from the Home screen. (1) Depending on your network operator. Getting started2 Set-up2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. Installing or removing the battery Insert and click the battery into place, then close the telephone • cover. Unclip the cover, then remove the battery.• IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd Sec1:5-Sec1:6IP4347_VF655_VF655W_QG_Eng_USA_Black_02_120808.indd Sec1:5-Sec1:62012-8-8 11:02:382012-8-8 11:02:38 78 Installing and removing the memory card (microSD card) Insert the microSD card with its golden contact facing downwards into the slot until it is locked in place. To remove it, gently push the card in until it unlocks. Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your phone2.2 Hold down the key until the phone powers on, type in your PIN code if necessary. The main screen is displayed. Set up your phone for the first time The first time you power on the phone, you are required to adjust initial basic settings and login to your Facebook account to synchronize Facebook information. Power off your phone2.3 Hold down the key from the Home screen. Calls3 Placing a call3.1 Enter the desired number from the keypad directly or select a contact from Contacts or Call log, then press the key to place the call. The number you entered can be saved to Contacts by selecting "Save". If you make a mistake, you can delete the incorrect digits by pressing the Delete key. To hang up, press the key. Answering or rejecting a call3.2 When you receive …

Text truncated - open the document above for the full version.

Antenna Details for Vodafone 655W WiFi/BT antenna: PIFA Gain： -5.03 dBi RF antenna: IFA BAND GSM900 DCS1800 Gain -4.13 dBi -3.58 dBi BAND GSM850 PCS1900 Gain -7.5 dBi -2.84 dBi BAND UMTS8 UMTS1 Gain -4.13 dBi -3.88 dBi

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-07-31 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD281 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

No.2012SAR00076 Page 1 of 140 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00076 For TCT Mobile Limited GSM Quad Band and UMTS Dual Band Mobile Phone Mode Name: Blue3G Marketing Name: Vodafone Chat 655W With Hardware Version: PIO1 Software Version: A27 FCCID: RAD281 Issued Date: 2012-08-01 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00076 Page 2 of 140 Revision Version Report Number Revision Date Memo 2012SAR00076 00 2012-08-01 Initial creation of test report No. 2012SAR00076 Page 3 of 140 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................... 11 7.1 MEASUREMENT SET-UP ................................................................................................................................ 11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM ................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION ...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT ............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT ....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER ............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM .................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM ........................ 17 8.1 GENERAL CONSIDERATIONS .......................................................................................................................... 17 8.2 BODY-WORN DEVICE .................................................................................................................................... 18 8.3 DESKTOP DEVICE .......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS .................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS ............................................…

Text truncated - open the document above for the full version.

No. 2012SAR00076 Page 47 of 140 850 Right Cheek Low Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used: f = 825 MHz; σ = 0.88 mho/m; εr = 41.485; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM; Frequency: 824.2 MHz;Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.262 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.854 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.311 mW/g SAR(1 g) = 0.252 mW/g; SAR(10 g) = 0.191 mW/g Maximum value of SAR (measured) = 0.262 mW/g Fig. 9 850 MHz CH128 No. 2012SAR00076 Page 48 of 140 850 Right Tilt High Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.903 mho/m; εr = 41.188; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.254 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.211 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.292 mW/g SAR(1 g) = 0.239 mW/g; SAR(10 g) = 0.184 mW/g Maximum value of SAR (measured) = 0.247 mW/g Fig.10 850 MHz CH251 No. 2012SAR00076 Page 49 of 140 850 Right Tilt Middle Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.891 mho/m; εr = 41.345; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.221 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.630 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.253 mW/g SAR(1 g) = 0.207 mW/g; SAR(10 g) = 0.160 mW/g Maximum value of SAR (measured) = 0.217 mW/g Fig.11 850 MHz CH190 No. 2012SAR00076 Page 50 of 140 850 Right Tilt Low Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used: f = 825 MHz; σ = 0.88 mho/m; εr = 41.485; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 824.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.174 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.760 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.199 mW/g SAR(1 g) = 0.164 mW/g; SAR(10 g) = 0.126 mW/g Maximum value of SAR (measured) = 0.172 mW/g Fig. 12 850 MHz CH128 No. 2012SAR00076 Page 51 of 140 850 Body Toward Phantom Low Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used: f = 825 MHz; σ = 0.993 mho/m; εr = 53.934; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.692 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.619 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.820 mW/g SAR(1 g) = 0.639 mW/g; SAR(10 g) = 0.469 mW/g Maximum value of SAR (measured) = 0.674 mW/g Fig. 13 850 MHz CH128 No. 2012SAR00076 Page 52 of 140 850 Body Toward Ground High Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 1.019 mho/m; εr = 53.691; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.995 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.041 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.244 mW/g SAR(1 g) = 0.924 mW/g; SAR(10 g) = 0.649 mW/g Maximum value of SAR (measured) = 0.983 mW/g Fig. 14 850 MHz CH251 No. 2012SAR00076 Page 53 of 140 850 Body Toward Ground Middle Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.006 mho/m; εr = 53.807; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 836.6 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.14 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.744 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 1.417 mW/g SAR(1 g) = 1.06 mW/g; SAR(10 g) = 0.752 mW/g Maximum value of SAR (measured) = 1.12 mW/g Fig. 15 850 MHz CH190 No. 2012SAR00076 Page 54 of 140 Fig. 15-1 Z-Scan at power reference point (850 MHz CH190) No. 2012SAR00076 Page 55 of 140 850 Body Toward Ground Low Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used: f = 825 MHz; σ = 0.993 mho/m; εr = 53.934; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) …

Text truncated - open the document above for the full version.

No. 2012SAR00076 Page 93 of 140 Wifi Right Cheek High Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.854 mho/m; εr = 38.628; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Cheek High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.127 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.663 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.198 mW/g SAR(1 g) = 0.105 mW/g; SAR(10 g) = 0.052 mW/g Maximum value of SAR (measured) = 0.117 mW/g Fig. 51 2450 MHz CH11 No. 2012SAR00076 Page 94 of 140 Wifi Right Tilt High Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2462 MHz; σ = 1.854 mho/m; εr = 38.628; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Tilt High/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0741 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.015 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.120 mW/g SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.034 mW/g Maximum value of SAR (measured) = 0.0703 mW/g Fig. 52 2450 MHz CH11 No. 2012SAR00076 Page 95 of 140 Wifi Body Toward Phantom High Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 1.969 mho/m; εr = 52.13; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Toward Phantom High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0226 mW/g Toward Phantom High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.523 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.035 mW/g SAR(1 g) = 0.018 mW/g; SAR(10 g) = 0.010 mW/g Maximum value of SAR (measured) = 0.0209 mW/g Fig. 53 2450 MHz CH11 No. 2012SAR00076 Page 96 of 140 Wifi Body Toward Ground High Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 1.969 mho/m; εr = 52.13; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.171 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.575 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.379 mW/g SAR(1 g) = 0.183 mW/g; SAR(10 g) = 0.085 mW/g Maximum value of SAR (measured) = 0.200 mW/g Fig. 54 2450 MHz CH11 No. 2012SAR00076 Page 97 of 140 Fig. 54-1 Z-Scan at power reference point (2450 MHz CH11) No. 2012SAR00076 Page 98 of 140 Wifi Body Right Side High Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 1.969 mho/m; εr = 52.13; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Right Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0717 mW/g Right Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.870 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.137 mW/g SAR(1 g) = 0.067 mW/g; SAR(10 g) = 0.033 mW/g Maximum value of SAR (measured) = 0.0734 mW/g Fig. 55 2450 MHz CH11 No. 2012SAR00076 Page 99 of 140 Wifi Body To p Side High Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2462 MHz; σ = 1.969 mho/m; εr = 52.13; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Top Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0549 mW/g Top Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.724 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.094 mW/g SAR(1 g) = 0.050 mW/g; SAR(10 g) = 0.029 mW/g Maximum value of SAR (measured) = 0.0536 mW/g Fig. 56 2450 MHz CH11 No. 2012SAR00076 Page 100 of 140 ANNEX B SYSTEM VALIDATION RESULTS 835MHz Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used: f = 835 MHz; σ = 0.89 mho/m; ε r = 41.37; ρ = 1000 kg/m 3 Ambient Temperature: 2 2.4 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) System Validation /Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.52 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.872 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 3.494 W/kg SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.49 mW/g Maximum value of SAR (measured) = 2.53 mW/g 0 dB = 2.52 mW/g = 8.03 dB mW/g Fig.57 validation 835MHz 250mW No. 2012SAR00076 Page 101 of 140 835MHz Date: 2012-7- 18 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 1.00 mho/m; ε r = 53.82; ρ = 1000 kg/m 3 Ambient Temperature: 2 2.4 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1…

Text truncated - open the document above for the full version.

No.2012TAR366 Page1 of 91 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012TAR366 for TCT Mobile Limited GSM Quad Band and UMTS Dual Band Mobile Phone Model Name: Blue3G Marketing Name: Vodafone 655W FCC ID: RAD281 With Hardware Version: PIO1 Software Version: A27 Issued Date: 2012-08-07 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012TAR366 Page2 of 91 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 7 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 6.1. S UMMARY OF TEST RESULTS ........................................................................................................... 9 6.2. S TATE MEN TS .................................................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1. MEASUREMENT METHOD ................................................................................................................... 11 A.2. PEAK OUTPUT POWER - CONDUCTED ................................................................................................ 13 A.3. FREQUENCY BAND EDGES - CONDUCTED .......................................................................................... 14 A.4. CONDUCTED EMISSION ...................................................................................................................... 21 A.5. RADIATED EMISSION ...................................................…

Text truncated - open the document above for the full version.
