RAD283HSDPA/HSUPA/UMTS dual band / GSM quad bands mobile phone

myworldinonetouch For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. www.alcatelonetouch.com 12 Table of Contents Safety and use ............................................................................4 General information ...............................................................11 1 Your cellphone ...................................................................12 1.1 Keys and connectors ................................................................................12 1.2 Getting started ..........................................................................................14 1.3 Home screen ..............................................................................................19 1.4 Applications list..........................................................................................28 2 Text input ...........................................................................30 2.1 Using the onscreen keyboard.................................................................30 2.2 Text editing .................................................................................................31 3 Phone calls, Call log and Contacts ..................................32 3.1 Phone ...........................................................................................................32 3.2 Call history .................................................................................................37 3.3 Contacts ......................................................................................................37 4 Google Messaging, Gmail/Email, Google Talk ................45 4.1 Google Messaging .....................................................................................45 4.2 Gmail/Email .................................................................................................51 4.3 Google Talk .................................................................................................57 5 Google Calendar & Alarm clock & Calculator ..............60 5.1 Google Calendar .......................................................................................60 5.2 Clock ............................................................................................................62 5.3 Calculator ....................................................................................................64 6 Getting connected ............................................................65 6.1 Connecting to the Internet ....................................................................65 6.2 Browser .......................................................................................................68 6.3 Connecting to Bluetooth devices..........................................................76 6.4 Connecting to a computer via USB ......................................................78 6.5 Sharing your phone's mobile data connection ...................................79 6.6 Connecting to virtual private networks ..............................................81 7 Google Play Store ............................................................83 7.1 Locate the item you want to download and install ..........................83 7.2 Download and install ................................................................................84 7.3 Manage your downloads ..........................................................................86 8 Multimedia applications ...................................................88 8.1 Camera/Camcorder ..................................................................................88 8.2 Gallery .........................................................................................................91 8.3 YouTube .......................................................................................................93 8.4 Music ............................................................................................................94 8.5 Sound Recorder ........................................................................................97 8.6 Videos ..........................................................................................................97 8.7 FM Radio .....................................................................................................97 9 Google Maps ......................................................................99 9.1 Get My Location .......................................................................................99 9.2 Search for a location ..............................................................................100 9.3 Star a location ..........................................................................................101 9.4 Get driving, public transport or walking directions ........................102 9.5 Arrangement of layers ...........................................................................104 9.6 Join Latitude to see your friends' locations and share yours with them .................................................................................................105 10 Others ..............................................................................109 10.1 FileManager ...............................................................................................109 10.2 SyncML Client ..........................................................................................110 10.3 Other applications .................................................................................110 11 Settings ............................................................................111 11.1 Wireless & networks .............................................................................111 11.2 Call settings ..............................................................................................113 …

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-08-16 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD283 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

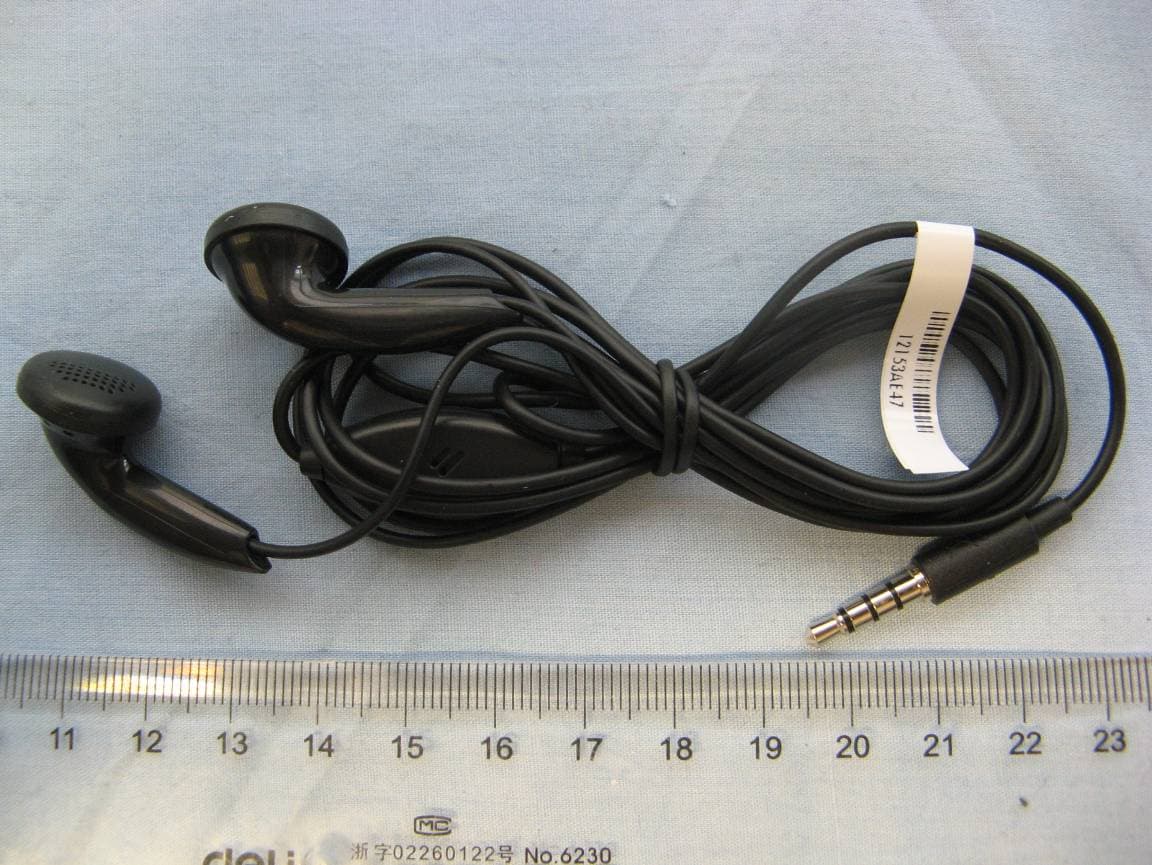

EUT photograph

EUT Label Location

EUT Interior photograph

No.2012SAR00083 Page 1 of 191 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00083 For TCT Mobile Limited HSDPA/HSUPA/UMTS dual band / GSM quad bands mobile phone Medoc Lite US ONE TOUCH 983A With Hardware Version: PIO Software Version: V526 FCC ID: RAD283 Issued Date: 2012-08-16 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00083 Page 2 of 191 Revision Version Report Number Revision Date Memo 2012SAR00083 00 2012-08-09 Initial creation of test report 2012SAR00083 01 2012-08-16 Update the product description and SW No. 2012SAR00083 Page 3 of 191 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 8 5 TEST METHODOLOGY .............................................................................................................. 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................. 11 7.1 MEASUREMENT SET-UP ................................................................................................................................ 11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM ................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION ...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT ............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT ....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER ............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM .................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM ........................ 17 8.1 GENERAL CONSIDERATIONS .......................................................................................................................... 17 8.2 BODY-WORN DEVICE .................................................................................................................................... 18 8.3 DESKTOP DEVICE .......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS .................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS ..........…

Text truncated - open the document above for the full version.

No. 2012SAR00083 Page 81 of 191 1900 Body Towards Ground High Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.523 mho/m; εr = 52.651; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.992 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.440 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.280 mW/g SAR(1 g) = 0.823 mW/g; SAR(10 g) = 0.493 mW/g Maximum value of SAR (measured) = 0.890 mW/g Fig. 40 1900 MHz CH810 No. 2012SAR00083 Page 82 of 191 1900 Body Towards Ground Middle Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.493 mho/m; εr = 52.773; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.18 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.791 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.625 mW/g SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.620 mW/g Maximum value of SAR (measured) = 1.14 mW/g Fig. 41 1900 MHz CH661 No. 2012SAR00083 Page 83 of 191 Fig. 41-1 Z-Scan at power reference point (1900 MHz CH661) No. 2012SAR00083 Page 84 of 191 1900 Body Towards Ground Low Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.46 mho/m; εr = 52.908; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.16 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.728 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.554 mW/g SAR(1 g) = 0.977 mW/g; SAR(10 g) = 0.576 mW/g Maximum value of SAR (measured) = 1.08 mW/g Fig. 42 1900 MHz CH512 No. 2012SAR00083 Page 85 of 191 1900 Body Left Side Middle Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.493 mho/m; εr = 52.773; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Left Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.219 mW/g Left Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.524 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.296 mW/g SAR(1 g) = 0.196 mW/g; SAR(10 g) = 0.121 mW/g Maximum value of SAR (measured) = 0.211 mW/g Fig. 43 1900 MHz CH661 No. 2012SAR00083 Page 86 of 191 1900 Body Right Side Middle Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.493 mho/m; εr = 52.773; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Right Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.140 mW/g Right Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.412 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.192 mW/g SAR(1 g) = 0.127 mW/g; SAR(10 g) = 0.078 mW/g Maximum value of SAR (measured) = 0.139 mW/g Right Side Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.412 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.132 mW/g SAR(1 g) = 0.087 mW/g; SAR(10 g) = 0.055 mW/g Maximum value of SAR (measured) = 0.0929 mW/g Fig. 44 1900 MHz CH661 No. 2012SAR00083 Page 87 of 191 1900 Body Bottom Side Middle Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.493 mho/m; εr = 52.773; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.379 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.089 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.527 mW/g SAR(1 g) = 0.352 mW/g; SAR(10 g) = 0.212 mW/g Maximum value of SAR (measured) = 0.382 mW/g Fig. 45 1900 MHz CH661 No. 2012SAR00083 Page 88 of 191 1900 Body Towards Ground Middle with EGPRS Date: 2012-7- 26 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.493 mho/m; εr = 52.773; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 1900MHz EGPRS Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.974 mW/g Toward Ground Middle EGPRS/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.132 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 1.269 mW/g SAR(1 g) = 0.806 mW/g; SAR(10 g) = 0.483 mW/g Maximum value of SAR (measured) = 0…

Text truncated - open the document above for the full version.

No. 2012SAR00083 Page 141 of 191 Wifi Left Cheek Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.806 mho/m; εr = 38.844; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.441 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.770 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.808 mW/g SAR(1 g) = 0.376 mW/g; SAR(10 g) = 0.172 mW/g Maximum value of SAR (measured) = 0.439 mW/g Fig. 95 2450 MHz CH1 No. 2012SAR00083 Page 142 of 191 Fig. 95-1 Z-Scan at power reference point (2450 MHz CH1) No. 2012SAR00083 Page 143 of 191 Wifi Left Tilt Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.806 mho/m; εr = 38.844; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.342 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.527 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.614 mW/g SAR(1 g) = 0.294 mW/g; SAR(10 g) = 0.142 mW/g Maximum value of SAR (measured) = 0.325 mW/g Fig. 96 2450 MHz CH1 No. 2012SAR00083 Page 144 of 191 Wifi Right Cheek Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.806 mho/m; εr = 38.844; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.159 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.680 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.299 mW/g SAR(1 g) = 0.143 mW/g; SAR(10 g) = 0.071 mW/g Maximum value of SAR (measured) = 0.163 mW/g Fig. 97 2450 MHz CH1 No. 2012SAR00083 Page 145 of 191 Wifi Right Tilt Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2412 MHz; σ = 1.806 mho/m; εr = 38.844; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Tilt Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.149 mW/g Tilt Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.930 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.271 mW/g SAR(1 g) = 0.136 mW/g; SAR(10 g) = 0.071 mW/g Maximum value of SAR (measured) = 0.146 mW/g Fig. 98 2450 MHz CH1 No. 2012SAR00083 Page 146 of 191 Wifi Body Toward Phantom Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2412 MHz; σ = 1.912 mho/m; εr = 52.283; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Toward Phantom Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.0924 mW/g Toward Phantom Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.339 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.148 mW/g SAR(1 g) = 0.077 mW/g; SAR(10 g) = 0.041 mW/g Maximum value of SAR (measured) = 0.0833 mW/g Fig. 99 2450 MHz CH1 No. 2012SAR00083 Page 147 of 191 Wifi Body Toward Ground Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2412 MHz; σ = 1.912 mho/m; εr = 52.283; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.552 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.752 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.137 mW/g SAR(1 g) = 0.539 mW/g; SAR(10 g) = 0.245 mW/g Maximum value of SAR (measured) = 0.596 mW/g Fig. 100 2450 MHz CH1 No. 2012SAR00083 Page 148 of 191 Fig. 100-1 Z-Scan at power reference point (2450 MHz CH1) No. 2012SAR00083 Page 149 of 191 Wifi Body Right Side Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2412 MHz; σ = 1.912 mho/m; εr = 52.283; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Right Side Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.247 mW/g Right Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.184 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.435 mW/g SAR(1 g) = 0.220 mW/g; SAR(10 g) = 0.112 mW/g Maximum value of SAR (measured) = 0.239 mW/g Fig. 101 2450 MHz CH1 No. 2012SAR00083 Page 150 of 191 Wifi Body To p Side Low Date: 2012-7- 27 Electronics: DAE4 Sn771 Medium: 2450 Body Medium parameters used (interpolated): f = 2412 MHz; σ = 1.912 mho/m; εr = 52.283; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.8 o C Communication System: …

Text truncated - open the document above for the full version.

The statement of WLAN test for one touch 983A The average conducted power for Wi-Fi is as following: 802.11b（dBm） Channel\data rate 1Mbps 2Mbps 5.5Mbps 11Mbps 1 15.97 15.93 15.99 15.71 6 15.83 15.81 15.86 15.64 11 15.93 15.92 15.96 15.69 802.11g（dBm） Channel\dat a rate 6Mbp s 9Mbp s 12Mbp s 18Mbp s 24Mbp s 36Mbp s 48Mbp s 54Mbp s 1 12.66 12.41 12.01 11.78 11.69 11.38 11.00 10.87 6 12.57 12.46 12.31 12.07 11.91 11.41 11.08 10.93 11 12.62 12.51 12.41 12.19 11.99 11.48 11.15 11.11 20M 802.11n（dBm） Channel\data rate MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 1 10.49 10.19 9.96 9.78 9.43 9.05 8.93 8.73 6 10.47 10.18 9.98 9.76 9.35 8.98 8.96 8.70 11 10.54 10.21 10.09 9.88 9.41 9.09 8.97 8.86 According to the KDB248227, the last paragraph in page 4, “SAR is not required for 802.11g channels when the maximum average output power is less than 1/4 dB higher than that measured on the corresponding 802.11b channel.” We should test the WLAN for 802.11b. According to the KDB248227, the last paragraph in page 6, “For each frequency band, testing at higher data rates and higher order modulations is not required when the maximum average output power for each of these configurations is less than 1/4 dB higher than those measured at the lowers data rate.” We should test the WLAN for 802.11b-1Mbps. The maximum power of WLAN appears in 802.11b-5.5Mbps, but it is less than 1/4 dB higher than the power of 802.11b-1Mbps. So the WLAN in 802.11b-5.5Mbps is not required.

No.2012TAR375 Page1 of 92 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012TAR375 for TCT Mobile Limited HSDPA/HSUPA/UMTS dual band / GSM quad bands mobile phone Model Name: Medoc Lite US Marketing Name: ONE TOUCH 983A FCC ID: RAD283 With Hardware Version: PIO Software Version: V526 Issued Date: 2012-08-16 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012TAR375 Page2 of 92 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS 2 1. TEST LABORATORY 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS 7 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 7 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 7 5. LABORATORY ENVIRONMENT 8 6. SUMMARY OF TEST RESULTS 9 6.1. S UMMARY OF TEST RESULTS ........................................................................................................... 9 6.2. S TATE MEN TS .................................................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED 10 ANNEX A: MEASUREMENT RESULTS 11 A.1. MEASUREMENT METHOD ................................................................................................................... 11 A.2. PEAK OUTPUT POWER - CONDUCTED .............................................................…

Text truncated - open the document above for the full version.
