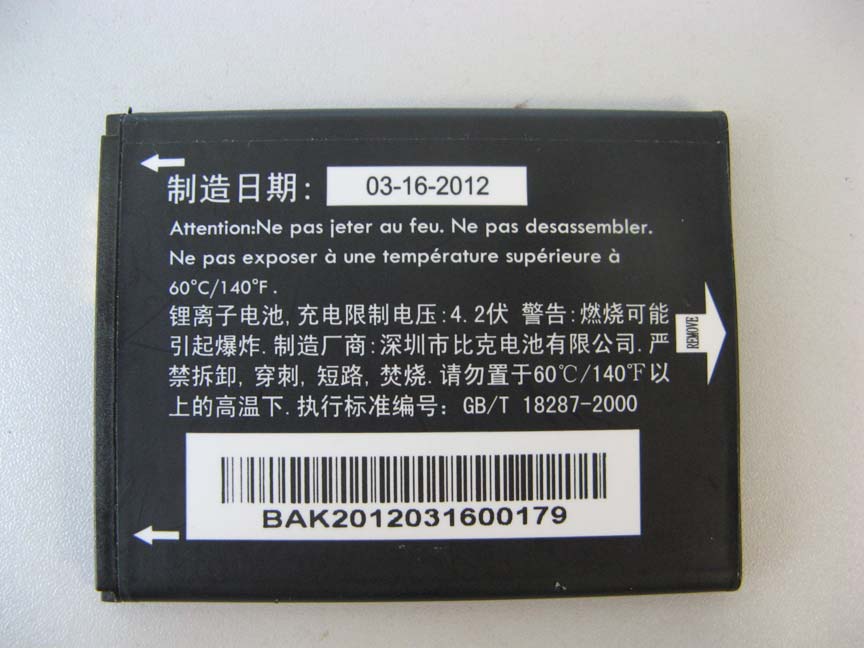

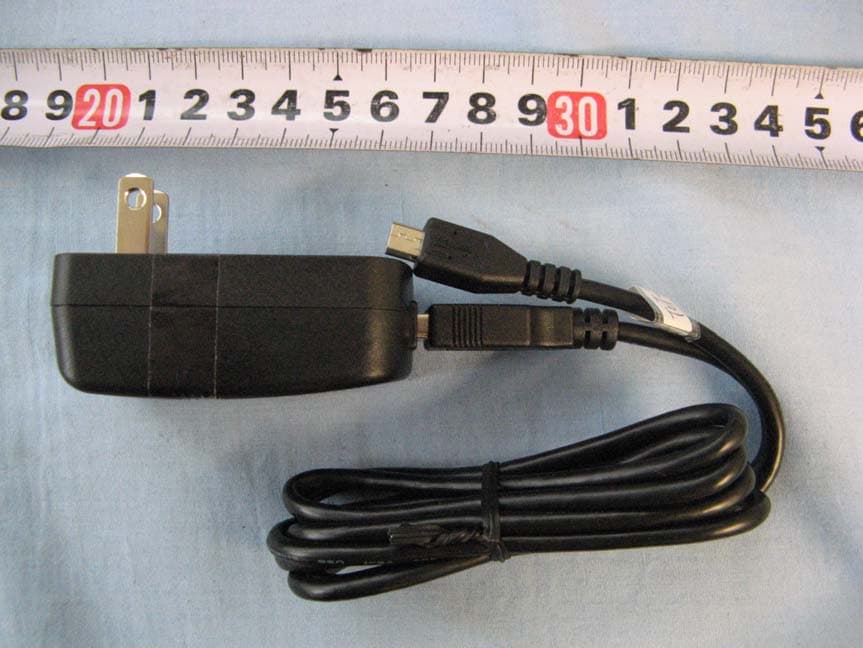

EUT photograph

Label placement:

EUT Interior photograph

No.2012SAR00092 Page 1 of 178 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00092 For TCT Mobile Limited CDMA2000 Triple bands mobile phone Model Name: Aeneas Duralife Marketing Name: ONE TOUCH 988 With Hardware Version: V02 Software Version: vK29 FCC ID：RAD284 Issued Date: 2012-08-20 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00092 Page 2 of 178 Revision Version Report Number RevisionDate Memo 2012SAR00092 00 2012-08-20 Initial creation of test report No. 2012SAR00092 Page 3 of 178 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 8 5 TEST METHODOLOGY .............................................................................................................. 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................. 11 7.1 MEASUREMENT SET-UP ................................................................................................................................ 11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM ................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION ...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT ............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT ....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER ............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM .................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM ........................ 17 8.1 GENERAL CONSIDERATIONS .......................................................................................................................... 17 8.2 BODY-WORN DEVICE .................................................................................................................................... 18 8.3 DESKTOP DEVICE .......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS .................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS ......................................................................…

Text truncated - open the document above for the full version.

No. 2012SAR00092 Page 89 of 178 CDMA1700 Body Towards Phantom Middle with Headset CCB3001A14C1 Date: 2012-8-16 Electronics: DAE4 Sn771 Medium: Body 1750 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.509 mho/m; εr = 54.038; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CDMA 1700 Frequency: 1732.5 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.84, 4.84, 4.84) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.28 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.495 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.682 mW/g SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.707 mW/g Maximum value of SAR (measured) = 1.26 mW/g Fig. 45 1750 MHz CH450 No. 2012SAR00092 Page 90 of 178 CDMA1700 Body Towards Phantom Middle with battery CAB60B0000C2 Date: 2012-8-16 Electronics: DAE4 Sn771 Medium: Body 1750 MHz Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.509 mho/m; εr = 54.038; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CDMA 1700 Frequency: 1732.5 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.84, 4.84, 4.84) Toward Phantom Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.39 mW/g Toward Phantom Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.543 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.835 mW/g SAR(1 g) = 1.25 mW/g; SAR(10 g) = 0.774 mW/g Maximum value of SAR (measured) = 1.36 mW/g Fig. 46 1750 MHz CH450 No. 2012SAR00092 Page 91 of 178 CDMA 1900 Left Cheek High Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.46 mho/m; εr = 40.852; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.19 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.462 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.616 mW/g SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.633 mW/g Maximum value of SAR (measured) = 1.16 mW/g Fig. 47 1900 MHZ CH1175 No. 2012SAR00092 Page 92 of 178 CDMA 1900 Left Cheek Middle Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.431 mho/m; εr = 40.966; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.03 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.950 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.402 mW/g SAR(1 g) = 0.910 mW/g; SAR(10 g) = 0.554 mW/g Maximum value of SAR (measured) = 0.996 mW/g Fig. 48 1900 MHZ CH600 No. 2012SAR00092 Page 93 of 178 CDMA 1900 Left Cheek Low Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.408 mho/m; εr = 41.108; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CDMA 1900 Frequency: 1851.25 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.24 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.538 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.661 mW/g SAR(1 g) = 1.1 mW/g; SAR(10 g) = 0.677 mW/g Maximum value of SAR (measured) = 1.20 mW/g Fig. 49 1900 MHZ CH25 No. 2012SAR00092 Page 94 of 178 Fig. 49-1 Z-Scan at power reference point (1900 MHZ CH25) No. 2012SAR00092 Page 95 of 178 CDMA 1900 Left Tilt High Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.46 mho/m; εr = 40.852; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CDMA 1900 Frequency: 1908.75 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Tilt High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.431 mW/g Tilt High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.755 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.637 mW/g SAR(1 g) = 0.404 mW/g; SAR(10 g) = 0.238 mW/g Maximum value of SAR (measured) = 0.437 mW/g Fig. 50 1900 MHZ CH1175 No. 2012SAR00092 Page 96 of 178 CDMA 1900 Left Tilt Middle Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.431 mho/m; εr = 40.966; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Tilt Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.365 mW/g Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.744 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.545 mW/g SAR(1 g) = 0.352 mW/g; SAR(10 g) = 0.215 mW/g Maximum value of SAR (measured) = 0.383 mW/g Fig. 51 1900 MHZ CH600 No. 2012SAR00092 Page 97 of 178 CDMA 1900 Left Tilt Low Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.408 mho/m; εr = 41.108; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature…

Text truncated - open the document above for the full version.

No. 2012SAR00092 Page 133 of 178 1900MHz Date: 2012-8-17 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.506 mho/m; ε r = 52.67; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.5 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.073 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 16.704 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.40 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.5 mW/g = 21.21 dB mW/g Fig.85 validation 1900MHz 250mW No. 2012SAR00092 Page 134 of 178 2450MHz Date: 2012-8-14 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.831 mho/m; ε r = 38.94; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) System Validation/Area Scan (81x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.9 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.612 V/m; Power Drift = 0.036 dB Peak SAR (extrapolated) = 26.153 mW/g SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.98 mW/g Maximum value of SAR (measured) = 14.7 mW/g 0 dB = 14.9 mW/g = 23.49 dB mW/g Fig.86 validation 2450MHz 250mW No. 2012SAR00092 Page 135 of 178 2450MHz Date: 2012-8-14 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.874 mho/m; ε r = 52.17; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: CW Frequency: 2450 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) System Validation/Area Scan (81x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 14.9 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.095 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 26.147 mW/g SAR(1 g) = 12.9 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 14.8 mW/g 0 dB = 14.9 mW/g = 23.49 dB mW/g Fig.87 validation 2450MHz 250mW No. 2012SAR00092 Page 136 of 178 ANNEX C PROBE CALIBRATION CERTIFICATE No. 2012SAR00092 Page 137 of 178 No. 2012SAR00092 Page 138 of 178 No. 2012SAR00092 Page 139 of 178 No. 2012SAR00092 Page 140 of 178 No. 2012SAR00092 Page 141 of 178 No. 2012SAR00092 Page 142 of 178 No. 2012SAR00092 Page 143 of 178 No. 2012SAR00092 Page 144 of 178 No. 2012SAR00092 Page 145 of 178 No. 2012SAR00092 Page 146 of 178 No. 2012SAR00092 Page 147 of 178 ANNEX D DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No. 2012SAR00092 Page 148 of 178 No. 2012SAR00092 Page 149 of 178 No. 2012SAR00092 Page 150 of 178 No. 2012SAR00092 Page 151 of 178 No. 2012SAR00092 Page 152 of 178 No. 2012SAR00092 Page 153 of 178 No. 2012SAR00092 Page 154 of 178 No. 2012SAR00092 Page 155 of 178 1750 MHz Dipole Calibration Certificate No. 2012SAR00092 Page 156 of 178 No. 2012SAR00092 Page 157 of 178 No. 2012SAR00092 Page 158 of 178 No. 2012SAR00092 Page 159 of 178 No. 2012SAR00092 Page 160 of 178 No. 2012SAR00092 Page 161 of 178 No. 2012SAR00092 Page 162 of 178 No. 2012SAR00092 Page 163 of 178 1900 MHz Dipole Calibration Certificate No. 2012SAR00092 Page 164 of 178 No. 2012SAR00092 Page 165 of 178 No. 2012SAR00092 Page 166 of 178 No. 2012SAR00092 Page 167 of 178 No. 2012SAR00092 Page 168 of 178 No. 2012SAR00092 Page 169 of 178 No. 2012SAR00092 Page 170 of 178 No. 2012SAR00092 Page 171 of 178 2450 MHz Dipole Calibration Certificate No. 2012SAR00092 Page 172 of 178 No. 2012SAR00092 Page 173 of 178 No. 2012SAR00092 Page 174 of 178 No. 2012SAR00092 Page 175 of 178 No. 2012SAR00092 Page 176 of 178 No. 2012SAR00092 Page 177 of 178 No. 2012SAR00092 Page 178 of 178

No. 2012WLN0397 Page1 of 99 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012WLN0397 for TCT Mobile Limited CDMA2000 Triple bands mobile phone Type: Aeneas Duralife Market Name: ONE TOUCH 988 With FCC ID: RAD284 Hardware Version: V02 Software Version: Vk29 Issued Date: 2012-08-21 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)10-62304633, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2012WLN0397 Page2 of 99 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ................................................................................................................. 6 1.1. TESTING LOCATION ......................................................................................................................... 6 1.2. TESTING ENVIRONMENT .................................................................................................................. 6 1.3. PROJECT DATA ................................................................................................................................. 6 1.4. SIGNATURE ...................................................................................................................................... 6 2. CLIENT INFORMATION ........................................................................................................... 7 2.1. APPLICANT INFORMATION ............................................................................................................... 7 2.2. MANUFACTURER INFORMATION ...................................................................................................... 7 3. EQUIPMENT UNDER TEST(EUT) AND ANCILLARY EQUIPMENT(AE) ....................... 8 3.1. ABOUT EUT .................................................................................................................................... 8 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 8 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 8 3.4. GENERAL DESCRIPTION ................................................................................................................... 8 4. REFERENCE DOCUMENTS ..................................................................................................... 9 4.1. DOCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 9 4.2. REFERENCE DOCUMENTS FOR TESTING .............................................................................. 9 5. LABORATORY ENVIRONMENT ........................................................................................... 10 6. SUMMARY OF TEST RESULTS .............................................................................................. 11 6.1. SUMMARY OF TEST RESULTS ..........................................................................................................11 6.2. STATEMENTS ...................................................................................................................................11 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 12 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 13 A.1. MEASUREMENT METHOD .................................................................................................................. 13 A.2. MAXIMUM OUTPUT POWER ............................................................................................................... 14 A.2.1. MAXIMUM PEAK OUTPUT POWER-CONDUCTED ............................................................................. 14 A.2.2. MAXIMUM AVERAGE OUTPUT POWER-CONDUCTED ....................................................................... 16 A.3. PEAK POWER SPECTRAL DENSITY ..................................................................................................... 17 FIG. 1 POWER SPECTRAL DENSITY (802.11B, CH 1) ........................................................................ 18 FIG. 2 POWER SPECTRAL DENSITY (802.11B, CH 6) ........................................................................ 18 FIG. 3 POWER SPECTRAL DENSITY (802.11B, CH 11) ...................................................................... 19 FIG. 4 POWER SPECTRAL DENSITY (802.11G, CH 1) ........................................................................ 19 FIG. 5 POWER SPECTRAL DENSITY (802.11G, CH 6) ........................................................................ 20 FIG. 6 POWER SPECTRAL DENSITY (802.11G, CH 11) ...................................................................... 20 FIG. 7 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 1) .......................................................... 21 FIG. 8 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 6) .......................................................... 21 FIG. 9 POWER SPECTRAL DENSITY (802.11N-20MHZ, CH 11) ........................................................ 22 No. 2012WLN0397 Page3 of 99 ©Copyright. All rights reserved by TMC Beijing. A.4. OCCUPIED 6DB BANDWIDTH ....................................................................................…

Text truncated - open the document above for the full version.

©Copyright. All rights reserved by TMC Beijing. The Photos of SAR test No. 2012SAR00092 For TCT Mobile Limited CDMA2000 Triple bands mobile phone Model Name: Aeneas Duralife Marketing Name: ONE TOUCH 988 With Hardware Version: V02 Software Version: vK29 FCCID：RAD284 Issued Date: 2012-08-20 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Picture 1: Constituents of the sample Picture 2: Left Hand Touch Cheek Position Picture 3: Left Hand Tilt 15° Position Picture 4: Right Hand Touch Cheek Position Picture 5: Rig…
