RAD286GSM/GPRS Quadband mobile phone

1 9 2 10 3 11 4 12 5 13 6 14 7 15 8 16 1 Your mobile .............. 1.1 Keys Navigation key Confirm an option (press the middle of the key) Activate music player (press and hold the middle of key) Scroll widget bar (press the right or left of the key) Answer Send a call In idle screen: Access call log (Redial) (press) Activate fake call (press and hold) Switch on/Switch off the mobile phone (press and hold) End call Return to idle screen Left softkey Right softkey Access your voicemail (press and hold) In idle screen: Press and hold/Press: Lock/Unlock the keypad In edit mode: Press: input space Press and hold: switch language In idle screen: Press to access shortcuts Fn + P: Access to Profiles Fn + Q: Access to Clock Fn + S: Access to Notes In edit mode: Press once: Input a top-half character Press twice: Lock the keyboard in top-half key input mode, then press again to unlock top-half character input mode In edit mode: Press: popup symbol page to select special character using the navigation key Delete one by one (press) Delete one by one quickly (press and hold) Move cursor to the next line In idle screen: Press and hold: Switch on/off the flashlight In edit screen: Press: Switch the uppercase and lowercase 2 Getting started ......... 2.1 Set-up Removing and installing the back cover Removing and installing the battery Removing and inserting the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. Charging the battery (1) Connect the battery charger to your phone and outlet respectively. The charging may take about 20 minutes to start if the • battery is flat. Be careful not to force the plug into the socket.• Make sure the battery is correctly inserted before • connecting the charger. The outlet must be near to the phone and easily • accessible (avoid electric extension cables). When using your • mobile phone for the first time, charge the battery fully (approximately 3 hours). You are advised to fully charge the battery ( ). To reduce power consumption and energy waste, when • battery is fully charged, disconnect your charger from the plug; reduce the backlight time, etc. The charge is complete when the animation stops. 6 Email ..................... Your phone has an email client with the settings predefined for a few popular email services like – GoogleMail, Windows live, Yahoo, AOL, etc. (1) Besides this, you can set up other POP3 or IMAP4 email accounts that you may be using. 7 WAP ..................... Access Wap options: Homepage, Bookmarks, Recent pages, Offline pages, Go to URL, Settings. 8 Camera ................ Your mobile phone is fitted with a camera for taking photos that you can use in different ways: store them in your "• File manager\My creations". send them in a multimedia message (MMS) to a mobile • phone or an email address. customize your main screen.• select them as incoming call image to a contact in your • directory. (1) Depending on your network operator. Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your phone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. (1) The icons and illustrations in this guide are provided for information purposes only. (2) Depending on your network operator. English - CJB24X3SFAAN 4 Contacts .............. 4.1 Consulting your contacts To access the contacts from the main screen, press the key and select the icon from the menu. 4.2 Adding a contact Select the directory in which you wish to add contact, press the "Options" softkey, select "Add contact". 5 Messaging ............ 5.1 Create message From the main menu select "Messaging" to create text/ multimedia message. You can type a message and you can also modify a predefined message in Templates or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). While writing a message, select "Options" to access all the messaging options. You can save your messages that you send often to Drafts or Templates (MMS only). Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 3 Calls .......................... 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the right softkey. To hang up the call, press the key. Making an emergency call If your phone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Calling your voicemail (1) To access your voicemail, hold down the key. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 3.4 Available functions during the call During a call, you can use your directory, text messages, etc. without hanging up or dropping the call. (1) Contact your network operator to check service availability. 1.2 Main screen icons (1) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep Headset connected Keypad locked Call forwarding activated: your calls are forwarded. Alarm or appointments programmed Level of network reception Voicemail message arrived Missed calls Radio is on WAP alerts (2) Roaming 9 Media .................... 9.1 Music player Access this feature from the main menu by selecting “Media\ Music player”. You will have full flexibility of managing music both on your mobile and memory card. 9.2 FM Radio Your phone is equipped with a radio (1) with RDS (2) functionality. You can u…

Text truncated - open the document above for the full version.

Antenna Details for Text Edition 153 by SFR RF antenna: IFA Antenna BAND GSM850 GSM900 DCS1800 PCS1900 Gain 1.10dBi 0.64dBi 1.15dBi -0.32dBi

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-05-31 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 5/31/2012 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD286 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

Declaration of USB Port Text Edition 153 by SFR use a mini-USB port in handset. This USB port only support charging, don’t support headset and data transmission function . Signature: Print name: Zhanghongmei Date: 2012.06.12 Company: TCT Mobile Limited

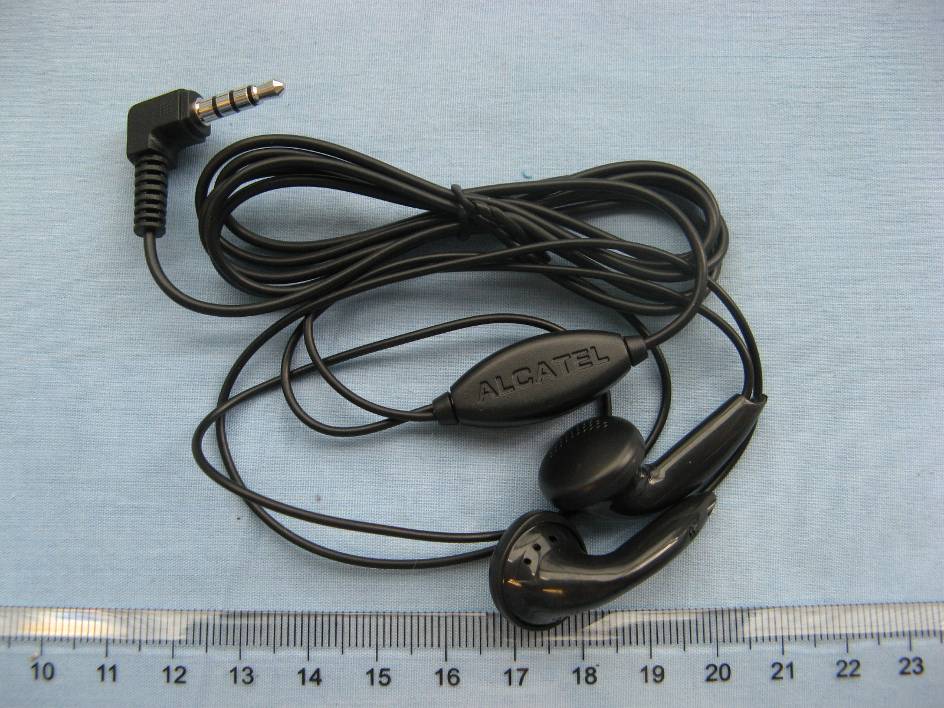

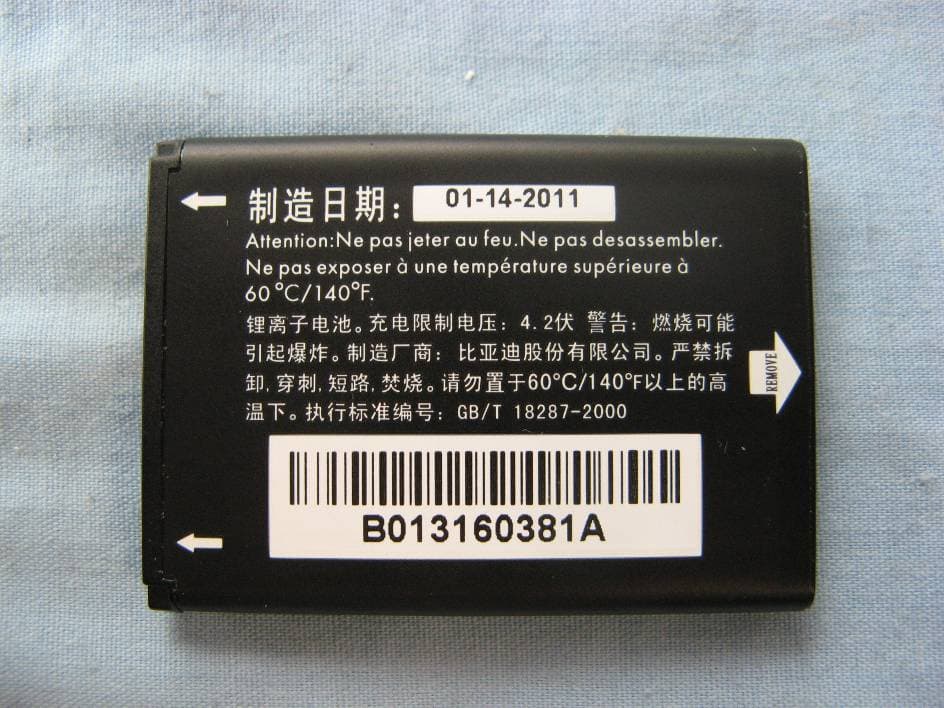

EUT photograph Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE3 Battery AE3 Charger AE6 Label of Charger AE6 Label of Charger AE7 Label of Charger AE7 Charger AE10 Label of Charger AE10 Label of Charger AE11 Label of Charger AE11 Charger AE12 Label of Charger AE12 Headset AE13 Headset AE14 Headset AE15 Headset AE16 Data Cable AE17 Data Cable AE18 Data Cable AE19 Data Cable AE20 Charger AE21 Label of Charger AE21 Charger AE22 Label of Charger AE22 Charger AE23 Label of Charger AE23 Charger AE24 Label of Charger AE24 Charger AE25 Label of Charger AE25

Label

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 101 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 102 of 120 ANNEX F: D1900V2 Dipole Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 103 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 104 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 105 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 106 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 107 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 108 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 109 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 110 of 120 ANNEX G: DAE4 Calibration Certificate TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 111 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 112 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 113 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 114 of 120 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 115 of 120 ANNEX H: The EUT Appearances and Test Configuration a: EUT b: Battery 1 c: Battery 2 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 116 of 120 d: Stereo Headset 1 e: Stereo Headset 2 Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 117 of 120 Picture 7: Left Hand Touch Cheek Position Picture 8: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 118 of 120 Picture 9: Right Hand Touch Cheek Position Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 119 of 120 Picture 11: Body, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm Picture 12: Body, The EUT display towards phantom, the distance from EUT to the bottom of the Phantom is 15mm 15mm 15mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 120 of 120 Picture 13: Body with Stereo Headset 1, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm Picture 14: Body with Stereo Headset 2, The EUT display towards ground, the distance from EUT to the bottom of the Phantom is 15mm 15mm 15mm

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 1 of 120 TESTING No. L2264 OET 65 TEST REPORT Product Name GSM/GPRS Quadband mobile phone Model Name Fastlane SFR Marketing Name Text Edition 153 by SFR FCC ID RAD286 Client TCT Mobile Limited TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 2 of 120 GENERAL SUMMARY Product Name GSM/GPRS Quadband mobile phone Model Fastlane SFR Report No. RXA1205-0176SAR01R1 FCC ID RAD286 Client TCT Mobile Limited Manufacturer TCT Mobile Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: May 31 th , 2012 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1205-0176SAR01R1 Page 3 of 120 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY4 E-field Probe System ............................................................................................. 11 2.2.1. EX3DV4 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment .........................................................................................................12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom...................................................................................................................... 13 2.4. Scanning Procedure........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 19 5. System Check ............................................................................................................................ 20 5.1. Description of System Check .............................................................................................. 20 5.2. System Check Results ........................................................................................................ 21 6. Operational Conditions during Test ............................................................................................ 22 6.1. General Description of Test Procedures............................................................................. 22 6.2. Test Positions...................................................................................................................... 22 6.2.1. Against Phantom Head ................................................................................................ 22 6.2.2. Body Worn Configuration..........…

Text truncated - open the document above for the full version.

No.2012TAR289 Page1 of 72 TEST REPORT No. 2012TAR289 for TCT Mobile Limited GSM/GPRS Quadband mobile phone Model Name: Fastlane SFR Marketing Name：Text Edition 153 by SFR FCC ID: RAD286 with Hardware Version: Proto Software Version: VJ72 Issued Date: May 25, 2012 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2012TAR289 Page2 of 72 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMT ............................................................................................................................ 17 A.3 CONDUCTED EMISSION ............................................................................................................. 23 A.4 FREQUENCY STABILITY ............................................................................................................ 30 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 32 A.6 EMISSION BANDWIDTH ................................................................................................................ 40 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 48 A.8 CONDUCTED SPURIOUS EMISSION............................................................................................ 52 No.2012TAR289 Page3 of 72 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: May 03, 2012 Testing End Date: May 25, 2012 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR289 Page4 of 72 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2012TAR289 Page5 of 72 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS Quadband mobile phone Model Name Fastlane SFR Marketing Name Text Edition 153 by SFR FCC ID RAD286 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Bat…

Text truncated - open the document above for the full version.

FCC ID RAD286 Conducted emission Radiated Spurious Emission
