RAD287UMTS Triband / GSM Quadband mobile phone

12 Introduction ................................ Thank you for purchasing your new TMobile 768 3G phone. The TMobile 768 comes equipped with many of the features and functions you want and need. Home screen • Convenient at-a-glance view of Shortcut applications • Menu shortcuts for quick access Power media applications • Music & Radio • Video & Streaming • Webcam Bluetooth With Bluetooth 2.1 supporting A2DP profiles, you can enjoy hands-free conversations. Table of contents General information ........................................................... 6 1 Getting started .............................................................. 7 1.1 Set-up ..................................................................................................... 7 1.2 Power on your phone ........................................................................ 9 1.3 Power off your phone ........................................................................ 9 2 Your mobile ................................................................. 10 2.1 Keys and connectors ........................................................................10 2.2 Status bar icons ..................................................................................13 2.3 Home screen ......................................................................................16 3 Making a call ................................................................ 17 3.1 Placing a call ........................................................................................17 3.2 Calling your voicemail ......................................................................17 3.3 Receiving a call ...................................................................................18 3.4 During a call ........................................................................................18 3.5 Conference calls ................................................................................20 4 Messaging ..................................................................... 21 4.1 Access ..................................................................................................21 4.2 SMS/MMS .............................................................................................21 4.3 Email .....................................................................................................26 34 5 Contacts ....................................................................... 29 5.1 Contacts ..............................................................................................29 5.2 Adding a contact ................................................................................30 5.3 Available options................................................................................31 6 Call log .......................................................................... 33 6.1 Access ..................................................................................................33 6.2 Available options................................................................................33 7 Media ............................................................................ 34 7.1 Camera.................................................................................................34 7.2 Music player .......................................................................................37 7.3 Picture viewer ....................................................................................39 7.4 Video player ........................................................................................39 7.5 FM Radio..............................................................................................40 7.6 Voice recorder ...................................................................................41 7.7 Ebook ...................................................................................................42 7.8 Files ......................................................................................................42 8 MobileLife ..................................................................... 47 8.1 Homepage ...........................................................................................47 8.2 Bookmarks ..........................................................................................47 8.3 Go to URL ..........................................................................................47 8.4 Open file ..............................................................................................47 8.5 Last web address ...............................................................................47 8.6 Recent pages .......................................................................................47 8.7 Offline pages .......................................................................................47 8.8 Service inbox ......................................................................................47 8.9 Settings ...............................................................................................47 9 Applications ................................................................. 48 9.1 WEB ......................................................................................................48 9.2 News ....................................................................................................48 9.3 Weather ..............................................................................................49 9.4 Java ........................................................................................................49 10 Tools ............................................................................. 51 10.1 Alarm ....................................................................................................51 10.2 Calculator ............................................................................................51 10.3 Calendar ...........................…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-10-10 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD287 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

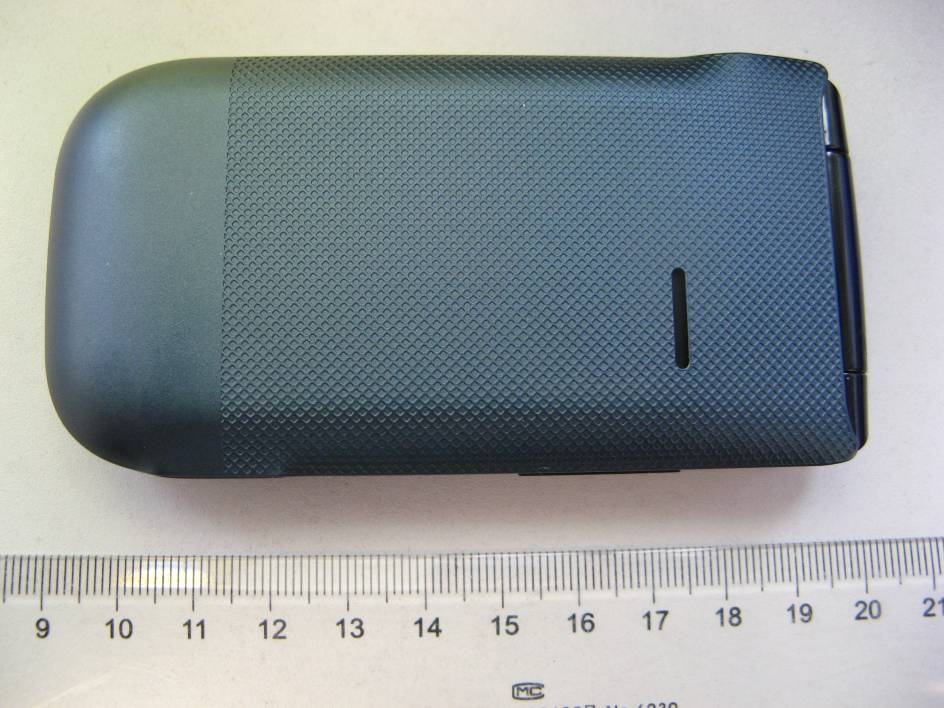

RAD287 external photo Battery Battery Charger 1 Label of Charger 1 Charger 2 Label of Charger 2 Headset 1 Headset 2

RAD287, label placement

RAD287 internal photos Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

No.2012TAR437 Page 1 of 21 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2012TAR437 for TCT Mobile Limited UMTS Triband / GSM Quadband mobile phone Model Name: ONE TOUCH 768T FCC ID: RAD287 IC No.: 9238A-0012 with Hardware Version: PIO01 Software Version: swC22 Issued Date: 2012-09-27 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633-2561 , Fax:+86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No.2012TAR437 Page 2 of 21 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. EUT SET-UPS ..................................................................................................................... 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 11 No.2012TAR437 Page 3 of 21 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China Postal Code: 100191 Telephone: 0086-10-62304633-2561 Fax: 0086-10-62304633-2504 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Aug. 23 rd , 2012 Testing End Date: Aug. 24 th , 2012 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2012TAR437 Page 4 of 21 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-61460890 Fax: 0086 21 61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086 21 61460602 No.2012TAR437 Page 5 of 21 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description UMTS Triband / GSM Quadband mobile phone Model Name ONE TOUCH 768T FCC ID RAD287 IC Number 9238A-0012 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT1 013303000050545 PIO01 swC22 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery B097155EA0A AE2 Battery B152153A1AA AE3 Battery B152153A1CA AE4 Travel charger / AE5 Travel charger / AE8 USB cable / AE9 USB cable / AE10 USB cable / AE11 USB cable / AE1, AE2, AE3 Model CAB3120000C1 Manufacturer BYD Capacitance 850mAh Nominal voltage 3.7V AE4 Model CBA3002AG0C1 Manufacturer BYD Length of cable 121cm AE5 Model CBA3002AG0C3 Manufacturer BYD Length of cable 127cm AE8 Model CDA3122002C1 Manufacturer Juwei Length of cable 150cm No.2012TAR437 Page 6 of 21 ©Copyright. All rights re…

Text truncated - open the document above for the full version.

RAD287 FCC test setup photo 1． Radiated Spurious Emission 2． Conducted Emission(Charging) 3． Conducted Emission(USB) 4． Radiated Emission(Charging) 5． Radiated Emission(USB)
