RAD292HSPA+ USB MODEM

1 User Manual Table of Contents 1. Safety and Use ........................................................................ 2 2. Installation Guide .................................................................... 3 3. Main Interface Overview ........................................................ 5 4. Connect to Internet ................................................................ 6 5. Statistics .................................................................................. 7 6. Communication ...................................................................... 7 7. Settings ................................................................................. 10 8. Browser ................................................................................. 12 9. Warranty ............................................................................... 13 10. FAQs .................................................................................... 14 11.Certification ......................................................................... 15 2 One Touch X500W product is brand new models data card. It works at GSM/EDGE Quad‐band, GSM850, GSM900, DCS1800 and PCS1900 band. It also works at UMTS Tri‐band, UMTS900, UMTS1900, and UMTS2100. 1. Safety and Use We recommend that you read this chapter carefully before using your modem. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of the modem or of use contrary to the instructions contained herein. Traffic Safety When driving, do not use the modem:  When switched on, the modem emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti‐lock brakes or airbags. To ensure that there is no problem, please do not place the modem on top of the dashboard or within an airbag deployment area.  Check with your car dealer or the car manufacturer to make sure that the dashboard is adequately shielded from modem RF energy. Conditions of Use 1. Switch the modem off before boarding an aircraft. 2. Switch the modem off when you are in health care facilities, except in designated areas. As with many other types of equipment now in regular use, mobile Tele‐modems can interfere with other electrical or electronic devices, or equipment‐using radio frequencies. 3. Switch the modem off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, chemical plant, or in any potentially explosive atmosphere. 4. When the modem is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump, etc. 5. Do not let children use the modem without supervision. The modem may contain small parts that could become detached and create a choking hazard. 6. When replacing the cover, please note that the modem may contain substances that could create an allergic reaction. 7. Always handle the modem with care and keep it in a clean and dust‐free place. 8. Do not open, dismantle or attempt to repair the modem yourself. 9. Do not drop, throw or bend the modem. 3 10. Do not paint the modem. Collection Point: This symbol on the modem means that it must be taken to collection points at the end of their life:  Municipal waste disposal centers with specific bins for these items of equipment Collection bins at points of sale.  They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union countries: These collection points are accessible free of charge. All products with this symbol must be brought to these collection points. In non European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. In the United States, please visit www.recyclewirelessphones.org for more information on recycling wireless products. Protection against theft The modem is identified by an IMEI (modem serial number) shown on the packaging label and in the modem’s dashboard. We recommend that you note the number the first time you use the modem by opening the dashboard “Settings” > “Diagnostics” to get it. Disclaimer There may be certain differences between the user manual description and the modem’s operation, depending on the software release of the modem or specific operator services. 2. Installation Guide 2.1 Installation Guide for Windows Installation procedures may vary based on the operating system installed on your PC. The following instructions are based on the Windows XP OS: 4 Turn on your PC and plug the modem into the USB interface slot to begin software installation. Windows should automatically detect the new device and will prompt you to begin installation. After following the prompts of installation setup, upon completion, a shortcut will be placed on your desktop for quick future access. Note: 1. If installation “auto‐run” does not begin, you will need to locate the “autoRun.exe)” file in the driver path, and Double‐Click on AutoRun.exe to run the installation manually. 2. A Micro‐SD card is an optional accessory. 3. Please do not remove the USIM/SIM card or the Micro‐SD card when the modem is in use. Upon successful installation of the USB modem program, the program will launch automatically. You may also double‐click the short cut icon on the desktop to launch the program. 2.2 Installation Guide for Mac This manual describes the operations of the connect application. This application requires MAC OS X10.4.9 or 10.7 1. To install the modem connect application on MAC OS X. Please double‐click the file My Connection.pkg 2. Click Continue 3. Select the Partition to install the application and click “Continue Installation” 4. When the installation is finished, you need to restart your computer to use t…

Text truncated - open the document above for the full version.

Date: June 14, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The TCT Mobile Limited. ,the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd.,, to act on the behalf of the TCT Mobile Limited. solely in matters relating to the application for an FCC equipment authorization for FCC ID # RAD292 including the signing of documents in connection with this Application. Necessary acts carried out by TCT Mobile Limited.on our behalf of the TCT Mobile Limited.in connection with the Application shall have the same effect as acts of the TCT Mobile Limited.. The TCT Mobile Limited.also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Yours Sincerely, Zhizhou Gong Project Manager

Date: June 14, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: TCT Mobile Limited FCC ID: RAD292 FCC Part 22 & 24 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457& 0.459 pertaining to confidentiality material. TCT Mobile Limited requests that the following documents regarding this submission for FCC ID: RAD292 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX RAD292_Block Diagram.pdf Schematics CONF APPENDIX RAD292_Schematics.pdf Operational Description CONF APPENDIX RAD292_Operational Description.pdf Part list CONF APPENDIX RAD292_BOM.pdf Tune-Up-Procedure CONF APPENDIX RAD292_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which TCT Mobile Limited considers to be confidential proprietary, a custom design and , otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, TCT Mobile Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Zhizhou Gong Project Manager

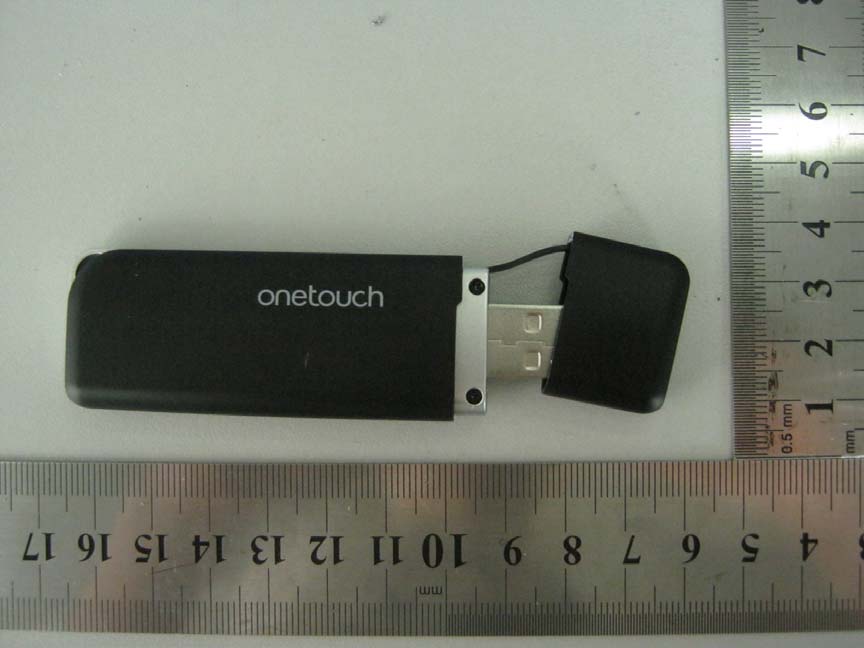

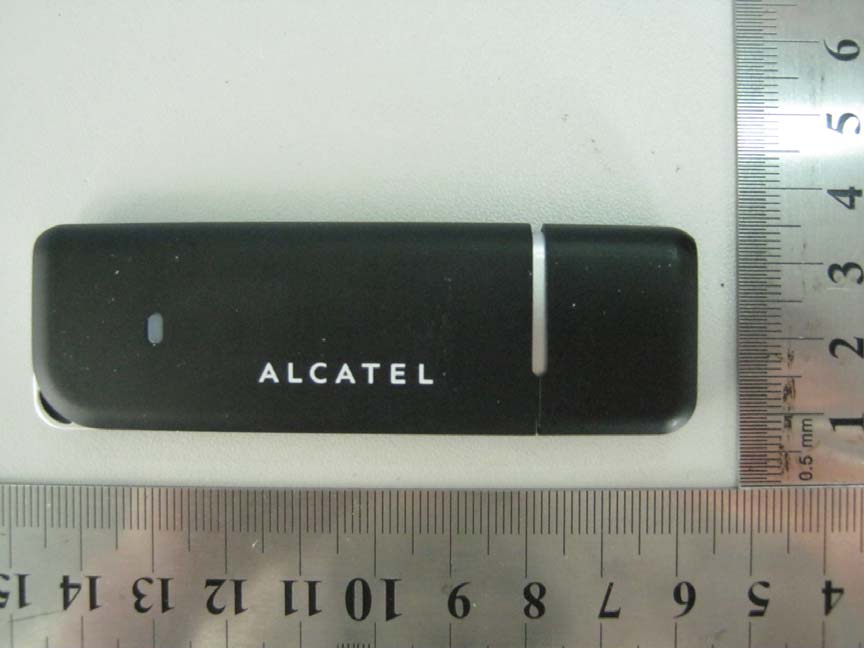

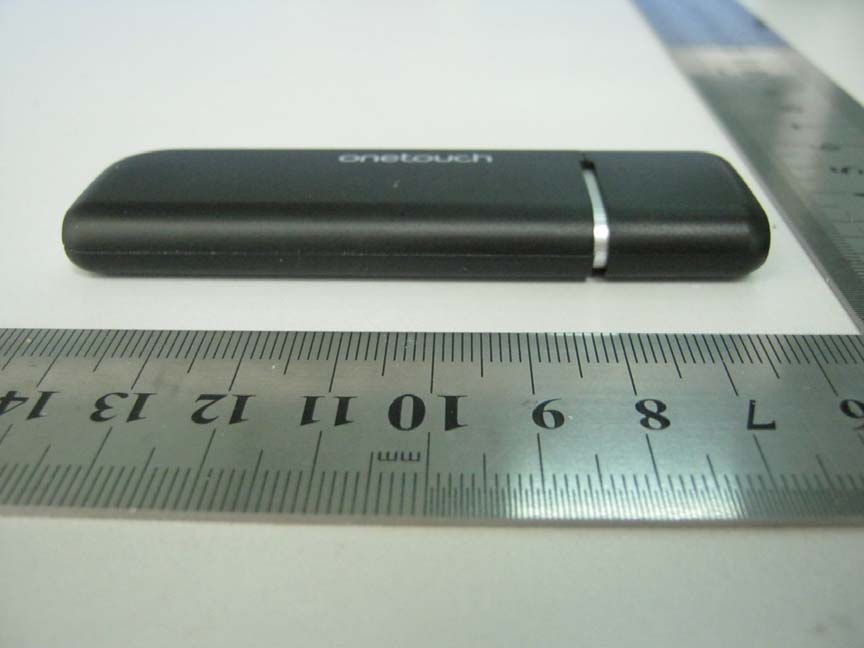

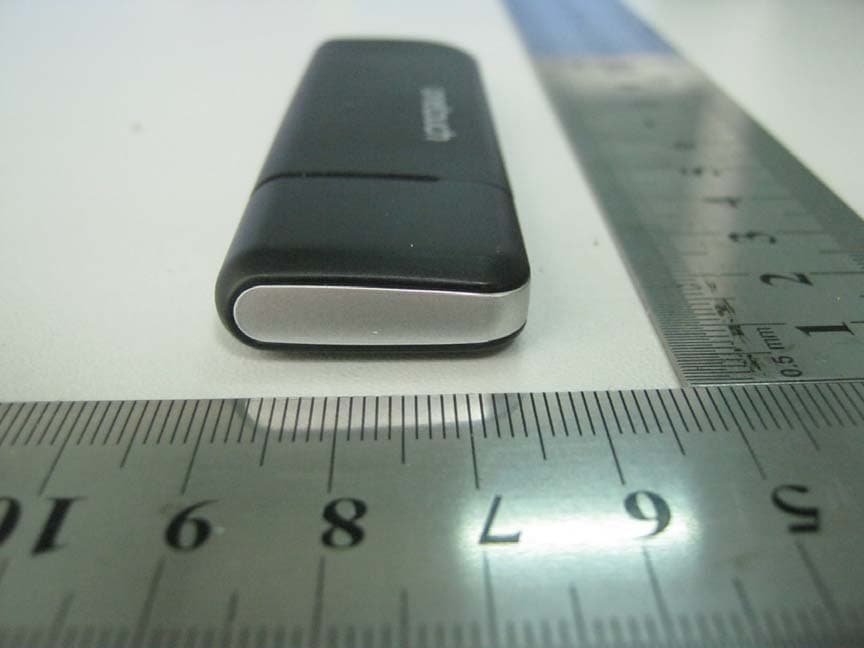

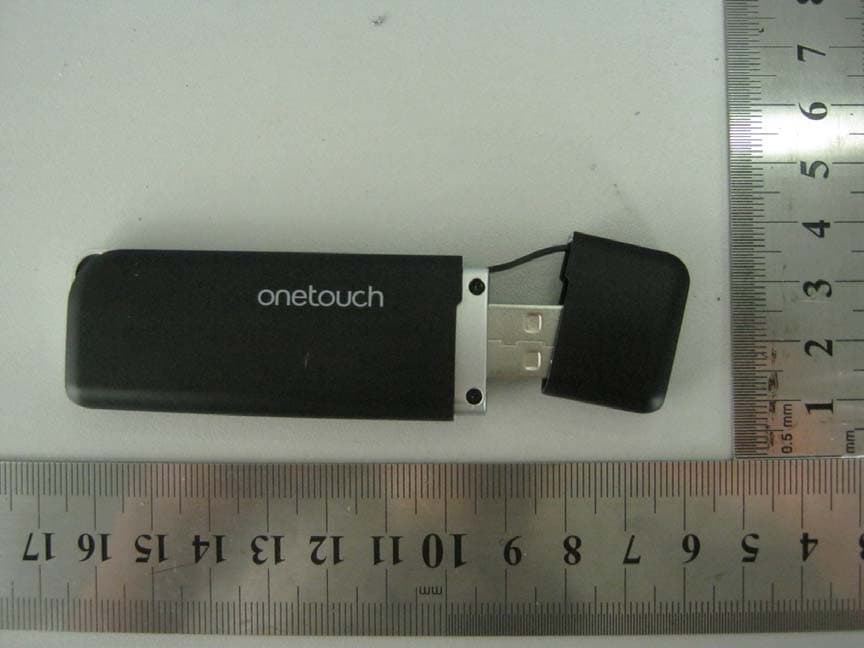

RAD292 External Photo

FCC ID: RAD292 Label Label Location FCC ID LABEL Location

TCT Mobile Limited Date: June 14, 2012 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: RAD292 Dear Sirs: TCT Mobile Limited. requests acceptance of the labeling proposal described below for HSPA+ USB Modem bearing FCC identifier RAD292. The subject HSPA+ USB Modem are compact handheld models as shown in figure 1, authorized under 47CFR Part 22H&24E for GSM and WCDMA mobile services. Figure 1. Because the majority of the HSPA+ USB Modem housing is composed of indicators, rotating USB head, there is extremely limited space available to attach the required label carrying the FCC identifier. TCT Mobile Limited. proposes placing the label carrying the FCC identifier inside product body as shown in figure 2. Figure 2. FCC ID Label TCT Mobile Limited The consumer packaging for these models is a "gift box" which does not allow the HSPA+ USB Modem to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), TCT Mobile Limited. will add the FCC identifier "RAD292" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Yours Sincerely, Zhizhou Gong Project Engineer

RAD292 Internal Photo

SZ12050196S01 Page 2 of 72 Telecommunication Co., Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. DIRECTORY 1. TESTING LABORATORY.......................................................................................................4 1.1. Identification of the Responsible Testing Laboratory..........................................................4 1.2. Identification of the Responsible Testing Location.............................................................. 4 1.3. Accreditation Certificate........................................................................................................ 4 1.4. List of Test Equipments.......................................................................................................... 4 2. TECHNICAL INFORMATION............................................................................................... 5 2.1. Identification of Applicant......................................................................................................5 2.2. Identification of Manufacturer.............................................................................................. 5 2.3. Equipment Under Test (EUT)................................................................................................ 5 2.3.1.Photographs of the EUT.................................................................................................. 5 2.3.2. Identification of all used EUTs........................................................................................5 2.4. Applied Reference Documents............................................................................................... 6 2.5. Device Category and SAR Limits.......................................................................................... 6 2.6. Test Environment/Conditions................................................................................................ 7 3. SPECIFIC ABSORPTION RATE (SAR)................................................................................ 8 3.1. Introduction............................................................................................................................. 8 3.2. SAR Definition.........................................................................................................................8 4. SAR MEASUREMENT SETUP............................................................................................... 9 4.1. The Measurement System...................................................................................................... 9 4.2. Probe.........................................................................................................................................9 4.3. Phantom................................................................................................................................. 11 4.4. Device Holder.........................................................................................................................11 5. TISSUE SIMULATING LIQUIDS.........................................................................................12 6. UNCERTAINTY ASSESSMENT...........................................................................................14 6.1. UNCERTAINTY EVALUATION FOR HANDSET SAR TEST...................................... 14 6.2. UNCERTAINTY FOR SYSTEM PERFORMANCE CHECK........................................ 15 7. SAR MEASUREMENT EVALUATION............................................................................... 17 7.1. System Setup..........................................................................................................................17 7.2. Validation Results..................................................................................................................17 8. OPERATIONAL CONDITIONS DURING TEST................................................................18 SZ12050196S01 Page 3 of 72 8.1. Informations on the testing.................................................................................................. 18 8.2. Body-worn Configurations...................................................................................................18 8.3. Measurement procedure.......................................................................................................19 8.4. Description of interpolation/extrapolation scheme............................................................19 9. 3G MEASUREMENT PROCEDURES..................................................................................21 9.1. Procedures Used To Establish Test Signal...........................................................................21 9.2. SAR Measurement Conditions for WCDMA..................................................................... 21 9.3. Output Power Verification....................................................................................................21 9.4. Tablet PC with HSUPA.........................................................................................................21 9.5. conducted output power....................................................................................................... 21 10. TEST RESULTS LIST.............................................................................................................24 ANNEX A PHOTOGRAPHS OF THE EUT................................................................................26 ANNEX B GRAPH TEST RESULTS............................................................................................29 Change History IssueDateReason for change 1.02012-6-14First edition SZ12050196S01 Page 4 of 72 1. Testing Laboratory 1.1. Identification of the Responsible Testing Laboratory Company Name:Shenzhen Morlab Communications Technology Co., Ltd. Department:Morlab Laboratory Address:3/F, Electronic Testing Building, Shahe Road, Nanshan District, Shenzhen, 518055 P. R. China Res…

Text truncated - open the document above for the full version.

 Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         1    COMOSAR E-FIELD PROBE CALIBRATION REPORT Prepared By: LUC Jérôme, SATIMO Project Description: SAR TEST BENCH Prepared For (End User): Shenzhen Morlab Communication Technology          This document is issued by SATIMO, in confidence and is not to be reproduced in whole or in part without the prior written permission. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or in part without the prior written permission of SATIMO.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         2  COMOSAR SEPT ISOTROPIC E-FIELD PROBE CALIBRATION REPORT DATE: 12/02/2009 REFERENCE: SN 37/08 EP80 OBJECT: COMOSAR SEPT ISOTROPIC E-FIELD PROBE MANUFACTURER: SATIMO SERIAL NUMBER: SN 37/08 EP80 CUSTOMER: Shenzhen Morlab Communication Technology CONTRACT: PF2130108b_SAR_Morlab DATE OF CALIBRATION: 24/09/20 WARRANTY: This Calibration certificate may not be reproduced other than in full. Calibration certificates without signature and seal are not valid. This documentation contains property information which is protected by copyright. All right are reserved. No part of this document may be photocopied, reproduced without the prior written agreement of SATIMO. SATIMO shall not be liable for errors contained herein or for incidental or consequential in connection with the furnishing, performance or use of this material. Warranty doesn’t apply to Normal wear, Normal tear, Improper use, Improper maintain, Improper installation. Date SAR TEAM MANAGER Date SAR TEAM MANAGER  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         3  PRODUCT DESCRIPTION Frequency Range 100 MHz - 30 GHz Probe length 330 mm Length of one dipole 4.5 mm Maximum external diameter 8 mm Probe extremity diameter 6.5 mm Distance between dipoles/probe extremity < 2.7 mm Resistance of the three dipole (at the connector) Dipole 1: R1=1.4382 MΩ Dipole 2: R2=1.4894 MΩ Dipole 3: R3=1.4683 MΩ Connector (HIROSE series SR30) 6 wire male (Hirose SR30series) The probe could be checked by measuring the resistance of the three dipoles. CALIBRATION TEST EQUIPMENT TYPE IDENTIFICATION Calibration bench CALISAR Multimeter Keithley 2000  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         4  MEASUREMENT PROCEDURE Probe calibration is realized, in compliance with CENELEC EN 50361 and IEEE 1528 std, with CALISAR, Antennessa proprietary calibration system. The calibration is performed with the EN 50361 annexe technique using reference guide at the five frequencies. Where : P fw = Forward Power P bw = Backward Power a and b = Waveguide dimensions
= Skin depth Keithley configuration: Rate = Medium; Filter =ON; RDGS=10; FILTER TYPE =MOVING AVERAGE; RANGE AUTO After each calibration, a SAR measurement is performed on a validation dipole and compared with a NPL calibrated probe, to verify it.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         5  PROBE UNCERTAINTIES  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         6  1. Calibration at 450.00 MHz A. Calibration parameters. Label GSM450 Epsilon 43.33 Sigma 0.84 S/m Temperature 21°C Antenna gain 2.03 dB Antenna S11 -10.50 dB Low limit detection (CW)     Calibration curves ei=f(V) (i=1,2,3) allow to obtain E-field value using the formula:   EEEE= The following tables represent the calibration curves linearization by curve segment in CW signal.  Ref: CR-280-1-08-SATB-A COMOSAR E-Field probe Calibration Report         7  Calibration coefficients for the three dipoles in CW: v1 e1 v2 e2 v3 e3 0.584004 419.557857 -0.696059 435.622023 0.541191 412.830715 0.467833 339.207465 -0.556278 351.381991 0.469757 336.297240 0.376994 276.348283 -0.452232 288.647980 0.378826 274.224190 0.302778 224.954643 -0.359005 232.397390 0.305842 224.365698 0.241038 182.154071 -0.286978 188.889931 0.246562 183.825274 0.192549 148.484090 -0.230386 154.650994 0.195712 148.993075 0.154033 121.674762 -0.185412 127.378480 0.157543 122.783107 0.123397 100.276479 -0.147311 104.193802 0.125866 100.956090 0.099878 83.770361 -0.118637 86.660489 0.101471 84.063863 0.081165 70.553219 -0.095250 72.263937 0.082289 70.694342 0.065166 59.152028 -0.076788 60.795323 0.066427 59.538957 0.051916 49.592416 -0.061280 51.041514 0.053353 50.232492 0.041968 42.297602 -0.048746 43.022565 0.042906 42.675214 0.033724 36.126757 -0.039149 36.748110 0.034686 36.605243 0.021855 26.962568 -0.024798 27.024723 0.022272 27.149463 0.018405 23.975145 -0.020856 24.085809 0.018755 24.141334 0.015467 21.515985 -0.017534 21.515985 0.015767 21.615299 0.013018 19.309065 -0.014750 19.398191 0.013276 19.487731 0.010938 17.408496 -0.012392 17.529166 0.011157 17.569575 0.009022 15.586953 -0.010228 15.658899 0.009215 15.676938 0.007353 13.956010 -0.008328 13.988181 0.007484 14.020428 0.005989 12.466979 -0.006801 12.495719 0.006111 12.567858 0.004890 11.214019 -0.005573 11.265779 0.005003 11.330818 0.004019 10.133541 -0.004570 10.121882 0.004099 10.168601 0.003279 9.094132 -0.003739 9.157170 0.003352 9.125596 0.002660 8.095827 -0.003041 8.293946 0.002769 8.265350 0.002126 7.324219 -0.002453 7.366500 0.002188 7.358024 0.001685 6.565400 -0.001947 6.580536 0.001724 6.542765 0.001300 5.784440 -0.001511 5.718225 0.001334 5.757862 0.001123 5.245191 -0.001307 5.269400 0.001174 5.275471 0.000891 4.701768 -0.001057 4.723470 0.000924 4.728912 0.000704 4.209798 -0.000850 4.226839 0.000736 4.243862 0.000574 3.790376 -0.000689 3.791428 0.000603 3.830551 0.000457 3.396200 -0.000570 3.434303 0.000483 3.421852 0.000365 3.050686 -0.000463 3.078014 0.000389 3.079630 0.000292 2.745766 -0.000369 2.726866 0.00031…

Text truncated - open the document above for the full version.

                              !"#$ %#!!&$"    !"# $% &'( ())&*!"+#,!#,-. /&0,* 1!2*32*$&45& *)()&*#(2*&4&             #2)  &( * )  )  5 !"# $%  )* (&*6)*( * )  *& & 5 & ( )* 72&4 & )*  7)2&  2 )& 7)* ) )&*8 #2 )*6&)&* (&*)* 2)* )  & 5  &*4 6& 2  & 6&72)(2))  5)*) *&&54 )*72&4&)*7)2& 2)&7)* ) )&*&6!"# $%8                    !"#$ #!!&$"   $    $'$$&$!- 9 /  ($%$%!"+ ,,,+,/,+,-, %,  &)')$!"# $%  $!#&)$!- 9 /  ) $!2*32*$&45& *)()&*#(2*&4&  &/95:!"+:$&45  $'#!!&     *&+ #2)  4)5)&* ()6)(  *& 5 & ( &2 2* )* 6 448 4)5)&* ()6)(  7)2&  )*  * 4  *& ;4)8 #2)  &( *)&* (&*)*  & )*6&)&* 72)(2 )  &( 5 (&)28 "44 )2   ;8 -&  &6 2)  &( *  5 2&&(&)  & ( 7)2&  2 )& 7)* * &6 !"# $%8 !"# $% 244 *& 5 4)54 6& &  (&*)* 2)* & 6& )*()*4 & (&* < *)4 )* (&**()&* 7)2 2 6 *) 2)*  6&*( &  &6 2)  )48 =* & *> 4 & -&4 7  -&4   &   & )*)*  &)* 44)&*8      !"+#,"$$"-"?,+   "+#,"$$"-"?,+                 @  ")$ !"!&   )* )&*AB 2AC8B A8   #!!&$ $,)!"$& +"$!$&!'!!&$'#!!& D(&-7&E"*43 .9B@0!-@C"9991F@F   $ )$$&"$)$ =4(2)&4 *264&6!"$2*&6)447)2$.324)< )8             C     C  4)5)&*7 6&((&)*& ,,,!@9F*%,#5 44)* @! 4*0,8F1  - *  ./  F@  F@ F F@ F F@ F F@   9   '01 23456 4/6                        @     @  $ )$$&$,)!"$$&   -7 G)240 !-@B1&6(4)5)&*FBF 8 8  +&2H!(2730!$: !-9 91 &6(4)5)&*@FF "97 - (4  0" !-91&6(4)5)&*CFF "97 +&2H!(2730-+D !- 1 &6(4)5)&*CFBF " !"# $%*0!-,B1 /0@8@ C8 B8C1 &6(4)5)&*F F   $ )$$&&!!& 9 %*!"+D ": 7 !"# $%*0!-!-::B:!"$C1 #01/ !"# $%*0 4)5)&*1 .)< )D4   > 9 ) C@ ; 29 : 2 :/ / :01/4;9: ;26  ;2 ;1  IA9 A9 %7;2 ;1  IA9 A9 3A@ '01 23 $.3 ! 19  $< //1 2 3 4=>6 98J  $ )$$&$ )#                    !"+  )< ). * &7= ?@A*B=8 C ? DE D? *B=8 C ?F E                    $ )$$&"#

Report No.: SZ12050196W04 Page 2 of 126 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 7 2.1 Conducted RF Output Power .................................................................................................... 7 2.2 99% Occupied Bandwidth ....................................................................................................... 37 2.3 Frequency Stability ................................................................................................................... 46 2.4 Conducted Out of Band Emissions ......................................................................................... 51 2.5 Band Edge ................................................................................................................................. 77 2.6 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 86 2.7 Radiated Out of Band Emissions .......................................................................................... 101 Change History Issue Date Reason for change 1.0 Jun 15, 2012 First edition Report No.: SZ12050196W04 Page 3 of 126 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : HSPA+ USB Modem Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : PIO Software Version .................. : Applicant .............................. : Manufacturer ........................ : N/A TCT Mobile Limited Address: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TCL Mobile Communication Co., LTD. No. 23 Zone, Zhongkai High-Technology Development Zone, Huizhou, Guangdong, 516006, China Frequency Range .................. : GSM 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GSM 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) WCDMA 1900MHz Tx: 1852.4 – 1907.6MHz (at intervals of 200kHz); Rx: 1932.4 – 1987.6MHz (at intervals of 200kHz) Modulation Type................... : GPRS/GSM Mode with GMSK Modulation EDGE Mode with 8PSK Modulation WCDMA Mode with QPSK Modulation Emission Designators ........... : GSM:228KGXW, EGPRS:250KG7W WCDMA:4M18F9W HSDPA Mode with QPSK Modulation HSUPA Mode with QPSK Modulation HSPA+ Mode with QPSK Modulation Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: The transmitter (Tx) frequency arrangement of the WCDMA 1900MHz band used by the EUT can be represented with the formula F(n)=1852.4+0.2*(n-9262), 9262<=n<=9538; the Report No.: SZ12050196W04 Page 4 of 126 lowest, middle and highest channel numbers (ARFCHs) used and tested in this report are separately 9262 (1852.4MHz), 9400 (1880MHz) and 9538 (1907.6MHz). Note 4: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ12050196W04 Page 5 of 126 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certif…

Text truncated - open the document above for the full version.
