RAD305HSUPA/HSDPA/UMTS single band / GSM quad bands mobile phone

1 English - CJB321BALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. 918A IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 1IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 12012-3-7 16:41:462012-3-7 16:41:46 23 Your cellphone 1 ............. Keys and connectors1.1 Back key Touchscreen Sensor LED light Home key Headset connector Micro-USB connector Volume up Volume down Power key Menu key Search key Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your cellphone ................................................................................. 3 2 Text input ........................................................................................ 15 3 Phone call ........................................................................................ 16 4 Contacts .......................................................................................... 18 5 Messaging......................................................................................... 19 6 Email ................................................................................................. 20 7 Getting connected ........................................................................ 21 8 Locate my location using GPS satellites .................................. 23 9 Data backup .................................................................................... 24 10 Factory data reset ......................................................................... 25 11 Applications .................................................................................... 25 12 Making the most of your cellphone .......................................... 26 IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 2-3IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 2-32012-3-7 16:41:462012-3-7 16:41:46 45 On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to manage applications; to customize your Home screen by adding applications or changing wallpaper. On other screens, press to view options list.• Press: Light up the screen Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: Lock the screen Light up the screen Press and hold: When cellphone is off, power on the cellphone. When cellphone is on, enter cellphone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Open Search bar for searching within an application, the cellphone or web. Getting started1.2 Set-up1.2.1 Removing or installing the back cover Removing or installing front deco Attention: Front deco is a removable and flexible part, please take care of it when removing or installing it. Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your cellphone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing upwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 4-5IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 4-52012-3-7 16:41:462012-3-7 16:41:46 67 Installing or removing the battery Insert and click the battery into place, then close the cellphone cover.• Unclip the cover, then remove the battery.• Installing and removing the microSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Connect the battery charger to your cellphone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your cellphone1.2.2 Hold down the Power key until the cellphone powers on. It will take some seconds before the screen lights up. Set up your cellphone for the first time The first time you power on the cellphone, you're are prompted to set up your cellphone in multiple ways: language, input method, mobile data connection, account setup and synchronization, system update, etc. You are required to sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Mark/Unmark the check box to choose whether you want to back • up data with your Google account, then touch Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your cellphone1.2.3 Hold down the Power key from the Home screen until the cellphone options appear, select Power off. (1) Application availability depends on country and operator. IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 6-7IP4082_918A_QG_BDL_Eng_USA_08_120307.indd 6-72012-3-7 16:41:462012-3-7 16:41:46 89 Home screen1.3 You can bring all the items (applications, shortcuts, folders a…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area S hanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: + 86(0)21 61460602 Date 2012-8-13 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-8-10 Federal Communications Commission Of fice of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD305 T o Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

External Photos:

Internal Photos:

No.2012SAR00088 Page 1 of 143 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00088 For TCT Mobile Limited HSUPA/HSDPA/UMTS single band / GSM quad bands mobile phone Mode Name: GIN NFC VF Marketing Name: Vodafone Smart 861 With Hardware Version: PIO Software Version: 01003 FCCID: RAD305 Issued Date: 2012-08-15 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00088 Page 2 of 143 Revision Version Report Number Revision Date Memo 2012SAR00088 00 2012-08-15 Initial creation of test report No. 2012SAR00088 Page 3 of 143 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 8 5 TEST METHODOLOGY .............................................................................................................. 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................. 11 7.1 MEASUREMENT SET-UP ................................................................................................................................ 11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM ................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION ...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT ............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT ....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER ............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM .................................................................................................................................................. 15 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM ........................ 17 8.1 GENERAL CONSIDERATIONS .......................................................................................................................... 17 8.2 BODY-WORN DEVICE .................................................................................................................................... 18 8.3 DESKTOP DEVICE .......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS .................................................................................................................................... 20 9 TISSUE SIMULATING LIQUIDS .............................................…

Text truncated - open the document above for the full version.

No. 2012SAR00088 Page 81 of 143 Fig. 39-1 Z-Scan at power reference point (1900 MHz CH810) No. 2012SAR00088 Page 82 of 143 1900 Body Toward Ground Middle Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; εr = 52.263; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.11 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.092 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.711 mW/g SAR(1 g) = 0.994 mW/g; SAR(10 g) = 0.590 mW/g Maximum value of SAR (measured) = 1.08 mW/g Fig. 40 1900 MHz CH661 No. 2012SAR00088 Page 83 of 143 1900 Body Toward Ground Low Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.447 mho/m; εr = 52.398; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.870 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.104 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.265 mW/g SAR(1 g) = 0.774 mW/g; SAR(10 g) = 0.467 mW/g Maximum value of SAR (measured) = 0.863 mW/g Fig. 41 1900 MHz CH512 No. 2012SAR00088 Page 84 of 143 1900 Body Left Side High Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.51 mho/m; εr = 52.141; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Left Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.389 mW/g Left Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.969 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.537 mW/g SAR(1 g) = 0.337 mW/g; SAR(10 g) = 0.202 mW/g Maximum value of SAR (measured) = 0.368 mW/g Fig. 42 1900 MHz CH810 No. 2012SAR00088 Page 85 of 143 1900 Body Right Side High Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.51 mho/m; εr = 52.141; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Right Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.303 mW/g Right Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.288 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.411 mW/g SAR(1 g) = 0.264 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.287 mW/g Fig. 43 1900 MHz CH810 No. 2012SAR00088 Page 86 of 143 1900 Body Bottom Side High Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.51 mho/m; εr = 52.141; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1909.8 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.05 mW/g Bottom Side High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.492 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.629 mW/g SAR(1 g) = 0.954 mW/g; SAR(10 g) = 0.533 mW/g Maximum value of SAR (measured) = 1.07 mW/g Fig. 44 1900 MHz CH810 No. 2012SAR00088 Page 87 of 143 1900 Body Bottom Side Middle Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.48 mho/m; εr = 52.263; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.960 mW/g Bottom Side Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.209 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 1.340 mW/g SAR(1 g) = 0.857 mW/g; SAR(10 g) = 0.487 mW/g Maximum value of SAR (measured) = 0.976 mW/g Fig. 45 1900 MHz CH661 No. 2012SAR00088 Page 88 of 143 1900 Body Bottom Side Low Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.447 mho/m; εr = 52.398; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz GPRS Frequency: 1850.2 MHz Duty Cycle: 1:2 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.684 mW/g Bottom Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.196 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.046 mW/g SAR(1 g) = 0.672 mW/g; SAR(10 g) = 0.383 mW/g Maximum value of SAR (measured) = 0.771 mW/g Fig. 46 1900 MHz CH512 No. 2012SAR00088 Page 89 of 143 1900 Body Toward Ground High with EGPRS Date: 2012-7- 19 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.51 mho/m; εr = 52.141; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Commun…

Text truncated - open the document above for the full version.

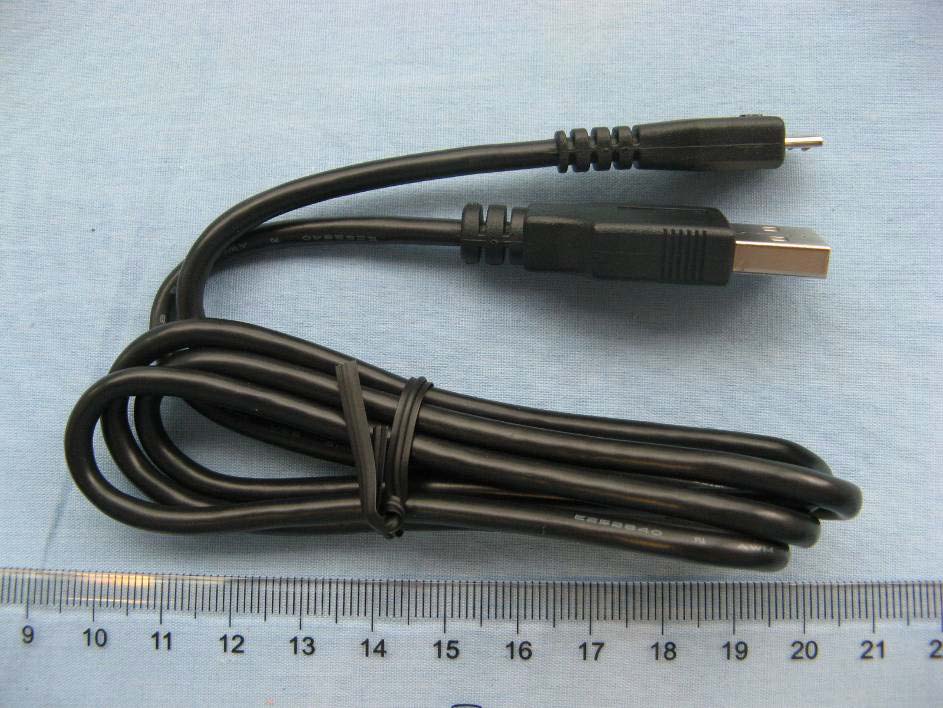

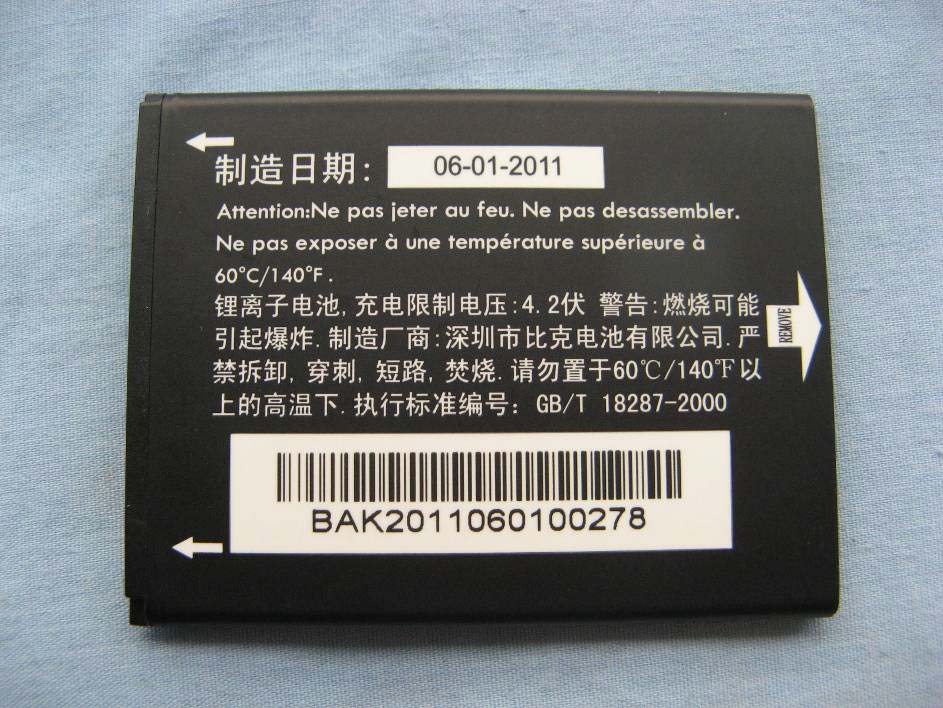

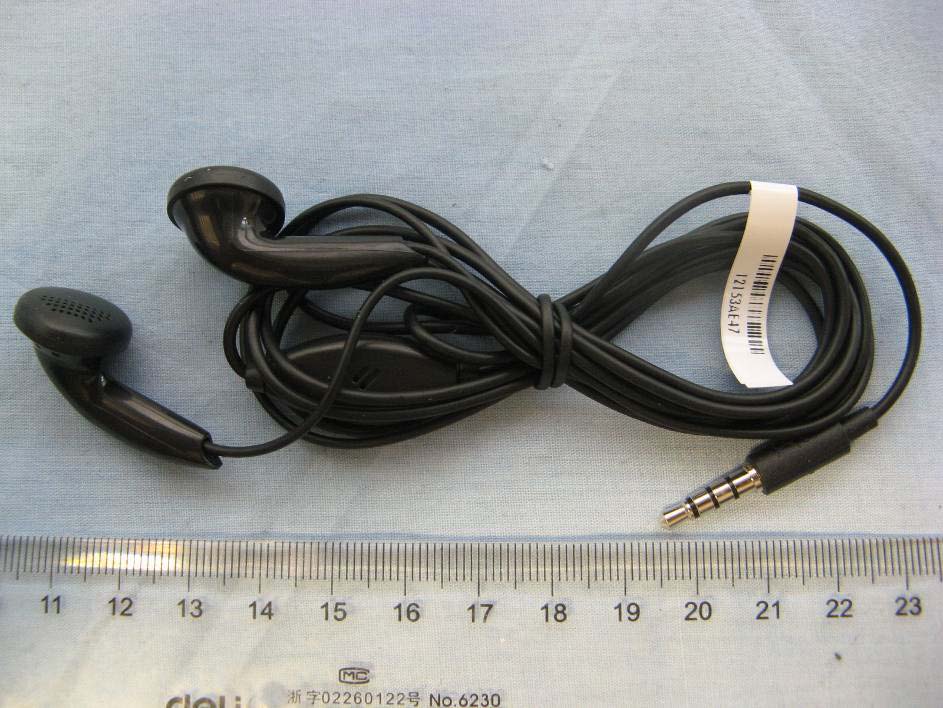

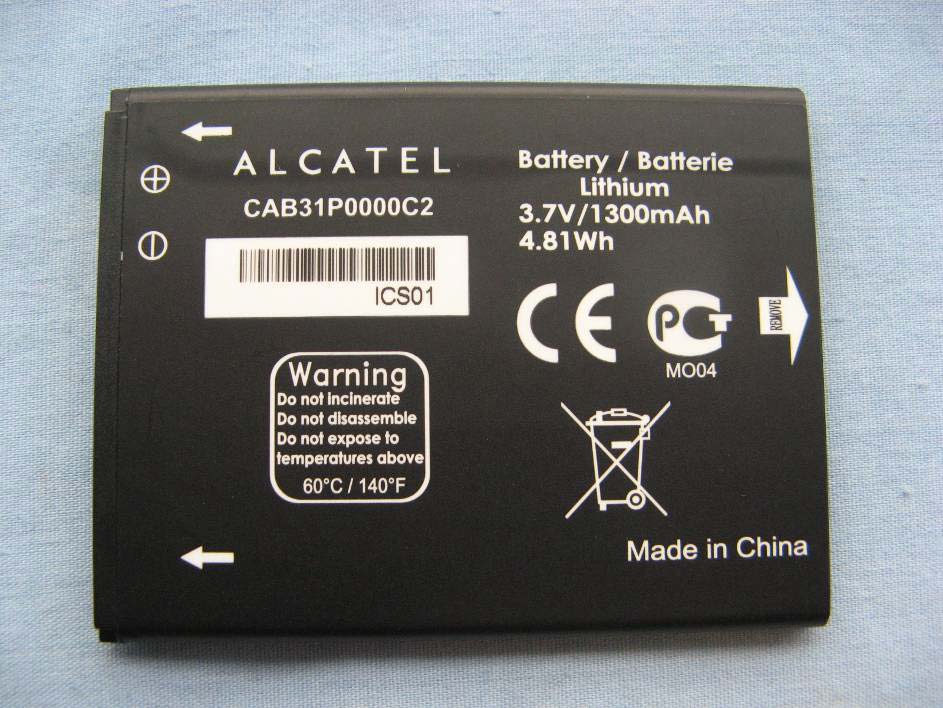

©Copyright. All rights reserved by TMC Beijing. The Photos of SAR test No. 2012SAR00088 For TCT Mobile Limited HSUPA/HSDPA/UMTS single band / GSM quad bands mobile phone Mode Name: GIN NFC VF Marketing Name: Vodafone Smart 861 With Hardware Version: PIO Software Version: 01003 FCCID: RAD305 Issued Date: 2012-08-15 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Picture 1: Constituents of the sample Picture 2: Left Hand Touch Cheek Position Picture 3: Left Hand Tilt 15° Position Picture 4: Right Hand Touch Cheek Position Picture 5: Right Hand Tilt 15° Position Test positions for body: The Body SAR is tested at the following 6 test positions all with the distance =10mm between the EUT and the phantom bottom: Picture 6: Forward Surface Picture 7: Back Surface Picture 8: Back Surface with Headset Picture 9: Left Side Picture 10: Right Side Picture 11: Top Side Picture 12: Bottom Side

No.2012TAR397 Page1 of 92 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012TAR397 for TCT Mobile Limited HSUPA/HSDPA/UMTS single band / GSM quad bands mobile phone Model Name: GIN NFC VF Marketing Name: Vodafone Smart 861 FCC ID: RAD305 With Hardware Version: PIO Software Version: 01003 Issued Date: 2012-08-21 No. DGA-PL-114/01-02 DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2012TAR397 Page2 of 92 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 7 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 6.1. S UMMARY OF TEST RESULTS ........................................................................................................... 9 6.2. S TATE MEN TS .................................................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1. MEASUREMENT METHOD ................................................................................................................... 11 A.2. PEAK OUTPUT POWER - CONDUCTED ................................................................................................ 13 A.3. FREQUENCY BAND EDGES - CONDUCTED .......................................................................................... 14 A.4. CONDUCTED EMISSION ...................................................................................................................... 21 A.5. RADIATED EMISSION .......................................................................................................................... 45 A.6. TIME OF OCCUPANCY (DWELL TIME) ................................................................................................ 68 A.7. 20DB BANDWIDTH ............................................................................................................................. 78 A.8. CARRIER FREQUENCY SEPARATION ................................................................................................... 84 A.9. NUMBER OF HOPPING CHANNELS ...................................................................................................... 86 A.10. AC POWERLINE CONDUCTED EMISSION ........................................................................................... 90 No.2012TAR397 Page3 of 92 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Tempera…

Text truncated - open the document above for the full version.

Test set up photos CE: CE_USB: RE_USB: RE:
