RAD313HSDPA/HSUPA/UMTS dual band / GSM quad bands mobile phone

1 English - CJB32Q1ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. Thank you for buying Alcatel ONE TOUCH 6030A. We hope you will enjoy your high-quality mobile communication experience. Important: Your phone is a unibody device, so the back cover and battery are not removable. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 7 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Press the Volume up/down key to select “factory reset” in the system recovery menu and finally press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. 6030A IP4512_6030A_QG_Eng_USA_03_130227.indd 1IP4512_6030A_QG_Eng_USA_03_130227.indd 12013-2-27  4:06:072013-2-27  4:06:07 23 Table of contents 1 Your mobile ..................................................................... 3 2 Text input ...................................................................... 14 3 Phone call ...................................................................... 15 4 People ............................................................................ 17 5 Messaging....................................................................... 18 6 Email .............................................................................. 19 7 Getting connected ........................................................ 20 8 Locate my location using GPS satellites ...................... 23 9 Data backup .................................................................. 23 10 Factory data reset ....................................................... 24 11 Applications & Internal storage .................................. 24 12 Making the most of your phone .................................. 25 Safety and use ......................................................................... 27 General information .............................................................. 34 Alcatel Mobile Phones Limited Warranty ........................... 35 Troubleshooting...................................................................... 36 Your mobile 1 .................. Keys and connectors1.1 Headset connector Power key Back key Front camera Home key Recent apps key micro-USB connector Touch screen PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. IP4512_6030A_QG_Eng_USA_03_130227.indd 2-3IP4512_6030A_QG_Eng_USA_03_130227.indd 2-32013-2-27  4:06:072013-2-27  4:06:07 45 Volume up SIM card slot Volume down Camera Camera Flash/ Flashlight microSD card slot Recent apps key Open a list of thumbnail images of apps you've worked • with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Touch and hold: As • Menu key, touch and hold it to access Wallpaper, Manage applications and Settings. Home key While on any application or screen, touch to return • to the Home screen. Back key Touch to go back to the previous screen, or to close a • dialog box, options menu, the notification panel, etc. These keys are visible when the screen lights up. Power key Press: Lock the screen/Light up the screen• Press and hold: Show the pop-up menu to select • from Ringer mode/Airplane mode/Power off/Quick start/Restart Press and hold: Power on Press and hold• Power key and Volume down key to capture a screenshot. Press to mute the ringtone when there’s an incoming • call. Press to end the current conversation during a call.• Press for more than 7 seconds to restart the phone • when it is dead. Volume keys Under call mode, adjust the earpiece or headset • volume. In Music/Video/Streaming mode, adjust the media • volume. In general mode, adjust the ring tone volume.• Mute the ringtone of an incoming call.• In Camera mode, using it as the capture key allows you • to take a photo and start or stop recording a video. Press to light up the screen when it dims during a call.• IP4512_6030A_QG_Eng_USA_03_130227.indd 4-5IP4512_6030A_QG_Eng_USA_03_130227.indd 4-52013-2-27  4:06:082013-2-27  4:06:08 67 Getting started1.2 Set-up1.2.1 Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Insert the SIM card into the slot with the chip facing downwards until it is locked. To remove it, gently push the SIM card until it is unlocked. Installing and removing the microSD card Insert the external microSD card into the slot with the gold contact facing down until it's locked. To remove the external microSD card, gently push it until it's unlocked. Installing the SIM Removing the SIM Before removing the microSD card, you should ensure the phone is off, to protect it from corruption or damage. In addition, regularly removing or inserting the SD card may cause the phone to restart. Charging the battery Connect the battery charger to your phone and outlet respectively. The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road Zha ngJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Da te 2013-2-27 To: Federal Communications Commission, Au thorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TM C (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval T eam Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-02-27 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD313 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

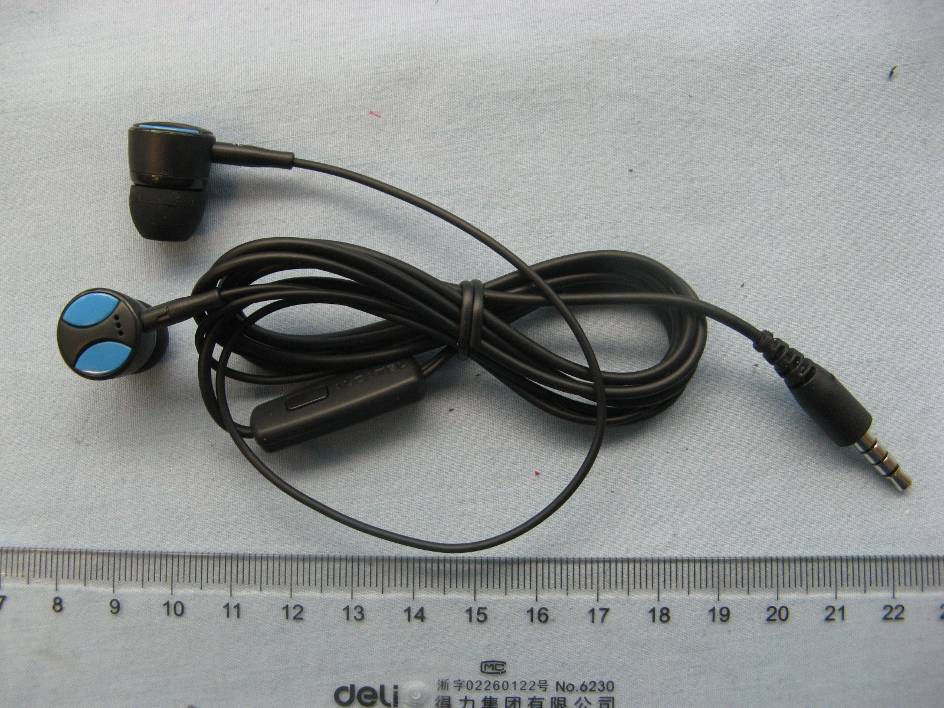

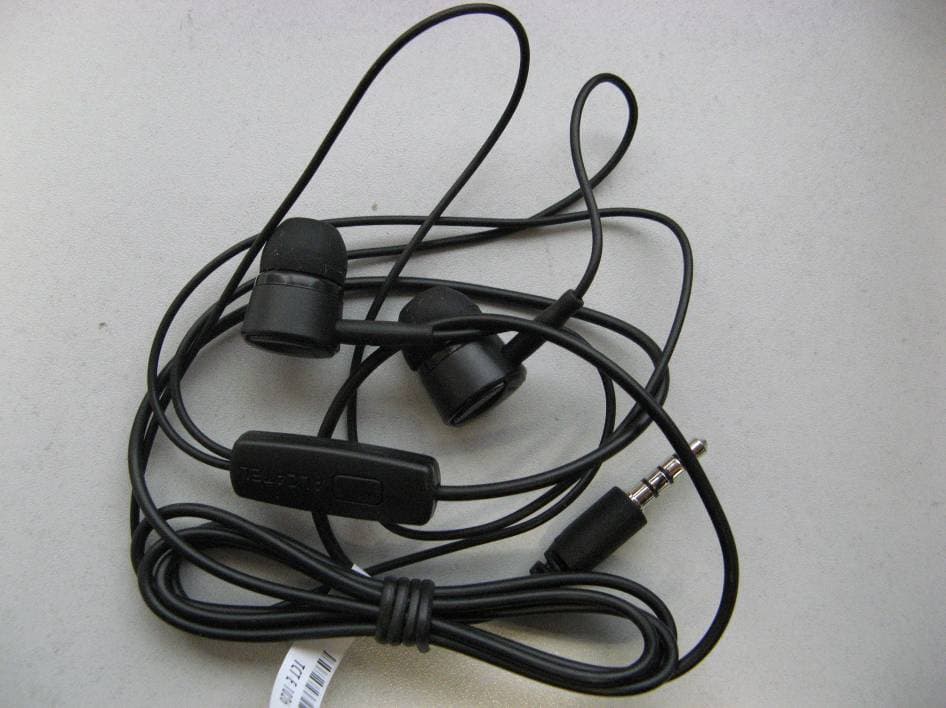

RAD313 external photo Battery CBA0003AG0C1 CBA0003AG0C1 CCB3001A14C1 CCB3001A14C2 CCB3001A15C1 CCB3001A15C2 CDA0000025C1 CDA0000025C2

RAD313, label placement

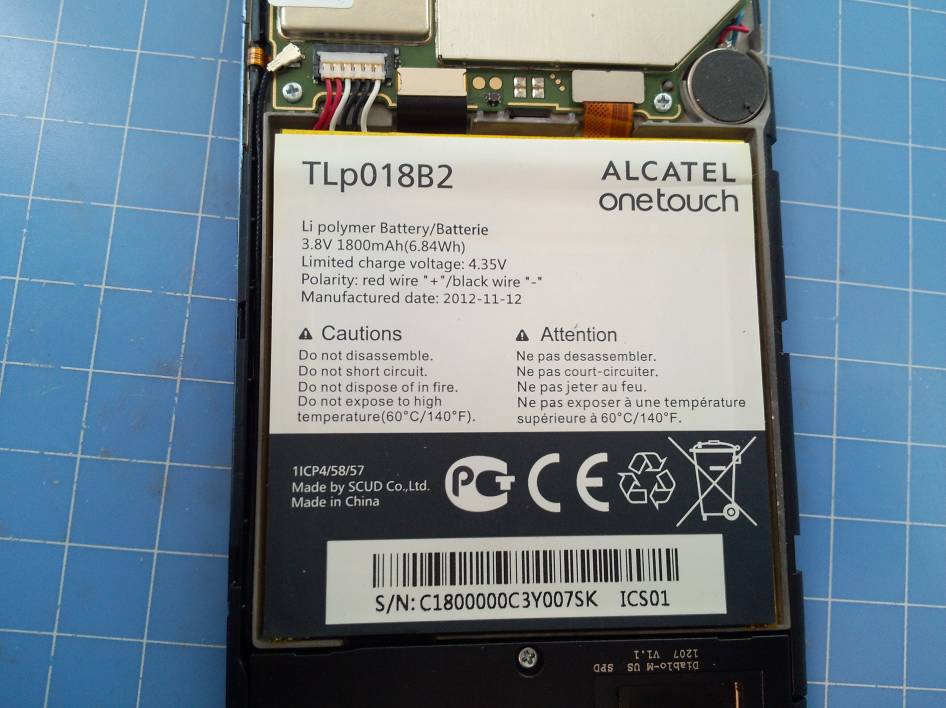

RAD313 internal photos

No.2013SAR00024 Page 1 of 99 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00024 For TCT Mobile Limited HSUPA/HSDPA/UMTS Triband / GSM quadband mobile phone Model name: Diablo A Marketing name: ONE TOUCH 6030A With Hardware Version: PIO Software Version: vPA9 FCC ID: RAD313 Issued Date: 2013-03-21 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00024 Page 2 of 99 Revision Version Report Number Revision Date Memo 2013SAR00024 00 2013-02-26 Initial creation of test report 2013SAR00024 01 2013-02-27 Update the picture 12.1 2013SAR00024 02 2013-03-21 Update the chapter 12 and 13 No. 2013SAR00024 Page 3 of 99 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 14 8.1 SYSTEM SETUP ............................................................................................................................................. 14 8.2 SYSTEM VERIFICATION ................................................................................................................................. 15 9 MEASUREMENT PROCEDURES .............................................................................................. 16 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 16 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 17 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 18 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 19 9.5 POWER DRIFT ............................................................................................................................................... 19 10 AREA SCAN BASED 1-G SAR ................................................................................................. 20 10.1 REQUIREMENT OF KDB .............................................................................................................................. 20 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 20 11 CONDUCTED OUTPUT POWER ....................…

Text truncated - open the document above for the full version.

No. 2013SAR00024 Page 51 of 99 WCDMA 850 Body Towards Ground High Date: 2013-1- 28 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.998 mho/m; εr = 56.044; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground High/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.703 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.677 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.799 mW/g SAR(1 g) = 0.669 mW/g; SAR(10 g) = 0.521 mW/g Maximum value of SAR (measured) = 0.698 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 25.677 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.145 mW/g SAR(1 g) = 0.627 mW/g; SAR(10 g) = 0.351 mW/g Maximum value of SAR (measured) = 0.697 mW/g Fig. 7 WCDMA 850 CH4233 No. 2013SAR00024 Page 52 of 99 Fig. 7-1 Z-Scan at power reference point (WCDMA850 CH4233) No. 2013SAR00024 Page 53 of 99 WCDMA 1900 Right Cheek Low Date: 2013-1- 29 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.371 mho/m; εr = 39.677; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WCDMA 1900 Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek Low/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.485 mW/g Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.911 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.681 mW/g SAR(1 g) = 0.449 mW/g; SAR(10 g) = 0.276 mW/g Maximum value of SAR (measured) = 0.480 mW/g Fig. 8 WCDMA1900 CH9262 No. 2013SAR00024 Page 54 of 99 Fig. 8-1 Z-Scan at power reference point (WCDMA1900 CH9262) No. 2013SAR00024 Page 55 of 99 WCDMA 1900 Body Toward Ground Low Date: 2013-1- 29 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.486 mho/m; εr = 52.741; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WCDMA 1900 Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground Low/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.971 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.016 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.319 mW/g SAR(1 g) = 0.884 mW/g; SAR(10 g) = 0.572 mW/g Maximum value of SAR (measured) = 0.941 mW/g Fig. 9 WCDMA1900 CH9262 No. 2013SAR00024 Page 56 of 99 Fig. 9-1 Z-Scan at power reference point (WCDMA1900 CH9262) No. 2013SAR00024 Page 57 of 99 ANNEX B System Verification Results 835MHz Date: 2013-1- 28 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 40.51; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) System Validation /Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 52.638 V/m; Power Drift = -0.094 dB Fast SAR: SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (interpolated) = 2.55 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.638 V/m; Power Drift = -0.094 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.55 mW/g = 8.13 dB mW/g Fig.B.1 validation 835MHz 250mW No. 2013SAR00024 Page 58 of 99 835MHz Date: 2013-1- 28 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.981 mho/m; ε r = 56.14; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) System Validation /Area Scan (81x171x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 46.417 V/m; Power Drift = -0.088 dB Fast SAR: SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (interpolated) = 2.59 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.417 V/m; Power Drift = -0.088 dB Peak SAR (extrapolated) = 3.584 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.59 mW/g 0 dB = 2.59 mW/g = 8.27 dB mW/g Fig.B.2 validation 835MHz 250mW No. 2013SAR00024 Page 59 of 99 1900MHz Date: 2013-1- 29 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.416 mho/m; ε r = 39.24; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 94.495 V/m; Power Drift = 0.06 dB Fast SAR: SAR(1 g) = 9.73 mW/g; SAR(10 g) = 5.10 mW/g Maximum value of SAR (interpolated) = 11.1 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.495 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 17.984 W/kg SAR(1 g) = 9.66 mW/g; SAR(10 g) = 5.07 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 11.1 mW/g = 20.91 dB mW/g Fig.B.3 validation 1900MHz 250mW No. 2013SAR00024 Page 60 of 99 1900MHz Date: 2013-1- 29 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.537 mho/m; ε r = 52.53; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System:…

Text truncated - open the document above for the full version.

No. 2012TAR604 Page1 of 81 TEST REPORT No. 2012TAR604 for TCT Mobile Limited HSUPA/HSDPA/UMTS Triband/GSM quadband mobile phone Model Name: Diablo A Marketing Name：ONE TOUCH 6030A FCC ID: RAD313 with Hardware Version: PIO Software Version: vPA9 Issued Date: Feb. 20, 2013 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2012TAR604 Page2 of 81 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 18 A.3 CONDUCTED EMISSION ............................................................................................................. 24 A.4 FREQUENCY STABILITY ............................................................................................................ 29 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 31 A.6 EMISSION BANDWIDTH ................................................................................................................ 43 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 55 A.8 CONDUCTED SPURIOUS EMISSION............................................................................................ 61 No. 2012TAR604 Page3 of 81 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan. 22, 2013 Testing End Date: Feb.18, 2013 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2012TAR604 Page4 of 81 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. 2012TAR604 Page5 of 81 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSUPA/HSDPA/UMTS Triband / GSM quadband mobile phone Model Name Diablo A Marketing Name ONE TOUCH 6030A FCC ID RAD313 …

Text truncated - open the document above for the full version.

No. 2012TAR605 Page1 of 58 TEST REPORT No. 2012TAR605 for TCT Mobile Limited HSUPA/HSDPA/UMTS Triband/GSM quadband mobile phone Model Name: Diablo A Marketing Name：ONE TOUCH 6030A FCC ID: RAD313 with Hardware Version: PIO Software Version: vPA9 Issued Date: Feb. 20, 2013 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2012TAR605 Page2 of 58 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 15 A.3 CONDUCTED EMISSION ............................................................................................................. 21 A.4 FREQUENCY STABILITY ..................…

Text truncated - open the document above for the full version.
