RAD316HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone

12 English - CJB26N1ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. Your mobile 1 .................. Keys and connectors1.1 Proximity sensor Touch screen LED light Front camera Back key Home key Recent apps key Headset connector Power key micro-USB connector Volume up Side key Volume down 4030A 4030E PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 1-2IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 1-22012-12-25  10:55:092012-12-25  10:55:09 34 Camera Recent apps key Open a list of thumbnail images of apps you've worked • with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Home key While on any application or screen, touch to return to • the Home screen. Back key Touch to go back to the previous screen, or to close a • dialog box, options menu, the notification panel, etc. Power key Press: Lock the screen/Light up the screen• Press and hold: Show the pop-up menu to select from • Ringer mode/Airplane mode/Power off Press and hold: Power on Press and hold• Power key and Volume down key to capture a screenshot. Press and hold • Power key and Volume up key to restore factory set. Volume Keys Under call mode, adjust the earpiece or headset volume.• In Music/Video/Streaming mode, adjust the media volume.• In general mode, adjust the ring tone volume.• Mute the ringtone of an incoming call.• Side key Press: Take a picture in Camera mode.• Press and hold: Access Camera.• Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. ONE TOUCH 4030A ONE TOUCH 4030E Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 3-4IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 3-42012-12-25  10:55:092012-12-25  10:55:09 56 Installing or removing the battery Please power off your phone before removing the battery. Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• Installing and removing the microSD card Insert the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, gently press and slide it out. Before removing the microSD card, you should ensure the phone is off, to protect it from corruption or damage. In addition, regularly removing or inserting the SD card may cause the phone to restart. Charging the battery Connect the battery charger to your phone, then the LED light will be on. The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set following options: language, date & time, Google account, Input method, etc. Power off your phone1.2.3 Hold down the Power key from the Home screen until the Phone options appear, select Power off. Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and drag down to open the • notification panel. Application tab Touch to open main menu.• Search bar Touch • n to enter text search screen. Touch • o to enter voice search screen. Touch an icon to open an application, folder, etc. Favorite tray applications Touch to enter the application.• Touch and hold to move or change • applications. IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 5-6IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 5-62012-12-25  10:55:092012-12-25  10:55:09 78 Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. Using the touchscreen1.3.1 Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the wallpaper. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Rotate Automatically change the screen orientation from portrait to landscape by turning the phone sideways to have a better view. Status bar1.3.2 From status bar, you can view both phone status (to the right side) and notification information (to the left side). Status icons For dual SIM model, status icons referring to either SIM1 or SIM2 will be identified by a colour which you have defined (1). GPRS connectedGPS is on GPRS in use Receiving location data from GPS EDGE connectedSpeakerphone is on EDGE in useRoaming 3G connectedNo signal 3G in useVibrate mode HSPA (3G+) connectedRinger is silenced HSPA (3G+) in use Phone microphone is mute Wi-Fi is onNo charge in battery…

Text truncated - open the document above for the full version.

910 Notification icons New text or multimedia message Carrier data use threshold approaching or exceeded Problem with SMS or MMS delivery More notifications are hidden New Google Talk message Call in progress New voicemailMissed call Upcoming eventCall on hold Data is synchronizingCall forwarding is on Song is playing Uploading data microSD card is fullDownloading data No microSD card installed Download finished preparing SD cardSelect input method safe to remove SD card An open Wi-Fi network is available Screenshot error Phone is connected via USB cable USB tethering is onRadio is on Portable Wi-Fi hotspot is on System update available Both USB tethering and portable hotspot are on Connected to VPN Screenshot captured Disconnected from VPN Notification panel Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information. Quick settings bar Touch to enable/disable functions or • change modes. Slide left and right to view more.• Touch one notificaiton and slide it sideways to delete it. Touch the icon to clear all event–based notifications (other ongoing notifications will remain). Touch the Settings icon to access Settings. Search bar1.3.3 The phone provides a Search function which can be used to locate information within applications, the phone or the web. Lock/Unlock your screen1.3.4 To protect your phone and privacy, you can lock the phone screen by creating a variety of patterns, PIN or password etc. Personalize your Home screen1.3.5 Add Touch the application tab , touch and hold an application or a widget to active the Move mode, and drag the item to any Home screen as you prefer. IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 9-10IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 9-102012-12-25  10:55:102012-12-25  10:55:10 1112 Reposition Touch and hold the item to be repositioned to activate the Move mode, drag the item to the desired position and then release. You can move items both on the Home screen and the Favorite tray. Hold the icon on the left or right edge of the screen to drag the item to another Home screen. Remove Touch and hold the item to be removed to activate the Move mode, drag the item up to the top of Remove icon, and release after the item turns red. Create folders To improve the organization of items (shortcuts or applications) on the Home screen and the Favorite tray, you can add them to a folder by stacking one item on top of another. To rename a folder, open it, touch the folder’s title bar to input the new name. Wallpaper customization Touch and hold an empty area or touch Settings\Display, then touch Wallpaper on the Home screen to customize wallpaper. Application tab1.3.6 Touch from the Home screen to enter applications list. To return to the Home screen, touch the Home key. Consult recently-used applications To consult recently-used applications, you can touch the Recent apps key. Touch a thumbnail in the window to open the related application.Touch one thumbnail and slide it sideways to delete it. Volume adjustment1.3.7 You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key. Applications and widgets list1.4 The list contains all pre-embedded and newly installed applications and widgets. To access the list, touch from the Home screen. To return to the Home screen, touch the Home key or the Back key. Touch the icon to access the Google Play Store. IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 11-12IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 11-122012-12-25  10:55:102012-12-25  10:55:10 1314 Text input 2 ..................... Using Onscreen Keyboard2.1 Onscreen Keyboard settings Touch application tab from the home screen, select Settings\ Language&input, touch the Settings icon on the right of Android keyboard, a series of settings are available for your selection. Adjust the Onscreen Keyboard orientation Turn the phone sideways or upright to adjust the Onscreen Keyboard orientation. You can also adjust it by changing the settings (Touch Settings\Display\Orientation). Android keyboard2.1.1 Touch to switch between symbol and numeric keyboard. Touch & hold, then select to enter symbols/emoticons. Touch to enter text or numbers. Touch & hold to show input options; Touch to enter voice input. Touch to switch between "abc/ Abc" mode; Touch & hold to switch between "abc/ABC" mode. Text editing2.2 You can edit the text you have entered. Touch and hold or double-tap within the text you would like • to edit. Drag the tap to change the high-lighted selection.• Following options will show: • Select all , Cut , Copy and Paste . Touch the icon • or touch the blank to go back without any action. Phone call 3 ............... Placing a call3.1 You can easily launch a call using Phone. Touch Application tab from the Home screen and select Phone. Touch and hold to access voicemail Slide to access Call log and Contacts. IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 13-14IP4468_4030A_4030E_QG_Eng_USA_04_121225.indd 13-142012-12-25  10:55:102012-12-25  10:55:10 1516 Enter the desired number from the keyboard directly or select a contact from Contacts or Call log by sliding or touching tabs, then touch to place the call. The number you entered can be saved to Contacts by touching the Menu (1) key and touching Add to Contacts. If you make a mistake, you can delete the incorrect digits by touching . To hang up a call, touch or the Power key. Answering or rejecting a call3.2 When you receive a call, slide the icon • rightward to answer, or slide the red line on the right leftward to reject, or slide the icon upward to reject the call by sending a preset message. To mute the ringtone volume of an incoming call, press the Volume up/down key. (1) Menu key mentioned on the following chapters stands for . Consulting your call memory3.3 You can access your call memor…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-12-20 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

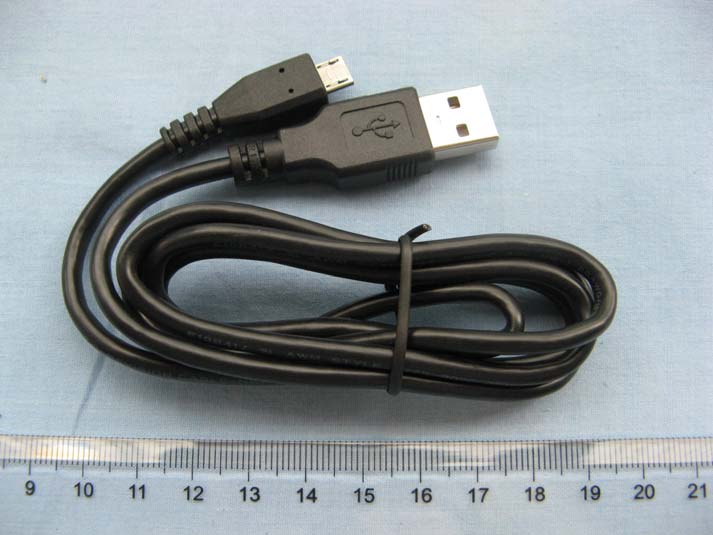

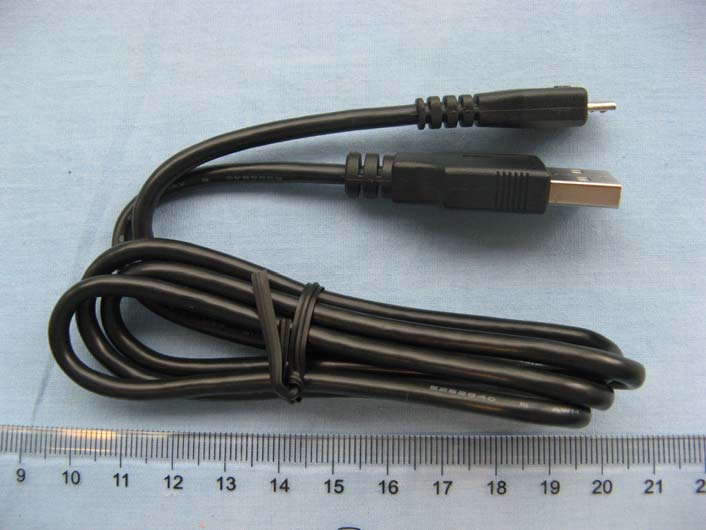

EUT photograph Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 Headset AE5 Headset AE6 Headset AE7 Headset AE8 Data Cable AE9 Data Cable AE10 Data Cable AE11 Data Cable AE12

    Label

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly

No.2012SAR00132 Page 1 of 205 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2012SAR00132 For TCT Mobile Limited HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone Mode Name: Beetle 2SIM US Marketing Name: ONE TOUCH 4030E With Hardware Version: proto Software Version: vFA2 FCCID: RAD 316 Issued Date: 2012 -12-27 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2012SAR00132 Page 2 of 205 Revision Version Report Number Revision Date Memo 2012SAR00132 00 2012-12-22 Initial creation of test report 2012SAR00132 01 2012-12-27 Update the evaluation of simultaneous transmission for BT and WiFi antenna No. 2012SAR00132 Page 3 of 205 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 SAR MEASUREMENT SETUP ................................................................................................... 11 7.1 MEASUREMENT SET-UP ................................................................................................................................ 11 7.2 DASY4 OR DASY5 E-FIELD PROBE SYSTEM ................................................................................................ 12 7.3 E-FIELD PROBE CALIBRATION ...................................................................................................................... 12 7.4 OTHER TEST EQUIPMENT ............................................................................................................................. 13 7.4.1 DATA ACQUISITION ELECTRONICS(DAE) ................................................................................................. 13 7.4.2 ROBOT ....................................................................................................................................................... 14 7.4.3 MEASUREMENT SERVER ............................................................................................................................ 14 7.4.4 DEVICE HOLDER FOR PHANTOM................................................................................................................ 15 7.4.5 PHANTOM .................................................................................................................................................. 16 8. POSITION OF THE WIRELESS DEVICE IN RELATION TO THE PHANTOM ........................ 17 8.1 GENERAL CONSIDERATIONS .......................................................................................................................... 17 8.2 BODY-WORN DEVICE .................................................................................................................................... 18 8.3 DESKTOP DEVICE .......................................................................................................................................... 18 8.4 DUT SETUP PHOTOS ......................................................................................................................…

Text truncated - open the document above for the full version.

No. 2012SAR00132 Page 111 of 205 WCDMA 850 Body Towards Ground Low with Headset CCB3160A11C1 Date: 2012-12-13 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.984 mho/m; εr = 54.348; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.840 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.493 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.036 mW/g SAR(1 g) = 0.803 mW/g; SAR(10 g) = 0.595 mW/g Maximum value of SAR (measured) = 0.843 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.493 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.271 mW/g SAR(1 g) = 0.797 mW/g; SAR(10 g) = 0.516 mW/g Maximum value of SAR (measured) = 0.825 mW/g Fig. 66 WCDMA 850 CH4132 No. 2012SAR00132 Page 112 of 205 WCDMA 850 Body Towards Ground High with Headset CCB3160A11C2 Date: 2012-12-13 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 1.005 mho/m; εr = 54.145; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.825 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.253 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.328 mW/g SAR(1 g) = 0.818 mW/g; SAR(10 g) = 0.514 mW/g Maximum value of SAR (measured) = 0.911 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.253 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.968 mW/g SAR(1 g) = 0.732 mW/g; SAR(10 g) = 0.533 mW/g Maximum value of SAR (measured) = 0.773 mW/g Fig. 67 WCDMA 850 CH4233 No. 2012SAR00132 Page 113 of 205 WCDMA 850 Body Towards Ground Middle with Headset CCB3160A11C2 Date: 2012-12-13 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.995 mho/m; εr = 54.238; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.01 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.042 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.497 mW/g SAR(1 g) = 0.921 mW/g; SAR(10 g) = 0.579 mW/g Maximum value of SAR (measured) = 1.01 mW/g Toward Ground Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.042 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.110 mW/g SAR(1 g) = 0.849 mW/g; SAR(10 g) = 0.620 mW/g Maximum value of SAR (measured) = 0.888 mW/g Fig. 68 WCDMA 850 CH4182 No. 2012SAR00132 Page 114 of 205 WCDMA 850 Body Towards Ground Low with Headset CCB3160A11C2 Date: 2012-12-13 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.984 mho/m; εr = 54.348; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.884 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.351 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 1.101 mW/g SAR(1 g) = 0.846 mW/g; SAR(10 g) = 0.620 mW/g Maximum value of SAR (measured) = 0.892 mW/g Toward Ground Low/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.351 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 1.397 mW/g SAR(1 g) = 0.857 mW/g; SAR(10 g) = 0.537 mW/g Maximum value of SAR (measured) = 0.957 mW/g Fig. 69 WCDMA 850 CH4132 No. 2012SAR00132 Page 115 of 205 WCDMA 1900 Left Cheek High Date: 2012-12-14 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1907.6 MHz; σ = 1.376 mho/m; εr = 40.904; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek High/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.03 mW/g Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.322 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 1.393 mW/g SAR(1 g) = 0.943 mW/g; SAR(10 g) = 0.584 mW/g Maximum value of SAR (measured) = 1.01 mW/g Fig. 70 WCDMA1900 CH9538 No. 2012SAR00132 Page 116 of 205 WCDMA 1900 Left Cheek Middle Date: 2012-12-14 Electronics: DAE4 Sn771 Medium: Head GSM1900 Medium parameters used: f = 1880 MHz; σ = 1.368 mho/m; εr = 41.008; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WCDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek Middle/Area Scan (61x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.839 mW/g Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.907 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.140 mW/g SAR(1 g) = 0.775 mW/g; SAR(10 g) = 0.480 mW/g Maximum value of SAR (measured) = 0.834 mW/g Fig. 71 WCDMA190…

Text truncated - open the document above for the full version.

No. 2012TAR569 Page1 of 41 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012TAR569 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband/GSM quadband mobile phone Name: Beetle 2SIM US Marketing Name: ONE TOUCH 4030E FCC ID: RAD316 With Hardware Version: Ptoto Software Version: vFA2 Issued Date: 2012-12-24 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2012TAR569 Page2 of 41 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. G ENERAL DESCRIPTION ................................................................................................................... 7 4. REFERENCE DOCUMENTS ............................................................................................................. 8 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 8 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 8 5. LABORATORY ENVIRONMENT ..................................................................................................... 9 6. SUMMARY OF TEST RESULTS ..................................................................................................... 10 6.1. S UMMARY OF TEST RESULTS ......................................................................................................... 10 6.2. S TATE MEN TS .................................................................................................................................. 10 7. TEST EQUIPMENTS UTILIZED ..................................................................................................... 11 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 12 A.1. MEASUREMENT METHOD .................................................................................................................. 12 A.2. PEAK OUTPUT POWER - CONDUCTED ................................................................................................ 13 A.3. FREQUENCY BAND EDGES - CONDUCTED .......................................................................................... 14 A.4. CONDUCTED EMISSION ................…

Text truncated - open the document above for the full version.
