RAD323HSDPA/HSUPA/UMTS Tri-band / GSM quad bands mobile phone

English - CJB60F3ALAAA Quick Start Guide Important: Your phone is a unibody device, so the back cover and battery are not removable. Nonauthorized personnel is strictly prohibited to disassemble the phone. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 9 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears, touch and hold √ to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Moreover, from the website you can also consult FAQ, realize software upgrade, etc. EASY 8000A 1 1 Your mobile ������������������ 1�1 Keys and connectors LED indicator Power key Headset connector Home key Front camera Touch screen Back key Recent app key PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Table of contents 1 Your mobile ���������������������������������������������������������������������1 2 Text input ����������������������������������������������������������������������11 3 Phone call ����������������������������������������������������������������������14 4 Contacts ������������������������������������������������������������������������16 5 Messaging�����������������������������������������������������������������������17 6 Email ������������������������������������������������������������������������������18 7 Getting connected ��������������������������������������������������������19 8 Locate my location using GPS satellites ��������������������22 9 Data backup ������������������������������������������������������������������23 10 Factory data reset ��������������������������������������������������������23 11 Applications & Internal storage ����������������������������������24 12 Making the most of your phone ����������������������������������25 Safety and use �������������������������������������������������������������������������27 General information ��������������������������������������������������������������34 Alcatel Mobile Phones Limited Warranty ���������������������������35 Troubleshooting����������������������������������������������������������������������37 The phone contains magnets which may interfere with other devices and items (such as credit card, pacemakers, defibrillators, etc.). Please maintain at least 15 cm of separation between your phone and the devices/items mentioned above. 23 Volume Keys • Under call mode, adjust the earpiece or headset volume. • In Music/Video/Streaming mode, adjust the media volume. • In general mode, adjust the ring tone volume. • Mute the ringtone of an incoming call. 1�2 Getting started 1�2�1 Set-up Inserting or removing the SIM card (1) You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. To install, place the SIM card chip facing downwards, and then slide it into its slot. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing and removing the microSD card Insert the microSD card with golden contact facing downwards into the slot. To remove the microSD card, gently press and slide it out. To avoid data loss and SD card damage, before removing the SD card, please ensure that the SD card is unmounted (Settings\Storage\Unmount SD card). (1) Check with your network operator to make sure that your SIM card is 3V or 1.8V compatible. The old 5 volt cards can no longer be used. Volumn Key SIM card slot Micro-USB Connector SD card slot CameraCamera Flash/Flashlight Recent app key • Press to see the recent app in any screen and APP. • Touch and hold to see the menu list. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen, or to close a dialog box, options menu, the notification panel, etc. Power key • Press: Lock the screen / Light up the screen • Press and hold: Show the pop-up menu to select from Ringer mode / Airplane mode / Power off / Reboot / Power on • Press Power key more than 9s to restart. • Press Power key and Volumn up key to reset. • Press Power key and Volumn down key to capture a screenshot. 45 Charging the battery Connect the battery charger to your phone and mains socket respectively, LED indicator will light while charging. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set following options: language, Input method, date & time, etc. Power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. 1�2�3 Power off your phone Hold down the Power key from the Home screen until the Phone options appear, select Power off, and touch OK to confirm. 1�3 Home screen You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar • Status/Notification indicators • Touch and drag down to open the notification panel. Application tab • Touch to open main menu. Search bar • Touch  to enter text search s…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-04-10 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD323 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

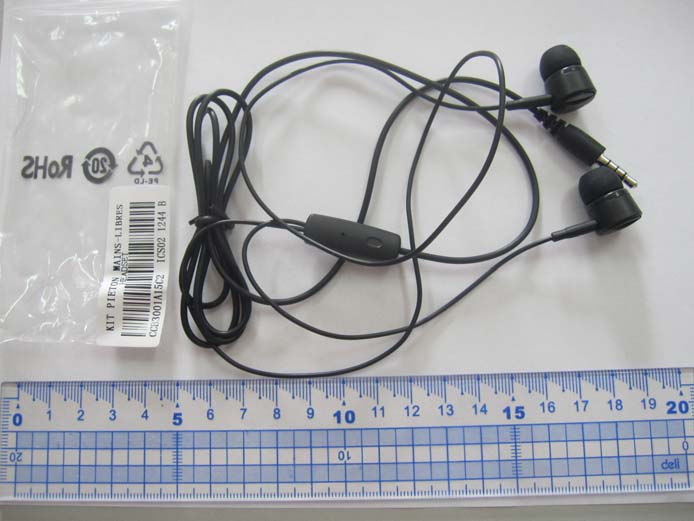

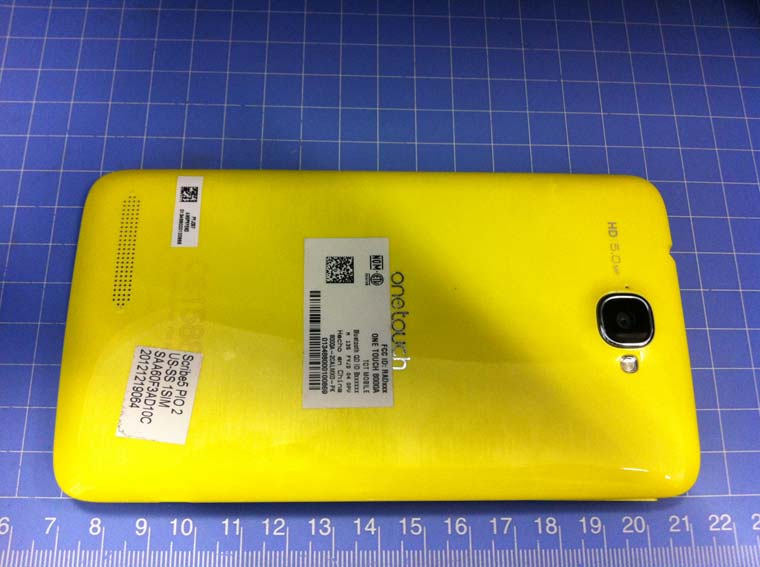

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Charger AE2 Label of Charger AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 Headset AE5 Headset AE6 Headset AE7 Headset AE8

FCC ID: RAD323 Label

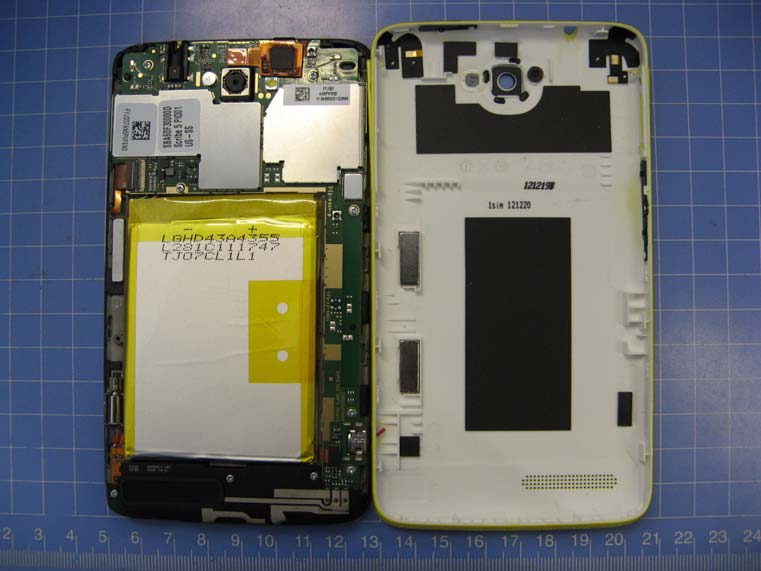

EUT Interior photograph Mobile Phone Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

No.2013EEB00145 Page 1 of 206 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013EEB00145 For TCT Mobile Limited HSDPA/HSUPA/UMTS Tri-band / GSM quad bands mobile phone Model name: Scribe 5 US_SS Marketing name: ONE TOUCH 8000A With Hardware Version: PIO Software Version: v135 FCC ID: RAD323 Issued Date: 2013-04-23 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013EEB00145 Page 2 of 206 Revision Version Report Number RevisionDate Memo 2013EEB00145 00 2013-04-03 Initial creation of test report 2013EEB00145 01 2013-04-09 Correct conducted power 2013EEB00145 02 2013-04-19 Add the test of HSPA 2013EEB00145 03 2013-04-23 Verify conducted power of HSPA No. 2013EEB00145 Page 3 of 206 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 18 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 20 9.4 POWER DRIFT ............................................................................................................................................... 21 10 CONDUCTED OUTPUT POWER ........................................................................................... 21 10.1 MANUFACTURING TOLERANCE ................................................................................................................... 21 10.2 GSM MEASUREMENT RESULT .................................................................................................................... 23 10.3 WCDMA CONDUCTED POWER MEASUREMENT RESULT ............................................................................. 24 10.3 WI-FI AND BT MEASUREMENT RES…

Text truncated - open the document above for the full version.

No. 2013EEB00145 Page 137 of 206 W1900 Body Towards Ground Middle with AE3 Date/Time: 3/13/2013 Electronics: DAE4 Sn786 Medium: Body 1900MHz Medium parameters used: f = 1880 MHz; σ = 1.48 S/m; ε r = 50.979; ρ = 1000 kg/m 3 Ambient Temperature:22.6 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.7, 4.7, 4.7); Calibrated: 4/24/2012 Towards Ground Middle with AE3/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 11.182 V/m; Power Drift = -0.19 dB Maximum value of SAR (interpolated) = 0.861 W/kg Towards Ground Middle with AE3/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.182 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 1.35 W/kg SAR(1 g) = 0.764 W/kg; SAR(10 g) = 0.414 W/kg Maximum value of SAR (measured) = 0.842 W/kg 0 dB = 0.842 W/kg = -0.75 dBW/kg Fig. 93 W1900 MHz CH9400 No. 2013EEB00145 Page 138 of 206 W1900 Body Towards Ground Low with flip cover Date/Time: 3/13/2013 Electronics: DAE4 Sn786 Medium: Body 1900MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.487 S/m; ε r = 51.606; ρ = 1000 kg/m 3 Ambient Temperature:22.6 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.7, 4.7, 4.7); Calibrated: 4/24/2012 Towards Ground Low with flip cover/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 8.145 V/m; Power Drift = -0.15 dB Maximum value of SAR (interpolated) = 0.528 W/kg Towards Ground Low with flip cover/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.145 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.738 W/kg SAR(1 g) = 0.446 W/kg; SAR(10 g) = 0.255 W/kg Maximum value of SAR (measured) = 0.492 W/kg 0 dB = 0.492 W/kg = -3.08 dBW/kg Fig. 94 W1900 MHz CH9262 No. 2013EEB00145 Page 139 of 206 Wifi Left Cheek Middle Date/Time: 3/11/2013 Electronics: DAE4 Sn786 Medium: Head 2450Mhz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.847 S/m; ε r = 40.128; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.6 o C Communication System: WiFi 802.11 b Frequency: 2437 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.44, 4.44, 4.44); Calibrated: 4/24/2012 Left Cheek Middle/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 11.765 V/m; Power Drift = 0.14 dB Maximum value of SAR (interpolated) = 0.359 W/kg Left Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.765 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.600 W/kg SAR(1 g) = 0.306 W/kg; SAR(10 g) = 0.168 W/kg Maximum value of SAR (measured) = 0.333 W/kg 0 dB = 0.333 W/kg = -4.77 dBW/kg Fig.95 2450 MHz CH6 No. 2013EEB00145 Page 140 of 206 Wifi Left Tilt Middle Date/Time: 3/11/2013 Electronics: DAE4 Sn786 Medium: Head 2450Mhz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.847 S/m; ε r = 40.128; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.6 o C Communication System: WiFi 802.11 b Frequency: 2437 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.44, 4.44, 4.44); Calibrated: 4/24/2012 Left Tilt Middle/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 12.024 V/m; Power Drift = 0.06 dB Maximum value of SAR (interpolated) = 0.313 W/kg Left Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.024 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.519 W/kg SAR(1 g) = 0.271 W/kg; SAR(10 g) = 0.143 W/kg Maximum value of SAR (measured) = 0.300 W/kg 0 dB = 0.300 W/kg = -5.23 dBW/kg Fig. 96 2450 MHz CH6 No. 2013EEB00145 Page 141 of 206 Wifi Right Cheek High Date/Time: 3/11/2013 Electronics: DAE4 Sn786 Medium: Head 2450Mhz Medium parameters used: f = 2462 MHz; σ = 1.88 S/m; ε r = 40.052; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.6 o C Communication System: WiFi 802.11 b Frequency: 2462 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.44, 4.44, 4.44); Calibrated: 4/24/2012 Right Cheek High/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 12.373 V/m; Power Drift = 0.19 dB Maximum value of SAR (interpolated) = 1.05 W/kg Right Cheek High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.373 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 2.01 W/kg SAR(1 g) = 0.937 W/kg; SAR(10 g) = 0.467 W/kg Maximum value of SAR (measured) = 1.00 W/kg 0 dB = 1.00 W/kg = 0.00 dBW/kg Fig. 97 2450 MHz CH11 No. 2013EEB00145 Page 142 of 206 Wifi Right Cheek Middle Date/Time: 3/11/2013 Electronics: DAE4 Sn786 Medium: Head 2450Mhz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.847 S/m; ε r = 40.128; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.6 o C Communication System: WiFi 802.11 b Frequency: 2437 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.44, 4.44, 4.44); Calibrated: 4/24/2012 Right Cheek Middle/Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 11.430 V/m; Power Drift = 0.20 dB Maximum value of SAR (interpolated) = 1.18 W/kg Right Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.430 V/m; Power Drift = 0.20 dB Peak SAR (extrapolated) = 1.99 W/kg SAR(1 g) = 0.914 W/kg; SAR(10 g) = 0.446 W/kg Maximum value of SAR (measured) = 0.950 W/kg 0 dB = 0.950 W/kg = -0.22 dBW/kg Fig. 98 2450 MHz CH6 No. 2013EEB00145 Page 143 of 206 Wifi Right Cheek Low Date/Time: 3/11/2013 Electronics: DAE4 Sn786 Medium: Head 2450Mhz Medium parameters used: f = 2412 MHz; σ = 1.815 S/m; ε r = 40.212; ρ = 1000 kg/m 3 Ambient Temperature:22.3 o C Liquid Temperature: 21.6 o C Communication System: WiFi 802.11 b Frequency: 2412 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(4.44, 4.44, 4.44); Calibrated: 4/24/2012 Ri…

Text truncated - open the document above for the full version.

No. 2013WLN0623 Page1 of 100 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2013WLN0623 for TCT Mobile Limited HSDPA/HSUPA/UMTS Tri-band / GSM quad bands mobile phone Type: Scribe 5 US_SS Market Name: ONE TOUCH 8000A With FCC ID: RAD323 Hardware Version: PIO Software Version: v152 Issued Date: 2013-03-26 Note:The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China, 100191 Tel:+86(0)108 6230463382561, Fax:+86(0)1086230463382504 Email:[email protected]. www.emcite.com No. 2013WLN0623 Page2 of 100 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS ...................................................................................................................................... 2 1. TEST LABORATORY ........................................................................................................ 6 1.1. T ESTING LOCATION .............................................................................................................. 6 1.2. TESTING ENVIRONMENT ....................................................................................................... 6 1.3. PROJECT DATA ..................................................................................................................... 6 1.4. SIGNATURE .......................................................................................................................... 6 2. CLIENT INFORMATION .................................................................................................... 7 2.1. A PPLICANT INFORMATION ..................................................................................................... 7 2.2. MANUFACTURER INFORMATION ............................................................................................. 7 3. EQUIPMENT UNDER TEST(EUT) AND ANCILLARY EQUIPMENT(AE) ....................... 8 3.1. ABOUT EUT ......................................................................................................................... 8 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................................... 8 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................................... 8 3.4. GENERAL DESCRIPTION........................................................................................................ 8 4. REFERENCE DOCUMENTS ............................................................................................. 9 4.1. D OCUMENTS SUPPLIED BY APPLICANT ................................................................................... 9 4.2. REFERENCE DOCUMENTS FOR TESTING .................................................................... 9 5. LABORATORY ENVIRONMENT .................................................................................... 10 6. SUMMARY OF TEST RESULTS ..................................................................................... 11 6.1. S UMMARY OF TEST RESULTS .............................................................................................. 11 6.2. STATEMENTS ...................................................................................................................... 11 7. TEST EQUIPMENTS UTILIZED ...................................................................................... 12 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 13 A.1. MEASUREMENT METHOD........................................................................................................ 13 A.2. MAXIMUM OUTPUT POWER .................................................................................................... 14 A.2.1. MAXIMUM PEAK OUTPUT POWER8CONDUCTED .................................................................... 14 A.2.2. MAXIMUM AVERAGE OUTPUT POWER8CONDUCTED .............................................................. 16 A.3. PEAK POWER SPECTRAL DENSITY.......................................................................................... 17 F IG. 1 POWER SPECTRAL DENSITY (802.11B, CH 1) .............................................................. 18 FIG. 2 POWER SPECTRAL DENSITY (802.11B, CH 6) .............................................................. 18 FIG. 3 POWER SPECTRAL DENSITY (802.11B, CH 11) ............................................................. 19 FIG. 4 POWER SPECTRAL DENSITY (802.11G, CH 1) .............................................................. 19 F IG. 5 POWER SPECTRAL DENSITY (802.11G, CH 6) .............................................................. 20 FIG. 6 POWER SPECTRAL DENSITY (802.11G, CH 11) ............................................................. 20 F IG. 7 POWER SPECTRAL DENSITY (802.11N820MHZ, CH 1) ................................................. 21 F IG. 8 POWER SPECTRAL DENSITY (802.11N820MHZ, CH 6) ................................................. 21 F IG. 9 POWER SPECTRAL DENSITY (802.11N820MHZ, CH 11) ................................................ 22 No. 2013WLN0623 Page3 of 100 ©Copyright. All rights reserved by TMC Beijing. A.4. OCCUPIED 6DB BANDWIDTH .................................................................................................. 23 FIG. 10 OCCUPIED 6DB BANDWIDTH (802.11B, CH 1) .............................................................. 24 FIG. 11 OCCUPIED 6DB BANDWIDTH (802.11B, CH 6) .............................................................. 24 F IG. 12 OCCUPIED 6DB BANDWIDTH (802.11B, CH 11) ............................................................ 25 FIG. 13 OCCUPIED 6DB BANDWIDTH (802.11G, CH 1) ......................................…

Text truncated - open the document above for the full version.

No. 2013TAR141 Page1 of 38 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2013TAR141 for TCT Mobile Limited HSDPA/HSUPA/UMTS Tri-band / GSM quad bands mobile phone Model Name: Scribe 5 US_SS Marketing Name: ONE TOUCH 8000A FCC ID: RAD323 with Hardware Version: PIO Software Version: v152 Issued Date: 2013-03-29 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2013TAR141 Page2 of 38 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. N ORMAL ACCESSORY SETTING ....................................................................................................... 5 3.5. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 7 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 6.1. S UMMARY OF TEST RESULTS ........................................................................................................... 9 6.2. S TATE MEN TS .................................................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1. MEASUREMENT METHOD ................................................................................................................... 11 A.2. PEAK OUTPUT POWER - CONDUCTED ................................................................................................ 12 A.3. FREQUEN…

Text truncated - open the document above for the full version.
