RAD332HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone

1 English - CJB16T3ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. 5035A IP4503_5035A_QG_Eng_USA_05_130225.indd 1IP4503_5035A_QG_Eng_USA_05_130225.indd 12013-2-25  1:21:432013-2-25  1:21:43 23 Your mobile 1 .................. Keys and connectors1.1 Headset connector Power key Back key Touch screen Front camera Home key Recent apps key micro-USB connector Prolonged exposure to music at full volume on the music player may damage the listener's hearing. Set your cellphone volume safely. Use only headphones recommended by TCT Mobile Limited and its affiliates. Table of contents 1 Your mobile ..................................................................... 3 2 Text input ...................................................................... 13 3 Phone call ...................................................................... 15 4 People ............................................................................ 17 5 Messaging....................................................................... 18 6 Email .............................................................................. 19 7 Getting connected ........................................................ 20 8 Locate my location using GPS satellites ...................... 23 9 Data backup .................................................................. 23 10 Factory data reset ....................................................... 24 11 Applications & Internal storage .................................. 24 12 Making the most of your phone .................................. 25 Safety and use ......................................................................... 27 General information .............................................................. 34 Warranty ................................................................................. 35 Troubleshooting...................................................................... 36 IP4503_5035A_QG_Eng_USA_05_130225.indd 2-3IP4503_5035A_QG_Eng_USA_05_130225.indd 2-32013-2-25  1:21:432013-2-25  1:21:43 45 Volume up Volume down Camera Camera Flash/ Flashlight Recent apps key Touch to open a list of thumbnail images of apps you've • worked with recently. Touch it to open an app. Swipe it left or right to remove a thumbnail from the list. Touch and hold it to open menu list.• Home key While on any application or screen, touch to return • to the Home screen. Back key Touch to go back to the previous screen, or to close a • dialog box, options menu, the notification panel, etc. Power key Press: Lock the screen/Light up the screen• Press and hold: Show the pop-up menu to select from • Ringer mode/Airplane mode/Power off Press and hold: Power on Press and hold• Power key and Volume down key to capture a screenshot. Volume Keys Under call mode, adjust the earpiece or headset • volume. In Music/Video/Streaming mode, adjust the media • volume. In general mode, adjust the ring tone volume.• Mute the ringtone of an incoming call.• Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. To install, place the SIM card with chip facing downwards. Make sure that it is correctly inserted. To remove the card, press and slide it out. IP4503_5035A_QG_Eng_USA_05_130225.indd 4-5IP4503_5035A_QG_Eng_USA_05_130225.indd 4-52013-2-25  1:21:432013-2-25  1:21:43 67 Installing or removing the battery Please power off your phone before removing the battery. Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• Installing and removing the microSD card Insert the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, gently press and slide it out. Before removing the microSD card, you should ensure the phone is off, to protect it from corruption or damage. In addition, regularly removing or inserting the SD card may cause the phone to restart. Charging the battery Connect the battery charger to your phone, then the charging icon will show on the right of status bar. The charging status bar will not float if your battery is extendly consumed. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set following options: language, date & time, Google account, etc. If you power on your phone with no SIM card inserted, you will see a screen giving you the option to connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key from the Home screen until the Phone options appear, select Power off, and touch OK to confirm. Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your Home screen for quick access. Touch the Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and drag down to open the • notification panel. Application tab Touch to open application list.• Search bar Touch • n to enter text search screen. Touch • o to enter voice search screen. Touch an icon to open an application, folder, etc. Favorite tray applications Touch to enter the application.• Touch and hold to move or change • applications. IP4503_5035A_QG_Eng_USA_05_130225.indd 6-7IP4503_5035A_QG_Eng_USA…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2012-12-20 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2012-12-20 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD332 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

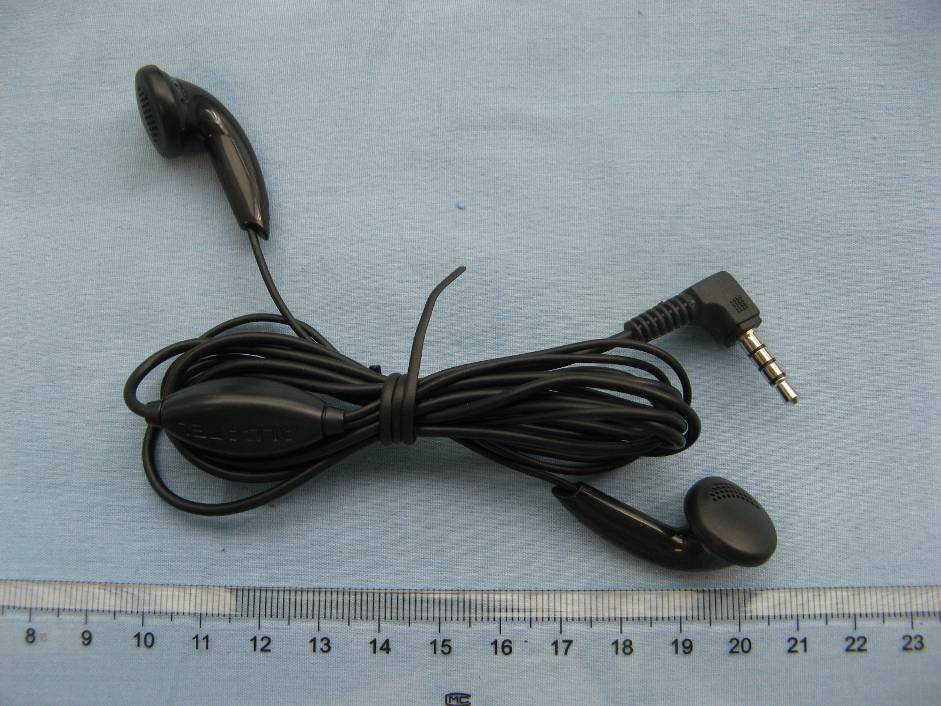

EUT photograph

Label

EUT Interior photograph

Note: The t repro d Test L TMC No. 5 2 Te l : +8 HSUPA/ H a est results in duced except Laboratory: Beijing, Teleco 2, Huayuan B 86(0)10-62304 SA HSDPA/U Model n Mark ardware V this test rep in full without ommunication ei Road, Haid 4633-2079, Fa AR TE No. 20 TCT UMTS tri name: Ca keting na Version: Soft w FC Issued ort relate only the written ap n Metrology Ce ian District, B ax:+86(0)10-62 EST 013EE For T Mobile iband / G amry Lat ame: ON With MAIN P ware Vers CC ID: RA d Date: 2 y to the devic pproval of TMC enter of MIIT eijing, P. R. C 2304633 Ema ©Copyr REP EB000 r Limited GSM qua tamAPAC NE TOUC h CB V1.3 ; sion: FA AD332 2013-03-0 ces specified C Beijing. hina 100191. ail:welcome@e No right. All rights ORT 029 dband m C Single CH 5035A ;SUB PC A2 08 in this report emcite.com. w o.2013EE Page 1 s reserved by T T mobile ph SIM A CB V1.2 t. This report www.emcite.co EB00029 of 193 TMC Beijing. hone shall not be om 9 No. 2013EEB00029 Page 2 of 193 Revision Version Report Number RevisionDate Memo 2013EEB00029 00 2013-02-06 Initial creation of test report 2013EEB00029 01 2013-02-28 / 2013EEB00029 02 2013-03-08 Add EGPRS SAR results No. 2013EEB00029 Page 3 of 193 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 20 9.4 POWER DRIFT ............................................................................................................................................... 21 10 CONDUCTED OUTPUT POWER ........................................................................................... 21 10.1 MANUFACTURING TOLERANCE ................................................................................................................... 21 10.2 GSM MEASUREMENT RESULT .................................................................................................................... 23 10.3 WI-FI AND BT MEASUREMENT RESULT .................................…

Text truncated - open the document above for the full version.

No. 2013EEB00029 Page 81 of 193 1900 Body Toward Ground High with Headset C1 Date: 2/2/2013 Electronics: DAE4 Sn786 Medium: Body 1900MHz Medium parameters used: f = 1910 MHz; σ = 1.561 S/m; ε r = 51.882; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.9 o C Communication System: GSM Frequency: 1910 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(4.7, 4.7, 4.7); Calibrated: 4/24/2012 Towards Ground High _Speech C1/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 6.845 V/m; Power Drift = 0.07 dB Maximum value of SAR (interpolated) = 0.558 W/kg Towards Ground High _Speech C1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.845 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.736 W/kg SAR(1 g) = 0.473 W/kg; SAR(10 g) = 0.274 W/kg Maximum value of SAR (measured) = 0.528 W/kg 0 dB = 0.528 W/kg = -2.77 dBW/kg Fig. 42 1900 MHz CH512 No. 2013EEB00029 Page 82 of 193 1900 Body Toward Ground Low with Headset C4 Date: 2/2/2013 Electronics: DAE4 Sn786 Medium: Body 1900MHz Medium parameters used: f = 1910 MHz; σ = 1.561 S/m; ε r = 51.882; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.9 o C Communication System: GSM Frequency: 1910 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(4.7, 4.7, 4.7); Calibrated: 4/24/2012 Towards Ground High _Speech C4/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 6.753 V/m; Power Drift = 0.09 dB Maximum value of SAR (interpolated) = 0.560 W/kg Towards Ground High _Speech C4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.753 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.754 W/kg SAR(1 g) = 0.477 W/kg; SAR(10 g) = 0.275 W/kg Maximum value of SAR (measured) = 0.532 W/kg 0 dB = 0.532 W/kg = -2.74 dBW/kg Fig. 43 1900 MHz CH512 No. 2013EEB00029 Page 83 of 193 W850 Left Cheek High Date: 2/4/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.926 S/m; ε r = 43.024; ρ = 1000 kg/m 3 Ambient Temperature: 21.6 o C Liquid Temperature: 21.1 o C Communication System: WCDMA Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Left Cheek High/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 7.535 V/m; Power Drift = -0.00 dB Maximum value of SAR (interpolated) = 0.420 W/kg Left Cheek High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.535 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.485 W/kg SAR(1 g) = 0.409 W/kg; SAR(10 g) = 0.315 W/kg Maximum value of SAR (measured) = 0.432 W/kg 0 dB = 0.432 W/kg = -3.65 dBW/kg Fig. 44 W850 MHz CH4233 No. 2013EEB00029 Page 84 of 193 W850 Left Cheek Middle Date: 2/4/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.916 S/m; ε r = 43.154; ρ = 1000 kg/m 3 Ambient Temperature: 21.6 o C Liquid Temperature: 21.1 o C Communication System: WCDMA Frequency: 836.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Left Cheek Middle/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 7.156 V/m; Power Drift = 0.00 dB Maximum value of SAR (interpolated) = 0.371 W/kg Left Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.156 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.428 W/kg SAR(1 g) = 0.360 W/kg; SAR(10 g) = 0.277 W/kg Maximum value of SAR (measured) = 0.379 W/kg 0 dB = 0.379 W/kg = -4.21 dBW/kg Fig. 45 W850 MHz CH4183 No. 2013EEB00029 Page 85 of 193 W850 Left Cheek Low Date: 2/4/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.907 S/m; ε r = 43.285; ρ = 1000 kg/m 3 Ambient Temperature: 21.6 o C Liquid Temperature: 21.1 o C Communication System: WCDMA Frequency: 826.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Left Cheek Low/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 7.295 V/m; Power Drift = -0.17 dB Maximum value of SAR (interpolated) = 0.357 W/kg Left Cheek Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.295 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 0.416 W/kg SAR(1 g) = 0.351 W/kg; SAR(10 g) = 0.270 W/kg Maximum value of SAR (measured) = 0.369 W/kg 0 dB = 0.369 W/kg = -4.33 dBW/kg Fig. 46 W850 MHz CH4132 No. 2013EEB00029 Page 86 of 193 W850 Left Tilt High Date: 2/4/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.926 S/m; ε r = 43.024; ρ = 1000 kg/m 3 Ambient Temperature: 21.6 o C Liquid Temperature: 21.1 o C Communication System: WCDMA Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Left Tilt High/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 12.338 V/m; Power Drift = -0.06 dB Maximum value of SAR (interpolated) = 0.315 W/kg Left Tilt High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.338 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.360 W/kg SAR(1 g) = 0.301 W/kg; SAR(10 g) = 0.232 W/kg Maximum value of SAR (measured) = 0.315 W/kg 0 dB = 0.315 W/kg = -5.02 dBW/kg Fig. 47 W850 MHz CH4233 No. 2013EEB00029 Page 87 of 193 W850 Left Tilt Middle Date: 2/4/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.916 S/m; ε r = 43.154; ρ = 1000 kg/m 3 Ambient Temperature: 21.6 o C Liquid Temperature: 21.1 o C Communication System: WCDMA Frequency: 836.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Left Tilt Middle/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1…

Text truncated - open the document above for the full version.

No. 2013EEB00029 Page 161 of 193 No. 2013EEB00029 Page 162 of 193 No. 2013EEB00029 Page 163 of 193 No. 2013EEB00029 Page 164 of 193 No. 2013EEB00029 Page 165 of 193 No. 2013EEB00029 Page 166 of 193 No. 2013EEB00029 Page 167 of 193 No. 2013EEB00029 Page 168 of 193 No. 2013EEB00029 Page 169 of 193 No. 2013EEB00029 Page 170 of 193 ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. 2013EEB00029 Page 171 of 193 No. 2013EEB00029 Page 172 of 193 No. 2013EEB00029 Page 173 of 193 No. 2013EEB00029 Page 174 of 193 No. 2013EEB00029 Page 175 of 193 No. 2013EEB00029 Page 176 of 193 No. 2013EEB00029 Page 177 of 193 No. 2013EEB00029 Page 178 of 193 1900 MHz Dipole Calibration Certificate No. 2013EEB00029 Page 179 of 193 No. 2013EEB00029 Page 180 of 193 No. 2013EEB00029 Page 181 of 193 No. 2013EEB00029 Page 182 of 193

No. 2013EEB00029 Page 183 of 193 No. 2013EEB00029 Page 184 of 193 No. 2013EEB00029 Page 185 of 193 No. 2013EEB00029 Page 186 of 193 2450 MHz Dipole Calibration Certificate No. 2013EEB00029 Page 187 of 193 No. 2013EEB00029 Page 188 of 193 No. 2013EEB00029 Page 189 of 193 No. 2013EEB00029 Page 190 of 193 No. 2013EEB00029 Page 191 of 193 No. 2013EEB00029 Page 192 of 193 No. 2013EEB00029 Page 193 of 193

The t repro d Test L TMC No. 5 2 Te l : +8 HSUPA/ H a est results in duced except Laboratory: Beijing, Teleco 2, Huayuan B 86(0)10-62304 The HSDPA/U Model n Mark ardware V this test rep in full without ommunication ei Road, Haid 4633-2079, Fa e Pho No. 20 TCT UMTS tri name: Ca keting na Version: Soft w FC Issued ort relate only the written ap n Metrology Ce ian District, B ax:+86(0)10-62 otos o 013EE For T Mobile iband / G amry Lat ame: ON With MAIN P ware Vers CC ID: RA d Date: 2 y to the devic pproval of TMC enter of MIIT eijing, P. R. C 2304633 Ema ©Copyr of SA EB000 Limited GSM qua tamAPAC NE TOUC h CB V1.3 ; sion: FA AD332 2013-02-2 ces specified C Beijing. hina 100191. ail:welcome@e right. All rights AR tes 029 dband m C Single CH 5035A ;SUB PC A2 26 in this report emcite.com. w s reserved by T st mobile ph SIM A CB V1.2 t. This report www.emcite.co TMC Beijing. hone shall not be om Picture 1: front side of the sample Picture 2: back side of the sample Picture 3: Left Hand Touch Cheek Position Picture 4: Left Hand Tilt 15° Position Picture 5: Right Hand Touch Cheek Position Picture 6: Right Hand Tilt 15° Position Test positions for body: The Body SAR is tested at the following 6 test positions all with the distance =10mm between the EUT and the phantom bottom: Picture 7: Toward Phantom Picture 8: Toward Ground Picture 9: Toward Ground with Headset Picture 10: Left Side Picture 11: Right Side Picture 12: Bottom Side

No. 2012TAR599 Page1 of 38 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2012TAR599 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model Name: Camry LatamAPAC Single SIM Marketing Name: ONE TOUCH 5035A FCC ID: RAD332 with Hardware Version: MAIN PCB V1.3;SUB PCB V1.2 Software Version: FA2 Issued Date: 2013-02-28 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com CO CON 1. T 1.1 1.2 1.3 1.4 2. C 2.1 2.2 3. E 3.1 3.2 3.3 3.4 3.5 4. R 4.1 4.2 5. L 6. S 6.1 6.2 7. T ANN A.1 A.2 A.3 A.4 A.5 A.6 A.7 A.8 NTENTS NTENTS ...... TEST LABO 1. TESTING 2. TESTING 3. PROJECT 4. SIGNATU CLIENT INF 1. APPLICA 2. MANUFA EQUIPMEN 1. ABOUT E 2. INTERNA 3. INTERNA 4. NORMAL 5. GENERA REFERENC 1. DOCUME 2. REFEREN LABORATO SUMMARY 1. SUMMAR 2. STATE ME TEST EQUI NEX A: MEA 1. MEASUREM 2. PEAK OUTP 3. FREQUENC 4. CONDUCTE 5. RADIATED 6. 6DB BAND 7. MAXIMUM 8. AC POWER S ..................... ORATORY .. G LOCATION .. G ENVIRONME T DATA .......... URE ............... FORMATIO ANT INFORMA ACTURER INF NT UNDER T EUT ............. AL IDENTIFICA AL IDENTIFICA L ACCESSORY AL DESCRIPTIO CE DOCUME ENTS SUPPLIE NCE DOCUME ORY ENVIR Y OF TEST R RY OF TEST R ENTS ............. IPMENTS U ASUREMEN MENT METHO PUT POWER - CY BAND EDG ED EMISSION . EMISSION ..... DWIDTH .......... M POWER SPEC RLINE CONDU ..................... ..................... ..................... ENT ............... ..................... ..................... ON ................ ATION ............ ORMATION ... TEST (EUT) ..................... ATION OF EU ATION OF AE Y SETTING ..... ON ................ ENTS .......... ED BY APPLICA ENTS FOR TES RONMENT .. RESULTS .... RESULTS ........ ..................... UTILIZED ... T RESULTS OD ................. C ONDUCTED GES - CONDUC ..................... ..................... ..................... CTRAL DENSI UCTED EMISSI ..................... ..................... .................... .................... .................... .................... ..................... .................... .................... ) AND ANCI .................... UT USED DURIN USED DURING .................... .................... ..................... ANT ............. STING ............ ..................... ..................... .................... .................... ..................... S ................... .................... D ................... CTED ............. .................... .................... .................... TY LEVEL .... ION ............... ©Copy ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ILLARY EQ ..................... NG THE TEST G THE TEST ... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... yright. All right ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... QUIPMENT ..................... .................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... ..................... No. 2012 Page ts reserved by ..................... ..................... .................... .................... .................... .................... .................... . .................... .................... (AE) ........... . .................... .................... .................... .................... .................... .................... . .................... .................... .................... . ..................... .................... .................... .................... . ..................... .................... .................... .................... .................... .................... .................... .................... .................... 2TAR599 e2 of 38 y TMC Beijing. .................. 2 .................. 3 .................. 3 .................. 3 .................. 3 .................. 3 .................. 4 .................. 4 .................. 4 .................. 5 .................. 5 .................. 5 .................. 5 .................. 6 .................. 6 .................. 7 .................. 7 .................. 7 .................. 8 .................. 9 .................. 9 .................. 9 ................ 10 ................. 11 ................. 11 ................ 1 2 ................ 13 ................ 15 ................ 2 4 ................ 32 ................ 34 ................ 36 9 8 . 2 4 4 4 5 6 6 7 7 7 8 9 9 9 0 2 4 2 4 6 1. T 1.1. Co Ad Po Te Fa 1.2. No Ex Re 1.3. Pro Tes Tes 1.4. Test Lab …

Text truncated - open the document above for the full version.

No. 2012WLN0457 Page1 of 124 FCC PART 15C TEST REPORT No. 2012WLN0457 for TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Type: Camry LatamAPAC Single SIM Market Name: ONE TOUCH 5035A With FCC ID: RAD332 Hardware Version: MAIN PCB V1.3; SUB PCB V1.2; Software Version: FA2 Issued Date: 2013-02-25 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2561, Fax:+86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No. 2012WLN0457 Page2 of 124 CONTENTS CONTENTS .................................................................................................................................... 2 1. TEST LABORATORY .............................................................................................................. 8 1.1. TESTING LOCATION ............................................................................................................. 8 1.2. TESTING ENVIRONMENT .............................…

Text truncated - open the document above for the full version.
