RAD337GSM quad band mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile .............. 1.1 Keys Menu key - Options menu Home key - Return to the Home screen Back key - Return to previous menu Power key - Lock the screen (press) - Turn your screen on/off (press) - Power on/off (press and hold) - Mute an incoming call 1.2 Main screen icons (1) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep. Bluetooth status (Activated). Headset connected. Screen locked. Call forwarding activated: your calls are forwarded. Alarm or appointments programed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. Wap alerts (1) . Roaming. SIM card missing. GPRS connection status (Activated). GPRS connecting. Sending a MMS. MMS receiving. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. Flight mode. microSD card inserted. 2.4 Using the touchscreen Touch To access an application, touch it with your finger. Drag Place your finger on the screen to drag the object to the destination. Scroll Slide the screen to scroll up and down the applications, images, web pages... at your convenience. 3 Making a call ............. Touch on the tool bar to place a call. If you make a mistake, you can delete the incorrect digits by pressing . To hang up the call, press the key. 3042G ALCATEL 304 1 G ALCATEL 4 Contacts ............... 4.1 Consulting your Contacts To access the Contacts, touch from tool bar to enter the main menu, and select "Contacts" or touch from tool bar. 4.2 Adding a contact You can add a new contact by touching . 5 Messaging ............ 5.1 Create message From the main menu select "Messaging" or touch from tool bar to create text/multimedia message. You can type a message and you can also modify a predefined message or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). You can view your messages with chat mode in chronological order. Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 13 Music ................. Access this feature from the main menu by selecting “Music”. You will have full flexibility of managing music both on your mobile and memory card. 14 Video ................. “My videos” album contains video clips recorded, received or downloaded. 15 FM radio ............ Your phone is equipped with a radio (1) with RDS (2) functionality. You can use the application as a traditional radio with saved channels or with parallel visual information related to the radio program on the display if you tune to stations that offer Visual Radio service. You can listen to it while running other applications. 16 Recorder. .......... Accessing “Recorder” from the main menu allows you to make voice or sound recordings. Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). (1) The icons and illustrations in this guide are provided for information purposes only. English - CJB26M1ALAAN 9 Fake call ........... Protect yourself from annoying situations with the "Fake call". In this menu, you can choose “Set caller name", "Set active time", "Ringtone" etc. 10 Camera ............ Your mobile phone is fitted with a camera for taking photos and shooting videos that you can use in different ways: store them in your “• My files\My images”. send them directly by MMS or Bluetooth.• customize your main screen.• select them as incoming call image to a contact in your • directory. 11 SyncML ............ SyncML could launch synchronization with the account you've set. 12 Images .............. A library links to the images in “My images” in phone to be shown in list, slide, set as Wallpaper, Power on/off display, and contact image or sent by MMS, Bluetooth. 6 Apps (1) ................ Apps is an online software store, where you can download and install applications and games to your phone. All downloaded files can be found in "Apps Mgr" that can be accessed from main menu. 7 Wi-Fi ................... To access this function, tap to enter the main menu, and select . 8 Facebook ............ Facebook is a social utility that connects people with friends and others who work, study and live around them. It provides a number of features with which users interact, such as Wall, etc. To open an account online, please go to: http://m.facebook.com 2 Getting started 2.1 Set-up Removing and installing the back cover Removing and installing the battery Inserting and removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. (1) Depending on your network operator. 17 Settings .............. From the main menu, select the menu icon and select the function of your choice in order to customize your telephone: Phone settings, Call settings, Call filter, Network, Connectivity, Security and Restore default. 18 Call log ............... 18.1 Access You may access this function from the main menu “Call log”. Missed calls/ Rejected calls Outgoing calls (Redial) Answered calls 19 Calendar ............ Once you enter this menu from the main menu, there is a monthly-view calendar for you to keep track of important meetings, appointments, etc. Days with events entered will be marked. Voice alarm You can record a reminder using your voice at the date/time you choose! 20 Tasks .................. Enables you to easily manage and track the progress of a task with priorities. All the tasks will be sorted by due date. 21 Notes ................... You can create a note in text format by accessing “Notes” from the main menu. 22 Calculator ........... Enter a number, select the type of operation to be performed, and enter the second numb…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-03-07 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD337 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

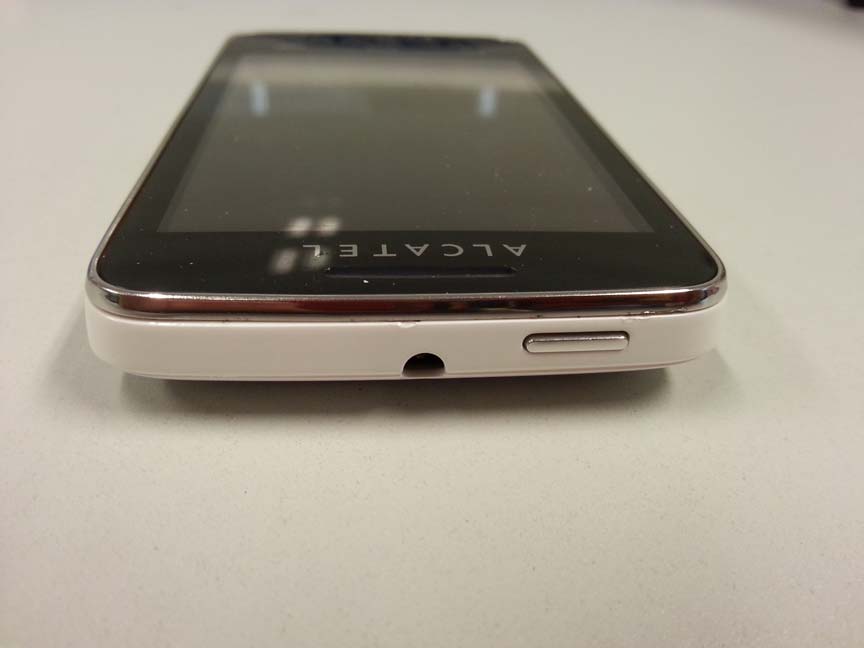

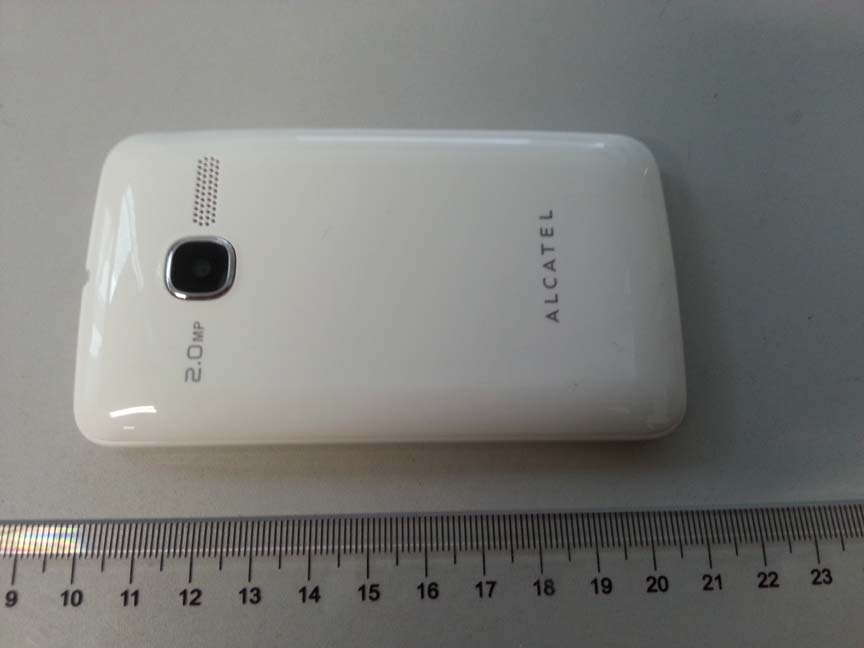

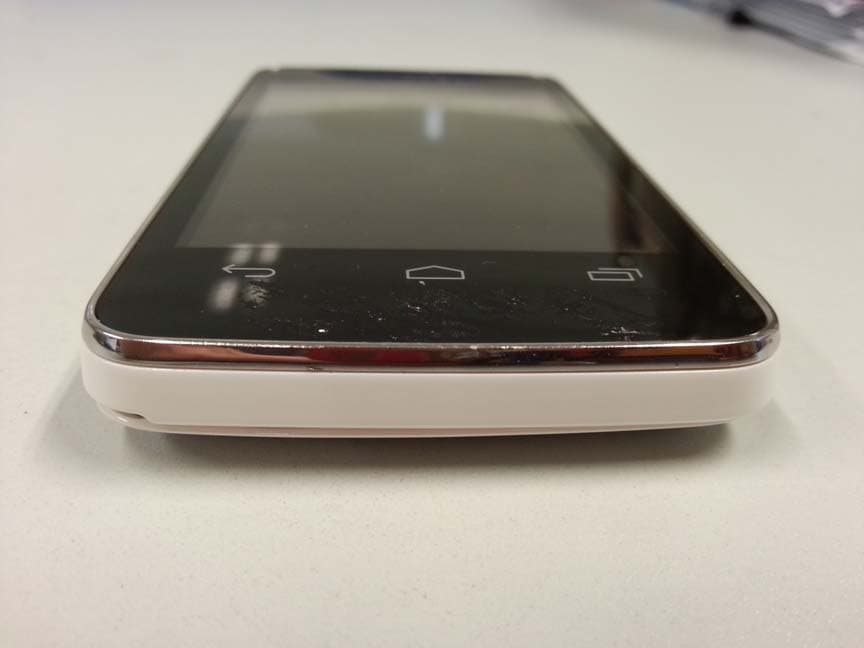

EUT photograph

FCC ID: RAD337 Label

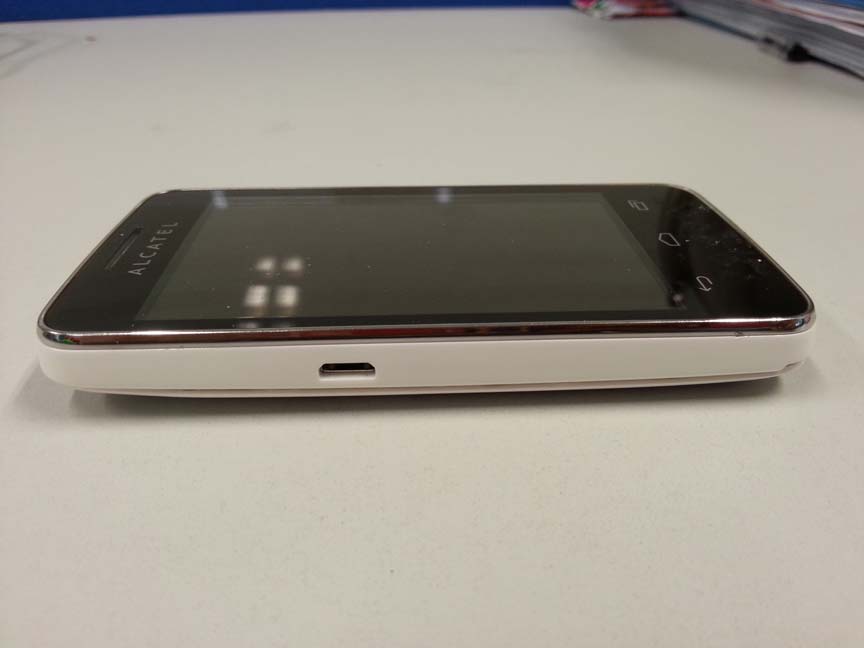

EUT Interior photograph

No. 2013TAR152 Page 1 of 21 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2013TAR152 for TCT Mobile Limited GSM quad band mobile phone Model Name: Tahiti 1Sim Wifi+ATV Marketing Name：ALCATEL 3041G FCC ID : RAD337 with Hardware Version: PIO Software Version: v556 Issued Date: 2013-03-04 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633-2561 , Fax:+86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No.2013TAR152 Page 2 of 21 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 No.2013TAR152 Page 3 of 21 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing, P. R. China Postal Code: 100191 Telephone: 0086-10-62304633-2561 Fax: 0086-10-62304633-2504 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Feb. 20 th , 2013 Testing End Date: Feb. 22 nd , 2013 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2013TAR152 Page 4 of 21 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-6146089 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, E building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-6146089 Fax: 0086-21-61460602 No.2013TAR152 Page 5 of 21 ©Copyright. All rights reserved by TMC Beijing. Equipment Under Test (EUT) and Ancillary Equipment (AE) 2.3. About EUT Description GSM quad band mobile phone Model Name Tahiti 1Sim Wifi+ATV FCC ID RAD337 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 2.4. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT1 013503000100105 PIO V556 *EUT ID: is used to identify the test sample in the lab internally. 2.5. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery B007160874A AE2 Battery BAK2011051800715 AE3 Travel charger / AE4 Travel charger / AE5 USB cable / AE6 USB cable / AE1 Model CAB31L0000C1 Manufacturer BYD Capacitance 1000mAh Nominal voltage 3.7V AE2 Model CAB31L0000C2 Manufacturer BAK Capacitance 1000mAh Nominal voltage 3.7V AE3 Model CBA3002AG0C1 Manufacturer BYD Length of cable 124cm No.2013TAR152 Page 6 of 21 ©Copyright. All rights reserved by TMC Beijing. AE4 Model CBA3002AG0C3 Manufacturer Yingju Length of cable 129cm AE5 Model CDA3122002C1 Manufacturer Juwei Length of cable 102cm AE6 Model CDA3122002C2 Manufactu…

Text truncated - open the document above for the full version.

EUT Set-up photos 1． Radiated Spurious Emission 2． Conducted Emission(Charging) 3． Conducted Emission(USB) 4． Radiated Emission(Charging) 5. Radiated Emission(USB)
