RAD339GSM quad band mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile .............. 1.1 Keys Menu key - Options menu Home key - Return to the Home screen Back key - Return to previous menu Power key - Lock the screen (press) - Turn your screen on/off (press) - Power on/off (press and hold) - Mute an incoming call 1.2 Main screen icons (1) Battery charge level Vibrate alert: your phone vibrates, but does not ring or beep. Bluetooth status (Activated). Headset connected. Screen locked. Call forwarding activated: your calls are forwarded. Alarm or appointments programed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. Wap alerts (1) . Roaming. SIM card missing. GPRS connection status (Activated). GPRS connecting. Sending a MMS. MMS receiving. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. Flight mode. microSD card inserted. 2.4 Using the touchscreen Touch To access an application, touch it with your finger. Drag Place your finger on the screen to drag the object to the destination. Scroll Slide the screen to scroll up and down the applications, images, web pages... at your convenience. 3 Making a call ............. Touch on the tool bar to place a call. If you make a mistake, you can delete the incorrect digits by pressing . To hang up the call, press the key. 3042G ALCATEL 304 1 G ALCATEL 4 Contacts ............... 4.1 Consulting your Contacts To access the Contacts, touch from tool bar to enter the main menu, and select "Contacts" or touch from tool bar. 4.2 Adding a contact You can add a new contact by touching . 5 Messaging ............ 5.1 Create message From the main menu select "Messaging" or touch from tool bar to create text/multimedia message. You can type a message and you can also modify a predefined message or customize your message by adding pictures, photos, sounds, titles, etc (only available while editing a MMS). You can view your messages with chat mode in chronological order. Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 13 Music ................. Access this feature from the main menu by selecting “Music”. You will have full flexibility of managing music both on your mobile and memory card. 14 Video ................. “My videos” album contains video clips recorded, received or downloaded. 15 FM radio ............ Your phone is equipped with a radio (1) with RDS (2) functionality. You can use the application as a traditional radio with saved channels or with parallel visual information related to the radio program on the display if you tune to stations that offer Visual Radio service. You can listen to it while running other applications. 16 Recorder. .......... Accessing “Recorder” from the main menu allows you to make voice or sound recordings. Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual (English version only). Also on our website you can find helpful FAQs (English version only). (1) The icons and illustrations in this guide are provided for information purposes only. English - CJB26M1ALAAN 9 Fake call ........... Protect yourself from annoying situations with the "Fake call". In this menu, you can choose “Set caller name", "Set active time", "Ringtone" etc. 10 Camera ............ Your mobile phone is fitted with a camera for taking photos and shooting videos that you can use in different ways: store them in your “• My files\My images”. send them directly by MMS or Bluetooth.• customize your main screen.• select them as incoming call image to a contact in your • directory. 11 SyncML ............ SyncML could launch synchronization with the account you've set. 12 Images .............. A library links to the images in “My images” in phone to be shown in list, slide, set as Wallpaper, Power on/off display, and contact image or sent by MMS, Bluetooth. 6 Apps (1) ................ Apps is an online software store, where you can download and install applications and games to your phone. All downloaded files can be found in "Apps Mgr" that can be accessed from main menu. 7 Wi-Fi ................... To access this function, tap to enter the main menu, and select . 8 Facebook ............ Facebook is a social utility that connects people with friends and others who work, study and live around them. It provides a number of features with which users interact, such as Wall, etc. To open an account online, please go to: http://m.facebook.com 2 Getting started 2.1 Set-up Removing and installing the back cover Removing and installing the battery Inserting and removing the SIM card Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press it and slide it out. (1) Depending on your network operator. 17 Settings .............. From the main menu, select the menu icon and select the function of your choice in order to customize your telephone: Phone settings, Call settings, Call filter, Network, Connectivity, Security and Restore default. 18 Call log ............... 18.1 Access You may access this function from the main menu “Call log”. Missed calls/ Rejected calls Outgoing calls (Redial) Answered calls 19 Calendar ............ Once you enter this menu from the main menu, there is a monthly-view calendar for you to keep track of important meetings, appointments, etc. Days with events entered will be marked. Voice alarm You can record a reminder using your voice at the date/time you choose! 20 Tasks .................. Enables you to easily manage and track the progress of a task with priorities. All the tasks will be sorted by due date. 21 Notes ................... You can create a note in text format by accessing “Notes” from the main menu. 22 Calculator ........... Enter a number, select the type of operation to be performed, and enter the second numb…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-03-07 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD339 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

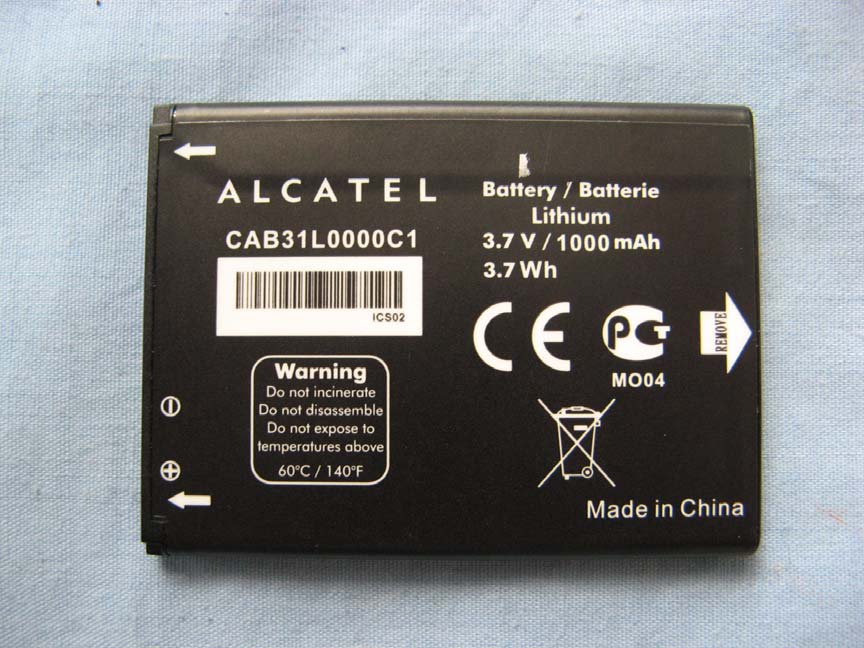

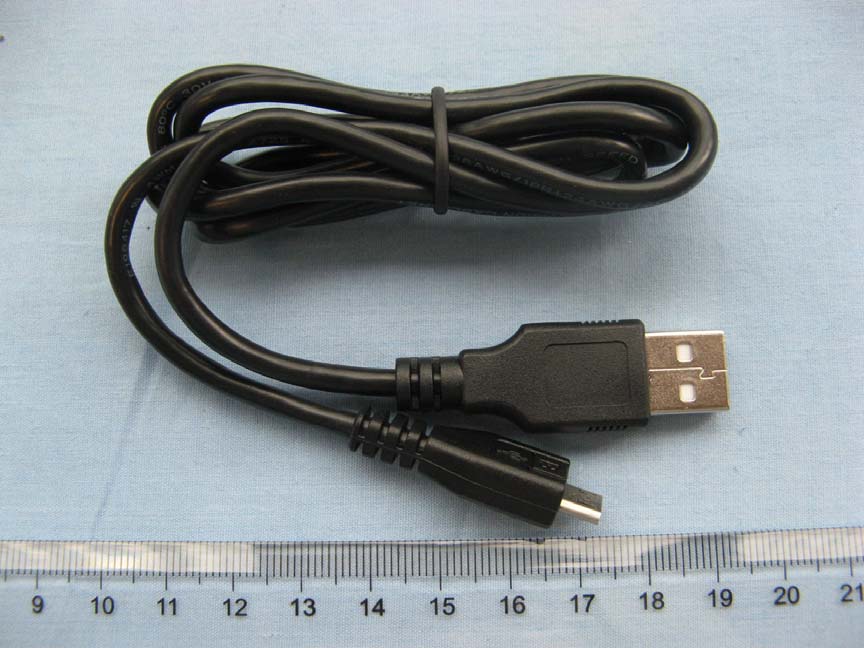

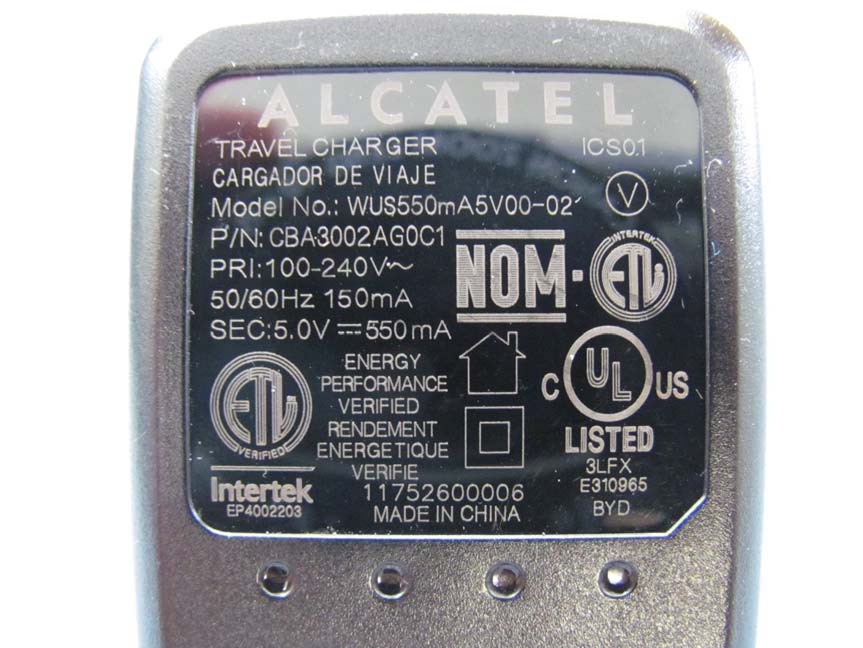

EUT photograph

RAD339 Label

No.2013EEB00134 Page 1 of 156 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013EEB00134 For TCT Mobile Limited GSM quad band mobile phone Model name: Tahiti 1Sim Wifi+DTV Marketing name: ALCATEL 3042G With Hardware Version: PIO Software Version: v523 FCC ID: RAD339 Issued Date: 2013-04-03 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013EEB00134 Page 2 of 155 Revision Version Report Number RevisionDate Memo 2013EEB00134 00 2013-03-18 Initial creation of test report 2013EEB00134 01 2013-04-01 Add BT SAR 2013EEB00134 01 2013-04-03 Modify BT power No. 2013EEB00134 Page 3 of 155 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 8 5 TEST METHODOLOGY .............................................................................................................. 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION .......................................................................................................... 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES ............................................................................................ 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 18 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 19 9.4 POWER DRIFT ............................................................................................................................................... 20 10 CONDUCTED OUTPUT POWER ........................................................................................... 20 10.1 MANUFACTURING TOLERANCE ................................................................................................................... 20 10.2 GSM MEASUREMENT RESULT .................................................................................................................... 22 10.3 WI-FI AND BT MEASUREMENT RESULT ...................................................................................................... 23 11 SIMULTANEOUS TX SAR CONSIDERATIONS ..................................................................... 24 No. …

Text truncated - open the document above for the full version.

No. 2013EEB00134 Page 51 of 155 850 Body Left Side Middle with GPRS Date/Time: 2/24/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.975 S/m; ε r = 53.861; ρ = 1000 kg/m 3 Ambient Temperature:21.9 o C Liquid Temperature: 21.5 o C Communication System: 1 slot GPRS Frequency: 836.6 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Left side Middle/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 21.892 V/m; Power Drift = 0.00 dB Maximum value of SAR (interpolated) = 0.491 W/kg Left side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.892 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.630 W/kg SAR(1 g) = 0.459 W/kg; SAR(10 g) = 0.318 W/kg Maximum value of SAR (measured) = 0.492 W/kg 0 dB = 0.492 W/kg = -3.08 dBW/kg Fig. 17 850 MHz CH190 No. 2013EEB00134 Page 52 of 155 850 Body Right Side Middle with GPRS Date/Time: 2/24/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.975 S/m; ε r = 53.861; ρ = 1000 kg/m 3 Ambient Temperature:21.9 o C Liquid Temperature: 21.5 o C Communication System: 1 slot GPRS Frequency: 836.6 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Right side Middle/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 18.894 V/m; Power Drift = 0.10 dB Maximum value of SAR (interpolated) = 0.404 W/kg Right side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.894 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 0.529 W/kg SAR(1 g) = 0.380 W/kg; SAR(10 g) = 0.261 W/kg Maximum value of SAR (measured) = 0.407 W/kg 0 dB = 0.407 W/kg = -3.91 dBW/kg Fig. 18 850 MHz CH190 No. 2013EEB00134 Page 53 of 155 850 Body Bottom Side Middle with GPRS Date/Time: 2/24/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.975 S/m; ε r = 53.861; ρ = 1000 kg/m 3 Ambient Temperature:21.9 o C Liquid Temperature: 21.5 o C Communication System: 1 slot GPRS Frequency: 836.6 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Bottom side Middle/Area Scan (41x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 10.218 V/m; Power Drift = -0.02 dB Maximum value of SAR (interpolated) = 0.110 W/kg GSM850 BODY1/Bottom side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.218 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.180 W/kg SAR(1 g) = 0.101 W/kg; SAR(10 g) = 0.064 W/kg Maximum value of SAR (measured) = 0.108 W/kg 0 dB = 0.108 W/kg = -9.68 dBW/kg Fig. 19 850 MHz CH190 No. 2013EEB00134 Page 54 of 155 850 Body Towards Ground High with EGPRS Date/Time: 2/24/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.986 S/m; ε r = 53.695; ρ = 1000 kg/m 3 Ambient Temperature:21.9 o C Liquid Temperature: 21.5 o C Communication System: 1 slot GPRS Frequency: 848.8 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Ground High_EGPRS/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 27.985 V/m; Power Drift = 0.02 dB Maximum value of SAR (interpolated) = 0.881 W/kg Towards Ground High_EGPRS/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.985 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.822 W/kg; SAR(10 g) = 0.598 W/kg Maximum value of SAR (measured) = 0.871 W/kg 0 dB = 0.871 W/kg = -0.60 dBW/kg Fig. 20 850 MHz CH251 No. 2013EEB00134 Page 55 of 155 850 Towards Ground High with Headset AE3 Date/Time: 2/24/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.986 S/m; ε r = 53.695; ρ = 1000 kg/m 3 Ambient Temperature:21.9 o C Liquid Temperature: 21.5 o C Communication System: GSM Frequency: 848.8 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Ground High_AE3 /Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 25.554 V/m; Power Drift = -0.01 dB. Maximum value of SAR (interpolated) = 0.749 W/kg Towards Ground High__AE3/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.554 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.912 W/kg SAR(1 g) = 0.700 W/kg; SAR(10 g) = 0.507 W/kg Maximum value of SAR (measured) = 0.742 W/kg 0 dB = 0.742 W/kg = -1.30 dBW/kg Fig. 21 850 MHz CH251 No. 2013EEB00134 Page 56 of 155 850 Towards Ground High with Headset AE4 Date/Time: 2/24/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.986 S/m; ε r = 53.695; ρ = 1000 kg/m 3 Ambient Temperature:21.9 o C Liquid Temperature: 21.5 o C Communication System: GSM Frequency: 848.8 MHz Duty Cycle: 1:8.30042 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Ground High_ AE4/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 26.462 V/m; Power Drift = 0.02 dB Maximum value of SAR (interpolated) = 0.762 W/kg Towards Ground High__AE4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.462 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.958 W/kg SAR(1 g) = 0.675 W/kg; SAR(10 g) = 0.478 W/kg Maximum value of SAR (measured) = 0.726 W/kg 0 dB = 0.726 W/kg = -1.39 dBW/kg Fig. 22 850 MHz CH190 No. 2013EEB00134 Page 57 of 155 GSM 1900 Left Cheek High Date/Time: 2/23/2013 Electronics: DAE4 Sn786 Medium: Head 1900 Medium parameters used: f = 1910 MHz; σ = 1.451 S/m; ε r = 39.149; ρ = 1000 kg/m 3 Ambient Temperature:22.0 o C Liquid Temperature: 21.5 o C Communication System: GSM Frequency: 1910 MH…

Text truncated - open the document above for the full version.

No. 2013EEB00134 Page 104 of 155 ANNEX C SAR Measurement Setup C.1 Measurement Set-up The Dasy4 or DASY5 system for performing compliance tests is illustrated above graphically. This system consists of the following items: Picture C.1 SAR Lab Test Measurement Set-up z A standard high precision 6-axis robot (Stäubli TX=RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE). z An isotropic field probe optimized and calibrated for the targeted measurement. z A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. z The Electro-optical converter (EOC) performs the conversion from optical to electrical signals for the digital communication to the DAE. To use optical surface detection, a special version of the EOC is required. The EOC signal is transmitted to the measurement server. z The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts. z The Light Beam used is for probe alignment. This improves the (absolute) accuracy of the probe positioning. z A computer running WinXP and the DASY4 or DASY5 software. z Remote control and teach pendant as well as additional circuitry for robot safety such as z warning lamps, etc. z The phantom, the device holder and other accessories according to the targeted measurement. No. 2013EEB00134 Page 105 of 155 C.2 Dasy4 or DASY5 E-field Probe System The SAR measurements were conducted with the dosimetric probe designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe is constructed using the thick film technique; with printed resistive lines on ceramic substrates. The probe is equipped with an optical multifiber line ending at the front of the probe tip. It is connected to the EOC box on the robot arm and provides an automatic detection of the phantom surface. Half of the fibers are connected to a pulsed infrared transmitter, the other half to a synchronized receiver. As the probe approaches the surface, the reflection from the surface produces a coupling from the transmitting to the receiving fibers. This reflection increases first during the approach, reaches maximum and then decreases. If the probe is flatly touching the surface, the coupling is zero. The distance of the coupling maximum to the surface is independent of the surface reflectivity and largely independent of the surface to probe angle. The DASY4 or DASY5 software reads the reflection durning a software approach and looks for the maximum using 2 nd ord curve fitting. The approach is sbottomped at reaching the maximum. Probe Specifications: Model: ES3DV3, EX3DV4 Frequency 10MHz — 6.0GHz(EX3DV4) Range: 10MHz — 4GHz(ES3DV3) Calibration: In head and body simulating tissue at Frequencies from 835 up to 5800MHz Linearity: ± 0.2 dB(30 MHz to 6 GHz) for EX3DV4 Picture C.2 Near-field Probe ± 0.2 dB(30 MHz to 4 GHz) for ES3DV3 Dynamic Range: 10 mW/kg — 100W/kg Probe Length: 330 mm Probe Tip Length: 20 mm Body Diameter: 12 mm Tip Diameter: 2.5 mm (3.9 mm for ES3DV3) Tip-Center: 1 mm (2.0mm for ES3DV3) Application: SAR Dosimetry Testing Compliance tests of mobile phones Dosimetry in strong gradient fields Picture C.3 E-field Probe C.3 E-field Probe Calibration Each E-Probe/Probe Amplifier combination has unique calibration parameters. A TEM cell calibration procedure is conducted to determine the proper amplifier settings to enter in the probe parameters. The amplifier settings are determined for a given frequency by subjecting the probe to a known E-field density (1 mW/cm 2 ) using an RF Signal generator, TEM cell, and RF Power Meter. The free space E-field from amplified probe outputs is determined in a test chamber. This calibration can be performed in a TEM cell if the frequency is below 1 GHz and inn a waveguide or other methodologies above 1 GHz for free space. For the free space calibration, the probe is placed No. 2013EEB00134 Page 106 of 155 in the volumetric center of the cavity and at the proper orientation with the field. The probe is then rotated 360 degrees until the three channels show the maximum reading. The power density readings equates to 1 mW/ cm 2 . . E-field temperature correlation calibration is performed in a flat phantom filled with the appropriate simulated brain tissue. The E-field in the medium correlates with the temperature rise in the dielectric medium. For temperature correlation calibration a RF transparent thermistor-based temperature probe is used in conjunction with the E-field probe. T SAR C t Δ = Δ Where: ∆t = Exposure time (30 seconds), C = Heat capacity of tissue (brain or muscle), ∆T = Temperature increase due to RF exposure. 2 E SAR σ ρ ⋅ = Where: σ = Simulated tissue conductivity, ρ = Tissue density (kg/m 3 ). C.4 Other Test Equipment C.4.1 Data Acquisition Electronics(DAE) The data acquisition electronics consist of a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16 bit AD-converter and a command decoder with a control logic unit. Transmission to the measurement server is accomplished through an optical downlink for data and status information, as well as an optical uplink for commands and the clock. The mechanical probe mounting device includes two different sensor systems for frontal and sideways probe contacts. They are used for mechanical surface detection and probe collision detection. The input impedance of the DAE is 200 MOhm; the inputs are symmetrical and floating. Common mode rejection is above 80 dB. PictureC.4: DAE No. 2013EEB00134 Page 107 of 155 C.4.2 Robot The SPEAG DASY system uses the high precision robots (…

Text truncated - open the document above for the full version.

No. 2013EEB00136 Page 1 of 58 ©Copyright. All rights reserved by TMC Beijing. HAC RF TEST REPORT No. 2013EEB00136 For TCT Mobile Limited GSM quad band mobile phone Model name: Tahiti 1Sim Wifi+DTV Marketing name: ALCATEL 3042G With Hardware Version: PIO Software Version: v523 FCC ID: RAD339 Results Summary: M Category = M3 (for GSM 850/1900) Issued Date: 2013-03-18 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2013EEB00136 Page 2 of 58 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................. 3 1.1 TESTING LOCATION ........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT ................................................................................................................................. 3 1.3 PROJECT DATA ............................................................................................................................................... 3 1.4 SIGNATURE ..................................................................................................................................................... 3 2 CLIENT INFORMATION .............................................................................................................. 4 2.1 APPLICANT INFORMATION .............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION ..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 5 4 CONDUCTED OUTPUT POWER MEASUREMENT ................................................................... 5 4.1 SUMMARY ...................................................................................................................................................... 5 4.2 CONDUCTED POWER ...................................................................................................................................... 6 5. REFERENCE DOCUMENTS...................................................................................................... 6 5.1REFERENCE DOCUMENTS FOR TESTING ........................................................................................................... 6 6 OPERATIONAL CONDITIONS DURING TEST .......................................................................... 6 6.1 HAC MEASUREMENT SET-UP .................................................................................................................. 6 6.2 PROBE SPECIFICATION .................................................................................................................................... 7 6.3 TEST ARCH PHANTOM & PHONE POSITIONER ................................................................................................. 8 6.4 ROBOTIC SYSTEM SPECIFICATIONS................................................................................................................. 9 7 EUT ARRANGEMENT ................................................................................................................ 9 7.1 WD RF EMISSION MEASUREMENTS REFERENCE AND PLANE ........................................................................ 9 8 SYSTEM VALIDATION .............................................................................................................. 10 8.1 VALIDATION PROCEDURE ............................................................................................................................. 10 8.2 VALIDATION RESULT .................................................................................................................................... 11 9 PROBE MODULATION FACTOR ............................................................................................. 11 9.1 MODULATION FACTOR TEST PROCEDURE ..................................................................................................... 12 9.2 MODULATION FACTOR .............................…

Text truncated - open the document above for the full version.
