RAD342GSM dual band mobile phone

1 10 2 11 3 12 4 13 5 14 6 15 7 16 89 1817 1 Your mobile ................... 1.1 Keys and connectors Press to go left/right/up/down• Press to confirm an option • Press and hold to enter Music player• Left softkey Unlock keypad• Access main menu• Send key Answer/Send a call• Press: Enter Call log• Press and hold: Enter Fake call• Right softkey Access contacts• Press: End a call • Return to the Home screen Press and hold: Power on/off• Press and hold: Access your voicemail• From Idle screen Press: 0• Press and hold: “+/P/W”• In Edit mode Press: Access symbols table• Press and hold: 0• From Idle screen Press: *• Press and hold: Lock keypad• In Edit mode: Press: Change input methods • Press and hold: Access language list• From Idle screen Press: #• Press and hold: Vibrate alert• In Edit mode Press: • (space) 1.2 Status bar icons (1) Battery charge level. Vibrate alert: your phone vibrates, but does not ring or beep with the exception of the alarm. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). Headset connected. Keypad locked. Call forwarding activated: your calls are forwarded. Alarm or appointments programed. Level of network reception. Voicemail message arrived. Missed calls. Radio is on. WAP messages (2) . Roaming. SD card scanning completed. Line switching (1) : indicates the selected line. GPRS connection status (Activated). GPRS connecting. EDGE connecting. EDGE attached. Music activated. MMS receipt in progress. Sending an MMS. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. SMS unread. MMS unread. (Flickering) Message list is full: your phone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. (1) Depending on your network operator. 1.3 Home screen 1.3.1 Widget bar Widgets are convenient shortcuts for quick access from the Home screen. You can customize widget bar by "Settings/Phone settings/Widget bar". 1.3.2 Change wallpaper You can select a folder to choose one image as favorite wallpaper by selecting "Options/Set as/Wallpaper". Place the SIM card with the chip facing upwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. The phone will power off automatically after inserting micro SIM, you should power on manually. Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Bluetooth or background-running applications when not in use; reduce the backlight time, etc. 2.2 Power on your phone Hold down the key until the telephone powers on. 2.3 Power off your phone Hold down the key from the Home screen. 3 Making a call ................ Dial the desired number then press the send key to place the call. The number you entered can be saved to Contacts by selecting "Save". If you make a mistake, you may press Right softkey to delete the incorrect digits. To hang up the call, press the key. 4 Menu arrange .............. It is designed to vary according to your preference. Change the order Access the main menu, focus on the main menu item you want to move, select "Options\Select to move", and tick "√" will be shown on the item you selected, then release it to your favorite destination. Show/Hide Access the main menu, select "Options\Add or remove menu", and select the left check box of the selected menu once to show/ hide, and then save the operation. 5 Messages ................ 5.1 Access You may access this menu using the following options: Access from the main menu by selecting "• Messages". Select • from widget bar, and then enter the sub-menu you require. (1) The icons and illustrations in this guide are provided for informational purposes only. (2) Depending on your network operator. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (2) Depending on your network operator and market. 2 Getting started .............. 2.1 Set-up Removing or installing the back cover Installing or removing the battery Insert and click the battery into place, then close the telephone cover. Unclip the cover, then remove the battery. Inserting or removing the SIM card You must insert your SIM card to make phone calls. 5.2 Conversational On (Off) mode In conversational on mode, you can view chat history in chronological order. In conversational off mode, you may have access to the following folders: Inbox, Outbox, Sent, Drafts, Voicemail, Broadcast SMS, Empty folder, Templates, Settings. Conversational view mode is set as default. You may switch to conventional mode by selecting "Options\Settings\ Switch view mode". 5.3 Write message You can select "Messages\Write new SMS/MMS" from the main menu or access from widget to write text/multimedia message. One or more recipients can be added from contact list. Press "Contacts" through key to multi-select recipients from Contacts. An SMS will be converted to MMS automatically when images, videos, audio, slides or attachments are inserted; or the message contains more than 8 pages of text. An SMS message of more than a certain number of characters (the number of characters depends on your language) will be charged as several SMS. An MMS message containing photos and/or sounds may also be billed as more than one message. Specific letters (accent) will increase the size of the SMS, this may cause multiple SMS to be sent to your recipient. 6 Contacts ................... 6.1 Consulting your contacts You can access to this function by selecting "Contacts" from the main menu. 6.2 Adding a contact You can add a new contact to phone or SIM card by selecting "Add contact". 7 Call log ..................... 7.1 Access You can access the function using the following options: Select• from main menu Press • the send key from Home screen Select• from widget bar, …

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-2-4 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-02-04 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD342 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

EUT photograph

EUT Label Location

EUT Interior photograph

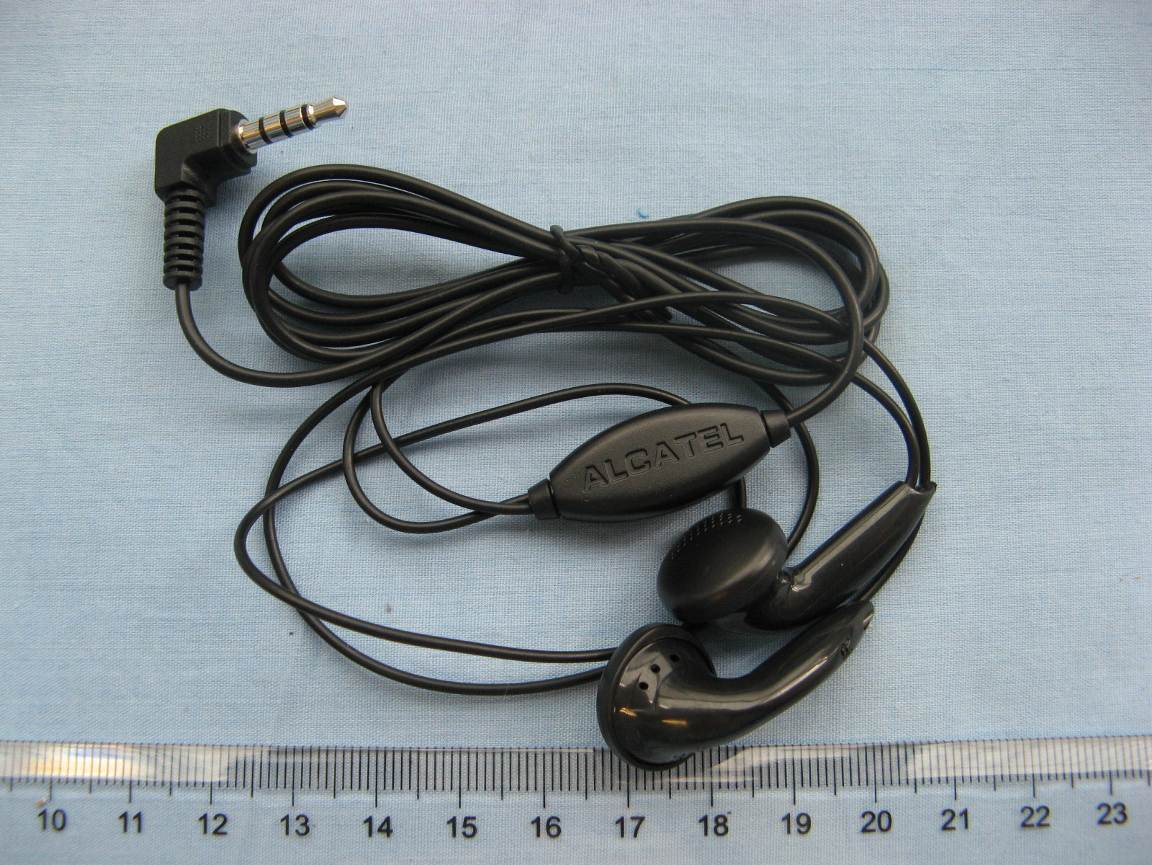

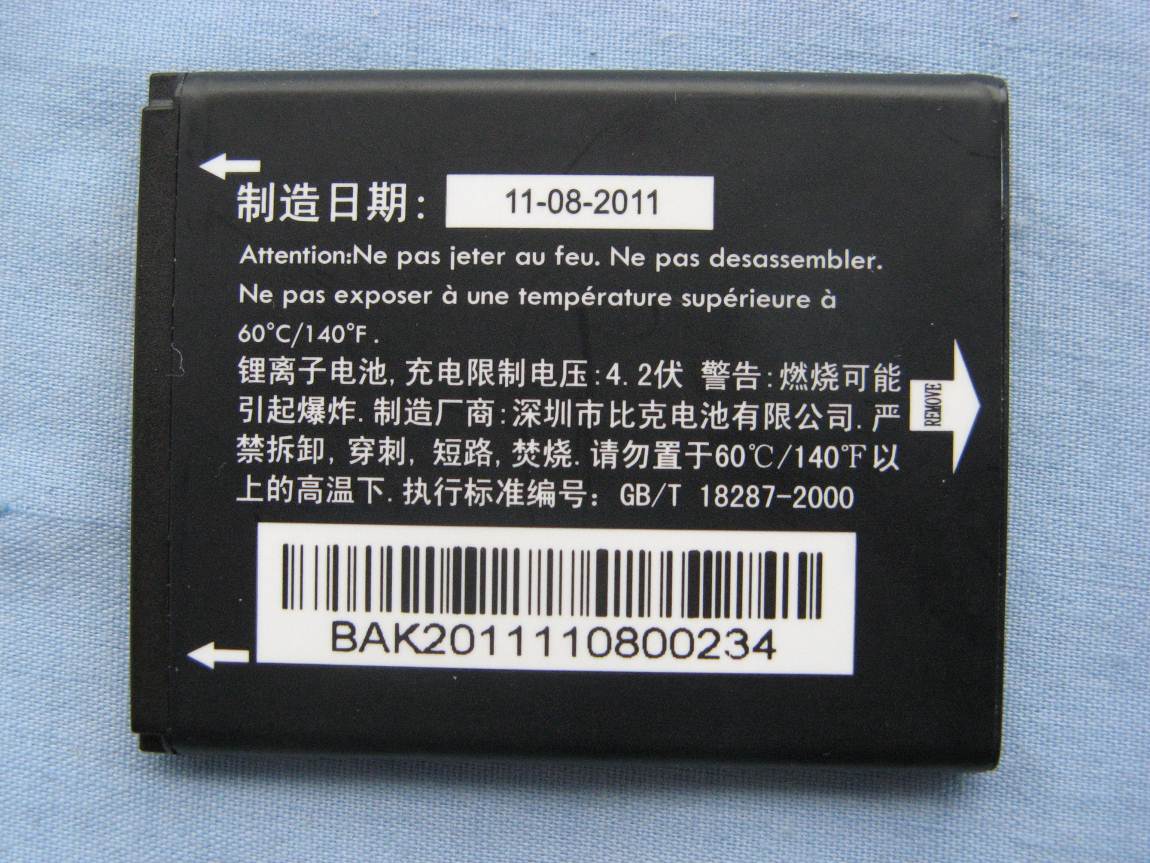

©Copyright. All rights reserved by TMC Beijing. The Photos of SAR test No. 2013SAR00019 For TCT Mobile Limited GSM dual band mobile phone Model name: Salsa US Marketing name: ALCATEL 2005A With Hardware Version: PIO Software Version: v717 FCC ID: RAD342 Issued Date: 2013-02-07 The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Picture 1: Constituents of the sample – Slide down Picture 2: Left Hand Touch Cheek Position Picture 3: Left Hand Tilt 15° Position Picture 4: Right Hand Touch Cheek Position Picture 5: Right Hand Tilt 15° Position Test positions for body: The Body SAR is tested at the following 2 test positions all with the distance =10mm between the EUT and the phantom bottom: Picture 6: Toward Phantom Picture 6-1: Toward Phantom Picture 7: Toward Ground Picture 7-1: Toward Ground Picture 8: Toward Ground with Headset Picture 8-1: Toward Ground with Headset

No. 2013TAR030 Page1 of 82 TEST REPORT No. 2013TAR030 for TCT Mobile Limited GSM dual band mobile phone Model Name: Salsa US Marketing Name：ALCATEL 2005A FCC ID: RAD342 with Hardware Version: PIO Software Version: v717 Issued Date: Feb. 22, 2013 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2013TAR030 Page2 of 82 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 18 A.3 CONDUCTED EMISSION ............................................................................................................. 24 A.4 FREQUENCY STABILITY ............................................................................................................ 30 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 32 A.6 EMISSION BANDWIDTH ................................................................................................................ 44 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 56 A.8 CONDUCTED SPURIOUS EMISSION............................................................................................ 62 No. 2013TAR030 Page3 of 82 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jan. 21, 2013 Testing End Date: Feb.4, 2013 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2013TAR030 Page4 of 82 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 Contact: Gong Zhizhou Email: [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. 2013TAR030 Page5 of 82 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM dual band mobile phone Model Name Salsa US Marketing Name ALCATEL 2005A FCC ID RAD342 Frequency GSM 850MHz; PCS 1900MHz GPRS Class Class 12 G…

Text truncated - open the document above for the full version.

EUT Set-up photos CE: RSE: RE:
