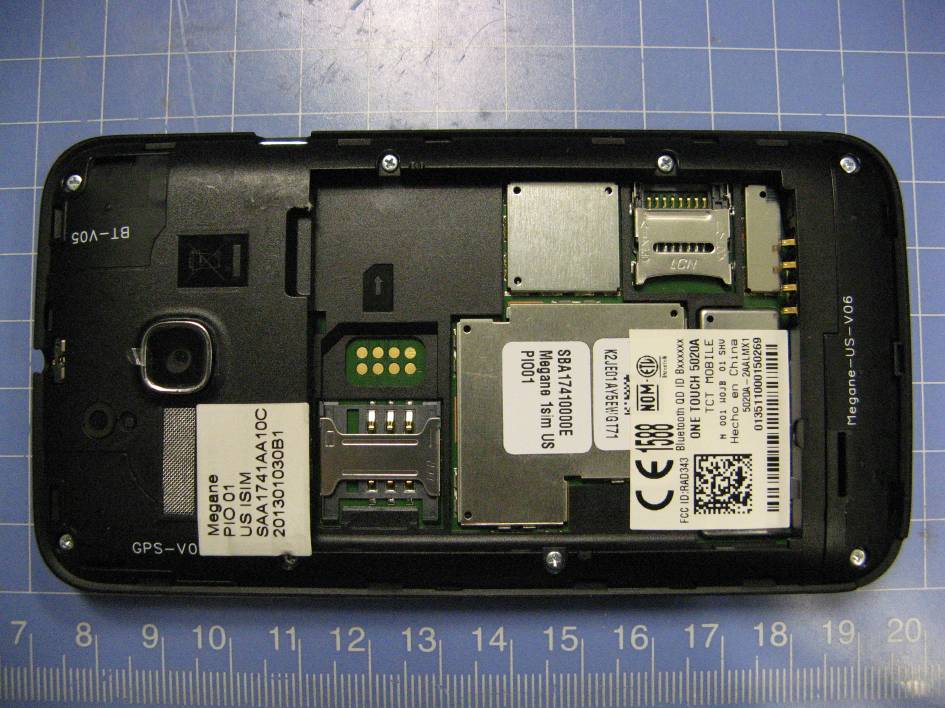

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile Phone Disassembly Mobile Phone Disassembly

No. 2013EEB00040 Page 101 of 207 W850 Right Tilt Middle Date/Time: 2/21/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.89 S/m; ε r = 41.523; ρ = 1000 kg/m 3 Ambient Temperature: 21.8 o C Liquid Temperature: 21.4 o C Communication System: WCDMA Frequency: 836.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Right Tilt Middle/Area Scan (51x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 13.444 V/m; Power Drift = -0.04 dB Maximum value of SAR (interpolated) = 0.418 W/kg Right Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.444 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.471 W/kg SAR(1 g) = 0.400 W/kg; SAR(10 g) = 0.311 W/kg Maximum value of SAR (measured) = 0.418 W/kg 0 dB = 0.418 W/kg = -3.79 dBW/kg Fig. 59 W850 MHz CH4183 No. 2013EEB00040 Page 102 of 207 W850 Right Tilt Low Date/Time: 2/21/2013 Electronics: DAE4 Sn786 Medium: Head 850MHz Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.88 S/m; ε r = 41.652; ρ = 1000 kg/m 3 Ambient Temperature: 21.8 o C Liquid Temperature: 21.4 o C Communication System: WCDMA Frequency: 826.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.27, 6.27, 6.27); Calibrated: 4/24/2012 Right Tilt Low/Area Scan (51x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 13.348 V/m; Power Drift = -0.01 dB Maximum value of SAR (interpolated) = 0.412 W/kg Right Tilt Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.348 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.465 W/kg SAR(1 g) = 0.395 W/kg; SAR(10 g) = 0.306 W/kg Maximum value of SAR (measured) = 0.411 W/kg 0 dB = 0.411 W/kg = -3.86 dBW/kg Fig. 60 W850 MHz CH4132 No. 2013EEB00040 Page 103 of 207 W850 Body Toward Phantom High Date/Time: 2/20/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.984 S/m; ε r = 53.728; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Phantom High/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 29.133 V/m; Power Drift = 0.07 dB Maximum value of SAR (interpolated) = 0.905 W/kg Towards Phantom High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.133 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.864 W/kg; SAR(10 g) = 0.653 W/kg Maximum value of SAR (measured) = 0.902 W/kg 0 dB = 0.902 W/kg = -0.45 dBW/kg Fig. 61 W850 MHz CH4233 No. 2013EEB00040 Page 104 of 207 W850 Body Toward Phantom Middle Date/Time: 2/20/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.975 S/m; ε r = 53.861; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 836.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Phantom Middle/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 29.179 V/m; Power Drift = 0.01 dB Maximum value of SAR (interpolated) = 0.905 W/kg Towards Phantom Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.179 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.862 W/kg; SAR(10 g) = 0.651 W/kg Maximum value of SAR (measured) = 0.903 W/kg 0 dB = 0.903 W/kg = -0.44 dBW/kg Fig. 62 W850 MHz CH4183 No. 2013EEB00040 Page 105 of 207 W850 Body Toward Phantom Low Date/Time: 2/20/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.966 S/m; ε r = 53.958; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 826.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Phantom Low/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 27.721 V/m; Power Drift = 0.02 dB Maximum value of SAR (interpolated) = 0.825 W/kg Towards Phantom Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.721 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.982 W/kg SAR(1 g) = 0.784 W/kg; SAR(10 g) = 0.592 W/kg Maximum value of SAR (measured) = 0.821 W/kg 0 dB = 0.821 W/kg = -0.86 dBW/kg Fig. 63 W850 MHz CH4132 No. 2013EEB00040 Page 106 of 207 W850 Body Toward Ground High Date/Time: 2/20/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.984 S/m; ε r = 53.728; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 846.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Ground High/Area Scan (51x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 31.835 V/m; Power Drift = 0.01 dB Maximum value of SAR (interpolated) = 1.08 W/kg Towards Ground High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.835 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.28 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.759 W/kg Maximum value of SAR (measured) = 1.08 W/kg 0 dB = 1.08 W/kg = 0.31 dBW/kg Fig.64 W850 MHz CH4233 No. 2013EEB00040 Page 107 of 207 W850 Body Toward Ground Middle Date/Time: 2/20/2013 Electronics: DAE4 Sn786 Medium: Body 900 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.975 S/m; ε r = 53.861; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA Frequency: 836.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3151 ConvF(6.07, 6.07, 6.07); Calibrated: 4/24/2012 Towards Ground Middle/Area Scan (…

Text truncated - open the document above for the full version.

No. 2013EEB00040 Page 181 of 207 No. 2013EEB00040 Page 182 of 207 No. 2013EEB00040 Page 183 of 207 No. 2013EEB00040 Page 184 of 207 ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. 2013EEB00040 Page 185 of 207 No. 2013EEB00040 Page 186 of 207 No. 2013EEB00040 Page 187 of 207 No. 2013EEB00040 Page 188 of 207 No. 2013EEB00040 Page 189 of 207 No. 2013EEB00040 Page 190 of 207 No. 2013EEB00040 Page 191 of 207 No. 2013EEB00040 Page 192 of 207 1900 MHz Dipole Calibration Certificate No. 2013EEB00040 Page 193 of 207 No. 2013EEB00040 Page 194 of 207 No. 2013EEB00040 Page 195 of 207 No. 2013EEB00040 Page 196 of 207 No. 2013EEB00040 Page 197 of 207 No. 2013EEB00040 Page 198 of 207 No. 2013EEB00040 Page 199 of 207 No. 2013EEB00040 Page 200 of 207 2450 MHz Dipole Calibration Certificate No. 2013EEB00040 Page 201 of 207 No. 2013EEB00040 Page 202 of 207 No. 2013EEB00040 Page 203 of 207 No. 2013EEB00040 Page 204 of 207 No. 2013EEB00040 Page 205 of 207 No. 2013EEB00040 Page 206 of 207 No. 2013EEB00040 Page 207 of 207

No.2013EEB00040 Page 1 of 207 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013EEB00040 For TCT Mobile Limited HSUPA/HSDPA/UMTS triband / GSM quadband mobile phone Model name: Megane 1SIM US Marketing name: ONE TOUCH 5020A With Hardware Version: PIO Software Version: v2C56-0 FCC ID: RAD343 Issued Date: 2013-03-08 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013EEB00040 Page 2 of 207 Revision Version Report Number RevisionDate Memo 2013EEB00040 00 2013-02-28 Initial creation of test report 2013EEB00040 01 2013-03-08 / No. 2013EEB00040 Page 3 of 207 TABLE OF CONTENT 1 TEST LABORATORY ................................................................................................................. 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ................................................................................................ 6 3 CLIENT INFORMATION.............................................................................................................. 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................ 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................. 9 5 TEST METHODOLOGY ............................................................................................................ 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) .................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ............................................................................................... 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION .......................................................................................................... 16 8.1 SYSTEM SETUP ............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION ................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ............................................................................................ 18 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 19 9.3 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 20 9.4 POWER DRIFT ............................................................................................................................................... 21 10 CONDUCTED OUTPUT POWER ........................................................................................... 21 10.1 MANUFACTURING TOLERANCE ................................................................................................................... 21 10.2 GSM MEASUREMENT RESULT .................................................................................................................... 23 10.3 WI-FI AND BT MEASUREMENT RESULT ...................................................................................................... 24 11 SIMULTANEOUS TX SAR CONSIDERATIONS ..................................................................... 25 No. 2013EEB00040 Page 4 of 207 12.…
