RAD357HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE Quin bands mobile phone

Viper 7030Y English UM : 2013-07-26 12 Table of Contents Safety and use �����������������������������������������������������������������������������4 General information �������������������������������������������������������������������� 1 Your mobile �����������������������������������������������������������������������12 1.1 Keys and connectors ................................................................................12 1.2 Getting started ..........................................................................................15 1.3 Home screen ..............................................................................................19 1.4 Applications and widgets list ..................................................................29 1.5 LED indicator .............................................................................................29 2 Text input ���������������������������������������������������������������������������30 2.1 Using Onscreen Keyboard ......................................................................30 2.2 Text editing .................................................................................................32 3 Phone call, Call log and Contacts ������������������������������������33 3.1 Phone .......................................................................................................... 33 3.2 Call log .........................................................................................................39 3.3 Contacts ..................................................................................................... 40 4 Messaging, Gmail/Email, Google Talk ������������������������������47 4.1 Messaging ....................................................................................................47 4.2 Gmail/Email .................................................................................................53 4.3 Google Talk .................................................................................................59 5 Calendar & Timetool & Calculator ���������������������������������63 5.1 Calendar ......................................................................................................63 5.2 Time Tool ....................................................................................................65 5.3 Calculator ....................................................................................................67 6 Getting connected ������������������������������������������������������������69 6.1 Connecting to the Internet ....................................................................69 6.2 Browser .......................................................................................................72 6.3 Connecting to Bluetooth® devices .....................................................79 6.4 Connecting to a computer .....................................................................81 6.5 Sharing your phone's mobile data connection ...................................82 6.6 Connecting to virtual private networks ..............................................84 7 Google Play Store ������������������������������������������������������������86 7.1 Locate the item you want to download and install ..........................86 7.2 Download and install ................................................................................87 7.3 Manage your downloads ..........................................................................89 8 Multimedia applications ���������������������������������������������������91 8.1 Camera/Camcorder ..................................................................................91 8.2 Gallery .........................................................................................................93 8.3 YouTube ...................................................................................................... 95 8.4 Play Music ....................................................................................................97 9 Google Maps ��������������������������������������������������������������������100 9.1 Get My Location .....................................................................................100 9.2 Search for a location ..............................................................................101 9.3 Star a location ..........................................................................................101 9.4 Get driving, public transport or walking directions ........................103 9.5 Arrangement of Layers ..........................................................................104 9.6 Join Latitude to see your friends' locations and share yours with them ............................................................................................................105 10 Others ������������������������������������������������������������������������������108 10.1 FileManager ...............................................................................................108 10.2 Sound Recorder ......................................................................................108 10.3 Radio ..........................................................................................................109 10.4 Flashlight ....................................................................................................110 10.5 Notes .........................................................................................................111 10.6 Setup Wizard ............................................................................................111 10.7 ONE TOUCH Help ................................................................................111 10.8 Other applications .................................................................................111 11 Settings ����������������������������������������������������������������������������112 11.1 Wireless & networks ...........................…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-07-11 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD357 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

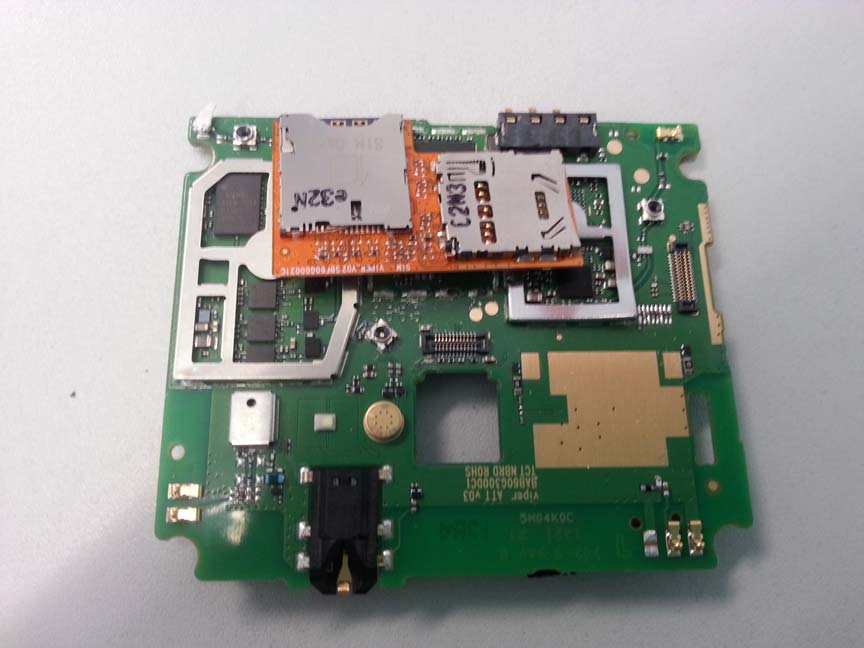

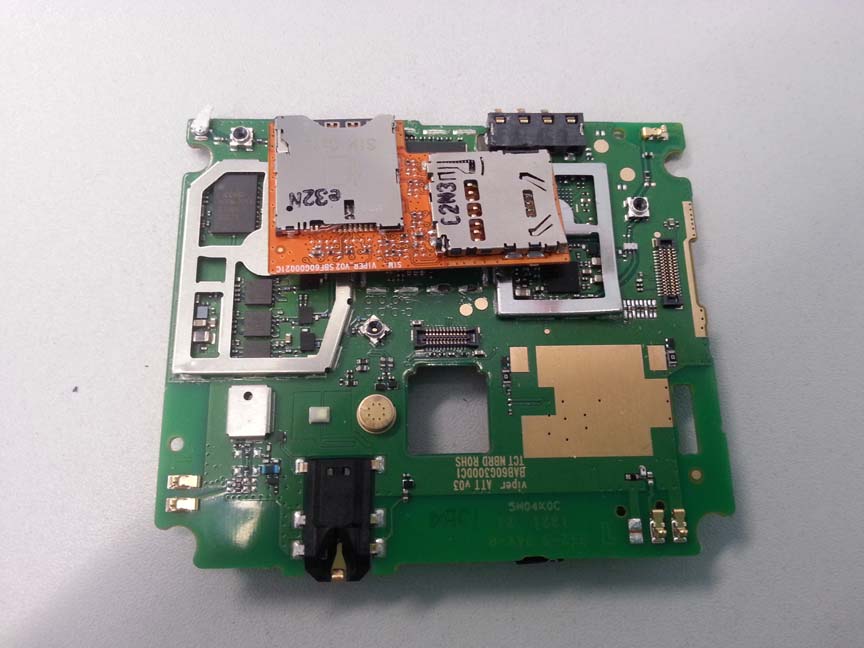

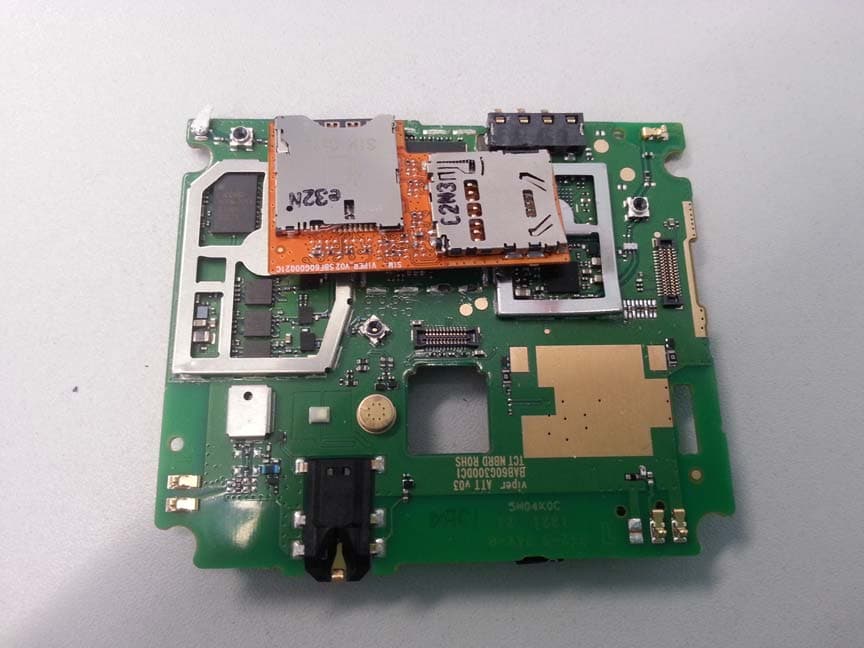

EUT Interior photograph

No.2013TAR511 Page 1 of 18 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2013TAR511 for TCT Mobile Limited HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE Quin bands mobile phone Model Name: VIPER LTE Marketing Name: ONE TOUCH 7030Y FCC ID: RAD357 with Hardware Version: PIO Software Version: VA33 Issued Date: Jul. 16 th , 2013 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel: +86(0)10-62304633-2561, Fax: +86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No.2013TAR511 Page 2 of 18 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. EUT SET-UPS ..................................................................................................................... 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 11 No.2013TAR511 Page 3 of 18 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Location D Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No.18A, Kangding Street, Beijing Economic-Technological Development Area, Beijing, China Postal Code: 100176 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jun. 24 th , 2013 Testing End Date: Jun. 28 th , 2013 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2013TAR511 Page 4 of 18 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2013TAR511 Page 5 of 18 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSDPA/HSUPA/UMTS Tri bands / GSM quad bands/LTE Quin bands mobile phone Model Name VIPER LTE Marketing Name ONE TOUCH 7030Y FCC ID RAD357 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT1 013580000100632 PIO VA33 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery B2200001C11000QK AE2 Battery B2200000C3Y00306 AE3 Travel charger / AE4 USB cable / AE1 Model TLi022A1 Manufacturer BYD Capacitance 2200 mAh Nominal voltage 3.8 V AE2 Model TLi022A2 Manufacturer SCUD Capacitance 2200 mAh Nominal voltage 3.8 V AE3 Model CBA3000AG0C2 Manufacturer BYD Length of cable 100 cm (length of USB cable) AE4 Model CDA3122002C1 Manufacturer Juwei Length of cable 100 cm *AE ID: is used to identify the test sample in the lab internally. No.2013TAR511 Page 6 of 18 ©Copyright. All rights…
