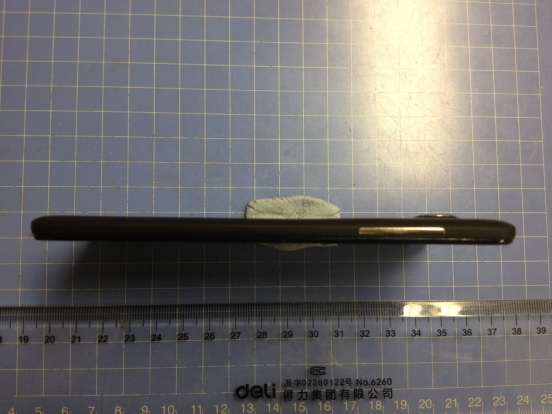

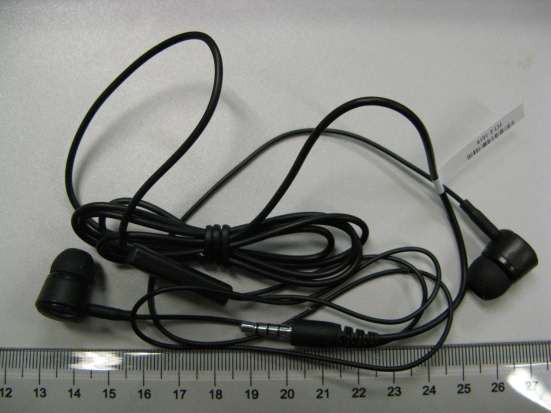

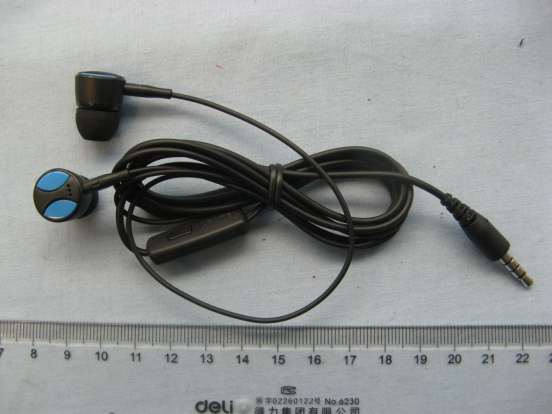

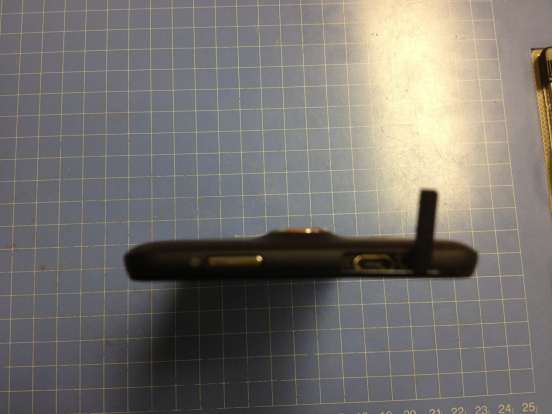

RAD372HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone

1 English - CJB32T1ALAAA Quick Start Guide For more information about how to use the cellphone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, realize software upgrade, etc. Thank you for buying Alcatel ONE TOUCH 6033Q. We hope you will enjoy your high-quality mobile communication experience. Important: Your phone is a unibody device, so the back cover and battery are not removable. If your phone isn’t working normally, try to restart it by pressing and holding the Power key for at least 7 seconds until the startup screen appears. If your phone develops a serious error and can’t be restored by restarting it, you may need to restore factory settings by pressing and holding the Power key and Volume up key until the startup screen appears. Press the Volume up/down key to select “factory reset” in the system recovery menu and finally press the Power key to confirm. Note: Please take care when performing such operations because they will erase personalized settings and data saved in your phone, such as SMS, Contacts, Music, etc. 6033Q IP4582_6033Q_QG_Eng_USA_02_130523.indd 1IP4582_6033Q_QG_Eng_USA_02_130523.indd 12013-5-23  6:10:512013-5-23  6:10:51 23 Table of contents 1 Your mobile ..................................................................... 3 2 Text input ...................................................................... 14 3 Phone call ...................................................................... 15 4 People ............................................................................ 17 5 Messaging....................................................................... 18 6 Email .............................................................................. 19 7 Getting connected ........................................................ 20 8 Locate my location using GPS satellites ...................... 23 9 Data backup .................................................................. 23 10 Factory data reset ....................................................... 24 11 Applications & Internal storage .................................. 24 12 Making the most of your phone .................................. 25 Safety and use ......................................................................... 27 General information .............................................................. 34 Alcatel onetouch limited warranty ...................................... 35 Troubleshooting...................................................................... 36 1 Your mobile .................. 1.1 Keys and connectors PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. micro-USB/headset adapter connector Power key Back key Front camera Home key Recent apps key Touch screen www.sar-tick.com This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide. When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 1.0 cm from the body to ensure compliance with RF exposure requirements.Note that the product may be transmitting even if you are not making a phone call. IP4582_6033Q_QG_Eng_USA_02_130523.indd 2-3IP4582_6033Q_QG_Eng_USA_02_130523.indd 2-32013-5-23  6:10:512013-5-23  6:10:51 45 Volume up SIM card slot Volume down Camera Camera Flash/ Flashlight Recent apps key • Displays recently used apps list, touch app in list to open app. To remove an app from list drag app to left or right side. • Touch and hold: As Menu key, touch and hold it to access Wallpaper, Manage apps and Settings. Home key • While on any application or screen, touch to return to the Home screen. Back key • Touch to go back to the previous screen or to close a dialog box, options menu, the notification panel, etc. These keys are visible when the screen lights up. Power key • Press: Lock the screen/Light up the screen • Press and hold: Show the pop-up menu to select from Power off/Reboot/Airplane mode/Ringer Mode. Press and hold: Power on • Press and hold Power key and Volume down key to capture a screenshot. • Press to mute the ringtone when there’s an incoming call. • Press for more than 7 seconds to restart phone. Volume keys • In call mode adjusts the earpiece or headset volume. • In Music/Video/Streaming mode adjusts the media volume. • In general mode adjusts the ring tone volume. • Mutes the ringtone of an incoming call. • In Camera mode use to zoom in and zoom out when taking a photo or recording video. • Press to light up a dim screen during a call. IP4582_6033Q_QG_Eng_USA_02_130523.indd 4-5IP4582_6033Q_QG_Eng_USA_02_130523.indd 4-52013-5-23  6:10:512013-5-23  6:10:51 67 1.2 Getting started 1.2.1 Set-up Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Insert the SIM card into the slot with the chip facing downwards until it is locked. To remove it, gently push the SIM card until it is unlocked. Installing the SIM Removing the SIM Connecting or removing the headset You must plug the headset adapter into your phone before connecting the headset. To connect the headset, plug the headset adapter into the micro- USB/headset adapter connector of your phone, then plug the headset into the adapter jack. To remove the headset, unplug the headset and the adapter. Charging the battery Connect the battery charger to your phone and outlet respectively. The charging status icon will not show if your battery is consumed. To reduce power consumption and energy waste, when battery is fully charged disconnect your charger from the plug; switch off Wi-Fi, GPS, Bluetooth or background-running applications when not in u…

Text truncated - open the document above for the full version.

5F, E building, No. 232, Liang Jing Road Zha ngJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Da te 2013-2-27 To: Federal Communications Commission, Au thorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TM C (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval T eam Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-05-21 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD372 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

CBA0003AG0C1 CBA0003AG0C1_label CCB3001A14C1 CCB3001A14C2 CCB3001A15C1 CCB3001A15C2 CDA0000025C1 CDA0000025C2

Label location label

No.2013SAR00072 Page 1 of 148 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00072 For TCT Mobile Limited HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone Model name: Diablo HD AWS Marketing name: ONE TOUCH 6033Q With Hardware Version: Proto04 Software Version: vAAR-AWS FCC ID: RAD372 Issued Date: 2013-06-03 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00072 Page 2 of 148 Revision Version Report Number Revision Date Memo 2013SAR00072 00 2013-05-21 Initial creation of test report 2013SAR00072 01 2013-06-03 Add the power tolerance for HSUPA in table 11.3 on page 25 No. 2013SAR00072 Page 3 of 148 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 17 8.1 SYSTEM SETUP ............................................................................................................................................. 17 8.2 SYSTEM VERIFICATION ................................................................................................................................. 18 9 MEASUREMENT PROCEDURES .............................................................................................. 19 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 19 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 20 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 21 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 22 9.5 POWER DRIFT ............................................................................................................................................... 22 10 AREA SCAN BASED 1-G SAR ................................................................................................. 23 10.1 REQUIREMENT OF KDB .............................................................................................................................. 23 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 23 11 CONDUCTED OUTPUT POWER ...........................…

Text truncated - open the document above for the full version.

No. 2013SAR00072 Page 61 of 148 Wifi 802.11b Left Tilt Channel 6 Date: 2013-3- 26 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.8 mho/m; ε r = 39.842; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.49, 4.49, 4.49) Tilt Middle/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.789 W/kg Tilt Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.439 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 1.510 W/kg SAR(1 g) = 0.682 W/kg; SAR(10 g) = 0.338 W/kg Maximum value of SAR (measured) = 0.752 W/kg Fig.9 2450 MHz CH6 No. 2013SAR00072 Page 62 of 148 Fig. 9-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00072 Page 63 of 148 Wifi 802.11b Body Rear Channel 6 Date: 2013-3- 26 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.948 mho/m; ε r = 51.907; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.15, 4.15, 4.15) Rear Middle/Area Scan (101x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.174 W/kg Rear Middle/Zoom Scan (10x10x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.166 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.301 W/kg SAR(1 g) = 0.161 W/kg; SAR(10 g) = 0.090 W/kg Maximum value of SAR (measured) = 0.175 W/kg Rear Middle/Zoom Scan (10x10x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.166 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.296 W/kg SAR(1 g) = 0.144 W/kg; SAR(10 g) = 0.077 W/kg Maximum value of SAR (measured) = 0.168 W/kg Fig.10 2450 MHz CH6 No. 2013SAR00072 Page 64 of 148 Fig. 10-1 Z-Scan at power reference point (2450 MHz CH6) No. 2013SAR00072 Page 65 of 148 ANNEX B System Verification Results 835MHz Date: 2013-4- 1 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.888 mho/m; ε r = 40.79; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.26, 6.26, 6.26) System Validation /Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 53.356 V/m; Power Drift = -0.09 dB Fast SAR: SAR(1 g) = 2.35 W/kg; SAR(10 g) = 1.52 W/kg Maximum value of SAR (interpolated) = 2.59 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.356 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.548 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 2.60 W/kg 0 dB = 2.59 W/kg = 8.27 dB W/kg Fig.B.1 validation 835MHz 250mW No. 2013SAR00072 Page 66 of 148 835MHz Date: 2013-4- 1 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.981 mho/m; ε r = 56.37; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) System Validation /Area Scan (81x171x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 46.174 V/m; Power Drift = -0.08 dB Fast SAR: SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (interpolated) = 2.55 W/kg System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 46.174 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.551 W/kg SAR(1 g) = 2.36 W/kg; SAR(10 g) = 1.58 W/kg Maximum value of SAR (measured) = 2.56 W/kg 0 dB = 2.55 W/kg = 8.13 dB W/kg Fig.B.2 validation 835MHz 250mW No. 2013SAR00072 Page 67 of 148 1900MHz Date: 2013-4- 2 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.423 mho/m; ε r = 39.58; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 95.048 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 9.71 W/kg; SAR(10 g) = 5.11 W/kg Maximum value of SAR (interpolated) = 11.1 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 95.048 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 17.974 W/kg SAR(1 g) = 9.65 W/kg; SAR(10 g) = 5.07 W/kg Maximum value of SAR (measured) = 11.0 W/kg 0 dB = 11.1 W/kg = 20.91 dB W/kg Fig.B.3 validation 1900MHz 250mW No. 2013SAR00072 Page 68 of 148 1900MHz Date: 2013-4- 2 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.532 mho/m; ε r = 52.68; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) System Validation/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 85.159 V/m; Power Drift = -0. 06 dB Fast SAR: SAR(1 g) = 10.1 W/kg; SAR(10 g) = 5.39 W/kg Maximum value of SAR (interpolated) = 11.6 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.159 V/m; Power Drift = -0. 06 dB Peak SAR (extrapolated) = 16.69 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.42 W/kg Maximum value of SAR (measured) = 11.7 W/kg 0 dB = 11.6 W/kg = 21.29 dB W/kg Fig.B.4 validation 1900MHz 250mW No. 2013SAR00072 Page 69 of 148 2450MHz Date: 2013-3- 26 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.813 mho/m; ε r = 39.78; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: CW Frequency: 2450 MH…

Text truncated - open the document above for the full version.

No. 2013SAR00072 Page 127 of 148 No. 2013SAR00072 Page 128 of 148 1900 MHz Dipole Calibration Certificate No. 2013SAR00072 Page 129 of 148 No. 2013SAR00072 Page 130 of 148 No. 2013SAR00072 Page 131 of 148 No. 2013SAR00072 Page 132 of 148 No. 2013SAR00072 Page 133 of 148 No. 2013SAR00072 Page 134 of 148 No. 2013SAR00072 Page 135 of 148 No. 2013SAR00072 Page 136 of 148 2450 MHz Dipole Calibration Certificate No. 2013SAR00072 Page 137 of 148 No. 2013SAR00072 Page 138 of 148 No. 2013SAR00072 Page 139 of 148 No. 2013SAR00072 Page 140 of 148 No. 2013SAR00072 Page 141 of 148 No. 2013SAR00072 Page 142 of 148 No. 2013SAR00072 Page 143 of 148 No. 2013SAR00072 Page 144 of 148 ANNEX I DIPOLE QUALIFICATION FOR THE EXTENDED 3-YEAR CALIBRATION INTERVAL I1 Dipole 835 The information and documentation below are provided to qualify the extended 3-year calibration interval of dipole. I1.1 List of Equipment No. Name Type Serial Number 01 Network analyzer E5071C MY46110673 02 Power meter NRVD 102083 03 Power sensor NRV-Z5 100542 04 Signal Generator E4438C MY49070393 05 Amplifier 60S1G4 0331848 06 E-field Probe SPEAG EX3DV4 3846 07 DAE SPEAG DAE4 771 08 Dipole Validation Kit SPEAG D835V2 443 I1.2 Results of Impedance, Return-loss and System validation Dipole 835 - Head Year Deviation Limit 2012 2013 Impedance Real (Ω) 50.8 51.5 0.7Ω Deviation < 5Ω Imaginary (Ω) -6.7 -3.7 3.0Ω Deviation < 5Ω Return-loss (dB) -23.5 -23.4 0.1dB Deviate < 0.2dB System validation 10g 1.52 1.56 2.63% Deviation < 10% 1g 2.33 2.38 2.15% Deviation < 10% Dipole 835 - Body Year Deviation Limit 2012 2013 Impedance Real (Ω) 46.8 48.3 1.5Ω Deviation < 5Ω Imaginary (Ω) -7.8 -5.4 2.4Ω Deviation < 5Ω Return-loss (dB) -21.2 -21.1 0.1dB Deviate < 0.2dB System validation 10g 1.59 1.61 1.26% Deviation < 10% 1g 2.42 2.42 0.00% Deviation < 10% According to the above tables, it is not necessary to recalibration the dipoles in 2013. No. 2013SAR00072 Page 145 of 148 ANNEX J SPOT CHECK TEST As the test lab for ONE TOUCH 6033Q from TCT Mobile Limited, we, TMC Beijing, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. SAR Values (GSM 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 824.2 128 Rear 10 CAC1800001C3 0.879 0.798 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1850.2 512 Left Touch CAC1800001C3 0.222 0.220 SAR Values (PCS 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 Bottom 10 CAC1800001C3 1.23 0.755 No. 2013SAR00072 Page 146 of 148 850 Body Rear Low Date: 2013- 5- 7 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 825 MHz; σ = 0.973 mho/m; εr = 56.031; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: GSM 850 GPRS Frequency: 824.2 MHz Duty Cycle: 1:4 Probe: EX3DV4 - SN3846 ConvF(9.04, 9.04, 9.04) Rear Low/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.835 W/kg Rear Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 27.208 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.984 W/kg SAR(1 g) = 0.798 W/kg; SAR(10 g) = 0.607 W/kg Maximum value of SAR (measured) = 0.837 W/kg Fig.J.1 850 MHz CH128 No. 2013SAR00072 Page 147 of 148 1900 Left Cheek Low Date: 2013- 5- 8 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.378 mho/m; εr = 40.437; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(8.01, 8.01, 8.01) Cheek Low/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.237 W/kg Cheek Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.410 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.336 W/kg SAR(1 g) = 0.220 W/kg; SAR(10 g) = 0.136 W/kg Maximum value of SAR (measured) = 0.240 W/kg Fig.J.2 1900 MHz CH512 No. 2013SAR00072 Page 148 of 148 1900 Body Bottom Edge High Date: 2013- 5- 8 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.555 mho/m; εr = 51.546; ρ = 1000 kg/m 3 Ambient Temperature: 22.7 o C Liquid Temperature: 22.2 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:4 Probe: EX3DV4 - SN3846 ConvF(7.37, 7.37, 7.37) Bottom Edge High/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.851 W/kg Bottom Edge High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.294 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.755 W/kg; SAR(10 g) = 0.428 W/kg Maximum value of SAR (measured) = 0.844 W/kg Fig.J.3 1900 MHz CH810

No. 2013TAR393 Page1 of 38 ©Copyright. All rights reserved by TMC Beijing. FCC PART 15C TEST REPORT No. 2013TAR393 for TCT Mobile Limited HSUPA/HSDPA/UMTS dualband / GSM quadband mobile phone Model Name: Diablo HD AWS Marketing Name: ONE TOUCH 6033Q FCC ID : RAD372 with Hardware Version: Proto04 Software Version: vAAR-AWS Issued Date: 2013-05-20 DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology Shouxiang Science Building, No 51, Xueyuan Road, Haidian District, Beijing, P.R.China 100191 Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No. 2013TAR393 Page2 of 38 ©Copyright. All rights reserved by TMC Beijing. CONTENTS CONTENTS .................................................................................................................................................. 2 1. TEST LABORATORY ......................................................................................................................... 3 1.1. T ESTING LOCATION ......................................................................................................................... 3 1.2. T ESTING ENVIRONMENT .................................................................................................................. 3 1.3. P ROJECT DATA ................................................................................................................................. 3 1.4. S IGNATURE ...................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. A PPLICANT INFORMATION ............................................................................................................... 4 2.2. M ANUFACTURER INFORMATION ...................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. A BOUT EUT .................................................................................................................................... 5 3.2. I NTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................... 5 3.3. I NTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................. 5 3.4. N ORMAL ACCESSORY SETTING ....................................................................................................... 5 3.5. G ENERAL DESCRIPTION ................................................................................................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. D OCUMENTS SUPPLIED BY APPLICANT ............................................................................................ 7 4.2. R EFERENCE DOCUMENTS FOR TESTING ........................................................................................... 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 6.1. S UMMARY OF TEST RESULTS ........................................................................................................... 9 6.2. S TATE MEN TS .................................................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1. MEASUREMENT METHOD ................................................................................................................... 11 A.2. PEAK OUTPUT POWER - CONDUCTED ................................................................................................ 12 A.3. FREQUENCY BAND EDGES - CONDUCTED .......................................................................................... 13 A.4. CONDUCTED EMISSION …

Text truncated - open the document above for the full version.
