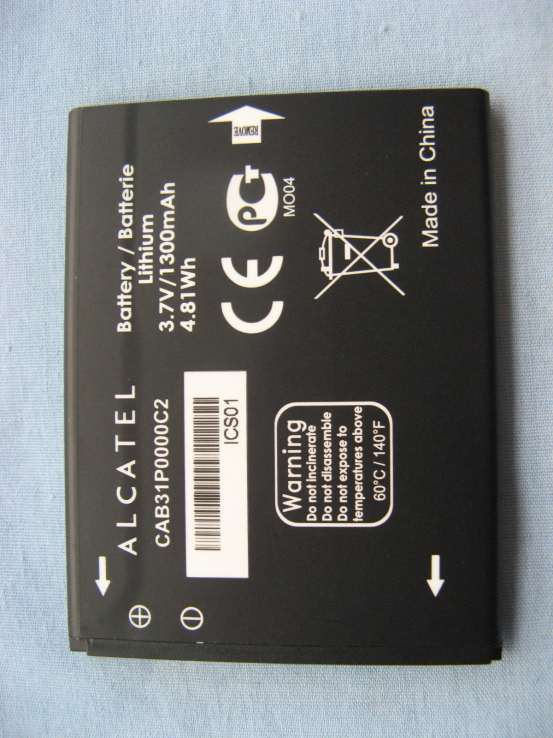

RAD373HSDPA/HSUPA/UMTS dualband / GSM quad bands mobile phone

12 English - CJB2771ALAAA Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download complete user manual. Also on our website you can find helpful FAQs, perform software upgrade, etc. 4007A PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Your mobile 1 .................. Keys and connectors1.1 Touch screen LED light Back key Home key Menu key Headset connector Power key micro-USB connector Volume up Volume down IP4668_4007A_QG_Eng_USA_04_130613.indd 1-2IP4668_4007A_QG_Eng_USA_04_130613.indd 1-22013-6-13 15:23:532013-6-13 15:23:53 34 Camera On Home screen, press to quickly access • Settings menu or Notification panel; to launch quick search; to manage applications; to customize your Home screen by adding applications or changing wallpaper. On other screens, press to view options list.• Press: Return to the Home screen or back to the central Home screen if it is extended. Press and hold: Enter the recently used applications list. Go back to the previous menu or screen. Press: Lock the screen. Light up the screen. Press and hold: When phone is off, power on the phone. When phone is on, enter Phone options: Silent mode, Airplane mode, Power off. Press to adjust the Volume (in call/media playing mode) Getting started1.2 Set-up1.2.1 Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone and remove battery before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. Installing or removing the battery Insert and click the battery into place, then close the phone cover.• Unclip the cover, then remove the battery.• IP4668_4007A_QG_Eng_USA_04_130613.indd 3-4IP4668_4007A_QG_Eng_USA_04_130613.indd 3-42013-6-13 15:23:532013-6-13 15:23:53 56 Installing and removing the microSD card To release the microSD card holder, slide it in the direction of the arrow and lift it. Then insert the microSD card with the golden contact downward. Finally, turn down the microSD holder and slide it in the opposite direction to lock it. Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Wi-Fi, Bluetooth or background-running applications when not in use; reduce the backlight time, etc. Power on your phone1.2.2 Hold down the Power key until the phone powers on. It will take some seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you are prompted to set up your phone in multiple ways: language, input method, mobile data connection, account setup and synchronization, system update, etc. You are required to sign into your Google account to synchronize email, contacts, calendar and other Google applications (1) . Enter your user name and password, then touch • Sign in. If you forget your password, you can go to http://www.google.com/ to retrieve it. If you don’t own a Google Account, you are prompted to create one by touching Create. Read the setup information on the screen• . Mark/Unmark the check box to choose whether you want to take • advantage of Google's location service, then touch Next. Mark/Unmark the check box to choose whether you want to back • up data with your Google account, then touch Next. Touch • Finish setup. This initial set up can be skipped and enabled via Settings\Accounts & sync. In power on screen without SIM card inserted, you can also connect to a Wi-Fi network to sign into your Google account and to use some features. Power off your phone1.2.3 Hold down the Power key until the phone options appear, select Power off. (1) Application availability depends on country and operator. IP4668_4007A_QG_Eng_USA_04_130613.indd 5-6IP4668_4007A_QG_Eng_USA_04_130613.indd 5-62013-6-13 15:23:532013-6-13 15:23:53 78 Home screen1.3 You can bring all the items (applications, shortcuts, folders and widgets) you love or use most frequently to your home screen for quick access. Press Home key to switch to Home screen. Status bar Status/Notification indicators • Touch and Drag down to open • notification panel. Application tab Touch to open applications list. Press and hold to display thumbnails. Touch to access Messaging Touch to place a call/access Call log if you have missed call(s). Search bar Touch n to enter Search options: Web, Apps, Contacts, etc. Touch o to enter voice search screen. Touch an icon to open an application, folder, etc. o n Home screen is provided in an extended format to allow more space for adding applications, shortcuts etc. Slide the Home screen horizontally left and right to get a complete view of the Home screen. Small dots at the lower left and right of the screen indicate which screen you are viewing. Using the touchscreen1.3.1 Touch To access an application, touch it with your finger. Touch and Hold To enter the available options for an item, touch and hold the item. For example, select a contact in Contacts, touch and hold this contact, options list will then appear on screen. Drag Place your finger on the screen to drag an object to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages... at your convenience. Flick Similar to swiping, but flicking makes it move quicker. Pinch/Spread Place your fingers of one hand on the screen surface and draw them apart or together to scale an element on the screen. Status bar1.3.2 From status bar, you can view both phone status (to the right side) and notification information (to the left side). When the status bar is full, “ ” icon will…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-05-17 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD373 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-5-15 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

FCC ID: RAD373 Label

No.2013SAR00071 Page 1 of 254 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00071 For TCT Mobile Limited HSDPA/HSUPA/UMTS dualband / GSM quad bands mobile phone Model name: Pixo US Marketing name: ONE TOUCH 4007A With Hardware Version: PIO Software Version: vK11 FCC ID: RAD373 Issued Date: 2013-06-08 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00071 Page 2 of 254 Revision Version Report Number Revision Date Memo 2013SAR00071 00 2013-05-16 Initial creation of test report 2013SAR00071 01 2013-06-04 Add the power tolerance for HSUPA on page 23 2013SAR00071 02 2013-06-07 1. Update the power tolerance for WCDMA and HSUPA in table 11.3 on page 23 2. Update the reported SAR for WCDMA 2013SAR00071 03 2013-06-08 1. Update the power tolerance for WCDMA in table 11.3 on page 23 2. Retest the conducted power for WCDMA in table 11.7 on page 25 3. Update the reported SAR for WCDMA No. 2013SAR00071 Page 3 of 254 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 15 8.1 SYSTEM SETUP ............................................................................................................................................. 15 8.2 SYSTEM VERIFICATION ................................................................................................................................. 16 9 MEASUREMENT PROCEDURES .............................................................................................. 17 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 17 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 18 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 19 9.4 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 20 9.5 POWER DRIFT ............................................................................................................................................... 20 10 AREA SCAN BASED 1-G SAR ................................................................................................. 21 10.1 REQUIREMENT OF KDB ..........................…

Text truncated - open the document above for the full version.

No. 2013SAR00071 Page 64 of 254 850 Body Toward Ground Low with EGPRS Date: 2013-1- 19 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used: f = 825 MHz; σ = 0.977 mho/m; εr = 55.694; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: GSM 850 EGPRS Frequency: 824.2 MHz Duty Cycle: 1:2.67 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground Low/Area Scan (61x101x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 19.130 V/m; Power Drift = 0.09 dB Fast SAR: SAR(1 g) = 0.788 W/kg; SAR(10 g) = 0.544 W/kg Maximum value of SAR (interpolated) = 0.838 W/kg Fig. 22 850 MHz CH128 No. 2013SAR00071 Page 65 of 254 850 Body Toward Ground High with Headset CCB3160A11C6 Date: 2013-5- 2 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 1.007 mho/m; εr = 56.01; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(9.04, 9.04, 9.04) Toward Ground High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.835 W/kg Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.353 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.760 W/kg; SAR(10 g) = 0.540 W/kg Maximum value of SAR (measured) = 0.792 W/kg Fig.23 850 MHz CH251 No. 2013SAR00071 Page 66 of 254 850 Body Toward Ground High with Headset CCB3160A11C4 Date: 2013-1- 19 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 1.003 mho/m; εr = 55.451; ρ = 1000 kg/m 3 Ambient Temperature: 22.4 o C Liquid Temperature: 21.9 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(6.14, 6.14, 6.14) Toward Ground High/Area Scan (61x101x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 14.651 V/m; Power Drift = -0.08 dB Fast SAR: SAR(1 g) = 0.375 W/kg; SAR(10 g) = 0.258 W/kg Maximum value of SAR (interpolated) = 0.400 W/kg Fig. 24 850 MHz CH251 No. 2013SAR00071 Page 67 of 254 1900 Left Cheek High Date: 2013-1- 21 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.419 mho/m; εr = 39.336; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek High/Area Scan (61x91x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 6.684 V/m; Power Drift = 0.15 dB Fast SAR: SAR(1 g) = 0.293 mW/g; SAR(10 g) = 0.175 mW/g Maximum value of SAR (interpolated) = 0.324 mW/g Fig. 25 1900 MHz CH810 No. 2013SAR00071 Page 68 of 254 1900 Left Cheek Middle Date: 2013-1- 21 Electronics: DAE4 Sn771 Medium: Head GSM1900 Medium parameters used: f = 1880 MHz; σ = 1.391 mho/m; εr = 39.448; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek Middle/Area Scan (61x91x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 6.979 V/m; Power Drift = -0.04 dB Fast SAR: SAR(1 g) = 0.276 mW/g; SAR(10 g) = 0.163 mW/g Maximum value of SAR (interpolated) = 0.316 mW/g Fig. 26 1900 MHz CH661 No. 2013SAR00071 Page 69 of 254 1900 Left Cheek Low Date: 2013-1- 21 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.361 mho/m; εr = 39.541; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Cheek Low/Area Scan (61x91x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 6.677 V/m; Power Drift = 0.12 dB Fast SAR: SAR(1 g) = 0.283 mW/g; SAR(10 g) = 0.158 mW/g Maximum value of SAR (interpolated) = 0.326 mW/g Fig. 27 1900 MHz CH512 No. 2013SAR00071 Page 70 of 254 1900 Left Tilt High Date: 2013-1- 21 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1910 MHz; σ = 1.419 mho/m; εr = 39.336; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz Frequency: 1909.8 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Tilt High/Area Scan (61x91x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 9.304 V/m; Power Drift = 0.15 dB Fast SAR: SAR(1 g) = 0.162 mW/g; SAR(10 g) = 0.089 mW/g Maximum value of SAR (interpolated) = 0.179 mW/g Fig. 28 1900 MHz CH810 No. 2013SAR00071 Page 71 of 254 1900 Left Tilt Middle Date: 2013-1- 21 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.391 mho/m; εr = 39.448; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Tilt Middle/Area Scan (61x91x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 9.764 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 0.163 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (interpolated) = 0.181 mW/g Fig. 29 1900 MHz CH661 No. 2013SAR00071 Page 72 of 254 1900 Left Tilt Low Date: 2013-1- 21 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.361 mho/m; εr = 39.541; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: GSM 1900MHz Frequency: 1850.2 MHz Duty Cycle: 1:8.3 Probe: ES3DV3 - SN3149 ConvF(5.19, 5.19, 5.19) Tilt Low/Area Scan (61x91x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 9.434 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 0.142 mW/g; SAR(10 g) = 0.079 mW/g Maximum value of SAR (interpolated) = 0.157 mW/g Fig. 30 1900 MHz CH512 No. 2013SAR00071 Page 73 of…

Text truncated - open the document above for the full version.

No. 2013SAR00071 Page 127 of 254 WCDMA 1900 Body Towards Phantom High Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1907.6 MHz; σ = 1.519 mho/m; εr = 52.218; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Phantom High/Area Scan (61x111x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 9.652 V/m; Power Drift = -0.10 dB Fast SAR: SAR(1 g) = 0.762 mW/g; SAR(10 g) = 0.456 mW/g Maximum value of SAR (interpolated) = 0.833 mW/g Fig. 80 WCDMA1900 CH9538 No. 2013SAR00071 Page 128 of 254 WCDMA 1900 Body Towards Ground High Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1907.6 MHz; σ = 1.519 mho/m; εr = 52.218; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Toward Ground High/Area Scan (61x111x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.853 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.102 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.208 mW/g SAR(1 g) = 0.780 mW/g; SAR(10 g) = 0.497 mW/g Maximum value of SAR (measured) = 0.845 mW/g 0 dB = 0.853 mW/g = -1.38 dB mW/g Fig. 81 WCDMA1900 CH9538 No. 2013SAR00071 Page 129 of 254 WCDMA 1900 Body Left Side High Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1907.6 MHz; σ = 1.519 mho/m; εr = 52.218; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Left Side High/Area Scan (61x111x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 8.249 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 0.107 mW/g; SAR(10 g) = 0.061 mW/g Maximum value of SAR (interpolated) = 0.121 mW/g Fig. 82 WCDMA1900 CH9538 No. 2013SAR00071 Page 130 of 254 WCDMA 1900 Body Right Side High Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1907.6 MHz; σ = 1.519 mho/m; εr = 52.218; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Right Side High/Area Scan (61x111x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 10.511 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 0.184 mW/g; SAR(10 g) = 0.104 mW/g Maximum value of SAR (interpolated) = 0.210 mW/g Fig. 83 WCDMA1900 CH9538 No. 2013SAR00071 Page 131 of 254 WCDMA 1900 Body Bottom Side High Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1907.6 MHz; σ = 1.519 mho/m; εr = 52.218; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1907.6 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side High/Area Scan (61x111x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 27.014 V/m; Power Drift = -0.03 dB Fast SAR: SAR(1 g) = 0.903 mW/g; SAR(10 g) = 0.475 mW/g Maximum value of SAR (interpolated) = 1.05 mW/g Fig. 84 WCDMA1900 CH9538 No. 2013SAR00071 Page 132 of 254 WCDMA 1900 Body Bottom Side Middle Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.491 mho/m; εr = 52.333; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1880 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side Middle/Area Scan (61x111x1): Measurement grid: dx=10 mm, dy=10 mm Reference Value = 27.135 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 0.893 mW/g; SAR(10 g) = 0.473 mW/g Maximum value of SAR (interpolated) = 1.03 mW/g Fig. 85 WCDMA1900 CH9400 No. 2013SAR00071 Page 133 of 254 WCDMA 1900 Body Bottom Side Low Date: 2013- 1- 21 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.46 mho/m; εr = 52.461; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA 1900 Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.64, 4.64, 4.64) Bottom Side Low/Area Scan (61x111x1): Measurement grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 1.13 mW/g Bottom Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.472 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.567 mW/g SAR(1 g) = 0.990 mW/g; SAR(10 g) = 0.562 mW/g Maximum value of SAR (measured) = 1.11 mW/g Fig. 86 WCDMA1900 CH9262 No. 2013SAR00071 Page 134 of 254 Fig. 86-1 Z-Scan at power reference point (WCDMA1900 CH9262) No. 2013SAR00071 Page 135 of 254 WCDMA 1900 Body Bottom Side Low with battery CCB3160A11C6 Date: 2013-5- 3 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.48 mho/m; εr = 51.874; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: WCDMA 1900 Frequency: 1852.4 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(7.37, 7.37, 7.37) Bottom Side Low/Area Scan (61x111x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.889 W/kg Bottom Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 24.403 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.799 W/kg; SAR(10 g) = 0.457 W/kg Maximum value of SAR (measured) = 0.879 W/kg Fig.87 WCDMA1900 CH9262 No. 2013SAR00071 Page 136 of 254 WCDMA 1900 Body Bottom Side High with Headset CCB3160A11C4 Date: 2013- 1- 21 Electronics: DAE4 Sn771 Mediu…

Text truncated - open the document above for the full version.

No. 2013SAR00071 Page 190 of 254 No. 2013SAR00071 Page 191 of 254 No. 2013SAR00071 Page 192 of 254 No. 2013SAR00071 Page 193 of 254 No. 2013SAR00071 Page 194 of 254 No. 2013SAR00071 Page 195 of 254 No. 2013SAR00071 Page 196 of 254 ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. 2013SAR00071 Page 197 of 254 No. 2013SAR00071 Page 198 of 254 No. 2013SAR00071 Page 199 of 254 No. 2013SAR00071 Page 200 of 254 No. 2013SAR00071 Page 201 of 254 No. 2013SAR00071 Page 202 of 254 No. 2013SAR00071 Page 203 of 254 No. 2013SAR00071 Page 204 of 254 1900 MHz Dipole Calibration Certificate No. 2013SAR00071 Page 205 of 254 No. 2013SAR00071 Page 206 of 254 No. 2013SAR00071 Page 207 of 254 No. 2013SAR00071 Page 208 of 254 No. 2013SAR00071 Page 209 of 254 No. 2013SAR00071 Page 210 of 254 No. 2013SAR00071 Page 211 of 254 No. 2013SAR00071 Page 212 of 254 2450 MHz Dipole Calibration Certificate No. 2013SAR00071 Page 213 of 254 No. 2013SAR00071 Page 214 of 254 No. 2013SAR00071 Page 215 of 254 No. 2013SAR00071 Page 216 of 254 No. 2013SAR00071 Page 217 of 254 No. 2013SAR00071 Page 218 of 254 No. 2013SAR00071 Page 219 of 254 No. 2013SAR00071 Page 220 of 254 ANNEX I SPOT CHECK TEST As the test lab for ONE TOUCH 4007A from TCT Mobile Limited, we, TMC Beijing, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. SAR Values (GSM 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Left Touch TLi014A1 0.549 0.469 SAR Values (GSM 850 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 GPRS Ground 10 TLi014A1 0.995 0.810 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1880 661 Right Touch TLi014A1 0.672 0.542 SAR Values (PCS 1900 MHz Band - Body) Frequency Mode/Band Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1909.8 810 GPRS Bottom 10 TLi014A1 0.850 0.511 SAR Values (WCDMA 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 836.4 4182 Left Touch TLi014A1 0.652 0.366 SAR Values (WCDMA 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 836.4 4182 Ground 10 TLi014A1 1.05 0.923 SAR Values (WCDMA 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1852.4 9262 Right Touch TLi014A1 1.03 0.839 SAR Values (WCDMA 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1852.4 9262 Bottom 10 TLi014A1 0.990 0.952 No. 2013SAR00071 Page 221 of 254 850 Left Cheek High Date: 2013-5- 2 Electronics: DAE4 Sn771 Medium: Head 835 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.926 mho/m; εr = 41.11; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System: GSM 850 Frequency: 848.8 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(9.18, 9.18, 9.18) Cheek High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.484 W/kg Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.109 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.585 W/kg SAR(1 g) = 0.469 W/kg; SAR(10 g) = 0.344 W/kg Maximum value of SAR (measured) = 0.492 W/kg Fig.I.1 850MHz CH251 No. 2013SAR00071 Page 222 of 254 850 Body Toward Ground High with GPRS Date: 2013-5- 2 Electronics: DAE4 Sn771 Medium: Body 835 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 1.007 mho/m; εr = 56.01; ρ = 1000 kg/m 3 Ambient Temperature: 22.5 o C Liquid Temperature: 22.0 o C Communication System…
