RAD379GSM dual band mobile phone

1 8 2 9 3 10 4 11 5 12 6 13 7 14 13 ALCATEL 7.5.3 Activated Press the switch On/Off to activate the default SOS function. 7.6 Voice Assist Dialing Switch On/Off to choose if activate the Voice Assist Dialing. 7.7 Call log You can access your call memory by pressing from the idle screen, and you will see Outgoing call(s), missed call(s) and Answered call(s). 7.8 Services Contact your network operator to check service availability. 7.9 Camera Your mobile phone is fitted with a camera for taking photos and shooting videos that you can use in different ways: • store them as your creations in SD card or phone. • send them in a multimedia message (MMS) to a mobile phone. • send them directly by MMS, Bluetooth. • customize your Home screen. 7.10 Weather (1) Your phone is equipped with a weather function for consulting up to 3-day forecast of favorite cities. 7.11 Bluetooth™ Access this feature by pressing through Send key from the Home screen to enter the main menu, then selecting "Others\Bluetooth". 7.2 FM Radio Your phone is equipped with a radio (1) with RDS (2) functionality. You can use the application as a traditional radio with saved channels or with parallel visual information related to the radio program on the display, if you tune to stations that offer Visual Radio service. You can listen to it while running other applications. 7.3 Calendar Once you enter this menu from "Others", there is a monthly-view calendar for you to keep track of important meetings, appointments, etc. 7.4 Voice alarm With this menu,you may create the voice file and set it as the alarm. 7.5 SOS When enter in SOS, press "Help" will pop up help information. 7.5.1 SOS contacts To add an SOS number to your SOS contacts, please select "select "Others\SOS\SOS contacts\No contact" and press "Edit", then you can edit your SOS numbers (5 numbers can be defined). 7.5.2 SOS message From the main menu select "Others\SOS\SOS message" to create an SOS message. When required, a long press (2 seconds) of the button will send out your pre-set SOS message automatically and emit a loud alert sound, the backlight will flash at the same time. Once an SOS message is sent, the phone will dial the pre-set SOS numbers automatically. Any call is answered or press again, SOS will be deactivated. 1 Your mobile ................... 1.1 Keys From Idle screen: Press: Access Weather• From Idle screen: Access main menu• Send key Answer/Send a call• Press: Enter Call log (From Idle screen)• Press to confirm an option• Press: End a call • Return to the Home screen Delete character (In Edit mode) Press and hold: Power on/off• Press and hold: Access your voicemail• From Idle screen Press: 0• Press and hold: “+/P/W”• In Edit mode Press: Access symbols table• Press and hold: 0• From Idle screen Press: *• In Edit mode: Press: Change input methods • Press and hold: Access language list• From Idle screen Press: #• In Edit mode Press: • (space) Press: Access Camera Press: Access Music Press: Access FM radio Press: Access Voice alarm 1.2 Status bar icons (1) Battery charge level. Vibrate alert: your phone vibrates, but does not ring or beep with the exception of the alarm. Call forwarding activated: your calls are forwarded. Alarm or appointments program. Level of network reception. Missed calls. Radio is on. Roaming. SMS unread. Silence mode: your phone does not ring, beep or vibrate with the exception of the alarm. (Flickering) Message list is full: your phone cannot accept any new messages. You must access the message list and delete at least one message on your SIM card. Flight mode. Bluetooth status (Activated). Bluetooth status (Connected to an audio device). GPRS connection status (Activated). GPRS connecting. MMS unread. 2 Getting started ............ 2.1 Set-up Removing or installing the back cover Installing or removing the battery Insert and click the battery into place, then close the telephone cover. Unclip the cover, then remove the battery. Inserting or removing the SIM card You must insert your SIM card to make phone calls. Place the SIM card with the chip facing downwards and slide it into its housing. Make sure that it is correctly inserted. To remove the card, press and slide it out. (1) The icons and illustrations in this guide are provided for informational purposes only. (1) The quality of the radio depends on the coverage of the radio station in that particular area. (2) Depending on your network operator and market. Charging the battery Connect the battery charger to your phone and outlet respectively. To reduce power consumption and energy waste, when battery is fully charged, disconnect your charger from the plug; switch off Bluetooth when not in use; reduce the backlight time, etc. 2.2 Power on your phone Hold down the key until the telephone powers on. 2.3 Power off your phone Hold down the key from the Home screen. 3 Calls .............................. 3.1 Making a call Dial the desired number then press the key to place the call. If you make a mistake, you can delete the incorrect digits by pressing the key. To hang up the call, press the key. Making an emergency call If your phone is covered by the network, dial emergency number and press the key to make an emergency call. This works even without a SIM card and without typing the PIN code or unlocking the keypad. 3.2 Calling your voicemail (1) To access your voicemail, hold down the key. 3.3 Receiving a call When you receive an incoming call, press the key to talk and then hang up using the key. 4 Messages ................. 4.1 Write message From the main menu select "Messages" to create a text/multimedia message. While writing a message, select "Options" to access all the messaging options. An SMS will be converted to MMS automatically when images, videos, audio, slides or attachments are inserted. You can save any messages that you send often to "Drafts". An SMS message of more than a certain number of characters (the number of characters depends on your language) will be…

Text truncated - open the document above for the full version.

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-7-10 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 2013-07-10 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD379 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

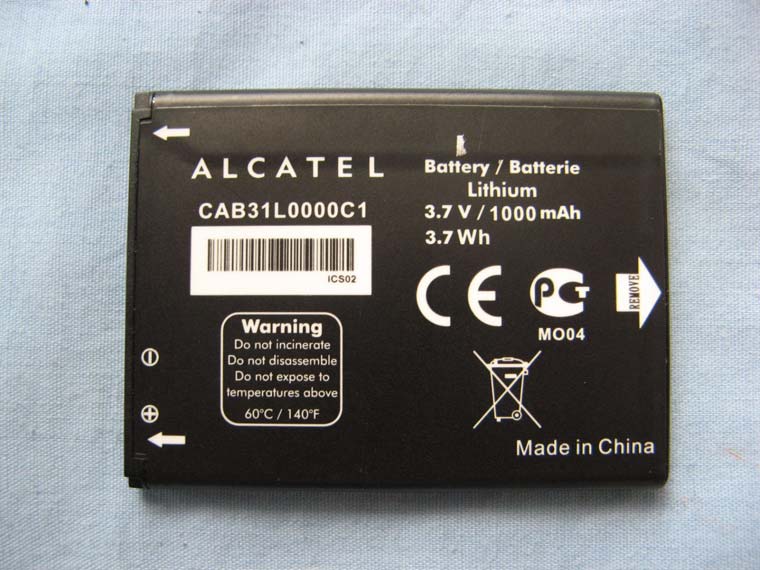

EUT photograph Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 USB Cable AE5 USB Cable AE6 USB Cable AE7 USB Cable AE8 Headset AE9 Headset AE10 Headset AE11 Headset AE12

EUT Interior photograph Mobile Phone Mobile Phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly Mobile phone Disassembly

No.2013TAR526 Page 1 of 22 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2013TAR526 for TCT Mobile Limited GSM dual band mobile phone Model Name: Tango Plus US Marketing Name: ALCATEL 2001A FCC ID: RAD379 with Hardware Version: Proto Software Version: vA15 Issued Date: Jul. 19 th , 2013 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAkks accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633-2561 , Fax:+86(0)10-62304633-2504 Email:[email protected]. www.emcite.com No.2013TAR526 Page 2 of 22 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. EUT SET-UPS ..................................................................................................................... 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 11 No.2013TAR526 Page 3 of 22 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Location D Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No.18A, Kangding Street, Beijing Economic-Technological Development Area, Beijing, China Postal Code: 100176 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Jul. 04 th , 2012 Testing End Date: Jul. 05 th , 2013 1.4. Signature Qu Pengfei (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2013TAR526 Page 4 of 22 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Contact Person: Gong Zhizhou Contact Email [email protected] Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No.2013TAR526 Page 5 of 22 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM dual band mobile phone Model Name Tango Plus US Marketing Name ALCATEL 2001A FCC ID RAD379 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MIIT of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version EUT1 013765000000060 Proto vA15 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 Battery / AE2 Battery / AE3 Travel charger / AE4 Travel charger / AE5 USB cable / AE6 USB cable / AE7 USB cable / AE8 USB cable / AE1 Model CAB31L0000C1 Manufacturer BYD Capacitance 1000 mAh Nominal voltage 3.7 V AE2 Model CAB31L0000C2 Manufacturer BAK Capacitance 1000 mAh Nominal voltage 3.7 V AE3 Model CBA3007AG0C1 Manufacturer BYD Length of cable / No.2013TAR526 Page 6 of 22 ©Copyright. All rights reserved by TMC Beijing. AE4 Model CBA3007AG0C2 Manufacturer Tenpao Length of cable / AE5 Model CDA3122002C1 Manufacturer Juwei Le…

Text truncated - open the document above for the full version.

FDD ID RAD379 Conducted emission RE Radiated Spurious Emission
