one touch M800O Quick Start Guide Welcome! This manual brief is the profile of your modem, it is a removable device for wireless internet access and data service. 1. Getting to Know Your Modem A. SIM/USIM Card B. Antenna C. PCIE Interface 2. How to start your modem 3. Your modem key features a) Up to 100Mbps DL and 50Mbps UL b) Rx Diversity c) MMS/SMS d) Phonebook e) Support Android 2.2/2.3/3.0/4.0/4.1 4. Safety and Use We recommend that you read this chapter carefully before using the modem. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of the modem or of use contrary to the instructions contained herein. Traffic Safety When driving, do not use the modem  When switched on, the modem emits electromagnetic waves that can interfere with the vehicle’s electronic systems such as ABS anti‐lock brakes or airbags. To ensure that there is no problem, do not place your tablet with the modem on top of the dashboard or within an airbag deployment area.  Check with your car dealer or the car manufacturer to make sure that the dashboard is adequately shielded from modem RF energy. Insert SIM card Into modem Power off your Tablet Plug the modem into your Tablet Power on your Tablet Conditions of Use  Switch the modem off before boarding an aircraft.  Switch the modem off when you are in health care facilities, except in designated areas. As with many other types of equipment now in regular use, the modem can interfere with other electrical or electronic devices, or equipment‐using radio frequencies.  Switch the modem off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, petrol station, chemical plant, or in any potentially explosive atmosphere.  When the modem is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump, etc.  Do not let children use the modem without supervision.  When replacing the cover, please note that the modem may contain substances that could create an allergic reaction.  Always handle the modem with care and keep it in a clean and dust‐free place.  Do not allow the modem to be exposed to adverse weather or environmental conditions (moisture, humidity, rain, infiltration of liquids, dust, sea air, etc). The manufacturer’s recommended operating temperature range is ‐10°C to +50°C.  Do not open, dismantle or attempt to repair the modem yourself.  Do not drop, throw or bend the modem.  Do not paint it. WEEE Approval The modem is in compliance with the essential requirements and other relevant provisions of the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE Directive). They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused. In European Union countries: These collection points are accessible free of charge. All products with this sign must be brought to these collection points. In non European Union jurisdictions: Items of equipment with this symbol are not to be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. This symbol on device means that these products must be taken to collection points at the end of their life: ‐ Municipal waste disposal centres with specific bins for these items of equipment ‐ Collection bins at points of sale. RoHs Approval The modem is in compliance with the restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2011/65/EU (RoHs Directive). Certification FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This may not cause harmful interference, and (2) this must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modification…

Text truncated - open the document above for the full version.

Rev. 1/1/03 TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road,Zhangjiang High-Tech Park, Pudong,Shanghai,China Tel: +86(0)2161460890 ; Fax: +86(0)2161460600 Date: November 29, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RAD382 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Zhizhou Gong

TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road,Zhangjiang High-Tech Park, Pudong,Shanghai,China Tel: +86(0)2161460890 ; Fax: +86(0)2161460600 Date: November 29, 2013 Power of Attorney To whom it may concern, Please be notified that I, Zhizhou Gong, have designated Michael Lin in Sporton International Inc. as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: RAD382 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Zhizhou Gong Company: TCT Mobile Limited TEL: +86(0)2161460890 FAX: +86(0)2161460600 E-mail: [email protected]

1/1 TCT Mobile Limited Date: November 29, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : RAD382 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which TCT Mobile Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Zhizhou Gong Company: TCT Mobile Limited TEL: +86(0)2161460890 FAX: +86(0)2161460600 E-mail: [email protected]

TCT Mobile Limited 5F, C building, No. 232, Liang Jing Road,Zhangjiang High-Tech Park, Pudong,Shanghai,China Tel: +86(0)2161460890 ; Fax: +86(0)2161460600 Date: November 29, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: RAD382 To Whom It May Concern: We, TCT Mobile Limited, declare that one touch M800O I/O connect can only support charging. It can’t support USB with PC for data transfer. Sincerely, ________________________ Zhizhou Gong

Applicant/Grantee TCT Mobile Limited / RAD FCC ID: RAD382 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of this module has been shielded, please see exhibition external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered data inputs stage has been integrated in chip WTR1605L+MDM9215 Y 3 The modular transmitter must have its own power supply regulation. The part number of the power regulator is PM8018. Please see the schem.pdf Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The requirements of antenna connector and spurious emission have been fulfilled, please refer to the Test Report exhibition. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Please refer to the Setup Photo exhibition for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The GSM/GPRS/EGPRS/WCDMA/LTE Module will be labeled with its own FCC ID, and the instruction on the labeling rule of the end product has been stated in the User Manual of this module. Please refer to the Label and User Manual exhibition. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the User Manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Y Zhizhou Gong

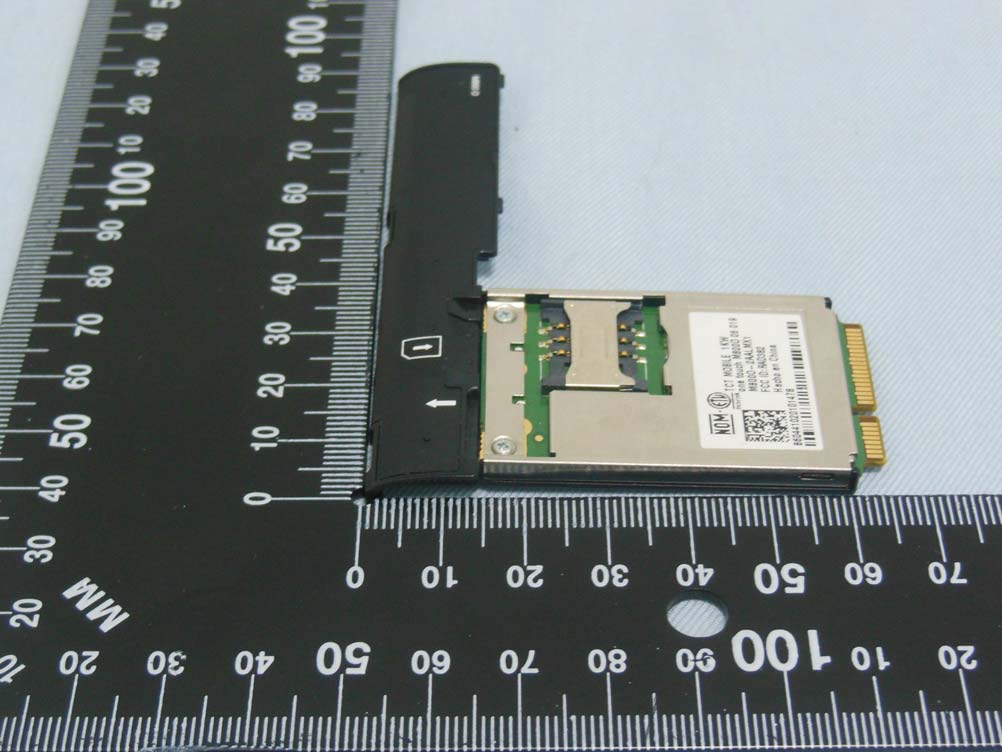

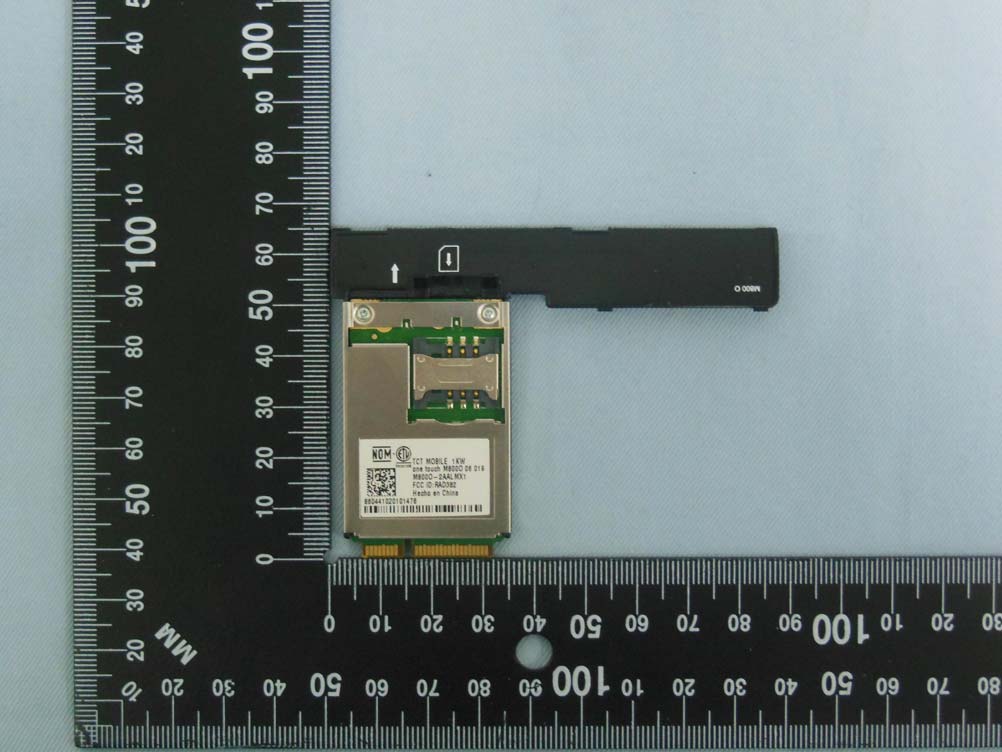

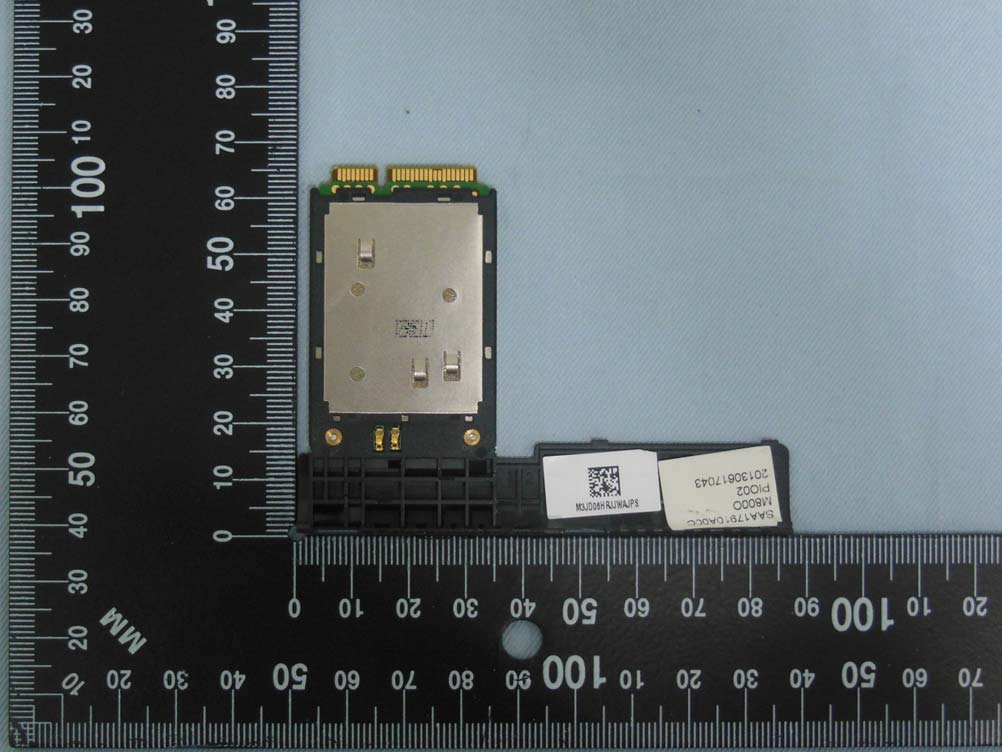

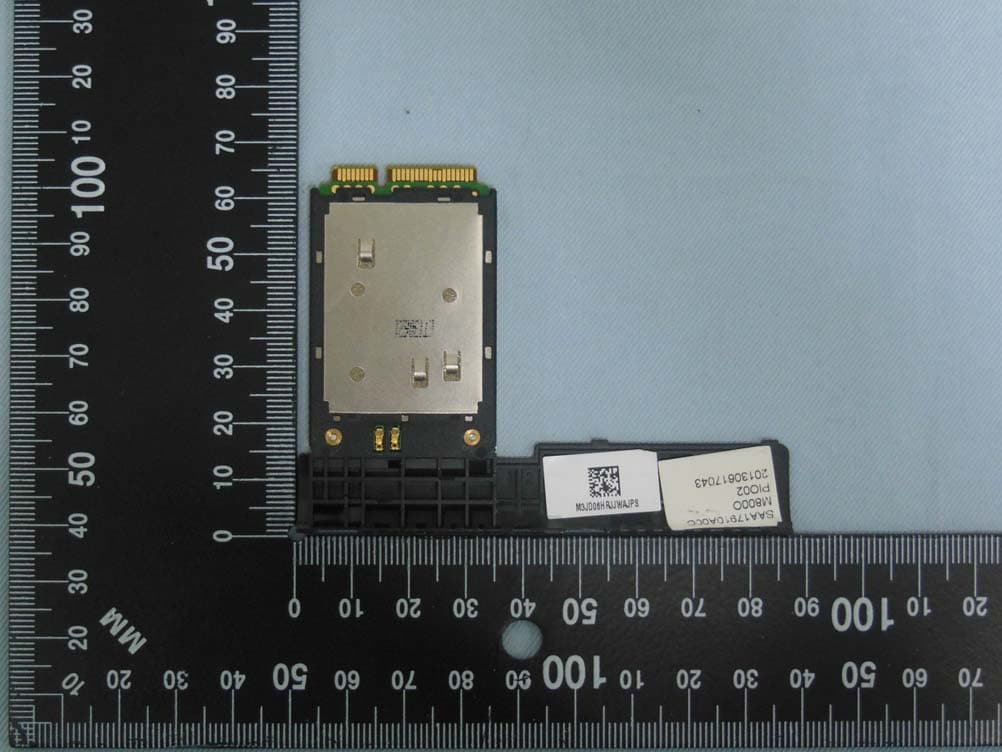

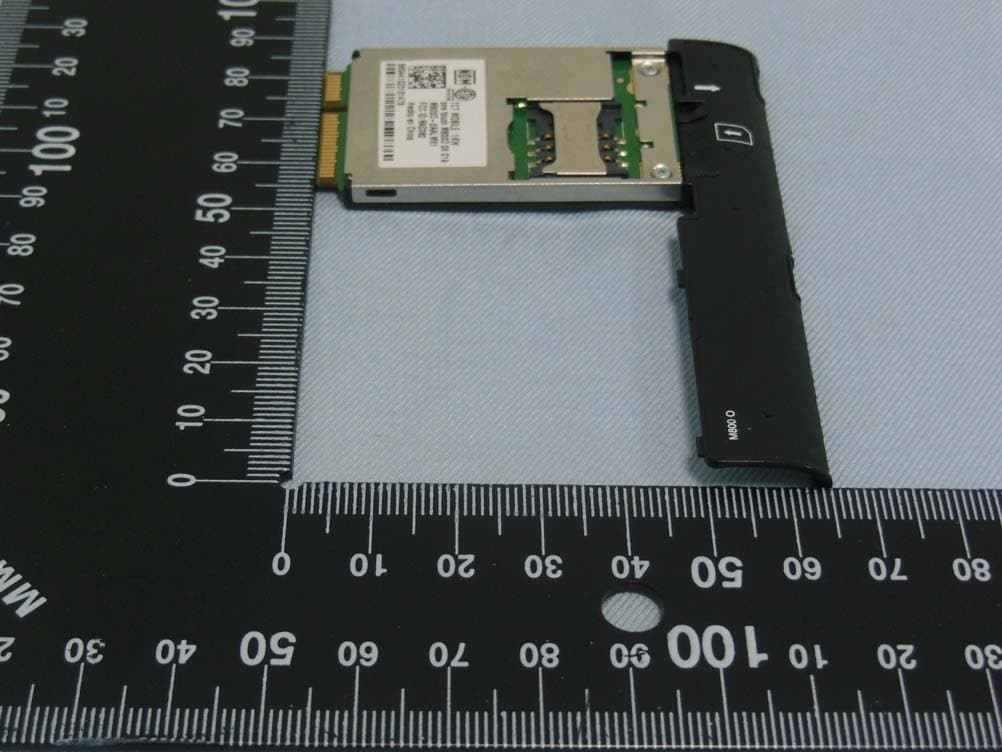

Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01

Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 2. Internal Photograph of EUT WWAN Antenna Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 Photographs of EUT Report No.: EP361310 Brand Name: ALCATEL/one touch; Model Name: one touch M800O SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 16 TEL : 86-755- 3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 WWAN Antenna <Tx / Rx>

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 23 TEL : +86-755-8637-9589 Report Issued Date : Dec. 02, 2013 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID : RAD382 RF Exposure Evaluation Report Report No. : FA361310 RF Exposure Evaluation Report APPLICANT : TCT Mobile Limited EQUIPMENT : Module BRAND NAME : ALCATEL MODEL NAME : one touch M800O FCC ID : RAD382 FILING TYPE : Certification STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 23 TEL : +86-755-8637-9589 Report Issued Date : Dec. 02, 2013 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID : RAD382 RF Exposure Evaluation Report Report No. : FA361310 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 1.2. Applicant ............................................................................................................................................ 4 1.3. Manufacturer ...................................................................................................................................... 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. CONDUCTED RF OUTPUT POWER (UNIT: DBM) .................................................................................. 11 5. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................. 22 6. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................. 23 6.1. Standalone Power Density Calculations ......................................................................................... 23 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 23 TEL : +86-755-8637-9589 Report Issued Date : Dec. 02, 2013 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID : RAD382 RF Exposure Evaluation Report Report No. : FA361310 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA361310 Rev. 01 Initial issue of report Dec. 02, 2013 SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 23 TEL : +86-755-8637-9589 Report Issued Date : Dec. 02, 2013 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID : RAD382 RF Exposure Evaluation Report Report No. : FA361310 1. Administration Data 1.1. Testing Laboratory Test Site SPORTON INTERNATIONAL (SHENZHEN) INC. Test Site Location No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. TEL: +86-755-8637-9589 FAX: +86-755-8637-9595 1.2. Applicant Company Name TCT Mobile Limited Address 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 1.3. Manufacturer Company Name TCL COMMUNICATION TECHNOLOGY HOLDINGS LIMITED Address 70 Huifeng 4rd., ZhongKai Hi-tech Development District, Huizhou, Guangdong 516006 P. R. China (TCL Mobile Communication Co., LTD. Huizhou) SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 23 TEL : +86-755-8637-9589 Report Issued Date : Dec. 02, 2013 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID : RAD382 RF Exposure Evaluation Report Report No. : FA361310 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Module Brand Name ALCATEL Model Name one touch M800O FCC ID RAD382 Wireless Technology and Frequency Range GSM850 : 824.2 MHz ~ 848.8 MHz GSM1900 : 1850.2 MHz ~ 1909.8MHz WCDMA Band V : 826.4 MHz ~ 846.6 MHz WCDMA Band IV : 1712.4 MHz ~ 1752.6 MHz WCDMA Band II : 1852.4 MHz ~ 1907.6 MHz LTE Band 2 : 1850.7 MHz ~ 1909.3 MHz LTE Band 4 : 1710.7 MHz ~ 1754.3 MHz LTE Band 5 : 824.7 MHz ~ 848.3 MHz LTE Band 7 : 2506.5 MHz ~ 2534.5 MHz and 2556 MHz ~ 2567.5 MHz LTE Band 17 : 706.5 MHz ~ 713.5 MHz Mode •GPRS/EGPRS •RMC 12.2Kbps Rel 99 •HSDPA Rel 7, Cat14 •HSUPA Rel 6, Cat6 •DC-HSDPA Rel 8 Cat24 •HSPA+ Rel 7, Cat 7 •LTE: QPSK, 16QAM, 64QAM Antenna Type IFA Antenna HW Version V3.0 SW Version VL_131101_40J00B_40G000_070G0G_0041000(V) EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 23 TEL : +86-755-8637-9589 Report Issued Date : Dec. 02, 2013 FAX : +86-755-8637-9595 Report Version : Rev. 01 FCC ID : RAD382 RF Exposure Evaluation Report Report No. : FA361310 3. Maximum RF average output power among production units Mode GSM 850 GSM 1900 Average power(dBm) GPRS/EDGE (GMSK, 1 Tx slot) 33 30 GPRS/EDGE (GMSK, 2 Tx slots) 30 29 GPRS/EDGE (GMSK, 3 Tx slots) 28 25 GPRS/EDGE (GMSK, 4 Tx slots) 26.5 24 EDGE (8PSK, 1 Tx slot) 27 26.5 EDGE (8PSK, 2 Tx slots) 24 23 EDGE (8PSK, 3 Tx slots) 22 22 EDGE (8PSK, 4 Tx slots) 21 21 Mode WCDMA Band V WCDMA Band II WCDMA Band IV average power(dBm) RMC 12.2Kbps 23 23.5 22.5 HSDPA Subtest-1 22 22 22 HSDPA Subtest-2 22 22 22 HSDPA Subtest-3 22 22 22 HSDPA Subtest-4 22 22 22 DC-HSDPA Subtest-1 21 21 21 DC-HSDPA Subtest-2 21 21 21 DC-HSDPA Subtest-3 21 21 21 DC-HSDPA Subtest-4 21 20 20 HSUPA Subtest-1 21.5 21 20 HSUPA Subtest-2 21 21 20 HSUPA Subtest-3 20 20 19 HSUPA S…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 112 TEL : +86-755-3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 FCC RF Test Report Report No. : FG361310A FCC RF Test Report APPLICANT : TCT Mobile Limited EQUIPMENT : Module BRAND NAME : ALCATEL one touch MODEL NAME : one touch M800O FCC ID : RAD382 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E), 27(L) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Jun. 13, 2013 and testing was completed on Oct. 23, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. No. 3 Building, the third floor of south, Shahe River west, Fengzeyuan warehouse, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 112 TEL : +86-755-3320-2398 Report Issued Date : Dec. 02, 2013 FCC ID : RAD382 Report Version : Rev. 01 FCC RF Test Report Report No. : FG361310A TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ............................... 7 1.7 Testing Site ....................................................................................................................................... 7 1.8 Applied Standards ............................................................................................................................. 8 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9 2.1 Test Mode.......................................................................................................................................... 9 2.2 Connection Diagram of Test System .............................................................................................. 11 2.3 Support Unit used in test configuration and system ........................................................................ 11 2.4 Measurement Results Explanation Example .................................................................................. 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 Conducted Output Power Measurement ......................................................................................... 13 3.2 Peak-to-Average Ratio .................................................................................................................... 15 3.3 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 25 3.4 Occupied Bandwidth and 26dB Bandwidth Measurement .............................................................. 31 3.5 Band Ed…
