RAD395GSM/GPRS quadband mobile phone

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 Date 2013-05-09 To: Federal Communications Commission, Authorization & Evaluation Division, 7345 Oakland Mills Road Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC (Telecommunication Metrology Center of MIIT) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Gong Zhizhou Approval Team Leader TCT Mobile Limited

5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 TEL: +86(0)21 61460666 FAX: +86(0)21 61460602 5/8/2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: RAD364 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Zhizhou Gong Approval Team Leader TCT Mobile Limited

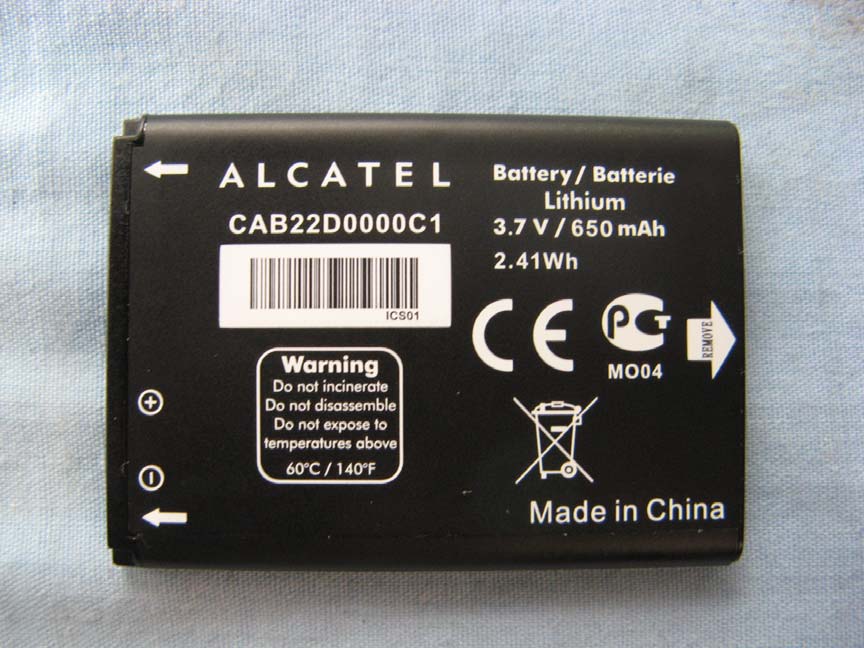

EUT photograph

FCC ID: RAD395 Label

EUT Interior photograph

No.2013SAR00064 Page 1 of 104 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2013SAR00064 For TCT Mobile Limited GSM/GPRS qua dband mobile phone Mode Name: Tigris 3SIM Marketing Name: ALCATEL 3000H With Hardware Version: PIO Software Version: VB20 FCC ID: RAD395 Issued Date: 201 3-05-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No. 2013SAR00064 Page 2 of 104 Revision Version Report Number Revision Date Memo 2013SAR00064 00 2013-05-10 Initial creation of test report No. 2013SAR00064 Page 3 of 104 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LO C AT I O N ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CLIENT INFORMATION ................................................................................................................ 7 3.1 APPLICANT INFORMATION .............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................ 9 5.1 APPLICABLE LIMIT REGULATIONS .................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS ...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 10 6.1 INTRODUCTION ............................................................................................................................................. 10 6.2 SAR DEFINITION .......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................ 14 8.1 SYSTEM SETUP ............................................................................................................................................. 14 8.2 SYSTEM VERIFICATION ................................................................................................................................. 15 9 MEASUREMENT PROCEDURES .............................................................................................. 16 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 16 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 17 9.3 POWER DRIFT ............................................................................................................................................... 18 10 AREA SCAN BASED 1-G SAR ................................................................................................. 19 10.1 REQUIREMENT OF KDB .............................................................................................................................. 19 10.2 FAST SAR ALGORITHMS ............................................................................................................................ 19 11 CONDUCTED OUTPUT POWER .............................................................................................. 20 11.1 MANUFACTURING TOLERANCE ................................................................................................................... 20 11.2 GSM MEASUREMENT RESULT .................................................................................................................... 21 No. 20…

Text truncated - open the document above for the full version.

No. 2013SAR00064 Page 69 of 104 No. 2013SAR00064 Page 70 of 104 No. 2013SAR00064 Page 71 of 104 No. 2013SAR00064 Page 72 of 104 No. 2013SAR00064 Page 73 of 104 Probe 3846 Calibration Certificate No. 2013SAR00064 Page 74 of 104 No. 2013SAR00064 Page 75 of 104 No. 2013SAR00064 Page 76 of 104 No. 2013SAR00064 Page 77 of 104 No. 2013SAR00064 Page 78 of 104 No. 2013SAR00064 Page 79 of 104 No. 2013SAR00064 Page 80 of 104 No. 2013SAR00064 Page 81 of 104 No. 2013SAR00064 Page 82 of 104 No. 2013SAR00064 Page 83 of 104 No. 2013SAR00064 Page 84 of 104 ANNEX H Dipole C alibration Certificate 835 MHz Dipole Calibration Certificate No. 2013SAR00064 Page 85 of 104 No. 2013SAR00064 Page 86 of 104 No. 2013SAR00064 Page 87 of 104 No. 2013SAR00064 Page 88 of 104 No. 2013SAR00064 Page 89 of 104 No. 2013SAR00064 Page 90 of 104 No. 2013SAR00064 Page 91 of 104 No. 2013SAR00064 Page 92 of 104 1900 MHz Dipole Calibration Certificate No. 2013SAR00064 Page 93 of 104 No. 2013SAR00064 Page 94 of 104 No. 2013SAR00064 Page 95 of 104 No. 2013SAR00064 Page 96 of 104 No. 2013SAR00064 Page 97 of 104 No. 2013SAR00064 Page 98 of 104 No. 2013SAR00064 Page 99 of 104 No. 2013SAR00064 Page 100 of 104 ANNEX I SPOT CHECK TEST As the test lab for ALCATEL 3000H from TCT Mobile Limited, we, TMC Beijing, declare on our sole responsibility that, according to “Declaration of changes” provided by applicant, only the Spot check test should be performed. The test results are as below. SAR Values (GSM 850 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 836.6 190 Left Touch CAB22D0000C1 0.604 0.559 SAR Values (GSM 850 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 848.8 251 Rear 10 CAB22D0000C1 0.918 0.655 SAR Values (PCS 1900 MHz Band - Head) Frequency Side Test Position Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1880 661 Right Touch CAB22D0000C1 0.783 0.686 SAR Values (PCS 1900 MHz Band - Body) Frequency Test Position Spacing (mm) Battery Type SAR(1g) (W/kg) MHz Ch. Original data Spot check data 1880 661 Rear 10 CAB22D0000C1 0.624 0.415 No. 2013SAR00064 Page 101 of 104 850 Left Cheek Middle Date: 2013-4-26 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.919 mho/m; εr = 40.861; ρ = 1000 kg/m 3 Ambient Temperature: 22.8 o C Liquid Temperature: 22.3 o C Communication System: GSM 850 Frequency: 836.6 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 – SN3846 ConvF(9.18, 9.18, 9.18) Cheek Middle/Area Scan (61x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.582 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.017 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.690 W/kg SAR(1 g) = 0.559 W/kg; SAR(10 g) = 0.412 W/kg Maximum value of SAR (measured) = 0.596 W/kg Fig. I.1 850MHz CH190 No. 2013SAR00064 Page 102 of 104 850 Body Rear High Date: 2013-4-26 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.992 mho/m; εr = 55.109; ρ = 1000 kg/m 3 Ambient Temperature: 22.8 o C Liquid Temperature: 22.3 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:2 Probe: EX3DV4 - SN3846 ConvF(9.04, 9.04, 9.04) Rear High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.704 W/kg Rear High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.421 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.863 W/kg SAR(1 g) = 0.655 W/kg; SAR(10 g) = 0.470 W/kg Maximum value of SAR (measured) = 0.692 W/kg Rear High/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.421 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.836 W/kg SAR(1 g) = 0.555 W/kg; SAR(10 g) = 0.377 W/kg Maximum value of SAR (measured) = 0.628 W/kg Fig. I.2 850 MHz CH251 No. 2013SAR00064 Page 103 of 104 1900 Right Cheek Middle Date: 2013-4-27 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.406 mho/m; εr = 39.418; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: GSM 1900MHz Frequency: 1880 MHz Duty Cycle: 1:8.3 Probe: EX3DV4 - SN3846 ConvF(8.01, 8.01, 8.01) Cheek Middle/Area Scan (61x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.791 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.451 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.686 W/kg; SAR(10 g) = 0.400 W/kg Maximum value of SAR (measured) = 0.756 W/kg Fig. I.3 1900 MHz CH661 No. 2013SAR00064 Page 104 of 104 1900 Body Rear Middle Date: 2013-4-27 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1880 MHz; σ = 1.512 mho/m; εr = 52.462; ρ = 1000 kg/m 3 Ambient Temperature: 22.6 o C Liquid Temperature: 22.1 o C Communication System: GSM 1900MHz GPRS Frequency: 1880 MHz Duty Cycle: 1:2 Probe: EX3DV4 - SN3846 ConvF(7.37, 7.37, 7.37) Rear Middle/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.440 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.910 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.691 W/kg SAR(1 g) = 0.415 W/kg; SAR(10 g) = 0.245 W/kg Maximum value of SAR (measured) = 0.452 W/kg Fig. I.4 1900 MHz CH661

No. 2013TAR372 Page1 of 72 TEST REPORT No. 2013TAR372 for TCT Mobile Limited GSM/GPRS quadband mobile phone Model Name: Tigris 3SIM Marketing Name：ALCATEL 3000H FCC ID : RAD 395 with Hardware Version: PIO Software Version: VB20 Issued Date: 2013-05-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. D-PL-12123-01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629B TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No. 2013TAR372 Page2 of 72 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. NORMAL ACCESSORY SETTING ............................................................................................... 6 3.5. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 7 5. LABORATORY ENVIRONMENT ..................................................................................................... 8 6. SUMMARY OF TEST RESULTS ....................................................................................................... 9 7. TEST EQUIPMENTS UTILIZED .................................................................................................... 10 ANNEX A: MEASUREMENT RESULTS ................................................................................................. 11 A.1 OUTPUT POWER ............................................................................................................................ 11 A.2 EMISSION LIMIT ........................................................................................................................... 17 A.3 CONDUCTED EMISSION ............................................................................................................. 23 A.4 FREQUENCY STABILITY ............................................................................................................... 30 A.5 OCCUPIED BANDWIDTH .............................................................................................................. 32 A.6 EMISSION BANDWIDTH ................................................................................................................ 40 A.7 BAND EDGE COMPLIANCE .......................................................................................................... 48 A.8 CONDUCTED SPURIOUS EMISSION............................................................................................ 52 No. 2013TAR372 Page3 of 72 1. T est Laboratory 1.1. T esting Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. T esting Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: 2013-05-05 Testing End Date: 2013-05-08 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No. 2013TAR372 Page4 of 72 2. Client Information 2.1. Applicant Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 5F, C building, No. 232, Liang Jing Road ZhangJiang High-Tech Park, Pudong Area Shanghai, P.R. China. 201203 City: Shanghai Postal Code: 201203 Country: China Telephone: 0086-21-61460890 Fax: 0086-21-61460602 No. 2013TAR372 Page5 of 72 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS quadba…

Text truncated - open the document above for the full version.

EUT Set-up photos 1． Radiated Spurious Emission 2． Conducted Emission(Charging)

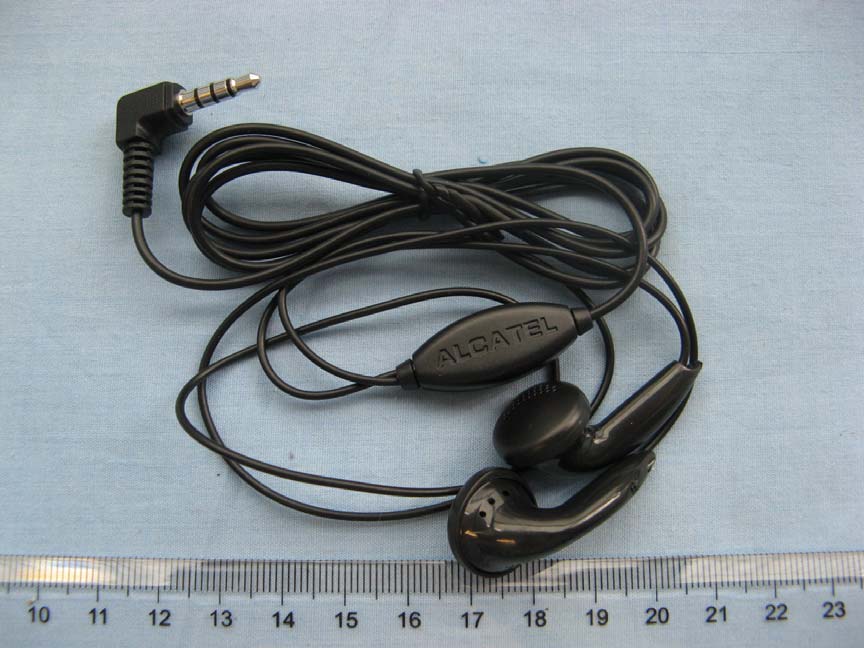

©Copyright. All rights reserved by TMC Beijing. The Photos of SAR test No. 2013SAR00064 For TCT Mobile Limited GSM/GPRS qua dband mobile phone Mode Name: Tigris 3SIM Marketing Name: ALCATEL 3000H With Hardware Version: PIO Software Version: VB20 FCC ID: RAD395 Issued Date: 201 3-05-10 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com Picture 1: Constituents of the sample Picture 2: Left Hand Touch Cheek Position Picture 3: Left Hand Tilt 15° Position Picture 4: Right Hand Touch Cheek Position Picture 5: Right Hand Tilt 15° Position Test positions for body: The Body SAR is tested at the following 2 test positions all with the distance =10mm between the EUT and the phantom bottom: Picture 6: Front - 10mm Picture 7: Rear - 10mm Picture 7-1 : Rear with Headset - 10mm
